Toyota Alphard G/V

2002-05 → 2008-04 · chassis ANH1#,MNH1# · catalogue 713120 · Japan

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

16 part groups · 4 illustrations

Illustrations

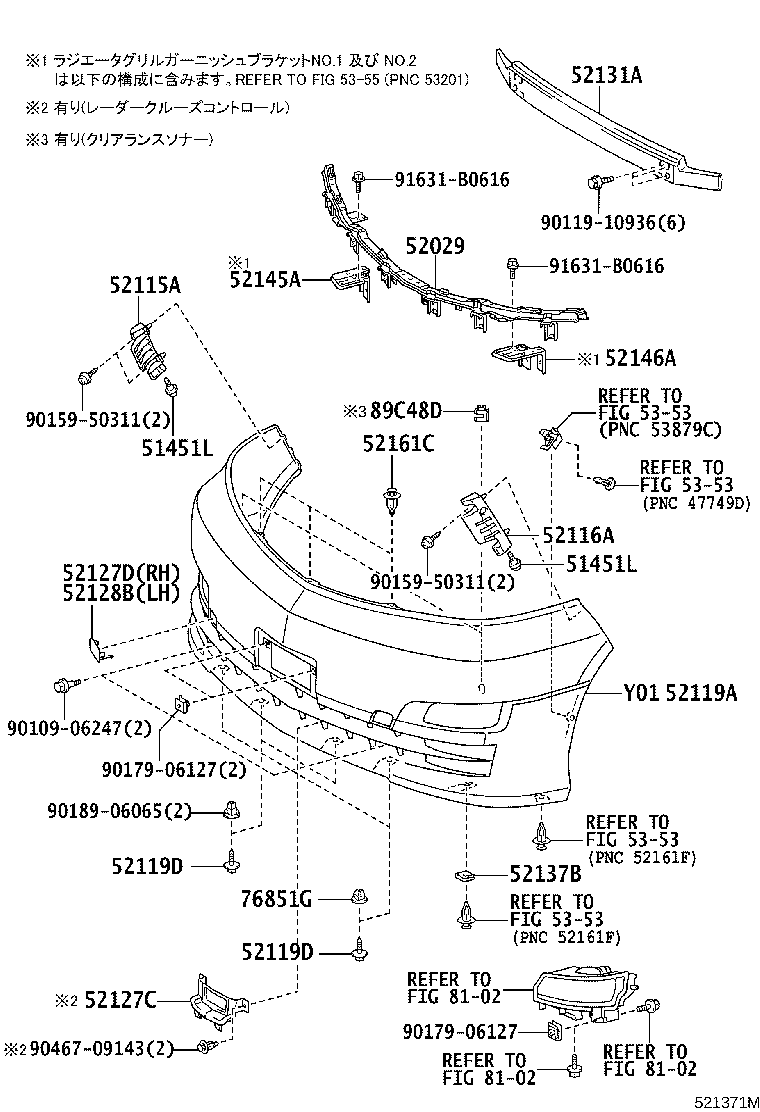

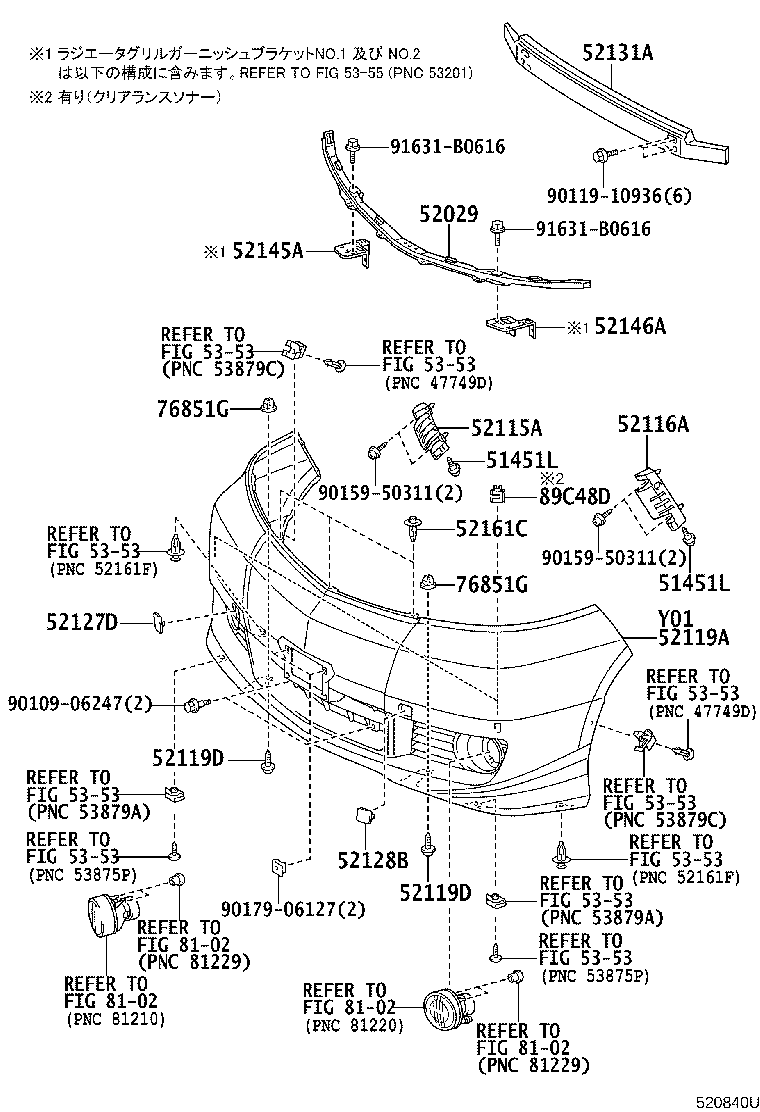

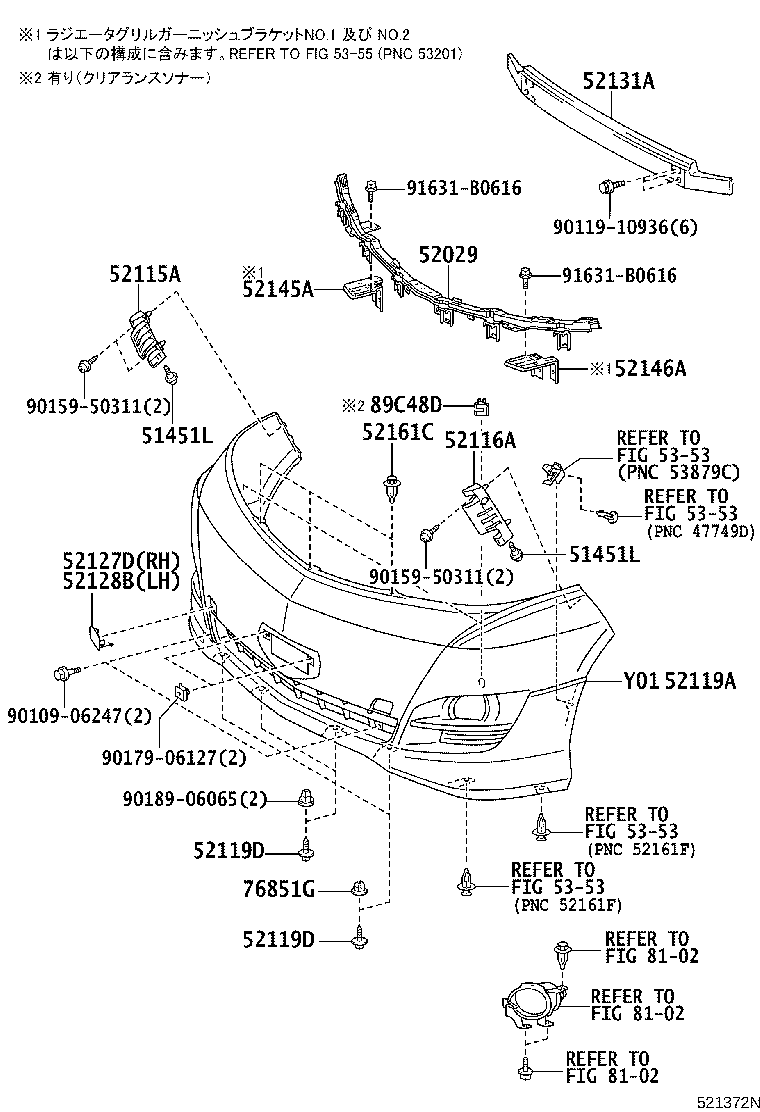

Figure 520839L 520839L 2002-05 → 2005-04 Figure 520840U 520840U 2002-05 → 2005-04 Figure 521371M 521371M 2005-04 → — Figure 521372N 521372N 2005-04 → —

Part groups

PNCDescription
51451L Bolt, NO.1
52029 Reinforcement Sub-assy, Front Bumper, Upper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52119D Screw, NO.1
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52137B Plate, Front Bumper Bracket, NO.1
52145A Stay, Front Bumper, NO.2 RH
52146A Stay, Front Bumper, NO.2 LH
52161C Piece, Front Bumper
76851G Grommet, Screw, NO.1
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
