Toyota Alphard G/V
2002-05 → 2008-04 · chassis ANH1#,MNH1# · catalogue 713120 · Japan
Supported model
Data version 2008-10

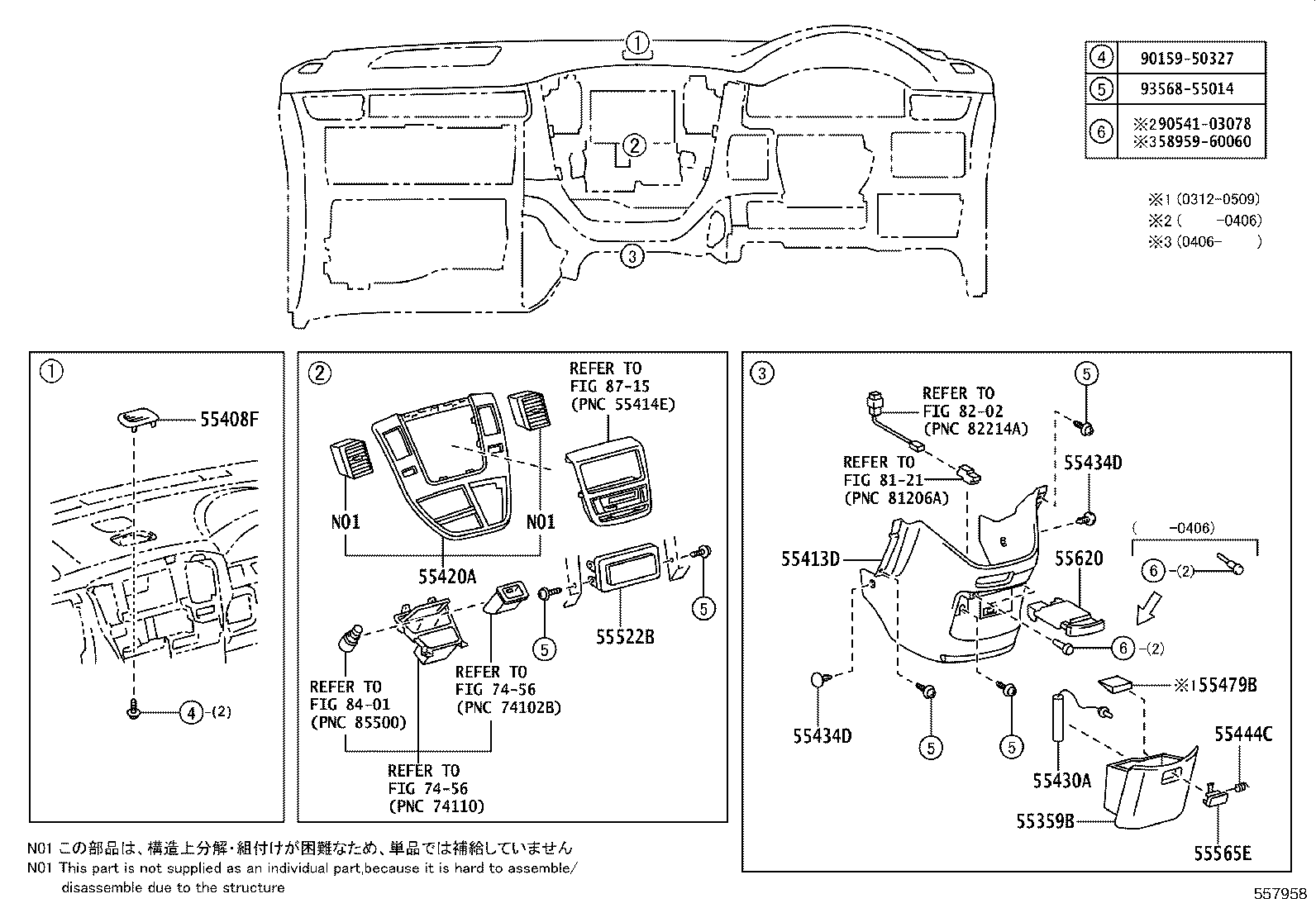

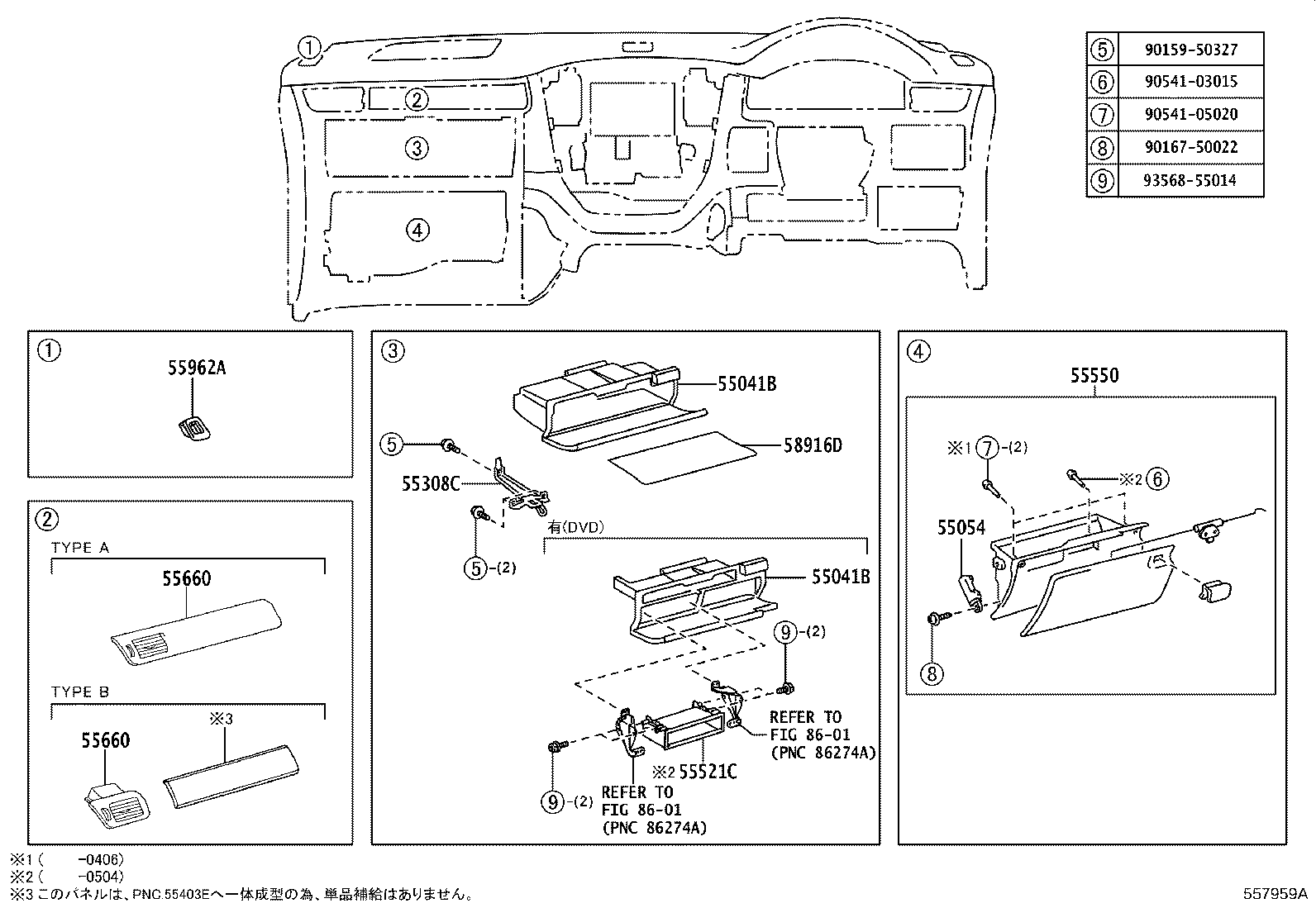

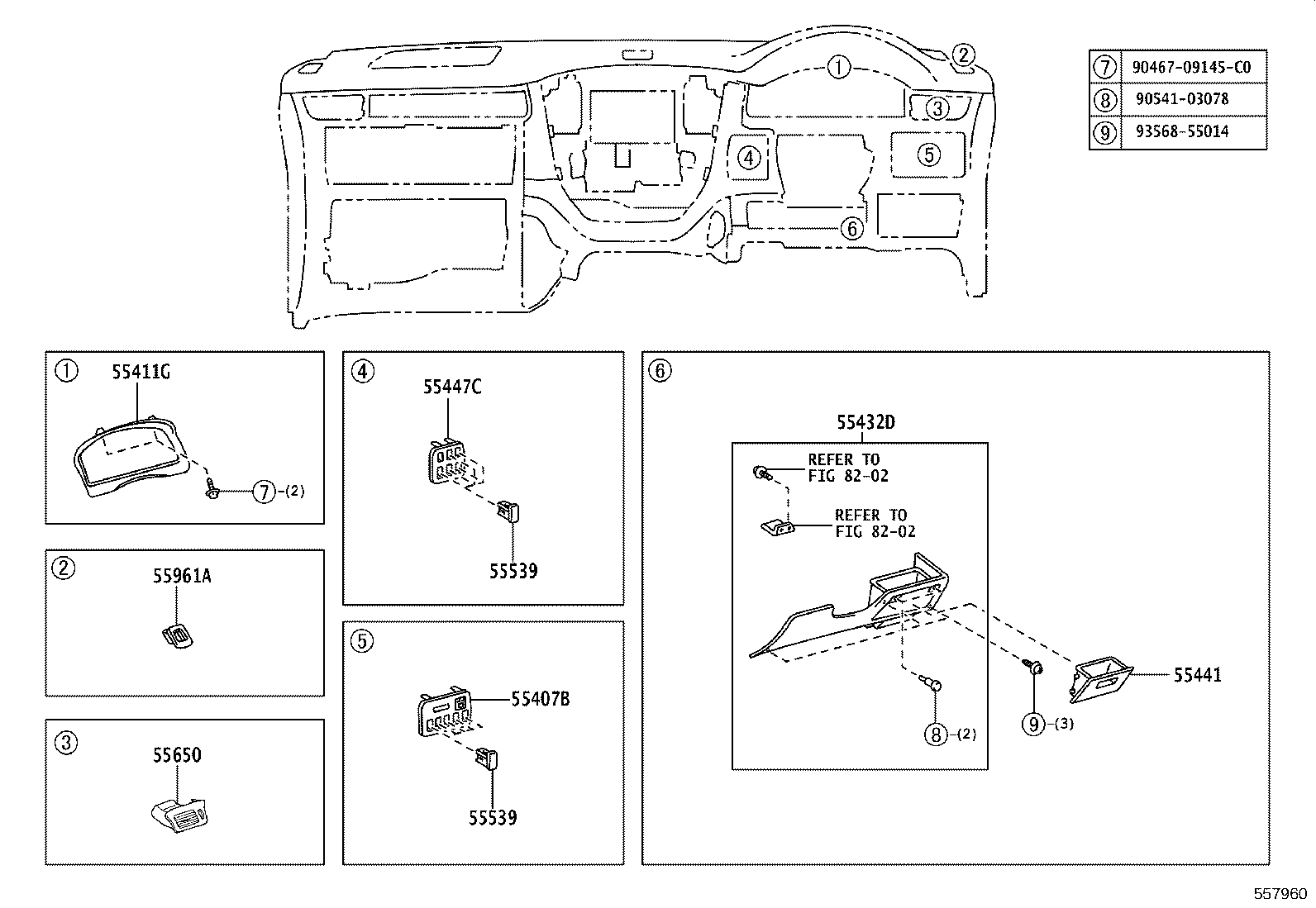

Instrument Panel & Glove Compartment
42 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55041B | Door Sub-assy, Instrument Panel Box, NO.1 |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55302A | Panel Sub-assy, Instrument, Upper |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55327A | Stay, Instrument Panel, NO.2 |
| 55328A | Stay, Instrument Panel, NO.3 |
| 55331 | Reinforcement, Instrument Panel |
| 55342A | Brace, Instrument Panel TO Cowl, NO.2 |
| 55349A | Cushion, Instrument Panel |
| 55359B | Box, Instrument Panel, Center |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55400 | Pad Assy, Instrument Panel Safety |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55403E | Pad Sub-assy, Instrument Panel Safety, NO.2 |
| 55407B | Base Sub-assy, Switch Hole |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55413D | Panel, Instrument Cluster Finish, Center Lower |
| 55420A | Panel Assy, Instrument Cluster Finish, Center |
| 55430A | Damper Assy, Instrument Cluster Finish Panel |
| 55432D | Panel, Instrument Panel Finish, Lower NO.1 |
| 55434D | Clip, Instrument Panel Finish, Lower Center |
| 55441 | Box, Instrument Panel |
| 55444C | Spring, Instrument Panel Box |
| 55447C | Base, Switch Hole, NO.2 |
| 55479B | Cover, Instrument, Lower Center |
| 55521C | Cover, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55539 | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55550 | Door Assy, Glove Compartment |
| 55565E | Knob, Glove Compartment Door Lock |
| 55620 | Holder Assy, Instrument Panel Cup |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55951 | Nozzle, Defroster, Front |
| 55961A | Nozzle, Side Defroster, RH |
| 55962A | Nozzle, Side Defroster, LH |
| 58916D | Mat, Box Bottom |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
