Toyota Alphard G/V

2002-05 → 2008-04 · chassis ANH1#,MNH1# · catalogue 713120 · Japan

Supported model Data version 2008-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

281 part groups · 22 illustrations

Illustrations

71C994B 2002-05 → —

71C994B 2003-04 → 2003-05

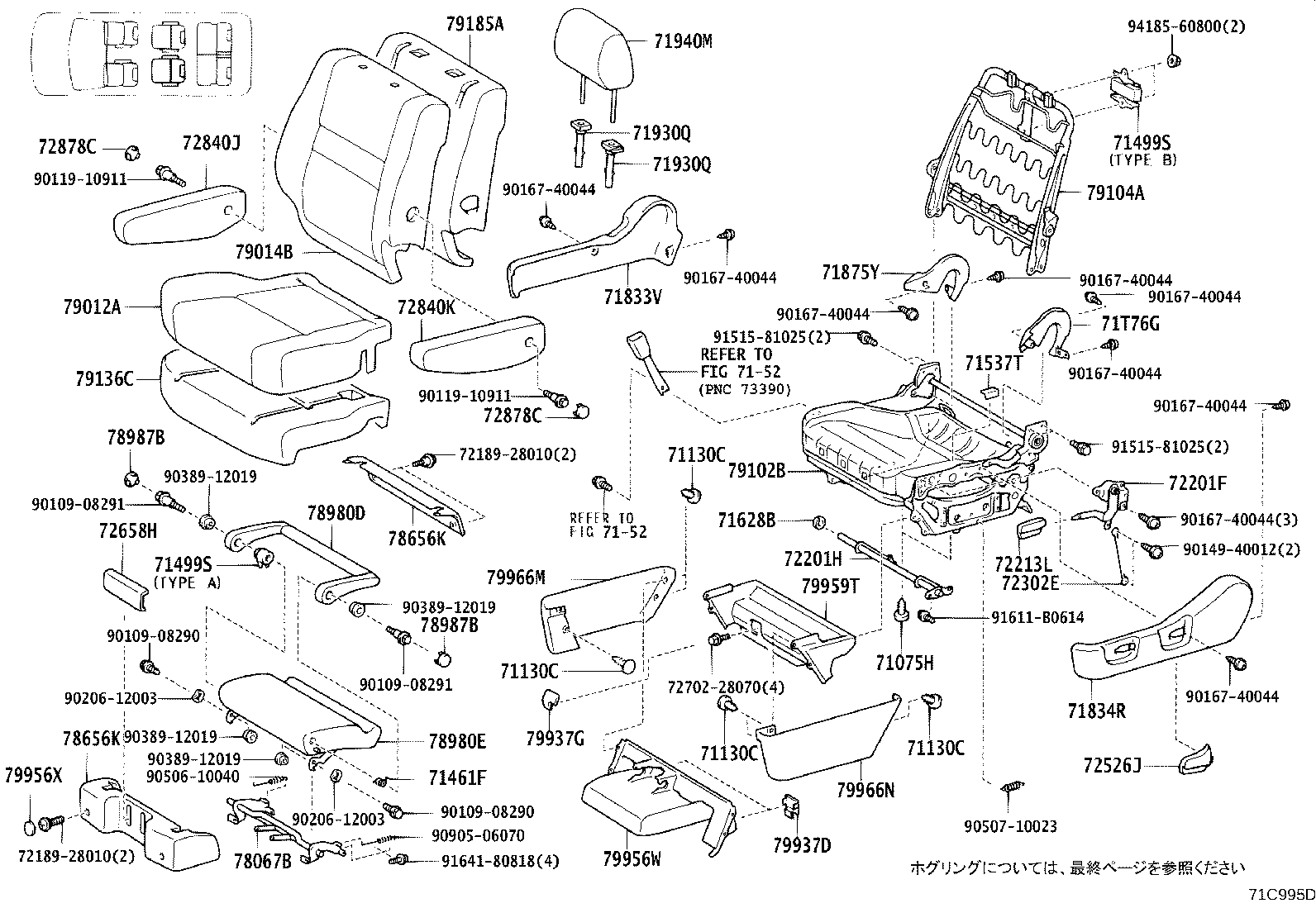

71C995D 2002-05 → —

71C995D 2003-04 → 2003-05

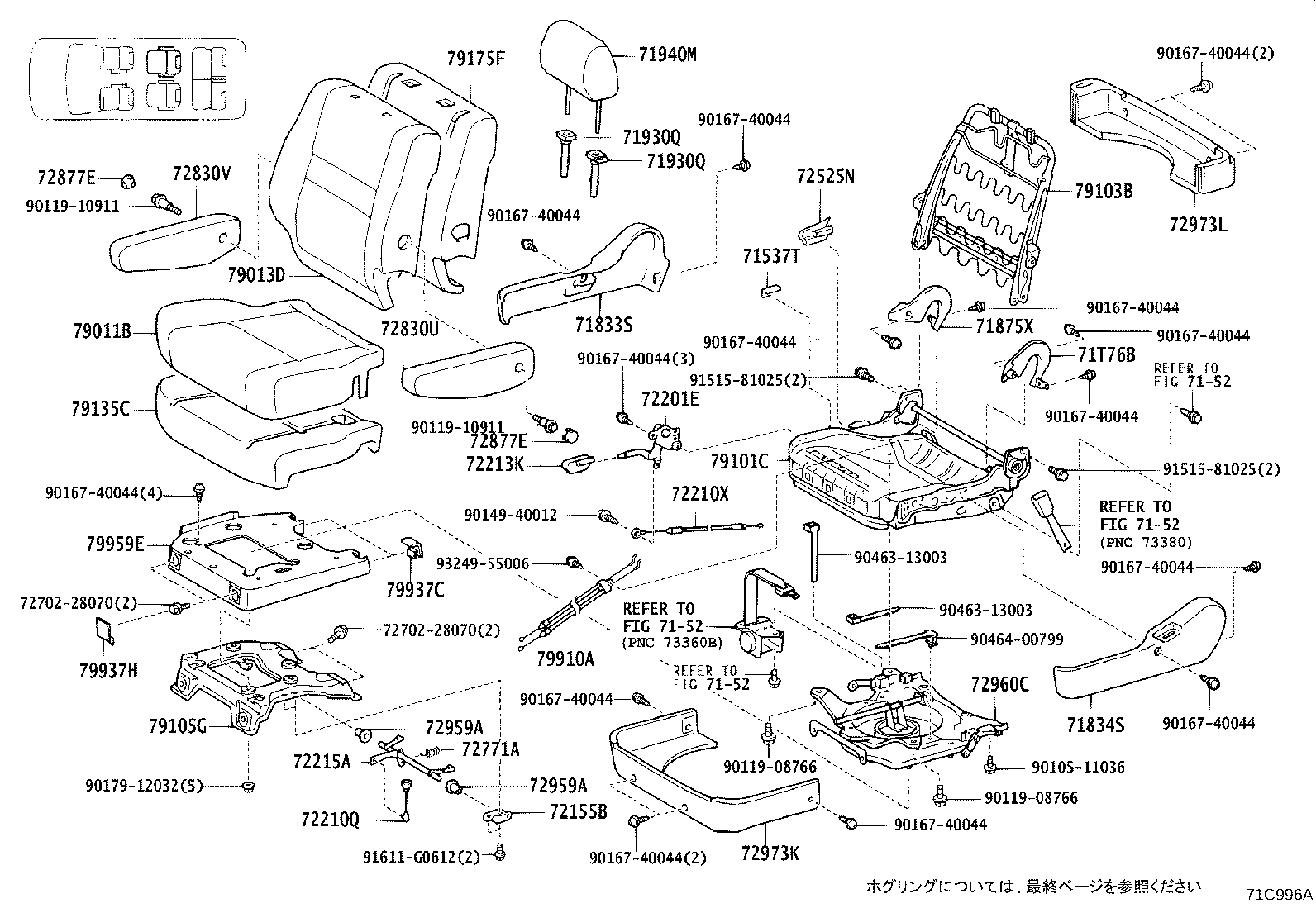

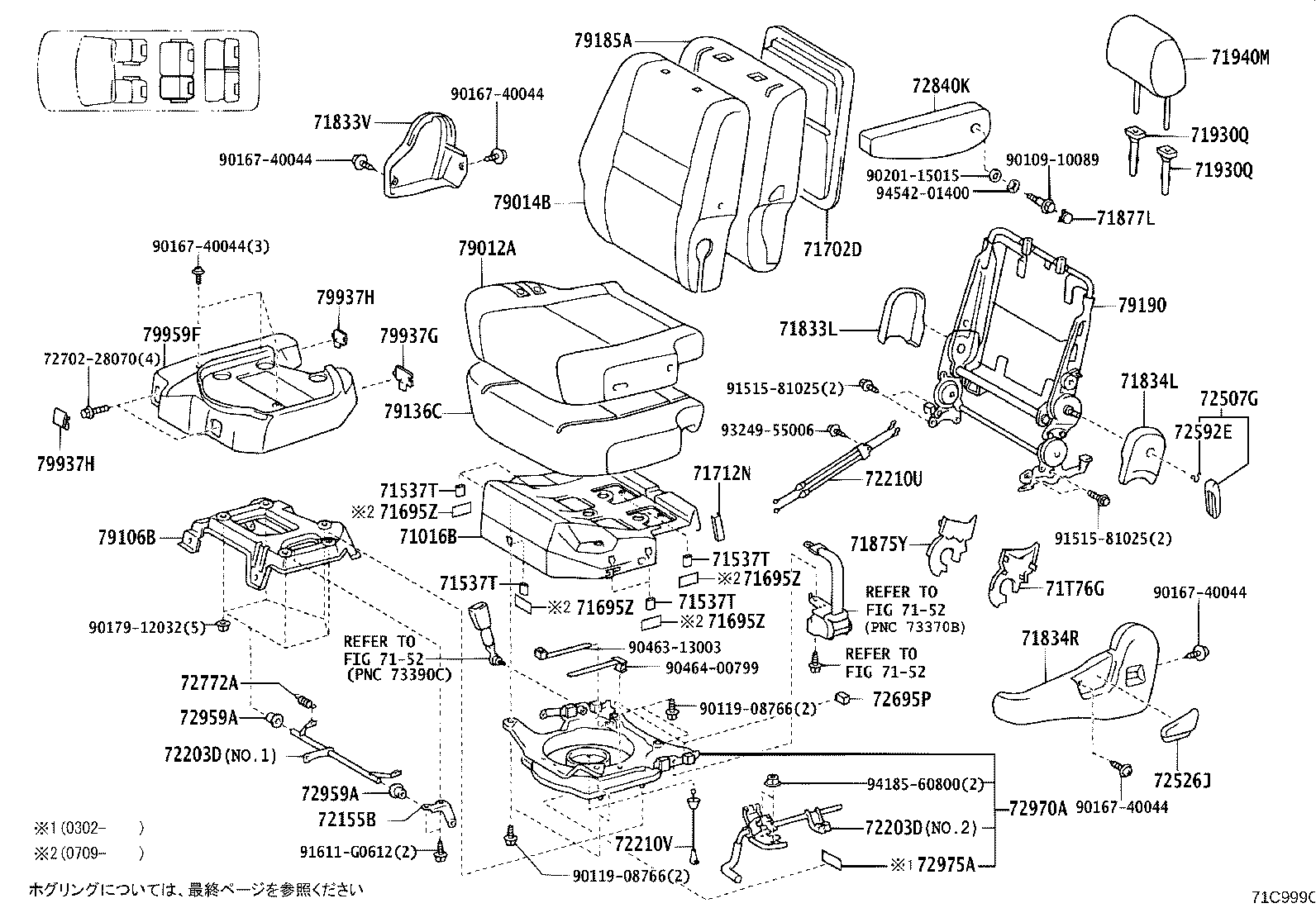

71C996B 2002-05 → —

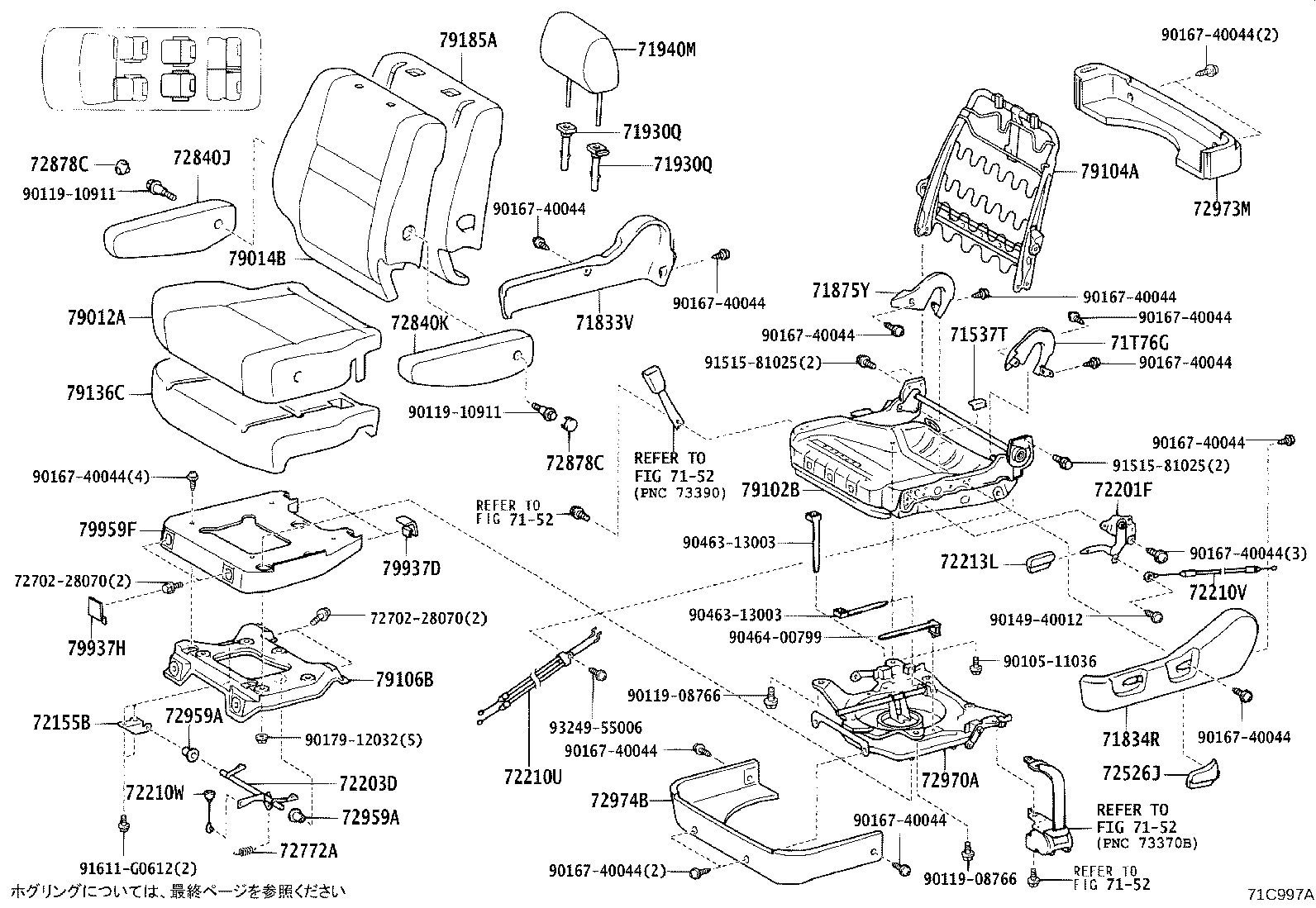

71C997B 2002-05 → 2005-04

71C997B 2005-04 → —

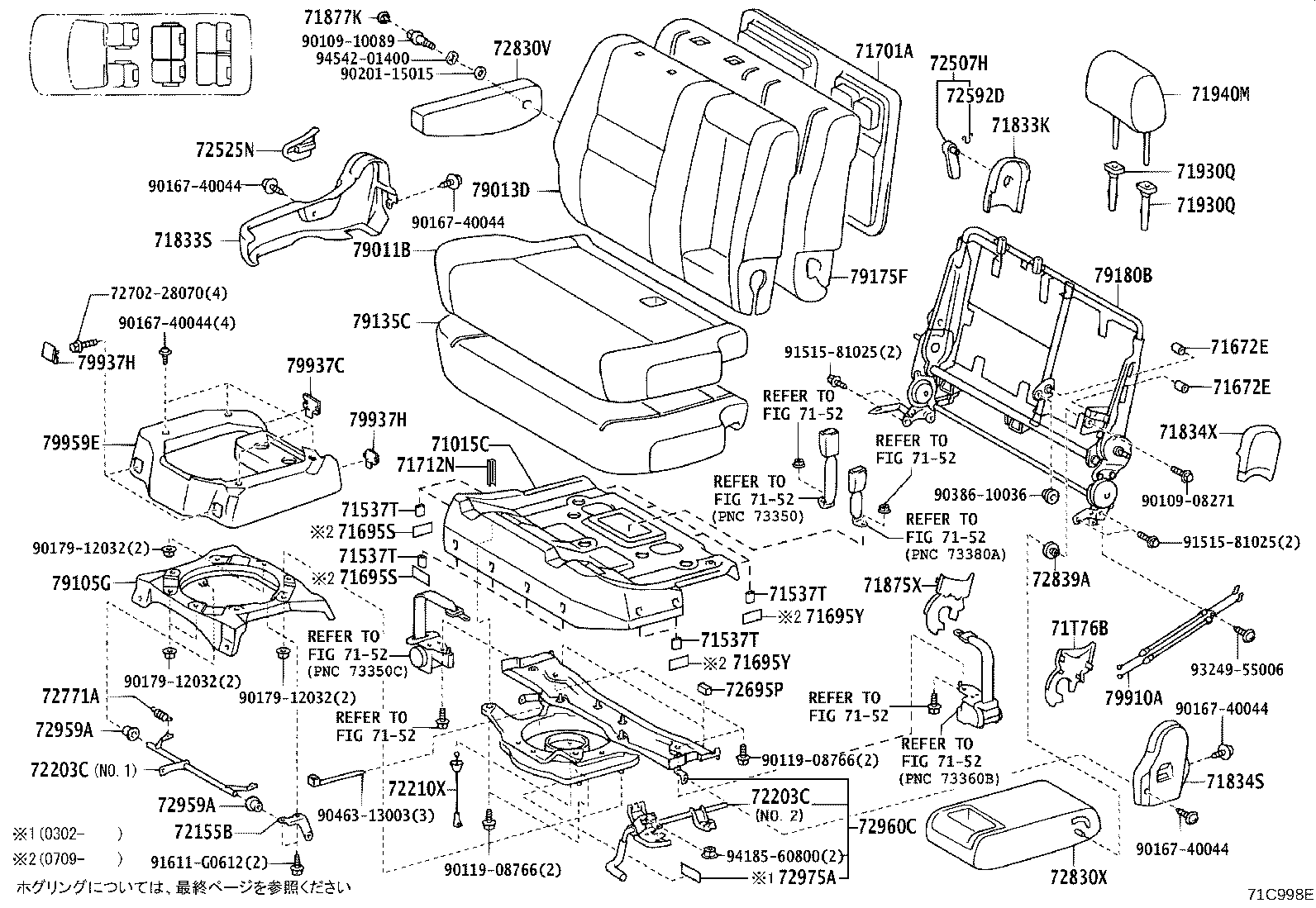

71C998E 2002-05 → —

71C999C 2002-05 → —

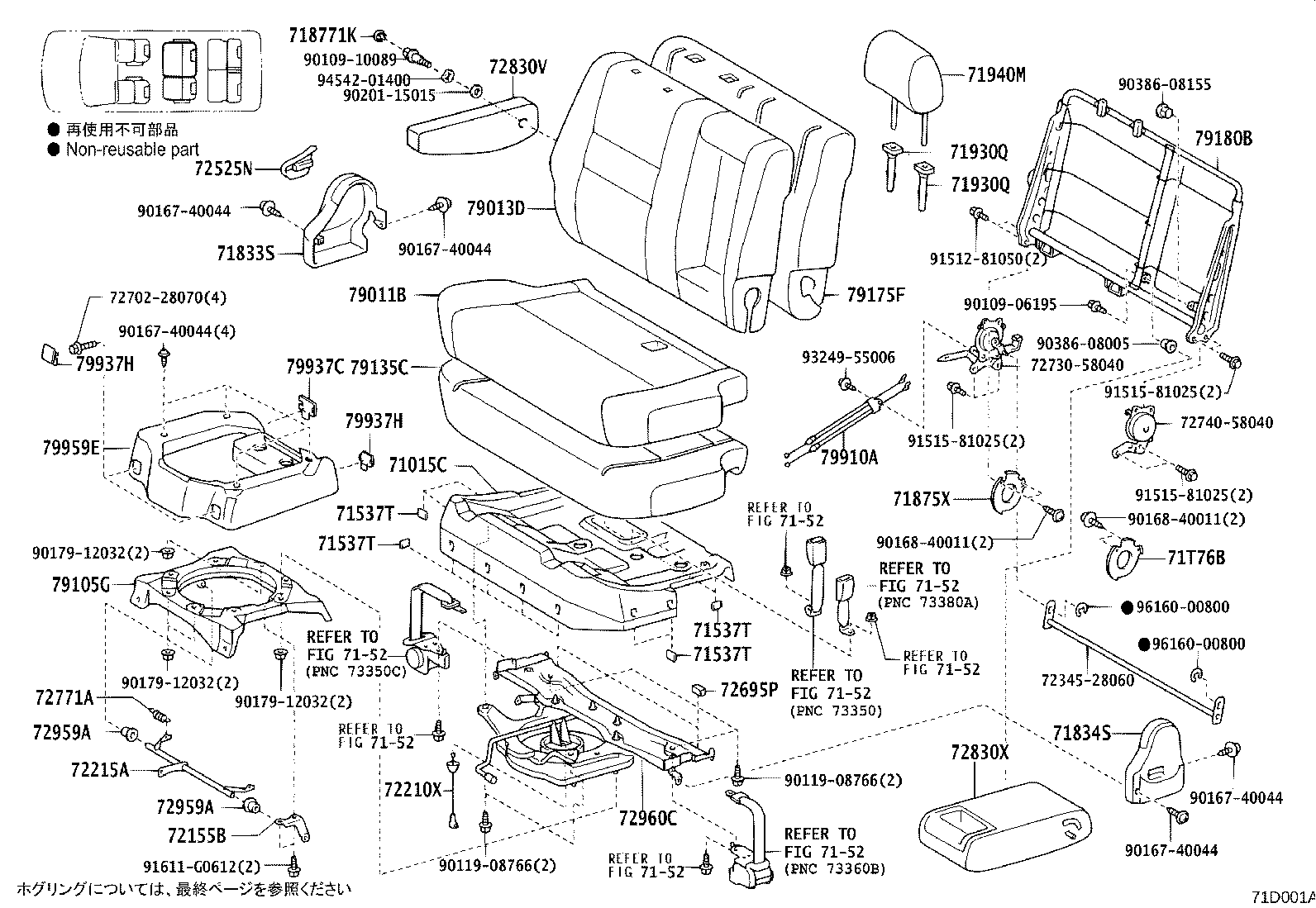

71D001C 2002-05 → 2003-07

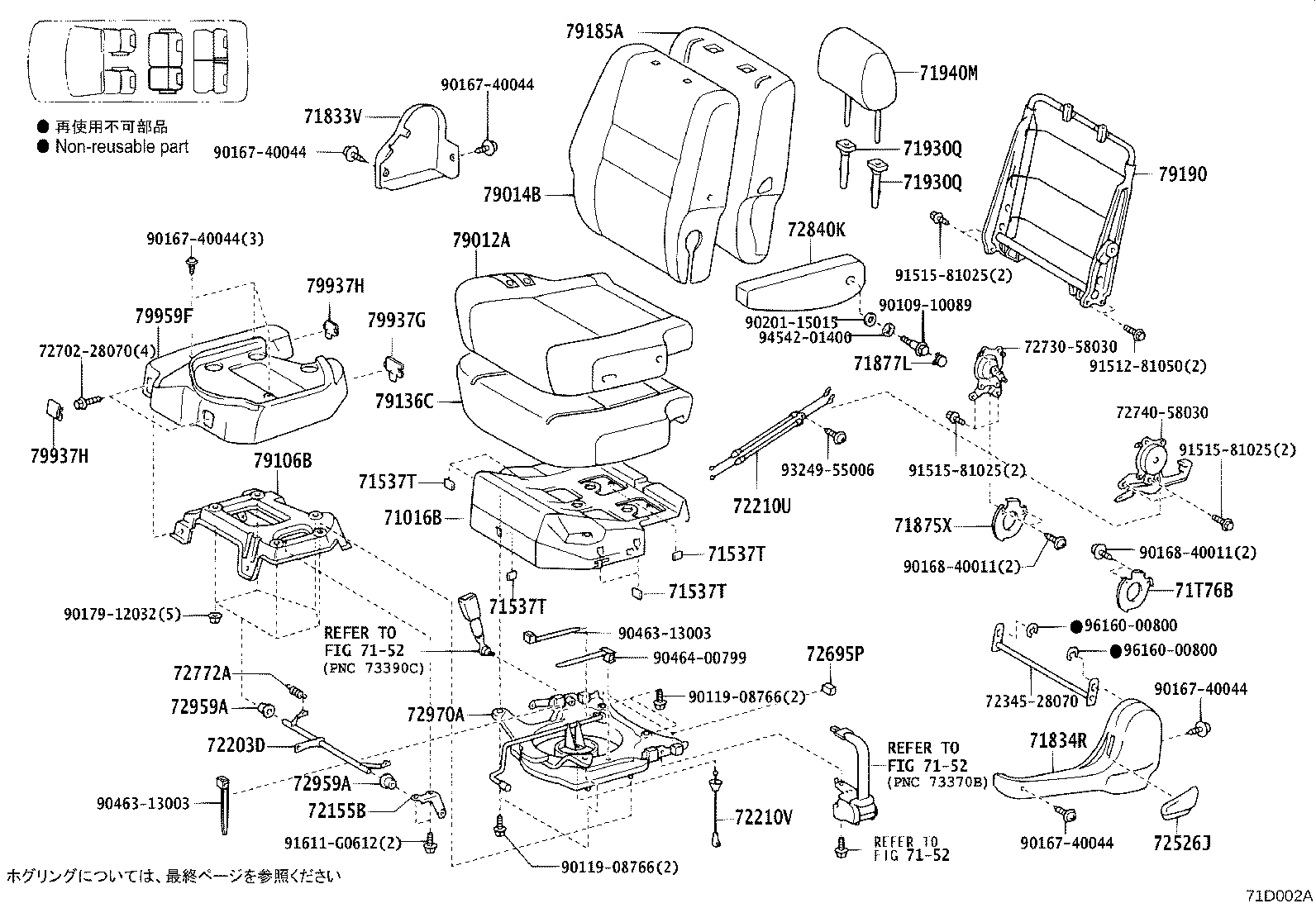

71D002C 2002-05 → 2003-07

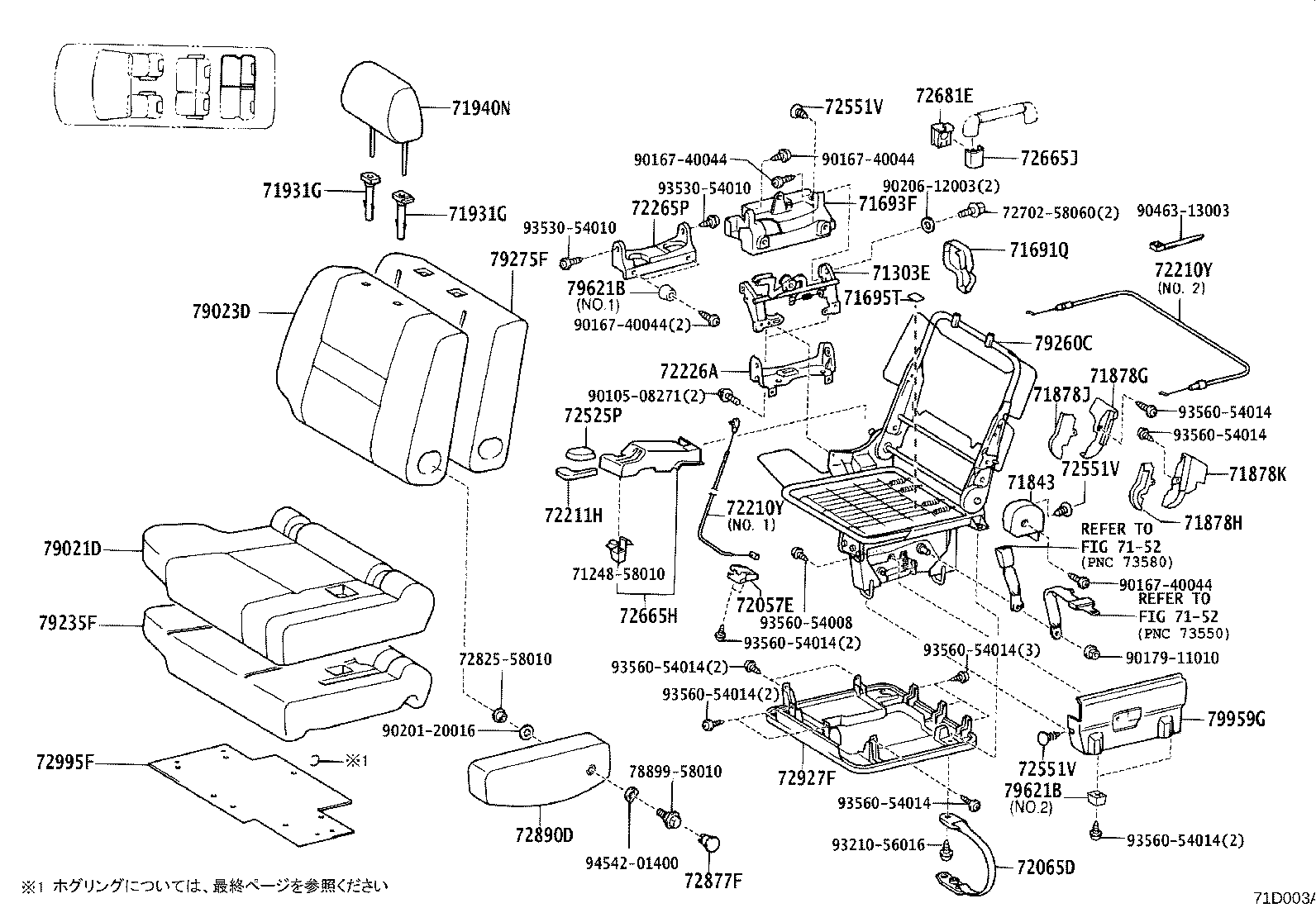

71D003C 2002-05 → —

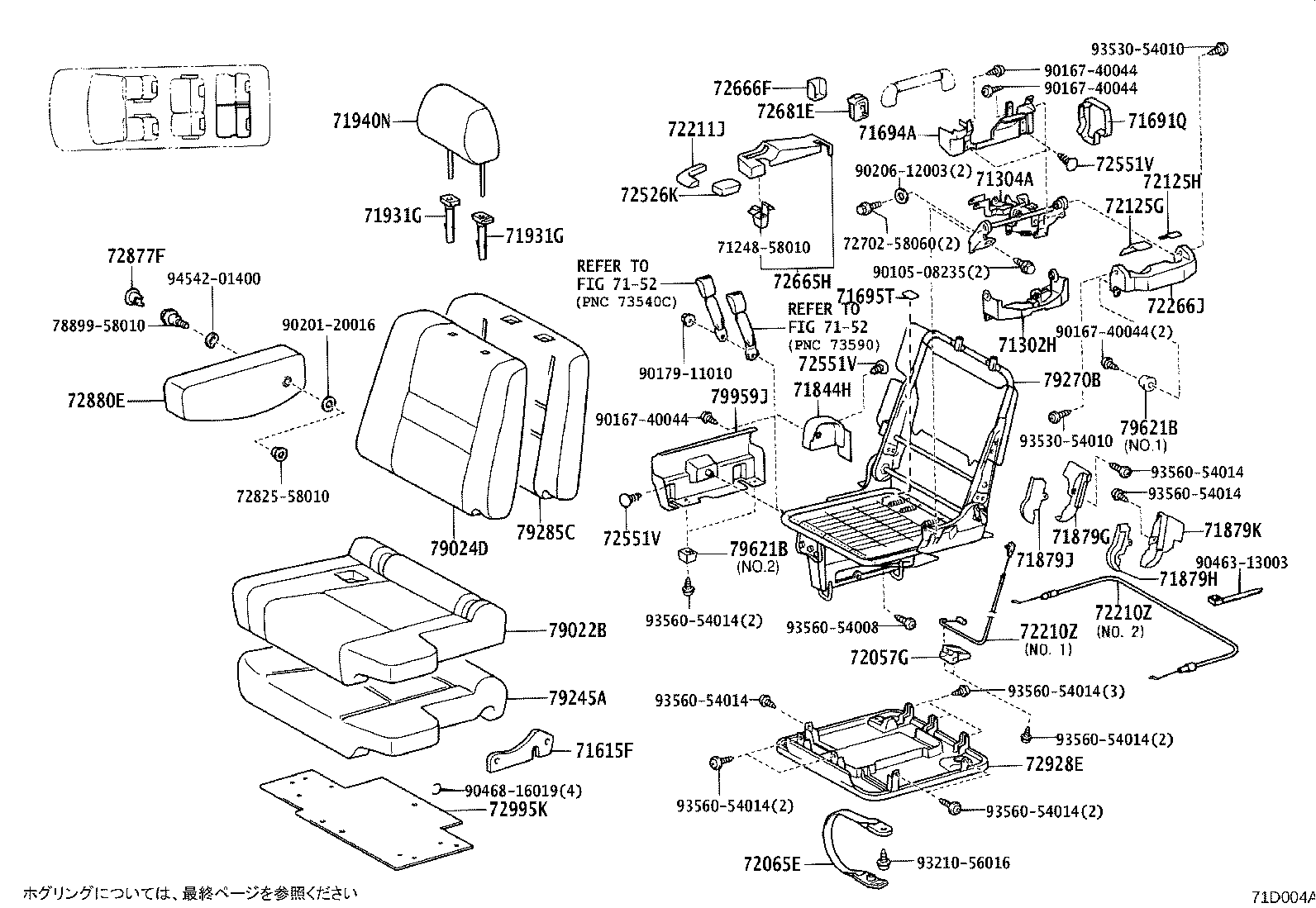

71D004D 2002-05 → —

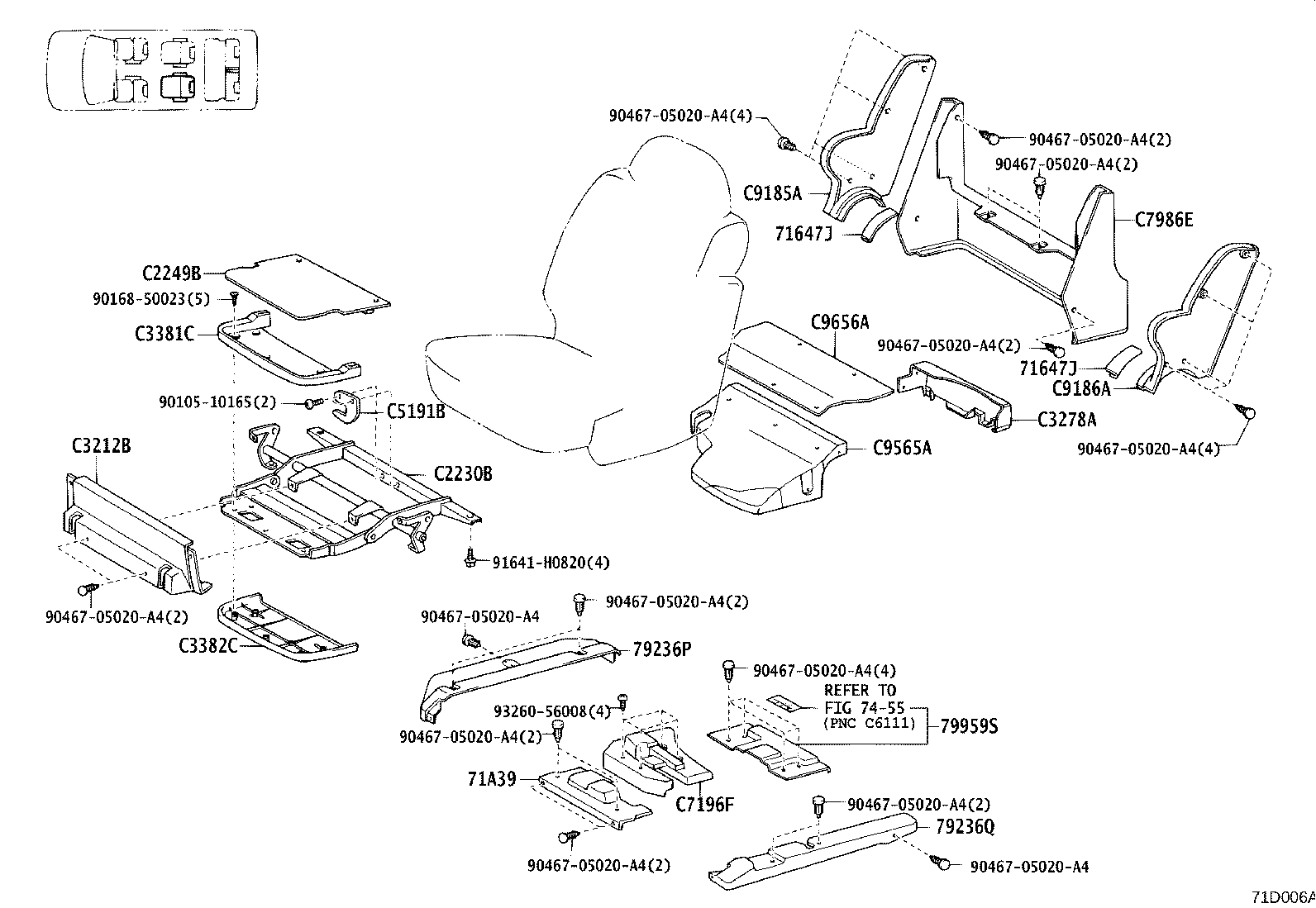

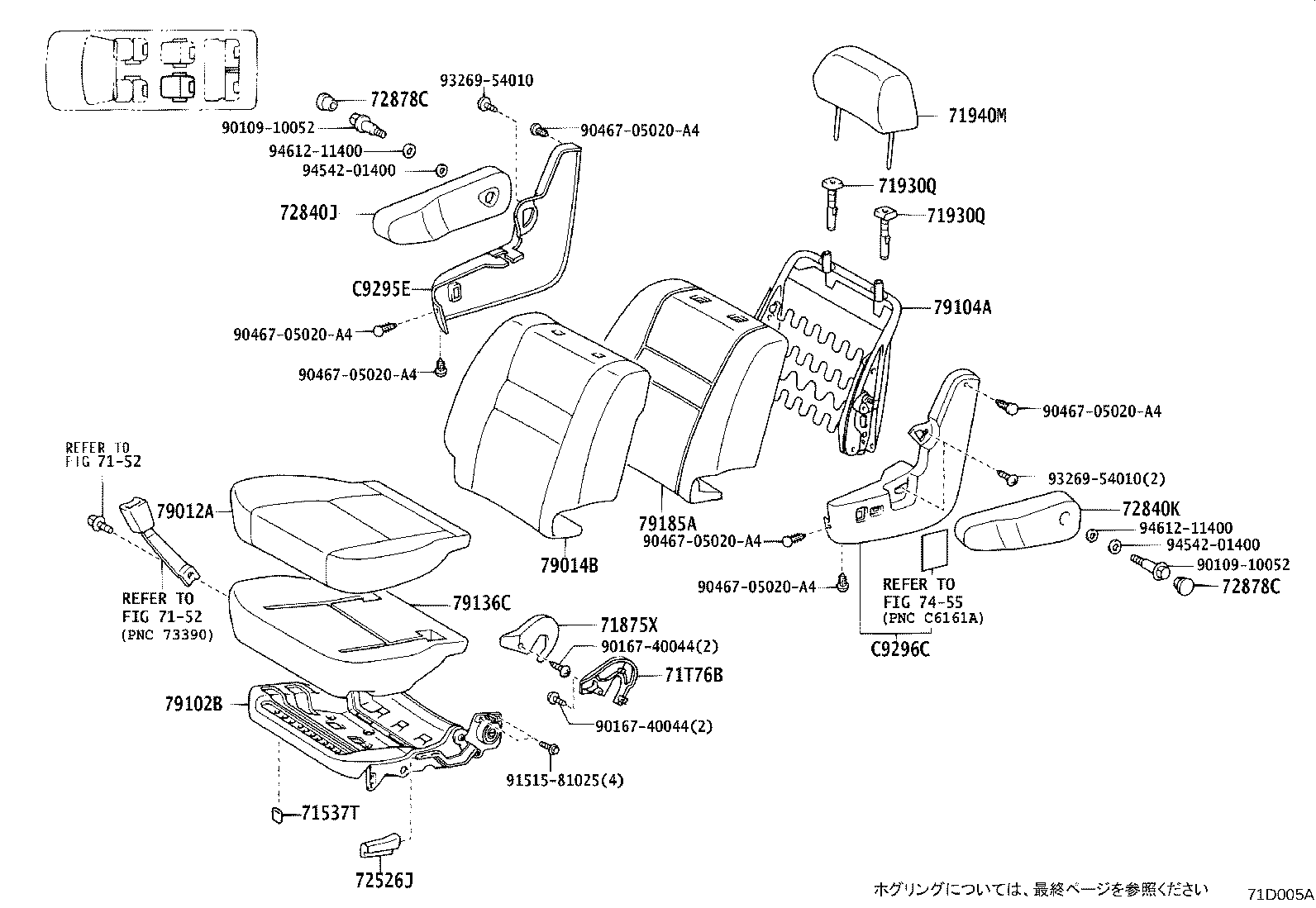

71D005B 2002-05 → 2003-07

71D006D 2002-05 → 2003-07

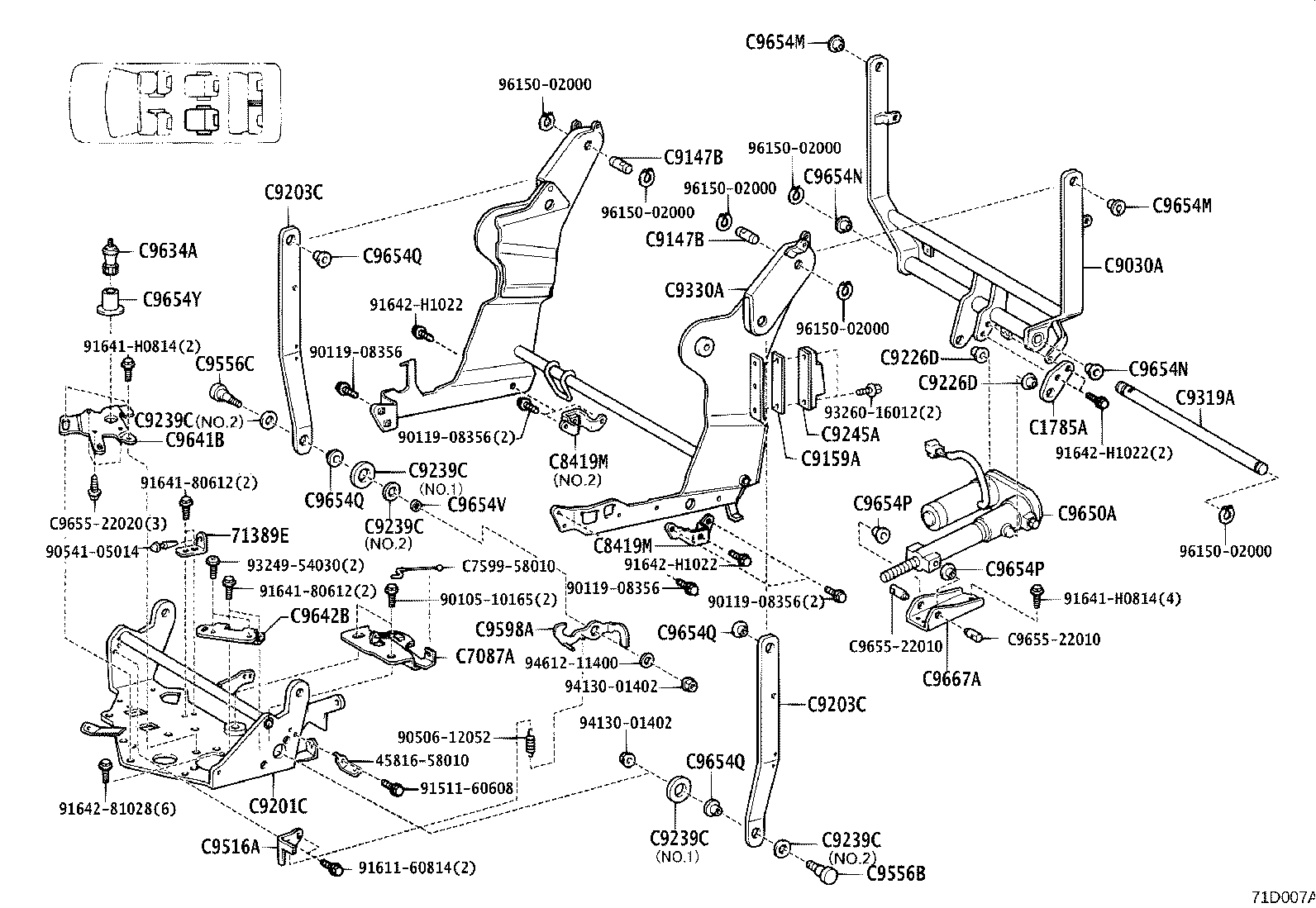

71D007B 2002-05 → 2003-07

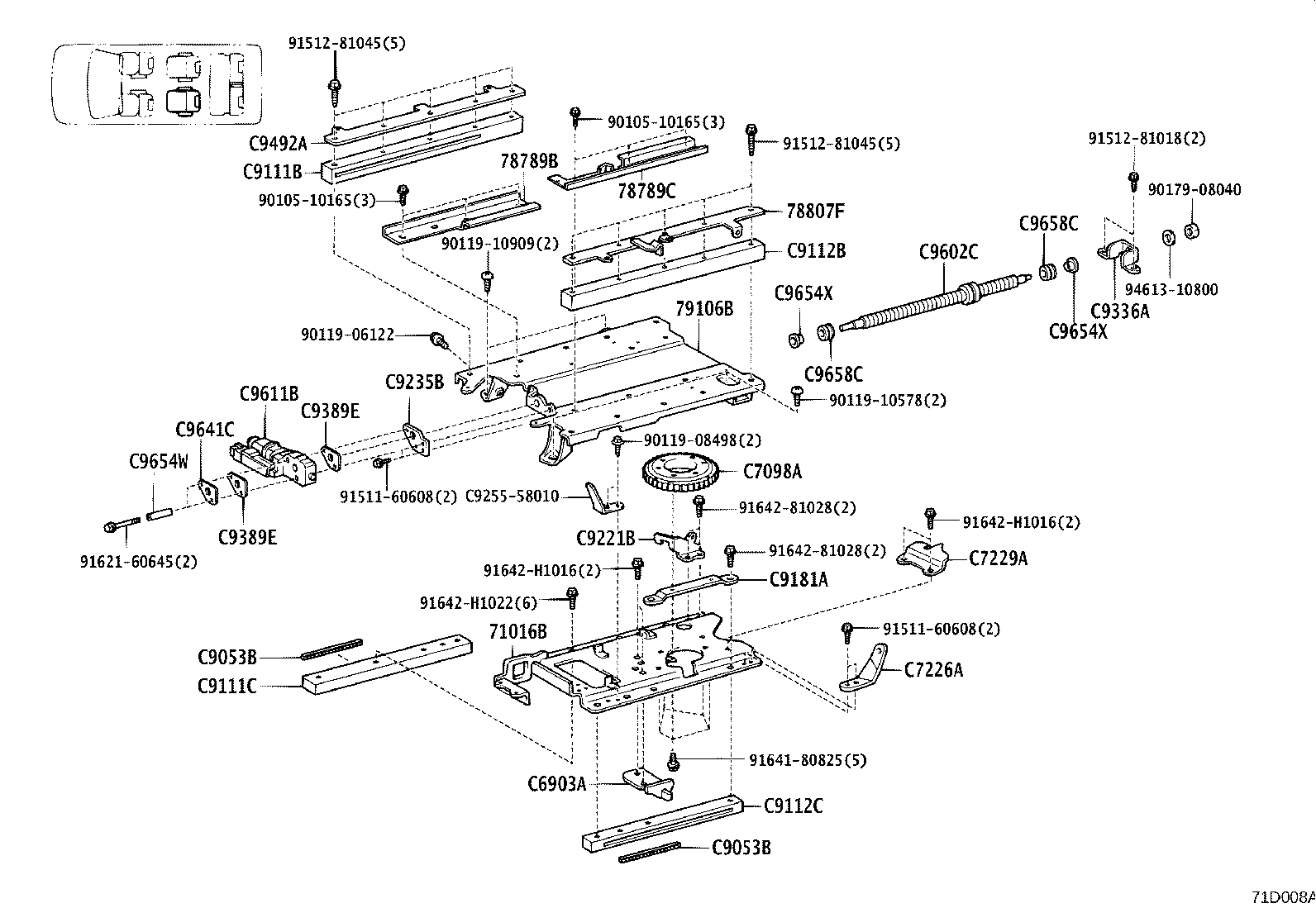

71D008B 2002-05 → 2003-07

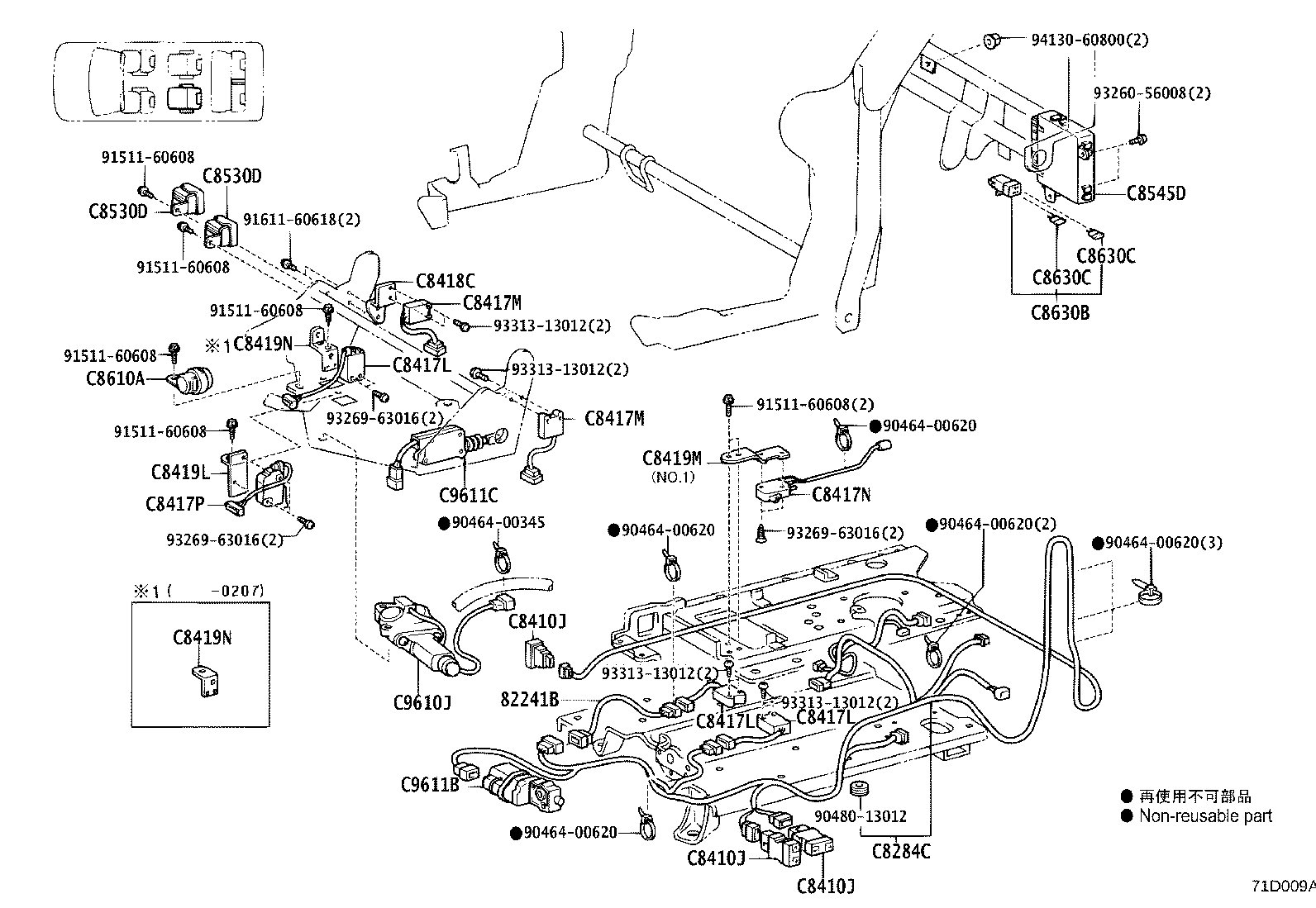

71D009B 2002-05 → 2003-07

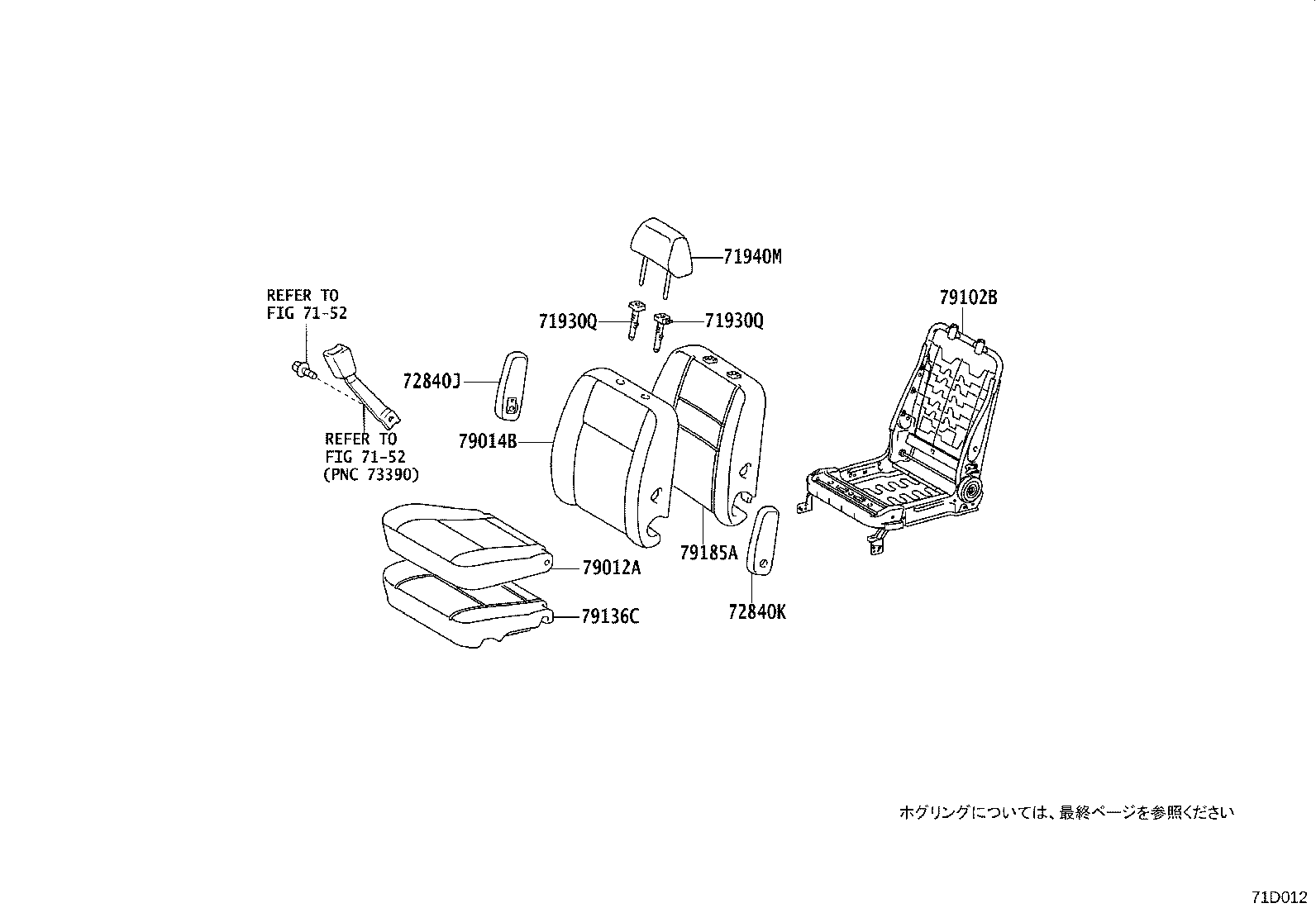

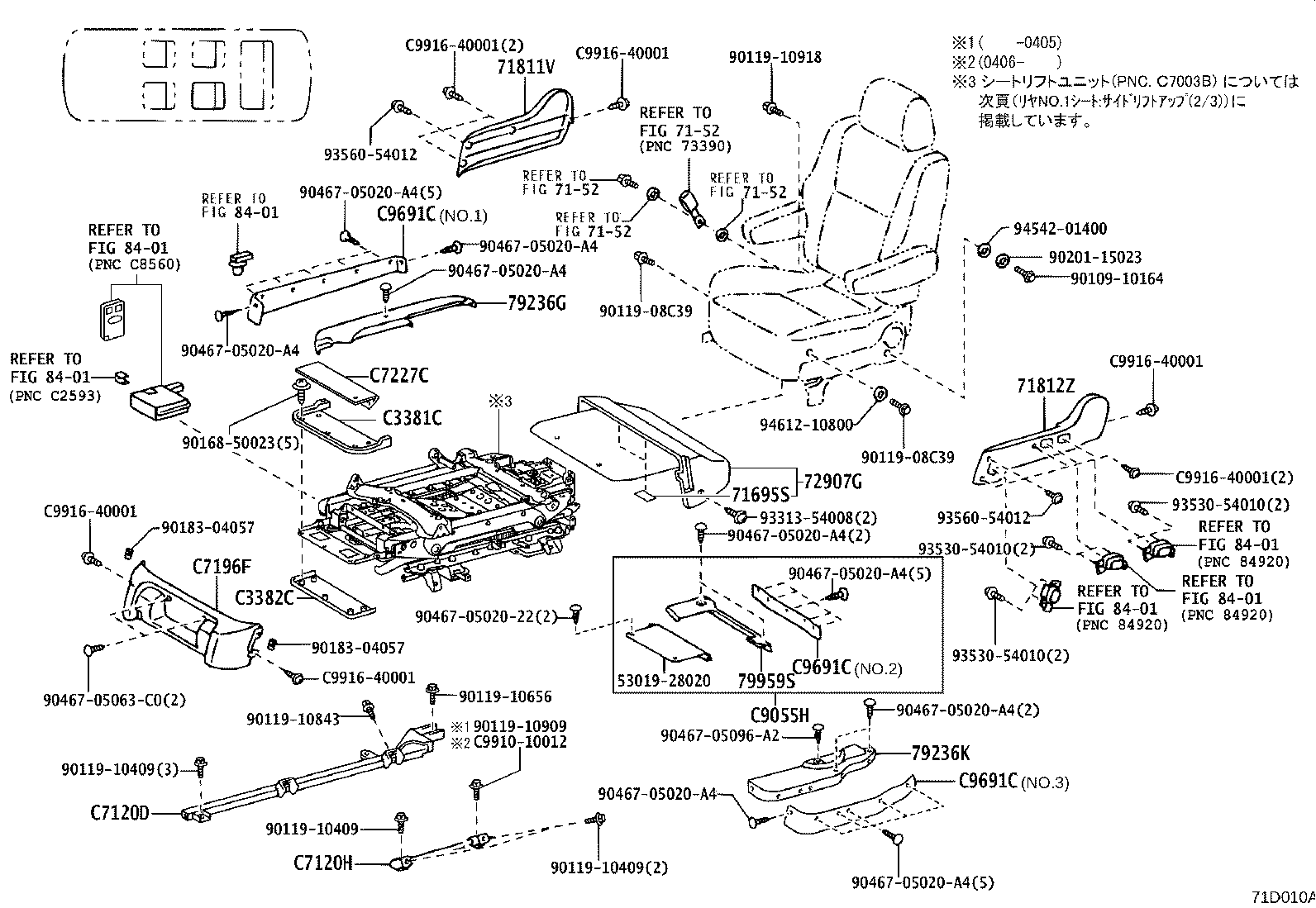

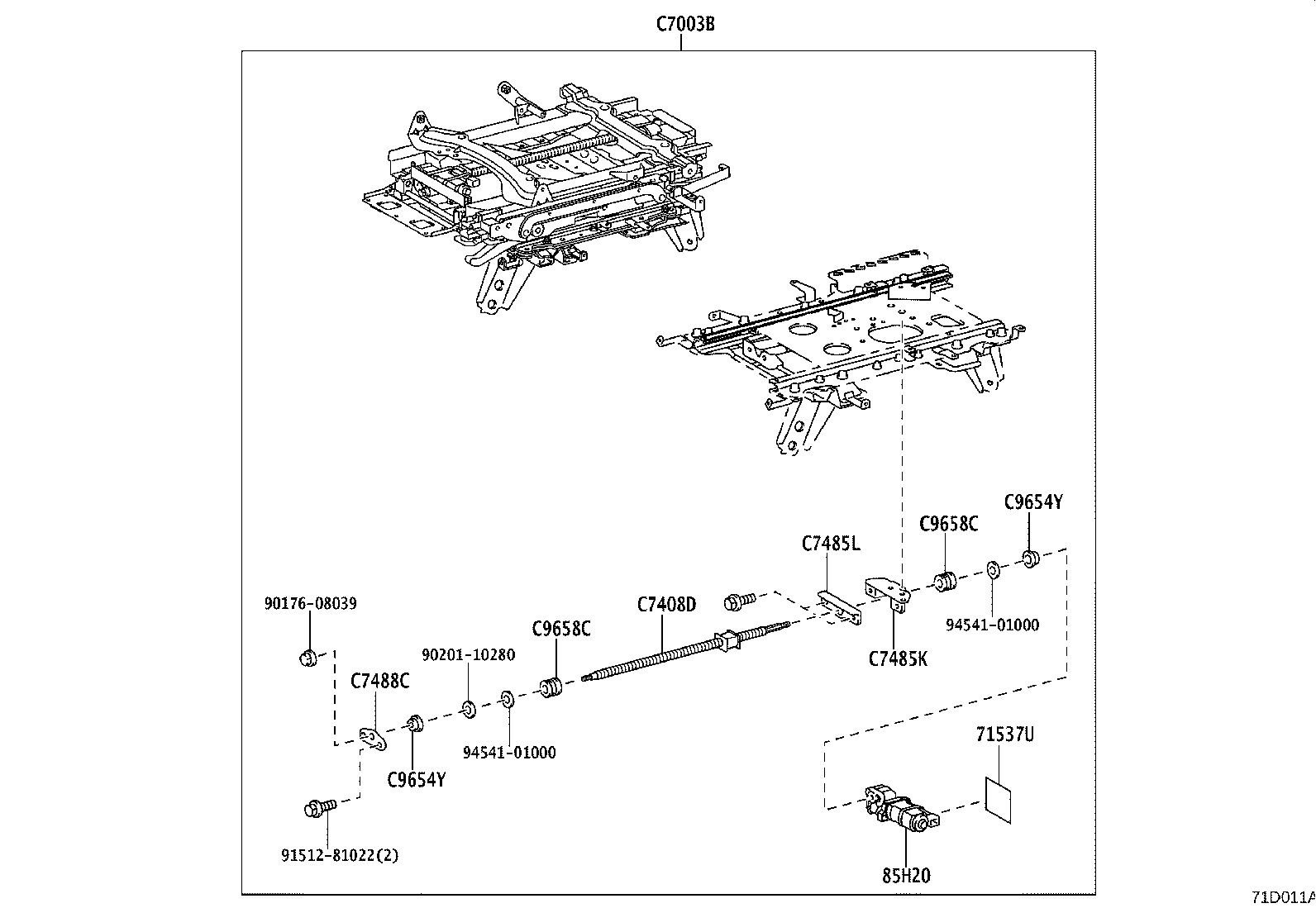

Part groups

PNC	Description
71015C	Frame Sub-assy, NO.1 Seat Cushion, RH
71016B	Frame Sub-assy, NO.1 Seat Cushion, LH
71075H	Clip(FOR REAR SEAT)
71130C	Clip, Rear Seat Leg
71302H	Stopper Sub-assy, Rear Seat Leg
71303E	Hinge Sub-assy, Rear NO.2 Seat, RH
71304A	Hinge Sub-assy, Rear NO.2 Seat, LH
71389E	Plate, Rear Seat Cushion Bracket
71461D	Spring, NO.1 Seat Cushion, NO.1(FOR RH SEAT)
71461F	Spring, NO.1 Seat Cushion, NO.1(FOR LH SEAT)
71499S	Damper, Seat Cushion Spring
71537T	Protector, Rear Seat Cushion, NO.1
71537U	Protector, Rear Seat Cushion, NO.2
71615F	Pad, Rear Seat Cushion, E
71628B	Spacer, Rear Seat Cushion, RH
71647J	Protector, Rear Seat Cushion Edge, LH
71672E	Silencer, Rear Seatback, RH
71691Q	Cover, Rear NO.2 Seat Lock, Upper NO.1 RH
71693F	Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.1
71694A	Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.1
71695S	Protector, Rear Seat, NO.1
71695T	Protector, Rear Seat, NO.2
71695Z	Protector, Rear Seat, NO.1 LH
71701A	Board Sub-assy, Rear Seatback, RH
71702D	Board Sub-assy, Rear Seatback, LH
71712N	Cover, Side Seat Cushion, Rear
71811V	Cover, NO.1 Seat Reclining Adjuster, Inner(FOR LH SEAT)
71812Z	Cover, Reclining Adjuster, LH
71833K	Cover, NO.1 Seat Reclining, NO.1 RH Outer
71833L	Cover, Rear Seat Reclining, RH
71833S	Cover, Rear Seat Reclining, NO.1 RH
71833V	Cover, NO.1 Seat Reclining, NO.2 RH
71834L	Cover, Rear Seat Reclining, LH
71834R	Cover, Rear Seat Reclining, LH
71834S	Cover, Rear Seat Reclining, NO.1 LH
71834X	Cover, Rear Seat Reclining, NO.2 LH
71843	Cover, Rear Seat Reclining, NO.2 RH
71844H	Cover, Rear Seat Reclining, NO.2 LH
71875X	Cover, Reclining Adjuster Inside, RH
71875Y	Cover, Reclining Adjuster Inside, RH NO.1(FOR LH SEATBACK)
71877K	Cover, Rear Seat Armrest Hole RH
71877L	Cover, Rear Seat Armrest Hole LH
71878G	Cover, NO.3 Seat Reclining, Inner RH
71878H	Cover, Rear Seat Reclining, Inner RH
71878J	Cover, Rear NO.1 Seat Reclining, Inner RH
71878K	Cover, Rear NO.2 Seat Reclining, Inner RH
71879G	Cover, NO.3 Seat Reclining, Inner LH
71879H	Cover, Rear Seat Reclining, Inner LH
71879J	Cover, Rear NO.1 Seat Reclining, Inner LH
71879K	Cover, Rear NO.2 Seat Reclining, Inner LH
71930Q	Support Assy, Rear Seat Headrest
71931G	Support Assy, Rear Seat Headrest
71940M	Headrest Assy, Rear Seat
71940N	Headrest Assy, Rear Seat, NO.2
71A39	Cover, Rear Seat Leg, NO.1
71T76B	Cover, Reclining Adjuster Inside, LH
71T76G	Cover, Reclining Adjuster Inside, LH
72057E	Lever Sub-assy, Rear Seat Lock Control, RH NO.1
72057G	Lever Sub-assy, Rear Seat Lock Control, LH NO.1
72065D	Hook Sub-assy, Rear NO.2 Seat Cushion Lock, RH
72065E	Hook Sub-assy, Rear NO.2 Seat Cushion Lock, LH
72125G	Cover, Seat Track Lock Plate, NO.1
72125H	Cover, Seat Track Lock Plate, NO.2
72155B	Bracket, Seat Track Handle Support
72201E	Handle Sub-assy, Seat Track RH
72201F	Handle Sub-assy, Seat Track LH
72201G	Handle Sub-assy, Seat Track, RH
72201H	Handle Sub-assy, Seat Track, LH
72203C	Handle Sub-assy, Rear Seat Track, RH
72203D	Handle Sub-assy, Rear Seat Track, LH
72210Q	Cable Assy, NO.1 Seat Slide, RH
72210U	Cable Assy, NO.1 Seat Track Control, LH
72210V	Cable Assy, NO.1 Seat Track Control, LH NO.1
72210W	Cable Assy, NO.1 Seat Track Control, LH NO.2
72210X	Cable Assy, NO.1 Seat Track Control, RH
72210Y	Cable Assy, NO.1 Seat Track Control, RH NO.1
72210Z	Cable Assy, NO.1 Seat Track Control, RH NO.2
72211H	Handle, Seat Track Adjusting, RH
72211J	Handle, Seat Track Adjusting, LH
72213K	Knob, Seat Track Adjusting Handle, RH
72213L	Knob, Seat Track Adjusting Handle, LH
72215A	Lever, NO.1 Seat Track Handle Control, RH
72226A	Bracket, Seat Track, NO.1
72265P	Cover, Seat Track Upper Rail, RH
72266J	Cover, Seat Track Upper Rail, LH
72302E	Wire Sub-assy, Rear Seat Track Equalizing
72507G	Handle Sub-assy, Reclining Release, LH
72507H	Handle Sub-assy, Reclining Release, RH
72525N	Handle, NO.1 Seat Reclining Adjuster Release, RH
72525P	Handle, NO.2 Seat Reclining Adjuster Release, RH
72526J	Handle, NO.1 Seat Reclining Adjuster Release, LH
72526K	Handle, NO.2 Seat Reclining Adjuster Release, LH
72551V	Clip(FOR RECLINING HINGE)
72592D	Ring, Shaft Snap
72592E	Ring, Shaft Snap, NO.2
72658G	Knob, Rear Seat Lock Handle, RH
72658H	Knob, Rear Seat Lock Handle, LH
72665H	Cover, Rear Seatback Lock
72665J	Cover, Rear Seat Lock, RH
72666F	Cover, Rear Seat Lock, LH
72681E	Hook, Rear Seat
72695P	Silencer, Rear Seatback Lock Control Rod
72771A	Spring, Rear Seat Turn NO.1
72772A	Spring, Rear Seat Turn NO.2
72830U	Armrest Assy, Rear Seat, RH
72830V	Armrest Assy, Rear NO.1 Seat, RH
72830X	Armrest Assy, Rear Seat, Center
72839A	Shim, Rear Seat Armrest Hinge
72840J	Armrest Assy, Rear Seat, LH
72840K	Armrest Assy, Rear NO.1 Seat, LH
72877E	Cover, NO.1 Seat Armrest, RH
72877F	Cover, Seat Armrest
72878C	Cover, NO.1 Seat Armrest, LH
72880E	Armrest Assy, NO.2 Seat, C RH(FOR LH SEAT)
72890D	Armrest Assy, NO.2 Seat, C LH(FOR RH SEAT)
72907G	Cover Sub-assy, Rear Seat Turn
72927F	Cover, Rear Seat Cushion Under, RH
72928E	Cover, Rear Seat Cushion Under, LH
72959A	Spacer, Rear Seat Turn Side
72960C	Table Assy, NO.1 Seat Turn, RH
72970A	Table Assy, NO.1 Seat Turn, LH
72973K	Cover, Rear Seat Turn Table, RH
72973L	Cover, Rear Seat Turn Table, NO.1
72973M	Cover, Rear Seat Turn Table, NO.2
72974B	Cover, Rear Seat Turn Table, LH
72975A	Protector, Rear Seat Turn Plate
72995F	Cover, Rear Seat Cushion, RH
72995K	Cover, Rear NO.2 Seat Cushion
78067A	Bracket Sub-assy, Rear Seat Legrest, Outer(FOR RH SEAT)
78067B	Bracket Sub-assy, Rear Seat Legrest, Outer(FOR LH SEAT)
78631B	Table, Rear Seat Side
78656J	Cover, Rear Seat Legrest, RH
78656K	Cover, Rear Seat Legrest, LH
78789B	Bracket, Sub Seat Leg, NO.1
78789C	Bracket, Sub Seat Leg, NO.2
78807F	Bracket Sub-assy, Sub Seat, Rear
78980D	Footrest Assy, Rear Seat, NO.1
78980E	Footrest Assy, Rear Seat, NO.2
78987B	Cover, Rear NO.1 Seat Footrest, NO.1 LH
78987C	Cover, Rear NO.1 Seat Footrest, NO.1 RH
79011B	Cover Sub-assy, NO.1 Seat Cushion, RH
79012A	Cover Sub-assy, NO.1 Seat Cushion, LH
79013D	Cover Sub-assy, NO.1 Seatback, RH
79014B	Cover Sub-assy, NO.1 Seatback, LH
79021D	Cover Sub-assy, NO.2 Seat Cushion, RH
79022B	Cover Sub-assy, NO.2 Seat Cushion, LH
79023D	Cover Sub-assy, NO.2 Seatback, RH
79024D	Cover Sub-assy, NO.2 Seatback, LH
79101C	Frame Sub-assy, NO.1 Seat Cushion, RH
79102B	Frame Sub-assy, NO.1 Seat Cushion, LH
79103B	Frame Sub-assy, NO.1 Seatback, RH
79104A	Frame Sub-assy, NO.1 Seatback, LH
79105G	Leg Sub-assy, NO.1 Seat, RH
79106B	Leg Sub-assy, NO.1 Seat, LH
79135C	Pad, NO.1 Seat Cushion, RH
79136C	Pad, NO.1 Seat Cushion, LH
79175F	Pad, NO.1 Seatback, RH
79180B	Spring Assy, NO.1 Seatback, RH
79185A	Pad, NO.1 Seatback, LH
79190	Spring Assy, NO.1 Seatback, LH
79235F	Pad, NO.2 Seat Cushion, RH
79236G	Cover, NO.2 Seat Leg, RH
79236K	Cover, NO.1 Seat Leg, NO.1
79236P	Cover, NO.1 Seat Leg, NO.1(FOR LH SEAT)
79236Q	Cover, NO.1 Seat Leg, NO.2(FOR LH SEAT)
79245A	Pad, NO.2 Seat Cushion, LH
79260C	Spring Assy, NO.2 Seat Cushion, RH
79270B	Spring Assy, NO.2 Seat Cushion, LH
79275F	Pad, NO.2 Seatback, RH
79285C	Pad, NO.2 Seatback, LH
79621B	Stopper, NO.2 Seat Cushion
79910A	Cable Assy, Rear Seat Turn, NO.1
79937C	Cover, NO.1 Seat Leg, NO.1(FOR RH SEAT)
79937D	Cover, NO.1 Seat Leg, NO.1(FOR LH SEAT)
79937G	Cover, Rear Seat Leg, NO.2
79937H	Cover, Rear Seat Leg, NO.2
79956V	Cover, Rear Seat Leg Side, RH
79956W	Cover, Rear Seat Leg Side, LH
79956X	Cap(FOR REAR SEAT LEG SIDE COVER)
79959E	Cover, NO.1 Seat Leg, RH
79959F	Cover, NO.1 Seat Leg, LH
79959G	Cover, NO.2 Seat Leg, RH NO.1
79959J	Cover, NO.2 Seat Leg, LH NO.1
79959S	Cover, Rear Seat Leg, RH
79959T	Cover, Rear Seat Leg, LH
79966K	Cover, Rear Seat Leg, RH(FOR RH SEAT)
79966L	Cover, Rear Seat Leg, LH(FOR RH SEAT)
79966M	Cover, Rear Seat Leg, RH(FOR LH SEAT)
79966N	Cover, Rear Seat Leg, LH(FOR LH SEAT)
82241B	Wire, Relay
85H20	Motor Assy, Power Seat
C1785A	Bracket, Control Stay, NO.2 RH
C2230B	Step Assy, Rear
C2249B	Protector, Rear Step
C3212B	Cover, Front Guard
C3278A	Cover, Rear Seat Leg Garnish
C3381C	Cover, Slide Step, NO.1
C3382C	Cover, Slide Step, NO.2
C5191B	Bracket, Rear Seat Anchor, NO.1
C6903A	Bracket Sub-assy, Slide Bed Lock
C7003B	Lift Unit, Rear Seat
C7087A	Lock Sub-assy, Rear Seat Turn, NO.1
C7098A	Plate Sub-assy, Rear Seat Turn, Lower
C7120D	Leg Assy, Welcab Seat
C7120H	Leg Assy, Welcab Seat, NO.2
C7196F	Cover, Turn Table, NO.1
C7226A	Bracket, NO.1 Seat Leg, NO.2
C7227C	Carpet, Welcab Seat Footrest Step
C7229A	Plate, NO.1 Seat Leg
C7408D	Rod Sub-assy, Welcab Seat, NO.1
C7485K	Bracket, Welcab Seat Rod Support, NO.1
C7485L	Bracket, Welcab Seat Rod Support, NO.2
C7488C	Plate, Welcab Seat Rod Support, NO.2
C7986E	Cover, Rear Seat Turn Guard
C8284C	Wire, Power Lift Main
C8410J	Switch Assy, Power Lift Control
C8417L	Switch, Limit, NO.1
C8417M	Switch, Limit, NO.2
C8417N	Switch, Limit, NO.3
C8417P	Switch, Limit, NO.4
C8418C	Plate, Limit Switch
C8419L	Bracket, Limit Switch, NO.1
C8419M	Bracket, Limit Switch, NO.2
C8419N	Bracket, Limit Switch, NO.3
C8530D	Relay Assy, Power Lift Motor
C8545D	Relay, Power Lift Control
C8610A	Buzzer Assy
C8630B	Holder Assy, Fuse
C8630C	Fuse
C9030A	Link Assy, Power Lift Arm, NO.2
C9053B	Roller Sub-assy, Platform Guide
C9055H	Cover Sub-assy, Power Lift, NO.1
C9111B	Rail, Power Lift Arm Guide Main, RH NO.1
C9111C	Rail, Power Lift Arm Guide Main, RH NO.2
C9112B	Rail, Power Lift Arm Guide Main, LH NO.1
C9112C	Rail, Power Lift Arm Guide Main, LH NO.2
C9147B	Shaft, Chair Lift Base
C9159A	Spacer, Lift Arm Guide Stopper
C9181A	Bracket, Beam TO Frame
C9185A	Cover, Lift Guide Rail Rear End, RH
C9186A	Cover, Lift Guide Rail Rear End, LH
C9201C	Guide Sub-assy, Power Lift
C9203C	Link Sub-assy, Power Lift Arm, NO.1
C9221B	Hook, Power Lift Guide
C9226D	Collar, Platform Support Shaft, NO.1
C9235B	Plate, Power Lift Arm Guide Stop
C9239C	Spacer, Lift Arm Link, NO.2
C9245A	Cushion, Power Lift Platform
C9295E	Cover, Power Lift Arm, RH
C9296C	Cover, Power Lift Arm, LH
C9319A	Pin, Platform Hinge
C9330A	Holder Assy, Power Lift Platform
C9336A	Gusset, Power Lift Platform
C9389E	Cushion, Platform Stopper
C9492A	Stopper, Power Lift Safety, NO.2
C9516A	Support, Return Spring Pipe
C9556B	Shaft, Platform Guide Roller, NO.1
C9556C	Shaft, Platform Guide Roller, NO.2
C9565A	Cover, Power Lift Cylinder, NO.1
C9598A	Catch, Platform Safety Hook
C9602C	Rod Sub-assy, Power Lift Cylinder
C9610J	Motor Assy, Power Lift
C9611B	Motor, Power Lift, NO.1
C9611C	Motor, Power Lift, NO.2
C9634A	Gear, Power Lift, NO.4
C9641B	Bracket, Power Lift Motor, NO.1
C9641C	Bracket, Power Lift Motor, NO.2
C9642B	Bracket, Power Lift Motor, NO.2
C9650A	Cylinder Assy, Power Lift
C9654M	Collar, Power Lift Cylinder, NO.1
C9654N	Collar, Power Lift Cylinder, NO.2
C9654P	Collar, Power Lift Cylinder, NO.3
C9654Q	Collar, Power Lift Cylinder, NO.4
C9654V	Collar, Power Lift Cylinder, NO.5
C9654W	Collar, Power Lift Cylinder, NO.6
C9654X	Collar, Power Lift Cylinder, NO.7
C9654Y	Collar, Power Lift Cylinder, NO.8
C9656A	Cover, Tail Gate Cylinder Rod
C9658C	Plate, Power Lift Cylinder Rod
C9667A	Support, Power Lift Cylinder, NO.1
C9691C	Cover, Power Lift Motor

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
