Toyota Alphard G/V

2002-05 → 2008-04 · chassis ANH1#,MNH1# · catalogue 713120 · Japan

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

33 part groups · 5 illustrations

Illustrations

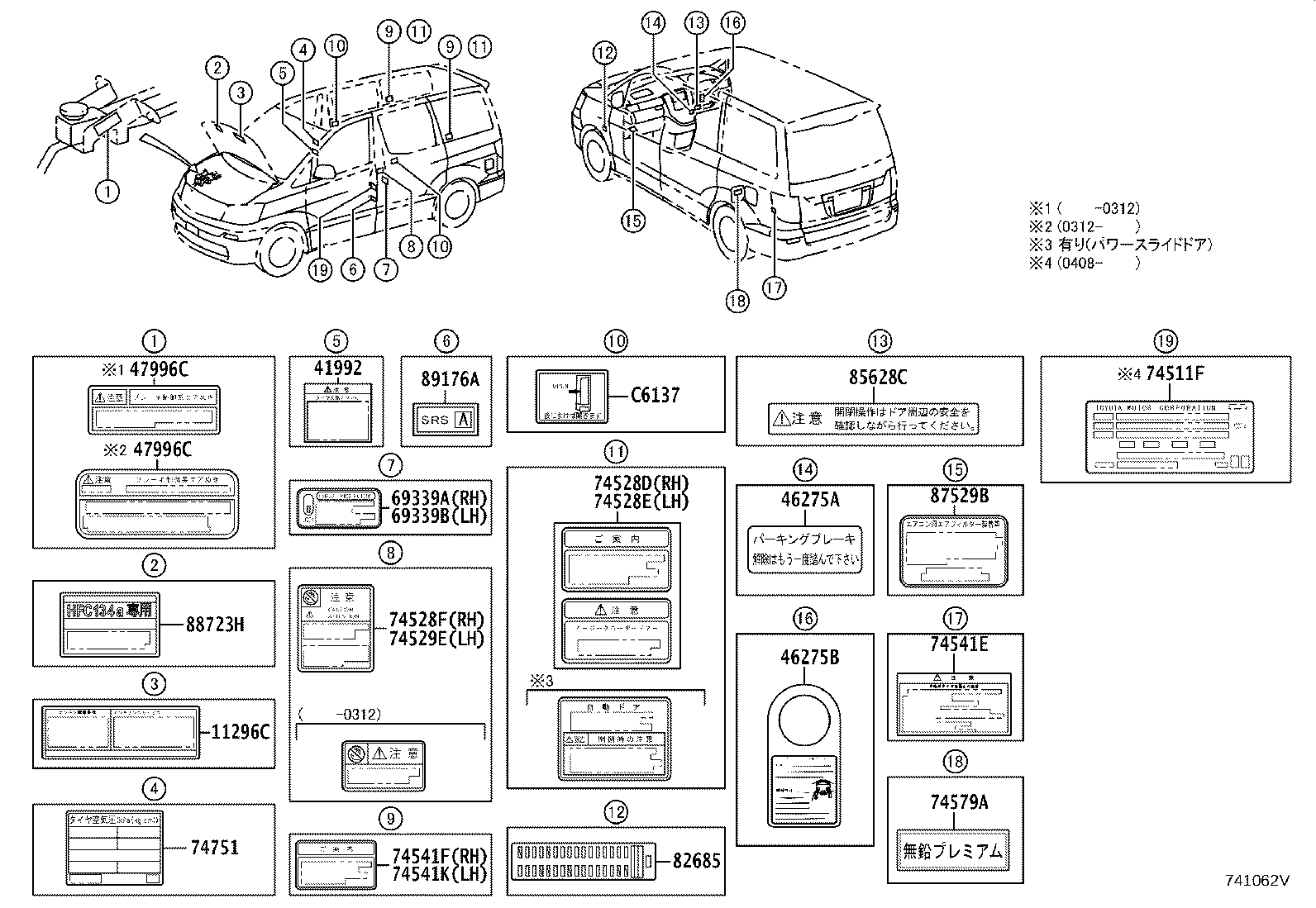

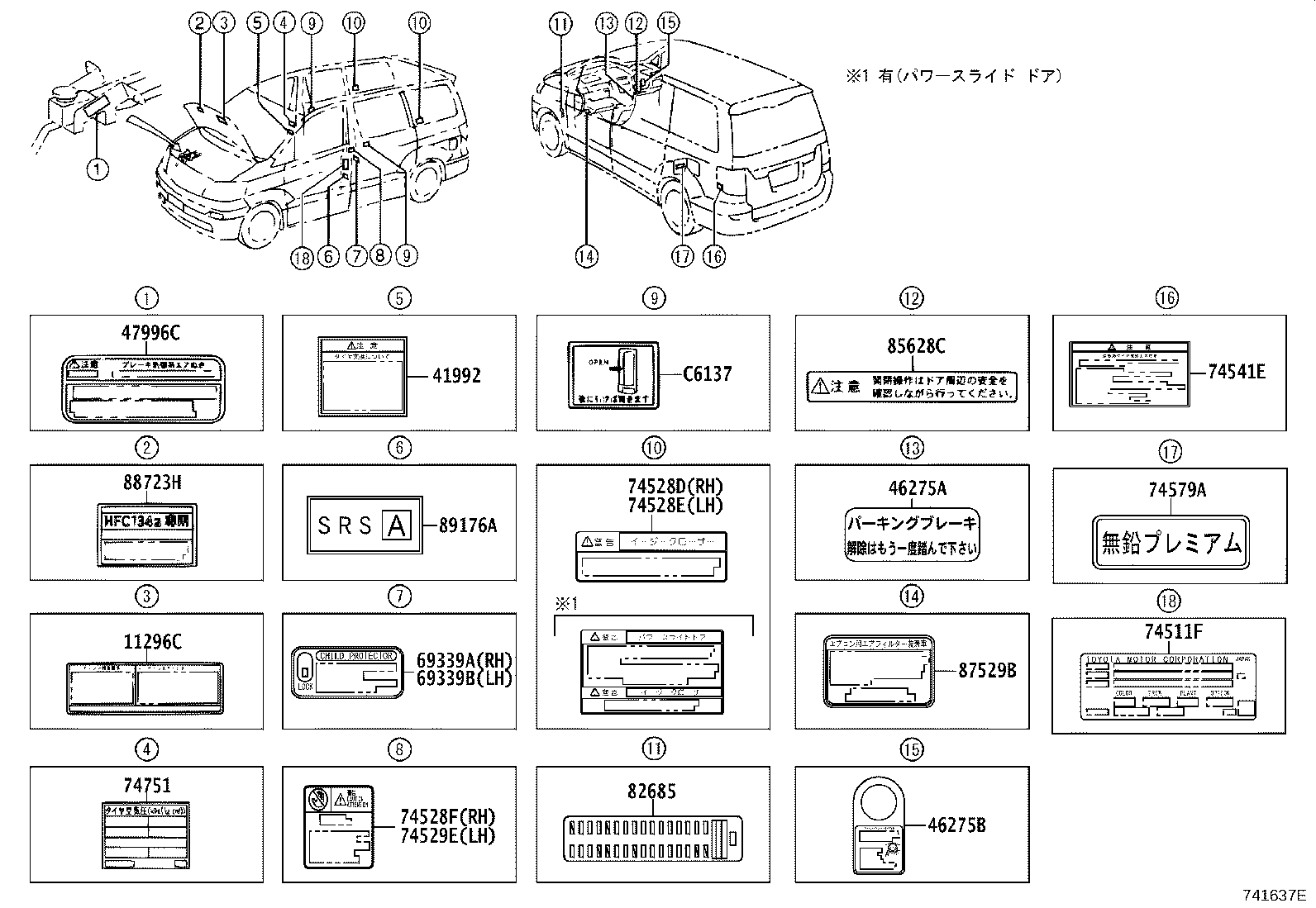

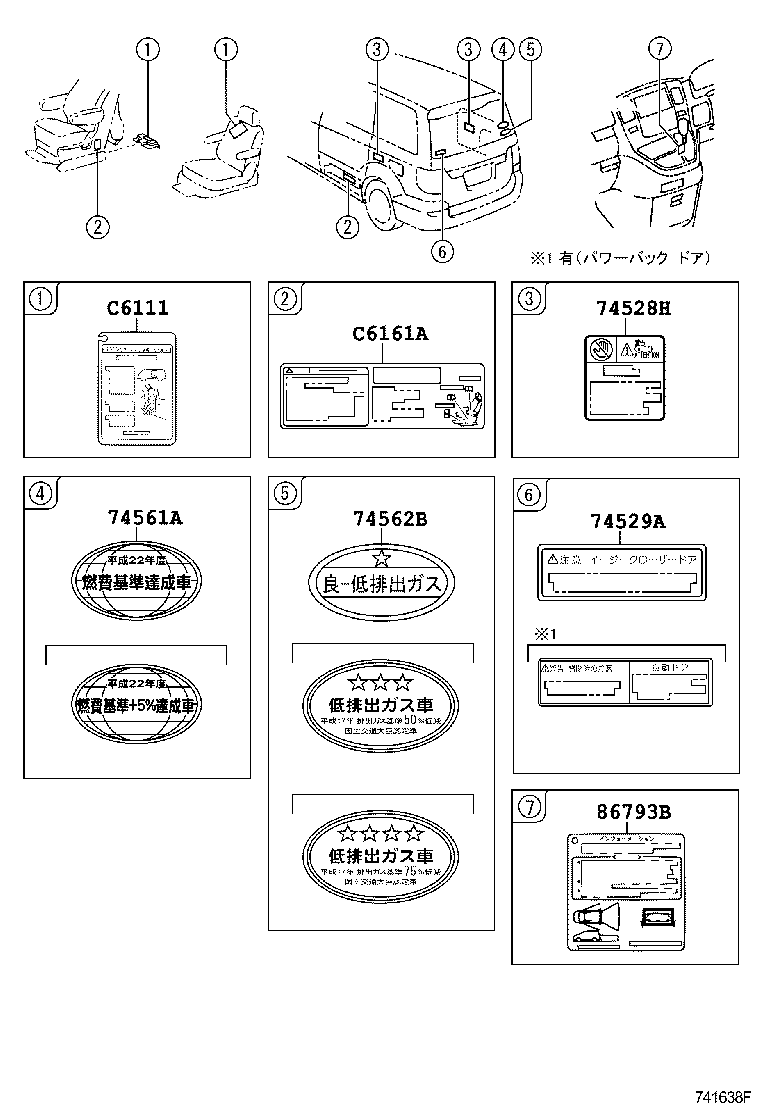

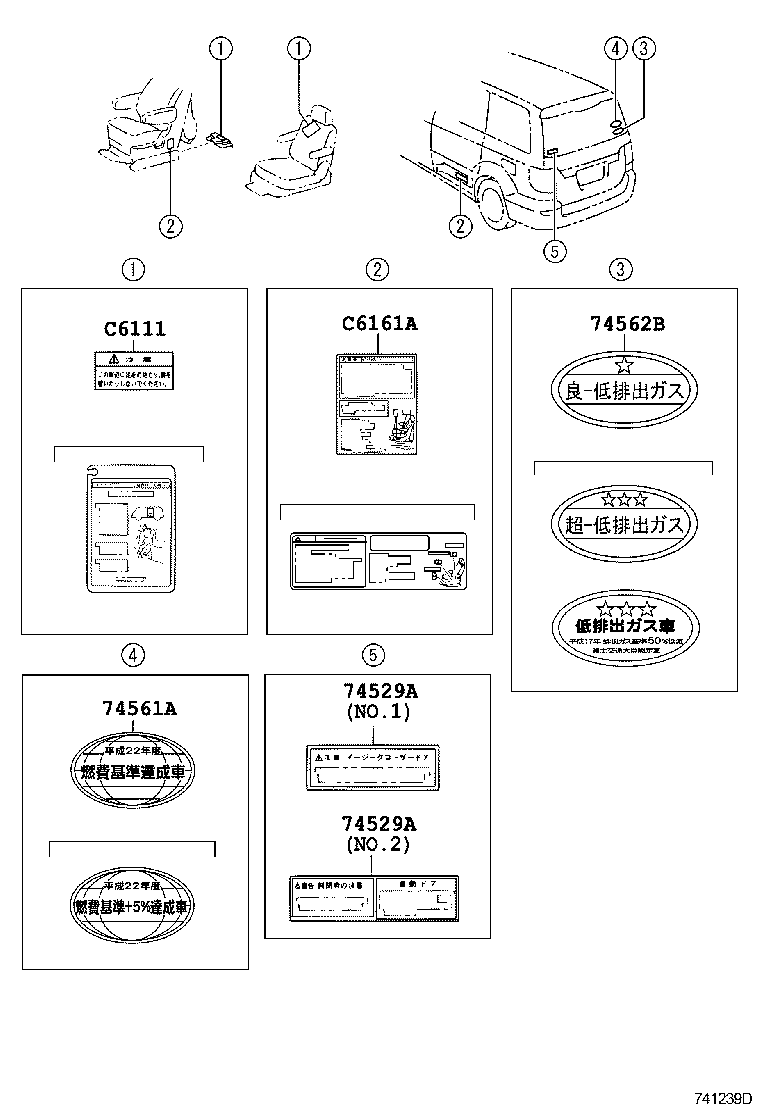

Figure 746047 746047 2002-05 → — Figure 741062V 741062V 2002-05 → 2005-04 Figure 741239D 741239D 2002-05 → 2005-04 Figure 741637E 741637E 2005-04 → — Figure 741638F 741638F 2005-04 → —

Part groups

PNCDescription
11296C Label, Engine Service Information
13564 Label, Timing Belt Replacement Information
16448A Plate, Radiator Caution
17791A Label, Maintenance Information
41992 Label, Differential Notice
46275A Label, Parking Brake Release Information, NO.1
46275B Label, Parking Brake Release Information, NO.2
47996C Label, Brake Bleed Caution
69339A Plate, Child Protector Lock Caution
69339B Plate, Child Protector Lock Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74528D Label, Power Slide Door Notice
74528E Label, Power Slide Door Notice
74528F Label, Door Closer Caution, RH
74528H Label, Power Slide Door Caution
74529A Plate, Back Door Caution
74529E Label, Door Closer Caution, LH
74541E Plate, Compact Spare Tire Caution
74541F Label, Slide Door Glass Caution
74541K Label, Slide Door Glass Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74579A Label, Unleaded Fuel Information
74751 Label, Tire Pressure Information
82685 Plate, Caution
85628C Label, Automatic Door
86793B Label, Television Camera Information
87529B Label, A/C Filter Information
88723H Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
C6111 Plate, Safety Caution
C6137 Label, Slide Door Handle Information
C6161A Label, Power Lift Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
