Toyota Alphard G/V

2002-05 → 2008-04 · chassis ANH1#,MNH1# · catalogue 713120 · Japan

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

10 part groups · 4 illustrations

Illustrations

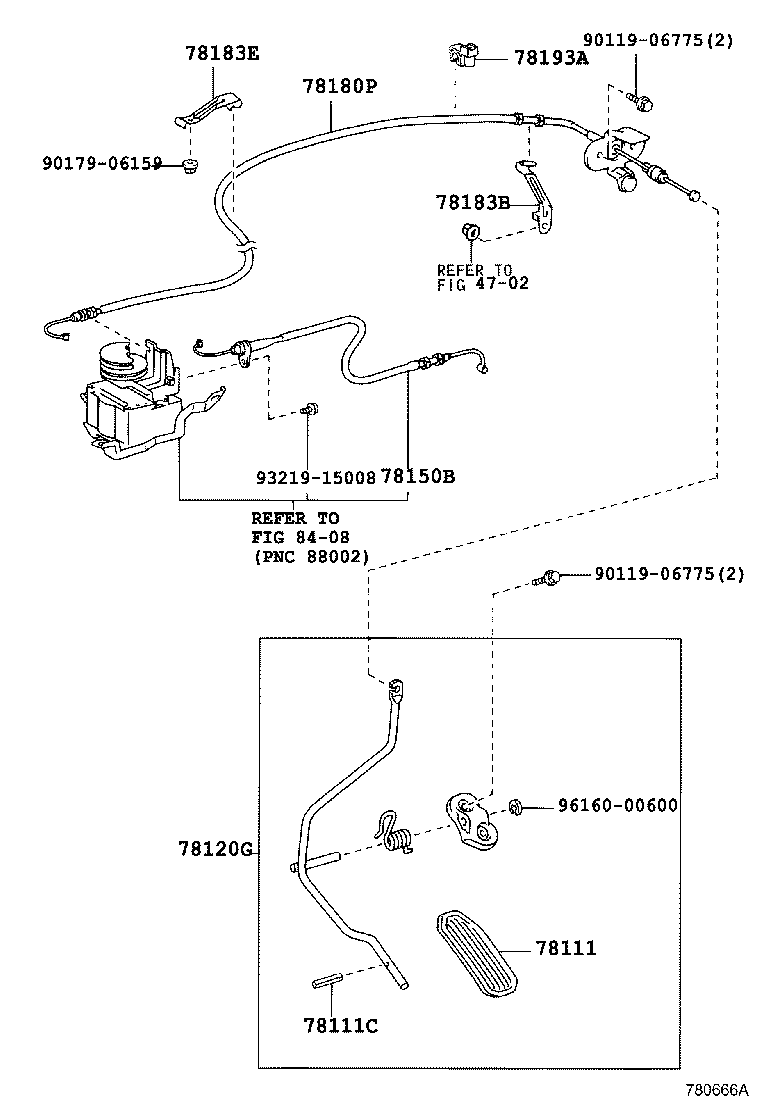

Figure 780664 780664 2002-05 → 2005-04 Figure 780665 780665 2002-05 → 2005-04 Figure 780666A 780666A 2002-05 → 2005-04 Figure 780988 780988 2005-04 → —

Part groups

PNCDescription
78111 Pedal, Accelerator
78111C Pin (FOR ACCELERATOR PEDAL)
78120G Rod Assy, Accelerator Pedal
78150B Cable Assy, Accelerator Auto Drive
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78183C Clamp, Accelerator Control Cable
78183D Clamp, Accelerator Control Cable
78183E Clamp, Accelerator Control Cable
78193A Support, Accelerator Control Cable, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
