Toyota Alphard G/V

2002-05 → 2008-04 · chassis ANH1#,MNH1# · catalogue 713120 · Japan

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

7 part groups · 2 illustrations

Illustrations

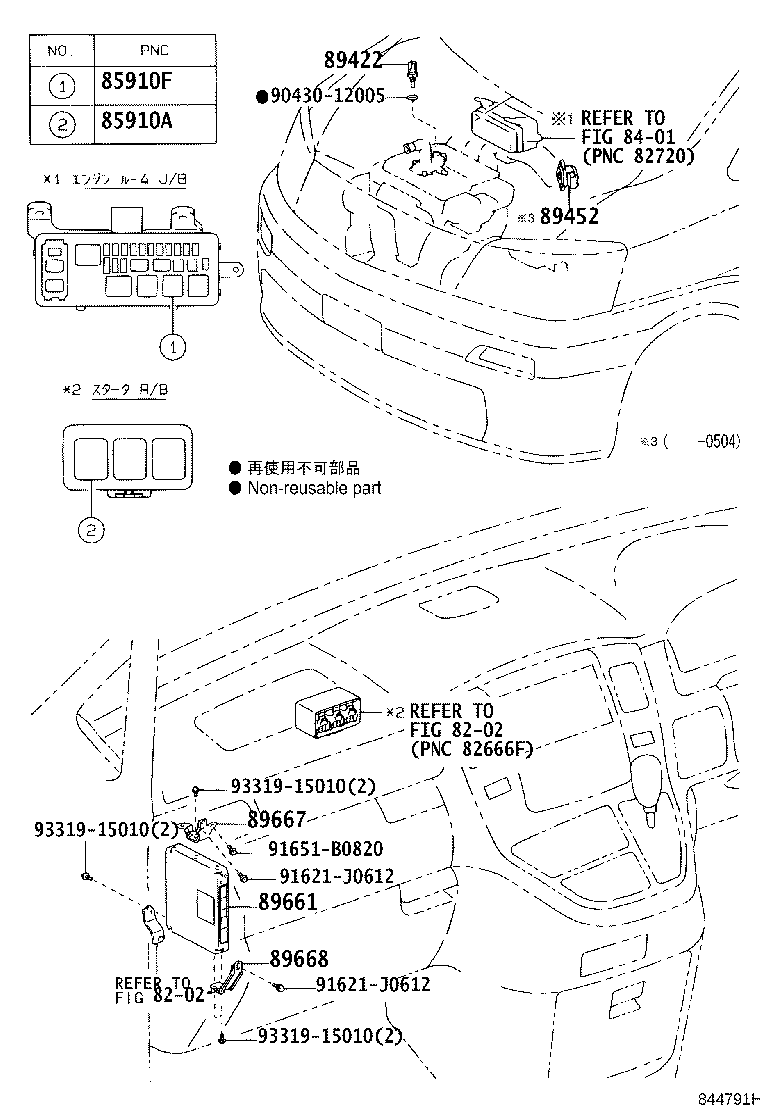

Figure 844790H 844790H 2002-05 → — Figure 844791H 844791H 2002-05 → —

Part groups

PNCDescription
85910A Relay Assy, Circuit Opening (FOR EFI)
85910F Relay, Computer (FOR EFI)
89422 Sensor, Water Temperature (FOR E.F.I.)
89452 Sensor, Throttle Position (FOR E.F.I.)
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
