Toyota Alphard G/V
2002-05 → 2008-04 · chassis ANH1#,MNH1# · catalogue 713120 · Japan
Supported model
Data version 2008-10

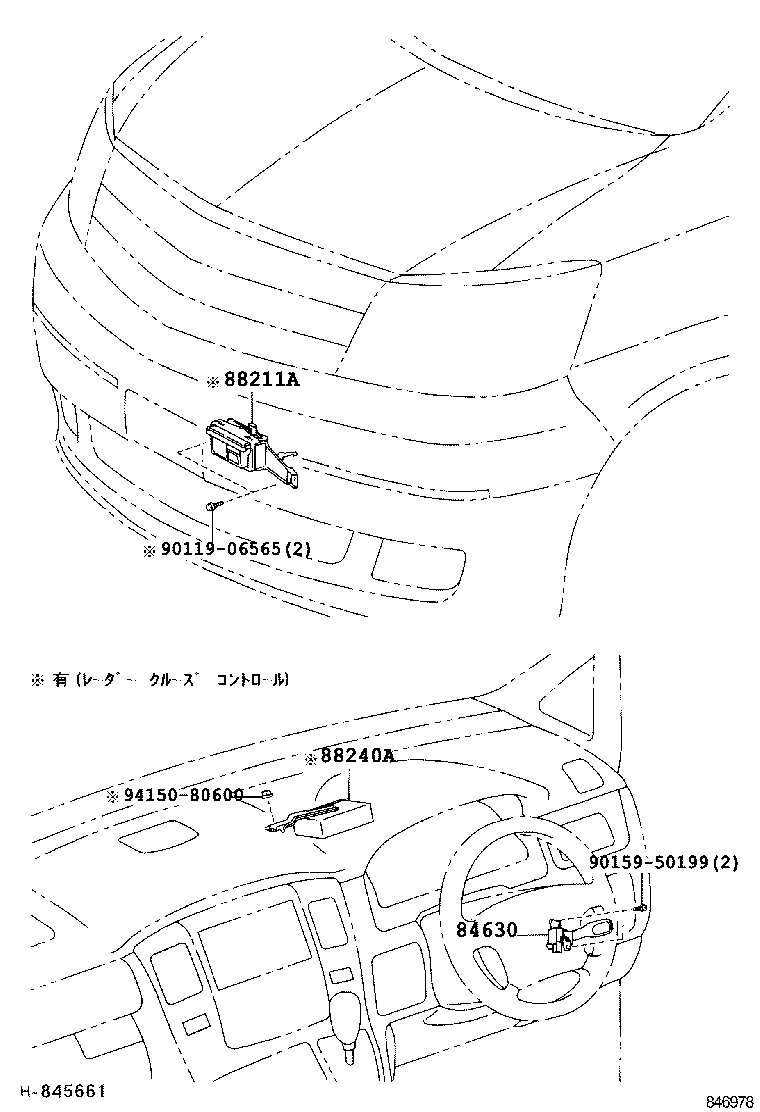

Cruise Control (AUTO DRIVE)
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 84630 | Switch Assy, Cruise Control Main |
| 88002 | Cruise Control(AUTO DRIVE) Set |
| 88211A | Sensor, Laser Radar |
| 88212A | Cover, Cruise Control Actuator |
| 88240A | Computer Assy, Distance Control |
| 88291 | Bracket, Cruise Control(AUTO DRIVE), NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
