Toyota Alphard G/V
2002-05 → 2008-04 · chassis ANH1#,MNH1# · catalogue 713120 · Japan
Supported model
Data version 2008-10
Abs & Vsc

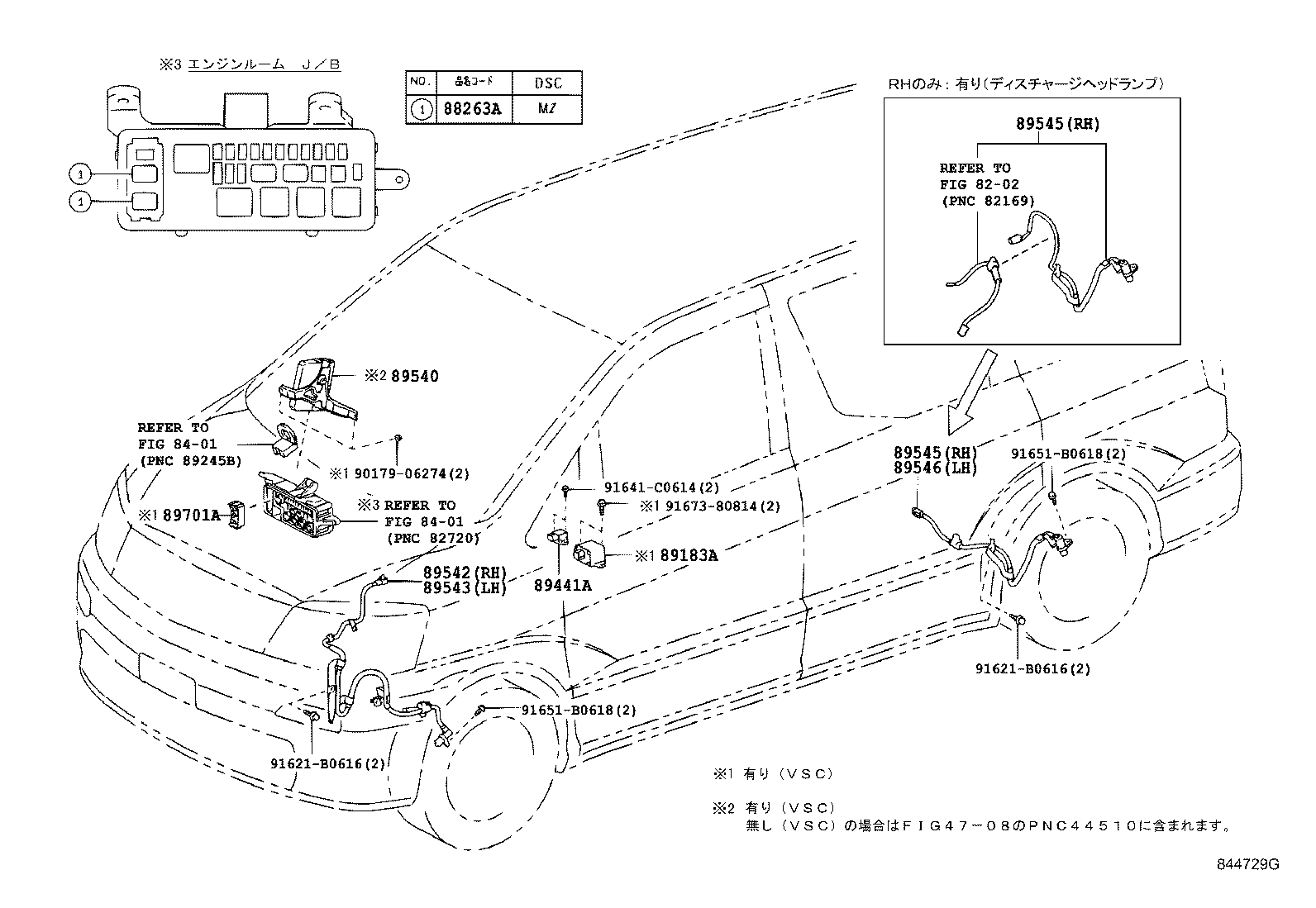

12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88263A | Relay, Skid Control |
| 89183A | Sensor, Yawrate |
| 89441A | Sensor, Deceleration |
| 89516C | Wire, Skid Control Sensor, RH |
| 89516D | Wire, Skid Control Sensor, LH |
| 89540 | Computer Assy, Skid Control |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89544 | Sensor, Skid Control |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
| 89701A | Block Sub-assy, Abs Relay |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
