Toyota Alphard G/V
2002-05 → 2008-04 · chassis ANH1#,MNH1# · catalogue 713120 · Japan
Supported model
Data version 2008-10
Wireless Door Lock

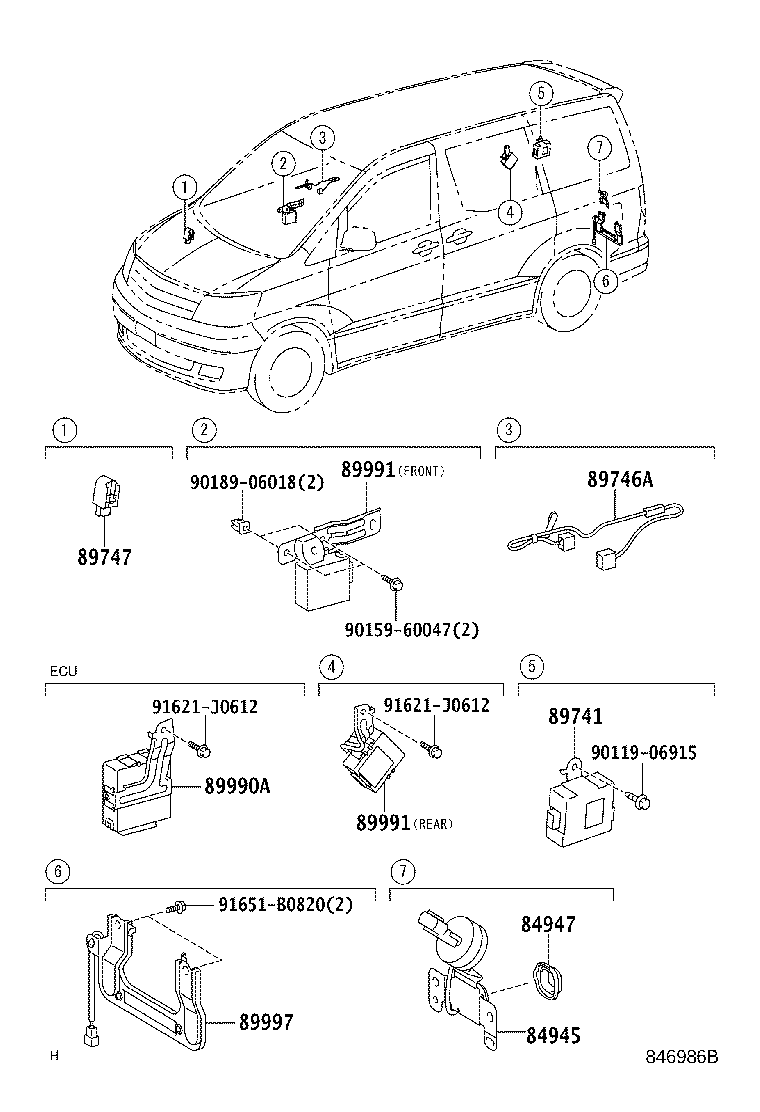

8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 84945 | Switch, Luggage Electrical Key |
| 84947 | Cover, Door Electrical Key Switch |
| 89741 | Receiver, Door Control |
| 89746A | Harness, Electrical Key Wire |
| 89747 | Buzzer, Wireless Door Lock |
| 89990A | Computer Assy, Smart Key |
| 89991 | Oscillator, Door Electrical Key |
| 89997 | Antenna, Electrical Key |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
