Toyota Alphard G/V
2002-05 → 2008-04 · chassis ANH1#,MNH1# · catalogue 713120 · Japan
Supported model
Data version 2008-10
Radio Receiver & Amplifier & Condenser
17 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

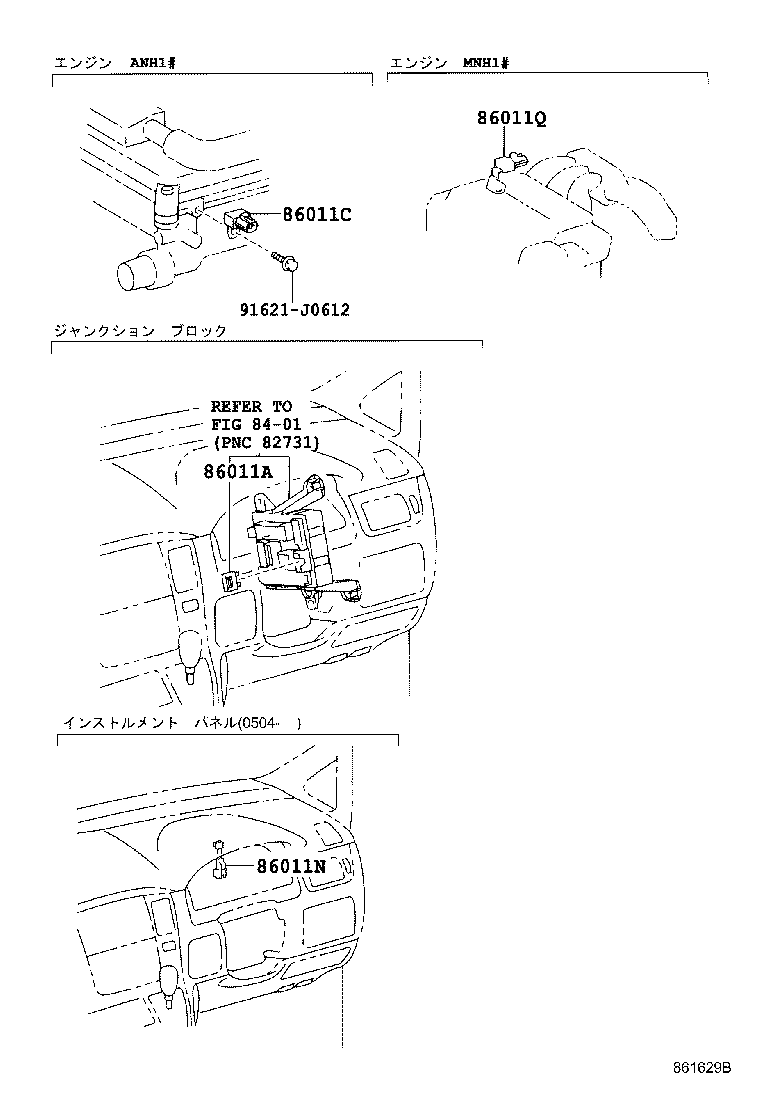

| 86011A | Condenser, Radio Setting |
| 86011C | Filter, Noise |
| 86011N | Filter, Noise |
| 86011Q | Condenser, Radio Setting |
| 86117F | Bracket, Multi-display Controller, A |
| 86117H | Bracket, Multi-display Controller, A |

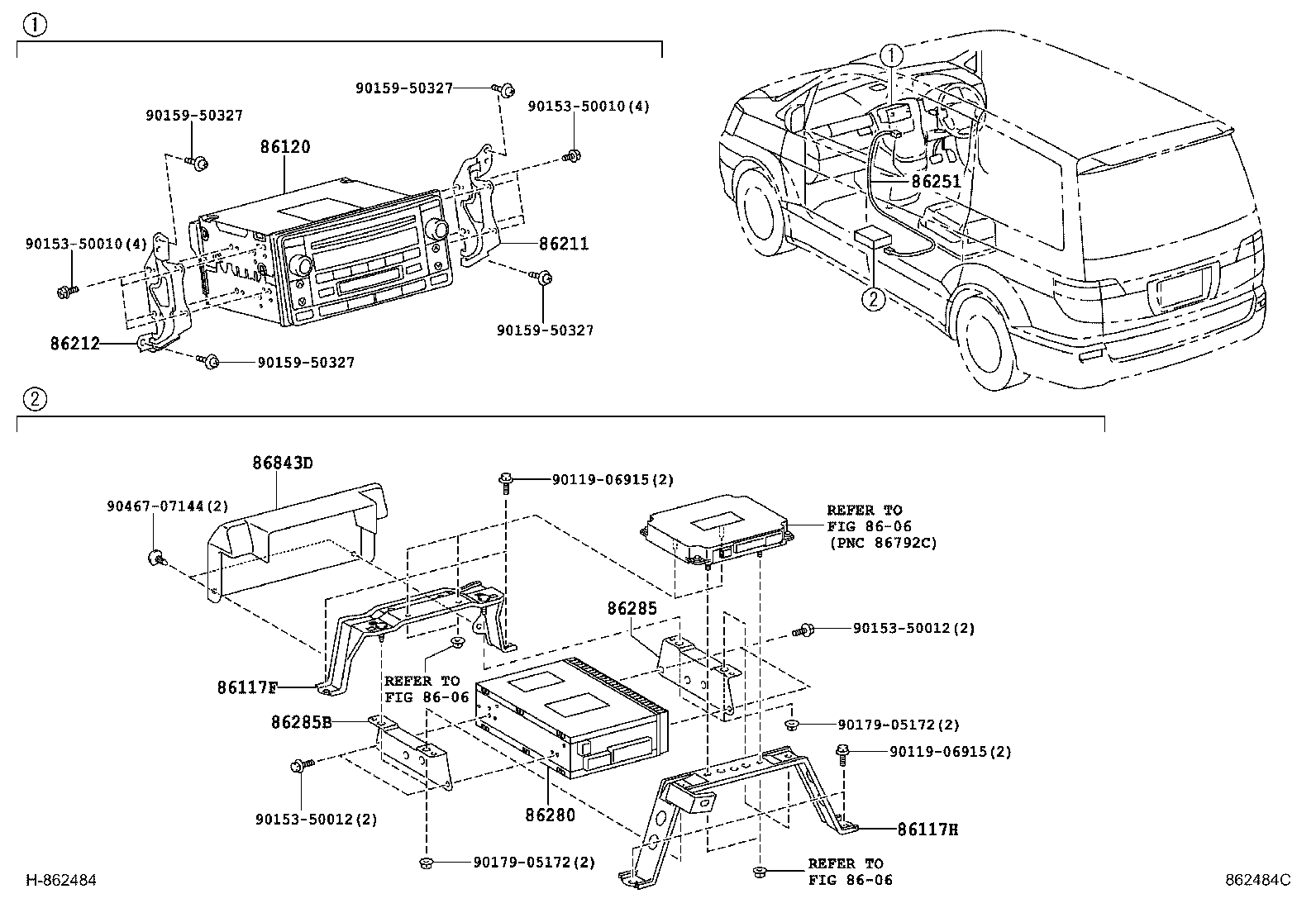

| 86120 | Receiver Assy, Radio |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86251 | Wiring, Amplifier Microphone |
| 86272 | Controller, Disc Player |
| 86274 | Bracket, Disc Player |
| 86274A | Bracket, Disc Player |
| 86280 | Amplifier Assy, Stereo Component |
| 86285 | Bracket, Amplifier, NO.1 |
| 86285B | Bracket, Amplifier, NO.1 |
| 86843D | Cover,Navigation Computer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
