Toyota Alphard G/V

2002-05 → 2008-04 · chassis ANH1#,MNH1# · catalogue 713120 · Japan

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

19 part groups · 3 illustrations

Illustrations

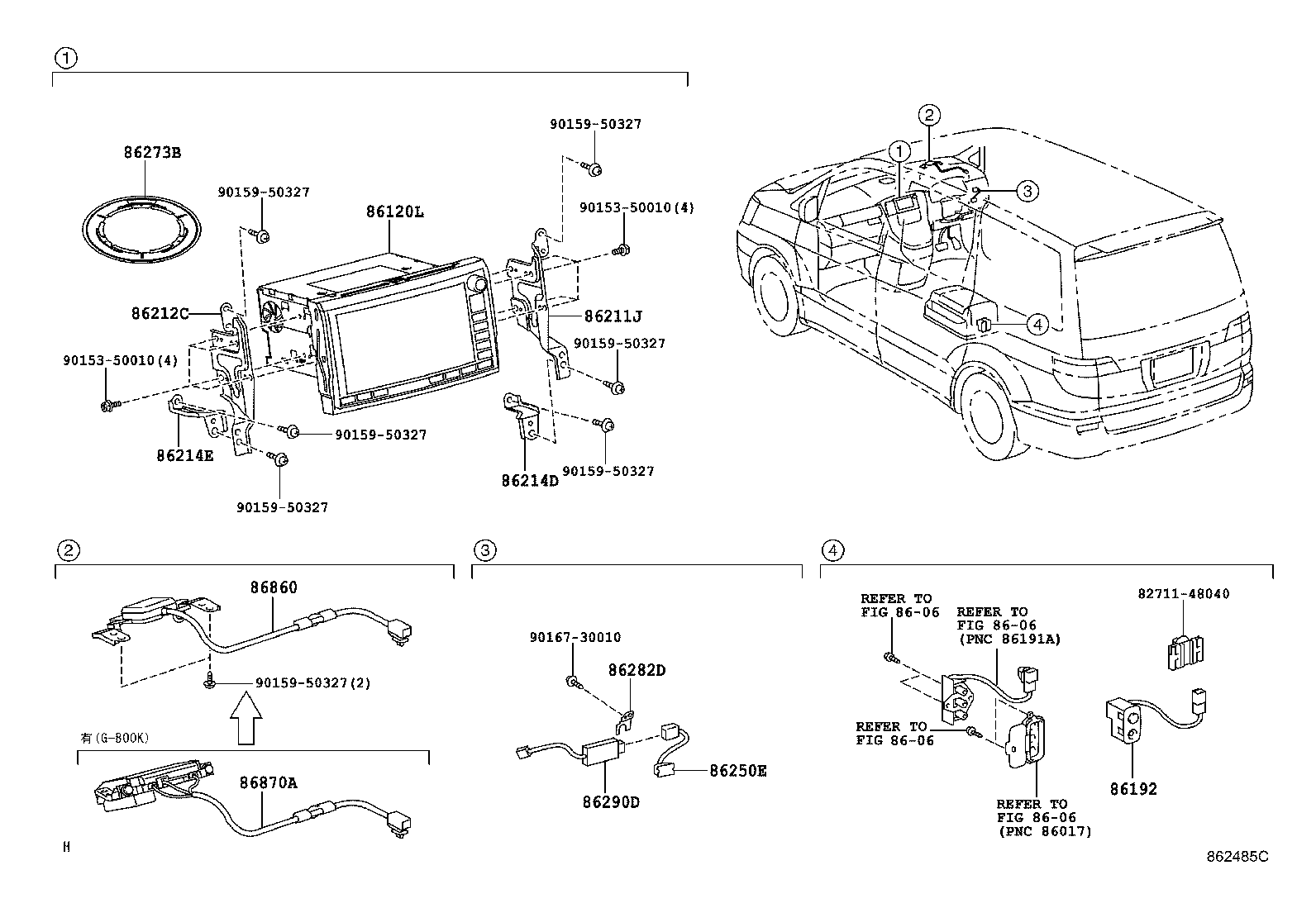

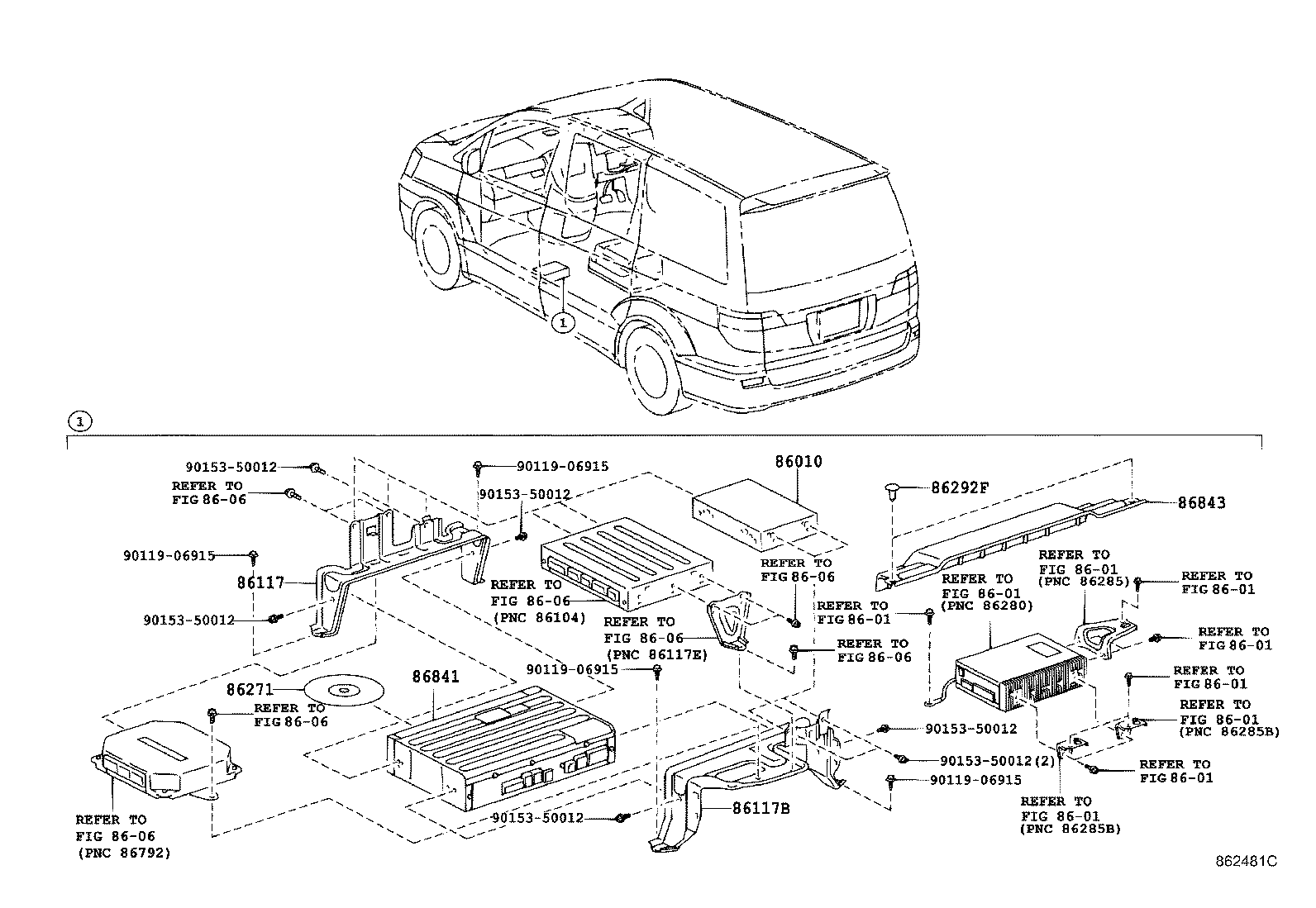

Figure 861631E 861631E 2002-05 → 2005-04 Figure 862481C 862481C 2002-05 → 2005-04 Figure 862485C 862485C 2005-04 → —

Part groups

PNCDescription
86010 Tuner Assy, Television
86117 Bracket, Multi-display Controller, A
86117B Bracket, Television Display, B
86120L Receiver Assy, Navigation
86192 Terminal, Headphone
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86214D Bracket, Radio Earth, NO.1
86214E Bracket, Radio Earth, NO.2
86250E Microphone Assy, Amplifier
86271 Disc, Disc Player
86273B Adapter, Disc Player
86282D Bracket, Microphone
86290D Amplifier Assy, Microphone
86292F Clip(FOR TELEVISION SET COVER)
86841 Computer, Navigation
86843 Cover, Navigation Computer
86860 Antenna Assy, Navigation
86870A Antenna Assy, Gps & Vics
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
