Toyota Alphard G/V

2002-05 → 2008-04 · chassis ANH1#,MNH1# · catalogue 713120 · Japan

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

15 part groups · 4 illustrations

Illustrations

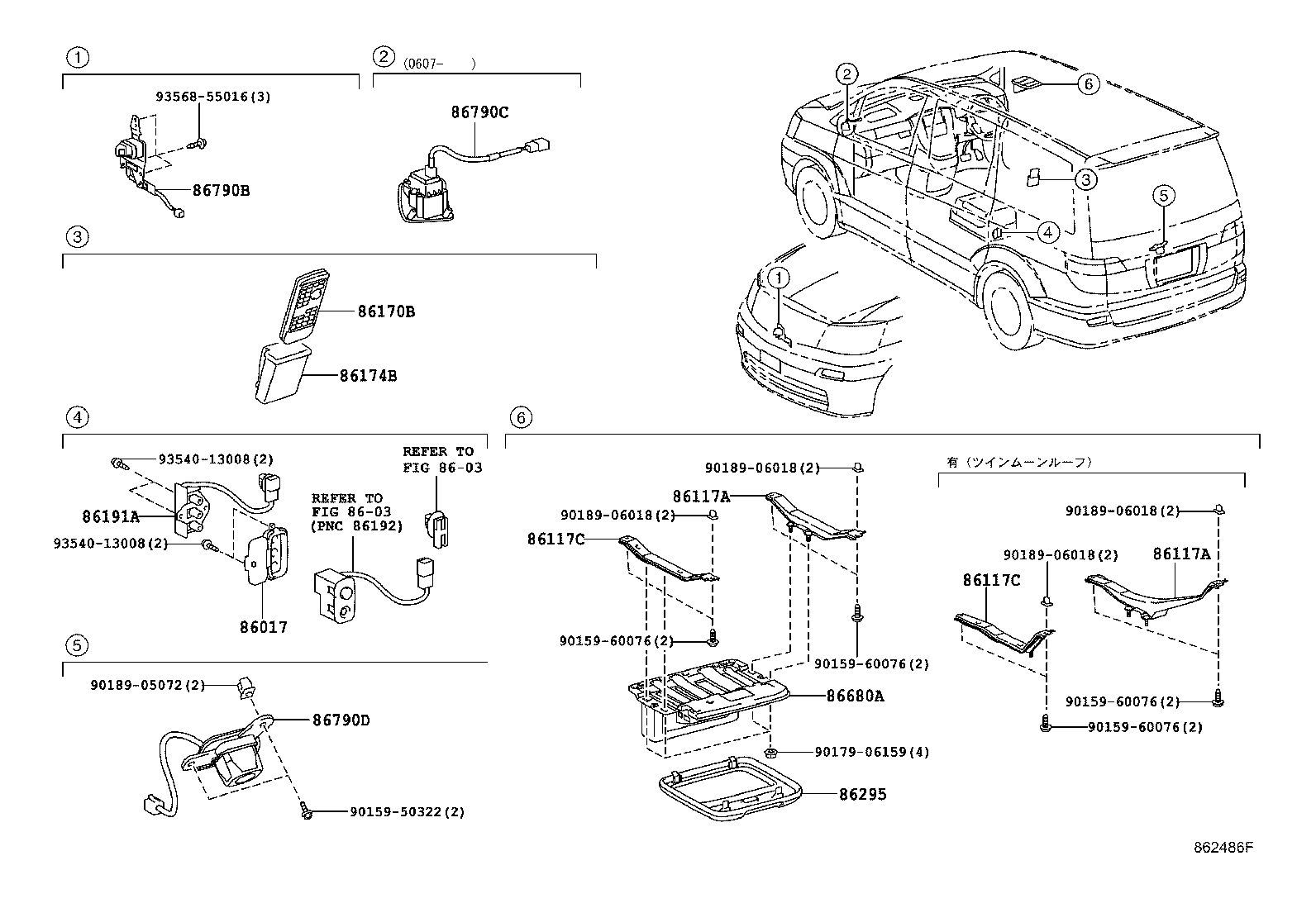

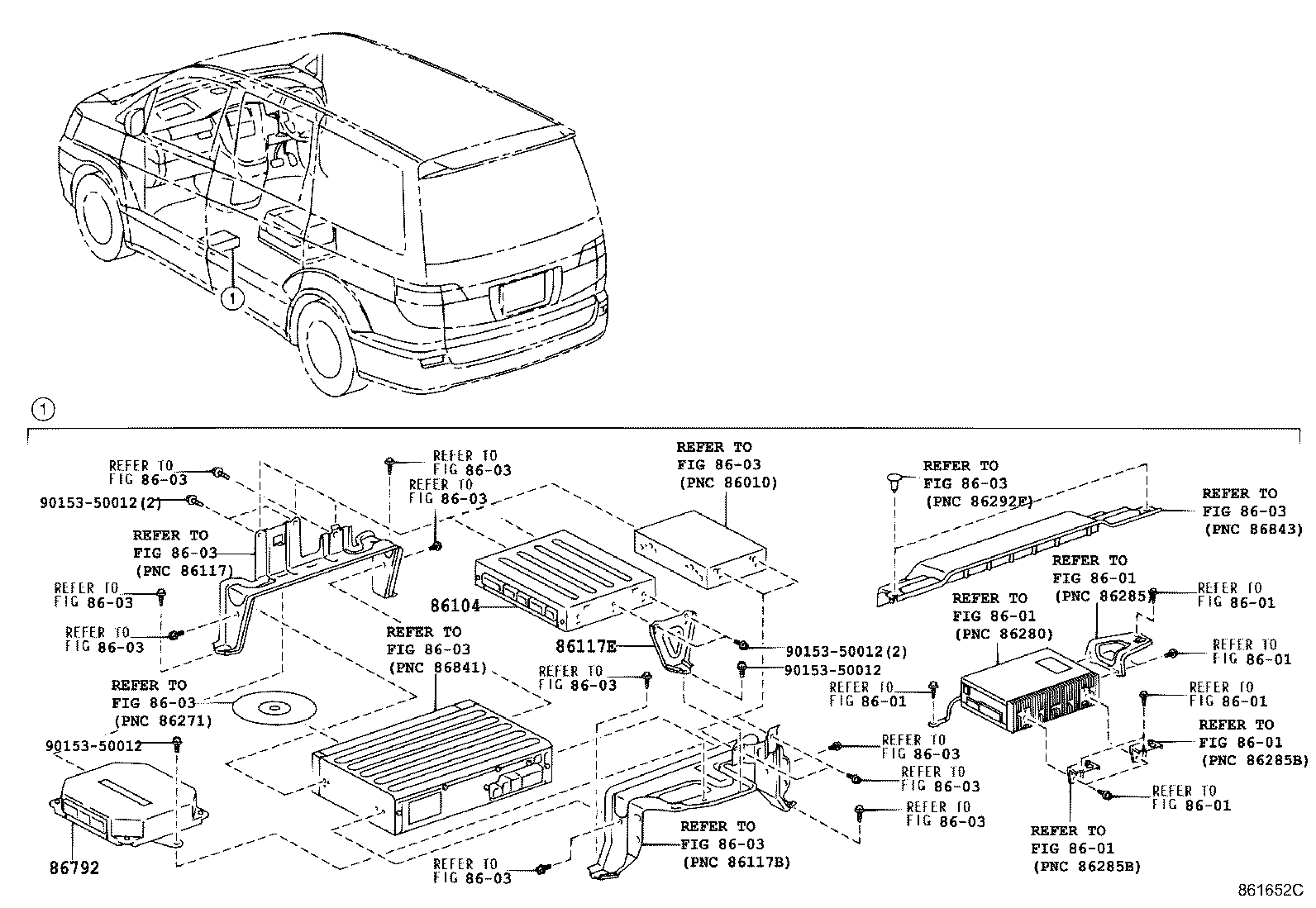

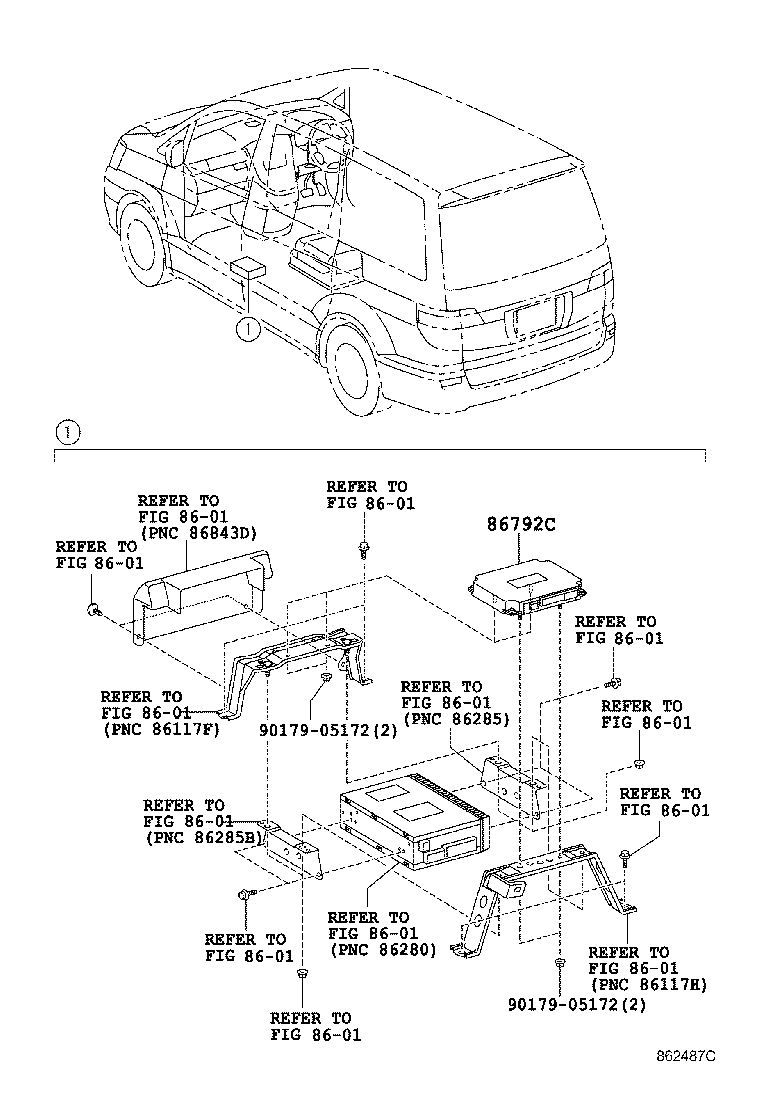

Figure 861633E 861633E 2002-05 → 2005-04 Figure 861652D 861652D 2002-05 → 2005-04 Figure 862486F 862486F 2005-04 → — Figure 862487C 862487C 2005-04 → —

Part groups

PNCDescription
86017 Parts Set, Video
86104 Controller Sub-assy, Multi-display
86117A Bracket, Television Display, A
86117C Bracket, Multi-display Controller, NO.2
86117E Bracket, Multi-display Controller, NO.3
86170B Switch & Volume Assy, Television
86174B Case, Switch & Volume
86191A Terminal, Video(VIDEO ADAPTER)
86295 Base, Television
86680A Display Assy, Television
86790B Camera Assy, Television, FR
86790C Camera Assy, Television, Side
86790D Camera Assy, Television, RR
86792 Controller, Television Camera
86792C Computer, Parking Assist
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
