Toyota Alphard G/V

2002-05 → 2008-04 · chassis ANH1#,MNH1# · catalogue 713120 · Japan

Supported model Data version 2008-10

Heating & Air Conditioning - Compressor

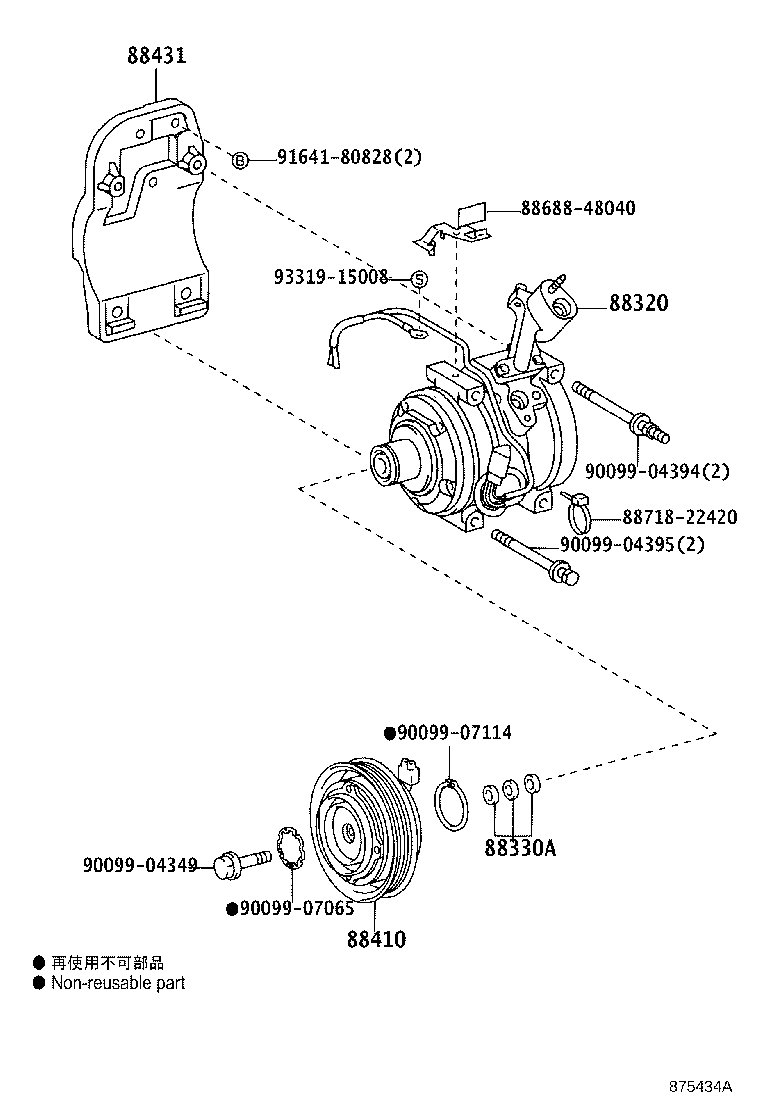

4 part groups · 2 illustrations

PNC	Description
88320	Compressor Assy, Cooler
88330A	Washer (FOR MAGNET CLUTCH)
88410	Clutch Assy, Magnet
88431	Bracket, Compressor Mounting, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
