Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH2#,ATH20,GGH2# · catalogue 713130 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 10 illustrations

Illustrations

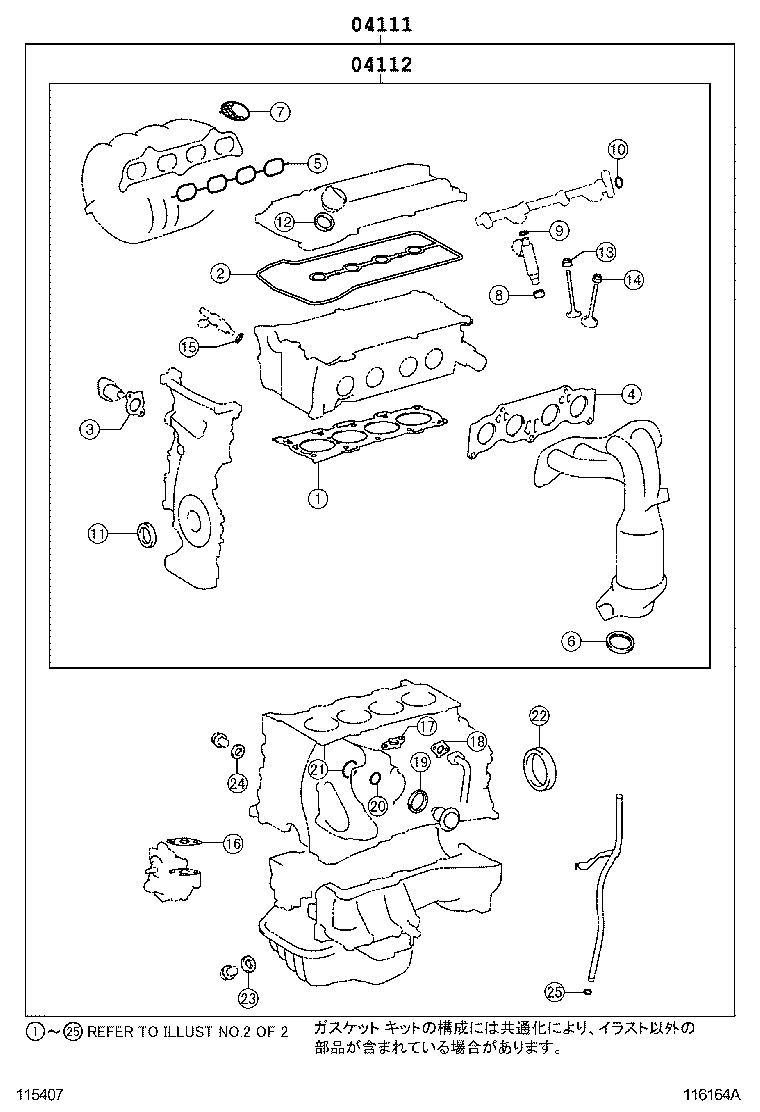

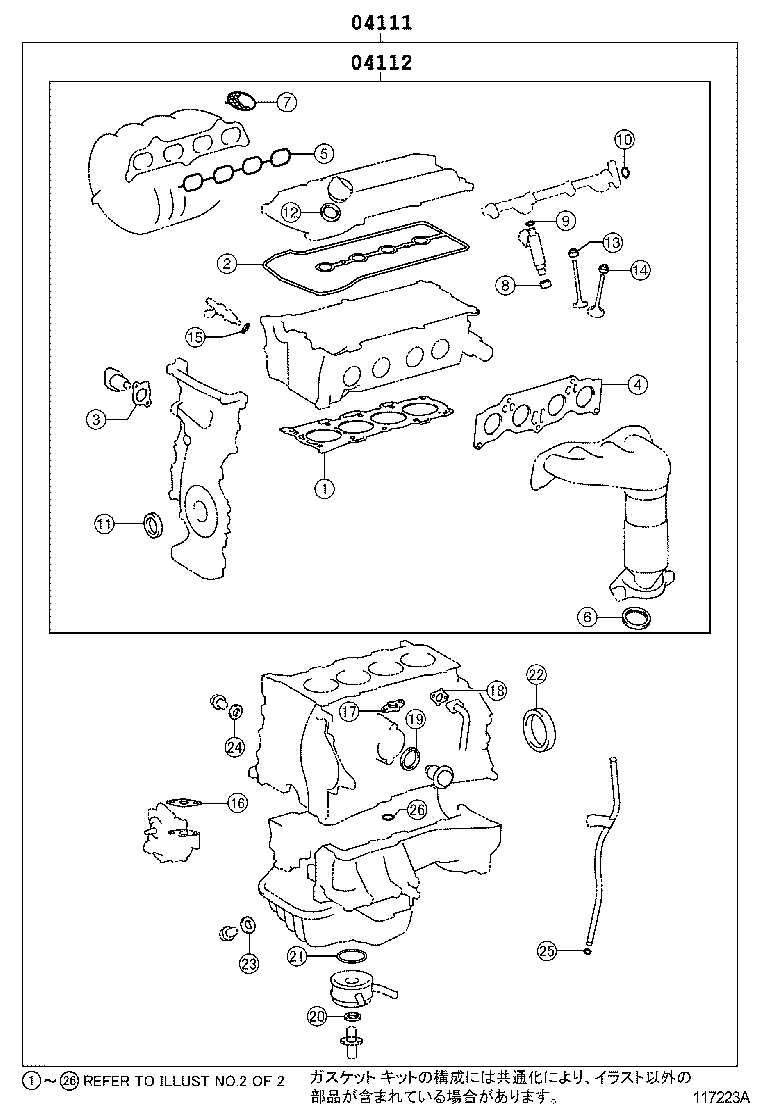

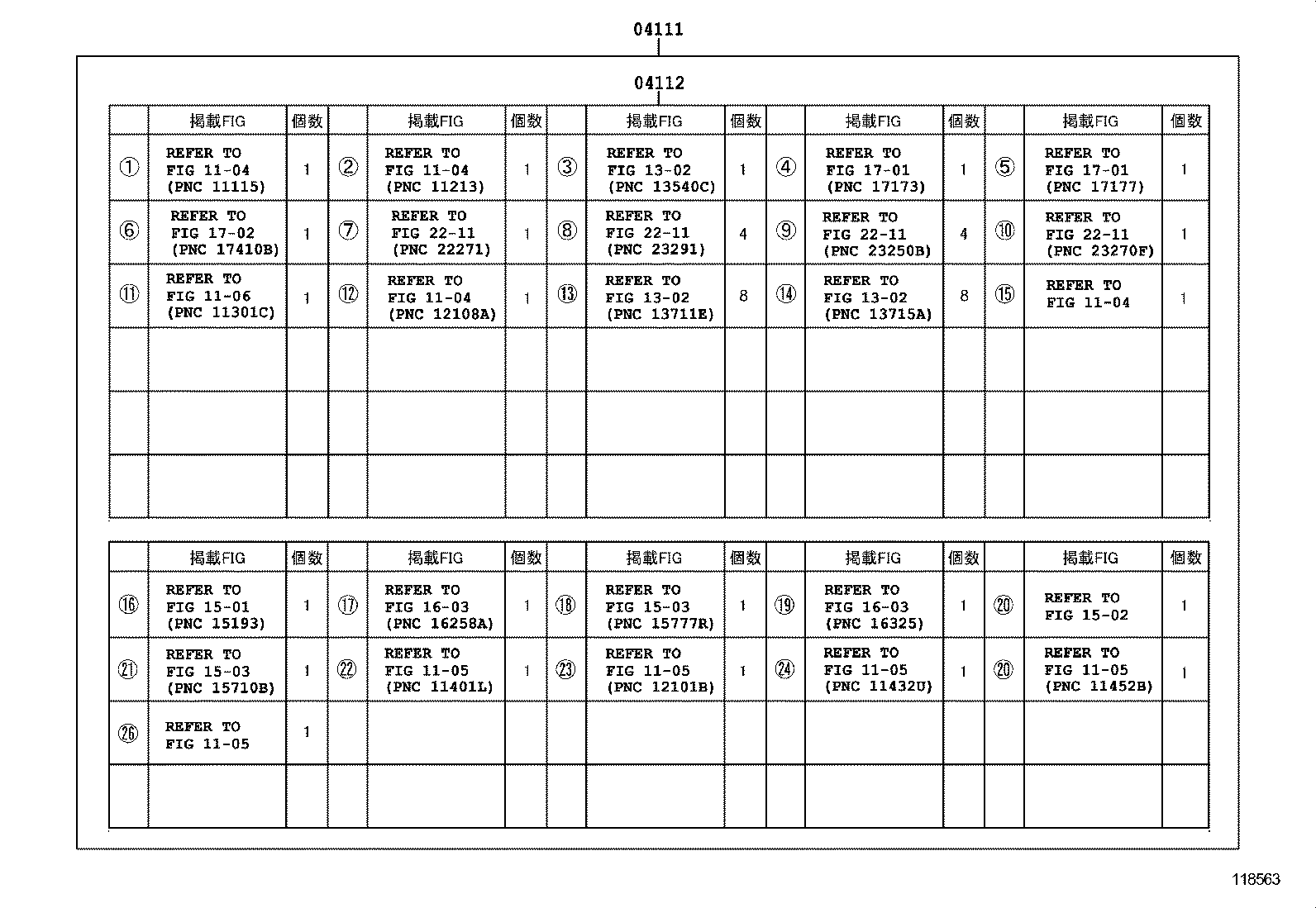

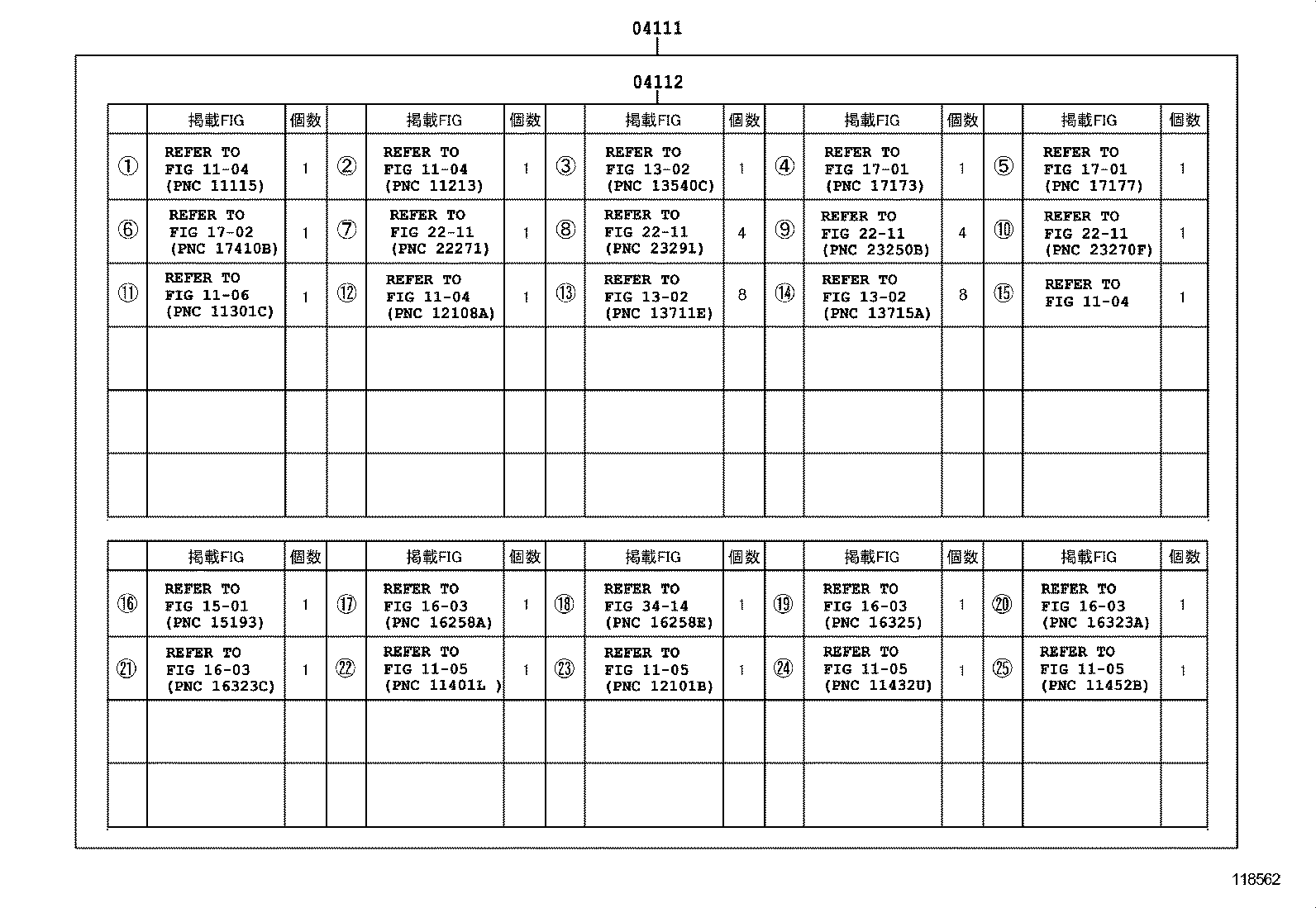

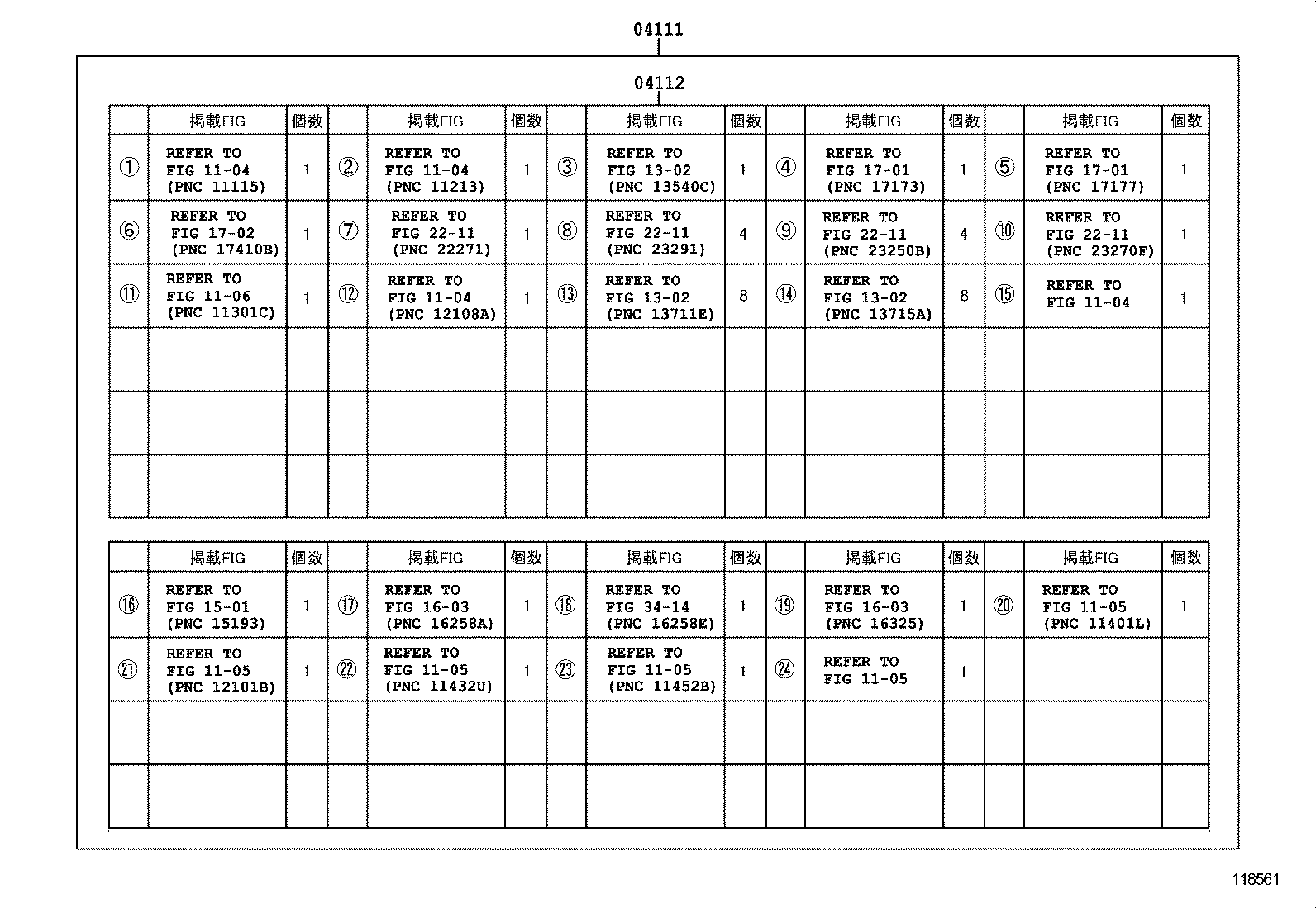

Figure 116163A 116163A 2008-04 → — Figure 118561 118561 2008-04 → — Figure 116164A 116164A 2008-04 → — Figure 118562 118562 2008-04 → — Figure 117223A 117223A 2011-11 → — Figure 118563 118563 2011-11 → — Figure 118719 118719 2008-04 → 2011-08 Figure 118720 118720 2008-04 → 2011-08 Figure 118628 118628 2011-08 → — Figure 118629 118629 2011-08 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
