Toyota Alphard/Vellfire/HV
2008-04 → 2015-01 · chassis ANH2#,ATH20,GGH2# · catalogue 713130 · Japan
Supported model
Data version 2015-04
Exhaust Pipe

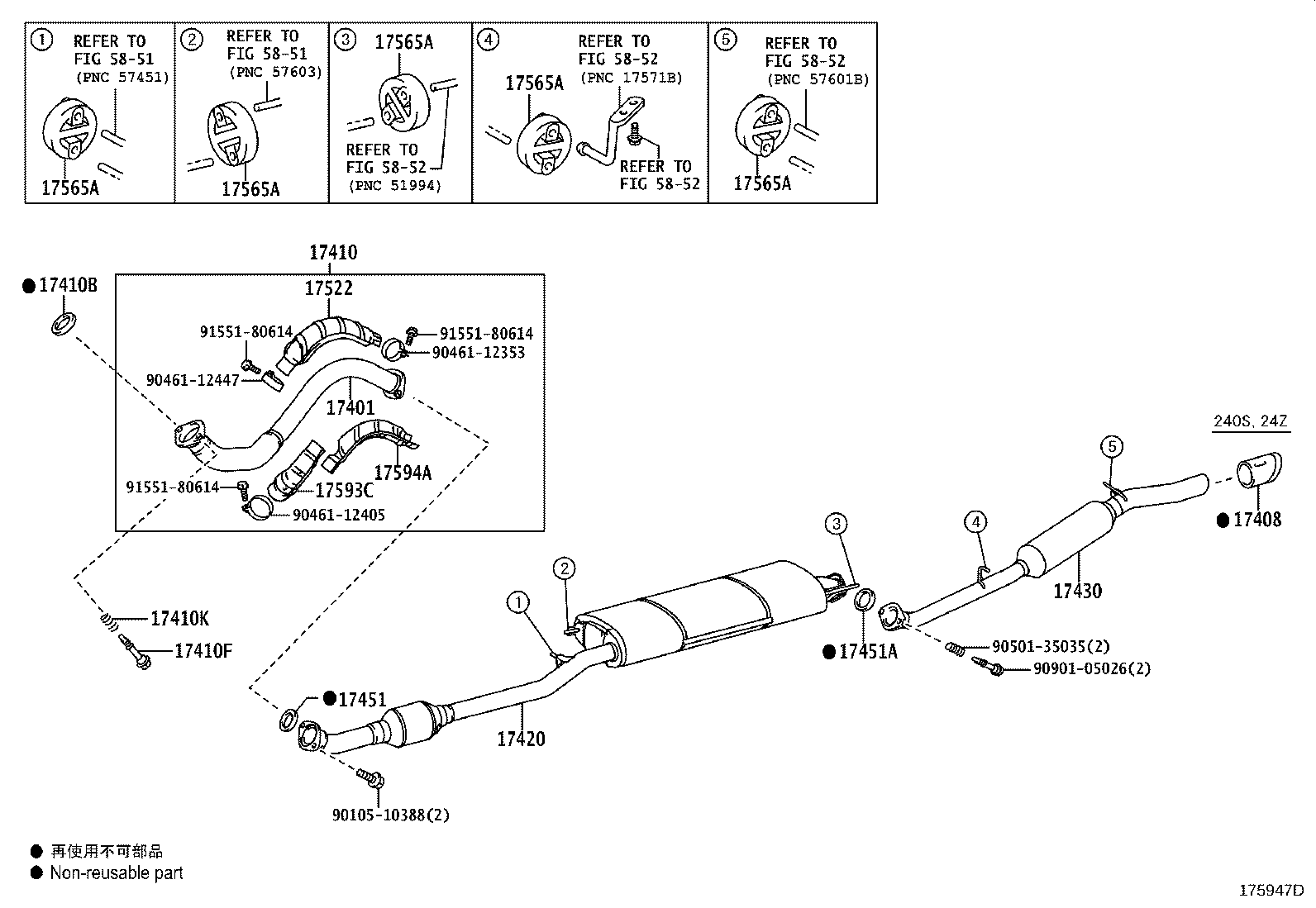

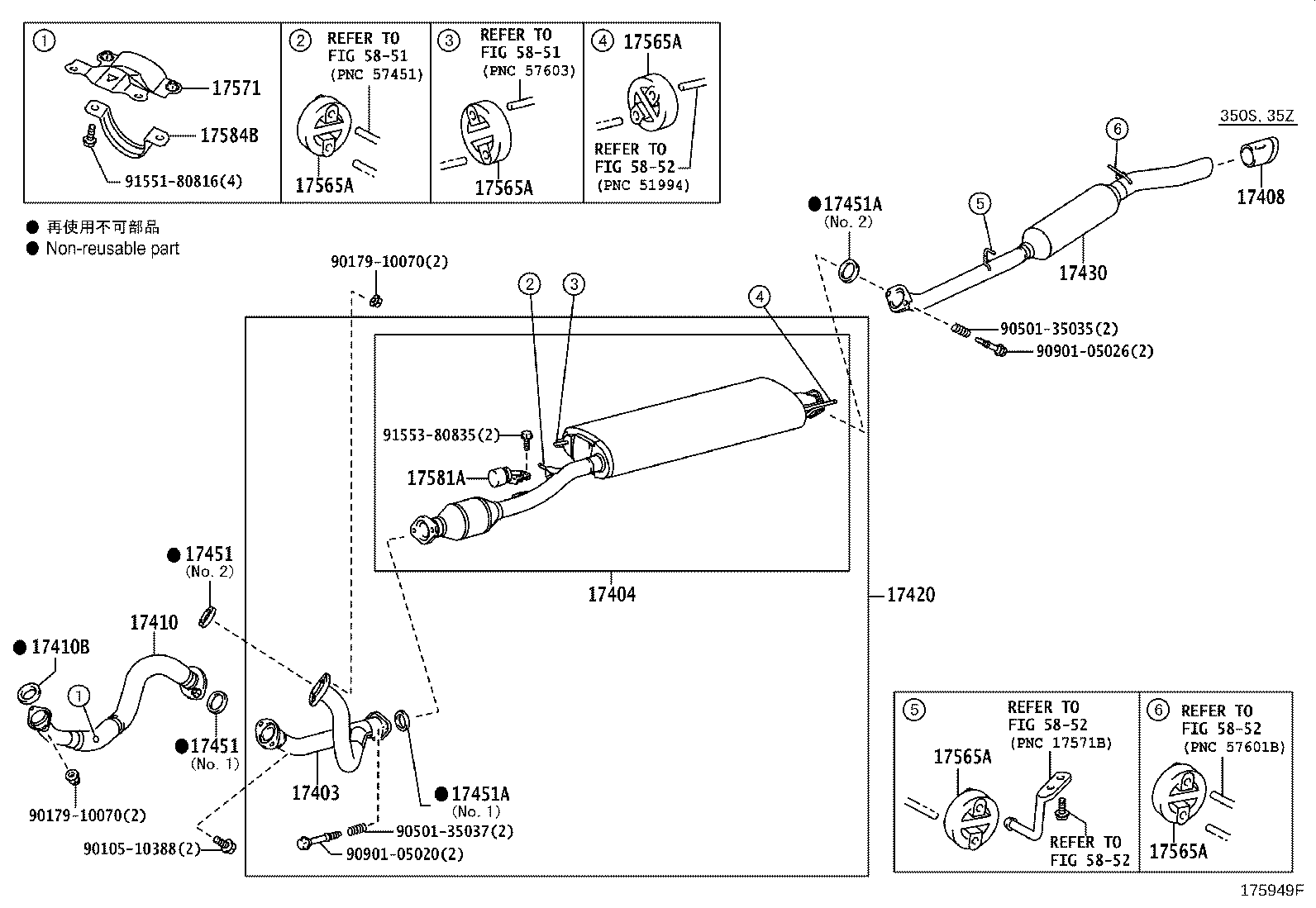

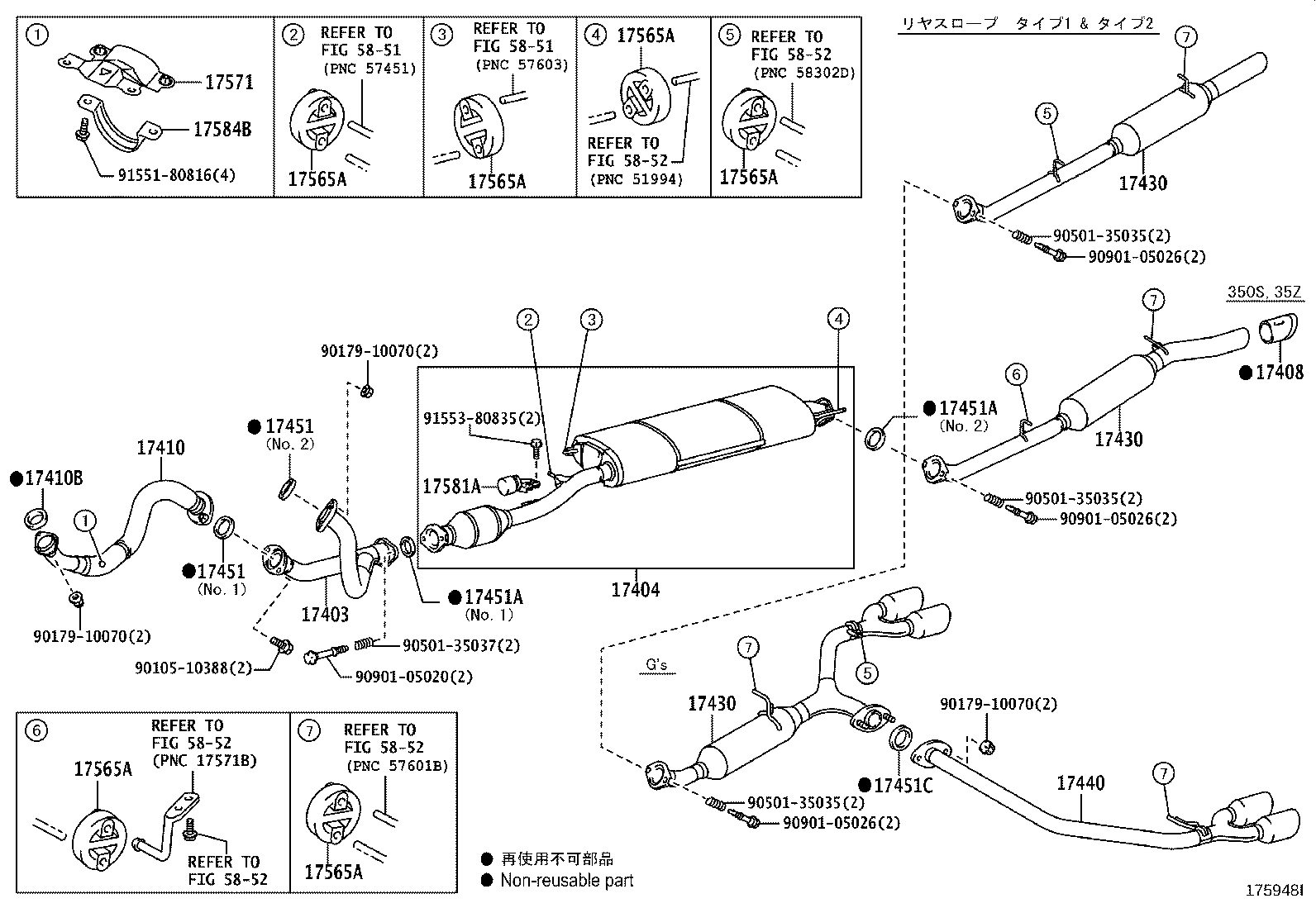

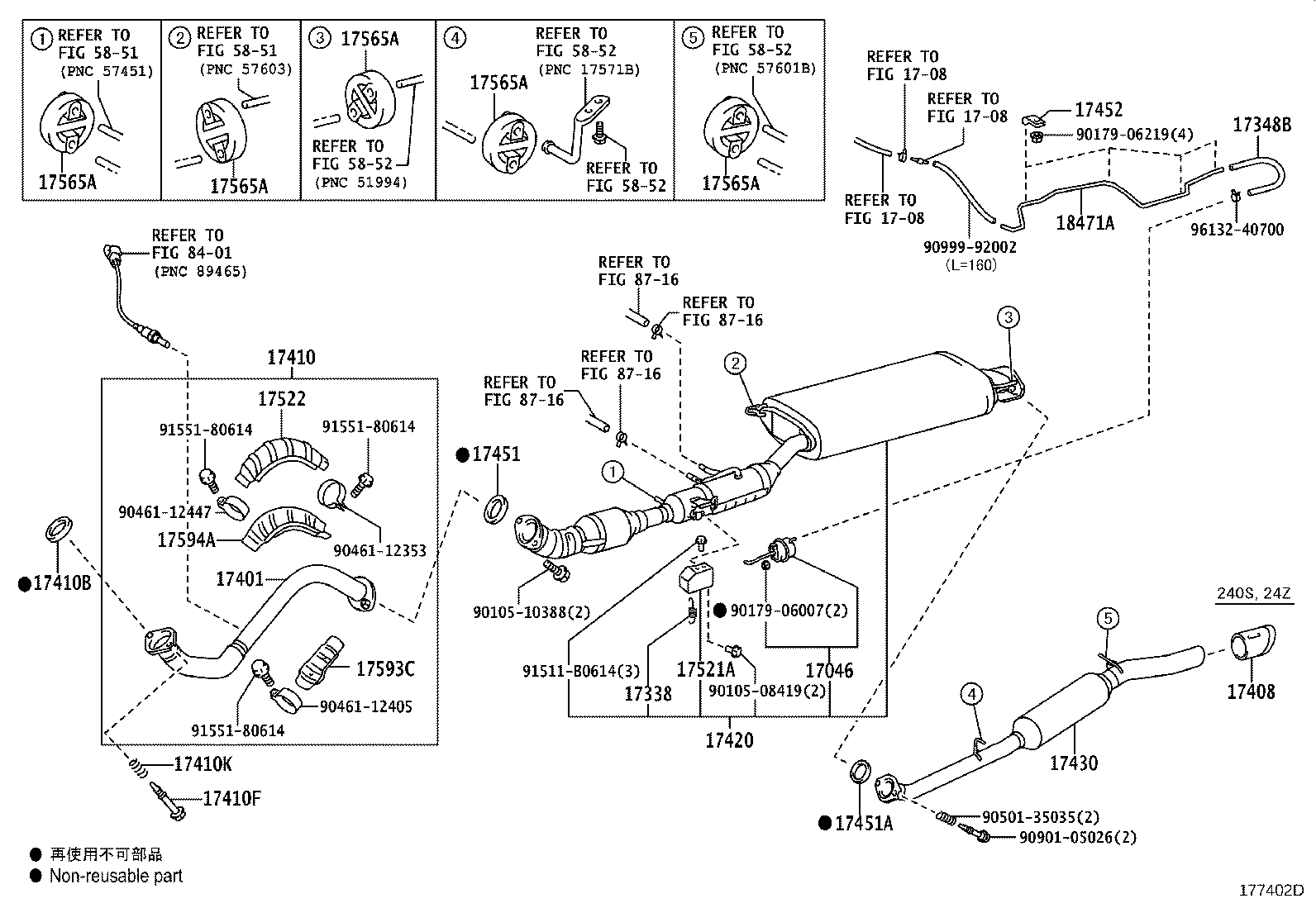

27 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 17046 | Actuator Sub-assy, Exhaust Pipe Gas Control |
| 17338 | Spring, Air Control |
| 17348B | Hose, Air, NO.8(FOR EXHAUST PIPE) |
| 17401 | Pipe Sub-assy, Exhaust, Front |
| 17403 | Pipe Sub-assy, Exhaust, Front NO.3 |
| 17404 | Pipe Sub-assy, Exhaust Forked |
| 17408 | Baffle Sub Assy, Exhaust Tailpipe |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410B | Gasket, Exhaust Pipe |
| 17410F | Bolt OR Ring, Exhaust Pipe Front (FOR FRONT) |
| 17410K | Spring, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17440 | Pipe, Exhaust Tail, LH |
| 17451 | Gasket, Exhaust Pipe |
| 17451A | Gasket, Exhaust Pipe, NO.2 |
| 17451C | Gasket, Exhaust Pipe, NO.3 |
| 17452 | Clamp, Exhaust Pipe |
| 17521A | Protector, Exhaust Pipe, Upper NO.1 |
| 17522 | Protector, Exhaust Pipe, Upper NO.2 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17581A | Damper, Exhaust Pipe |
| 17584B | Bracket, Exhaust Pipe NO.1 Support |
| 17593C | Protector, Exhaust Pipe, Lower NO.1 |
| 17594A | Protector, Exhaust Pipe, Lower NO.2 |
| 18471A | Pipe, Converter Air Suction |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
