Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH2#,ATH20,GGH2# · catalogue 713130 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Axle Shaft & Hub

26 part groups · 3 illustrations

Illustrations

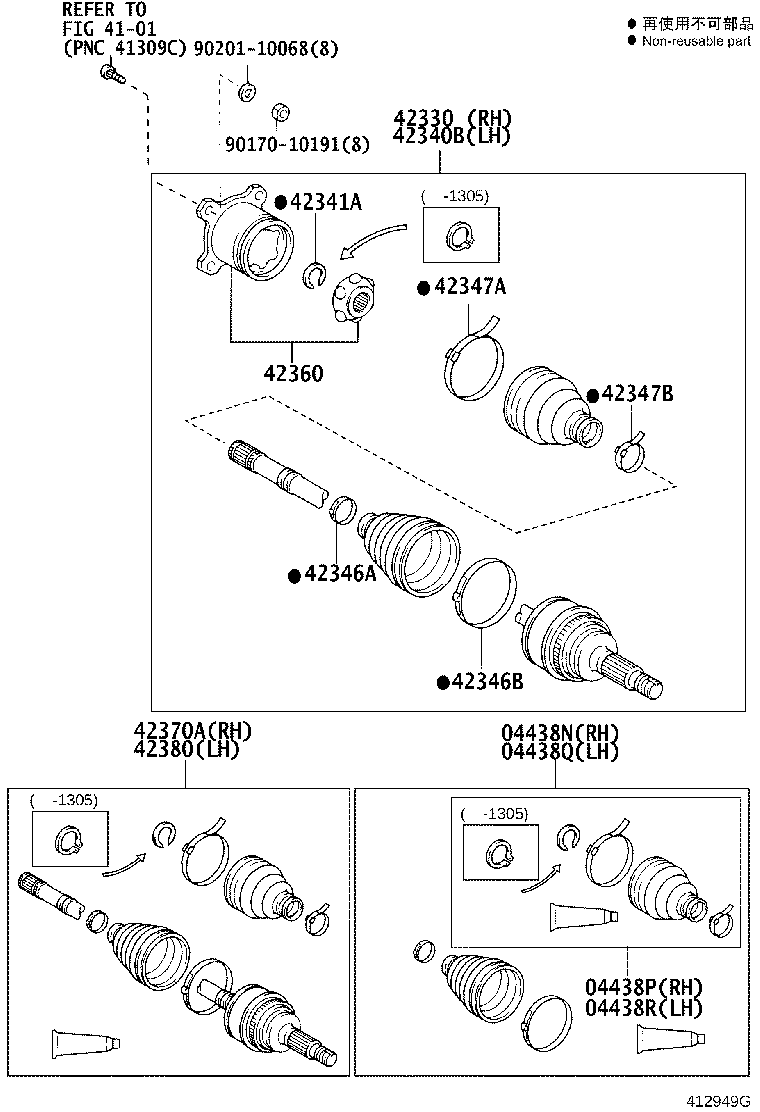

Figure 412948C 412948C 2008-04 → — Figure 412949G 412949G 2008-04 → — Figure 412950B 412950B 2008-04 → —

Part groups

PNCDescription
04438N Boot Kit, Rear Drive Shaft, IN & Outboard Joint, RH
04438P Boot Kit, Rear Drive Shaft, Inboard Joint, RH
04438Q Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
04438R Boot Kit, Rear Drive Shaft, Inboard Joint, LH
42311N Nut(FOR REAR AXLE SHAFT RH)
42311U Bolt, Hub(FOR REAR AXLE RH)
42312B Nut(FOR REAR AXLE SHAFT LH)
42312E Bolt, Hub(FOR REAR AXLE LH)
42330 Shaft Assy, Rear Drive, RH
42340B Shaft Assy, Rear Drive, LH
42341A Ring, Snap (FOR REAR DRIVE SHAFT)
42346A Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
42346B Clamp, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
42347A Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42347B Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42360 Joint Assy, Rear Drive Shaft Inboard
42370A Shaft Assy, Rear Drive Outboard Joint, RH
42380 Shaft Assy, Rear Drive Outboard Joint, LH
42410 Hub & Bearing Assy, Rear Axle, RH
42424 Retainer, Rear Axle Bearing, Outer, RH
42431 Disc, Rear
42440 Hub & Bearing Assy, Rear Axle, LH
42450A Hub & Bearing Assy, Rear Axle, RH
42450B Hub & Bearing Assy, Rear Axle, LH
42454 Retainer, Rear Axle Bearing, Outer, LH
42491 Plug, Shoe Adjusting Hole (FOR PARKING BRAKE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
