Front Bumper & Bumper Stay

29 part groups · 20 illustrations

Illustrations

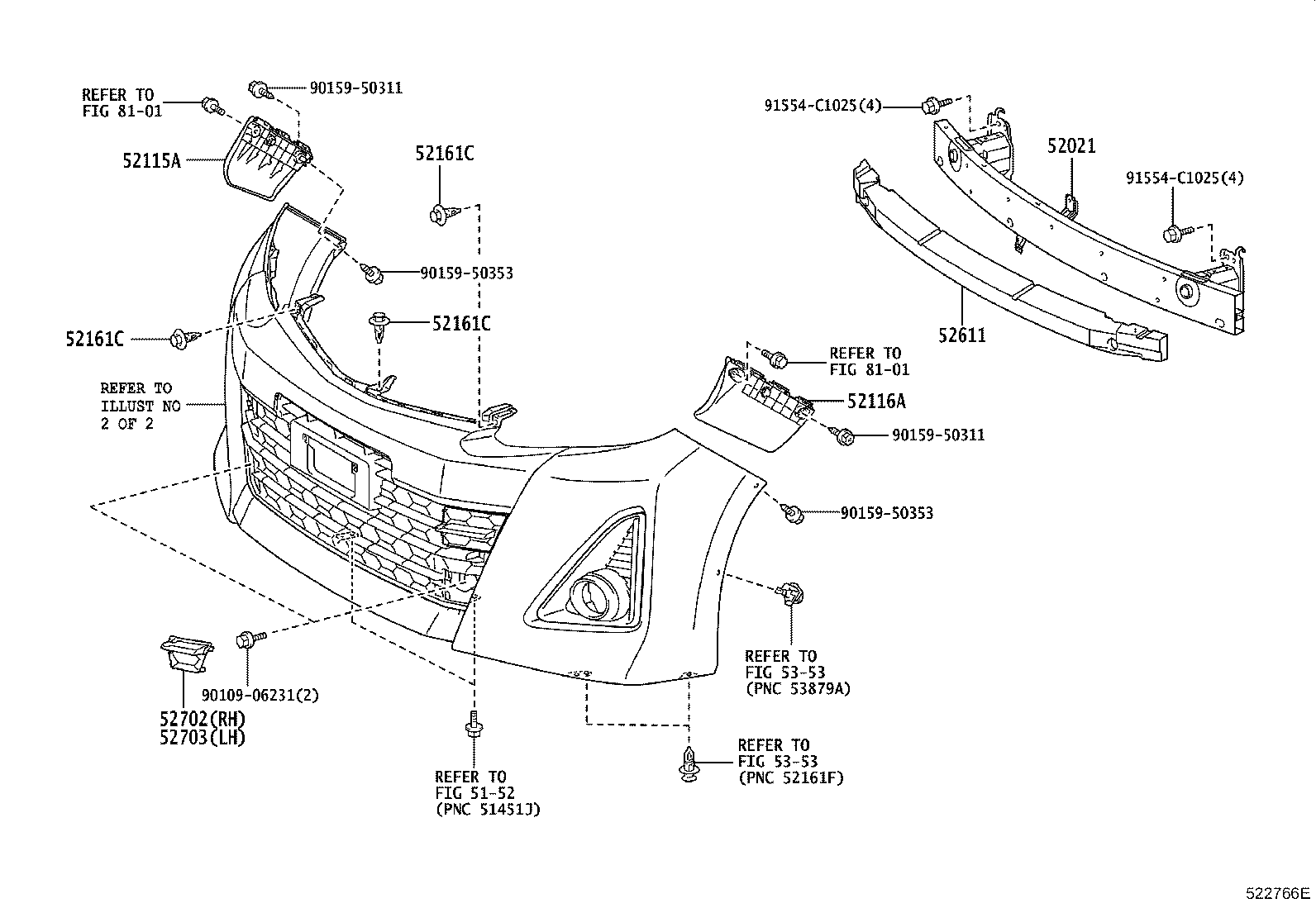

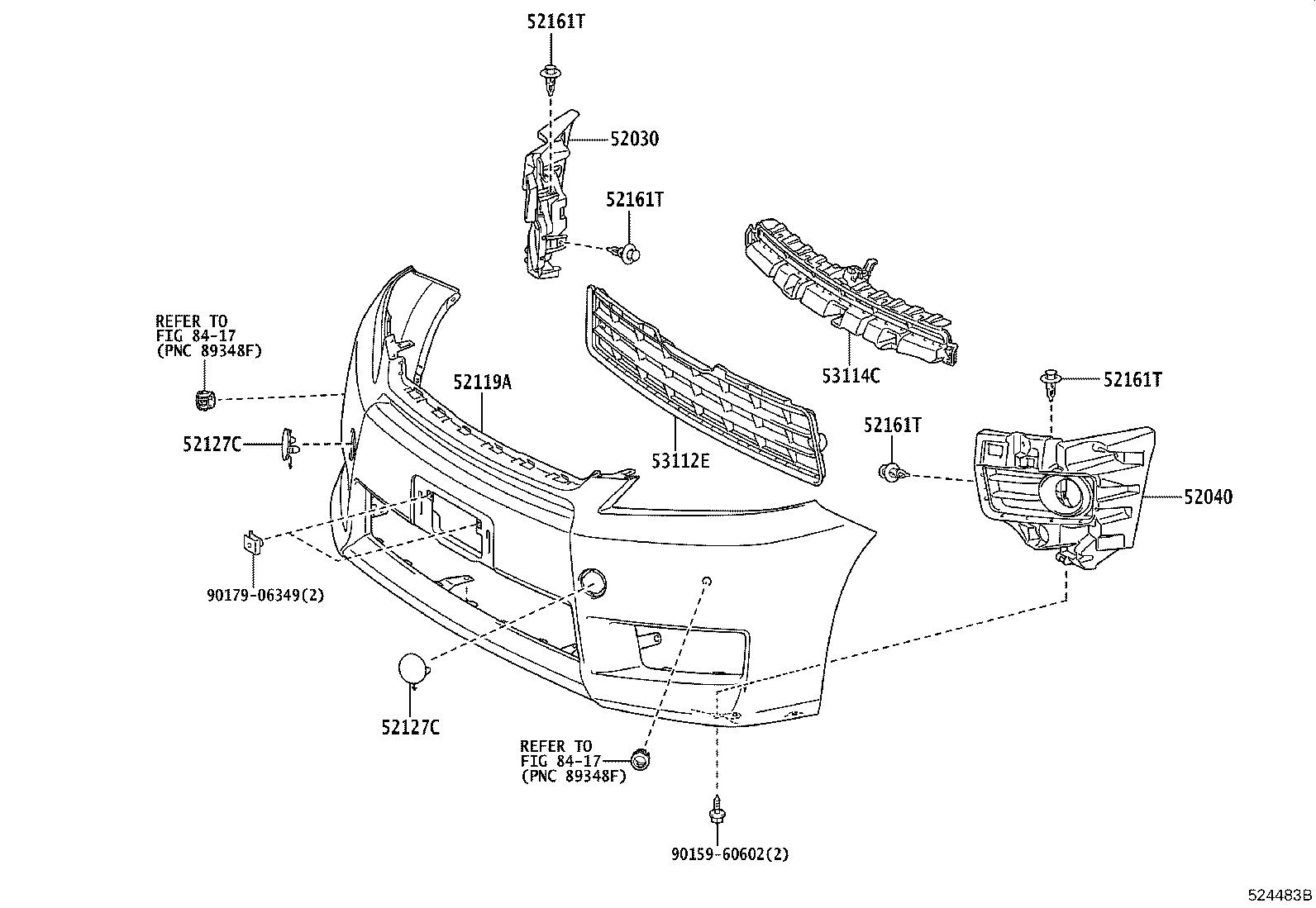

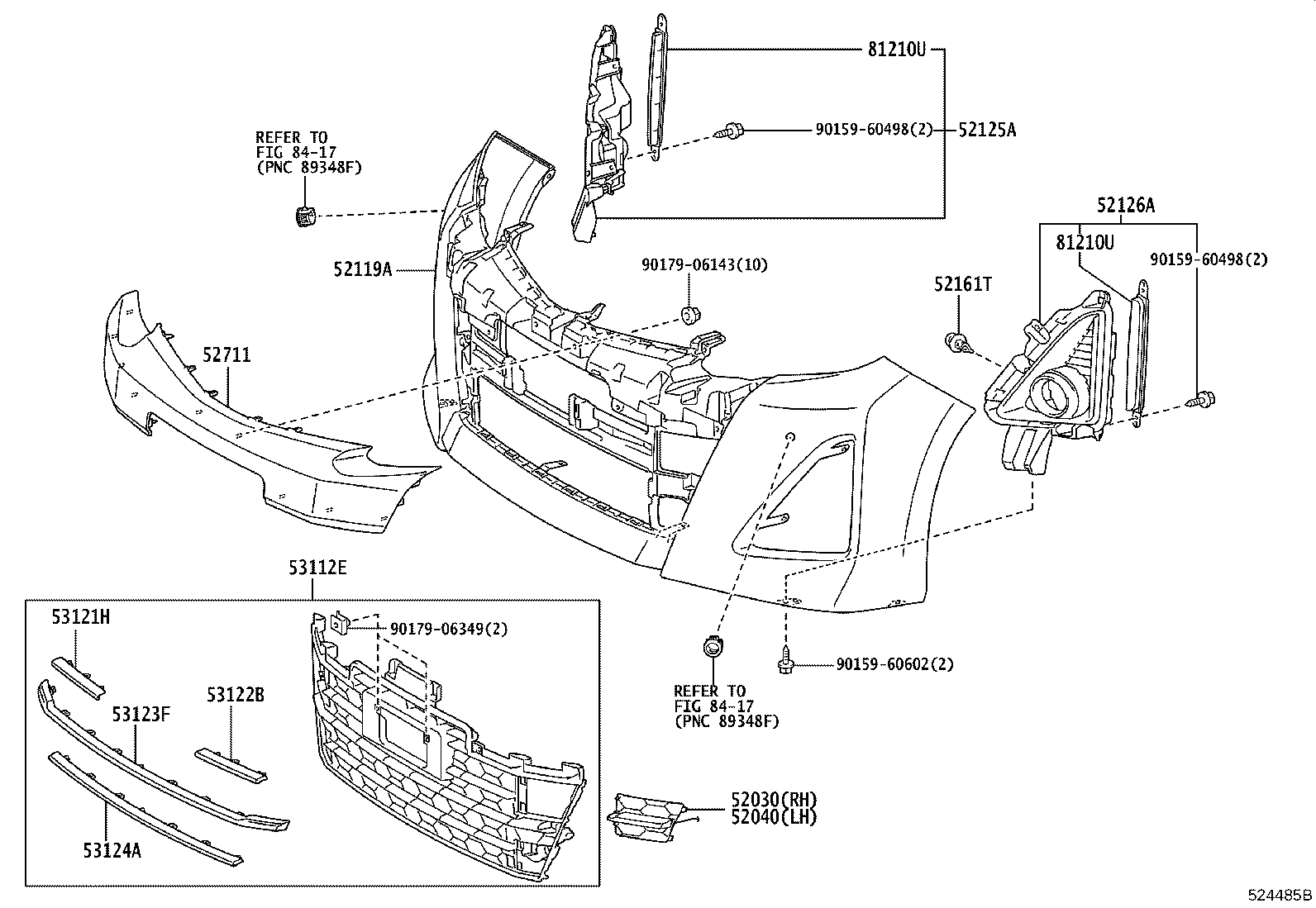

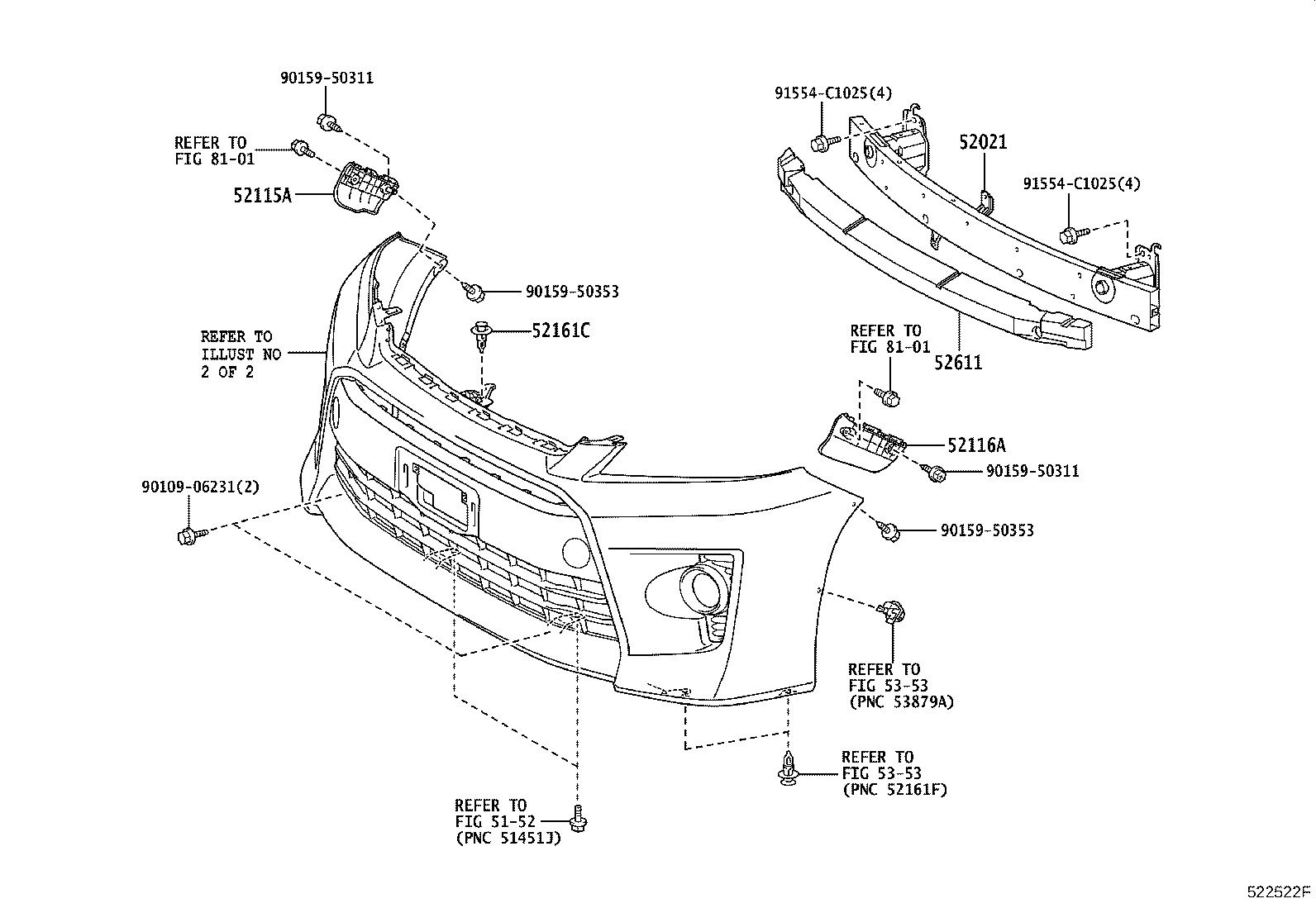

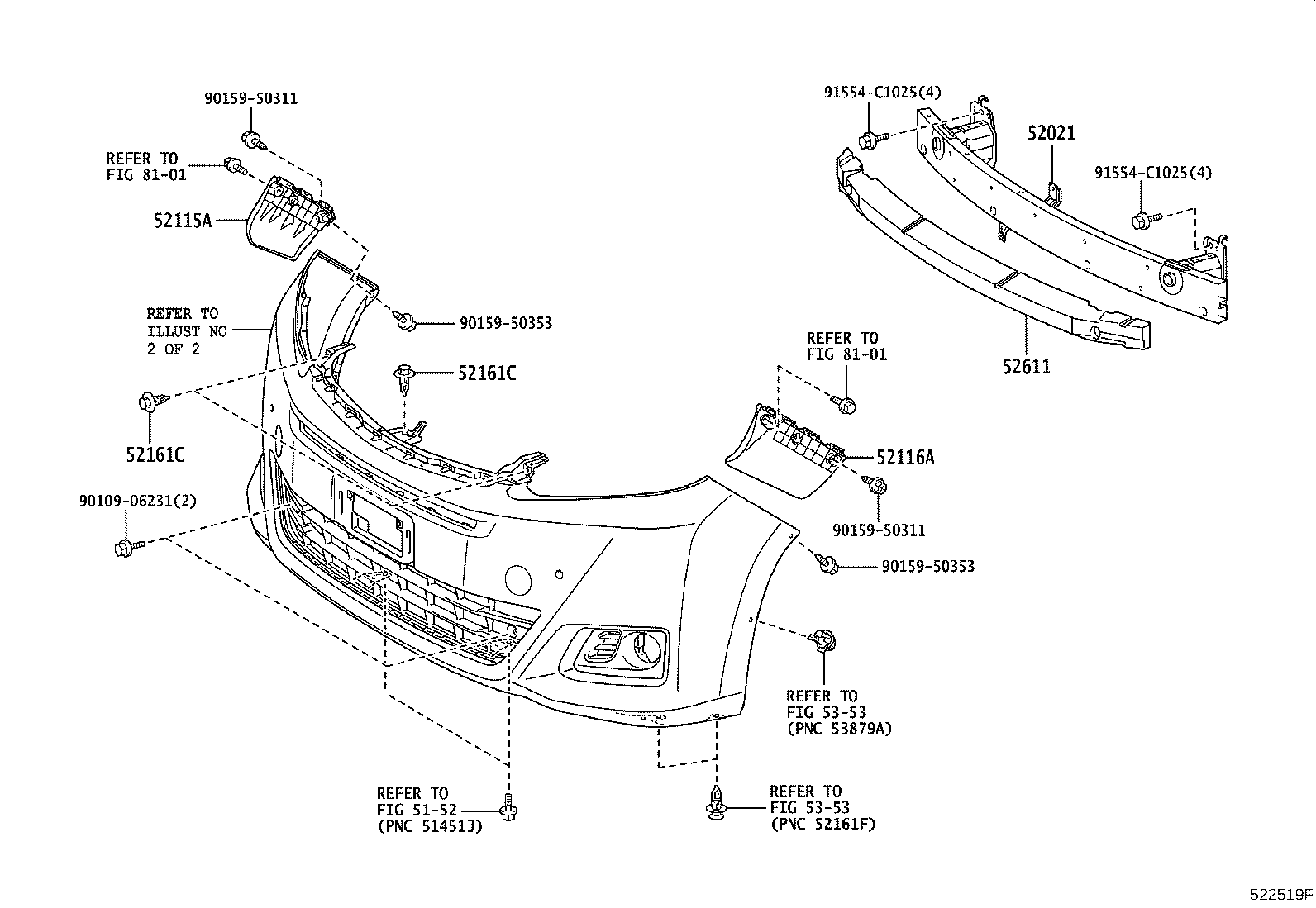

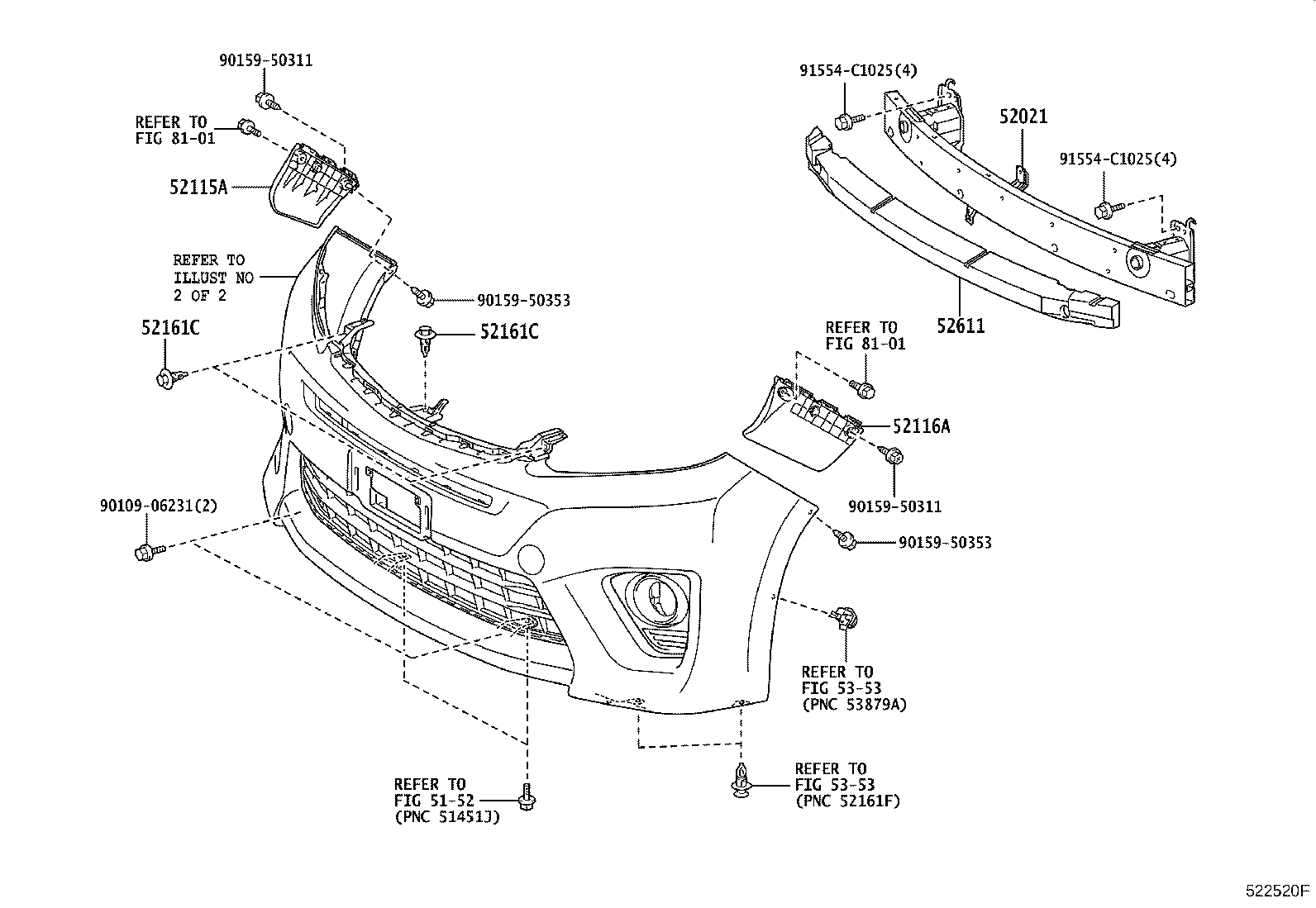

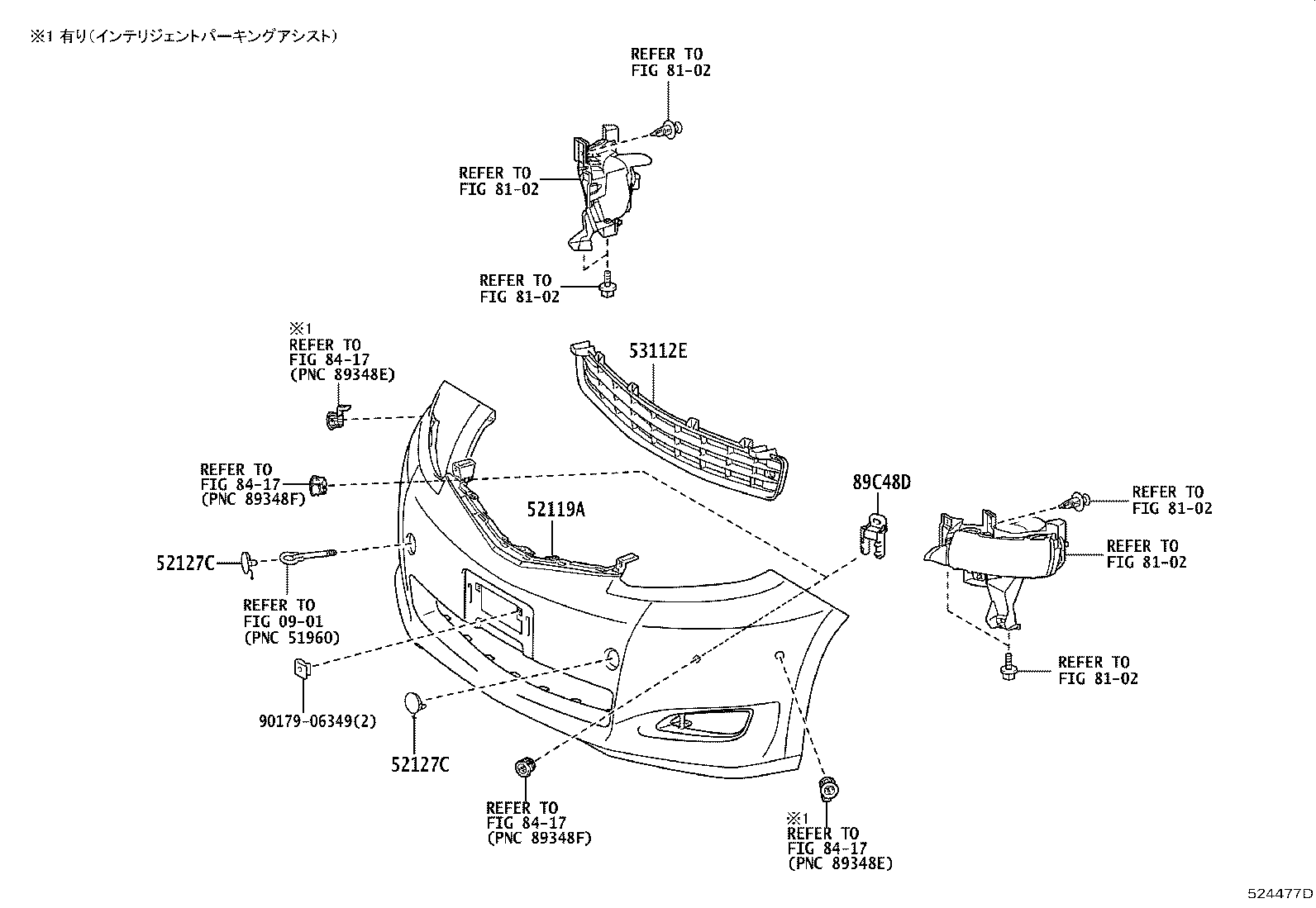

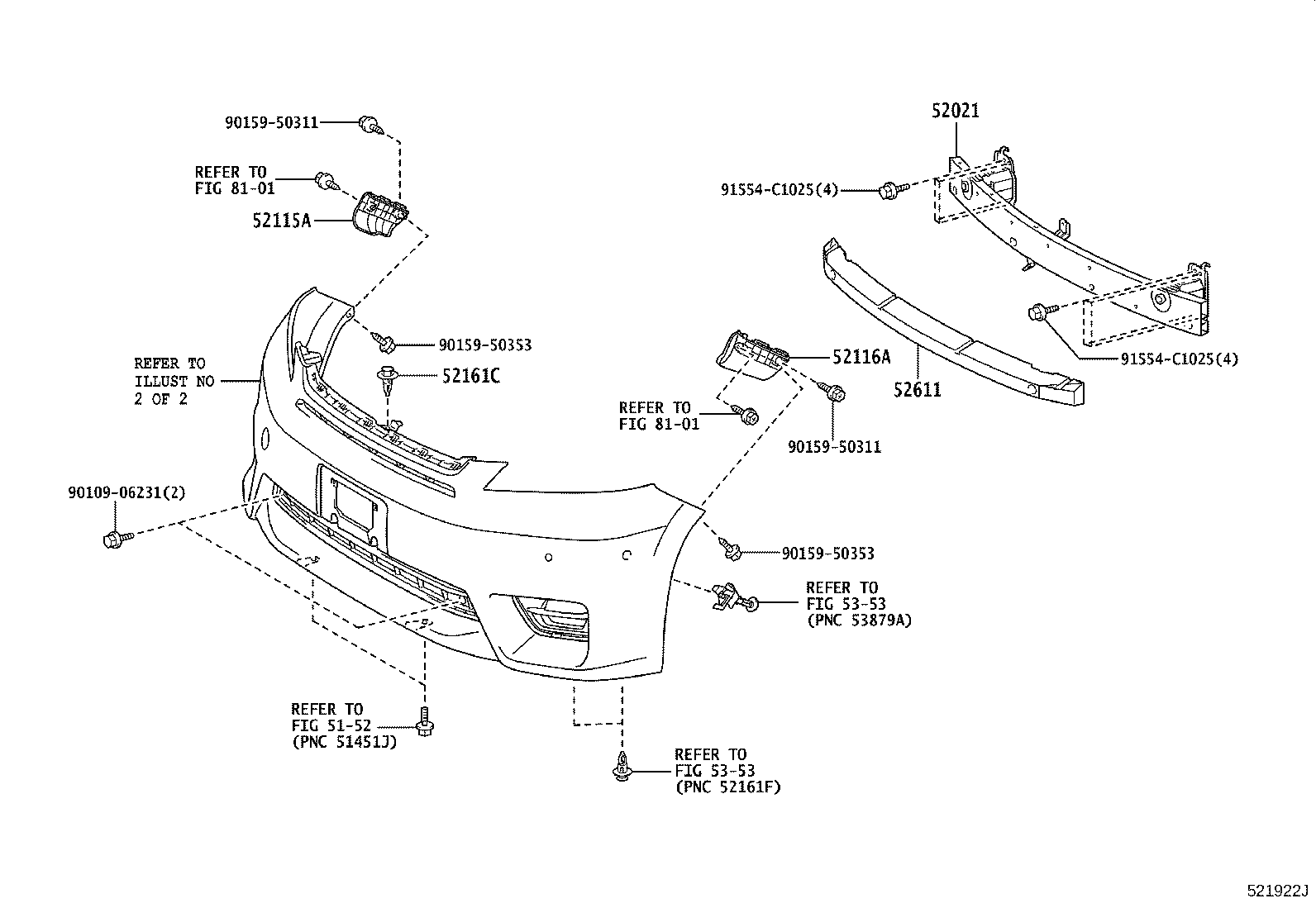

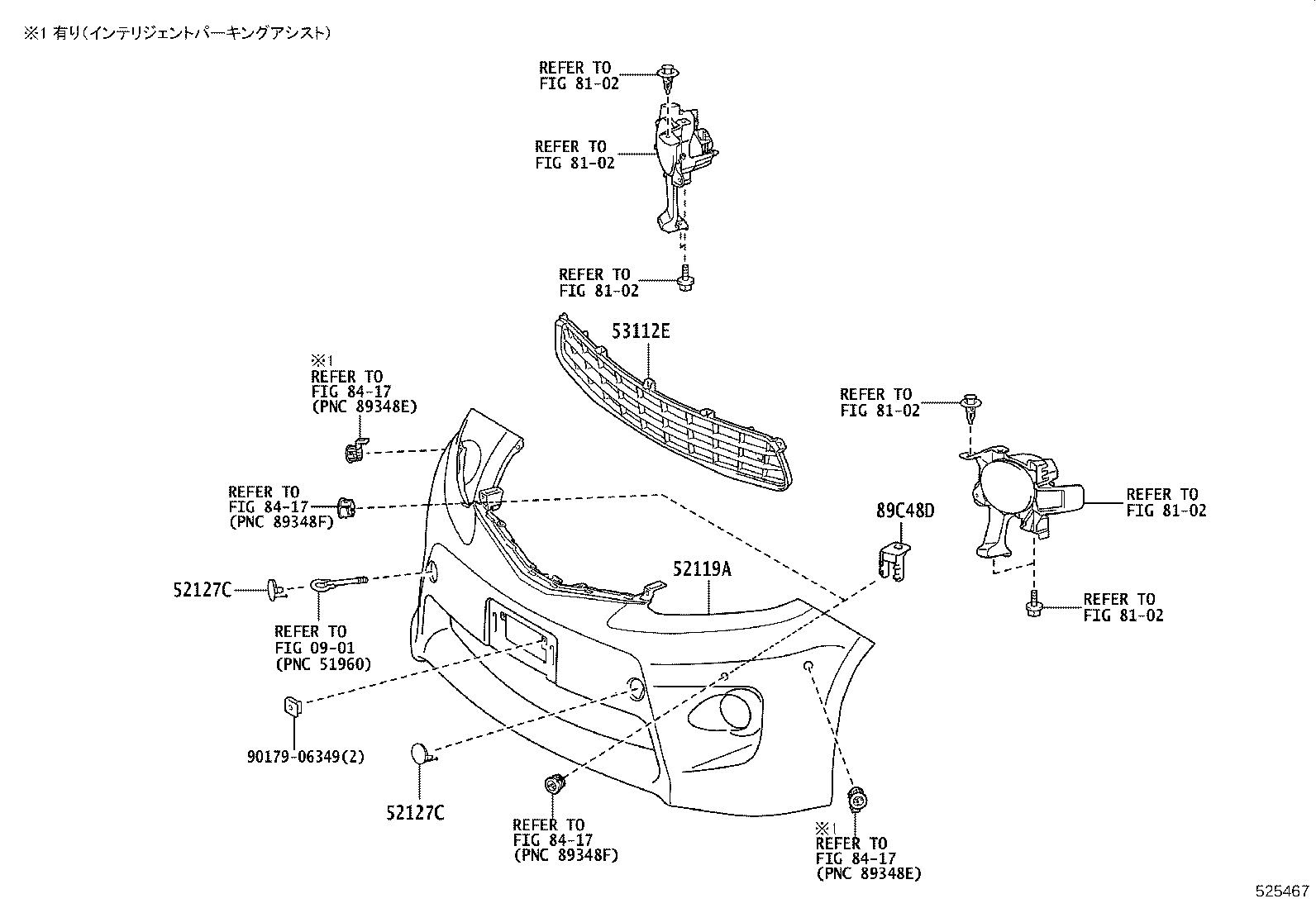

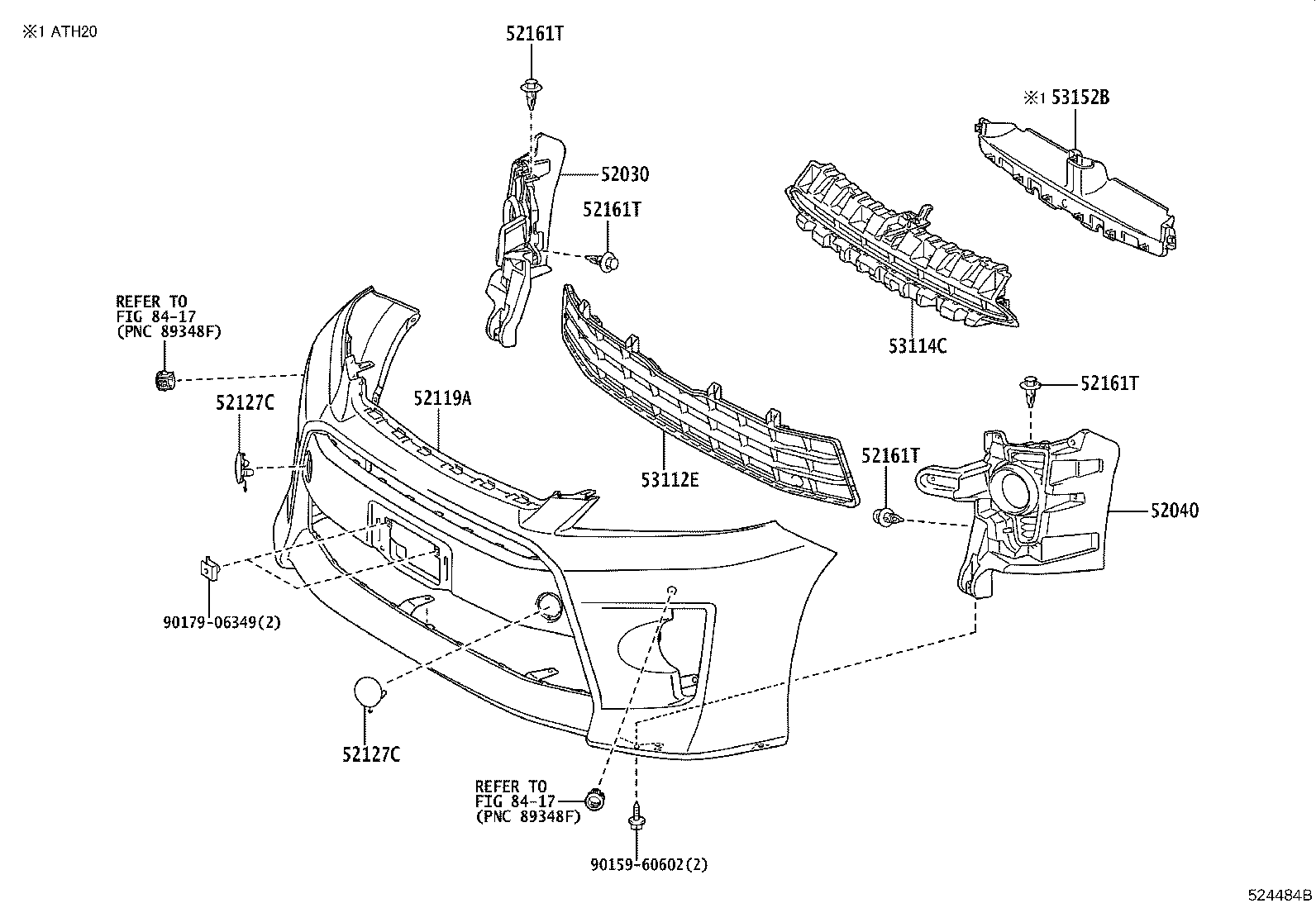

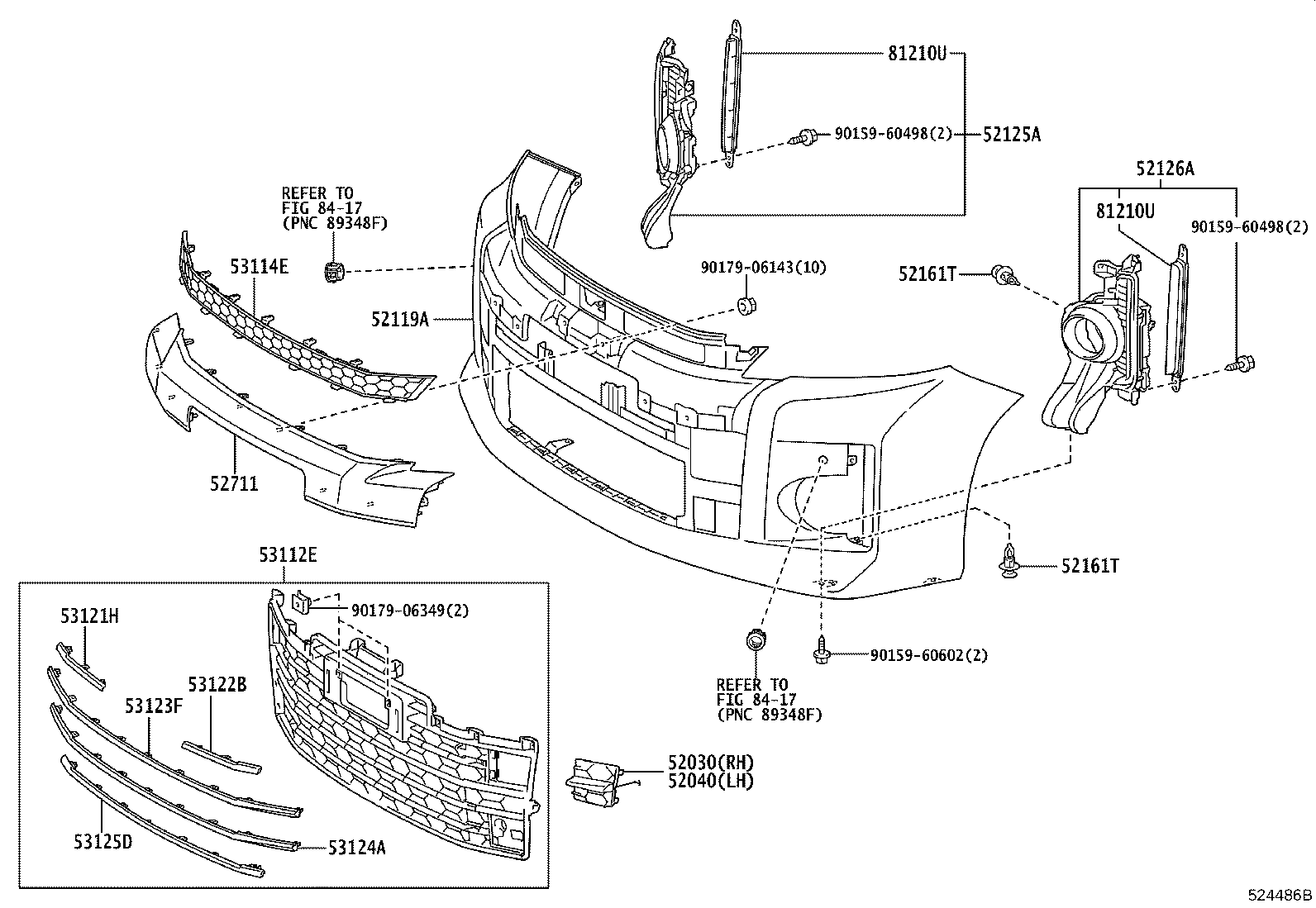

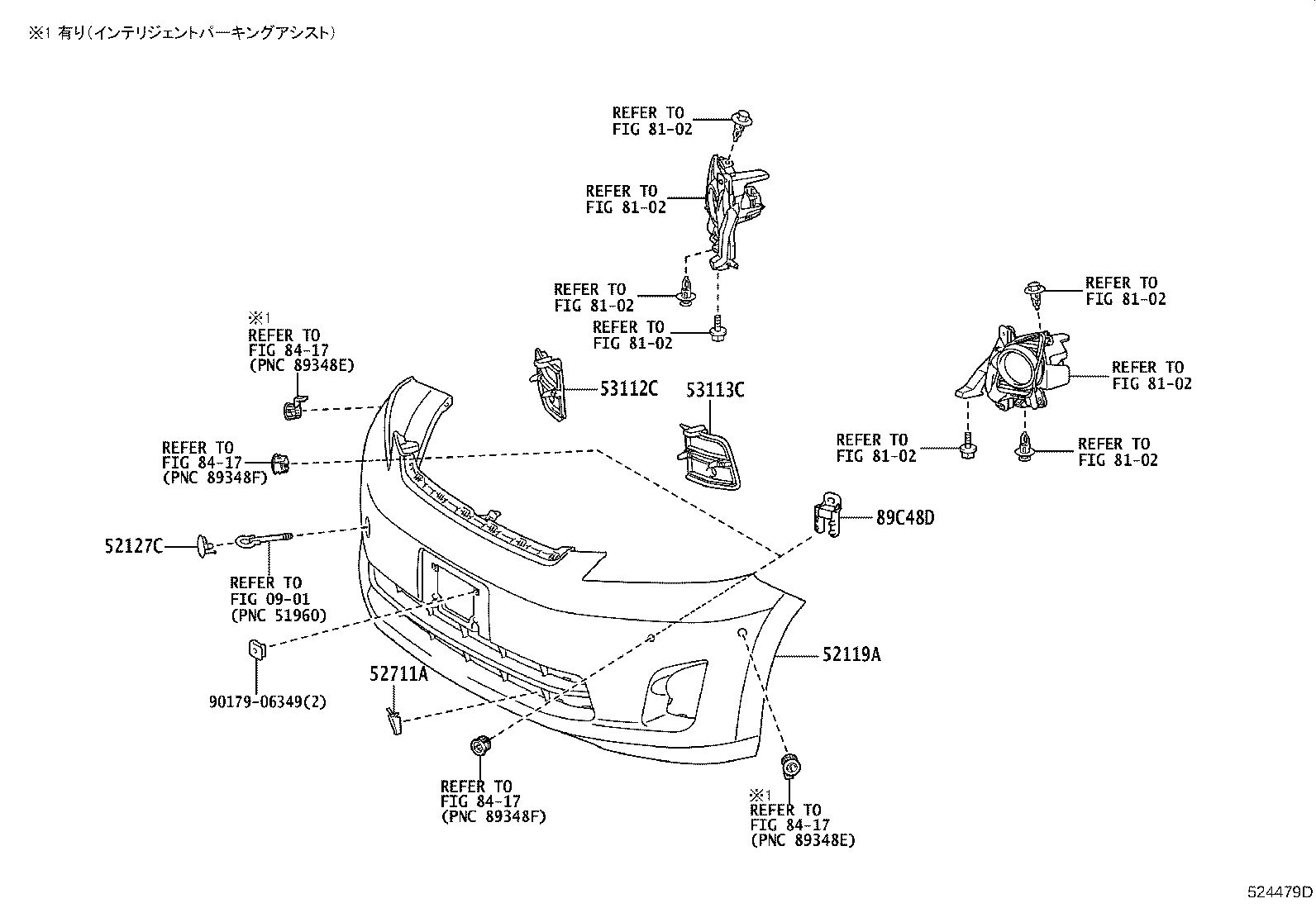

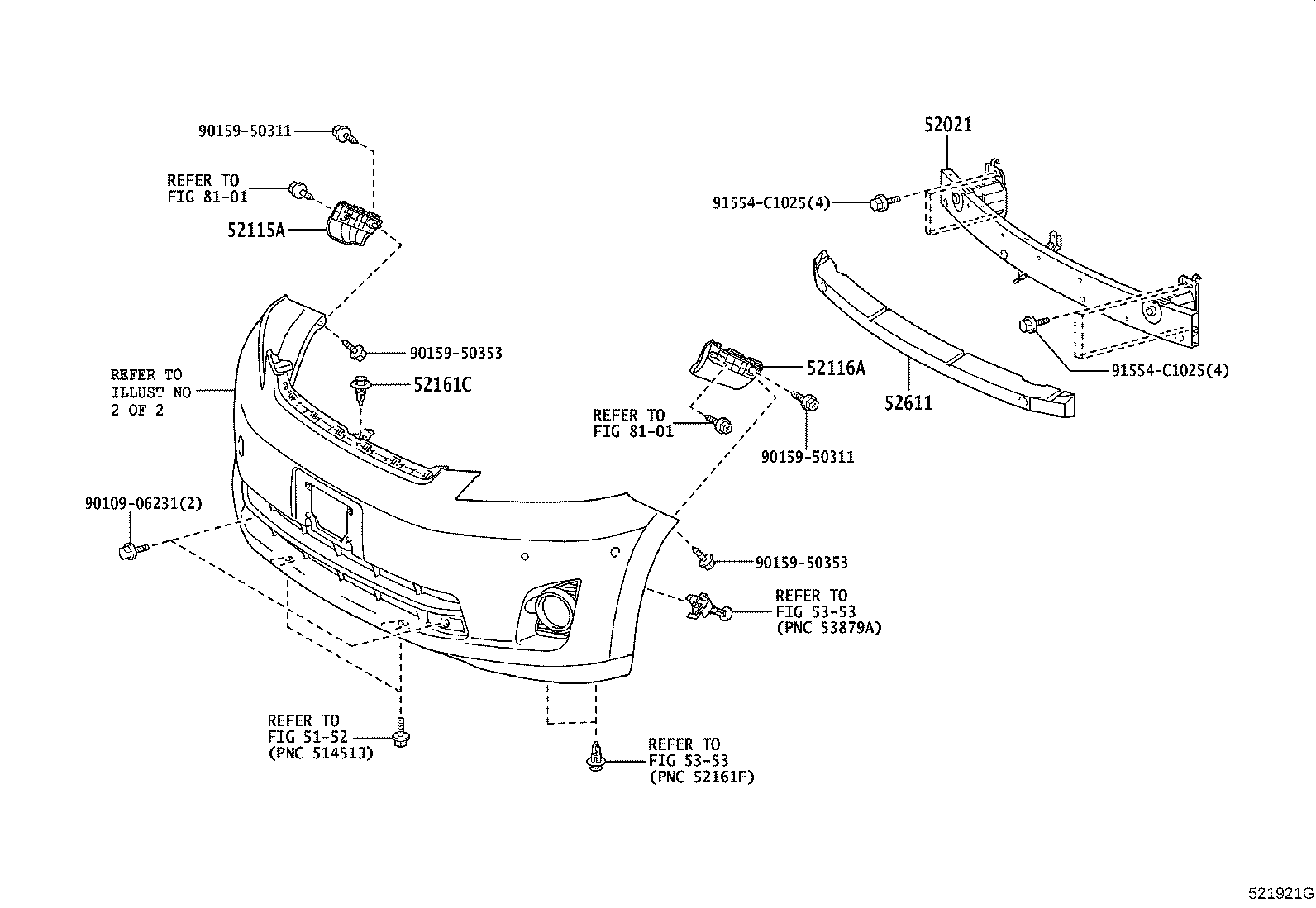

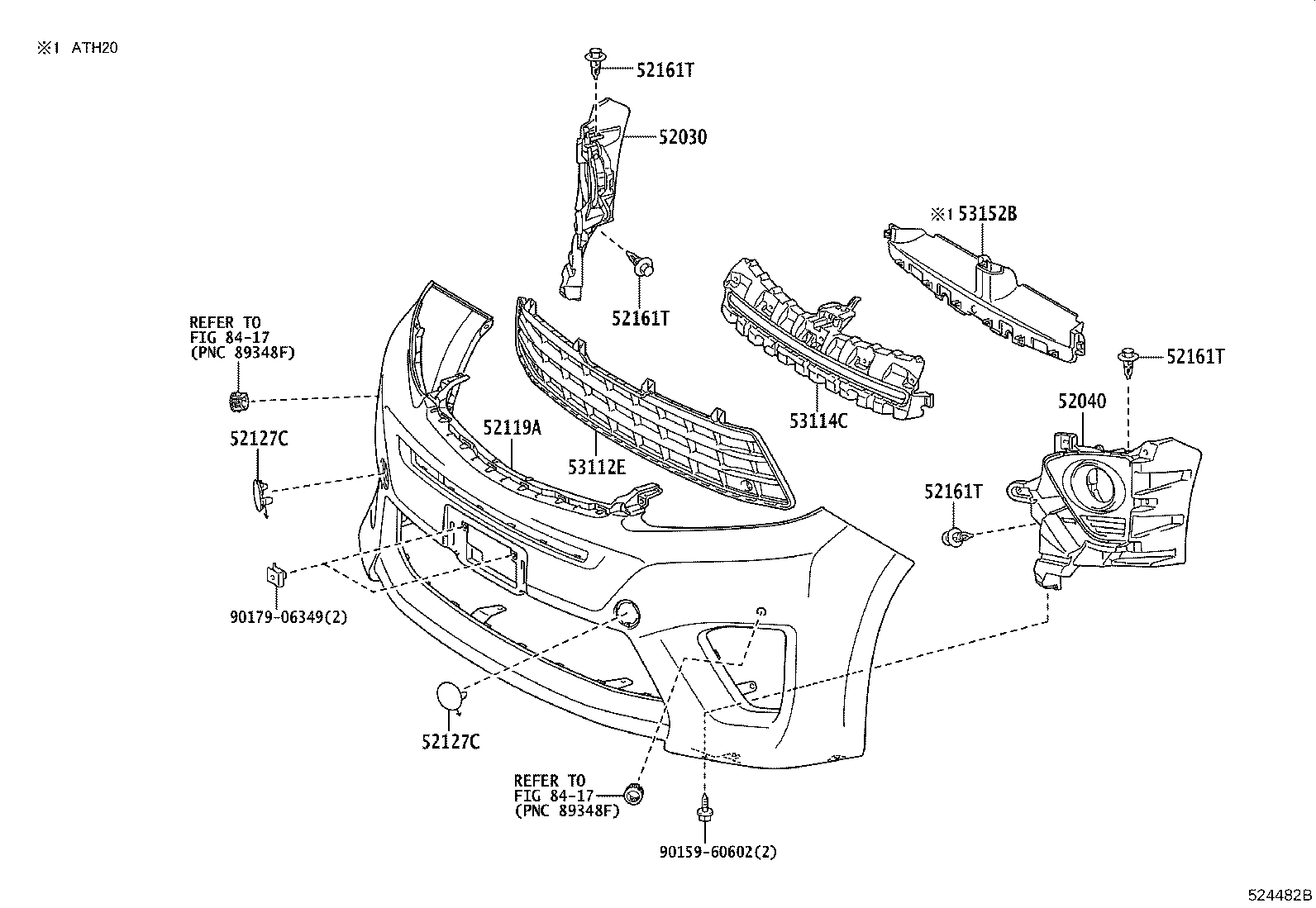

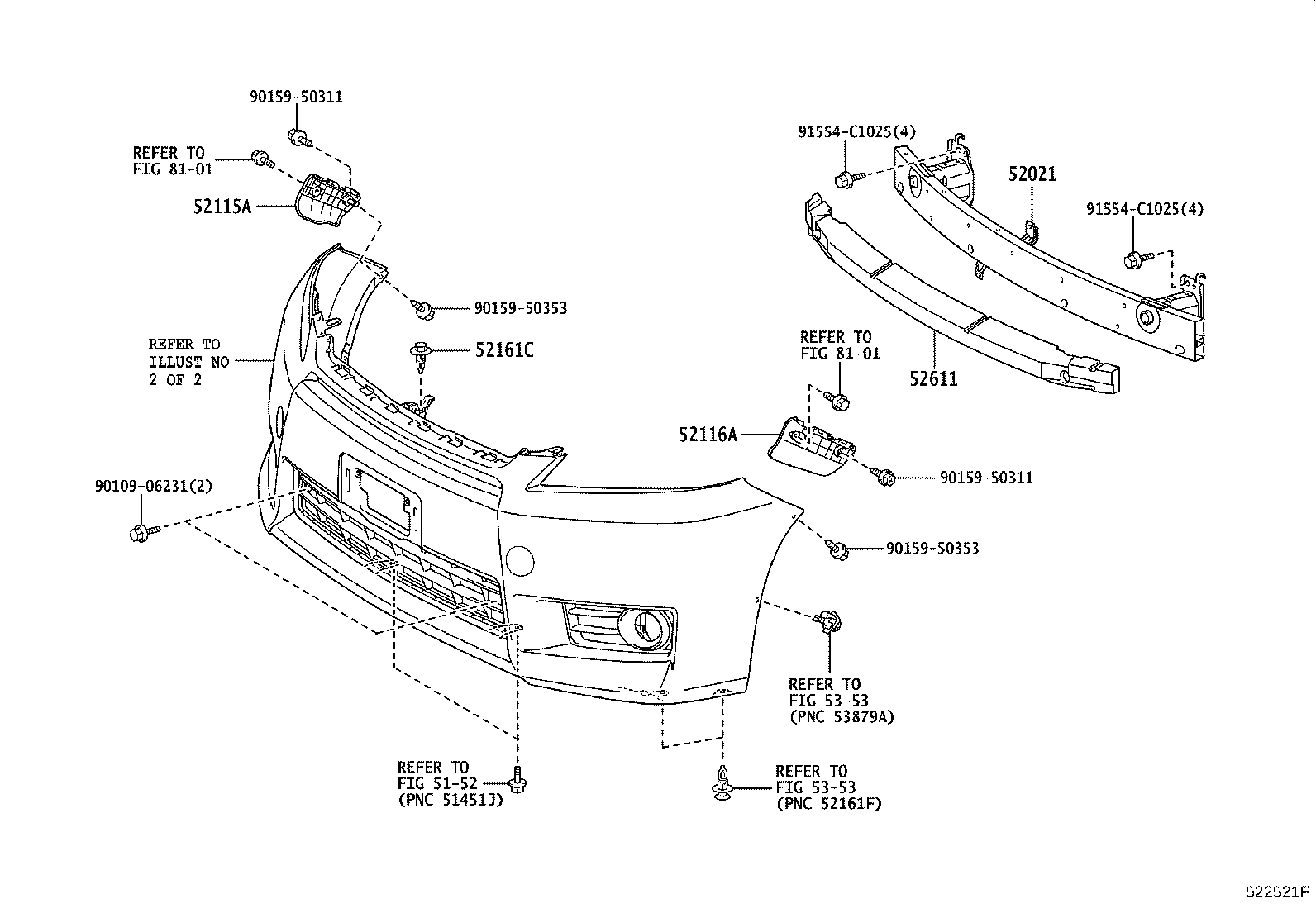

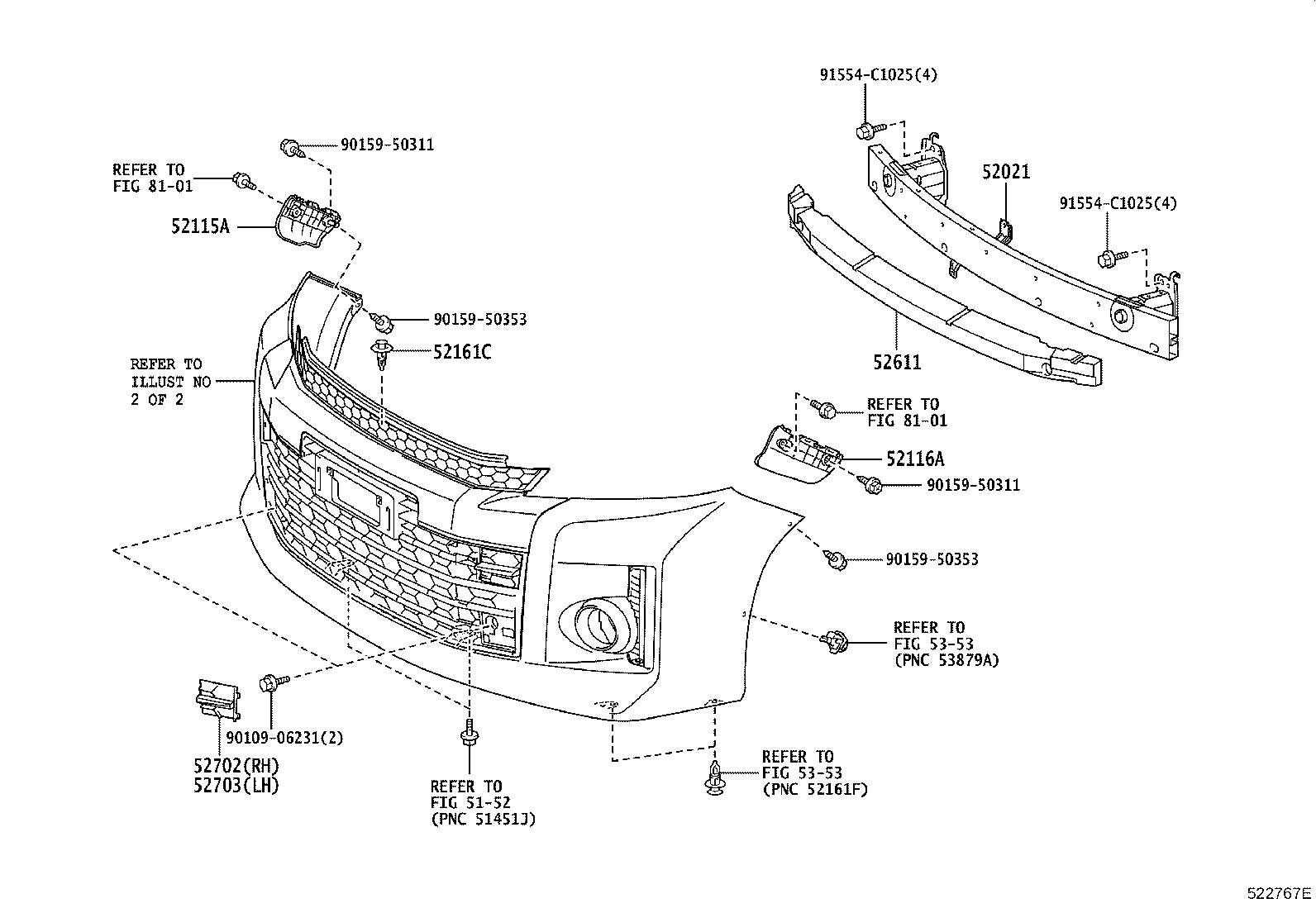

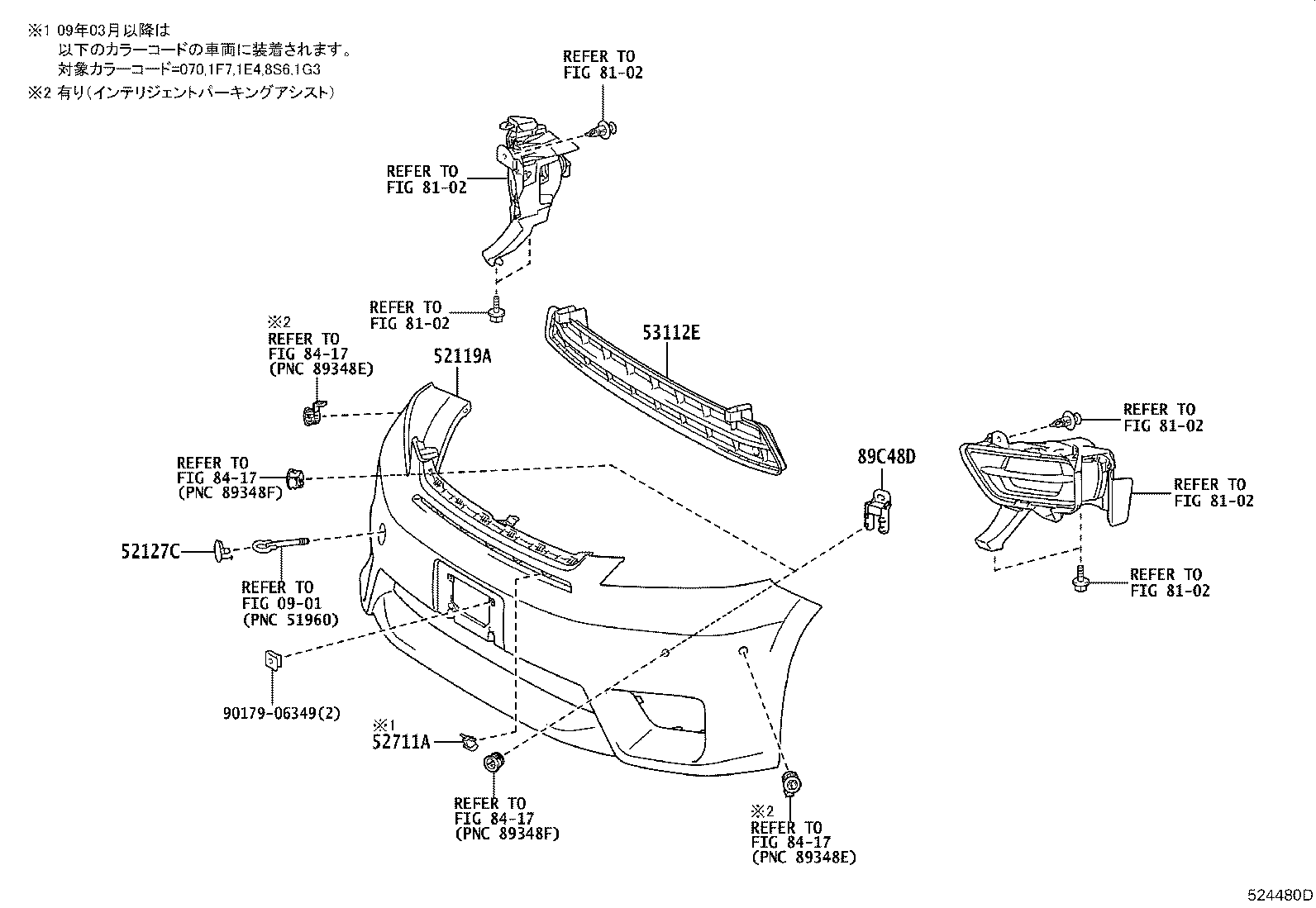

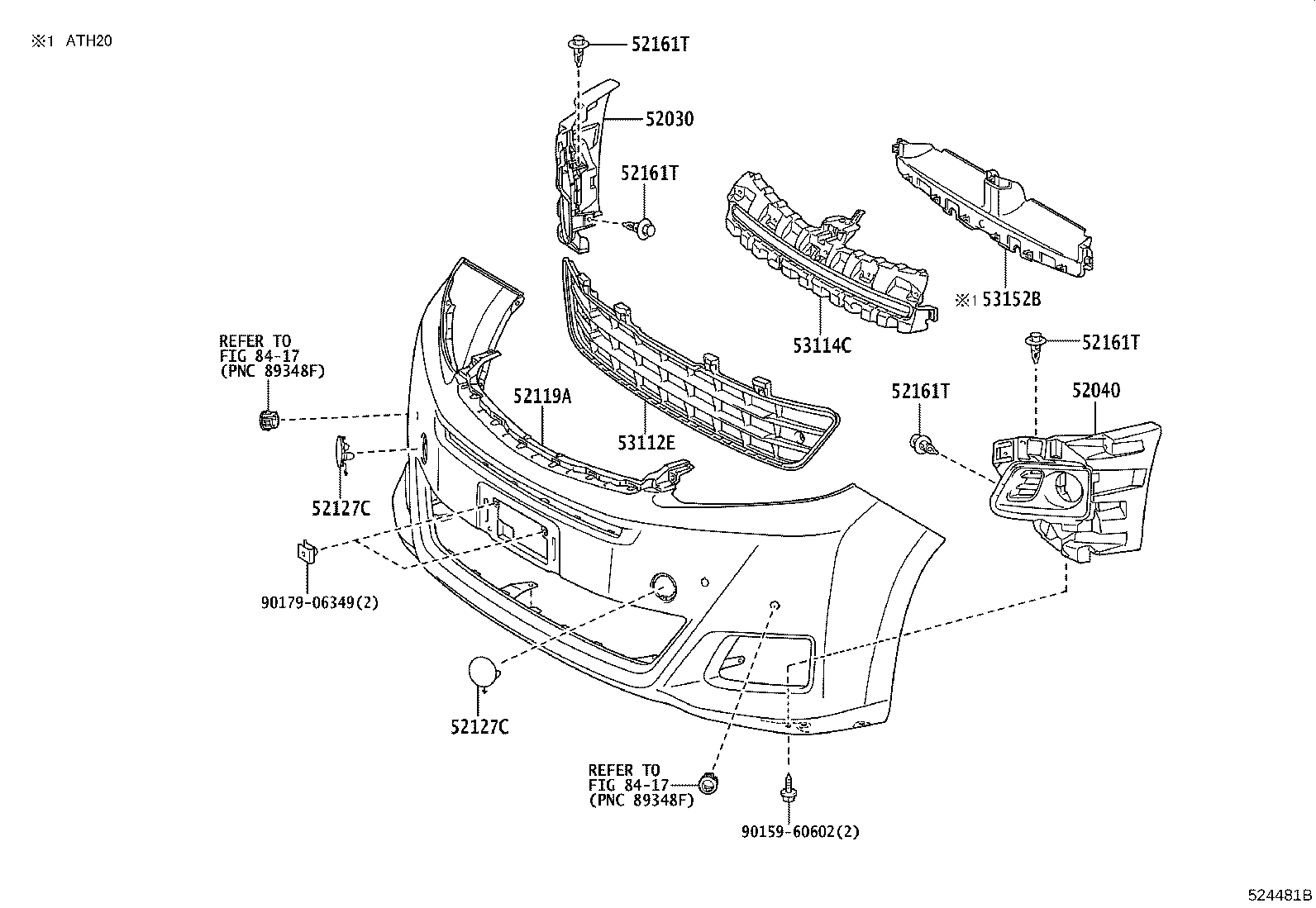

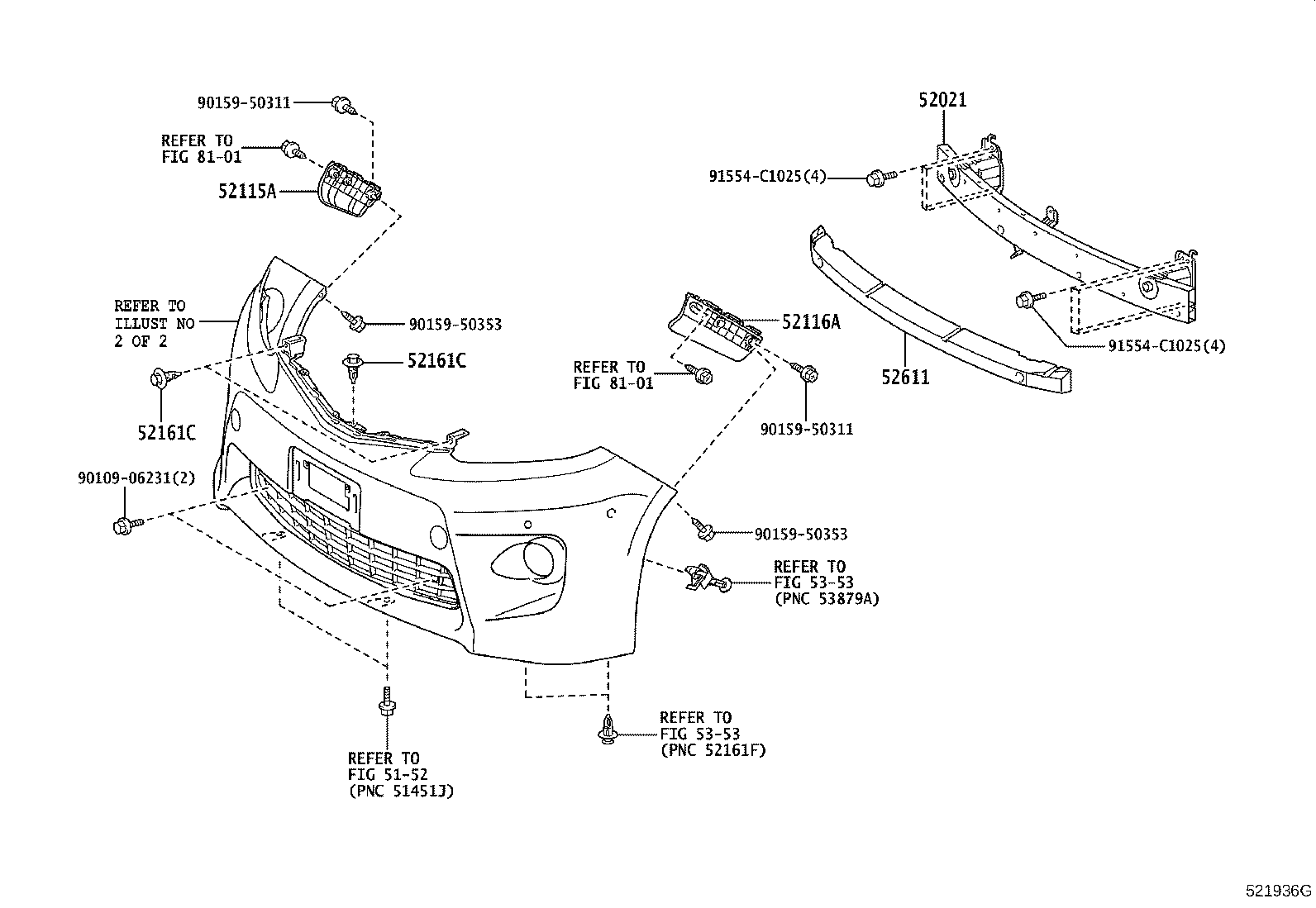

Figure 521935F 521935F 2008-04 → 2011-10 Figure 524477D 524477D 2008-04 → 2011-10 Figure 521936G 521936G 2008-04 → 2011-10 Figure 525467 525467 2008-04 → 2011-10 Figure 521921G 521921G 2008-04 → 2011-10 Figure 524479D 524479D 2008-04 → 2011-10 Figure 521922J 521922J 2008-04 → 2011-10 Figure 524480D 524480D 2008-04 → 2011-10 Figure 522519F 522519F 2011-10 → — Figure 524481B 524481B 2011-10 → — Figure 522520F 522520F 2011-10 → — Figure 524482B 524482B 2011-10 → — Figure 522521F 522521F 2011-10 → — Figure 524483B 524483B 2011-10 → — Figure 522522F 522522F 2011-10 → — Figure 524484B 524484B 2011-10 → — Figure 522766E 522766E 2012-11 → — Figure 524485B 524485B 2012-11 → — Figure 522767E 522767E 2012-11 → — Figure 524486B 524486B 2012-11 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52030 Cover Assy, Front Bumper Hole, RH
52040 Cover Assy, Front Bumper Hole, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52125A Bracket, Fog Lamp Mounting, RH
52126A Bracket, Fog Lamp Mounting, LH
52127C Cover, Front Bumper Hole
52161C Piece, Front Bumper
52161T Piece, Front Bumper
52611 Absorber, Front Bumper Energy
52702 Moulding Sub-assy, Front Bumper Side, RH
52703 Moulding Sub-assy, Front Bumper Side, LH
52711 Moulding, Front Bumper
52711A Garnish, Front Bumper
53112C Grille, Radiator, Lower RH
53112E Grille, Radiator, Lower NO.1
53113C Grille, Radiator, Lower LH
53114C Grille, Radiator, Inner
53114E Grille, Radiator, Upper
53121H Moulding, Radiator Grille, NO.1
53122B Moulding, Radiator Grille, NO.2
53123F Moulding, Radiator Grille, NO.3
53124A Moulding, Radiator Grille, NO.4
53125D Moulding, Radiator Grille, NO.5
53152B Guide, Radiator Grille Air
81210U Led Illumination Beam Assy
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
