Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH2#,ATH20,GGH2# · catalogue 713130 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

21 part groups · 3 illustrations

Illustrations

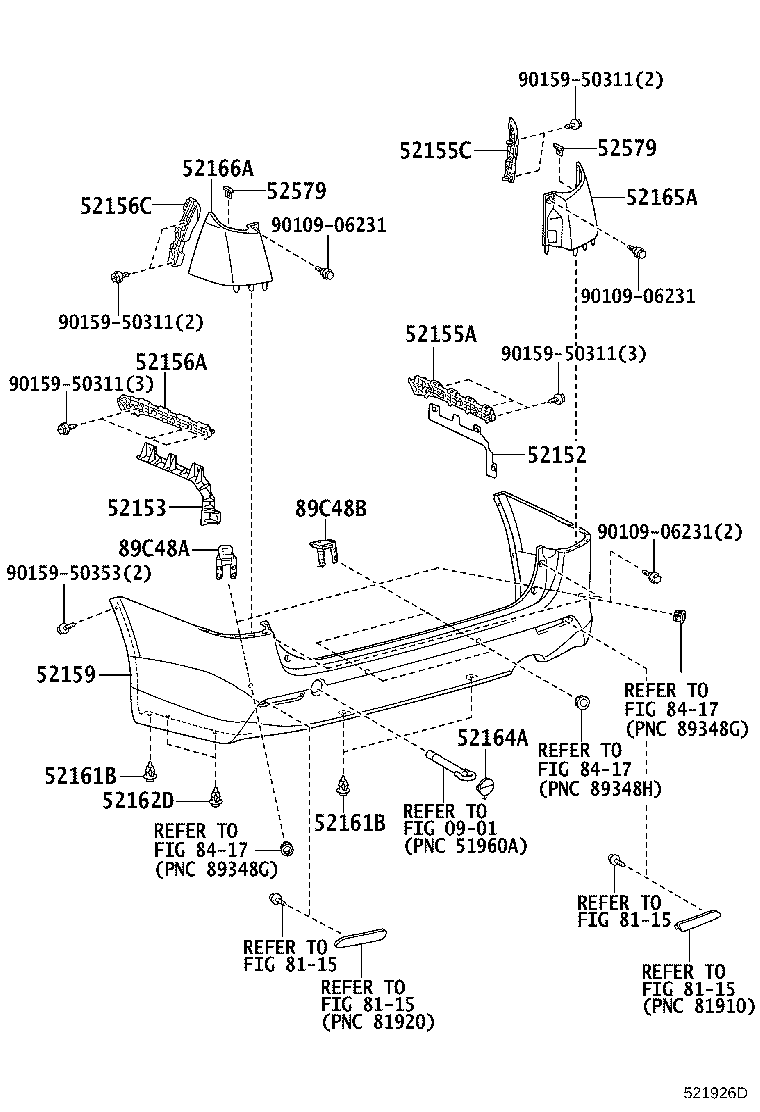

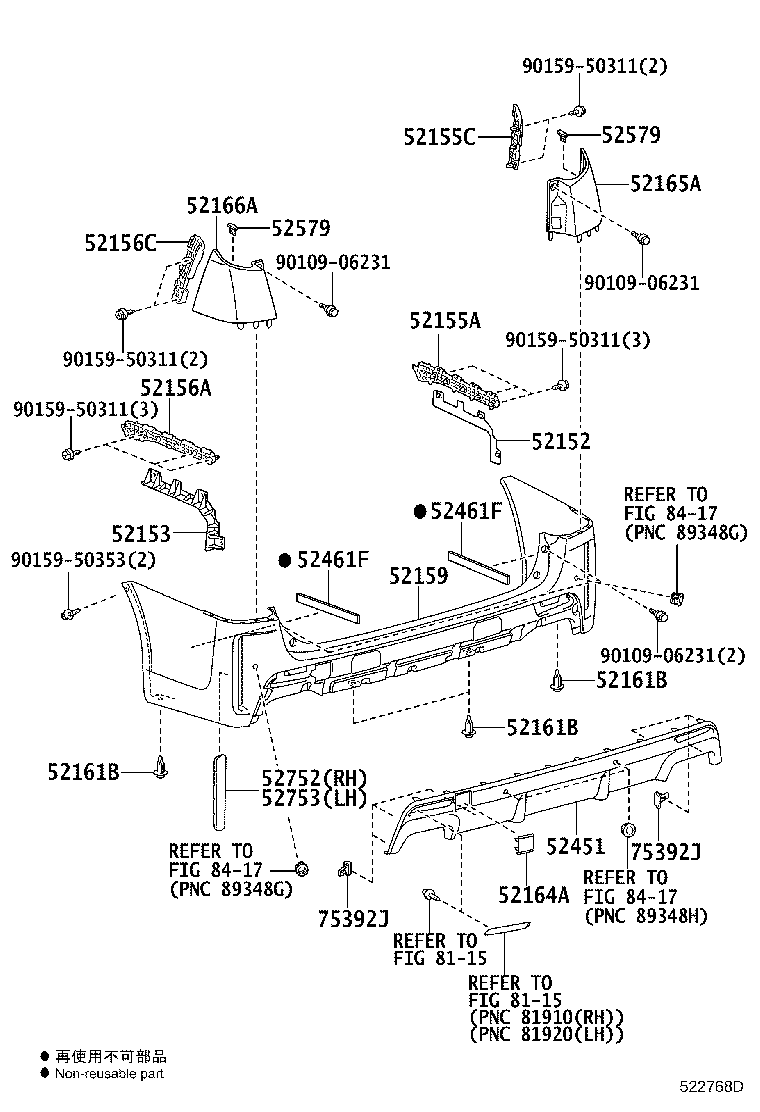

Figure 521932E 521932E 2008-04 → — Figure 521926D 521926D 2008-04 → — Figure 522768D 522768D 2012-11 → —

Part groups

PNCDescription
52152 Bar, Rear Bumper, RH
52153 Bar, Rear Bumper, LH
52155A Support, Rear Bumper Side, RH
52155C Support, Rear Bumper Side, NO.1 RH
52156A Support, Rear Bumper Side, LH
52156C Support, Rear Bumper Side, NO.1 LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52162B Plate, Rear Bumper, NO.1
52162D Piece, Rear Bumper
52164A Plate, Rear Bumper, LH
52165A Cover, Rear Bumper, Upr RH
52166A Cover, Rear Bumper, Upr LH
52451 Guard, Rear Bumper
52461F Pad, Rear Bumper
52579 Retainer, Rear Bumper Side, NO.3
52752 Moulding, Rear Bumper Side, RH
52753 Moulding, Rear Bumper Side, LH
75392J Retainer, Outside Moulding
89C48A Retainer, Ultrasonic Sensor, Rear Corner
89C48B Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
