Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH2#,ATH20,GGH2# · catalogue 713130 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

18 part groups · 10 illustrations

Illustrations

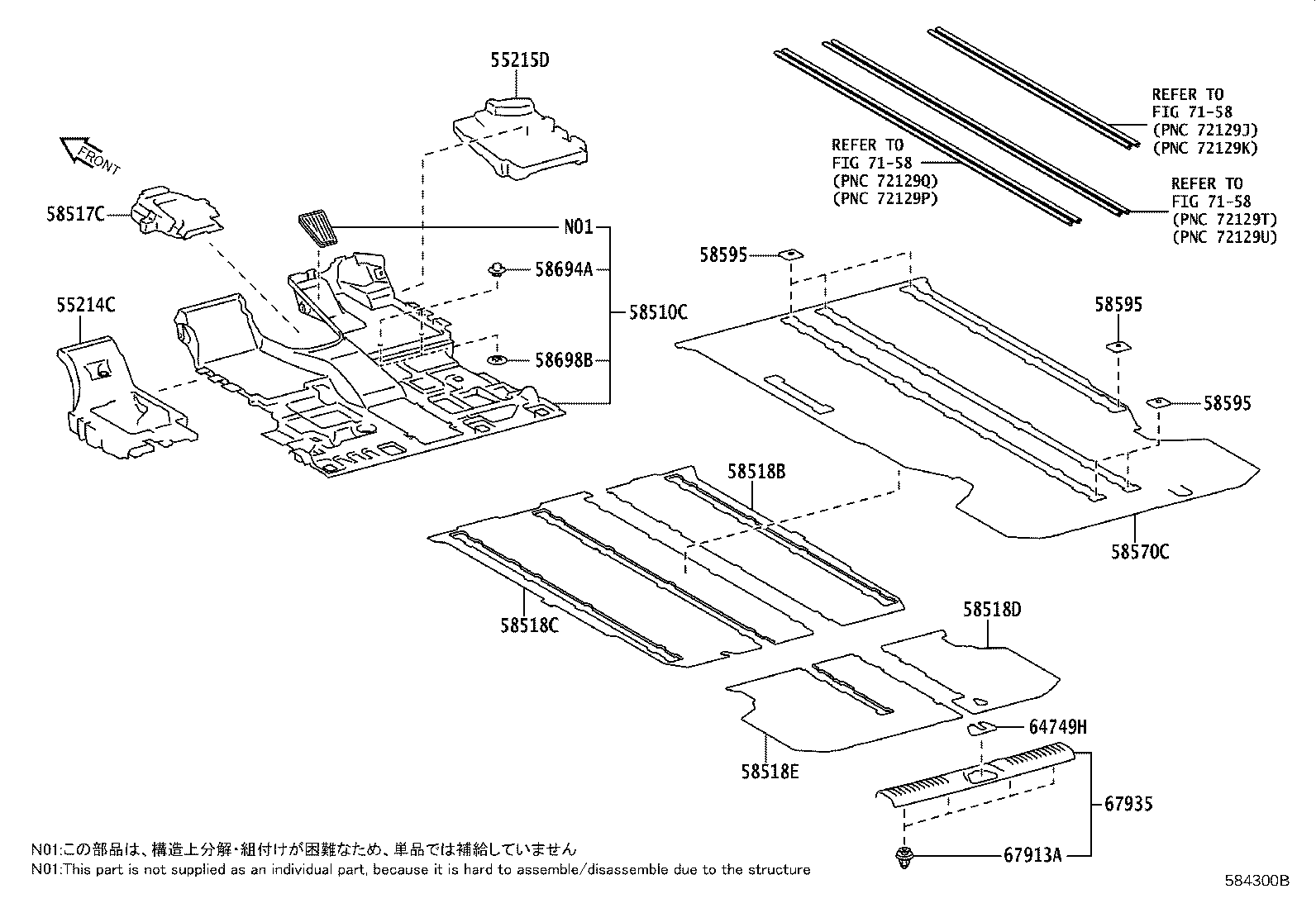

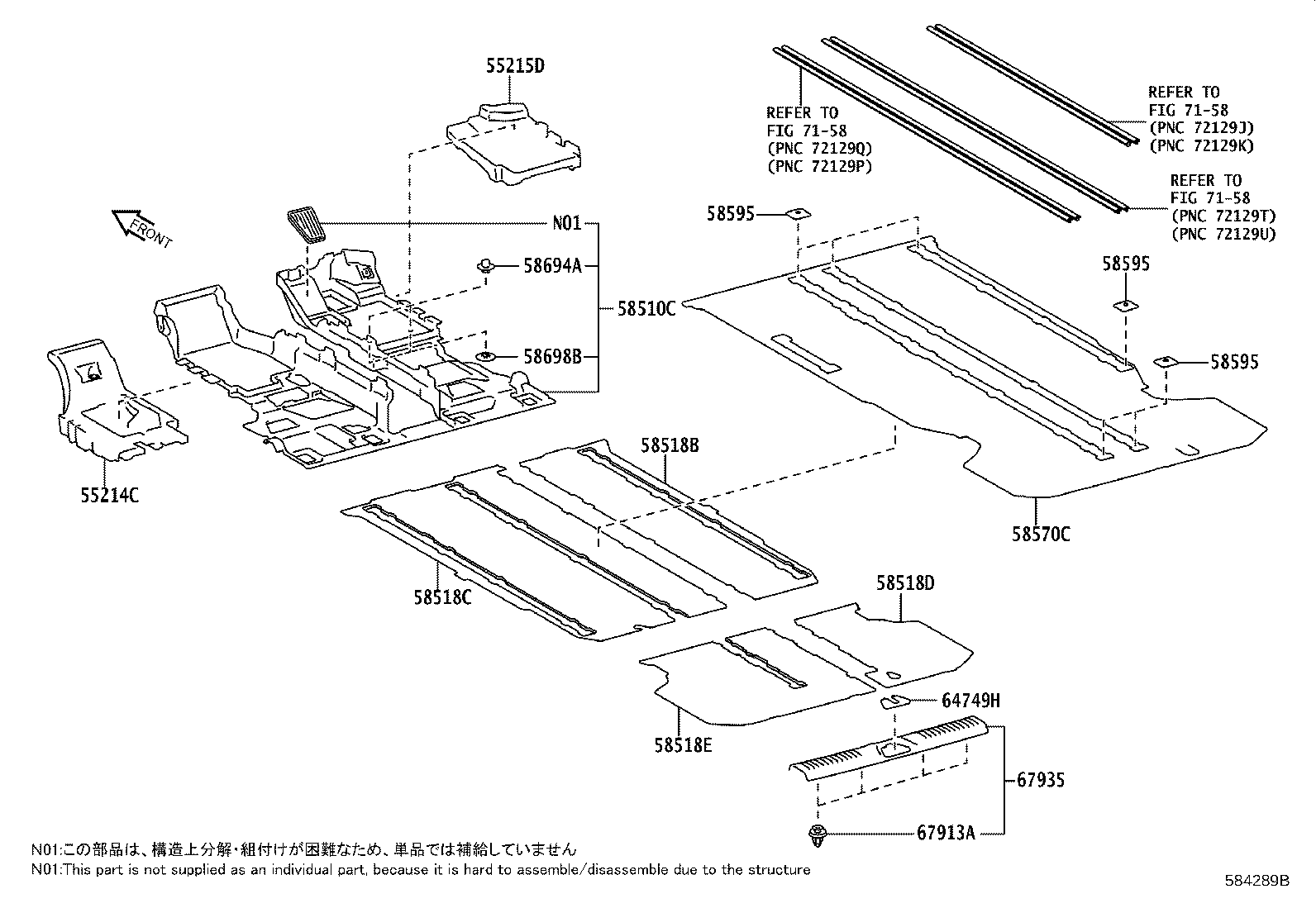

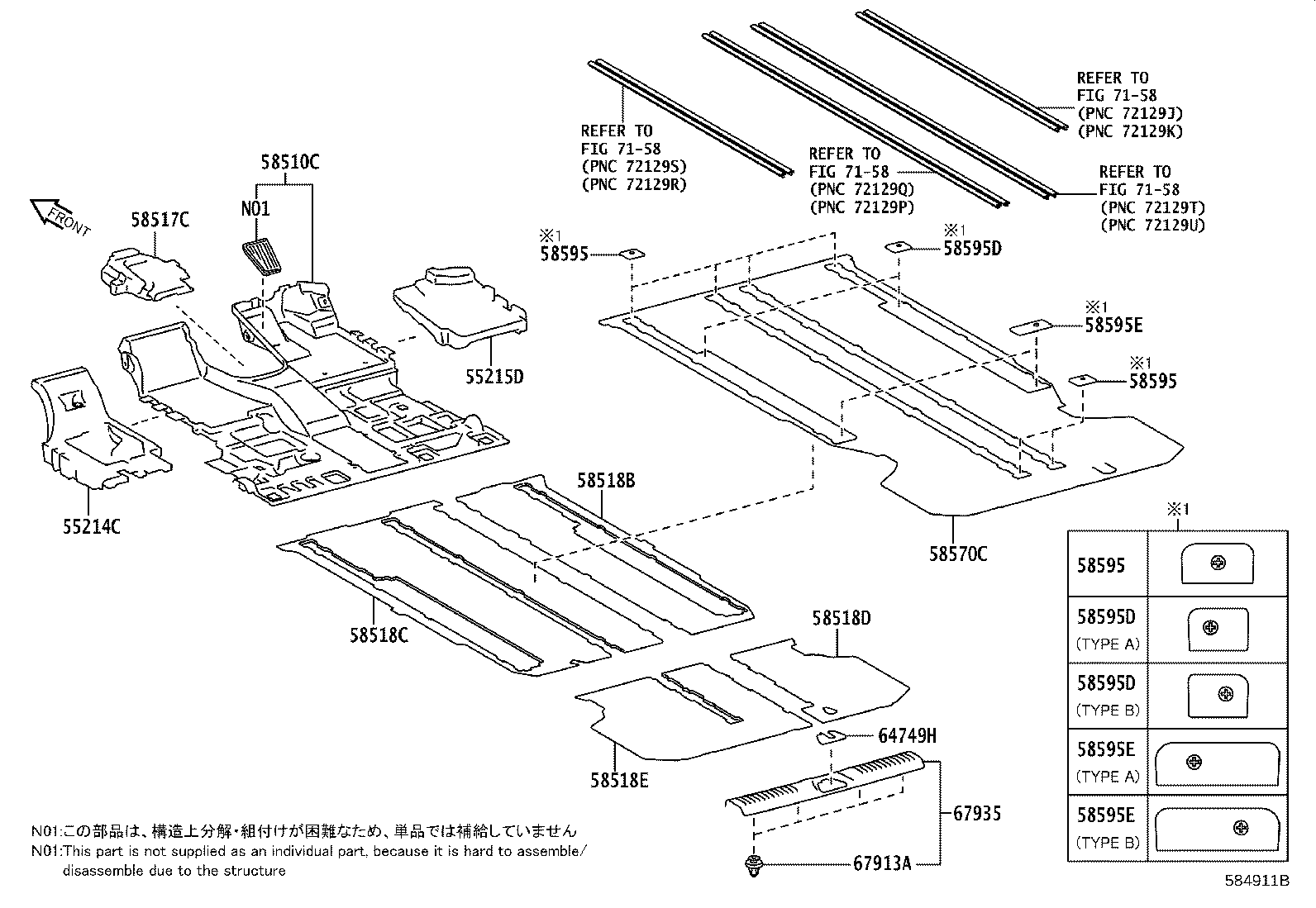

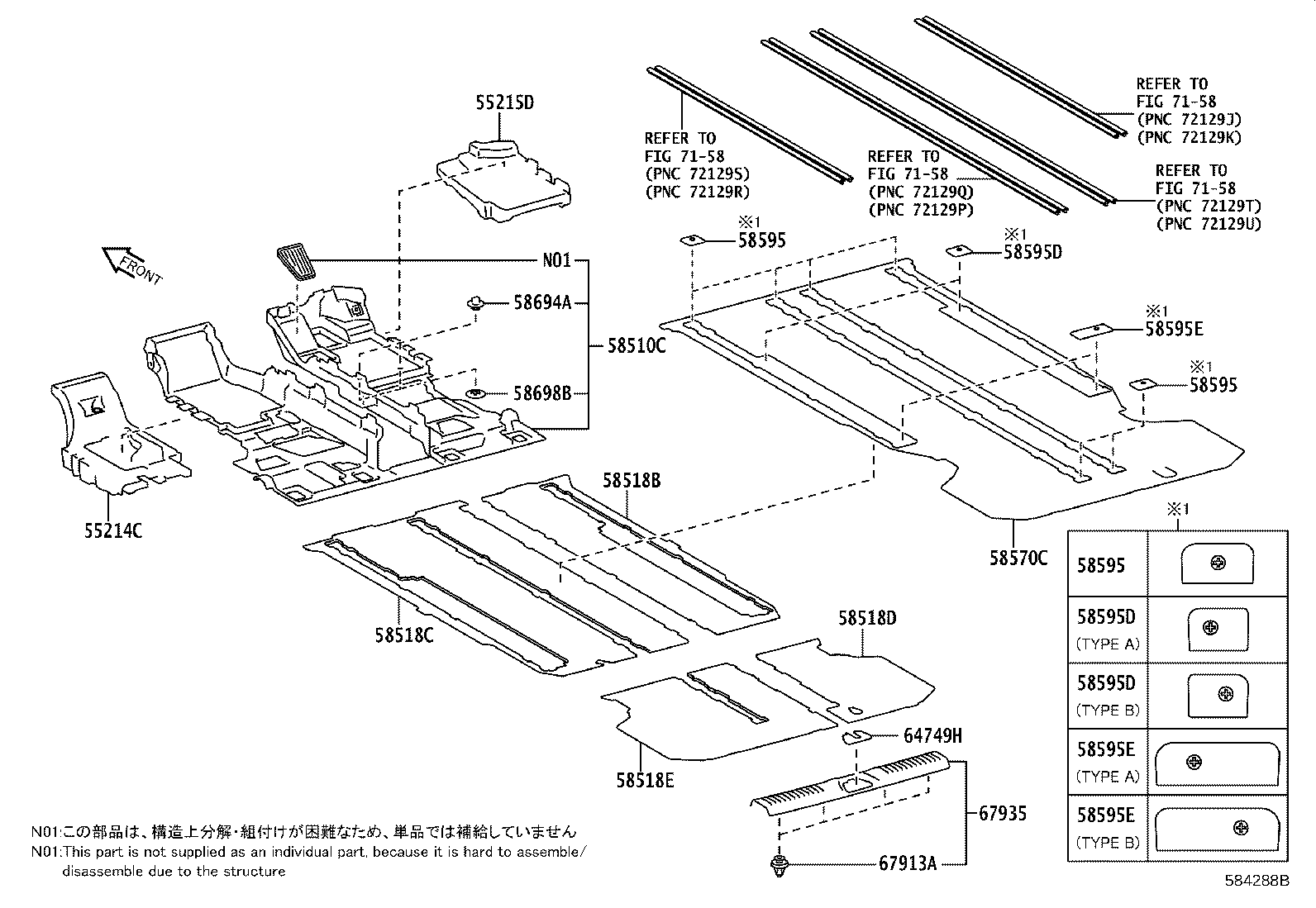

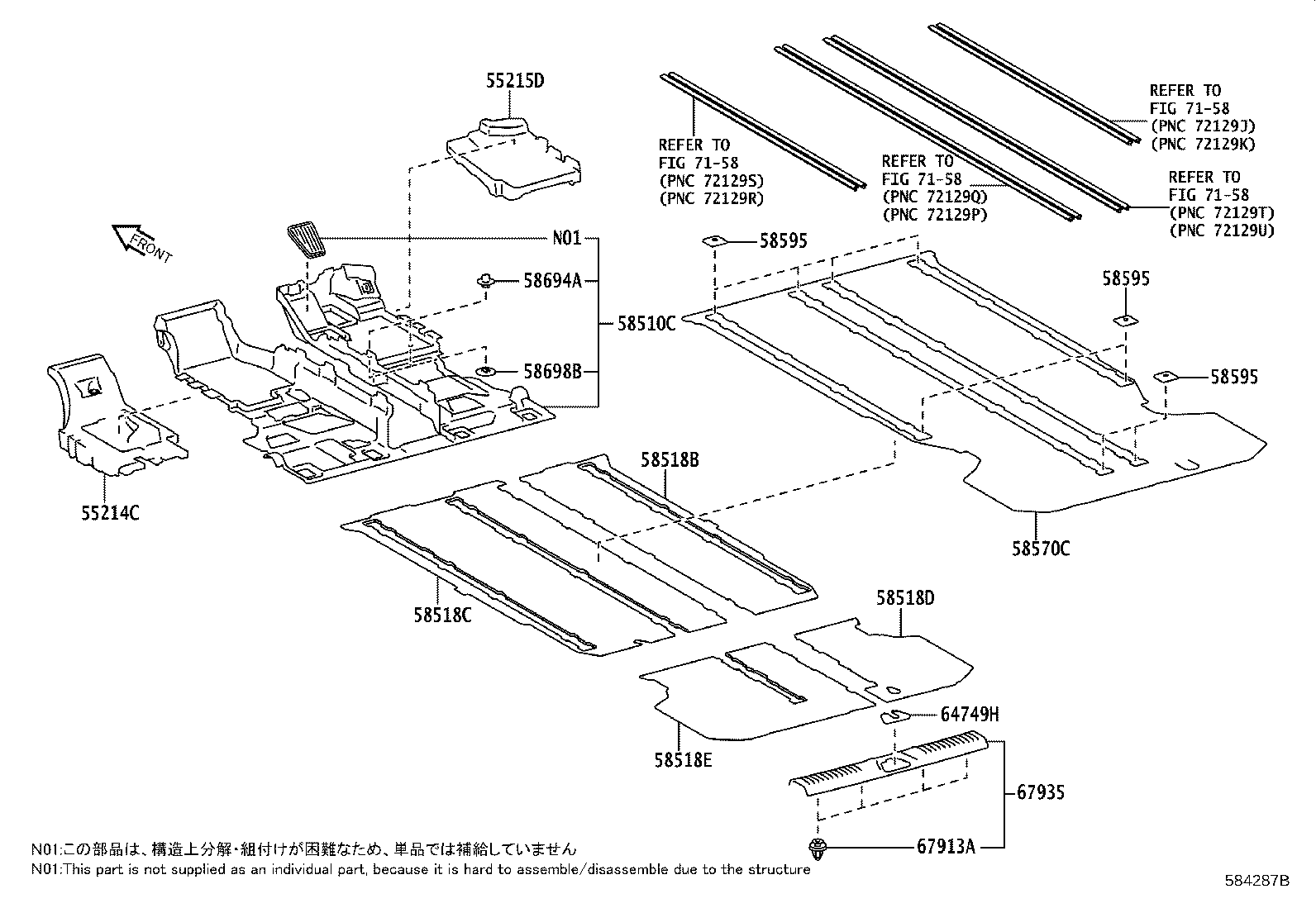

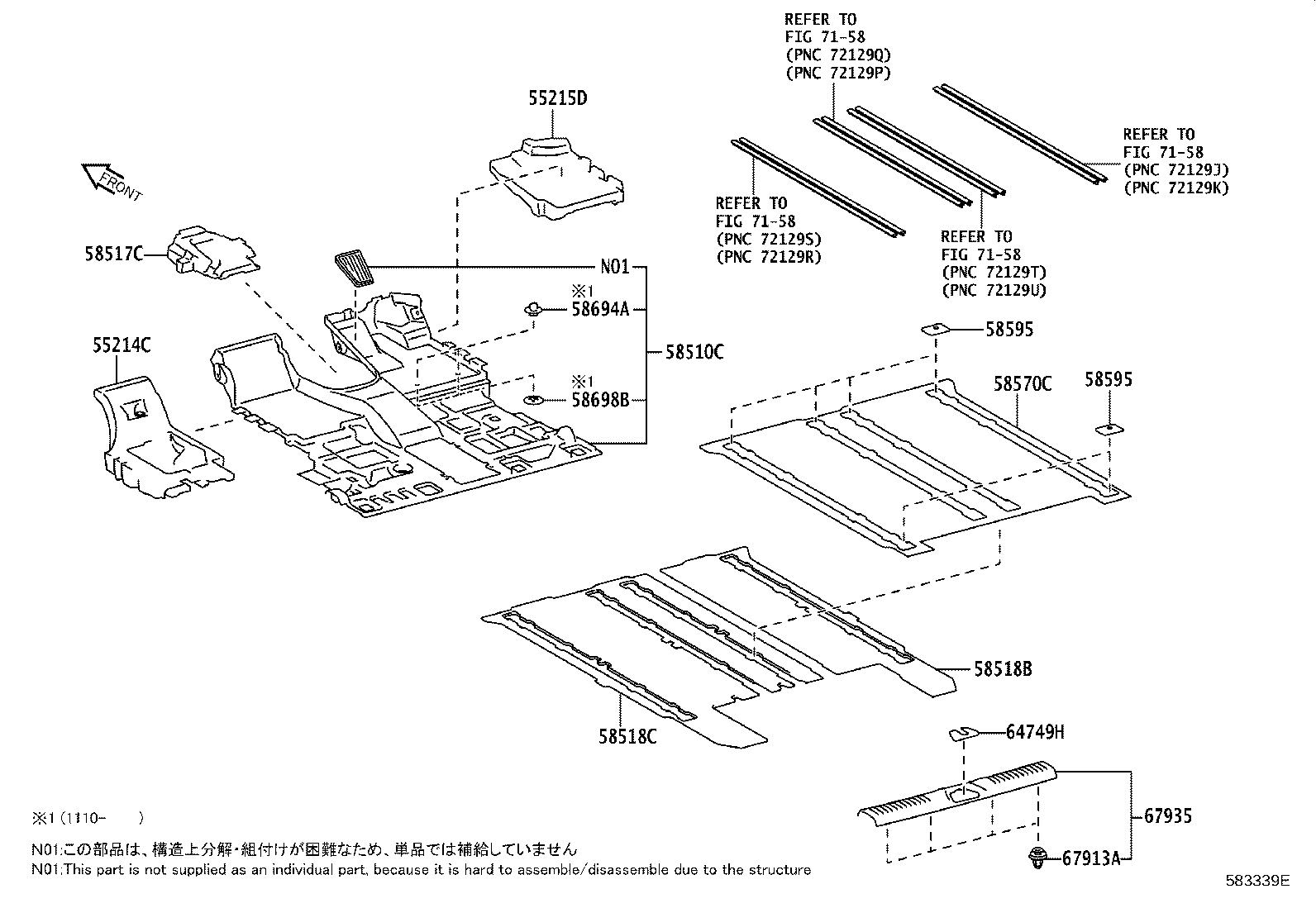

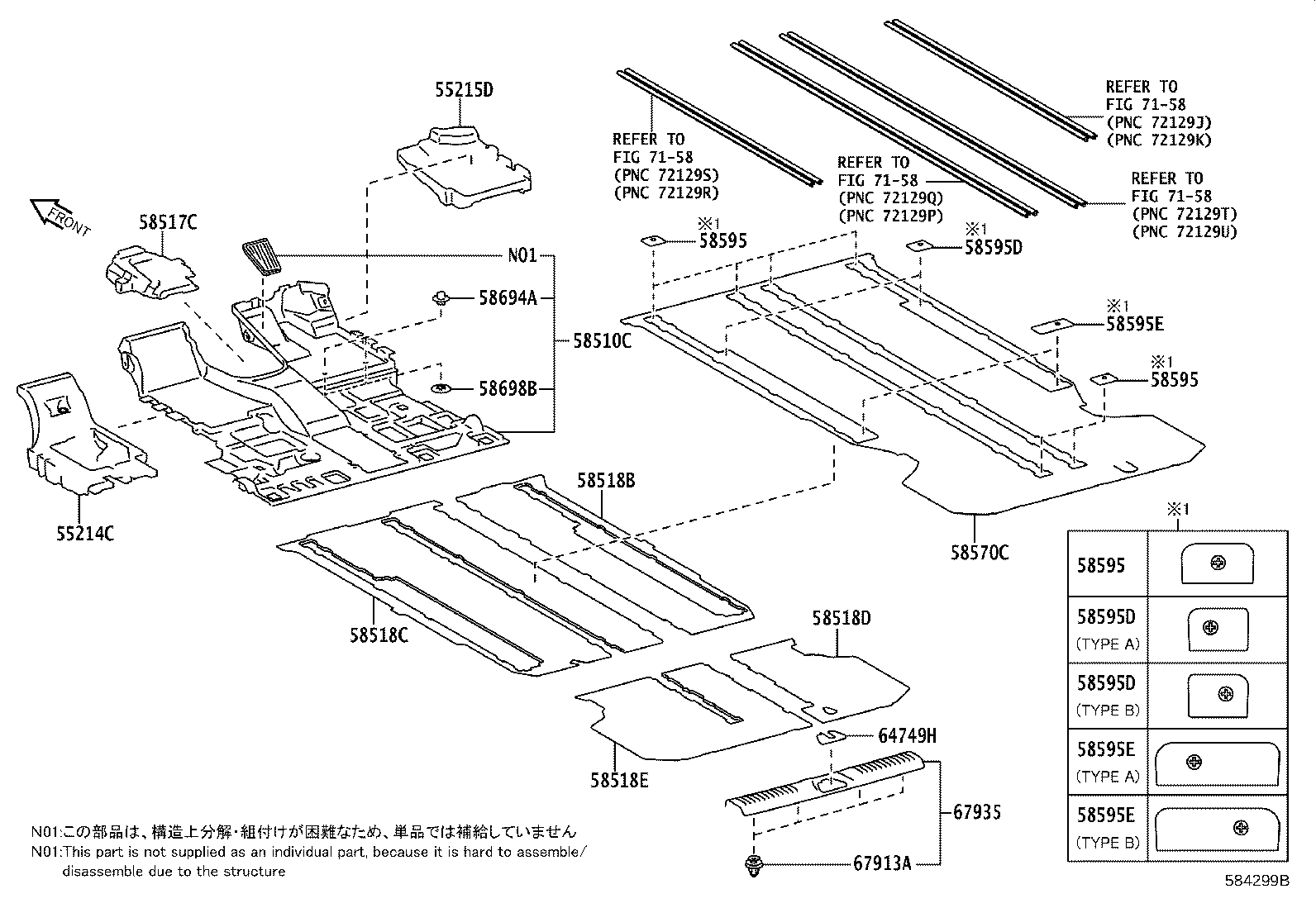

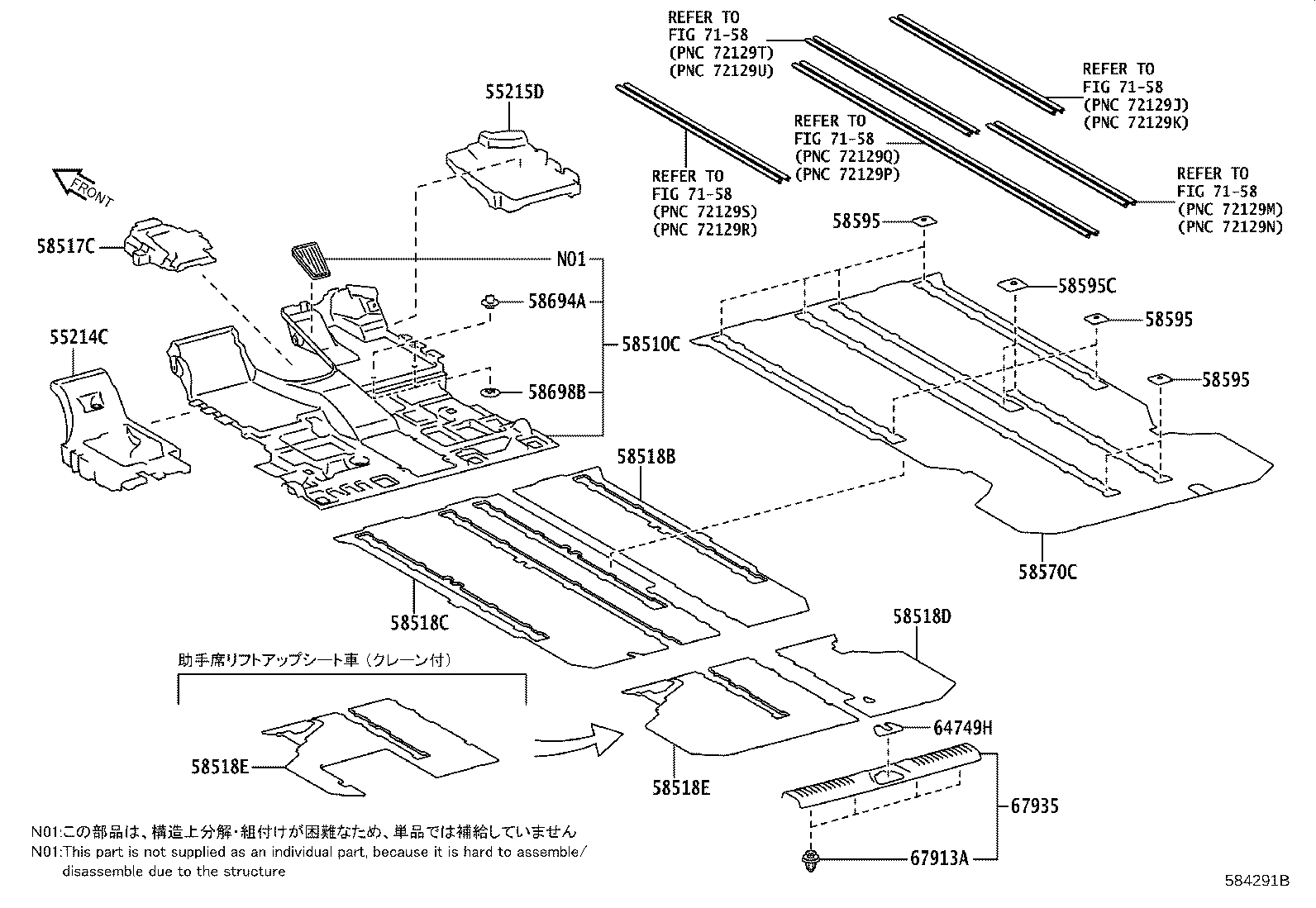

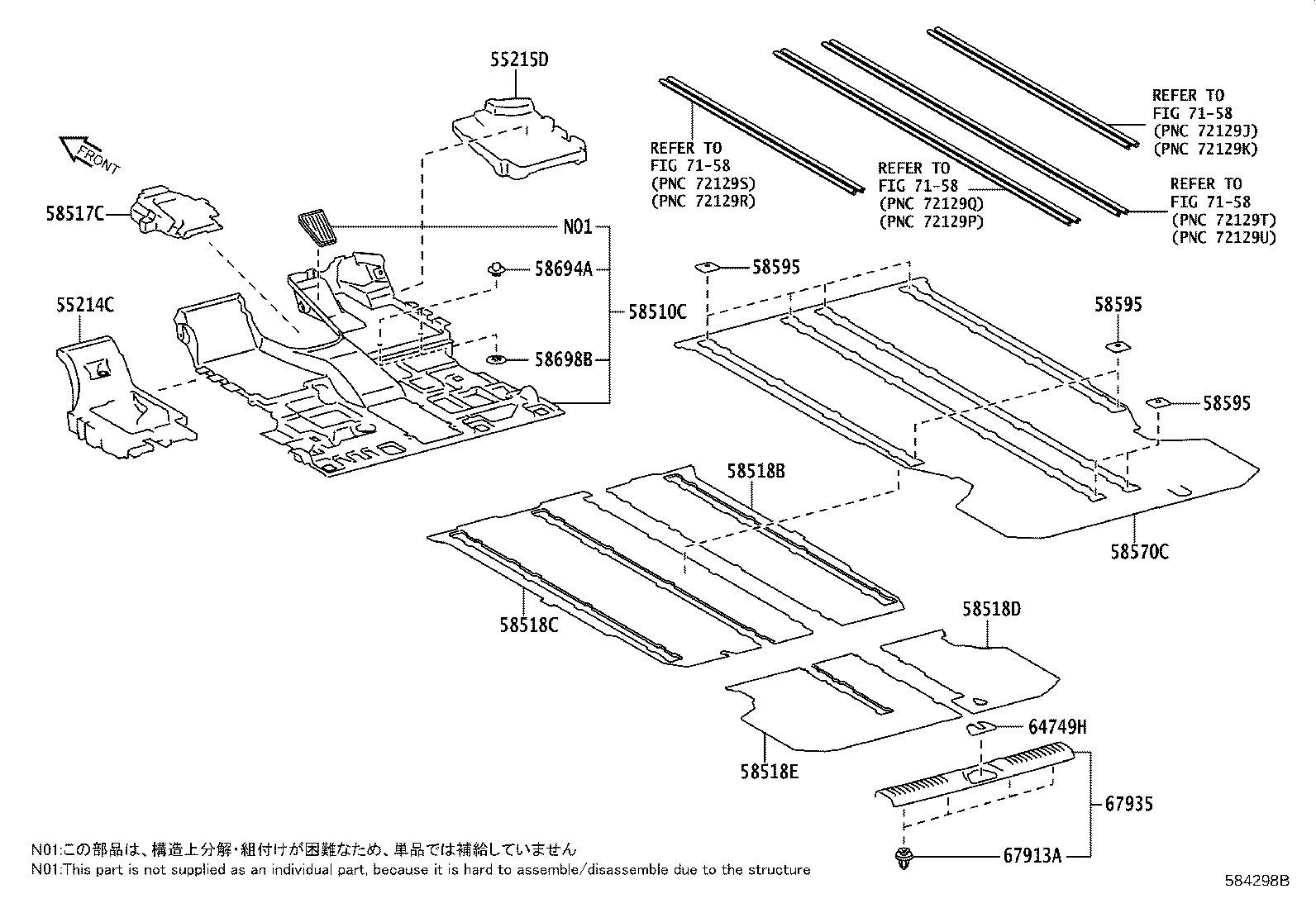

Figure 583338D 583338D 2008-04 → 2011-10 Figure 584911B 584911B 2008-04 → 2011-10 Figure 583339E 583339E 2008-04 → — Figure 584291B 584291B 2011-10 → — Figure 584298B 584298B 2011-10 → — Figure 584299B 584299B 2011-10 → — Figure 584300B 584300B 2011-10 → — Figure 584287B 584287B 2011-11 → — Figure 584288B 584288B 2011-11 → — Figure 584289B 584289B 2011-11 → —

Part groups

PNCDescription
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58510C Carpet Assy, Front Floor, Front
58517C Pad, Front Floor Mat
58518B Mat, Rear Floor, NO.2
58518C Mat, Rear Floor, NO.2
58518D Mat, Rear Floor, NO.2
58518E Mat, Rear Floor, NO.2
58570C Carpet Assy, Rear Floor
58595 Moulding, Floor Carpet, NO.3
58595C Moulding, Floor Carpet, NO.1
58595D Moulding, Floor Carpet, NO.5
58595E Moulding, Floor Carpet, NO.4
58694A Plate, Mat Set, Upper
58698B Plate, Mat Set, Lower
64749H Cover, Back Door Striker
67913A Clip(FOR SCUFF PLATE)
67935 Plate, Back Door Scuff
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
