Toyota Alphard/Vellfire/HV
2008-04 → 2015-01 · chassis ANH2#,ATH20,GGH2# · catalogue 713130 · Japan
Supported model
Data version 2015-04

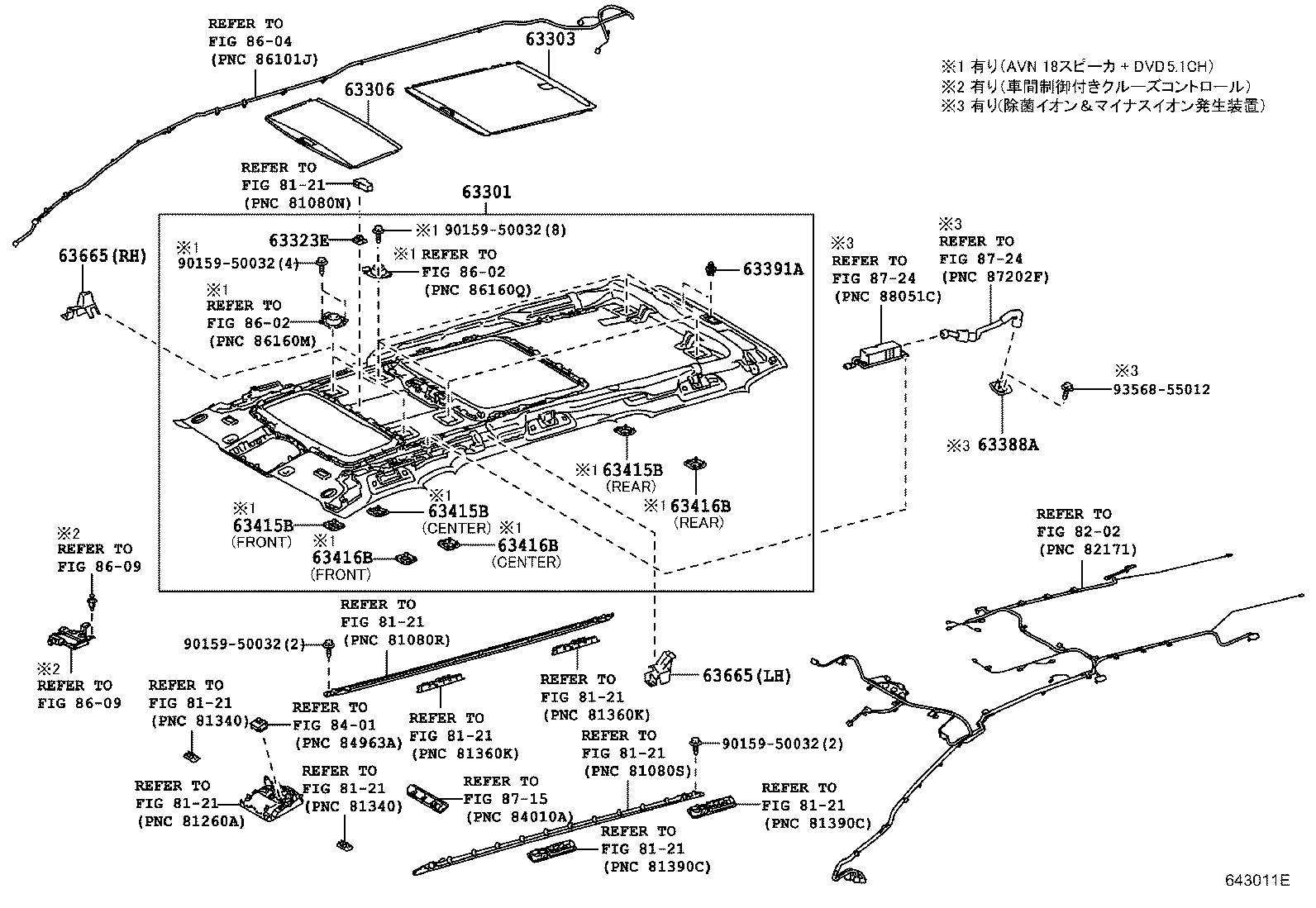

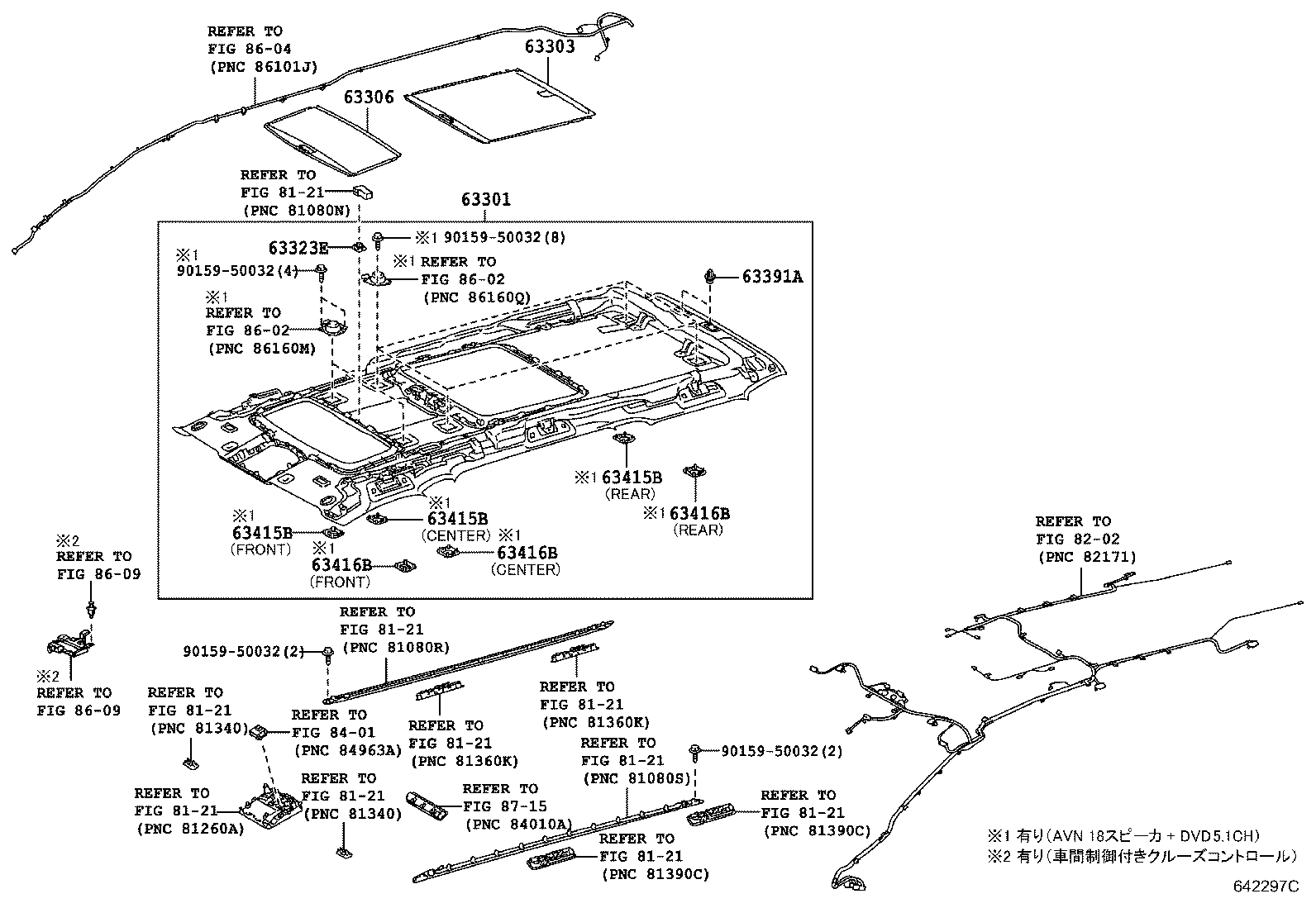

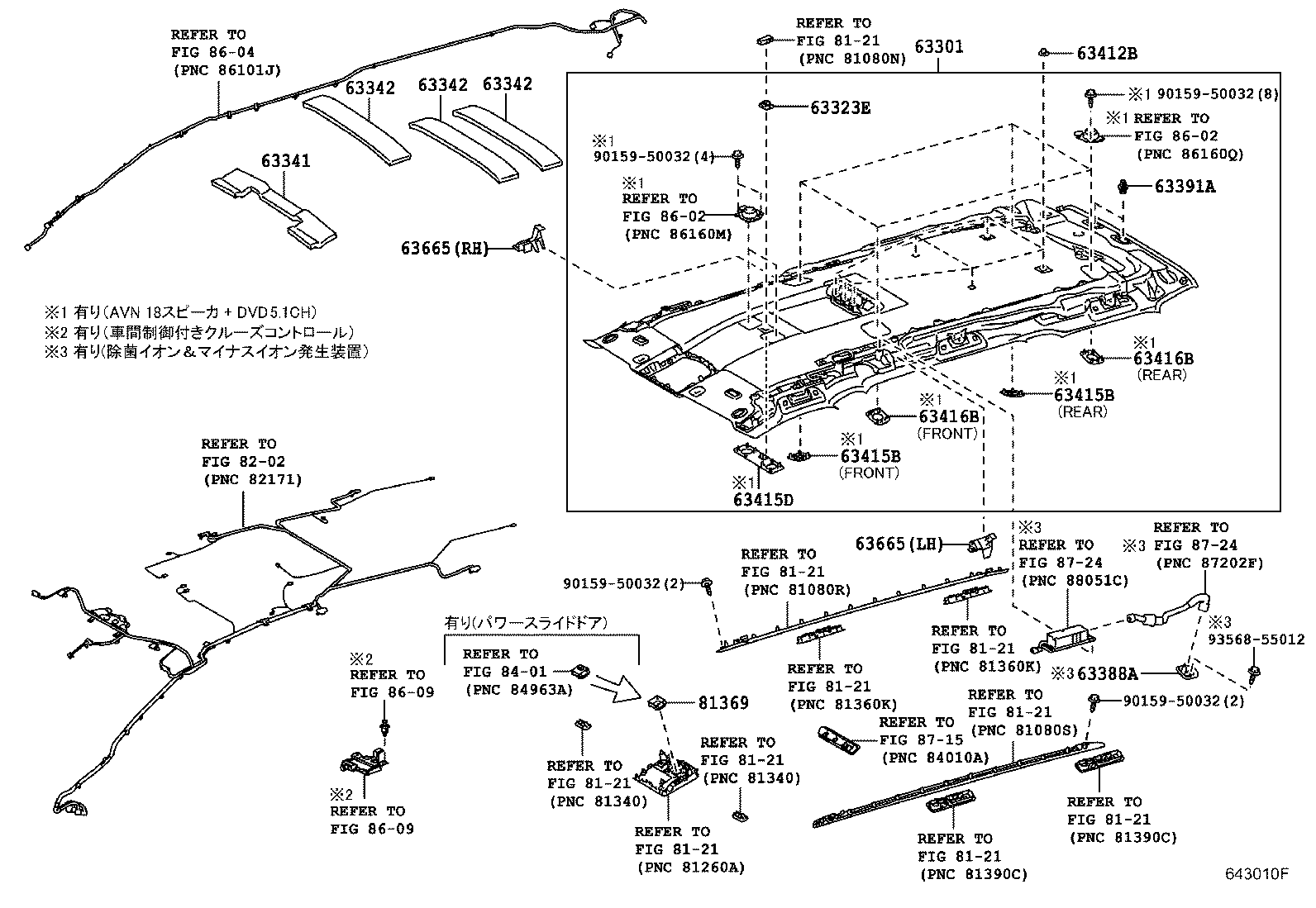

Roof Headlining & Silencer Pad
14 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 63301 | Trim Sub-assy, Roof Headlining |
| 63303 | Trim Sub-assy, Sunshade, NO.2 |
| 63306 | Trim Sub-assy, Sunshade |
| 63323E | Case, Headlining Lamp |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63388A | Cover, Roof Headlining Holder |
| 63391A | Clip(FOR ROOF HEADLINING TRIM) |
| 63412B | Retainer, Roof Console |
| 63415B | Grille, Roof Speaker, RH |
| 63415D | Grille, Roof Speaker, Center |
| 63416B | Grille, Roof Speaker, LH |
| 63665 | Spacer, Roof Headlining |
| 81369 | Cover, Spot Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
