Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH2#,ATH20,GGH2# · catalogue 713130 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

31 part groups · 2 illustrations

Illustrations

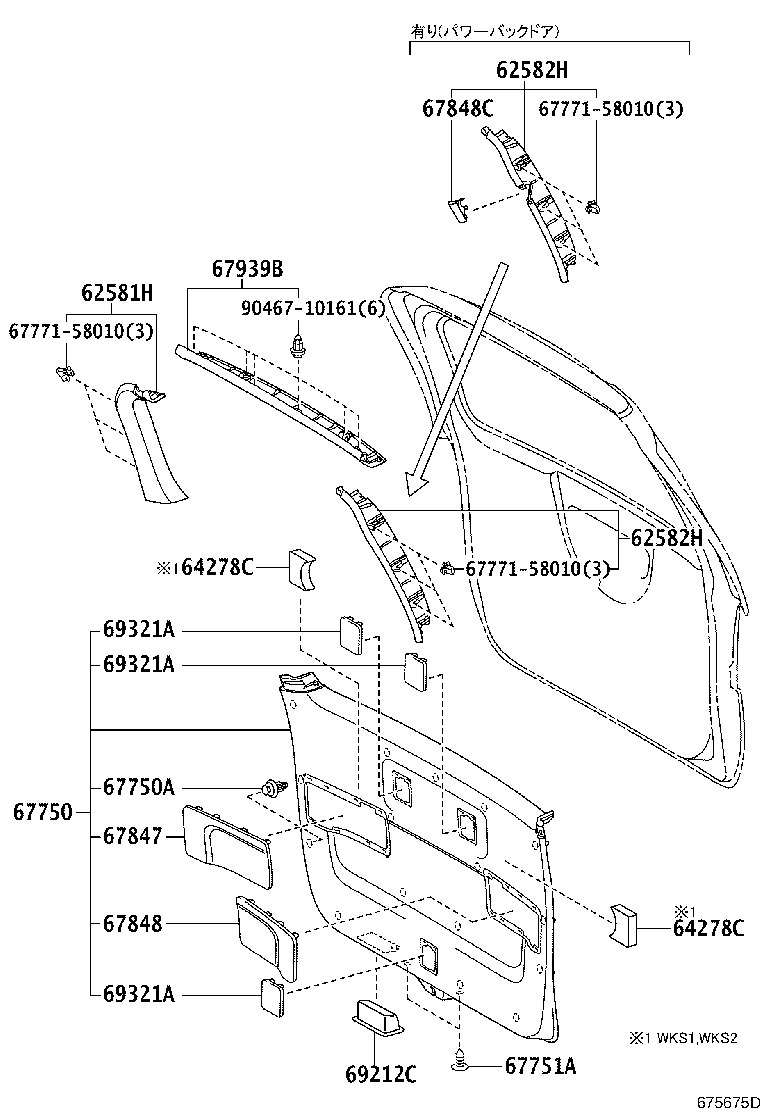

Figure 675676M 675676M 2008-04 → — Figure 675675D 675675D 2008-04 → —

Part groups

PNCDescription
62581H Garnish, Rear Window Side, RH
62582H Garnish, Rear Window Side, LH
64818B Spacer, Back Door Glass, NO.1
64819B Spacer, Back Window Glass, NO.2
64827A Clip, Back Window Glass, RH
64828 Clip, Back Window Glass, LH
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67372A Weight, Back Door
67750 Board Assy, Back Door Trim
67750A Clip(FOR BACK DOOR TRIM)
67751A Clip(FOR BACK DOOR TRIM BOARD)
67837L Seal, Door Dust Proof
67847 Cover, Back Door Service Hole, RH
67848 Cover, Back Door Service Hole, LH
67848C Cover, Back Door Service Hole, NO.2
67881A Weatherstrip, Back Door
67939B Garnish, Back Door, Center
68131 Glass, Back Door
68294A Dam, Back Door Glass Adhesive
68294B Dam, Back Door Glass Adhesive
69212C Handle, Back Door Inside
69321A Cover, Back Door Lock
75819 Clip, Luggage Compartment Door Moulding
76801 Garnish Sub-assy, Back Door, Outside
76812 Garnish, Back Door, Outside Lower
76817 Clip, Back Door Outside Garnish
76825 Protector, Back Door Outside Garnish
76831A Cover, Back Door Finish Panel, RH
76832A Cover, Back Door Finish Panel, LH
76839A Cover, Back Door Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
