Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH2#,ATH20,GGH2# · catalogue 713130 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

414 part groups · 33 illustrations

Illustrations

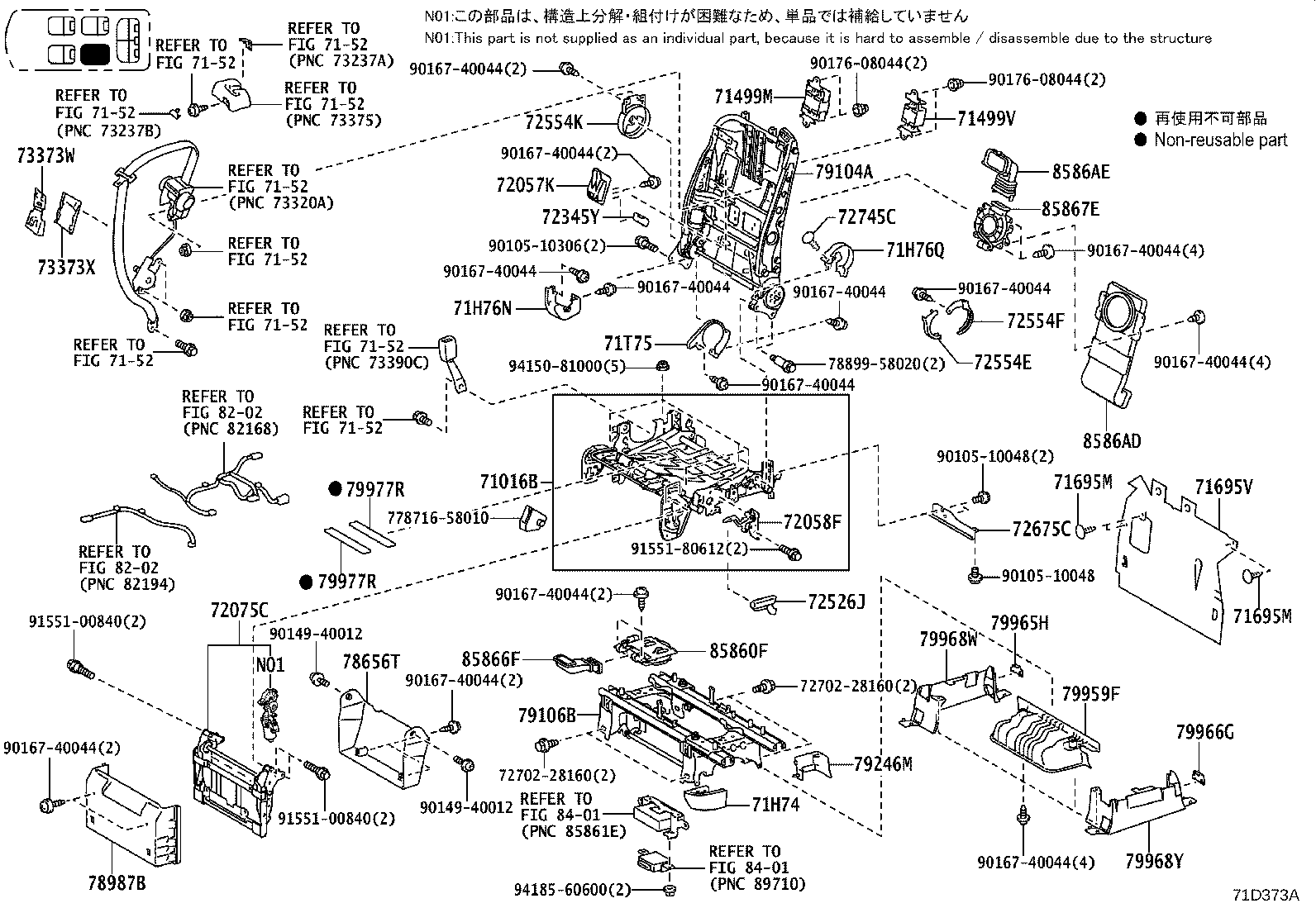

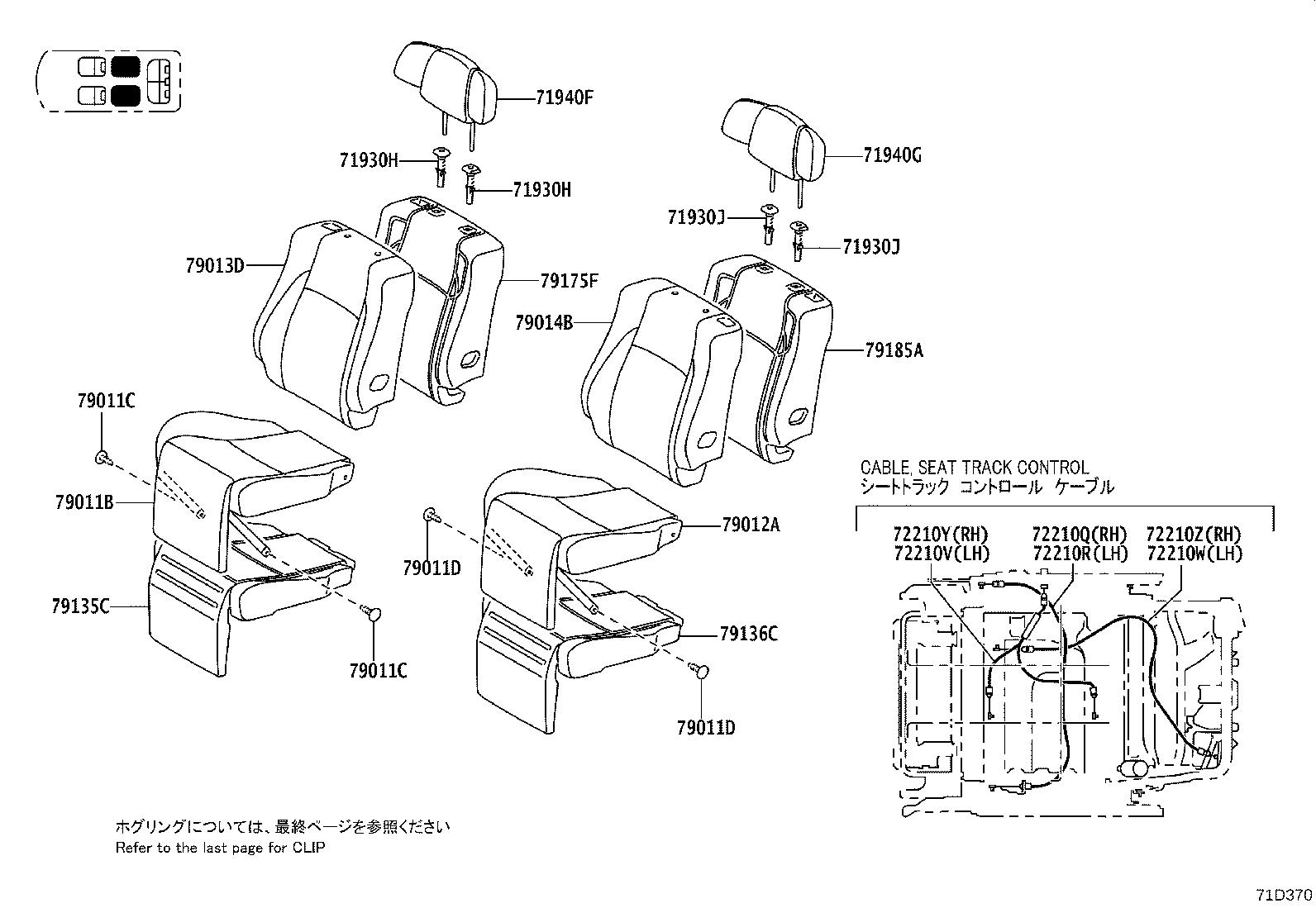

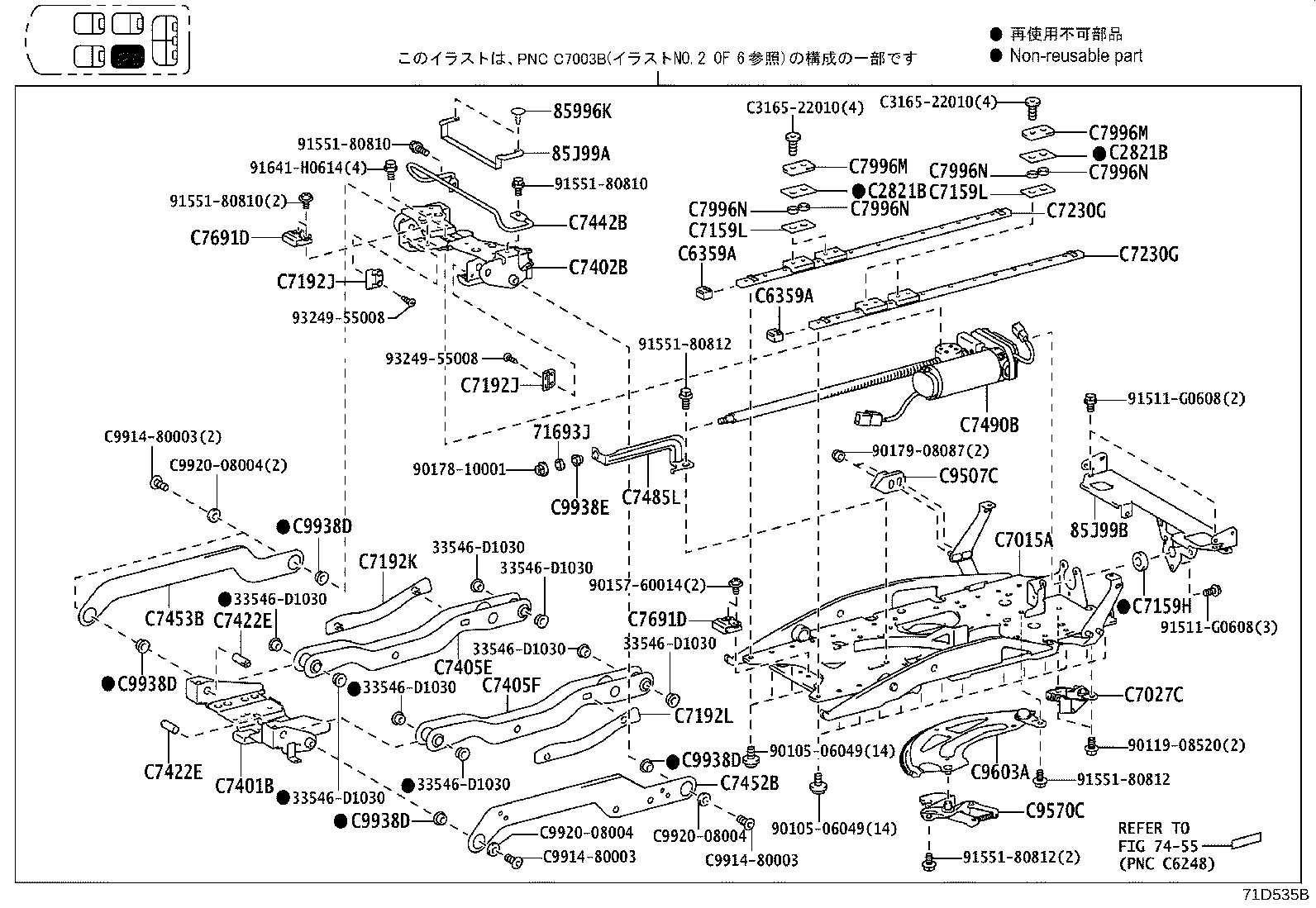

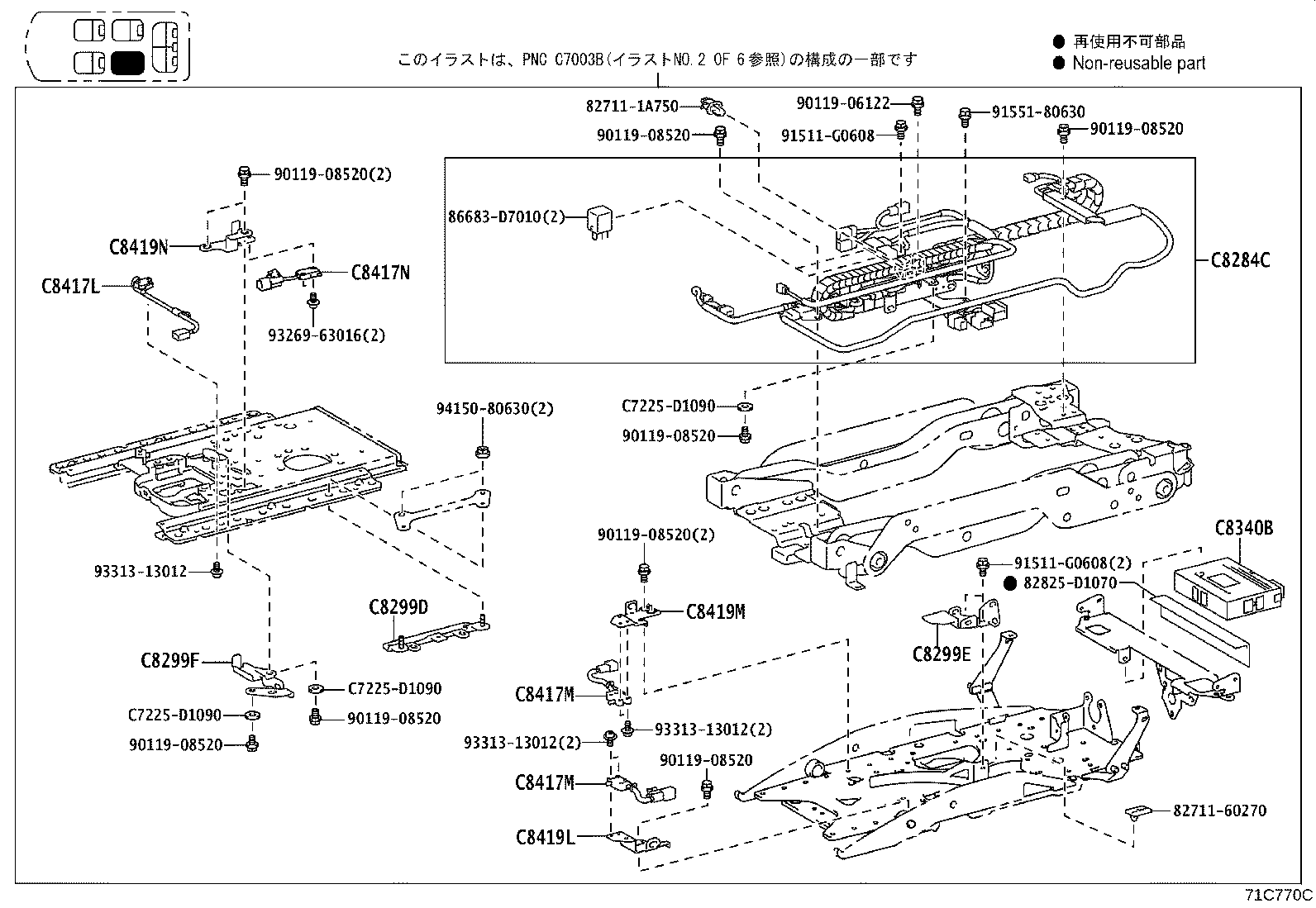

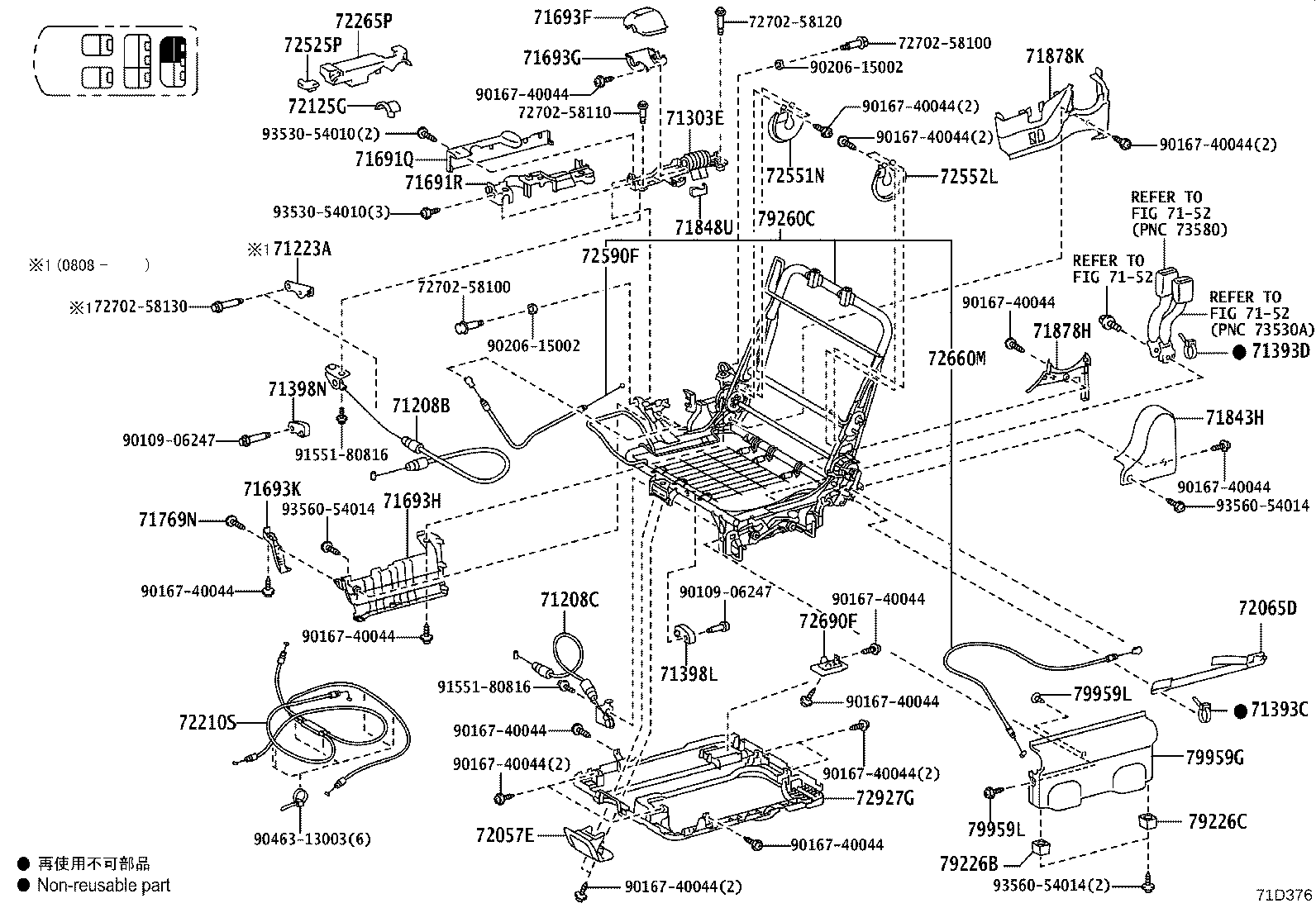

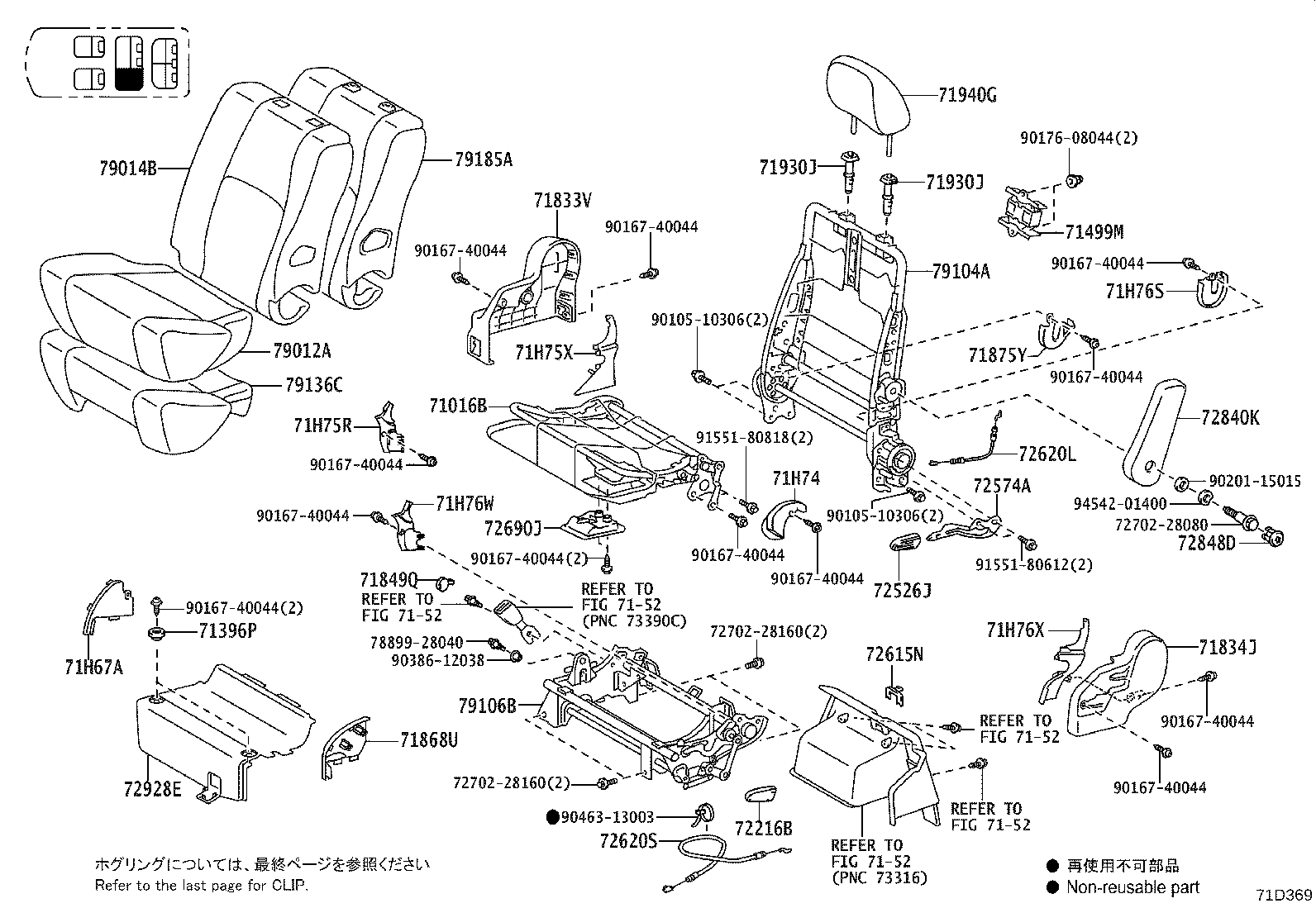

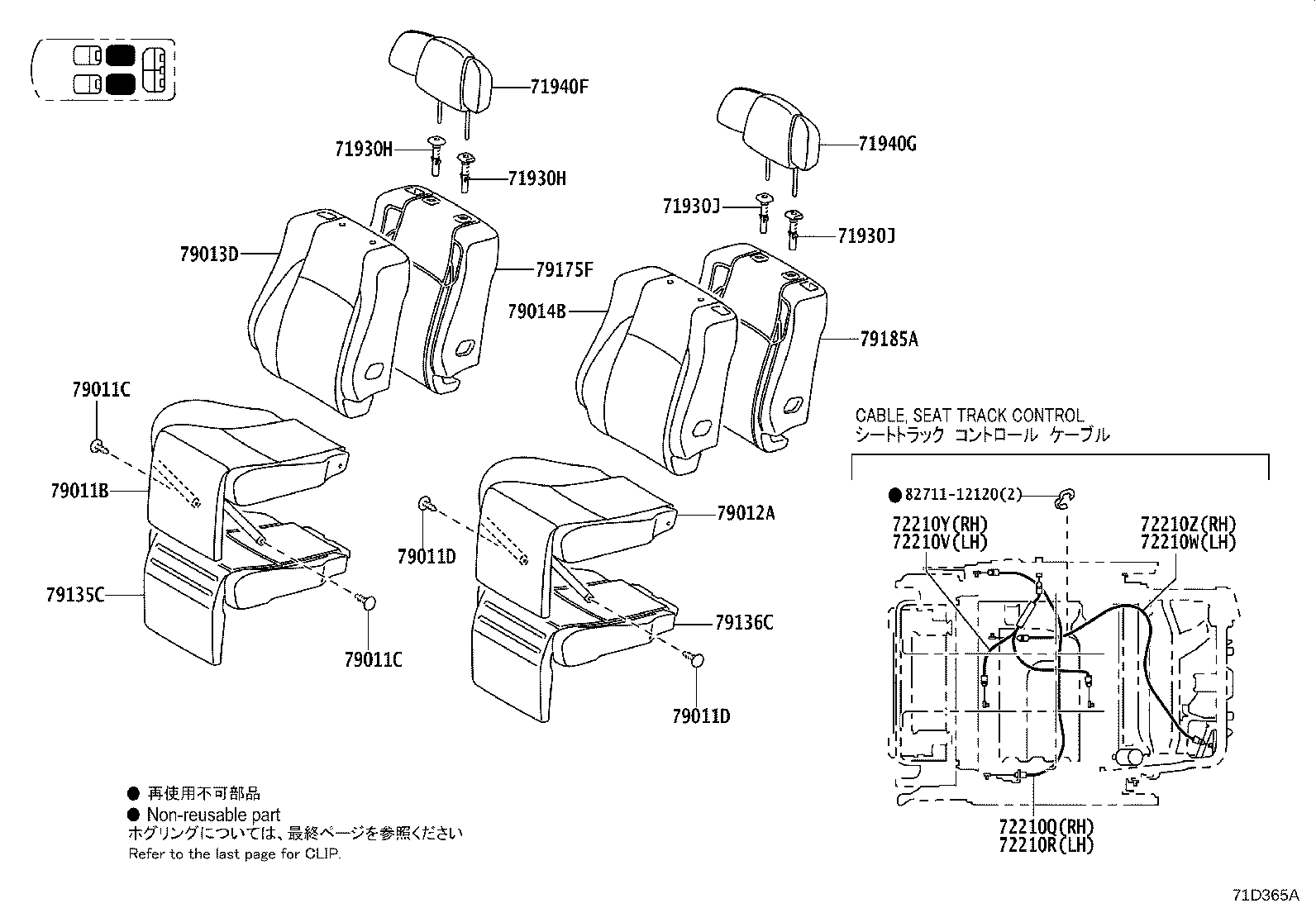

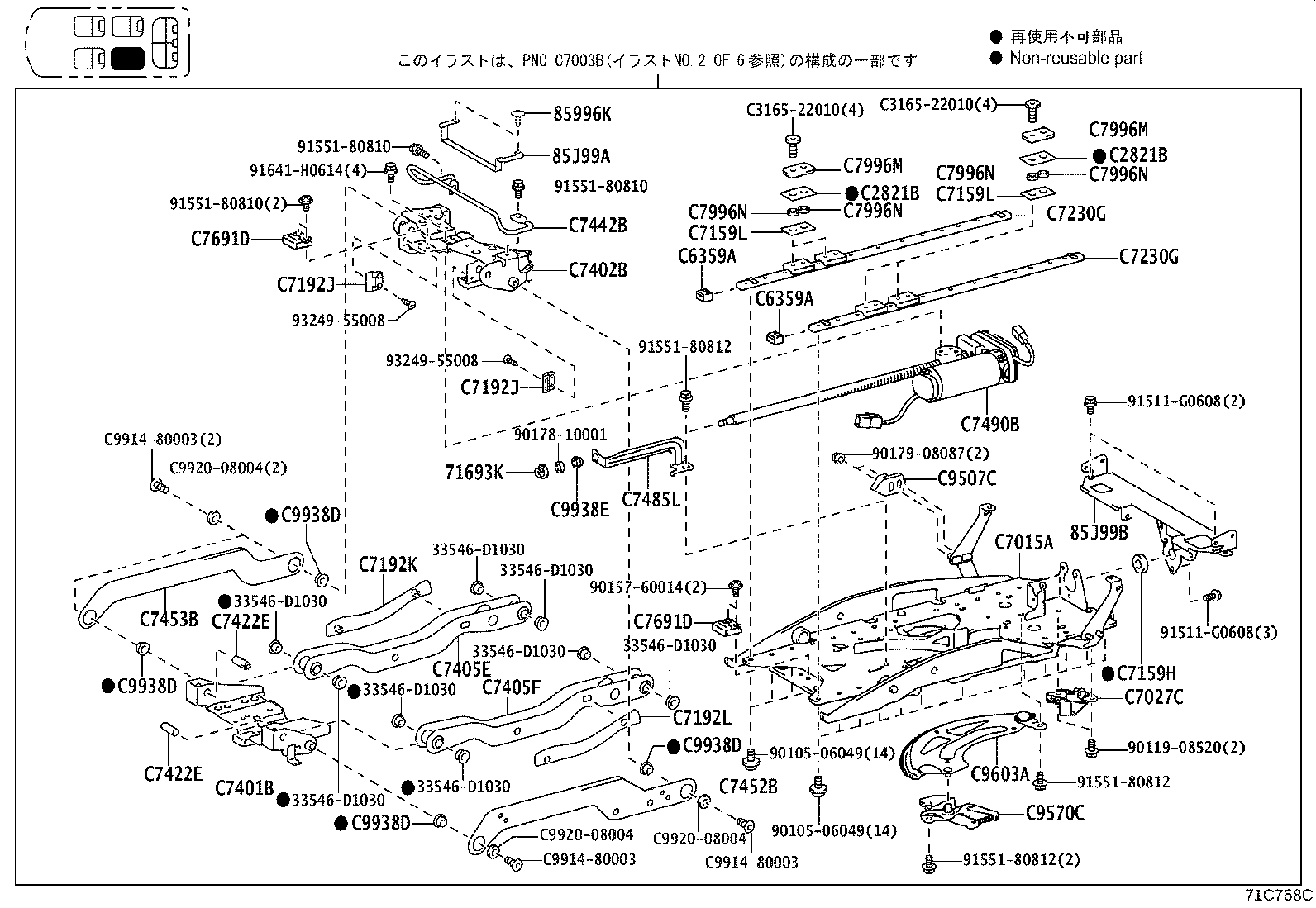

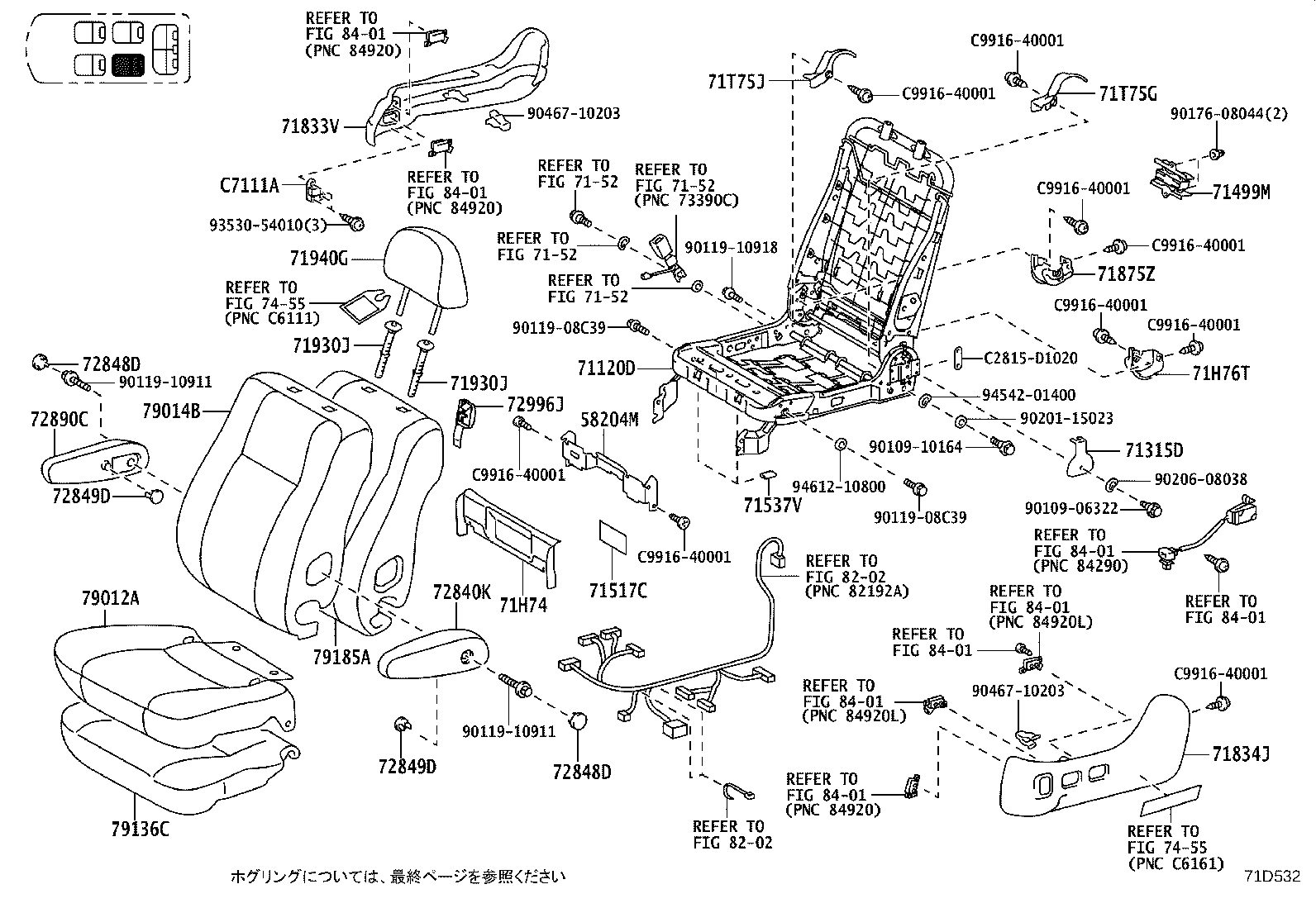

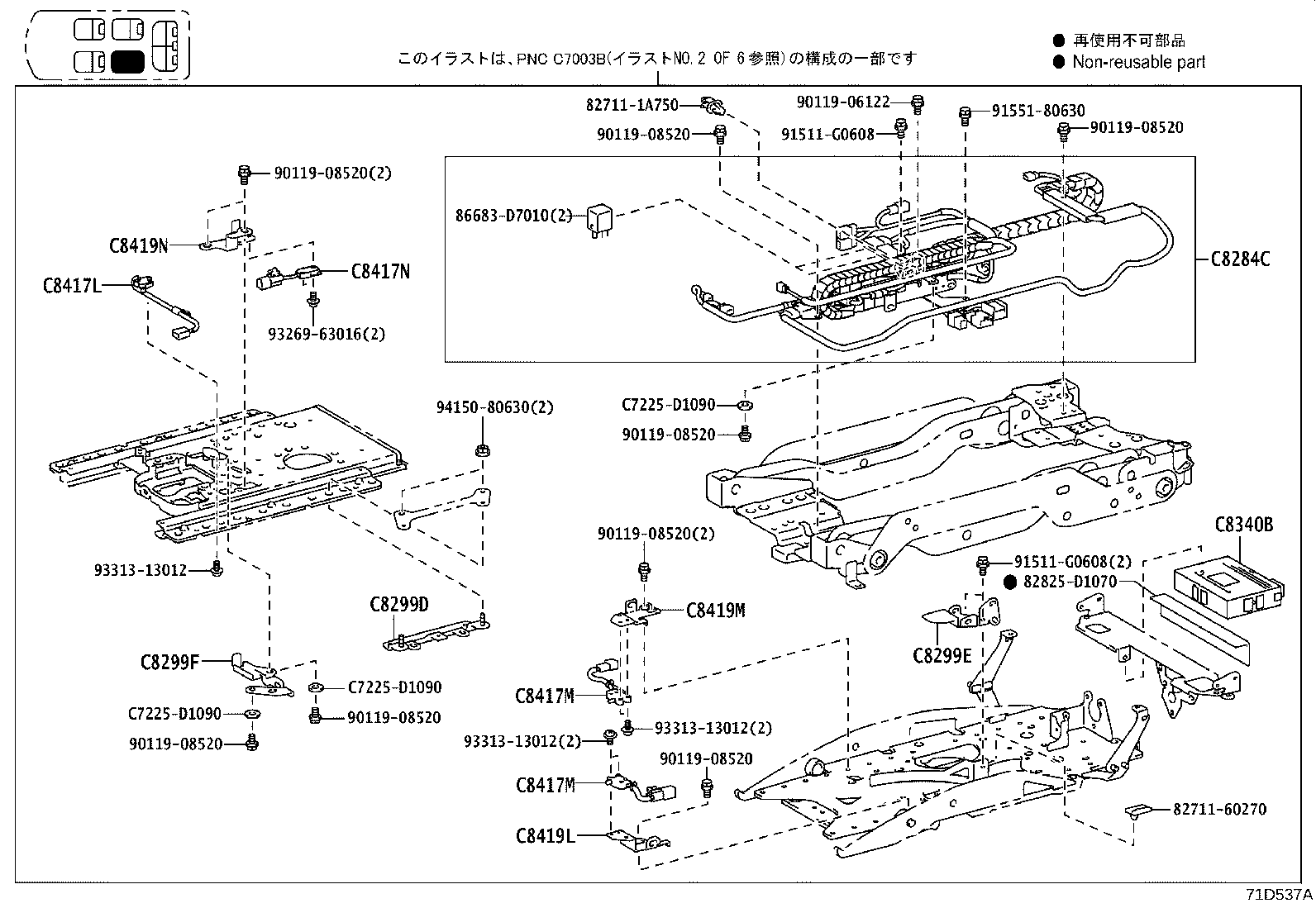

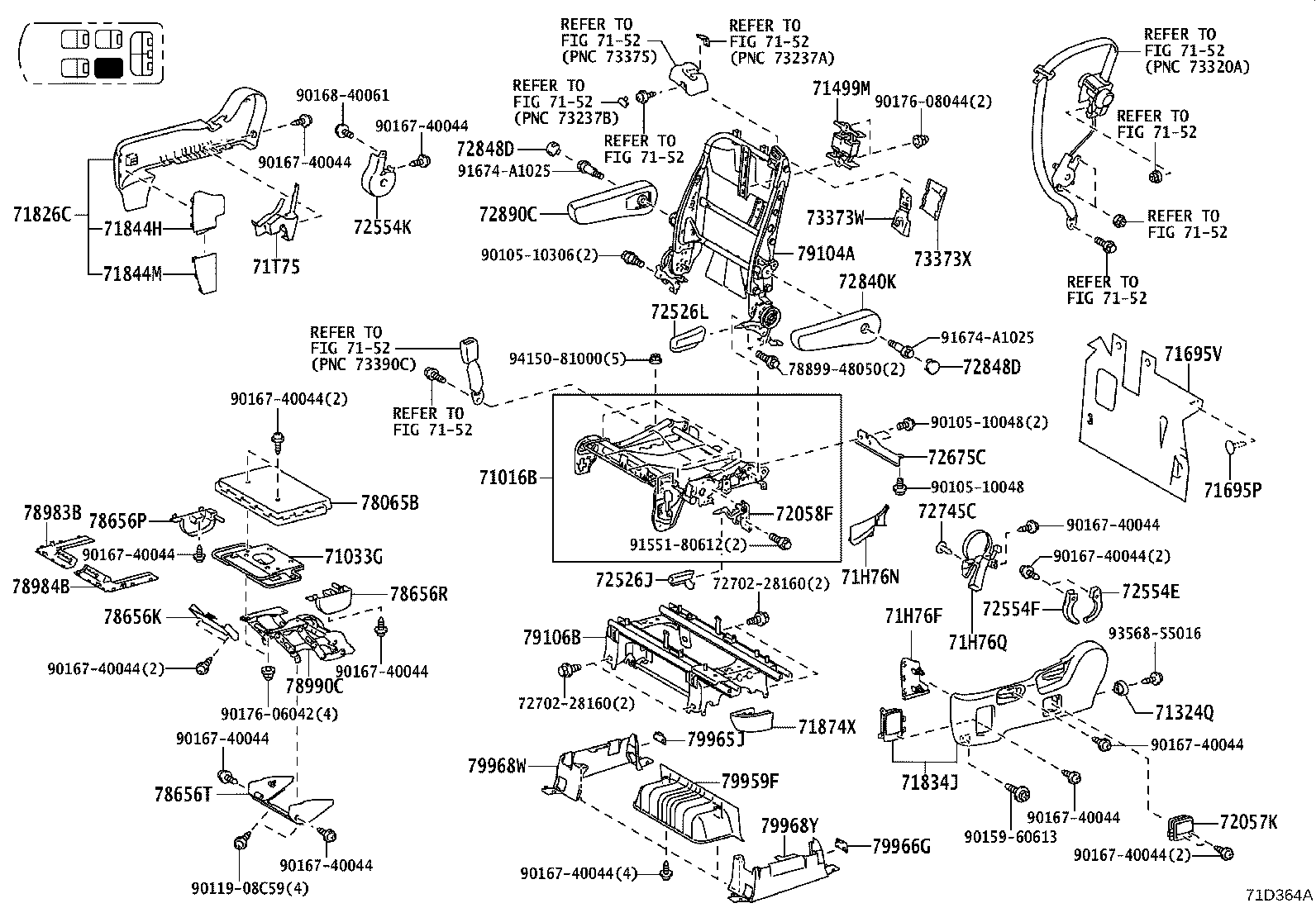

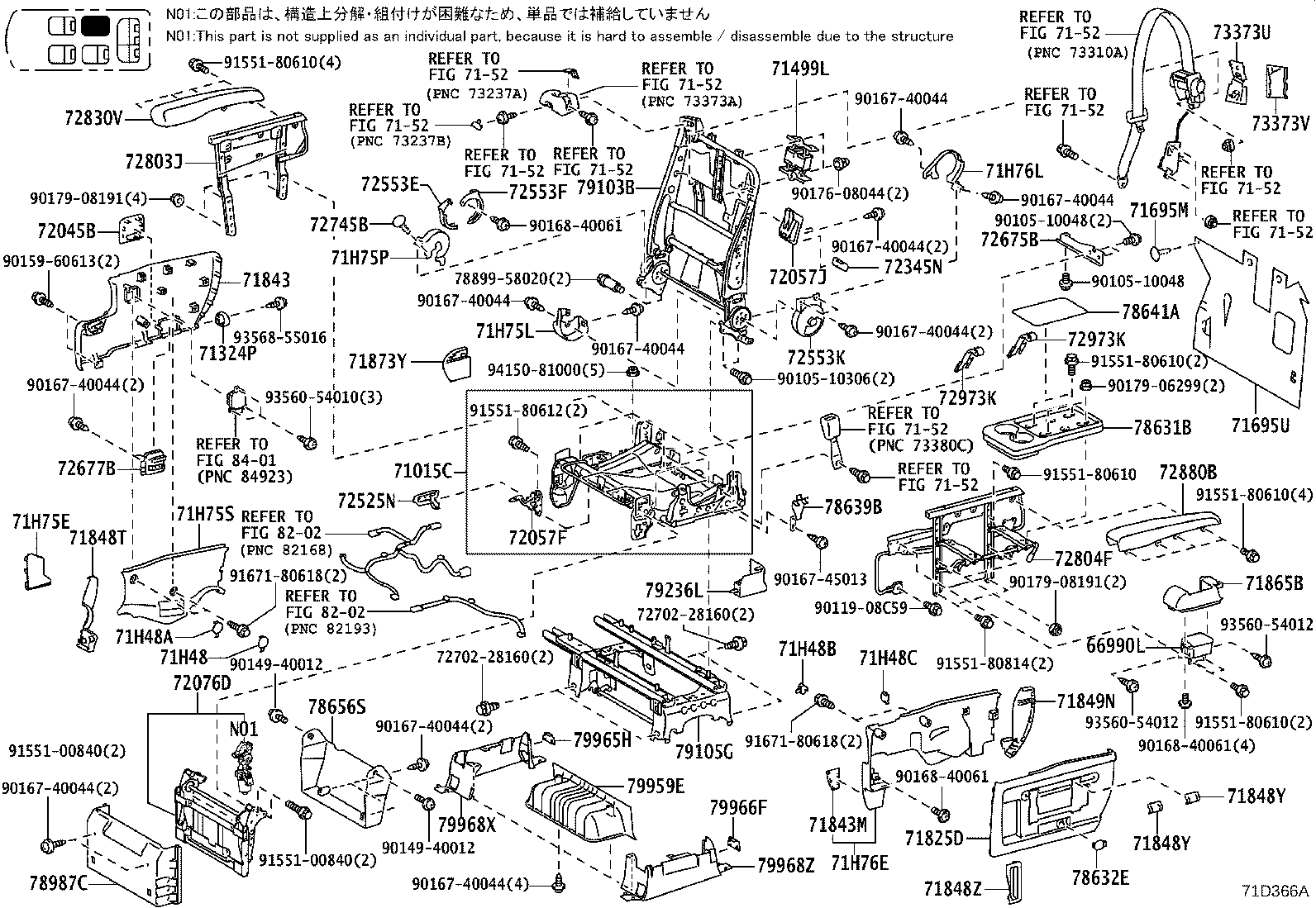

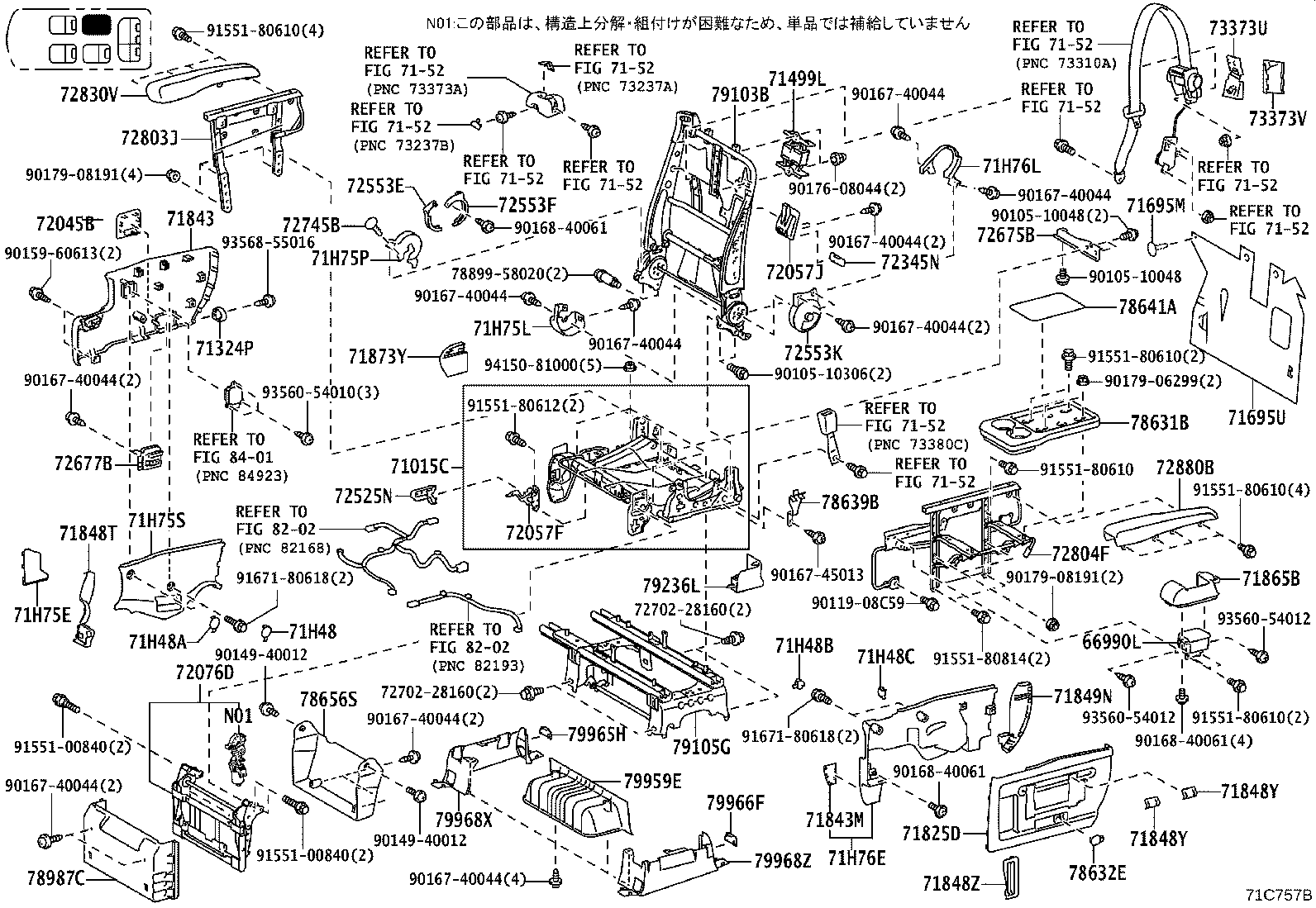

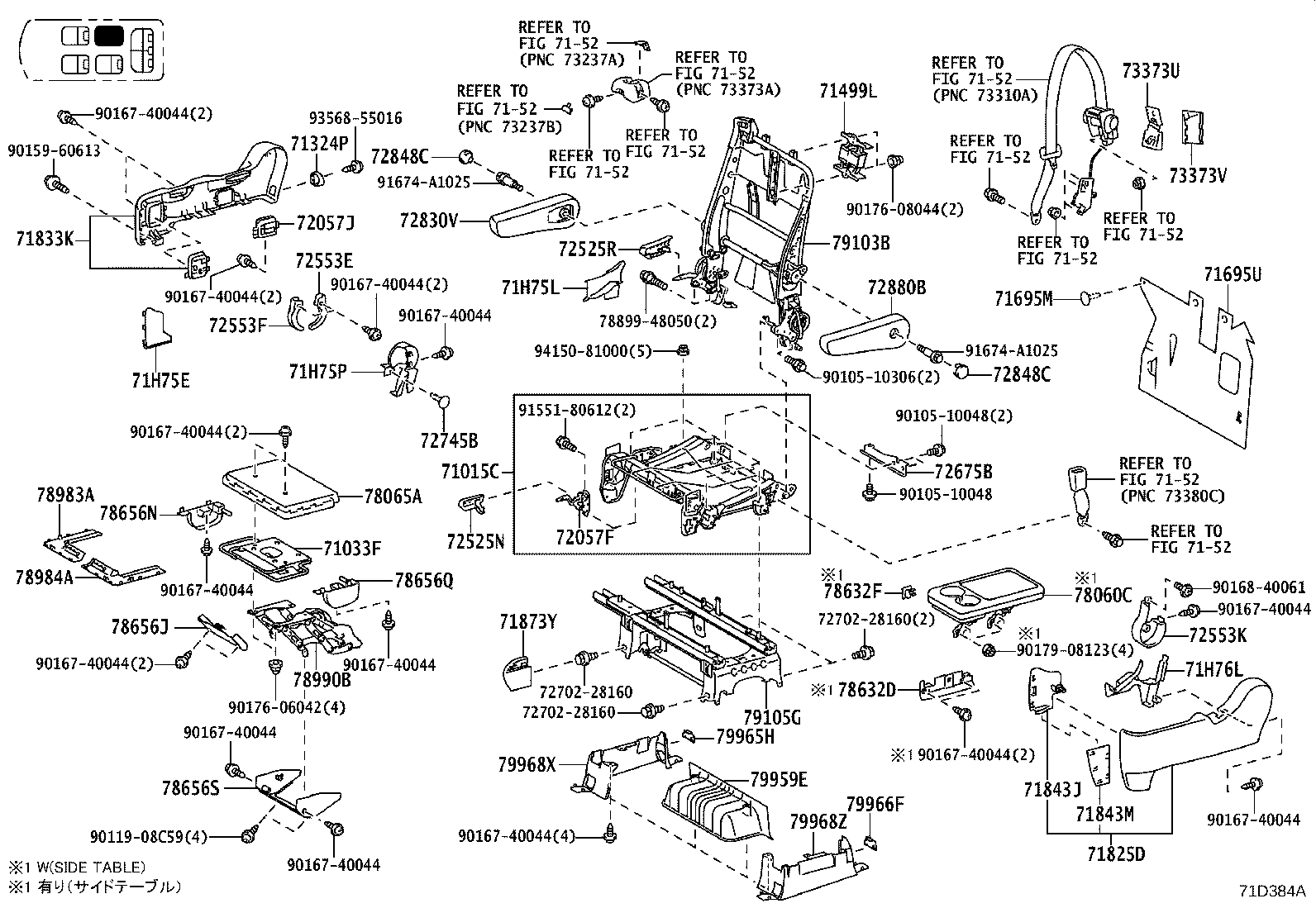

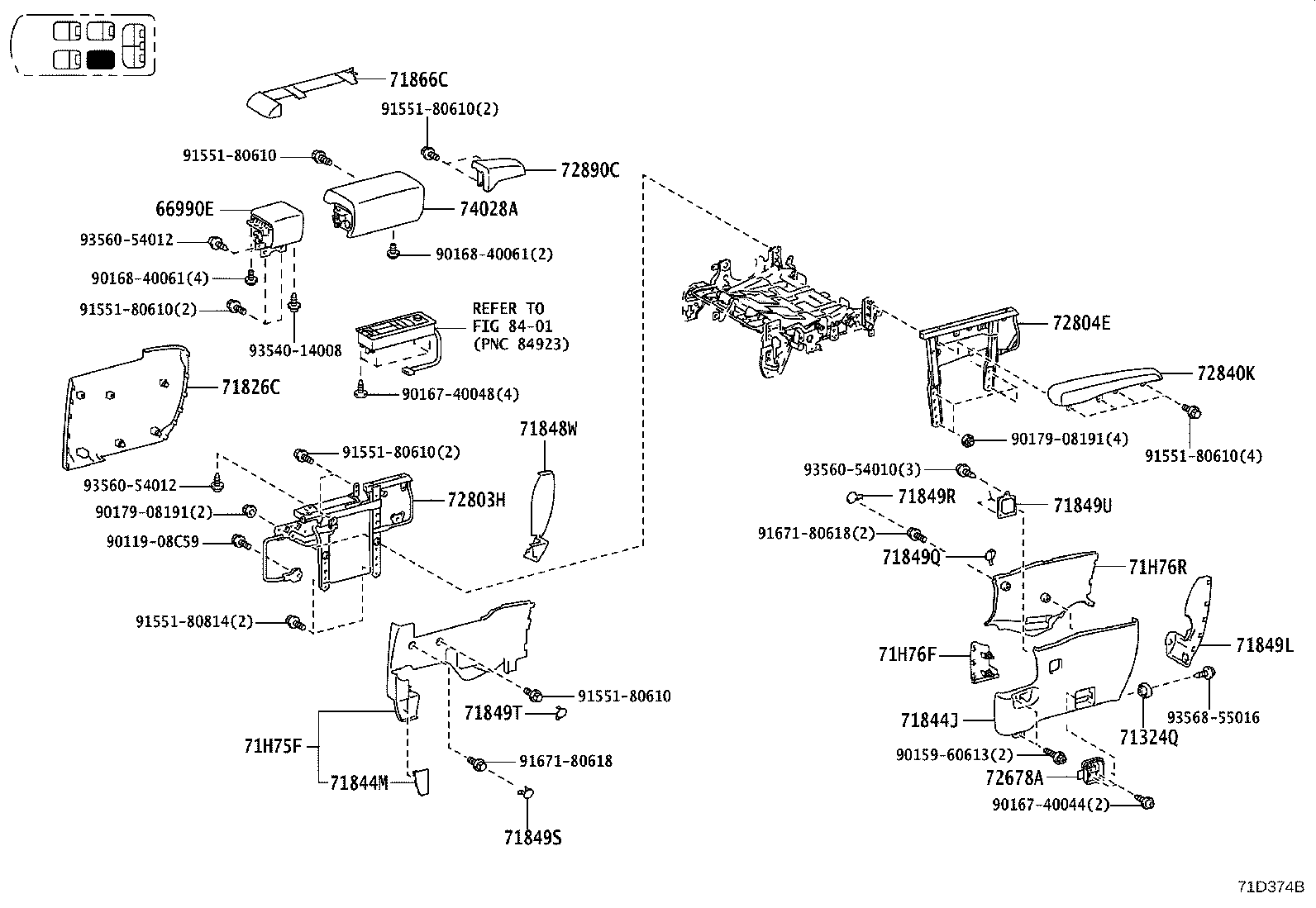

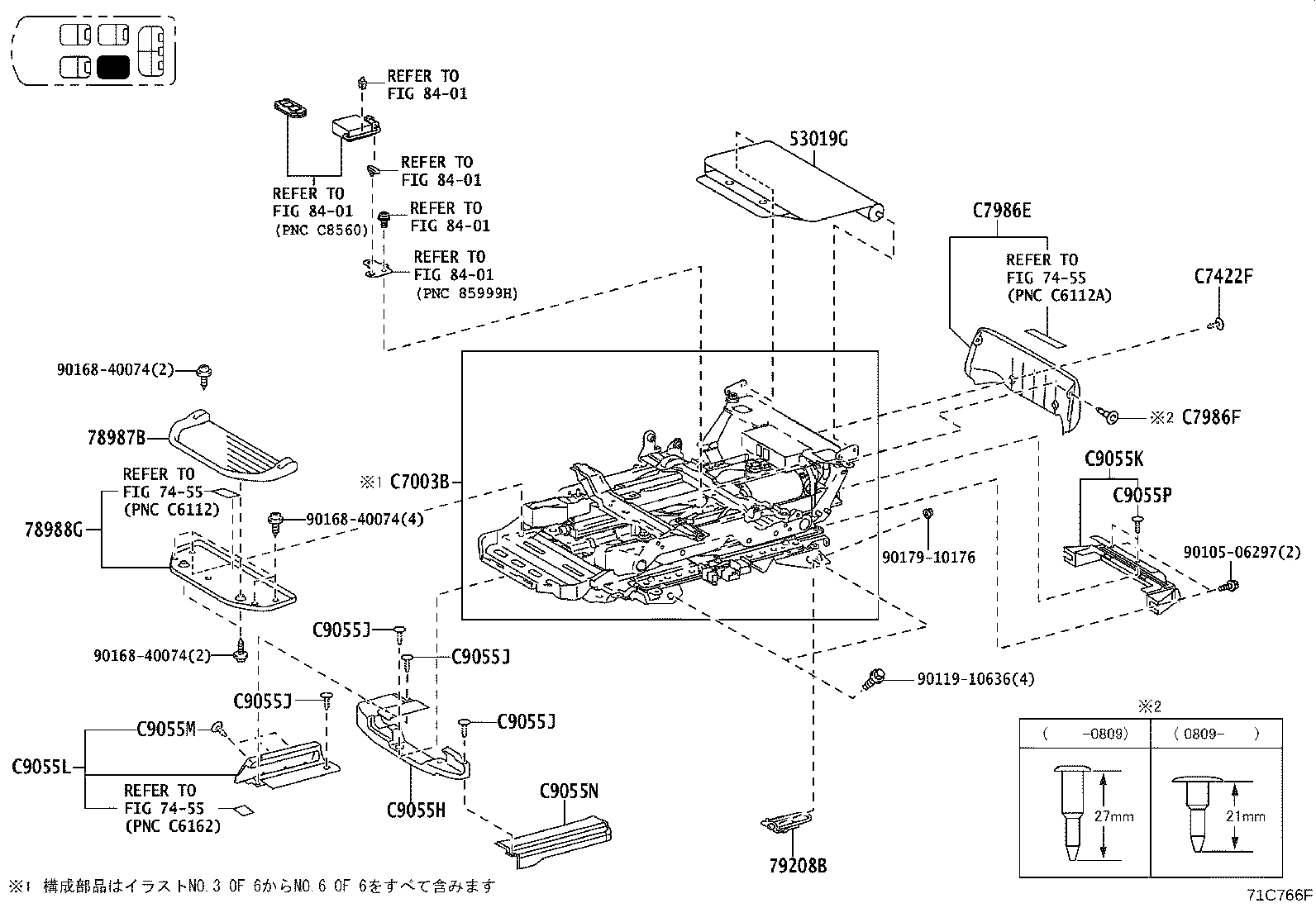

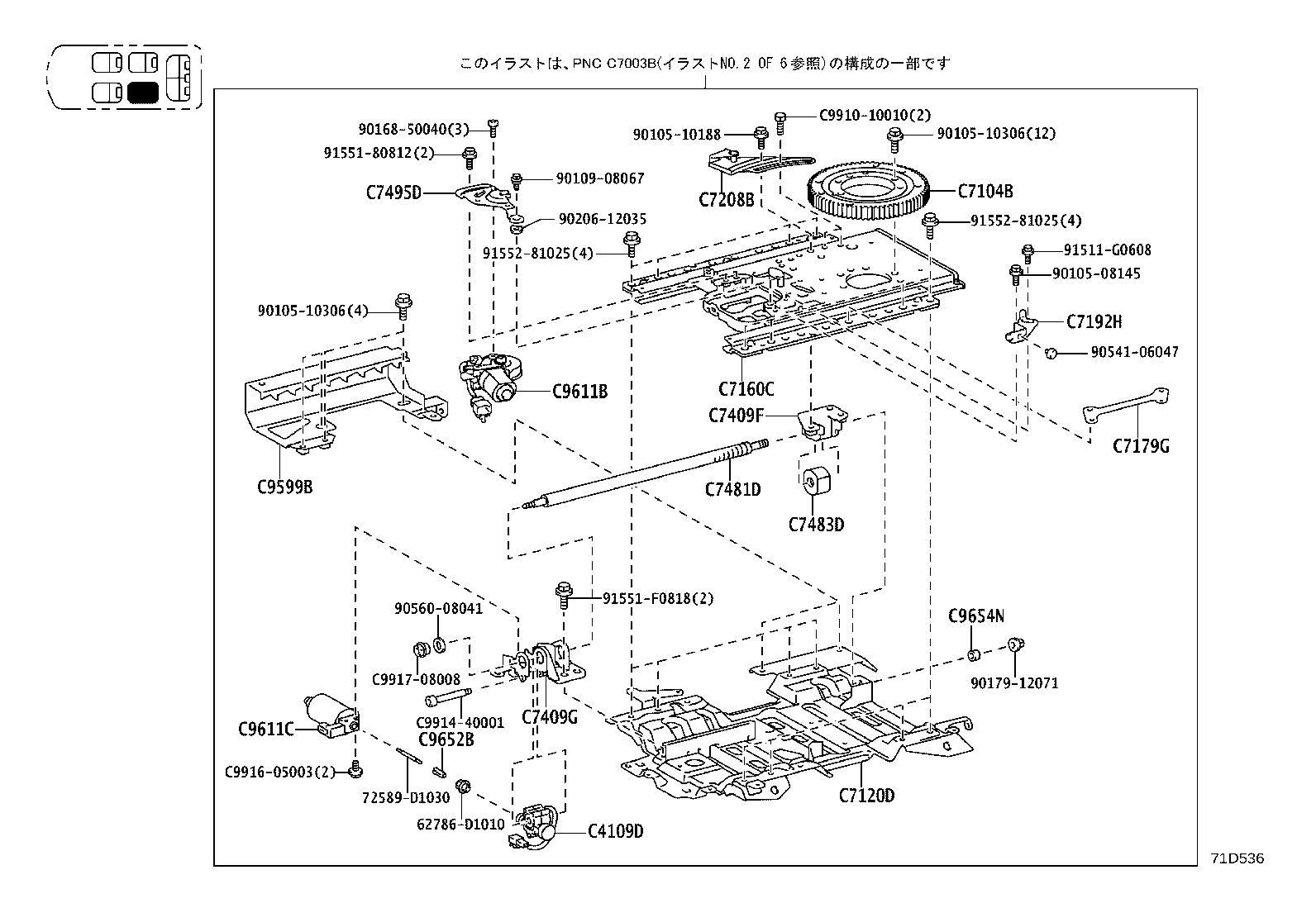

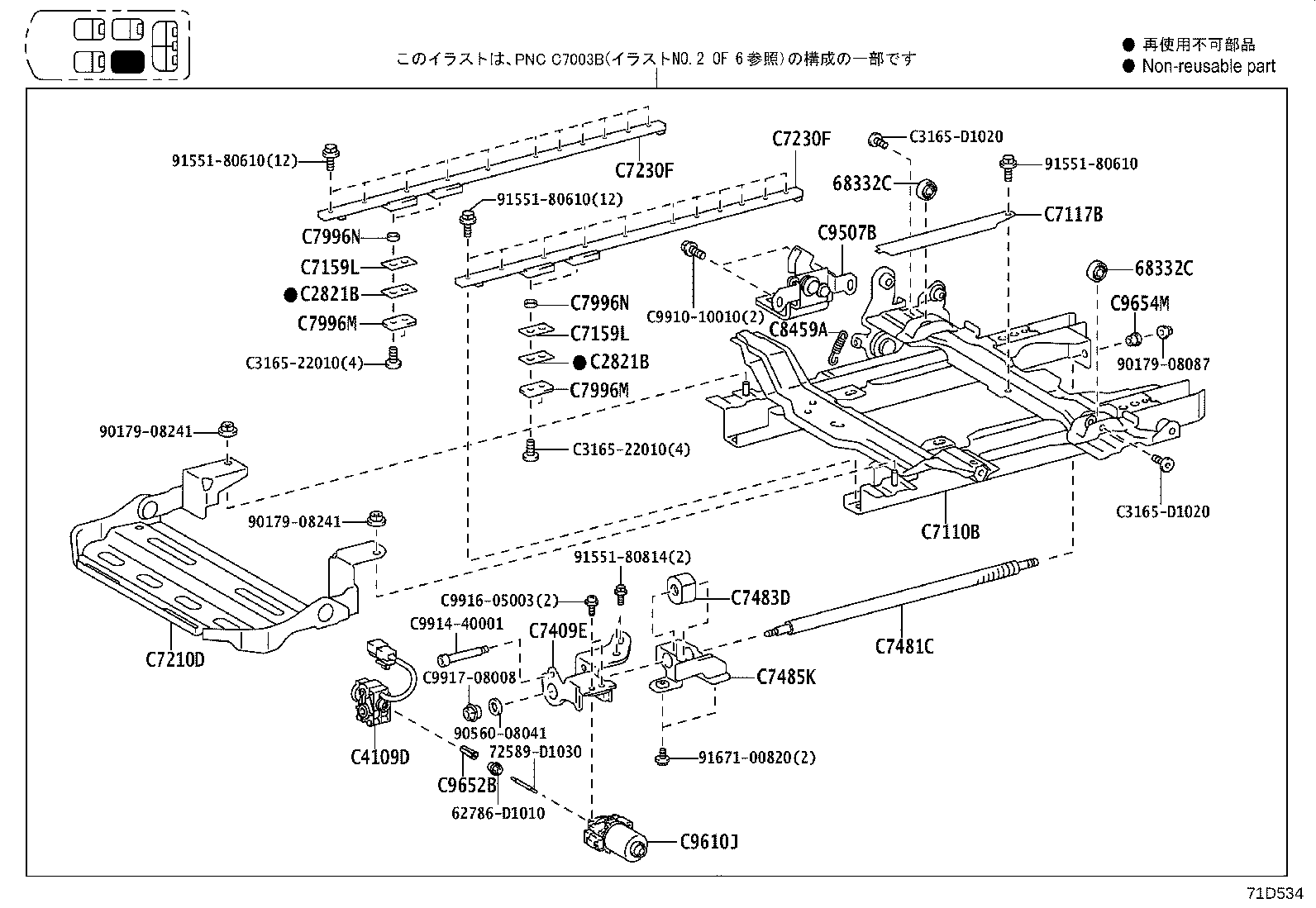

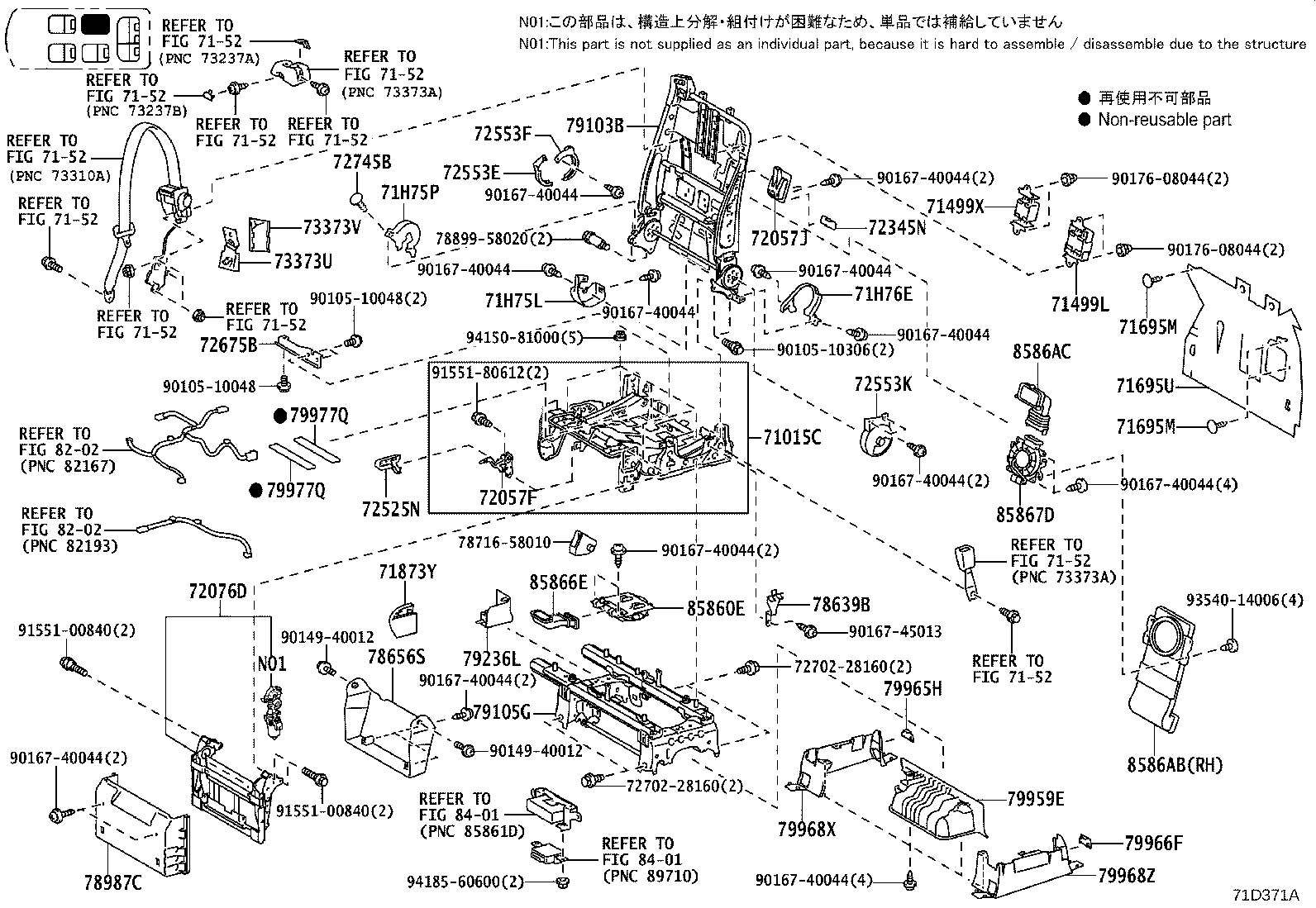

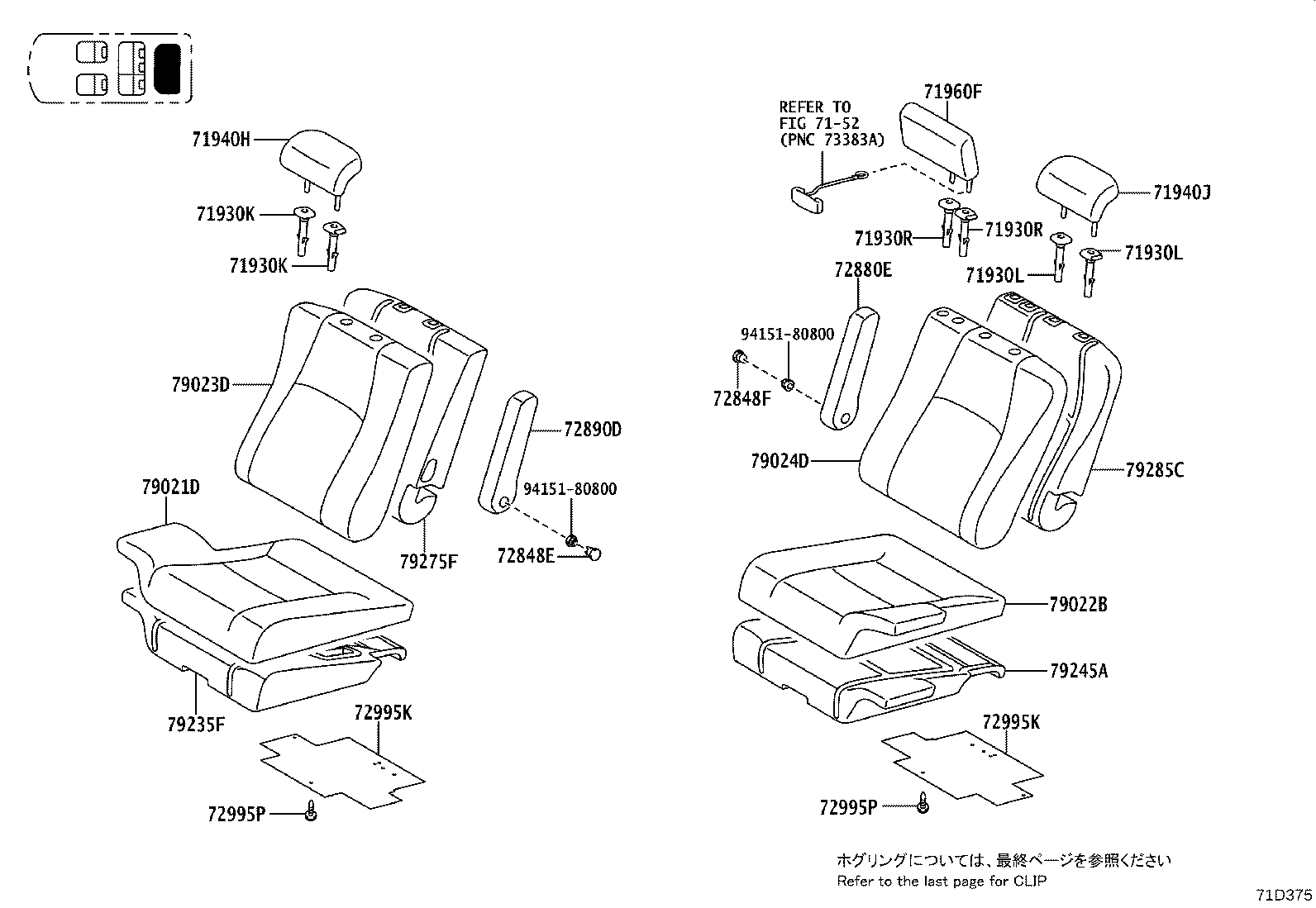

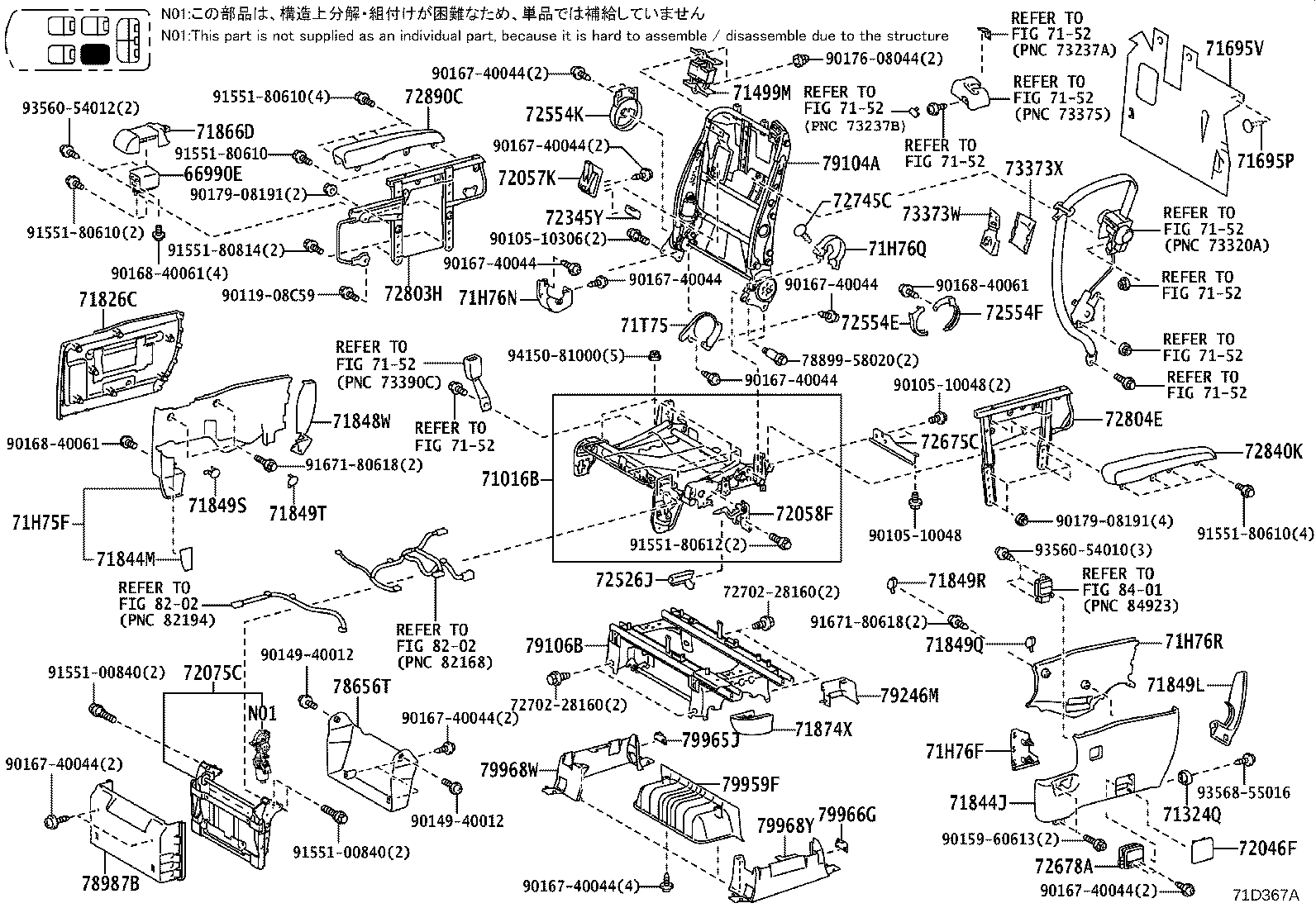

Figure 71D383B 71D383B 2008-04 → — Figure 71D384A 71D384A 2008-04 → — Figure 71D364A 71D364A 2008-04 → — Figure 71D365A 71D365A 2008-04 → — Figure 71D365A 71D365A 2011-10 → — Figure 71C757B 71C757B 2008-04 → 2011-10 Figure 71D366A 71D366A 2011-10 → — Figure 71D367A 71D367A 2008-04 → — Figure 71D367A 71D367A 2011-10 → — Figure 71D368 71D368 2008-04 → — Figure 71D369 71D369 2008-04 → — Figure 71D370 71D370 2012-09 → — Figure 71D371A 71D371A 2012-09 → — Figure 71D372A 71D372A 2012-09 → — Figure 71D373A 71D373A 2012-09 → — Figure 71D374B 71D374B 2012-09 → — Figure 71D375 71D375 2008-04 → — Figure 71D376 71D376 2008-04 → — Figure 71D377 71D377 2008-04 → — Figure 71C764A 71C764A 2008-04 → — Figure 71C765A 71C765A 2008-04 → 2011-10 Figure 71C766F 71C766F 2008-04 → 2011-10 Figure 71C767C 71C767C 2008-04 → 2011-10 Figure 71C768C 71C768C 2008-04 → 2011-10 Figure 71C769C 71C769C 2008-04 → 2011-10 Figure 71C770C 71C770C 2008-04 → 2011-10 Figure 71D532 71D532 2011-10 → — Figure 71D533B 71D533B 2011-10 → — Figure 71D534 71D534 2011-10 → — Figure 71D535B 71D535B 2011-10 → — Figure 71D536 71D536 2011-10 → — Figure 71D537A 71D537A 2011-10 → — Figure 71C191 71C191 2008-04 → —

Part groups

PNCDescription

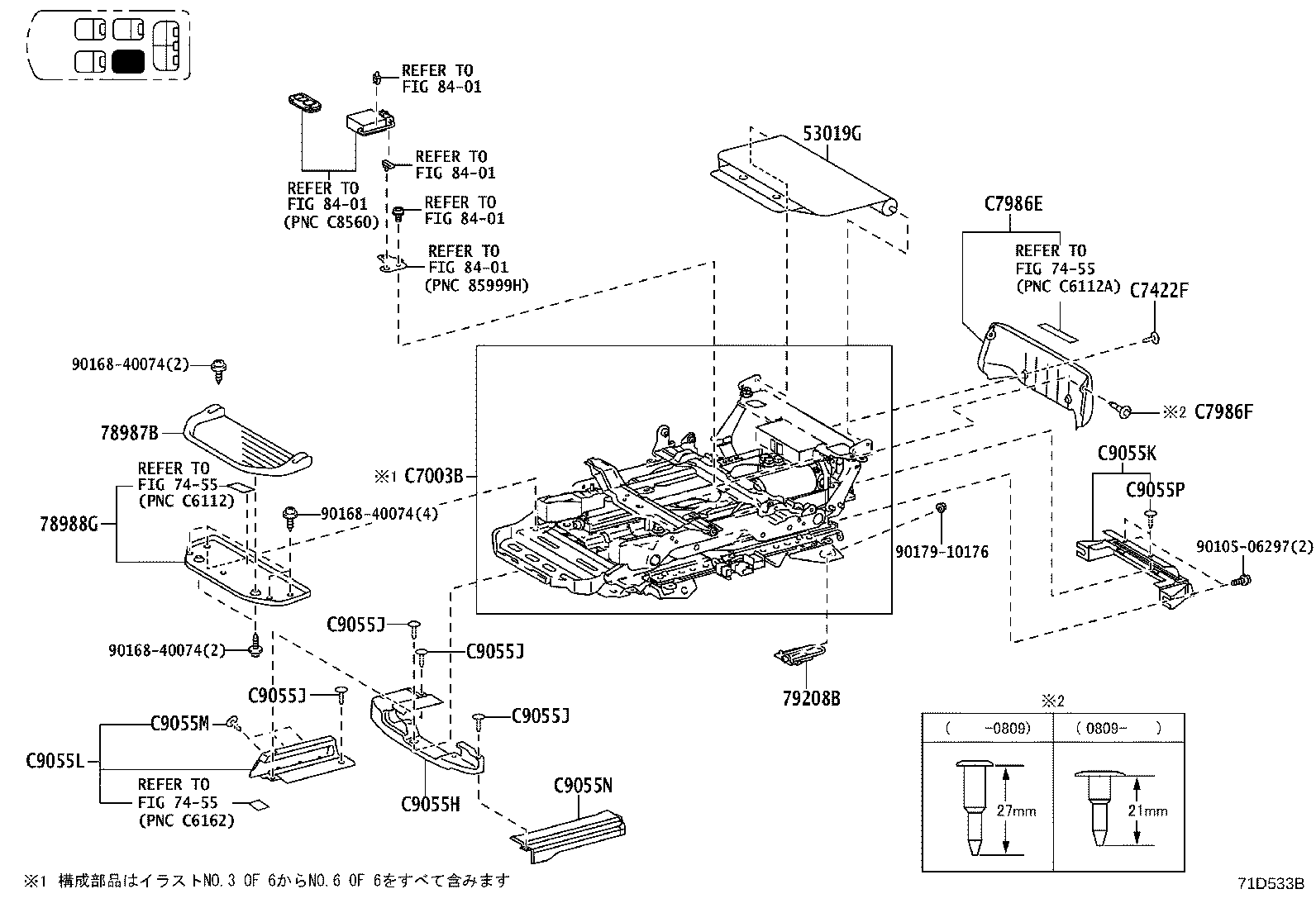

53019G Shutter Sub-assy, Radiator
58204M Bracket Sub-assy, Rear Seat
66990E Holder Assy, Rear NO.1 Seat Cup, LH
66990L Holder Assy, Rear NO.1 Seat Cup, RH
66990V Holder Assy, Cup

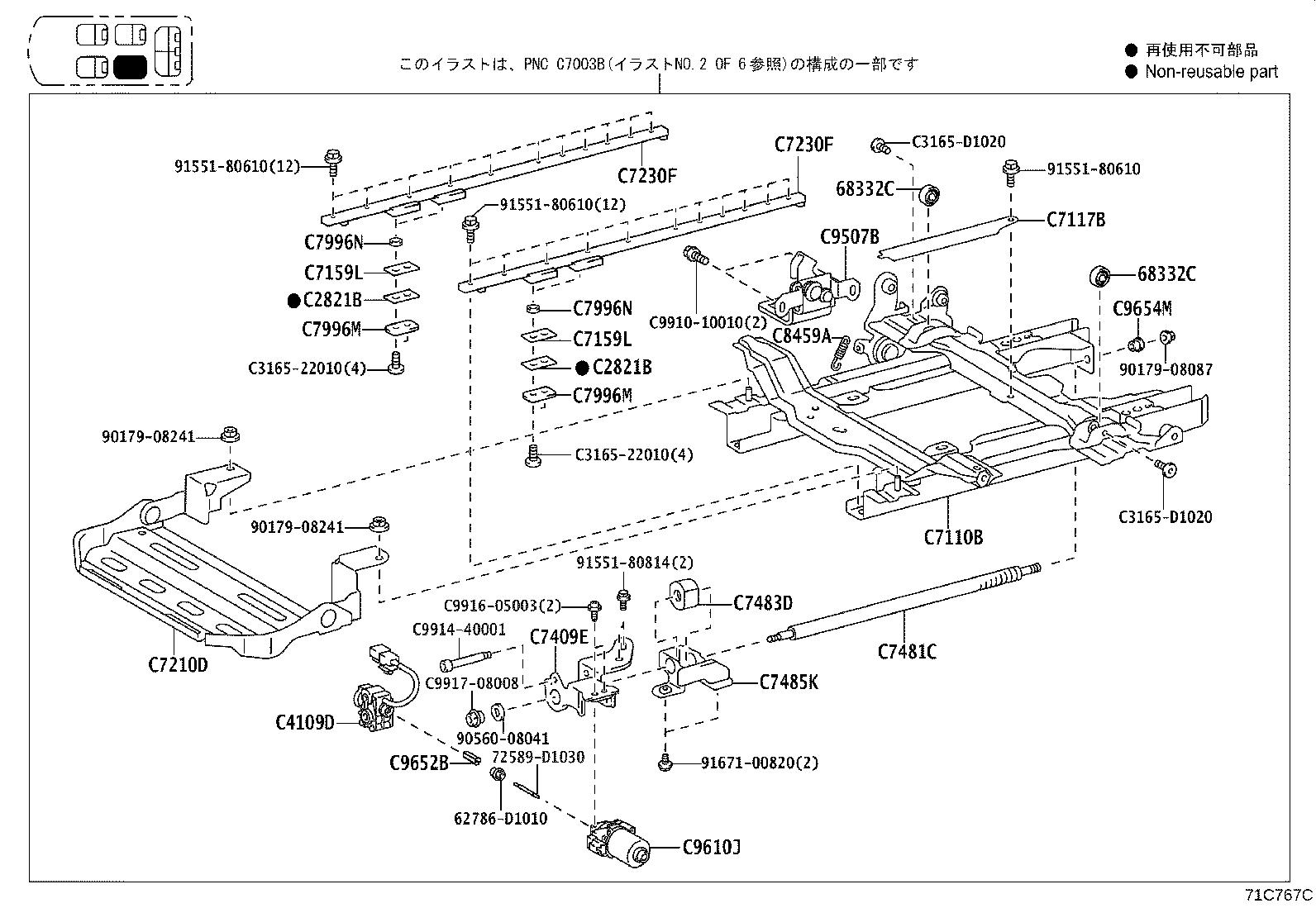

68332C Roller, Slide Door, Lower
71015C Frame Sub-assy, NO.1 Seat Cushion, RH
71016B Frame Sub-assy, NO.1 Seat Cushion, LH
71033F Leg Sub-assy, Rear Seat Cushion, RH
71033G Leg Sub-assy, Rear Seat Cushion, LH
71120D Frame Assy, Rear Seat W/Adjuster, LH
71208B Wire Sub-assy, NO.2 Seat Cushion, RH NO.1
71208C Wire Sub-assy, NO.2 Seat Cushion, RH NO.2
71208D Wire Sub-assy, NO.2 Seat Cushion, LH NO.1
71209C Wire Sub-assy, NO.2 Seat Cushion, LH NO.2
71223A Bracket, NO.2 Seat Cushion Side, RH
71281C Hinge, NO.1 Seat Center Armrest
71303E Hinge Sub-assy, Rear NO.2 Seat, RH
71304A Hinge Sub-assy, Rear NO.2 Seat, LH
71315D Plate, Rear Seat Hinge, Lower
71324P Cushion, NO.1 Seat, RH
71324Q Cushion, NO.1 Seat, LH
71349F Cover, NO.1 Seatback Hinge, RH
71393C Band, NO.2 Seat Cushion, RH NO.1
71393D Band, NO.2 Seat Cushion, RH NO.2
71393E Band, NO.2 Seat Cushion, LH NO.1
71393F Band, NO.2 Seat Cushion, LH NO.2
71396N Cushion, NO.1 Seat Support, Rear(FOR RH SEAT)
71396P Cushion, NO.1 Seat Support, Rear(FOR LH SEAT)
71398L Guide, NO.2 Seat Cushion Support, RH
71398M Guide, NO.2 Seat Cushion Support, LH
71398N Guide, NO.2 Seat Cushion Support, RH NO.2
71398P Guide, NO.2 Seat Cushion Support, LH NO.2
71499L Damper, NO.1 Seatback Spring, RH
71499M Damper, NO.1 Seatback Spring, LH
71499V Damper, NO.1 Seatback Spring, LH NO.2
71499X Damper, NO.1 Seatback Spring, RH NO.2
71517C Pad, NO.1 Seat Cushion Cover
71537V Protector, Rear Seat Cushion Edge
71691Q Cover, Rear NO.2 Seat Lock, Upper NO.1 RH
71691R Cover, Rear NO.2 Seat Lock, Upper NO.2 RH
71691S Cover, Rear NO.2 Seat Lock, Upper NO.1 LH
71691T Cover, Rear NO.2 Seat Lock, Upper NO.2 LH
71693F Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.1
71693G Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.2
71693H Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.3
71693J Cover, Rear Seat Cushion Hinge, NO.3
71693K Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.4
71694A Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.1
71694B Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.2
71694C Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.3
71694F Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.4
71695M Clip, Rear NO.1 Seat Protector, NO.1 RH
71695P Clip, Rear NO.1 Seat Protector, NO.1 LH
71695U Protector, NO.1 Seatback Stay(FOR RH SEAT)
71695V Protector, NO.1 Seatback Stay(FOR LH SEAT)
71769N Clip, Rear Seat Cover, RH
71769P Clip, Rear Seat Cover, LH
71802C Cover Sub-assy, Reclining Adjuster, LH
71825D Moulding, Rear NO.1 Seat Cushion, RH
71826C Moulding, Rear Seat Cushion, LH
71833K Cover, NO.1 Seat Reclining, NO.1 RH Outer
71833V Cover, NO.1 Seat Reclining, NO.2 RH
71834J Cover, NO.1 Seat Reclining, NO.1 LH Outer
71834S Cover, Rear Seat Reclining, NO.1 LH
71843 Cover, Rear Seat Reclining, NO.2 RH
71843H Cover, NO.2 Seat Reclining, NO.2 RH Inner
71843J Cover, Rear NO.1 Seat Reclining, NO.2 RH
71843M Cover, Rear Seat Reclining, NO.2 RH
71844F Cover, NO.2 Seat Reclining, NO.2 LH Inner
71844H Cover, Rear Seat Reclining, NO.2 LH
71844J Cover, Rear NO.1 Seat Reclining, NO.2 LH
71844M Cover, Rear Seat Reclining, NO.2 LH
71848T Cap, NO.1 Seat Adjuster Cover, RH
71848U Cap, NO.2 Seat Adjuster Cover, RH
71848W Cap, NO.1 Seat Adjuster Cover, RH(FOR LH SEAT)
71848Y Cap, Seat Adjuster Cover, RH NO.1(FOR RH SEAT)
71848Z Cap, Seat Adjuster Cover, RH NO.2(FOR RH SEAT)
71849L Cap, NO.1 Seat Adjuster Cover, LH
71849M Cap, NO.2 Seat Adjuster Cover, LH
71849N Cap, NO.1 Seat Adjuster Cover, LH(FOR RH SEAT)
71849Q Cap, Seat Adjuster Cover, LH NO.1
71849R Cap, Seat Adjuster Cover, LH NO.2
71849S Cap, Seat Adjuster Cover, LH NO.3
71849T Cap, Seat Adjuster Cover, LH NO.4
71849U Cap, Seat Adjuster Cover, LH NO.5
71865B Bezel, Rear NO.1 Seat Cover, NO.1(FOR RH SEAT)
71866C Bezel, Rear Seat Cover, NO.2
71866D Bezel, Rear NO.1 Seat Cover, NO.2(FOR LH SEAT)
71868T Shield, Rear Seat Cushion, Inner NO.1 LH
71868U Shield, Rear Seat Cushion, Inner NO.1 LH (FOR LH SEAT)
71873Y Shield, Rear Seat Cushion, Lower
71874X Shield, Rear Seat Cushion, Lower LH
71875Y Cover, Reclining Adjuster Inside, RH NO.1(FOR LH SEATBACK)
71875Z Cover, Reclining Adjuster Inside, RH NO.2(FOR LH SEATBACK)
71878H Cover, Rear Seat Reclining, Inner RH
71878J Cover, Rear NO.1 Seat Reclining, Inner RH
71878K Cover, Rear NO.2 Seat Reclining, Inner RH
71879H Cover, Rear Seat Reclining, Inner LH
71879J Cover, Rear NO.1 Seat Reclining, Inner LH
71879K Cover, Rear NO.2 Seat Reclining, Inner LH
71930H Support Assy, NO.1 Seat Headrest, RH
71930J Support Assy, NO.1 Seat Headrest, LH
71930K Support Assy, NO.2 Seat Headrest, RH
71930L Support Assy, NO.2 Seat Headrest, LH
71930R Support Assy, Rear NO.2 Seat Headrest, Center
71930S Support Assy, Rear NO.1 Seat Headrest, Center
71940F Headrest Assy, NO.1 Seat, RH
71940G Headrest Assy, NO.1 Seat, LH
71940H Headrest Assy, NO.2 Seat, RH
71940J Headrest Assy, NO.2 Seat, LH
71960F Headrest Assy, Rear NO.2 Seat, Center
71960G Headrest Assy, Rear NO.1 Seat, Center
71H48 Cap, Seat Adjuster Cover, RH NO.1
71H48A Cap, Seat Adjuster Cover, RH NO.2
71H48B Cap, Seat Adjuster Cover, RH NO.3
71H48C Cap, Seat Adjuster Cover, RH NO.4
71H48D Cap, Seat Adjuster Cover, RH NO.5
71H67 Shield, Rear Seat Cushion, Inner NO.1 RH
71H67A Shield, NO.1 Seat Cushion, Inner NO.1 RH(FOR LH SEAT)
71H73 Shield, Rear Seat Cushion, Lower RH
71H74 Shield, Rear Seat Cushion, Lower LH
71H75E Cover, Reclining Adjuster Inside, RH(FOR REAR NO.1 RH SEAT)
71H75F Cover, Reclining Adjuster Inside, RH(FOR REAR NO.1 LH SEAT)
71H75L Cover, Reclining Adjuster Inside, RH NO.1(FOR RH SEAT)
71H75M Cover, Reclining Adjuster Inside, RH NO.2(FOR RH SEAT)
71H75P Cover, Reclining Adjuster Inside, RH NO.1(FOR RH SEATBACK)
71H75R Cover, Reclining Adjuster Inside, RH NO.1(FOR LH SEAT)
71H75S Cover, Reclining Adjuster Inside, RH NO.4(FOR RH SEAT)
71H75X Cover, Reclining Adjuster Inside, RH NO.2(FOR LH SEAT)
71H76E Cover, Reclining Adjuster Inside, LH(FOR REAR NO.1 RH SEAT)
71H76F Cover, Reclining Adjuster Inside, LH(FOR REAR NO.1 LH SEAT)
71H76L Cover, Reclining Adjuster Inside, LH NO.1(FOR RH SEAT)
71H76M Cover, Reclining Adjuster Inside, LH NO.2(FOR RH SEAT)
71H76N Cover, Reclining Adjuster Inside, LH NO.1(FOR LH SEAT)
71H76Q Cover, Reclining Adjuster Inside, LH NO.3(FOR LH SEAT)
71H76R Cover, Reclining Adjuster Inside, LH NO.4(FOR LH SEAT)
71H76S Cover, Reclining Adjuster Inside, LH NO.1(FOR LH SEATBACK)
71H76T Cover, Reclining Adjuster Inside, LH NO.2(FOR LH SEATBACK)
71H76W Cover, Reclining Adjuster Inside, LH NO.5(FOR LH SEAT)
71H76X Cover, Reclining Adjuster Inside, LH NO.6(FOR LH SEAT)
71T75 Cover, Reclining Adjuster Inside, RH
71T75G Cover, Reclining Adjuster Inside, RH(FOR NO.3 LH SEAT BACK)
71T75J Cover, Reclining Adjuster Inside, RH NO.3(FOR LH SEAT)
71T76G Cover, Reclining Adjuster Inside, LH
72045B Cover Sub-assy, NO.1 Seat Track, Outer RH
72046F Cover Sub-assy, NO.1 Seat Track, Outer LH NO.1(FOR LH SEAT)
72057E Lever Sub-assy, Rear Seat Lock Control, RH NO.1
72057F Lever Sub-assy, Rear Seat Lock Control, RH NO.2
72057G Lever Sub-assy, Rear Seat Lock Control, LH NO.1
72057J Lever Sub-assy, Rear Seat Lock Control(FOR RH SEAT)
72057K Lever Sub-assy, Rear Seat Lock Control(FOR LH SEAT)
72058F Lever Sub-assy, NO.1 Seat Lock Control, LH

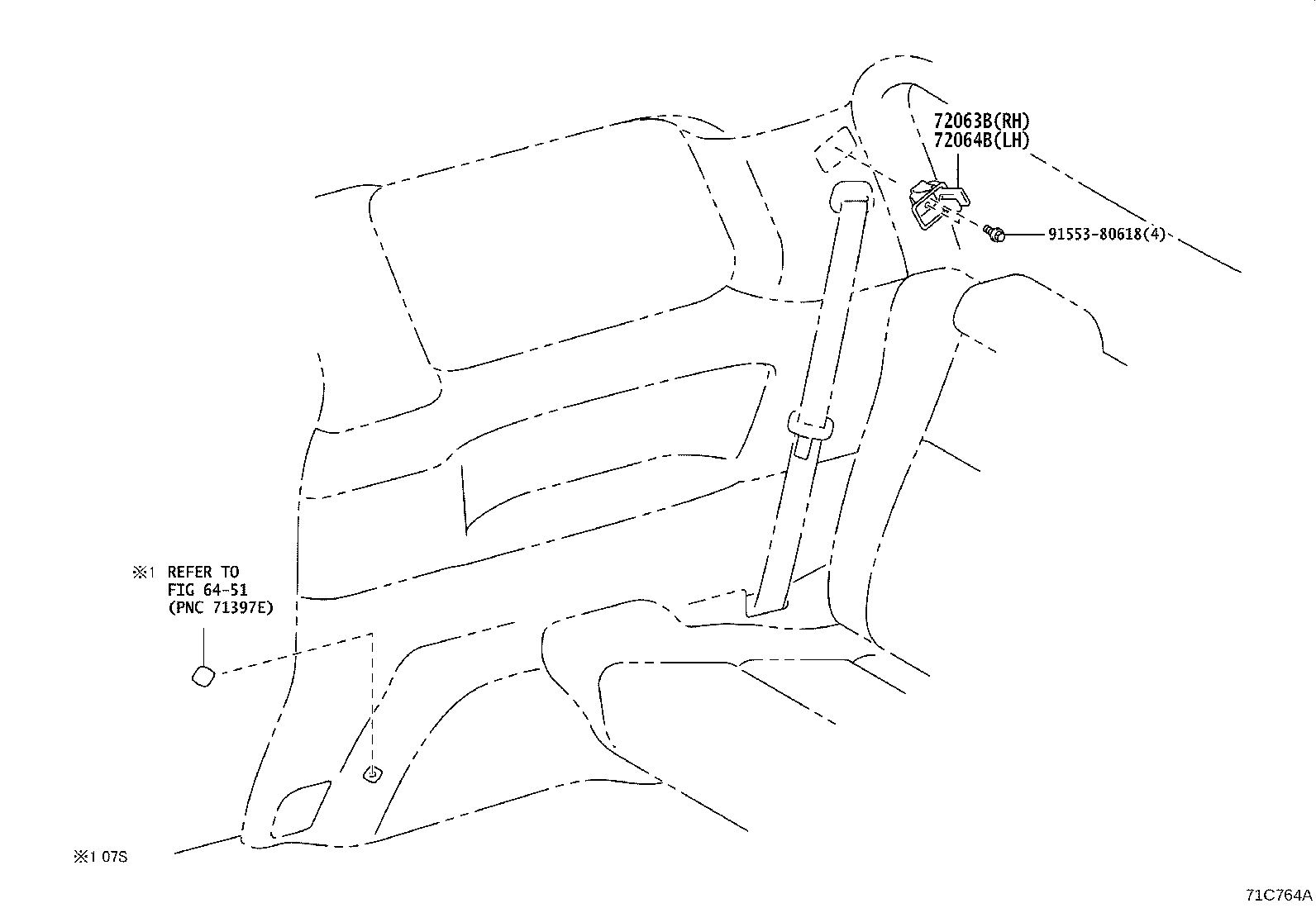

72063B Hook Sub-assy, Rear Seat, RH
72064B Hook Sub-assy, Rear Seat, LH
72065D Hook Sub-assy, Rear NO.2 Seat Cushion Lock, RH
72065E Hook Sub-assy, Rear NO.2 Seat Cushion Lock, LH
72075C Arm Sub-assy, Reclining Adjuster, Lower Inner(FOR LH SEAT)
72076D Arm Sub-assy, Reclining Adjuster, Lower Inner(FOR RH SEAT)
72125G Cover, Seat Track Lock Plate, NO.1
72125H Cover, Seat Track Lock Plate, NO.2
72210Q Cable Assy, NO.1 Seat Slide, RH
72210R Cable Assy, NO.1 Seat Slide, LH
72210S Cable Assy, NO.2 Seat Slide, RH
72210T Cable Assy, NO.2 Seat Slide, LH
72210V Cable Assy, NO.1 Seat Track Control, LH NO.1
72210W Cable Assy, NO.1 Seat Track Control, LH NO.2
72210Y Cable Assy, NO.1 Seat Track Control, RH NO.1
72210Z Cable Assy, NO.1 Seat Track Control, RH NO.2
72215A Lever, NO.1 Seat Track Handle Control, RH
72216B Lever, NO.1 Seat Track Handle Control, LH
72265P Cover, Seat Track Upper Rail, RH
72266J Cover, Seat Track Upper Rail, LH
72345N Cap, Seat Stand Frame, RH NO.1
72345Y Cap, NO.1 Seat Stand Frame, NO.1(FOR LH SEAT)
72525N Handle, NO.1 Seat Reclining Adjuster Release, RH
72525P Handle, NO.2 Seat Reclining Adjuster Release, RH
72525R Handle, Reclining Adjuster Release, RH
72526J Handle, NO.1 Seat Reclining Adjuster Release, LH
72526K Handle, NO.2 Seat Reclining Adjuster Release, LH
72526L Handle, Reclining Adjuster Release, LH
72551N Cover, Reclining Hinge, RH NO.2(FOR RH SEAT)
72551S Cover, Reclining Hinge, RH NO.2(FOR LH SEAT)
72552L Cover, Reclining Hinge, LH NO.2(FOR RH SEAT)
72552Q Cover, Reclining Hinge, LH NO.2(FOR LH SEAT)
72553E Protector, Reclining Cover, RH NO.1
72553F Protector, Reclining Cover, RH NO.2
72553K Protector, Reclining Cover, RH NO.3
72554E Protector, Reclining Cover, LH NO.1
72554F Protector, Reclining Cover, LH NO.2
72554K Protector, Reclining Cover, LH NO.3
72570E Cable Assy, NO.1 Seat Reclining Adjusting, RH
72570F Cable Assy, NO.1 Seat Reclining Adjusting, LH
72573D Lever, NO.1 Seat Reclining Control, RH
72574A Lever, Reclining Control, LH
72590F Cable Assy, Reclining Remote Control, RH
72590G Cable Assy, Reclining Remote Control, LH
72615M Cover, NO.1 Seatback Lock Striker(FOR RH SEAT)
72615N Cover, NO.1 Seatback Lock Striker(FOR LH SEAT)
72620K Cable Assy, NO.1 Seat Walk-in, RH
72620L Cable Assy, NO.1 Seat Walk-in, LH
72620R Cable Assy, Rear NO.1 Seat Lock(FOR RH SEAT)
72620S Cable Assy, Rear NO.1 Seat Lock(FOR LH SEAT)
72660M Cable Assy, Rear NO.2 Seat Cushion Lock, RH
72660N Cable Assy, Rear NO.2 Seat Cushion Lock, LH
72668G Bezel, NO.1 Seatback Lock, Lower(FOR RH SEAT)
72675B Hook, NO.1 Seat Lock(FOR RH SEAT)
72675C Hook, NO.1 Seat Lock(FOR LH SEAT)
72677B Base, Rear Seatback Lock Control Lever, RH
72678A Base, Rear Seatback Lock Control Lever, LH
72690F Lever Assy, NO.2 Seat Cushion Lock Release, RH
72690G Lever Assy, NO.2 Seat Cushion Lock Release, LH
72690H Lever Assy, NO.1 Seat Cushion Lock Release, RH
72690J Lever Assy, NO.1 Seat Cushion Lock Release, LH
72745B Pin, Rear Seat Reclining Hinge(FOR RH SEAT)
72745C Pin, Rear Seat Reclining Hinge(FOR LH SEAT)
72803H Frame Sub-assy, Rear NO.1 Seat Armrest, RH(FOR LH SEAT)
72803J Frame Sub-assy, Rear NO.1 Seat Armrest, RH(FOR RH SEAT)
72804E Frame Sub-assy, Rear NO.1 Seat Armrest, LH(FOR LH SEAT)
72804F Frame Sub-assy, Rear NO.1 Seat Armrest, LH(FOR RH SEAT)
72830V Armrest Assy, Rear NO.1 Seat, RH
72830X Armrest Assy, Rear Seat, Center
72840K Armrest Assy, Rear NO.1 Seat, LH
72848C Cap, NO.1 Seat Armrest, NO.1 RH
72848D Cap, NO.1 Seat Armrest, NO.1 LH
72848E Cap, NO.2 Seat Armrest, NO.1 RH
72848F Cap, NO.2 Seat Armrest, NO.1 LH
72849D Cap, Seat Armrest, NO.2
72880B Armrest Assy, NO.1 Seat, C RH(FOR RH SEAT)
72880E Armrest Assy, NO.2 Seat, C RH(FOR LH SEAT)
72890C Armrest Assy, NO.1 Seat, C LH(FOR LH SEAT)
72890D Armrest Assy, NO.2 Seat, C LH(FOR RH SEAT)
72927F Cover, Rear Seat Cushion Under, RH
72927G Cover, Rear NO.2 Seat Cushion Under, RH
72928E Cover, Rear Seat Cushion Under, LH
72928F Cover, Rear NO.2 Seat Cushion Under, LH
72973K Cover, Rear Seat Turn Table, RH
72995K Cover, Rear NO.2 Seat Cushion
72995P Clip, Rear Seat Cushion Cover
72996J Cover, Rear Seatback, NO.2
73373U Cover, NO.1 Seat Shoulder Belt, RH NO.1
73373V Cover, NO.1 Seat Shoulder Belt, RH NO.2
73373W Cover, NO.1 Seat Shoulder Belt, LH NO.2
73373X Cover, NO.1 Seat Shoulder Belt, LH NO.1
74027D Base Sub-assy, Rear Armrest, Lower RH
74028A Base Sub-assy, Rear Armrest, Lower LH
78060C Table Assy, NO.1 Seat Side
78065A Cover Sub-assy, Rear Seat Legrest, RH
78065B Cover Sub-assy, Rear Seat Legrest, LH
78608C Cable Sub-assy, Legrest Lock Control(FOR RH SEAT)
78608D Cable Sub-assy, Legrest Lock Control(FOR LH SEAT)
78631B Table, Rear Seat Side
78632D Cover, Rear Seat Side Table, NO.1
78632E Cover, Rear Seat Side Table, NO.2
78632F Clip, Rear Seat Side Table Cover
78639B Clip, Rear Seat Side Table
78641A Board, Rear NO.1 Seat Side Table
78656J Cover, Rear Seat Legrest, RH
78656K Cover, Rear Seat Legrest, LH
78656N Cover, Rear Seat Legrest, RH NO.2
78656P Cover, Rear Seat Legrest, LH NO.2
78656Q Cover, NO.1 Seat Legrest, RH NO.3
78656R Cover, NO.1 Seat Legrest, LH NO.3
78656S Cover, NO.1 Seat Legrest(FOR RH SEAT)
78656T Cover, NO.1 Seat Legrest(FOR LH SEAT)
78983A Board, Rear Seat Footrest, RH(FOR RH SEAT)
78983B Board, Rear Seat Footrest, RH(FOR LH SEAT)
78984A Board, Rear Seat Footrest, LH(FOR RH SEAT)
78984B Board, Rear Seat Footrest, LH(FOR LH SEAT)
78987B Cover, Rear NO.1 Seat Footrest, NO.1 LH
78987C Cover, Rear NO.1 Seat Footrest, NO.1 RH
78988G Cover, Rear Seat Footrest, NO.2
78990B Adjuster Assy, NO.1 Seat Footrest(FOR RH SEAT)
78990C Adjuster Assy, NO.1 Seat Footrest(FOR LH SEAT)
79011B Cover Sub-assy, NO.1 Seat Cushion, RH
79011C Clip, NO.1 Seat Cushion Cover, RH
79011D Clip, NO.1 Seat Cushion Cover, LH
79012A Cover Sub-assy, NO.1 Seat Cushion, LH
79013D Cover Sub-assy, NO.1 Seatback, RH
79014B Cover Sub-assy, NO.1 Seatback, LH
79021D Cover Sub-assy, NO.2 Seat Cushion, RH
79022B Cover Sub-assy, NO.2 Seat Cushion, LH
79023D Cover Sub-assy, NO.2 Seatback, RH
79024D Cover Sub-assy, NO.2 Seatback, LH
79103B Frame Sub-assy, NO.1 Seatback, RH
79104A Frame Sub-assy, NO.1 Seatback, LH
79105G Leg Sub-assy, NO.1 Seat, RH
79106B Leg Sub-assy, NO.1 Seat, LH
79135C Pad, NO.1 Seat Cushion, RH
79136C Pad, NO.1 Seat Cushion, LH
79175F Pad, NO.1 Seatback, RH
79185A Pad, NO.1 Seatback, LH
79208B Hook Sub-assy, NO.2 Seat Leg
79226B Stopper, NO.2 Seat Cushion, RH Front
79226C Stopper, NO.2 Seat Cushion, RH Rear
79226D Stopper, NO.2 Seat Cushion, LH Front
79226E Stopper, NO.2 Seat Cushion, LH Rear
79235F Pad, NO.2 Seat Cushion, RH
79236L Cover, Rear Seat Leg, RH
79245A Pad, NO.2 Seat Cushion, LH
79246M Cover, Rear Seat Leg, LH
79260C Spring Assy, NO.2 Seat Cushion, RH
79270B Spring Assy, NO.2 Seat Cushion, LH
79275F Pad, NO.2 Seatback, RH
79285C Pad, NO.2 Seatback, LH
79908A Plate Sub-assy, Seat Hinge, LH
79959E Cover, NO.1 Seat Leg, RH
79959F Cover, NO.1 Seat Leg, LH
79959G Cover, NO.2 Seat Leg, RH NO.1
79959J Cover, NO.2 Seat Leg, LH NO.1
79959L Clip, NO.2 Seat Leg Cover, RH
79959M Clip, NO.2 Seat Leg Cover, LH
79965H Cover, NO.1 Seat Leg Side, NO.2(FOR RH SEAT)
79965J Cover, NO.1 Seat Leg Side, NO.2(FOR LH SEAT)
79966F Cover, NO.1 Seat Leg Side, NO.3(FOR RH SEAT)
79966G Cover, NO.1 Seat Leg Side, NO.3(FOR LH SEAT)
79968W Cover, Rear NO.1 Seat Leg Side, NO.5(FOR LH SEAT)
79968X Cover, Rear NO.1 Seat Leg Side, NO.5(FOR RH SEAT)
79968Y Cover, Rear NO.2 Seat Leg Side, NO.5(FOR LH SEAT)
79968Z Cover, Rear NO.2 Seat Leg Side, NO.5(FOR RH SEAT)
79977Q Felt, Seat Cushion, RH
79977R Felt, Seat Cushion, LH
85860E Blower Assy, NO.1 Seat Cushion Climate Control(FOR RH SEAT)
85860F Blower Assy, NO.1 Seat Cushion Climate Control(FOR LH SEAT)
85866E Duct, NO.1 Seat Cushion Climate Control(FOR RH SEAT)
85866F Duct, NO.1 Seat Cushion Climate Control(FOR LH SEAT)
85867D Blower, NO.1 Seatback Climate Control(FOR RH SEAT)
85867E Blower, NO.1 Seatback Climate Control(FOR LH SEAT)
8586AB Duct, NO.1 Seatback Climate Control, NO.1(FOR RH SEAT)
8586AC Duct, NO.1 Seatback Climate Control, NO.2(FOR RH SEAT)
8586AD Duct, NO.1 Seatback Climate Control, NO.1(FOR LH SEAT)
8586AE Duct, NO.1 Seatback Climate Control, NO.2(FOR LH SEAT)
85996K Clip(FOR RELAY BRACKET)
85J99A Bracket, Relay, NO.1
85J99B Bracket, Relay, NO.2
C2821B Seal, Front Panel, NO.1
C4109D Housing Sub-assy, Slide Door Lock, Rear
C6359A Cap, Protector Bar

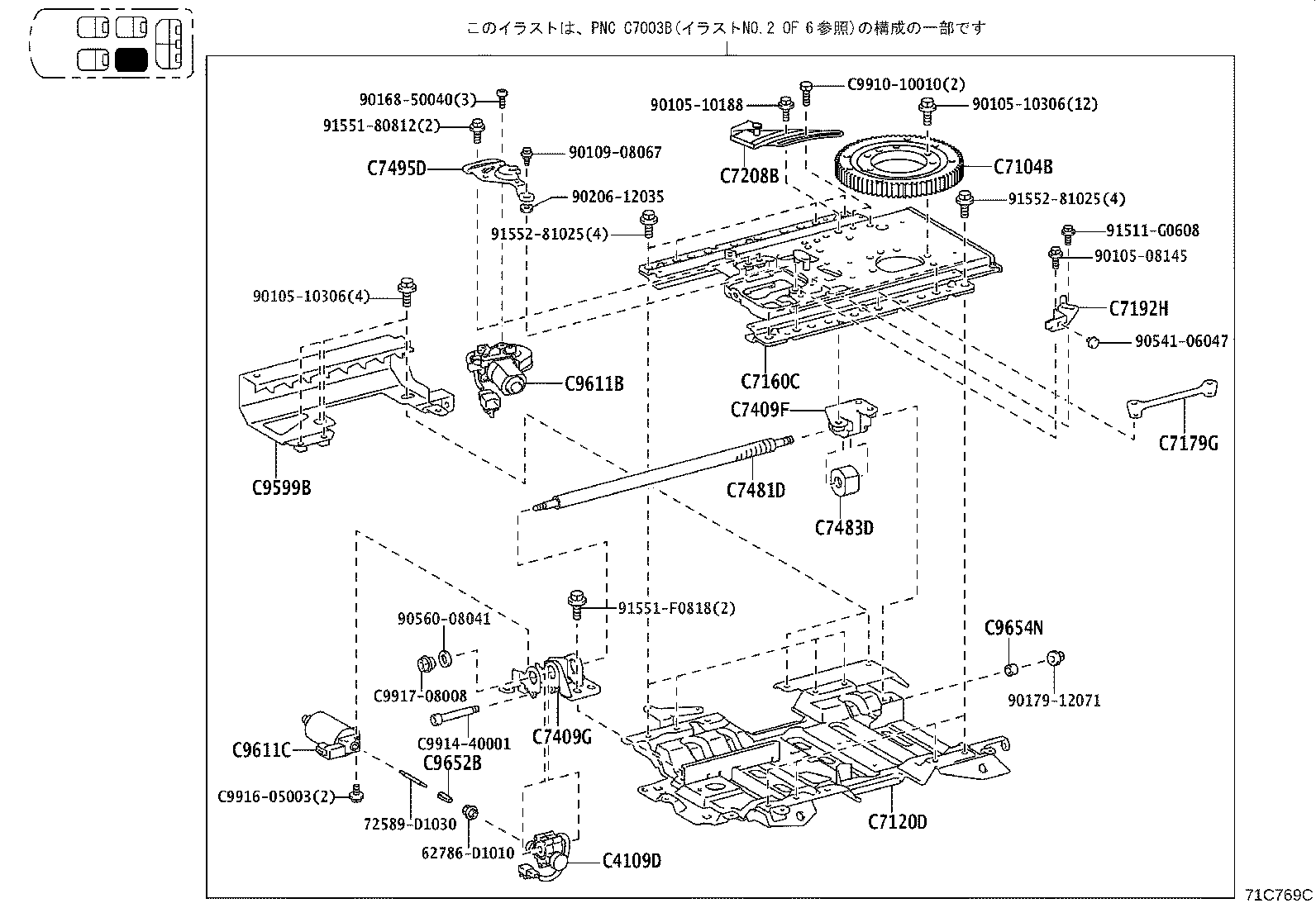

C7003B Lift Unit, Rear Seat
C7015A Panel Sub-assy, Turn Table
C7027C Lock Sub-assy, Welcab Seat Turn
C7104B Plate Sub-assy, Seat Turn
C7110B Bracket Sub-assy, Seat Holder, Rear
C7111A Bracket, Seat Holder, Front
C7117B Plate, Seat Holder, LH
C7120D Leg Assy, Welcab Seat
C7159H Cushion, Welcab Seat Leg Stopper
C7159L Cushion, Welcab Seat Leg Stopper, NO.1
C7160C Panel Assy, Slide Table
C7179G Bracket, Welcab Seat Cover NO.1
C7192H Plate, Seat Holder Stopper, NO.1
C7192J Plate, Seat Holder Stopper, NO.2
C7192K Plate, Seat Holder Stopper, NO.3
C7192L Plate, Seat Holder Stopper, NO.4
C7208B Plate Sub-assy, Seat Turn Lock
C7210D Footrest Assy, Welcab Seat
C7230F Track Assy, Welcab Seat, NO.1
C7230G Track Assy, Welcab Seat, NO.2
C7401B Guide Sub-assy, Welcab Seat, Front
C7402B Guide Sub-assy, Welcab Seat, Rear
C7405E Arm Sub-assy, Welcab Seat Link, NO.1
C7405F Arm Sub-assy, Welcab Seat Link, NO.2
C7409E Bracket Sub-assy, Welcab Seat Rod Support, NO.1
C7409F Bracket Sub-assy, Welcab Seat Rod Support, NO.2
C7409G Bracket Sub-assy, Welcab Seat Rod Support, NO.3
C7422E Pin, Welcab Seat Arm Guide, NO.1
C7422F Pin, Welcab Seat Arm Guide, NO.2
C7442B Guard, Welcab Seat Cable
C7452B Arm, Welcab Seat Link, NO.2
C7453B Arm, Welcab Seat Link, NO.3
C7481C Rod, Welcab Seat, NO.1
C7481D Rod, Welcab Seat, NO.2
C7483D Gear Welcab Seat Leg, NO.2
C7485K Bracket, Welcab Seat Rod Support, NO.1
C7485L Bracket, Welcab Seat Rod Support, NO.2
C7490B Cylinder Assy, Welcab Seat
C7495D Bracket, Welcab Seat Motor, NO.1
C7691D Cushion, Seat Flat, NO.1
C7986E Cover, Rear Seat Turn Guard
C7986F Clip, Rear Seat Turn Guard Cover
C7996M Spacer, Turn Seat
C7996N Spacer, Turn Seat, NO.2
C8284C Wire, Power Lift Main
C8299D Bracket, Welcab Seat Harness Connector, NO.1
C8299E Bracket, Welcab Seat Harness Connector, NO.2
C8299F Bracket, Welcab Seat Harness Connector, NO.3
C8340B Computer Assy, Welcab Device Control
C8417L Switch, Limit, NO.1
C8417M Switch, Limit, NO.2
C8417N Switch, Limit, NO.3
C8419L Bracket, Limit Switch, NO.1
C8419M Bracket, Limit Switch, NO.2
C8419N Bracket, Limit Switch, NO.3
C8459A Spring, Limit Switch
C9055H Cover Sub-assy, Power Lift, NO.1
C9055J Clip, Power Lift Cover, NO.1
C9055K Cover Sub-assy, Power Lift Leg, Rear
C9055L Cover Sub-assy, Power Lift, NO.2
C9055M Clip, Power Lift Cover, NO.2
C9055N Cover Sub-assy, Power Lift, NO.3
C9055P Clip, Power Lift Cover, Rear
C9507B Lock Sub-assy, Platform, NO.1
C9507C Lock Sub-assy, Platform, NO.2
C9570C Lock Assy, Platform
C9599B Hook, Platform Safety Lock
C9603A Gear Sub-assy, Power Lift
C9610J Motor Assy, Power Lift
C9611B Motor, Power Lift, NO.1
C9611C Motor, Power Lift, NO.2
C9652B Cap, Power Lift Cylinder, NO.1
C9654M Collar, Power Lift Cylinder, NO.1
C9654N Collar, Power Lift Cylinder, NO.2
C9938D Bush, NO.1
C9938E Bush, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
