Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH2#,ATH20,GGH2# · catalogue 713130 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

33 part groups · 5 illustrations

Illustrations

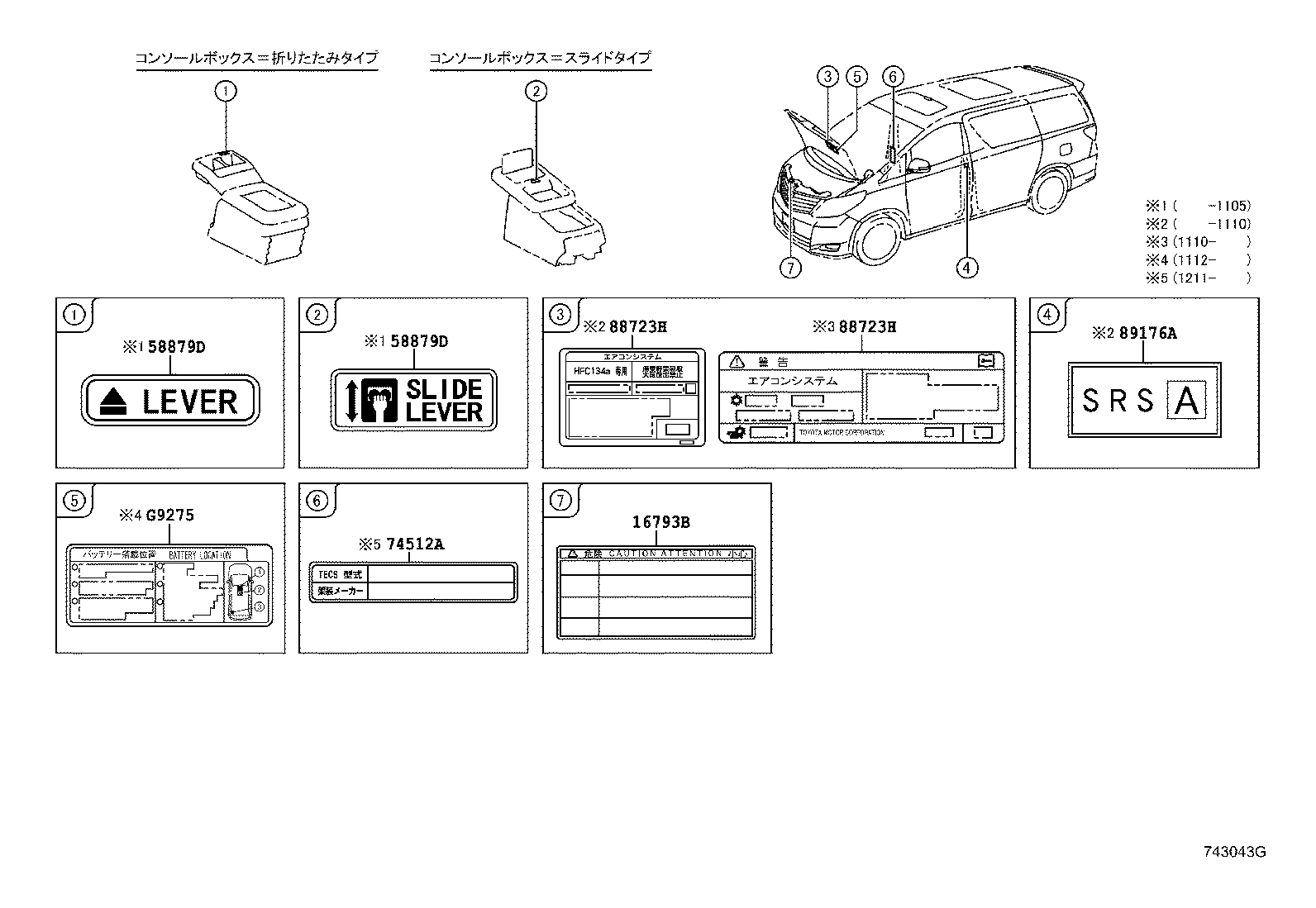

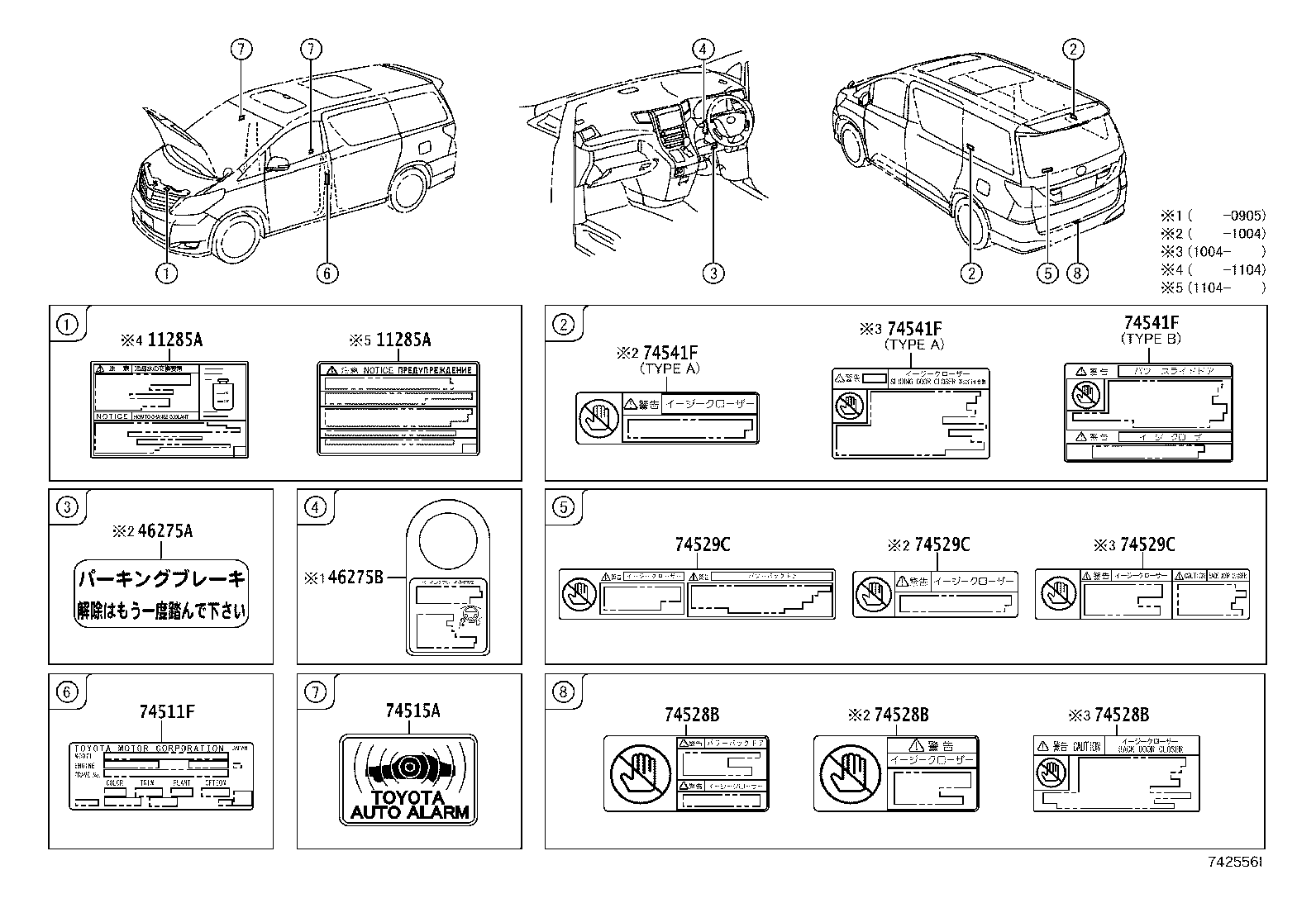

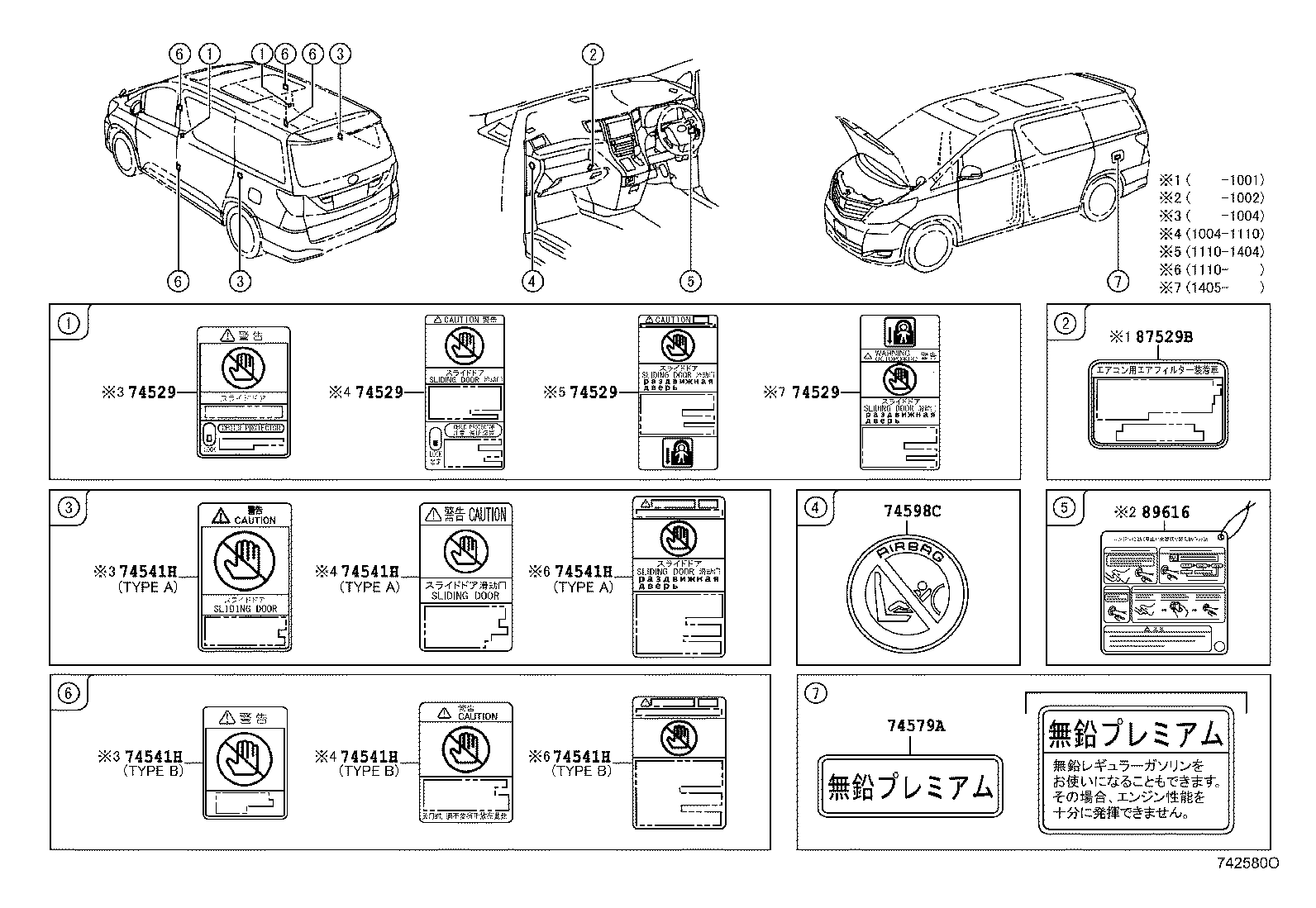

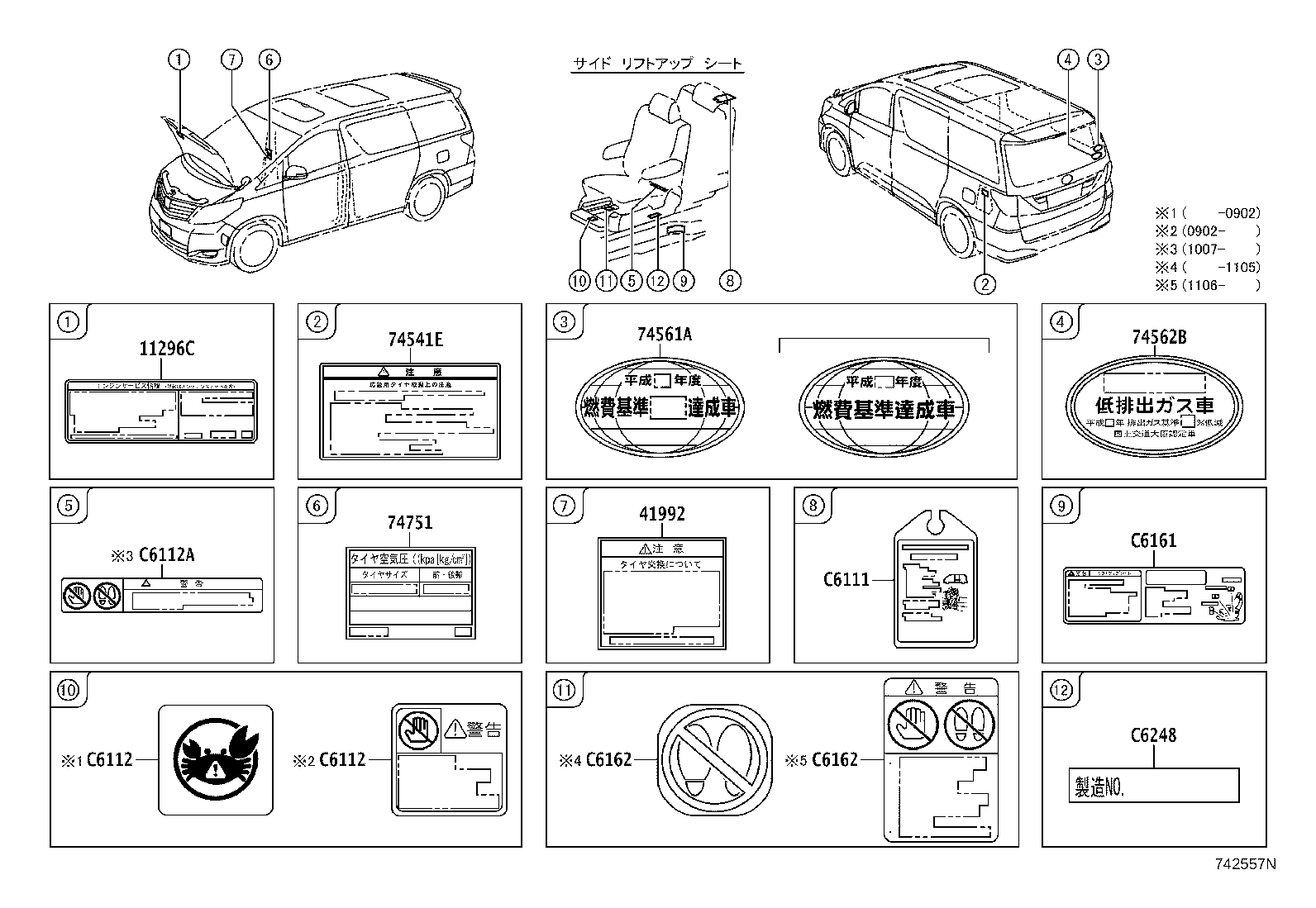

Figure 746012 746012 2011-12 → — Figure 742556I 742556I 2008-04 → — Figure 742557N 742557N 2008-04 → — Figure 742580O 742580O 2008-04 → — Figure 743043G 743043G 2008-04 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11293D Label, Engine Caution
11296C Label, Engine Service Information
16793B Label, Cooling Fan Information
41992 Label, Differential Notice
46275A Label, Parking Brake Release Information, NO.1
46275B Label, Parking Brake Release Information, NO.2
58879D Label, Console Door Lock Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74512A Plate, Identification Number
74515A Plate, Theft Warning
74528B Label, Back Door Caution
74529 Plate, Child Proof OR Child Protector Lock Caution
74529C Plate, Back Door Caution
74541E Plate, Compact Spare Tire Caution
74541F Label, Slide Door Glass Caution
74541H Plate, Body Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74579A Label, Unleaded Fuel Information
74598C Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
87529B Label, A/C Filter Information
88723H Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
89616 Label, Push Start Information
C6111 Plate, Safety Caution
C6112 Label, Safety Information, NO.2
C6112A Label, Safety Information
C6161 Label, Power Lift Caution
C6162 Label, Power Lift Caution, NO.2
C6248 Label, Body Number
G9275 Label, Battery Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
