Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH2#,ATH20,GGH2# · catalogue 713130 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

19 part groups · 2 illustrations

Illustrations

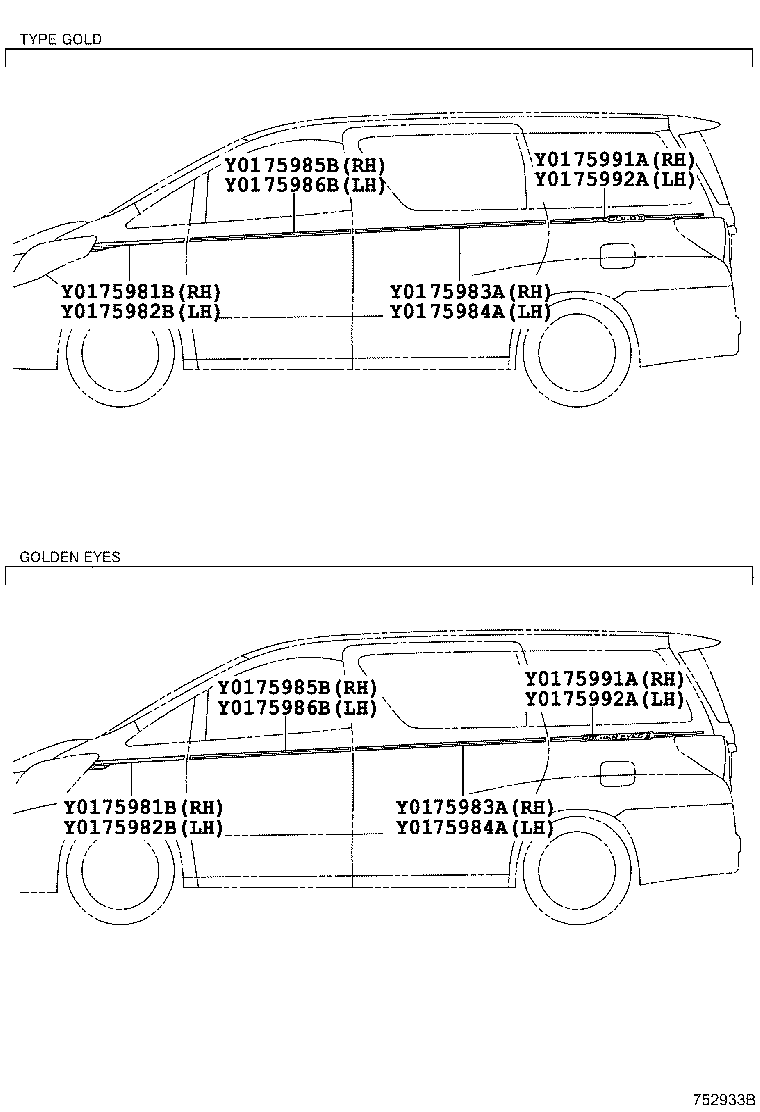

Figure 752812B 752812B 2012-11 → — Figure 752933B 752933B 2013-11 → —

Part groups

PNCDescription
75973D Stripe, Front Bumper Side, RH
75974D Stripe, Front Bumper Side, LH
75975F Stripe, Front Door Outside, Lower RH
75976F Stripe, Front Door Outside, Lower LH
75980 Stripe Set
75981B Stripe, Fender, RH
75982B Stripe, Fender, LH
75983A Stripe, Slide Door
75983C Stripe, Slide Door, RH
75984A Stripe, Slide Door
75984D Stripe, Slide Door, Lower LH
75985B Stripe, Front Door, NO.3 RH
75986B Stripe, Front Door, NO.3 LH
75991A Stripe, Quarter, RH
75992A Stripe, Quarter, LH
75996C Stripe, Rear Body, RH
75997C Stripe, Rear Body, LH
75998B Stripe, Rear Bumper Side, RH
75999B Stripe, Rear Bumper Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
