Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH2#,ATH20,GGH2# · catalogue 713130 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

10 part groups · 2 illustrations

Illustrations

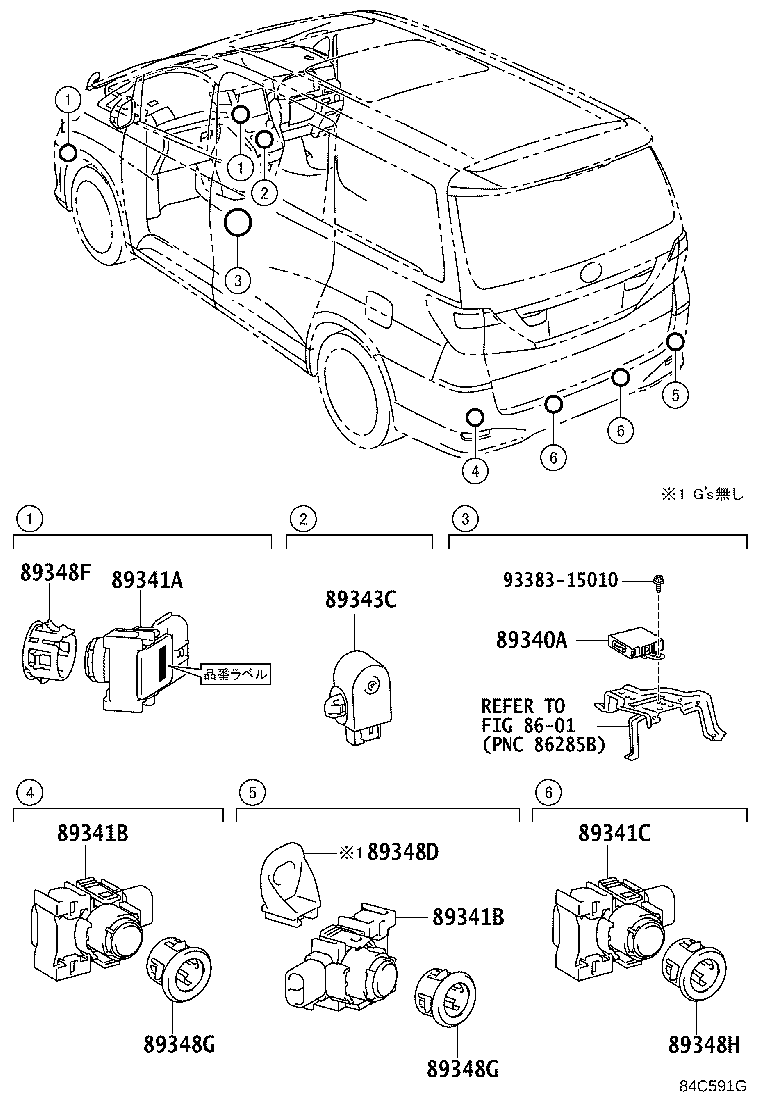

Figure 849814F 849814F 2008-04 → 2011-10 Figure 84C591G 84C591G 2011-10 → —

Part groups

PNCDescription
89340A Computer Assy, Clearance Warning
89341A Sensor, Ultrasonic, NO.1
89341B Sensor, Ultrasonic, NO.2
89341C Sensor, Ultrasonic, NO.3
89343C Buzzer, Clearance Warning, NO.1
89348D Clip, Ultrasonic Sensor
89348E Retainer, Ultrasonic Sensor, NO.4
89348F Bezel, Ultrasonic Sensor, NO.1
89348G Bezel, Ultrasonic Sensor, NO.2
89348H Bezel, Ultrasonic Sensor, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
