Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH2#,ATH20,GGH2# · catalogue 713130 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

10 part groups · 2 illustrations

Illustrations

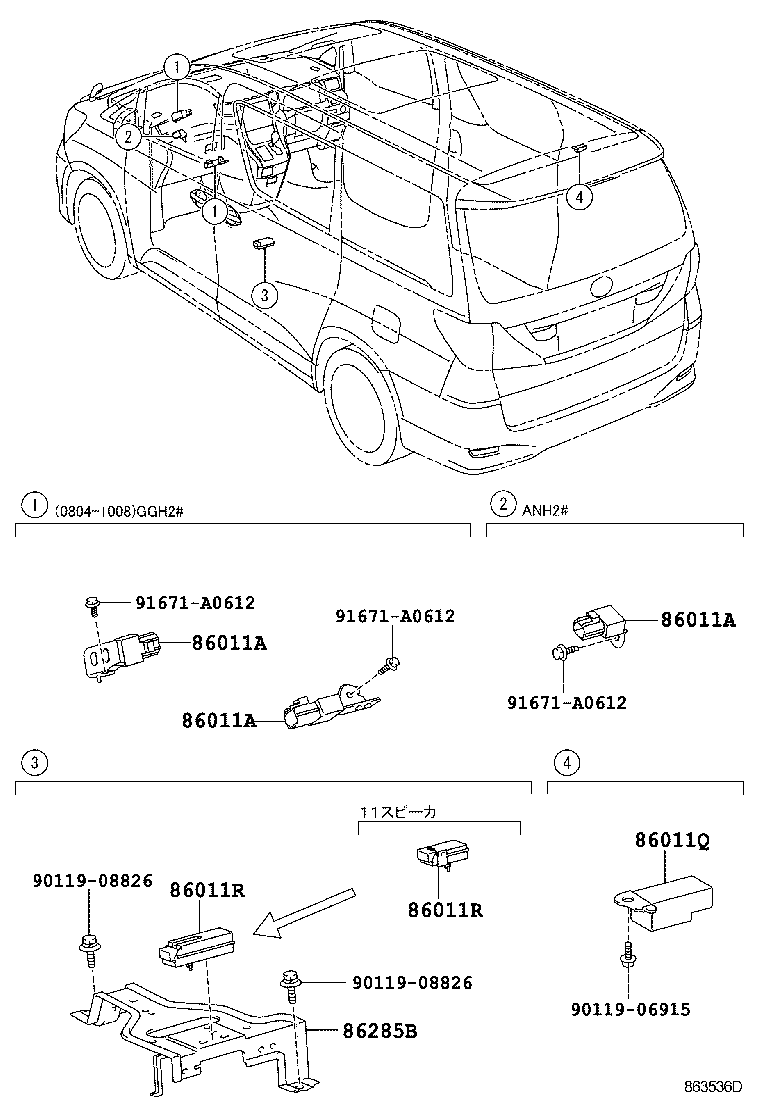

Figure 863535B 863535B 2008-04 → — Figure 863536D 863536D 2008-04 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011Q Condenser, Radio Setting
86011R Condenser, Radio Setting
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86285B Bracket, Amplifier, NO.1
86285F Bracket, Amplifier, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
