Toyota Alphard/Vellfire/HV
2008-04 → 2015-01 · chassis ANH2#,ATH20,GGH2# · catalogue 713130 · Japan
Supported model
Data version 2015-04
Antenna
11 part groups · 4 illustrations
Part groups

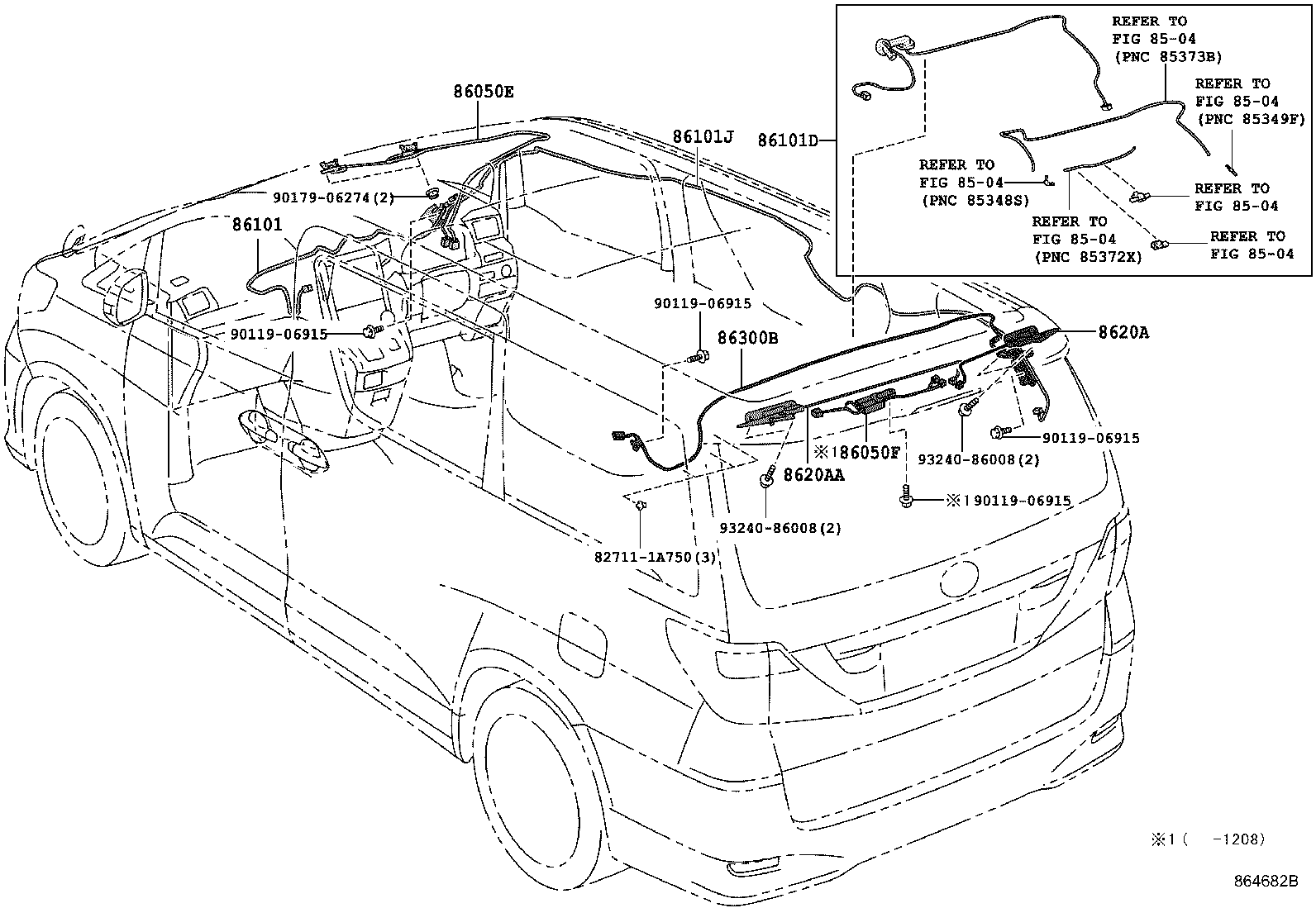

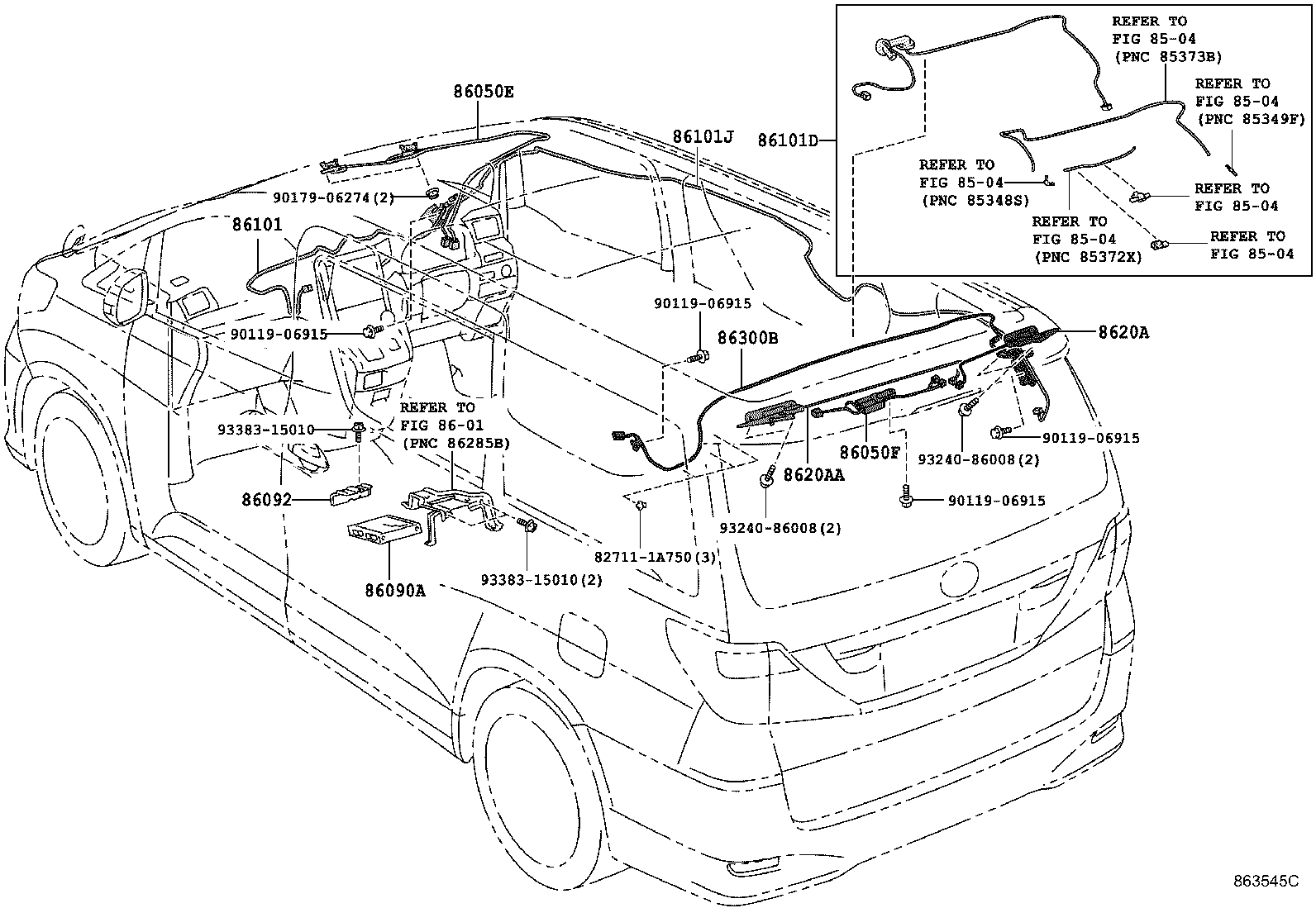

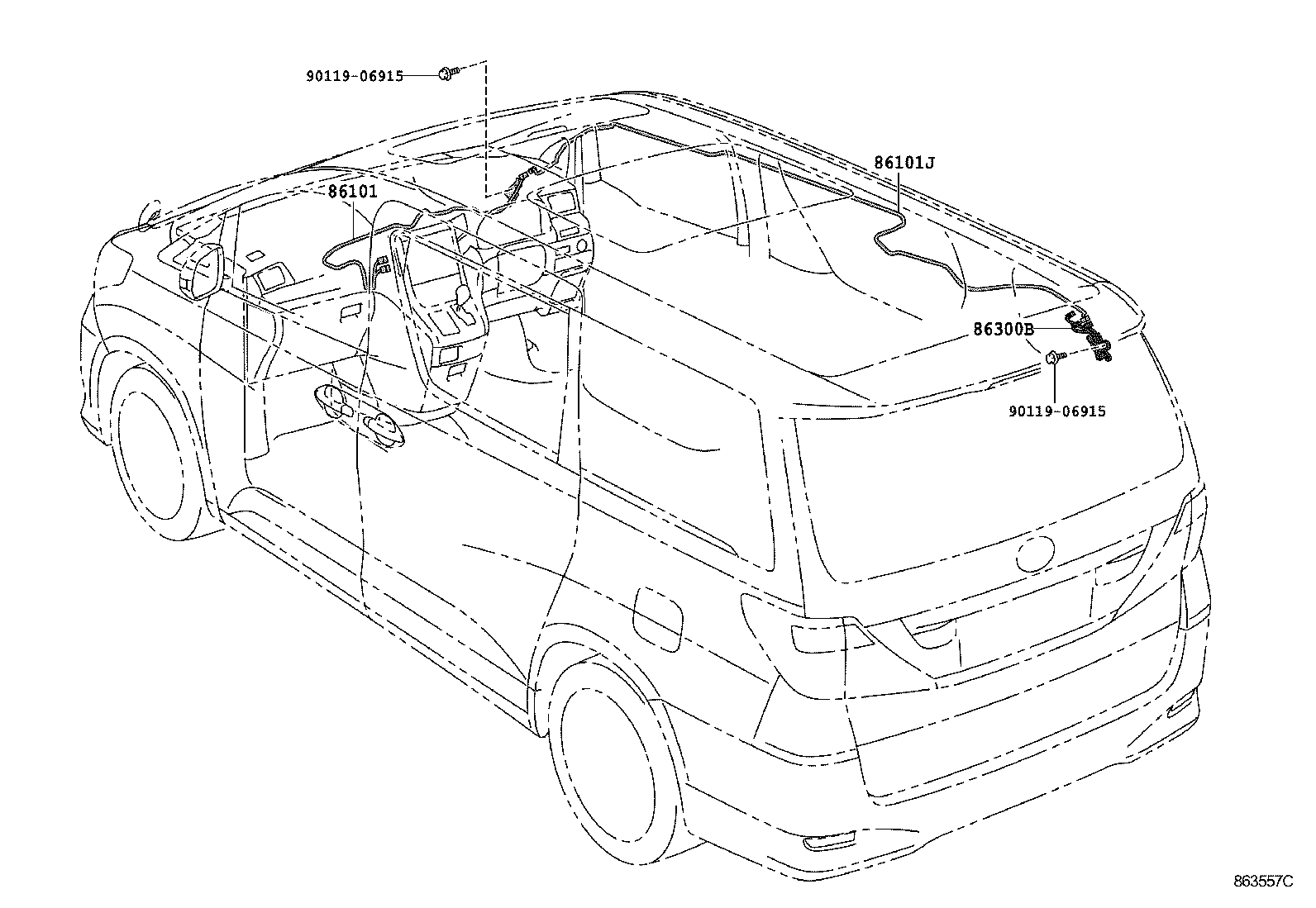

| PNC | Description |
|---|---|
| 86050 | Antenna Assy, Television |
| 86050E | Antenna Assy, Television |
| 86050F | Antenna Assy, Television |
| 86090A | Tuner Assy, Digital Television |
| 86092 | Bracket, Digital Television, Front |
| 86101 | Cord Sub-assy, Antenna |
| 86101D | Cord Sub-assy, Antenna, NO.3 |
| 86101J | Cord Sub-assy, Antenna, NO.2 |
| 8620A | Antenna Sub-assy, Digital Television, NO.1 |
| 8620AA | Antenna Sub-assy, Digital Television, NO.2 |
| 86300B | Antenna Assy, Amplifier, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
