Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH3#,AYH30,GGH3# · catalogue 713140 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

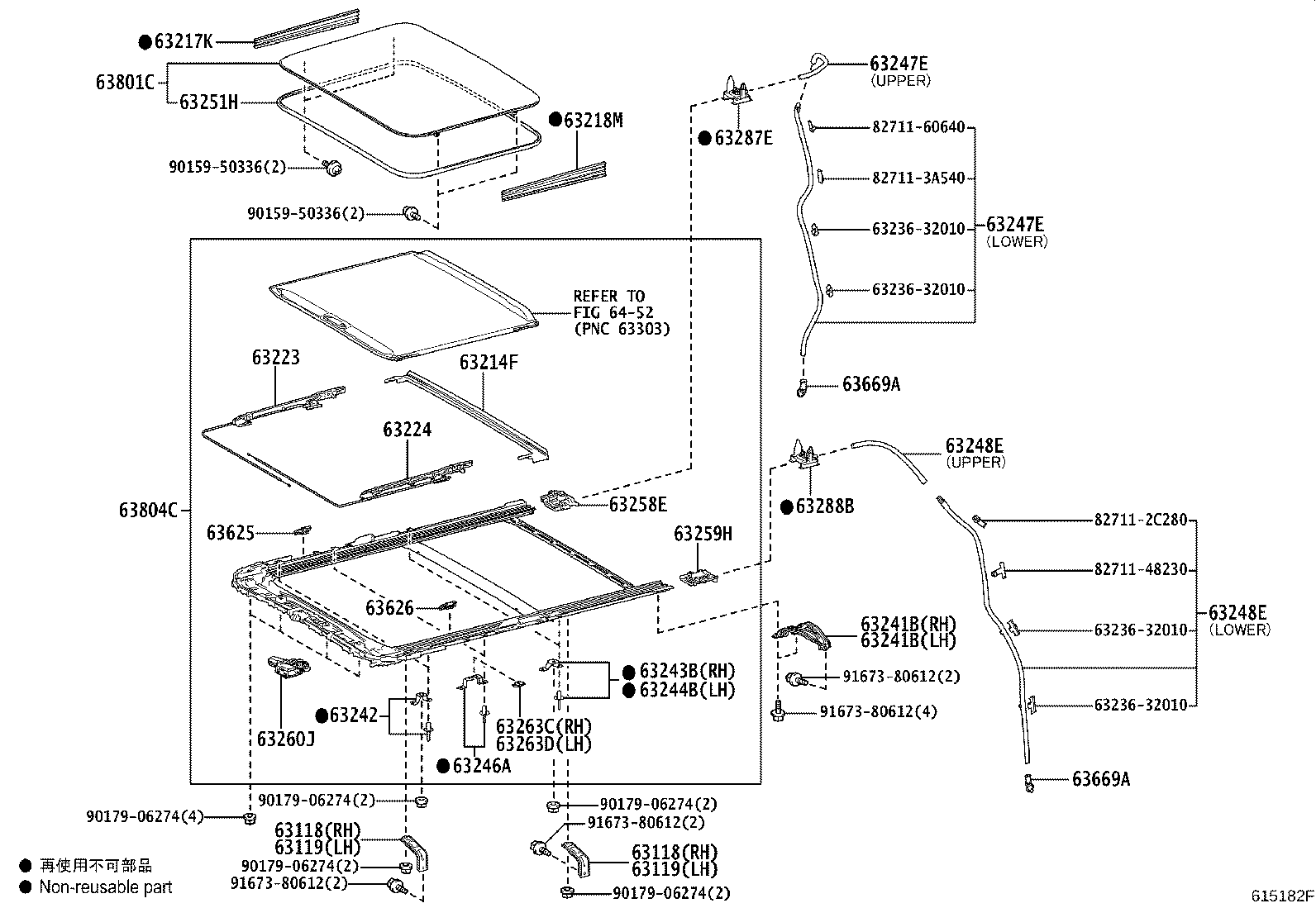

Exploded illustration 615182F 6452 — not listed in this catalogue 63118 — SUPPORT, ROOF PANEL, RH (11 parts) 63119 — SUPPORT, ROOF PANEL, LH (11 parts) 63118 — SUPPORT, ROOF PANEL, RH (11 parts) 63119 — SUPPORT, ROOF PANEL, LH (11 parts) 63214F — CHANNEL, ROOF DRIP, REAR (11 parts) 63217K — GARNISH, SLIDING ROOF SIDE, RH (11 parts) 63218M — GARNISH, SLIDING ROOF SIDE, LH (11 parts) 63223 — CABLE, SLIDING ROOF DRIVE, RH (11 parts) 63224 — CABLE, SLIDING ROOF DRIVE, LH (11 parts) 63258E — JOINT, SLIDE ROOF DRAIN HOSE, RH (11 parts) 63259H — JOINT, SLIDE ROOF DRAIN HOSE, LH (11 parts) 63241B — BRACKET, SLIDING ROOF HOUSING, NO.1 (22 parts) 63241B — BRACKET, SLIDING ROOF HOUSING, NO.1 (22 parts) 63247E — HOSE, SLIDING ROOF DRAIN, REAR RH (22 parts) 63247E — HOSE, SLIDING ROOF DRAIN, REAR RH (22 parts) 63248E — HOSE, SLIDING ROOF DRAIN, REAR LH (22 parts) 63248E — HOSE, SLIDING ROOF DRAIN, REAR LH (22 parts) 63251H — WEATHERSTRIP, SLIDING ROOF (4 parts) 63260J — GEAR ASSY, SLIDING ROOF DRIVE (11 parts) 63242 — BRACKET, SLIDING ROOF HOUSING, NO.1 (11 parts) 63263C — PLATE, SLIDING ROOF LOCK CATCH, RH (11 parts) 63263D — PLATE, SLIDING ROOF LOCK CATCH, LH (6 parts) 63246A — BRACKET, REMOVABLE ROOF, NO.2 (11 parts) 63287E — CAP, SLIDING ROOF HOUSING DRAIN END, RH (11 parts) 63288B — CAP, SLIDING ROOF HOUSING DRAIN END, LH (11 parts) 63625 — BLOCK, SLIDING ROOF GUIDE, RH (11 parts) 63626 — BLOCK, SLIDING ROOF GUIDE, LH (11 parts) 63669A — GROMMET, SLIDING ROOF DRAIN (4 parts) 63669A — GROMMET, SLIDING ROOF DRAIN (4 parts) 63801C — GLASS SUB-ASSY, REAR SLIDE ROOF (4 parts) 63804C — HOUSING SUB-ASSY, REAR SLIDE ROOF (22 parts) 827112C280 — not listed in this catalogue 8271148230 — not listed in this catalogue 6323632010 — not listed in this catalogue 6323632010 — not listed in this catalogue 8271160640 — not listed in this catalogue 827113A540 — not listed in this catalogue 6323632010 — not listed in this catalogue 6323632010 — not listed in this catalogue 9015950336 — not listed in this catalogue 9015950336 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 9167380612 — not listed in this catalogue 9167380612 — not listed in this catalogue 9167380612 — not listed in this catalogue 9167380612 — not listed in this catalogue 63243B — BRACKET, REMOVABLE ROOF HOUSING SIDE MOUNTING, RH (11 parts) 63244B — BRACKET, REMOVABLE ROOF HOUSING SIDE MOUNTING, LH (11 parts)
615182F · 33 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
315 parts on this figure
Part number Description Fitment Price
63118 — Support, Roof Panel, RH
63118-58050 note Support, Roof Panel, RH
2016-07 → 2018-01 ended
AGH30,GGH30 07S (S,SA,Z,ZA) ¥670
63118-58050 note Support, Roof Panel, RH
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥670
63118-58050 note Support, Roof Panel, RH
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥670
63118-58050 note Support, Roof Panel, RH
2018-11 → 2019-05 ended
AGH30,AYH30 07S (S,Z) ¥670
63118-58050 note Support, Roof Panel, RH
2018-01 → 2020-01 ended
AYH30,GGH3# EL ¥670
63118-58050 note Support, Roof Panel, RH
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥670
63118-58050 note Support, Roof Panel, RH
2021-05 → —
AGH30,AYH30 07S S ¥670
63118-58050 note Support, Roof Panel, RH
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥670
63118-58050 note Support, Roof Panel, RH
2020-04 → 2021-05 ended
AGH30,AYH30 07S (S,Z) ¥670
63118-58050 note Support, Roof Panel, RH
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥670
63118-58050 note Support, Roof Panel, RH
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥670
63119 — Support, Roof Panel, LH
63118-58050 note Support, Roof Panel, LH
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥670
63118-58050 note Support, Roof Panel, LH
2016-07 → 2018-01 ended
AGH30,GGH30 07S (S,SA,Z,ZA) ¥670
63118-58050 note Support, Roof Panel, LH
2018-11 → 2019-05 ended
AGH30,AYH30 07S (S,Z) ¥670
63118-58050 note Support, Roof Panel, LH
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥670
63118-58050 note Support, Roof Panel, LH
2018-01 → 2020-01 ended
AYH30,GGH3# EL ¥670
63118-58050 note Support, Roof Panel, LH
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥670
63118-58050 note Support, Roof Panel, LH
2021-05 → —
AGH30,AYH30 07S S ¥670
63118-58050 note Support, Roof Panel, LH
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥670
63118-58050 note Support, Roof Panel, LH
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥670
63118-58050 note Support, Roof Panel, LH
2020-04 → 2021-05 ended
AGH30,AYH30 07S (S,Z) ¥670
63118-58050 note Support, Roof Panel, LH
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥670
63214F — Channel, Roof Drip, Rear
63214-33070 note Channel, Roof Drip, Rear
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥2,950
63214-33070 note Channel, Roof Drip, Rear
2016-07 → 2018-01 ended
AGH30,GGH30 07S (S,SA,Z,ZA) ¥2,950
63214-33070 note Channel, Roof Drip, Rear
2018-11 → 2019-05 ended
AGH30,AYH30 07S (S,Z) ¥2,950
63214-33070 note Channel, Roof Drip, Rear
2018-01 → 2020-01 ended
AYH30,GGH3# EL ¥2,950
63214-33070 note Channel, Roof Drip, Rear
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥2,950
63214-33070 note Channel, Roof Drip, Rear
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥2,950
63214-33070 note Channel, Roof Drip, Rear
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥2,950
63214-33070 note Channel, Roof Drip, Rear
2020-04 → 2021-05 ended
AGH30,AYH30 07S (S,Z) ¥2,950
63214-33070 note Channel, Roof Drip, Rear
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥2,950
63214-33070 note Channel, Roof Drip, Rear
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥2,950
63214-33070 note Channel, Roof Drip, Rear
2021-05 → —
AGH30,AYH30 07S S ¥2,950
63217K — Garnish, Sliding Roof Side, RH
63217-58030 note Garnish, Sliding Roof Side, RH
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥2,610
63217-58030 note Garnish, Sliding Roof Side, RH
2016-07 → 2018-01 ended
AGH30,GGH30 07S (S,SA,Z,ZA) ¥2,610
63217-58030 note Garnish, Sliding Roof Side, RH
2018-11 → 2019-05 ended
AGH30,AYH30 07S (S,Z) ¥2,610
63217-58030 note Garnish, Sliding Roof Side, RH
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥2,610
63217-58030 note Garnish, Sliding Roof Side, RH
2018-01 → 2020-01 ended
AYH30,GGH3# EL ¥2,610
63217-58030 note Garnish, Sliding Roof Side, RH
2021-05 → —
AGH30,AYH30 07S S ¥2,610
63217-58030 note Garnish, Sliding Roof Side, RH
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥2,610
63217-58030 note Garnish, Sliding Roof Side, RH
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥2,610
63217-58030 note Garnish, Sliding Roof Side, RH
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥2,610
63217-58030 note Garnish, Sliding Roof Side, RH
2020-04 → 2021-05 ended
AGH30,AYH30 07S (S,Z) ¥2,610
63217-58030 note Garnish, Sliding Roof Side, RH
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥2,610
63218M — Garnish, Sliding Roof Side, LH
63217-58030 note Garnish, Sliding Roof Side, LH
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥2,610
63217-58030 note Garnish, Sliding Roof Side, LH
2016-07 → 2018-01 ended
AGH30,GGH30 07S (S,SA,Z,ZA) ¥2,610
63217-58030 note Garnish, Sliding Roof Side, LH
2018-11 → 2019-05 ended
AGH30,AYH30 07S (S,Z) ¥2,610
63217-58030 note Garnish, Sliding Roof Side, LH
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥2,610
63217-58030 note Garnish, Sliding Roof Side, LH
2018-01 → 2020-01 ended
AYH30,GGH3# EL ¥2,610
63217-58030 note Garnish, Sliding Roof Side, LH
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥2,610
63217-58030 note Garnish, Sliding Roof Side, LH
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥2,610
63217-58030 note Garnish, Sliding Roof Side, LH
2020-04 → 2021-05 ended
AGH30,AYH30 07S (S,Z) ¥2,610
63217-58030 note Garnish, Sliding Roof Side, LH
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥2,610
63217-58030 note Garnish, Sliding Roof Side, LH
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥2,610
63217-58030 note Garnish, Sliding Roof Side, LH
2021-05 → —
AGH30,AYH30 07S S ¥2,610
63223 — Cable, Sliding Roof Drive, RH
63223-58020 note Cable, Sliding Roof Drive, RH
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥6,800
63223-58020 note Cable, Sliding Roof Drive, RH
2016-07 → 2018-01 ended
AGH30,GGH30 07S (S,SA,Z,ZA) ¥6,800
63223-58020 note Cable, Sliding Roof Drive, RH
2018-01 → 2020-01 ended
AYH30,GGH3# EL ¥6,800
63223-58020 note Cable, Sliding Roof Drive, RH
2018-11 → 2019-05 ended
AGH30,AYH30 07S (S,Z) ¥6,800
63223-58020 note Cable, Sliding Roof Drive, RH
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥6,800
63223-58020 note Cable, Sliding Roof Drive, RH
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥6,800
63223-58020 note Cable, Sliding Roof Drive, RH
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥6,800
63223-58020 note Cable, Sliding Roof Drive, RH
2020-04 → 2021-05 ended
AGH30,AYH30 07S (S,Z) ¥6,800
63223-58020 note Cable, Sliding Roof Drive, RH
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥6,800
63223-58020 note Cable, Sliding Roof Drive, RH
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥6,800
63223-58020 note Cable, Sliding Roof Drive, RH
2021-05 → —
AGH30,AYH30 07S S ¥6,800
63224 — Cable, Sliding Roof Drive, LH
63224-58020 note Cable, Sliding Roof Drive, LH
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥6,800
63224-58020 note Cable, Sliding Roof Drive, LH
2016-07 → 2018-01 ended
AGH30,GGH30 07S (S,SA,Z,ZA) ¥6,800
63224-58020 note Cable, Sliding Roof Drive, LH
2018-11 → 2019-05 ended
AGH30,AYH30 07S (S,Z) ¥6,800
63224-58020 note Cable, Sliding Roof Drive, LH
2018-01 → 2020-01 ended
AYH30,GGH3# EL ¥6,800
63224-58020 note Cable, Sliding Roof Drive, LH
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥6,800
63224-58020 note Cable, Sliding Roof Drive, LH
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥6,800
63224-58020 note Cable, Sliding Roof Drive, LH
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥6,800
63224-58020 note Cable, Sliding Roof Drive, LH
2020-04 → 2021-05 ended
AGH30,AYH30 07S (S,Z) ¥6,800
63224-58020 note Cable, Sliding Roof Drive, LH
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥6,800
63224-58020 note Cable, Sliding Roof Drive, LH
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥6,800
63224-58020 note Cable, Sliding Roof Drive, LH
2021-05 → —
AGH30,AYH30 07S S ¥6,800
63241B — Bracket, Sliding Roof Housing, NO.1
63241-58040 note Bracket, Sliding Roof Housing, NO.1
2016-07 → 2018-01 ended
AGH30,GGH30 07S (S,SA,Z,ZA) ¥1,190
63241-58040 note Bracket, Sliding Roof Housing, NO.1
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥1,190
63241-58050 note Bracket, Sliding Roof Housing, NO.1
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥1,190
63241-58050 note Bracket, Sliding Roof Housing, NO.1
2016-07 → 2018-01 ended
AGH30,GGH30 07S (S,SA,Z,ZA) ¥1,190
63241-58040 note Bracket, Sliding Roof Housing, NO.1
2018-11 → 2019-05 ended
AGH30,AYH30 07S (S,Z) ¥1,190
63241-58040 note Bracket, Sliding Roof Housing, NO.1
2018-01 → 2020-01 ended
AYH30,GGH3# EL ¥1,190
63241-58040 note Bracket, Sliding Roof Housing, NO.1
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥1,190
63241-58050 note Bracket, Sliding Roof Housing, NO.1
2018-11 → 2019-05 ended
AGH30,AYH30 07S (S,Z) ¥1,190
63241-58050 note Bracket, Sliding Roof Housing, NO.1
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥1,190
63241-58050 note Bracket, Sliding Roof Housing, NO.1
2018-01 → 2020-01 ended
AYH30,GGH3# EL ¥1,190
63241-58040 note Bracket, Sliding Roof Housing, NO.1
2020-04 → 2021-05 ended
AGH30,AYH30 07S (S,Z) ¥1,190
63241-58040 note Bracket, Sliding Roof Housing, NO.1
2021-05 → —
AGH30,AYH30 07S S ¥1,190
63241-58040 note Bracket, Sliding Roof Housing, NO.1
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥1,190
63241-58040 note Bracket, Sliding Roof Housing, NO.1
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥1,190
63241-58040 note Bracket, Sliding Roof Housing, NO.1
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥1,190
63241-58040 note Bracket, Sliding Roof Housing, NO.1
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥1,190
63241-58050 note Bracket, Sliding Roof Housing, NO.1
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥1,190
63241-58050 note Bracket, Sliding Roof Housing, NO.1
2020-04 → 2021-05 ended
AGH30,AYH30 07S (S,Z) ¥1,190
63241-58050 note Bracket, Sliding Roof Housing, NO.1
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥1,190
63241-58050 note Bracket, Sliding Roof Housing, NO.1
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥1,190
63241-58050 note Bracket, Sliding Roof Housing, NO.1
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥1,190
63241-58050 note Bracket, Sliding Roof Housing, NO.1
2021-05 → —
AGH30,AYH30 07S S ¥1,190
63242 — Bracket, Sliding Roof Housing, NO.1
63242-58010 note Bracket, Sliding Roof Housing, NO.1
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥320
63242-58010 note Bracket, Sliding Roof Housing, NO.1
2016-07 → 2018-01 ended
AGH30,GGH30 07S (S,SA,Z,ZA) ¥320
63242-58010 note Bracket, Sliding Roof Housing, NO.1
2018-11 → 2019-05 ended
AGH30,AYH30 07S (S,Z) ¥320
63242-58010 note Bracket, Sliding Roof Housing, NO.1
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥320
63242-58010 note Bracket, Sliding Roof Housing, NO.1
2018-01 → 2020-01 ended
AYH30,GGH3# EL ¥320
63242-58010 note Bracket, Sliding Roof Housing, NO.1
2021-05 → —
AGH30,AYH30 07S S ¥320
63242-58010 note Bracket, Sliding Roof Housing, NO.1
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥320
63242-58010 note Bracket, Sliding Roof Housing, NO.1
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥320
63242-58010 note Bracket, Sliding Roof Housing, NO.1
2020-04 → 2021-05 ended
AGH30,AYH30 07S (S,Z) ¥320
63242-58010 note Bracket, Sliding Roof Housing, NO.1
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥320
63242-58010 note Bracket, Sliding Roof Housing, NO.1
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥320
63243B — Bracket, Removable Roof Housing Side Mounting, RH
63243-58010 note Bracket, Removable Roof Housing Side Mounting, RH
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥330
63243-58010 note Bracket, Removable Roof Housing Side Mounting, RH
2016-07 → 2018-01 ended
AGH30,GGH30 07S (S,SA,Z,ZA) ¥330
63243-58010 note Bracket, Removable Roof Housing Side Mounting, RH
2018-11 → 2019-05 ended
AGH30,AYH30 07S (S,Z) ¥330
63243-58010 note Bracket, Removable Roof Housing Side Mounting, RH
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥330
63243-58010 note Bracket, Removable Roof Housing Side Mounting, RH
2018-01 → 2020-01 ended
AYH30,GGH3# EL ¥330
63243-58010 note Bracket, Removable Roof Housing Side Mounting, RH
2021-05 → —
AGH30,AYH30 07S S ¥330
63243-58010 note Bracket, Removable Roof Housing Side Mounting, RH
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥330
63243-58010 note Bracket, Removable Roof Housing Side Mounting, RH
2020-04 → 2021-05 ended
AGH30,AYH30 07S (S,Z) ¥330
63243-58010 note Bracket, Removable Roof Housing Side Mounting, RH
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥330
63243-58010 note Bracket, Removable Roof Housing Side Mounting, RH
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥330
63243-58010 note Bracket, Removable Roof Housing Side Mounting, RH
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥330
63244B — Bracket, Removable Roof Housing Side Mounting, LH
63244-58010 note Bracket, Removable Roof Housing Side Mounting, LH
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥330
63244-58010 note Bracket, Removable Roof Housing Side Mounting, LH
2016-07 → 2018-01 ended
AGH30,GGH30 07S (S,SA,Z,ZA) ¥330
63244-58010 note Bracket, Removable Roof Housing Side Mounting, LH
2018-11 → 2019-05 ended
AGH30,AYH30 07S (S,Z) ¥330
63244-58010 note Bracket, Removable Roof Housing Side Mounting, LH
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥330
63244-58010 note Bracket, Removable Roof Housing Side Mounting, LH
2018-01 → 2020-01 ended
AYH30,GGH3# EL ¥330
63244-58010 note Bracket, Removable Roof Housing Side Mounting, LH
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥330
63244-58010 note Bracket, Removable Roof Housing Side Mounting, LH
2021-05 → —
AGH30,AYH30 07S S ¥330
63244-58010 note Bracket, Removable Roof Housing Side Mounting, LH
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥330
63244-58010 note Bracket, Removable Roof Housing Side Mounting, LH
2020-04 → 2021-05 ended
AGH30,AYH30 07S (S,Z) ¥330
63244-58010 note Bracket, Removable Roof Housing Side Mounting, LH
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥330
63244-58010 note Bracket, Removable Roof Housing Side Mounting, LH
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥330
63246A — Bracket, Removable Roof, NO.2
63246-58010 note Bracket, Removable Roof, NO.2
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥320
63246-58010 note Bracket, Removable Roof, NO.2
2016-07 → 2018-01 ended
AGH30,GGH30 07S (S,SA,Z,ZA) ¥320
63246-58010 note Bracket, Removable Roof, NO.2
2018-11 → 2019-05 ended
AGH30,AYH30 07S (S,Z) ¥320
63246-58010 note Bracket, Removable Roof, NO.2
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥320
63246-58010 note Bracket, Removable Roof, NO.2
2018-01 → 2020-01 ended
AYH30,GGH3# EL ¥320
63246-58010 note Bracket, Removable Roof, NO.2
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥320
63246-58010 note Bracket, Removable Roof, NO.2
2021-05 → —
AGH30,AYH30 07S S ¥320
63246-58010 note Bracket, Removable Roof, NO.2
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥320
63246-58010 note Bracket, Removable Roof, NO.2
2020-04 → 2021-05 ended
AGH30,AYH30 07S (S,Z) ¥320
63246-58010 note Bracket, Removable Roof, NO.2
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥320
63246-58010 note Bracket, Removable Roof, NO.2
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥320
63247E — Hose, Sliding Roof Drain, Rear RH
63247-58040 note Hose, Sliding Roof Drain, Rear RH
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥320
63247-58040 note Hose, Sliding Roof Drain, Rear RH
2016-07 → 2018-01 ended
AGH30,GGH30 07S (S,SA,Z,ZA) ¥320
63247-58050 note Hose, Sliding Roof Drain, Rear RH
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥1,290
63247-58050 note Hose, Sliding Roof Drain, Rear RH
2016-07 → 2018-01 ended
AGH30,GGH30 07S (S,SA,Z,ZA) ¥1,290
63247-58040 note Hose, Sliding Roof Drain, Rear RH
2018-11 → 2019-05 ended
AGH30,AYH30 07S (S,Z) ¥320
63247-58040 note Hose, Sliding Roof Drain, Rear RH
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥320
63247-58040 note Hose, Sliding Roof Drain, Rear RH
2018-01 → 2020-01 ended
AYH30,GGH3# EL ¥320
63247-58050 note Hose, Sliding Roof Drain, Rear RH
2018-11 → 2019-05 ended
AGH30,AYH30 07S (S,Z) ¥1,290
63247-58050 note Hose, Sliding Roof Drain, Rear RH
2018-01 → 2020-01 ended
AYH30,GGH3# EL ¥1,290
63247-58050 note Hose, Sliding Roof Drain, Rear RH
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥1,290
63247-58040 note Hose, Sliding Roof Drain, Rear RH
2021-05 → —
AGH30,AYH30 07S S ¥320
63247-58040 note Hose, Sliding Roof Drain, Rear RH
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥320
63247-58040 note Hose, Sliding Roof Drain, Rear RH
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥320
63247-58040 note Hose, Sliding Roof Drain, Rear RH
2020-04 → 2021-05 ended
AGH30,AYH30 07S (S,Z) ¥320
63247-58040 note Hose, Sliding Roof Drain, Rear RH
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥320
63247-58040 note Hose, Sliding Roof Drain, Rear RH
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥320
63247-58050 note Hose, Sliding Roof Drain, Rear RH
2020-04 → 2021-05 ended
AGH30,AYH30 07S (S,Z) ¥1,290
63247-58050 note Hose, Sliding Roof Drain, Rear RH
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥1,290
63247-58050 note Hose, Sliding Roof Drain, Rear RH
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥1,290
63247-58050 note Hose, Sliding Roof Drain, Rear RH
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥1,290
63247-58050 note Hose, Sliding Roof Drain, Rear RH
2021-05 → —
AGH30,AYH30 07S S ¥1,290
63247-58050 note Hose, Sliding Roof Drain, Rear RH
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥1,290
63248E — Hose, Sliding Roof Drain, Rear LH
63248-58030 note Hose, Sliding Roof Drain, Rear LH
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥320
63248-58030 note Hose, Sliding Roof Drain, Rear LH
2016-07 → 2018-01 ended
AGH30,GGH30 07S (S,SA,Z,ZA) ¥320
63248-58040 note Hose, Sliding Roof Drain, Rear LH
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥1,040
63248-58040 note Hose, Sliding Roof Drain, Rear LH
2016-07 → 2018-01 ended
AGH30,GGH30 07S (S,SA,Z,ZA) ¥1,040
63248-58030 note Hose, Sliding Roof Drain, Rear LH
2018-11 → 2019-05 ended
AGH30,AYH30 07S (S,Z) ¥320
63248-58030 note Hose, Sliding Roof Drain, Rear LH
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥320
63248-58030 note Hose, Sliding Roof Drain, Rear LH
2018-01 → 2020-01 ended
AYH30,GGH3# EL ¥320
63248-58040 note Hose, Sliding Roof Drain, Rear LH
2018-11 → 2019-05 ended
AGH30,AYH30 07S (S,Z) ¥1,040
63248-58040 note Hose, Sliding Roof Drain, Rear LH
2018-01 → 2020-01 ended
AYH30,GGH3# EL ¥1,040
63248-58040 note Hose, Sliding Roof Drain, Rear LH
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥1,040
63248-58030 note Hose, Sliding Roof Drain, Rear LH
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥320
63248-58030 note Hose, Sliding Roof Drain, Rear LH
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥320
63248-58030 note Hose, Sliding Roof Drain, Rear LH
2020-04 → 2021-05 ended
AGH30,AYH30 07S (S,Z) ¥320
63248-58030 note Hose, Sliding Roof Drain, Rear LH
2021-05 → —
AGH30,AYH30 07S S ¥320
63248-58030 note Hose, Sliding Roof Drain, Rear LH
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥320
63248-58030 note Hose, Sliding Roof Drain, Rear LH
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥320
63248-58040 note Hose, Sliding Roof Drain, Rear LH
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥1,040
63248-58040 note Hose, Sliding Roof Drain, Rear LH
2021-05 → —
AGH30,AYH30 07S S ¥1,040
63248-58040 note Hose, Sliding Roof Drain, Rear LH
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥1,040
63248-58040 note Hose, Sliding Roof Drain, Rear LH
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥1,040
63248-58040 note Hose, Sliding Roof Drain, Rear LH
2020-04 → 2021-05 ended
AGH30,AYH30 07S (S,Z) ¥1,040
63248-58040 note Hose, Sliding Roof Drain, Rear LH
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥1,040
63251H — Weatherstrip, Sliding Roof
63251-58050 note Weatherstrip, Sliding Roof
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥2,900
63251-58050 note Weatherstrip, Sliding Roof
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥2,900
63251-58050 note Weatherstrip, Sliding Roof
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥2,900
63251-58050 note Weatherstrip, Sliding Roof
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥2,900
63258E — Joint, Slide Roof Drain Hose, RH
63258-58040 note Joint, Slide Roof Drain Hose, RH
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥1,310
63258-58040 note Joint, Slide Roof Drain Hose, RH
2016-07 → 2018-01 ended
AGH30,GGH30 07S (S,SA,Z,ZA) ¥1,310
63258-58040 note Joint, Slide Roof Drain Hose, RH
2018-11 → 2019-05 ended
AGH30,AYH30 07S (S,Z) ¥1,310
63258-58040 note Joint, Slide Roof Drain Hose, RH
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥1,310
63258-58040 note Joint, Slide Roof Drain Hose, RH
2018-01 → 2020-01 ended
AYH30,GGH3# EL ¥1,310
63258-58040 note Joint, Slide Roof Drain Hose, RH
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥1,310
63258-58040 note Joint, Slide Roof Drain Hose, RH
2021-05 → —
AGH30,AYH30 07S S ¥1,310
63258-58040 note Joint, Slide Roof Drain Hose, RH
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥1,310
63258-58040 note Joint, Slide Roof Drain Hose, RH
2020-04 → 2021-05 ended
AGH30,AYH30 07S (S,Z) ¥1,310
63258-58040 note Joint, Slide Roof Drain Hose, RH
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥1,310
63258-58040 note Joint, Slide Roof Drain Hose, RH
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥1,310
63259H — Joint, Slide Roof Drain Hose, LH
63259-58030 note Joint, Slide Roof Drain Hose, LH
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥1,310
63259-58030 note Joint, Slide Roof Drain Hose, LH
2016-07 → 2018-01 ended
AGH30,GGH30 07S (S,SA,Z,ZA) ¥1,310
63259-58030 note Joint, Slide Roof Drain Hose, LH
2018-11 → 2019-05 ended
AGH30,AYH30 07S (S,Z) ¥1,310
63259-58030 note Joint, Slide Roof Drain Hose, LH
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥1,310
63259-58030 note Joint, Slide Roof Drain Hose, LH
2018-01 → 2020-01 ended
AYH30,GGH3# EL ¥1,310
63259-58030 note Joint, Slide Roof Drain Hose, LH
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥1,310
63259-58030 note Joint, Slide Roof Drain Hose, LH
2021-05 → —
AGH30,AYH30 07S S ¥1,310
63259-58030 note Joint, Slide Roof Drain Hose, LH
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥1,310
63259-58030 note Joint, Slide Roof Drain Hose, LH
2020-04 → 2021-05 ended
AGH30,AYH30 07S (S,Z) ¥1,310
63259-58030 note Joint, Slide Roof Drain Hose, LH
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥1,310
63259-58030 note Joint, Slide Roof Drain Hose, LH
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥1,310
63260J — Gear Assy, Sliding Roof Drive
63260-58030 note Gear Assy, Sliding Roof Drive
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥32,500
63260-58030 note Gear Assy, Sliding Roof Drive
2016-07 → 2018-01 ended
AGH30,GGH30 07S (S,SA,Z,ZA) ¥32,500
63260-58030 note Gear Assy, Sliding Roof Drive
2018-11 → 2019-05 ended
AGH30,AYH30 07S (S,Z) ¥32,500
63260-58030 note Gear Assy, Sliding Roof Drive
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥32,500
63260-58030 note Gear Assy, Sliding Roof Drive
2018-01 → 2020-01 ended
AYH30,GGH3# EL ¥32,500
63260-58030 note Gear Assy, Sliding Roof Drive
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥32,500
63260-58030 note Gear Assy, Sliding Roof Drive
2021-05 → —
AGH30,AYH30 07S S ¥32,500
63260-58030 note Gear Assy, Sliding Roof Drive
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥32,500
63260-58030 note Gear Assy, Sliding Roof Drive
2020-04 → 2021-05 ended
AGH30,AYH30 07S (S,Z) ¥32,500
63260-58030 note Gear Assy, Sliding Roof Drive
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥32,500
63260-58030 note Gear Assy, Sliding Roof Drive
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥32,500
63263C — Plate, Sliding Roof Lock Catch, RH
63263-60030 note Plate, Sliding Roof Lock Catch, RH
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥200
63263-60030 note Plate, Sliding Roof Lock Catch, RH
2016-07 → 2018-01 ended
AGH30,GGH30 07S (S,SA,Z,ZA) ¥200
63263-60030 note Plate, Sliding Roof Lock Catch, RH
2018-11 → 2019-05 ended
AGH30,AYH30 07S (S,Z) ¥200
63263-60030 note Plate, Sliding Roof Lock Catch, RH
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥200
63263-60030 note Plate, Sliding Roof Lock Catch, RH
2018-01 → 2020-01 ended
AYH30,GGH3# EL ¥200
63263-60030 note Plate, Sliding Roof Lock Catch, RH
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥200
63263-60030 note Plate, Sliding Roof Lock Catch, RH
2021-05 → —
AGH30,AYH30 07S S ¥200
63263-60030 note Plate, Sliding Roof Lock Catch, RH
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥200
63263-60030 note Plate, Sliding Roof Lock Catch, RH
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥200
63263-60030 note Plate, Sliding Roof Lock Catch, RH
2020-04 → 2021-05 ended
AGH30,AYH30 07S (S,Z) ¥200
63263-60030 note Plate, Sliding Roof Lock Catch, RH
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥200
63263D — Plate, Sliding Roof Lock Catch, LH
63263-60030 note Plate, Sliding Roof Lock Catch, LH
2021-05 → —
AGH30,AYH30 07S S ¥200
63263-60030 note Plate, Sliding Roof Lock Catch, LH
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥200
63263-60030 note Plate, Sliding Roof Lock Catch, LH
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥200
63263-60030 note Plate, Sliding Roof Lock Catch, LH
2020-04 → 2021-05 ended
AGH30,AYH30 07S (S,Z) ¥200
63263-60030 note Plate, Sliding Roof Lock Catch, LH
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥200
63263-60030 note Plate, Sliding Roof Lock Catch, LH
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥200
63287E — Cap, Sliding Roof Housing Drain End, RH
63287-58010 note Cap, Sliding Roof Housing Drain End, RH
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥1,620
63287-58010 note Cap, Sliding Roof Housing Drain End, RH
2016-07 → 2018-01 ended
AGH30,GGH30 07S (S,SA,Z,ZA) ¥1,620
63287-58010 note Cap, Sliding Roof Housing Drain End, RH
2018-11 → 2019-05 ended
AGH30,AYH30 07S (S,Z) ¥1,620
63287-58010 note Cap, Sliding Roof Housing Drain End, RH
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥1,620
63287-58010 note Cap, Sliding Roof Housing Drain End, RH
2018-01 → 2020-01 ended
AYH30,GGH3# EL ¥1,620
63287-58010 note Cap, Sliding Roof Housing Drain End, RH
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥1,620
63287-58010 note Cap, Sliding Roof Housing Drain End, RH
2021-05 → —
AGH30,AYH30 07S S ¥1,620
63287-58010 note Cap, Sliding Roof Housing Drain End, RH
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥1,620
63287-58010 note Cap, Sliding Roof Housing Drain End, RH
2020-04 → 2021-05 ended
AGH30,AYH30 07S (S,Z) ¥1,620
63287-58010 note Cap, Sliding Roof Housing Drain End, RH
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥1,620
63287-58010 note Cap, Sliding Roof Housing Drain End, RH
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥1,620
63288B — Cap, Sliding Roof Housing Drain End, LH
63288-58010 note Cap, Sliding Roof Housing Drain End, LH
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥1,620
63288-58010 note Cap, Sliding Roof Housing Drain End, LH
2016-07 → 2018-01 ended
AGH30,GGH30 07S (S,SA,Z,ZA) ¥1,620
63288-58010 note Cap, Sliding Roof Housing Drain End, LH
2018-11 → 2019-05 ended
AGH30,AYH30 07S (S,Z) ¥1,620
63288-58010 note Cap, Sliding Roof Housing Drain End, LH
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥1,620
63288-58010 note Cap, Sliding Roof Housing Drain End, LH
2018-01 → 2020-01 ended
AYH30,GGH3# EL ¥1,620
63288-58010 note Cap, Sliding Roof Housing Drain End, LH
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥1,620
63288-58010 note Cap, Sliding Roof Housing Drain End, LH
2021-05 → —
AGH30,AYH30 07S S ¥1,620
63288-58010 note Cap, Sliding Roof Housing Drain End, LH
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥1,620
63288-58010 note Cap, Sliding Roof Housing Drain End, LH
2020-04 → 2021-05 ended
AGH30,AYH30 07S (S,Z) ¥1,620
63288-58010 note Cap, Sliding Roof Housing Drain End, LH
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥1,620
63288-58010 note Cap, Sliding Roof Housing Drain End, LH
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥1,620
63625 — Block, Sliding Roof Guide, RH
63625-58010 note Block, Sliding Roof Guide, RH
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥220
63625-58010 note Block, Sliding Roof Guide, RH
2016-07 → 2018-01 ended
AGH30,GGH30 07S (S,SA,Z,ZA) ¥220
63625-58010 note Block, Sliding Roof Guide, RH
2018-11 → 2019-05 ended
AGH30,AYH30 07S (S,Z) ¥220
63625-58010 note Block, Sliding Roof Guide, RH
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥220
63625-58010 note Block, Sliding Roof Guide, RH
2018-01 → 2020-01 ended
AYH30,GGH3# EL ¥220
63625-58010 note Block, Sliding Roof Guide, RH
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥220
63625-58010 note Block, Sliding Roof Guide, RH
2021-05 → —
AGH30,AYH30 07S S ¥220
63625-58010 note Block, Sliding Roof Guide, RH
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥220
63625-58010 note Block, Sliding Roof Guide, RH
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥220
63625-58010 note Block, Sliding Roof Guide, RH
2020-04 → 2021-05 ended
AGH30,AYH30 07S (S,Z) ¥220
63625-58010 note Block, Sliding Roof Guide, RH
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥220
63626 — Block, Sliding Roof Guide, LH
63626-58010 note Block, Sliding Roof Guide, LH
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥220
63626-58010 note Block, Sliding Roof Guide, LH
2016-07 → 2018-01 ended
AGH30,GGH30 07S (S,SA,Z,ZA) ¥220
63626-58010 note Block, Sliding Roof Guide, LH
2018-11 → 2019-05 ended
AGH30,AYH30 07S (S,Z) ¥220
63626-58010 note Block, Sliding Roof Guide, LH
2018-01 → 2020-01 ended
AYH30,GGH3# EL ¥220
63626-58010 note Block, Sliding Roof Guide, LH
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥220
63626-58010 note Block, Sliding Roof Guide, LH
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥220
63626-58010 note Block, Sliding Roof Guide, LH
2021-05 → —
AGH30,AYH30 07S S ¥220
63626-58010 note Block, Sliding Roof Guide, LH
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥220
63626-58010 note Block, Sliding Roof Guide, LH
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥220
63626-58010 note Block, Sliding Roof Guide, LH
2020-04 → 2021-05 ended
AGH30,AYH30 07S (S,Z) ¥220
63626-58010 note Block, Sliding Roof Guide, LH
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥220
63669A — Grommet, Sliding Roof Drain
63669-30040 note Grommet, Sliding Roof Drain
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥400
63669-30040 note Grommet, Sliding Roof Drain
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥400
63669-30040 note Grommet, Sliding Roof Drain
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥400
63669-30040 note Grommet, Sliding Roof Drain
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥400
63801C — Glass Sub-assy, Rear Slide Roof
63801-58040 note Glass Sub-assy, Rear Slide Roof
2015-01 → 2018-01 ended
GGH35 EL,GF,VL;AGH30,AYH30,GGH30 ¥62,400
63801-58040 note Glass Sub-assy, Rear Slide Roof
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30;GGH35 EL,ELS,ELZ,GF,VL ¥62,400
63801-58040 note Glass Sub-assy, Rear Slide Roof
2020-01 → 2021-04 ended
AGH30 G,ZR) 08S Z;GGH35 +4 ¥62,400
63801-58040 note Glass Sub-assy, Rear Slide Roof
2020-01 → —
AGH30,AYH30 07S Z;AGH30,AYH30,GGH30 ALPHD;GGH35 +2 ¥62,400
63804C — Housing Sub-assy, Rear Slide Roof
63804-58040-A0 note Housing Sub-assy, Rear Slide Roof
2015-01 → 2018-01 ended
GGH35 GF,VL;AGH30,AYH30,GGH30 G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ¥133,000
63804-58040-B0 note Housing Sub-assy, Rear Slide Roof
2015-01 → 2018-01 ended
GGH35 GF,VL;AGH30,AYH30,GGH30 G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ¥133,000
63804-58050-A0 note Housing Sub-assy, Rear Slide Roof
2015-01 → 2018-01 ended
AYH30,GGH3# EL ¥135,000
63804-58050-C0 note Housing Sub-assy, Rear Slide Roof
2015-01 → 2018-01 ended
AYH30,GGH3# EL ¥135,000
63804-58050-C0 note Housing Sub-assy, Rear Slide Roof
2016-07 → 2018-01 ended
AGH30,GGH30 07S (S,SA,Z,ZA) ¥135,000
63804-58060-A0 note Housing Sub-assy, Rear Slide Roof
2018-01 → 2020-01 ended
AGH30,AYH30,GGH3# G,GF,V,VL,X ¥111,000
63804-58060-A0 note Housing Sub-assy, Rear Slide Roof
2018-01 → 2020-01 ended
AYH30,GGH3# EL ¥111,000
63804-58060-B0 note Housing Sub-assy, Rear Slide Roof
2018-01 → 2020-01 ended
AGH30,AYH30,GGH30 S,SC,SR,Z,ZG,ZR ¥111,000
63804-58070-C0 note Housing Sub-assy, Rear Slide Roof
2018-11 → 2019-05 ended
AGH30,AYH30 07S (S,Z) ¥113,000
63804-58070-C0 note Housing Sub-assy, Rear Slide Roof
2018-01 → 2020-01 ended
AYH30,GGH3# EL,ELS,ELZ ¥113,000
63804-58060-A0 note Housing Sub-assy, Rear Slide Roof
2020-01 → 2021-04 ended
AGH30,AYH30,GGH3# VFIRE (V,VL,X) ¥111,000
63804-58060-A0 note Housing Sub-assy, Rear Slide Roof
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥111,000
63804-58060-A0 note Housing Sub-assy, Rear Slide Roof
2020-01 → —
AGH30,AYH30,GGH3# ALPHD (G,GF,X) ¥111,000
63804-58060-A0 note Housing Sub-assy, Rear Slide Roof
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥111,000
63804-58060-B0 note Housing Sub-assy, Rear Slide Roof
2020-01 → 2021-04 ended
AGH30 08S Z;AYH30,GGH30 ZG,ZR ¥111,000
63804-58060-B0 note Housing Sub-assy, Rear Slide Roof
2020-01 → 2021-05 ended
AGH30,AYH30 07S Z ¥111,000
63804-58060-B0 note Housing Sub-assy, Rear Slide Roof
2020-01 → —
AGH30,AYH30,GGH30 S,SC,SR ¥111,000
63804-58070-C0 note Housing Sub-assy, Rear Slide Roof
2021-05 → —
AGH30,AYH30 07S S ¥113,000
63804-58070-C0 note Housing Sub-assy, Rear Slide Roof
2021-05 → —
AGH30,AYH30 07S Z ¥113,000
63804-58070-C0 note Housing Sub-assy, Rear Slide Roof
2020-01 → —
AYH30,GGH3# ALPHD (EL,ELS) ¥113,000
63804-58070-C0 note Housing Sub-assy, Rear Slide Roof
2020-04 → 2021-05 ended
AGH30,AYH30 07S (S,Z) ¥113,000
63804-58070-C0 note Housing Sub-assy, Rear Slide Roof
2020-01 → 2021-04 ended
AYH30,GGH3# VFIRE (EL,ELZ) ¥113,000
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
