Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH3#,AYH30,GGH3# · catalogue 713140 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 8 illustrations

Illustrations

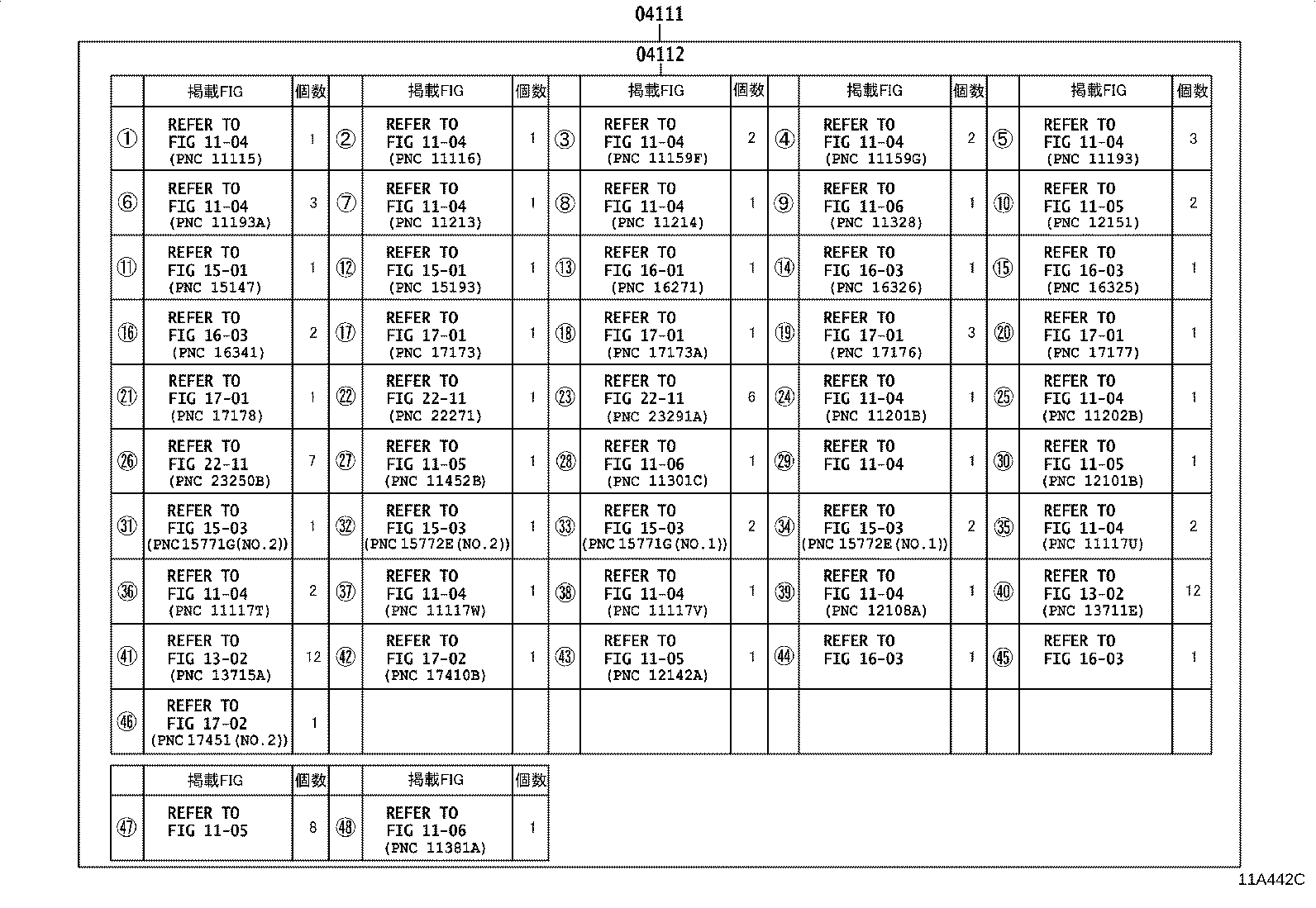

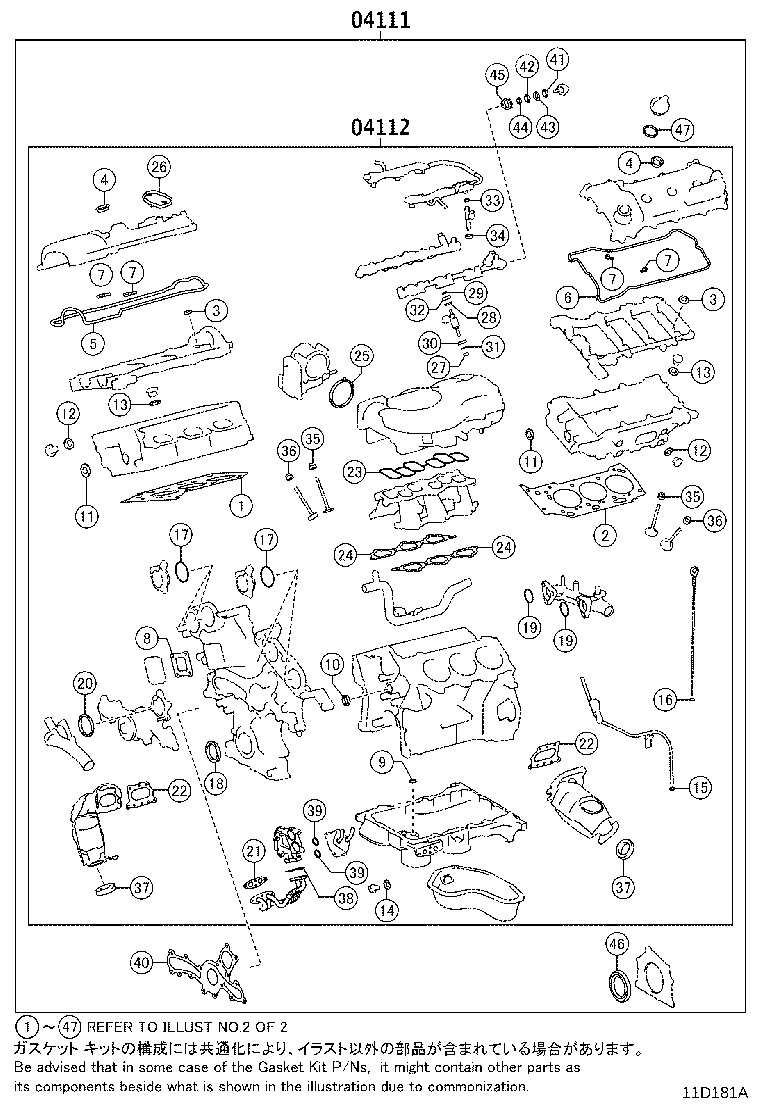

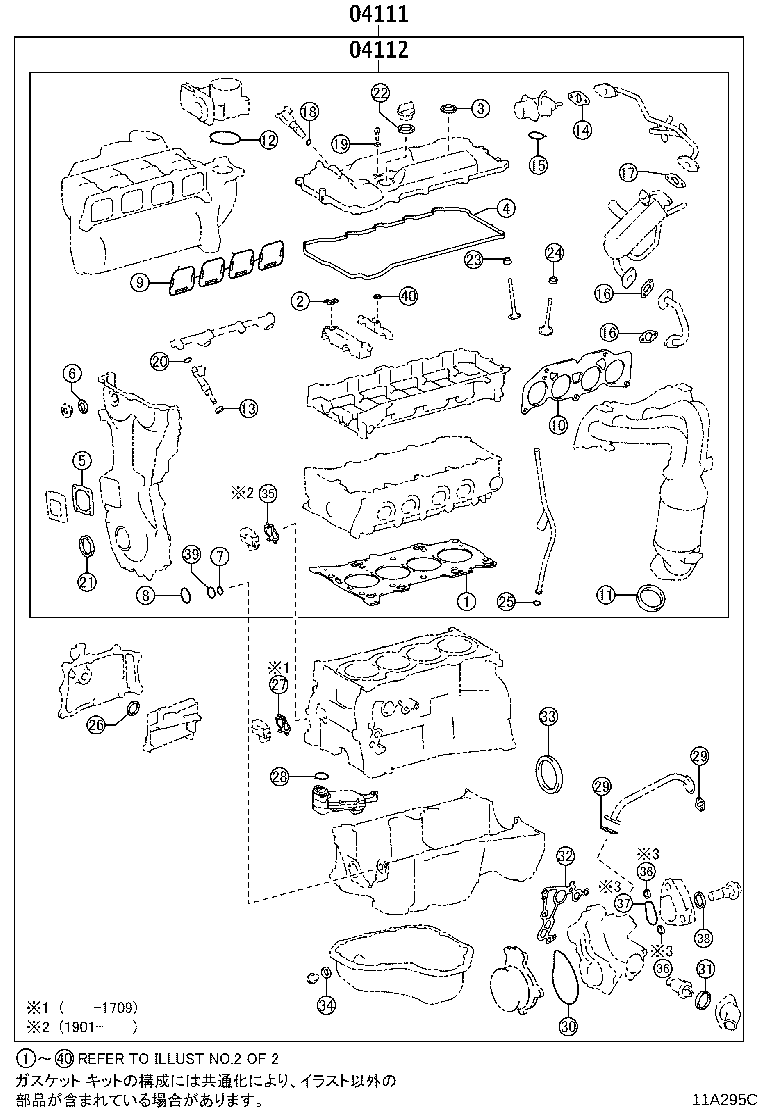

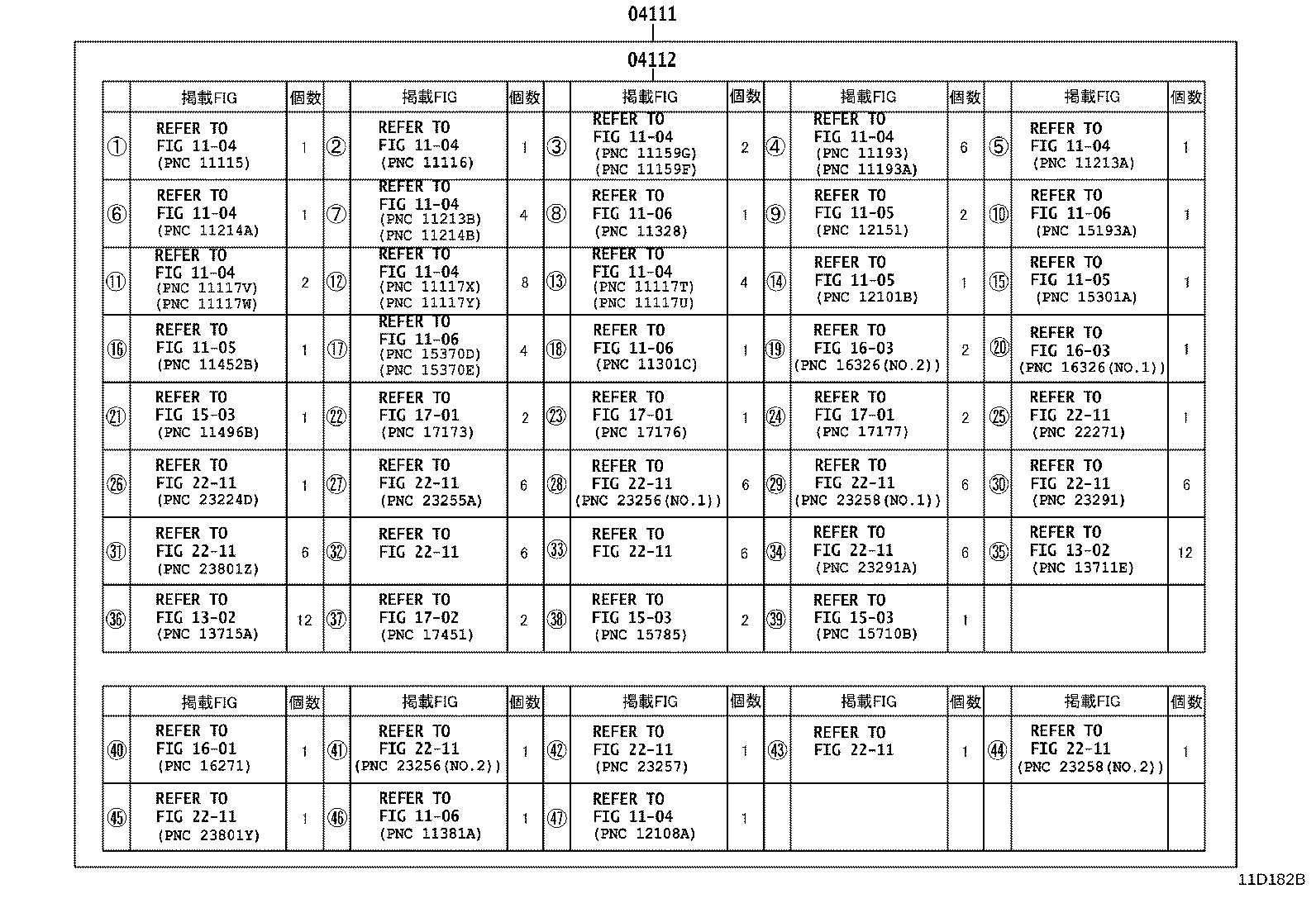

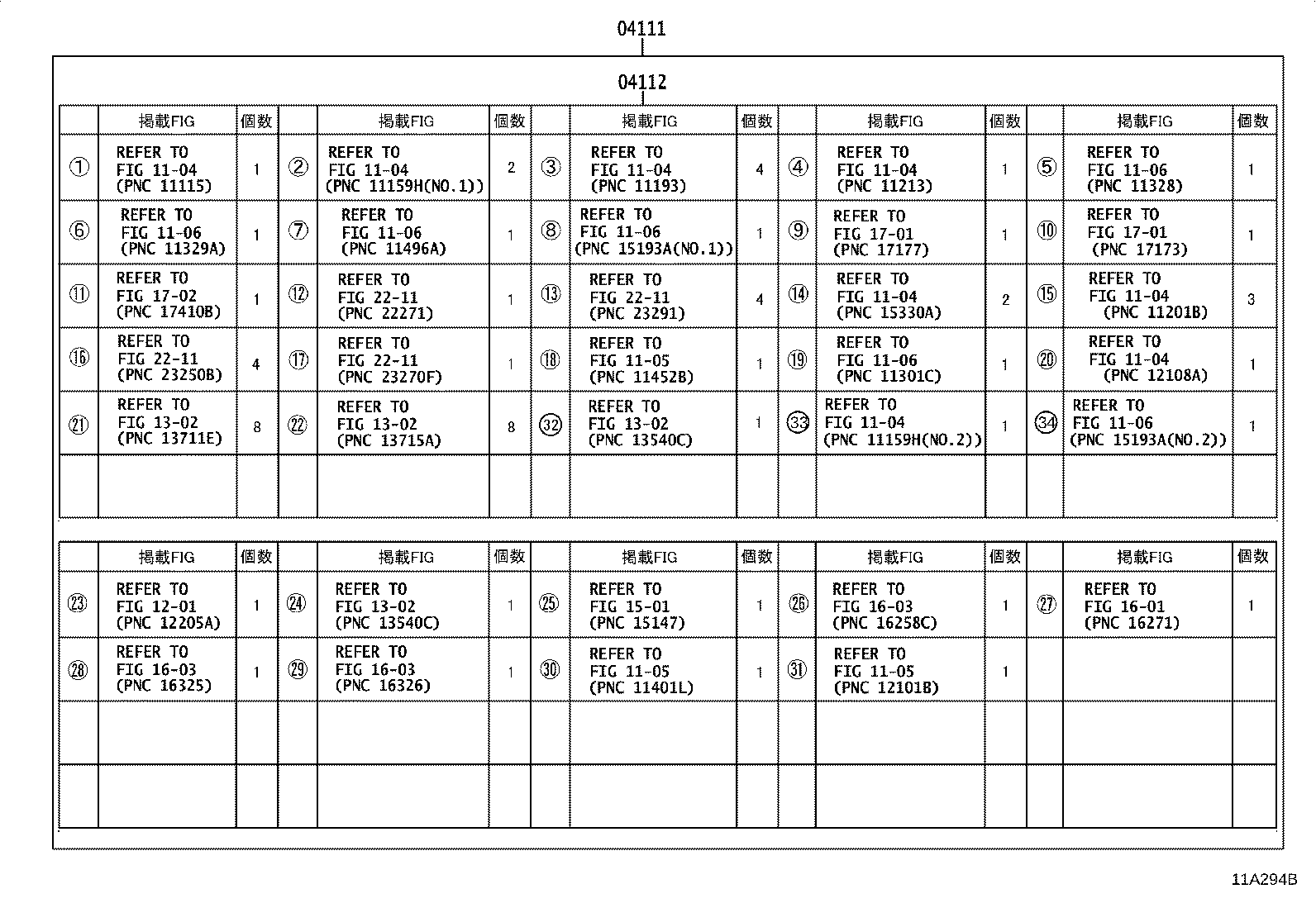

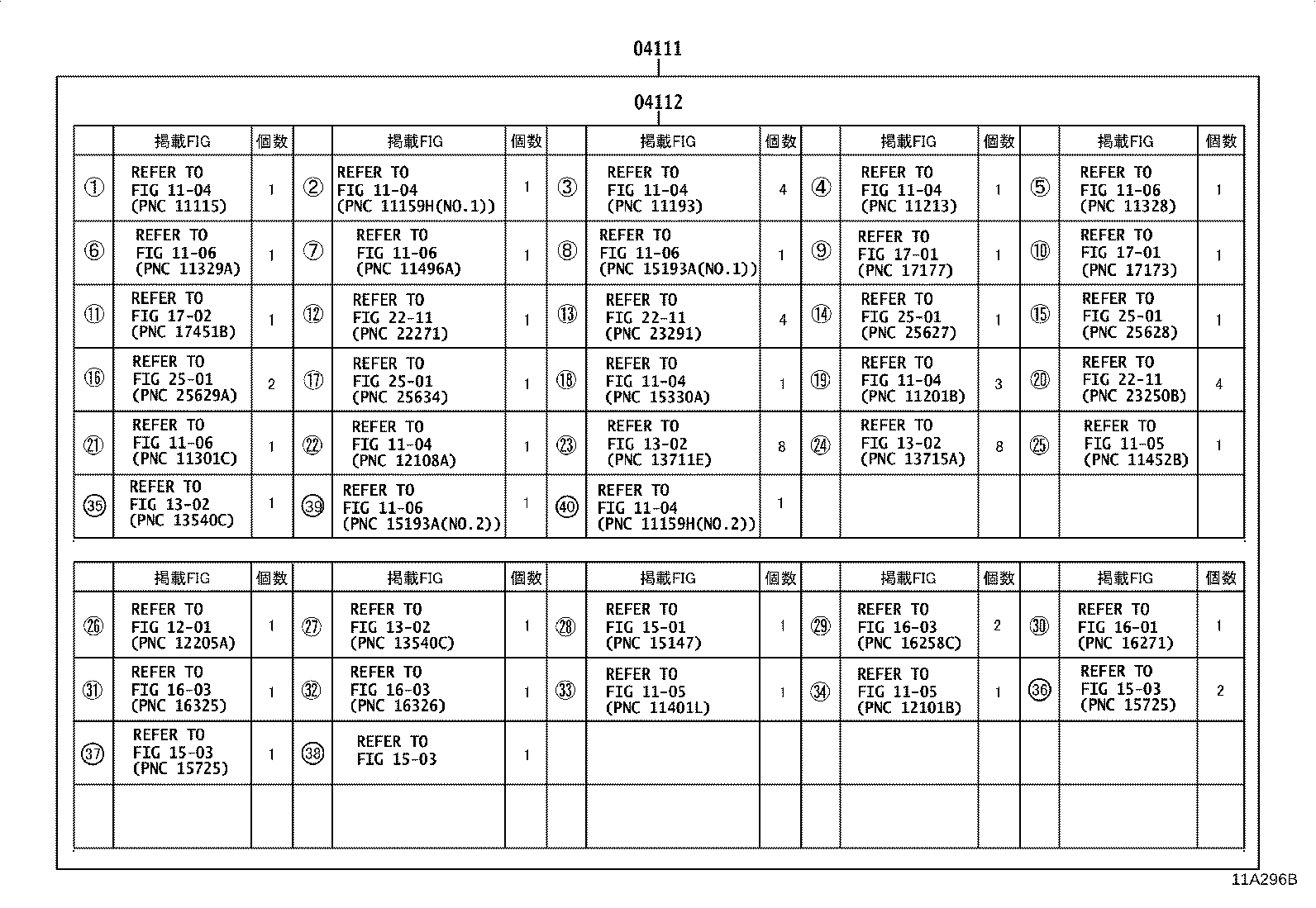

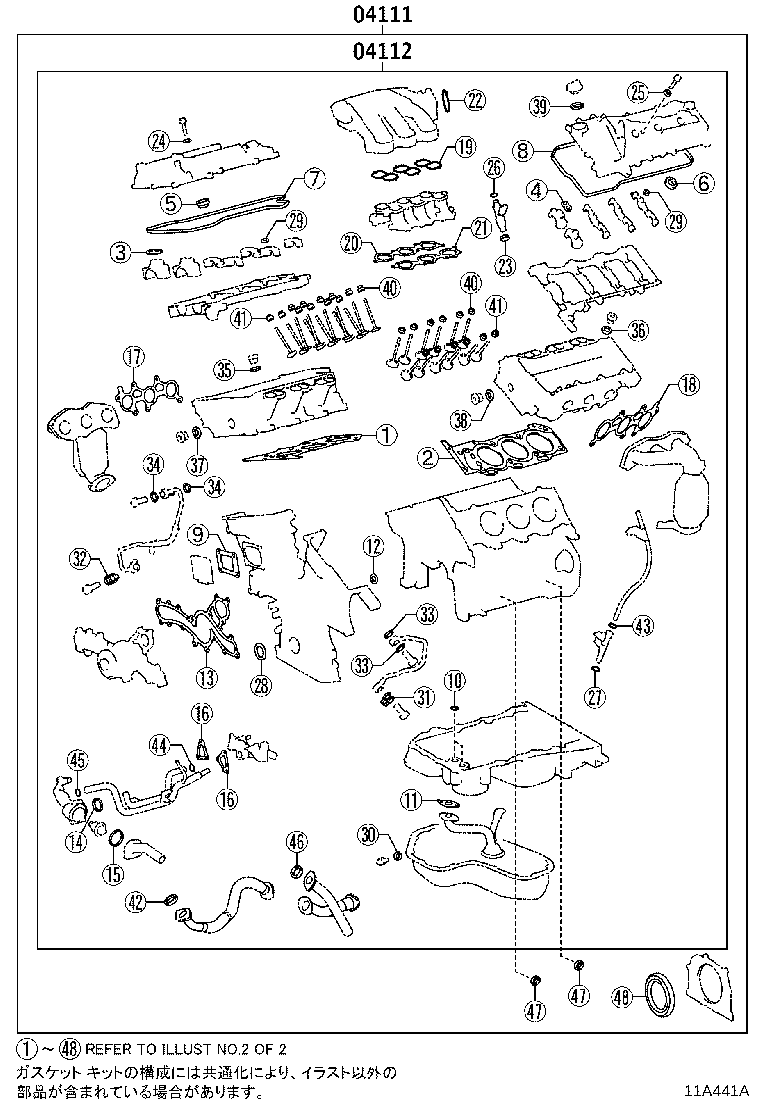

Figure 11A293C 11A293C 2015-01 → — Figure 11A294B 11A294B 2015-01 → — Figure 11A295C 11A295C 2015-01 → — Figure 11A296B 11A296B 2015-01 → — Figure 11A441A 11A441A 2015-01 → 2018-01 Figure 11A442C 11A442C 2015-01 → 2018-01 Figure 11D181A 11D181A 2018-01 → — Figure 11D182B 11D182B 2018-01 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
