Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH3#,AYH30,GGH3# · catalogue 713140 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

28 part groups · 6 illustrations

Illustrations

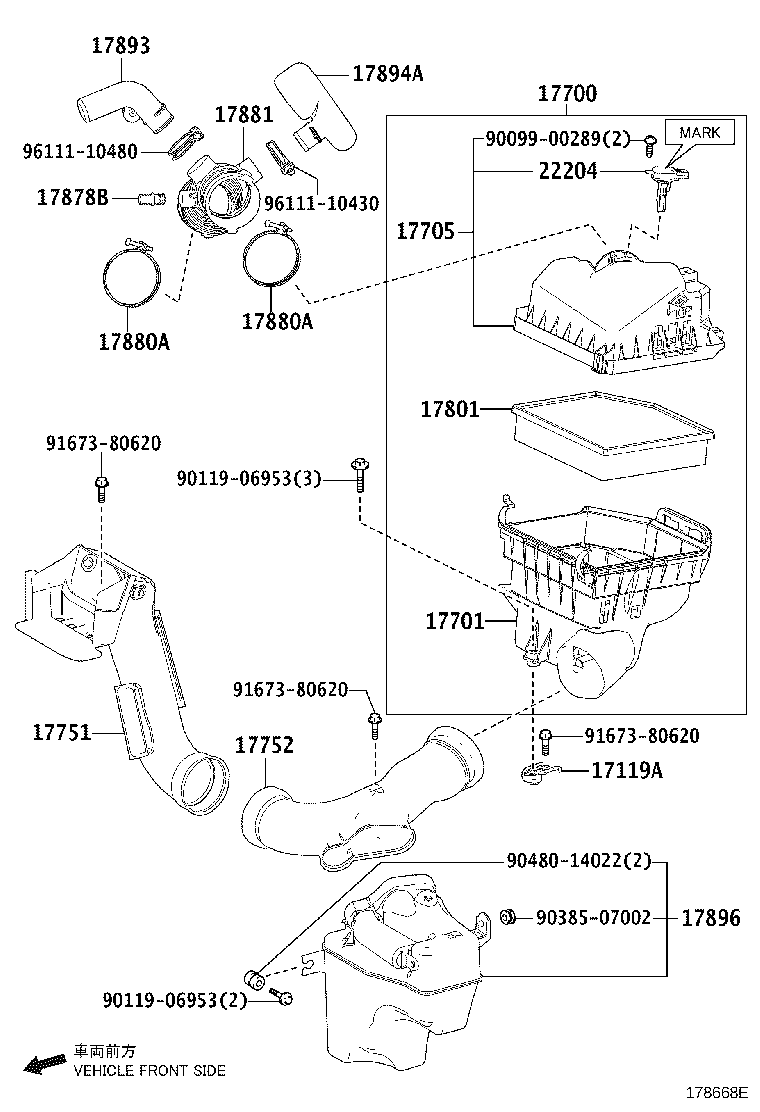

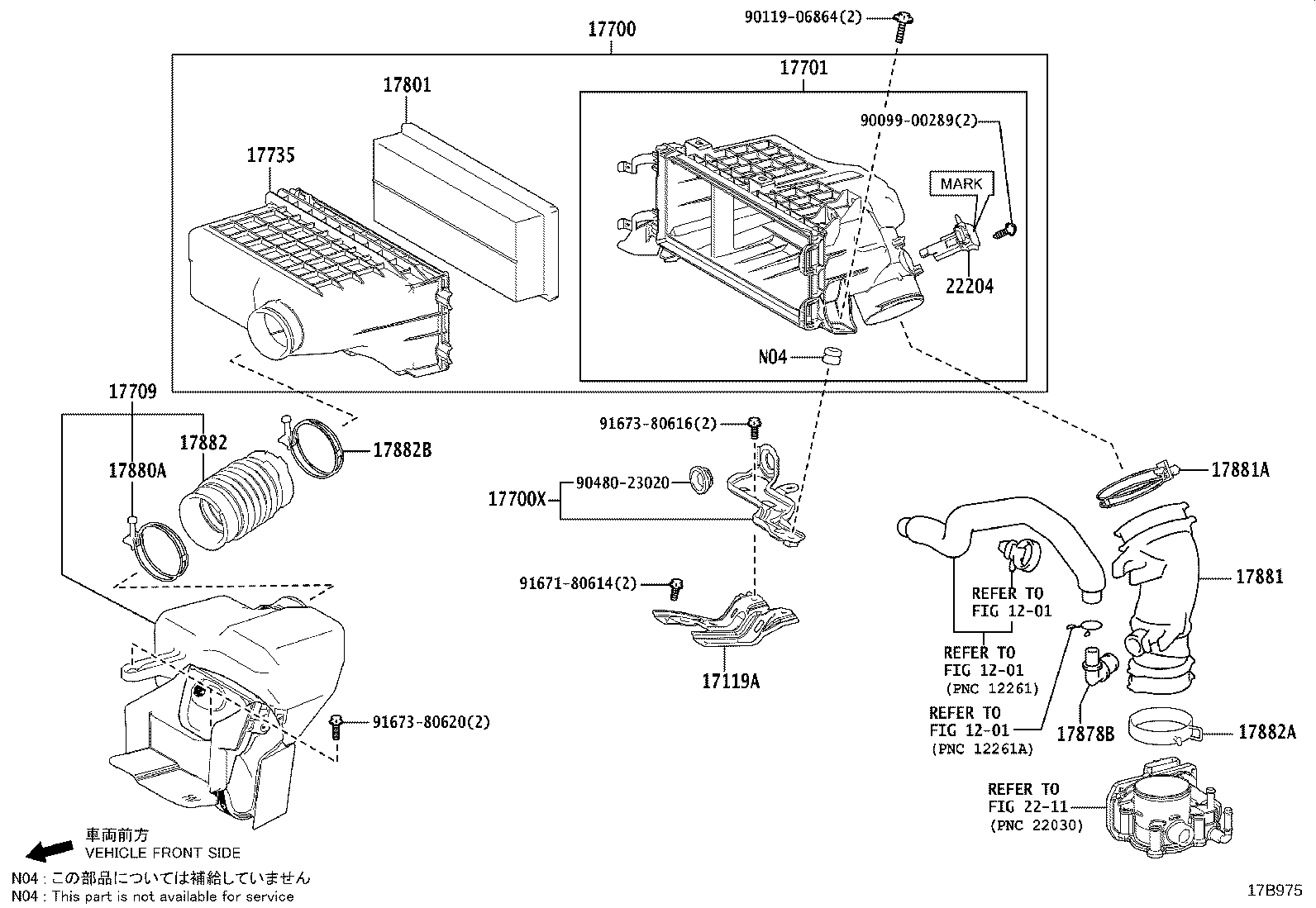

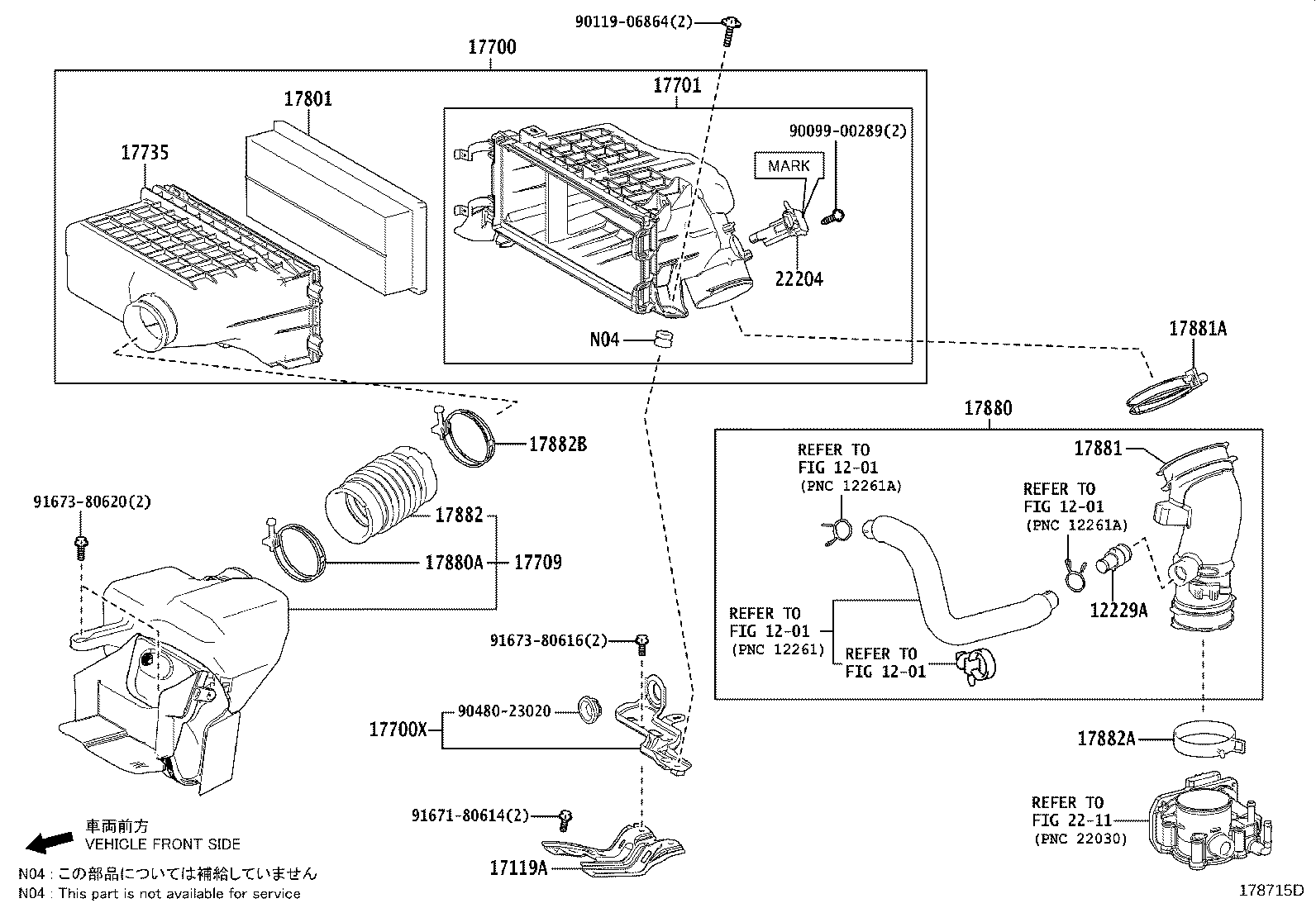

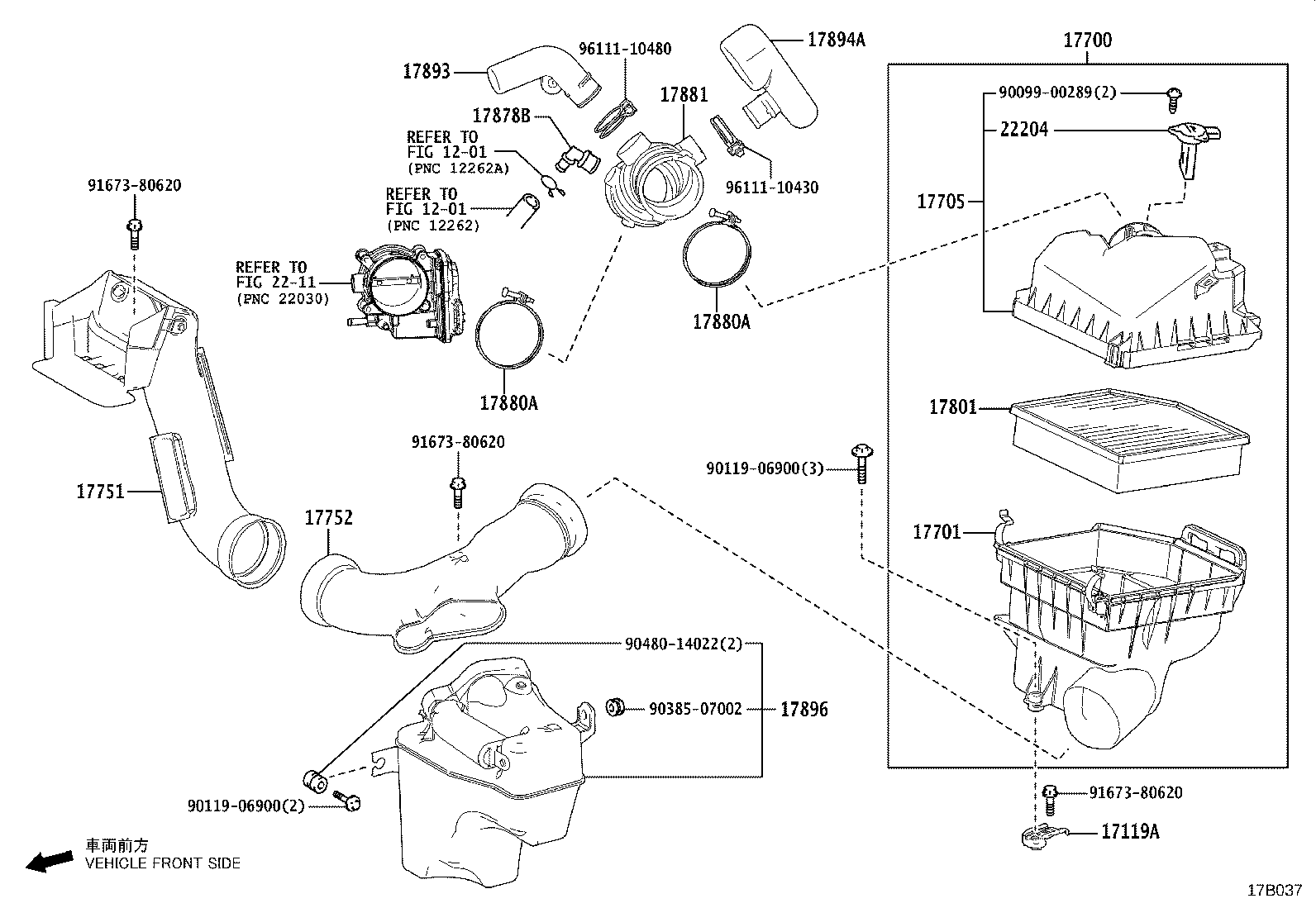

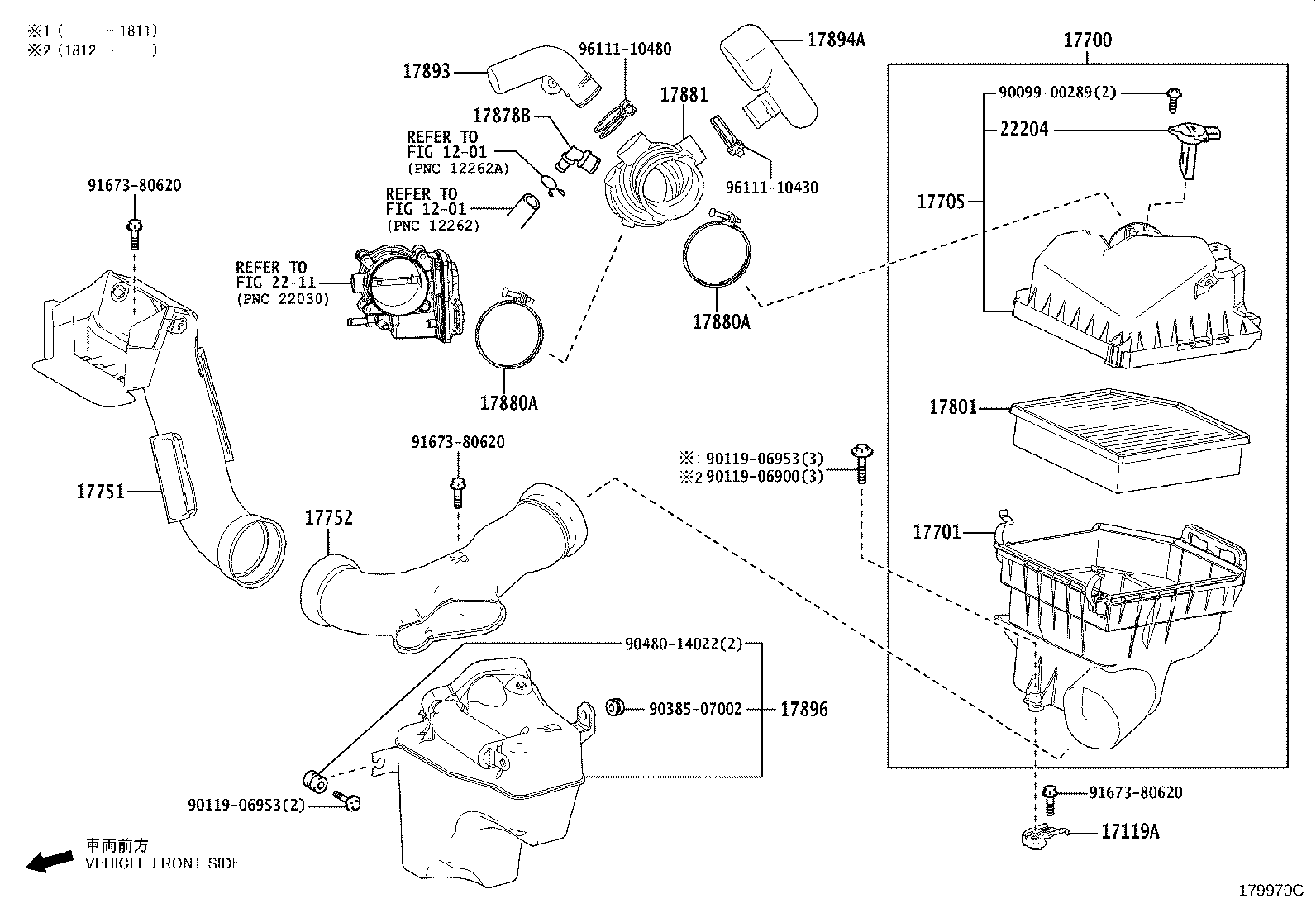

Figure 178716D 178716D 2015-01 → — Figure 178715D 178715D 2015-01 → 2022-05 Figure 17B975 17B975 2022-05 → — Figure 178668E 178668E 2015-01 → 2018-01 Figure 179970C 179970C 2018-01 → 2020-01 Figure 17B037 17B037 2020-01 → —

Part groups

PNCDescription
12229A Pipe, Ventilation
17119A Bracket, Air Cleaner
17700 Cleaner Assy, Air
17700X Bracket, Air Cleaner
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17709 Inlet Sub-assy, Air Cleaner
17710B Grommet
17735 Cap, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17801 Element Sub-assy, Air Cleaner Filter
17878B Tube, Ventilation
17880 Hose Assy, Air Cleaner
17880A Clamp, Hose
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881D Tube, Union(FOG AIR CLEANER HOSE)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17882B Clamp(FOR COOL AIR INTAKE)
17893 Resonator, Intake Air
17893A Clamp, Hose
17894A Resonator, Intake Air, NO.2
17894B Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
17896 Resonator, Intake Air, NO.3
17896A Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.3)
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
