Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH3#,AYH30,GGH3# · catalogue 713140 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

14 part groups · 5 illustrations

Illustrations

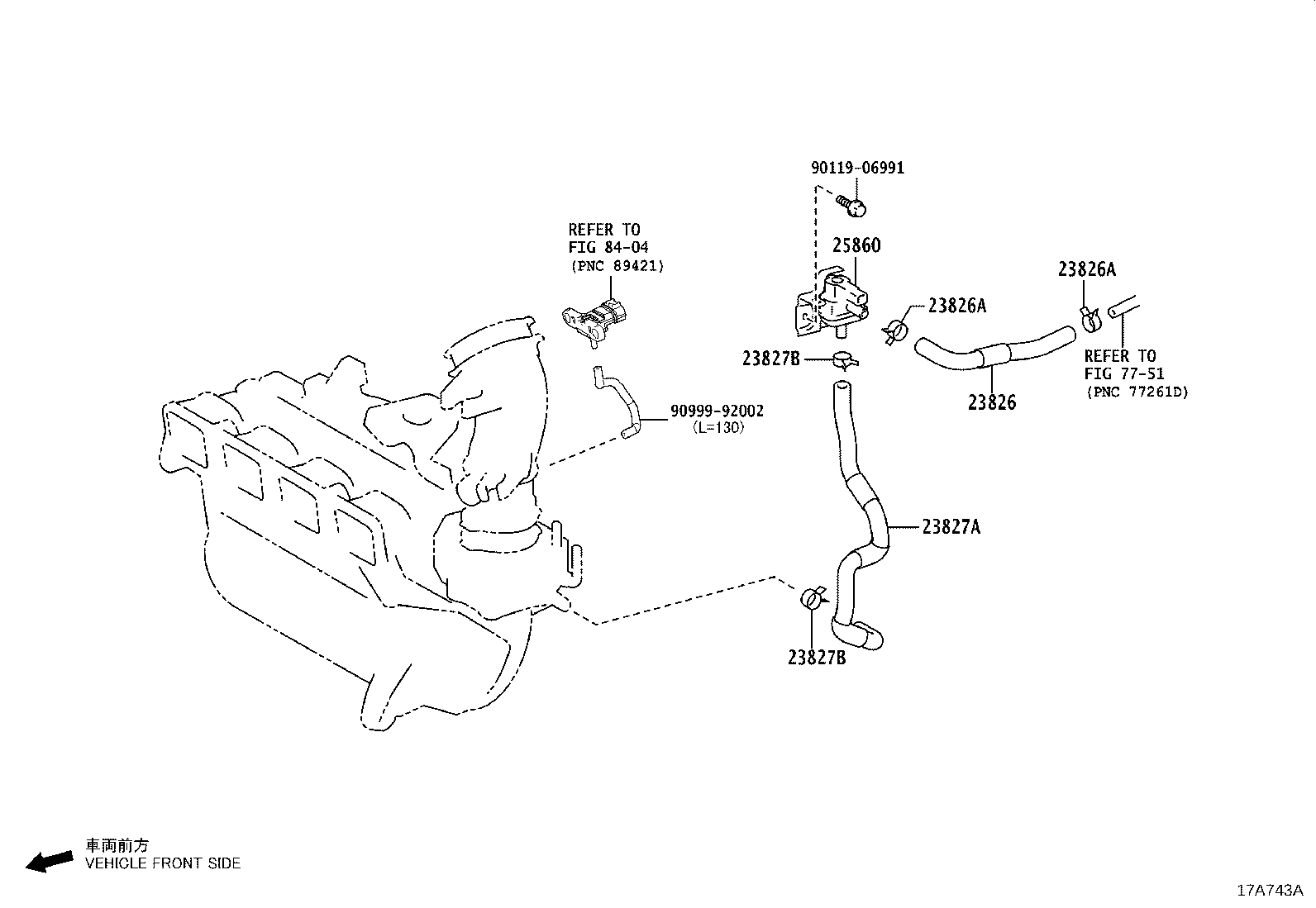

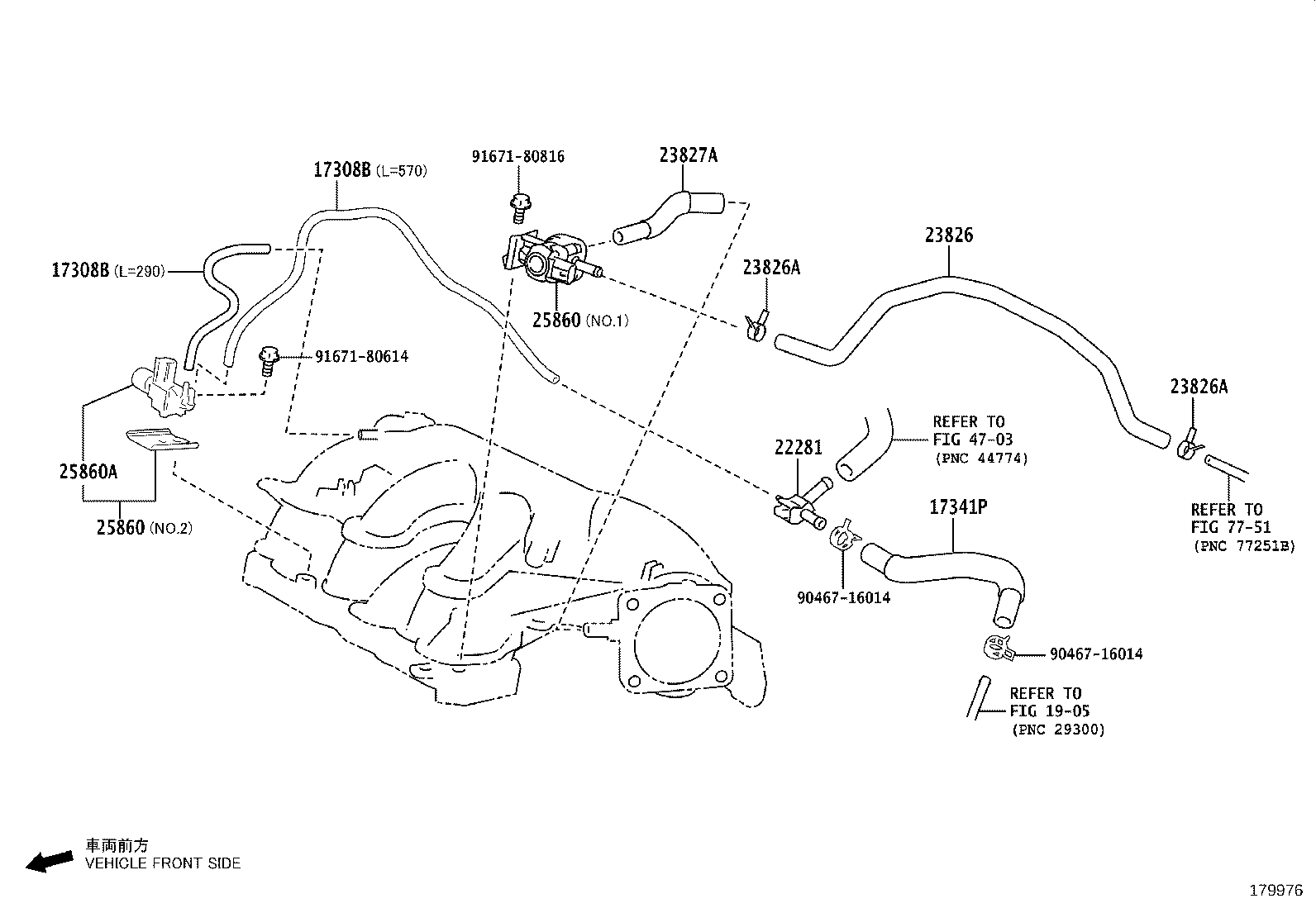

Figure 178726A 178726A 2015-01 → — Figure 178727C 178727C 2015-01 → 2022-05 Figure 17A743A 17A743A 2022-05 → — Figure 178664A 178664A 2015-01 → 2018-01 Figure 179976 179976 2018-01 → —

Part groups

PNCDescription
17308B Hose Sub-assy, Vacuum
17341P Hose, Air
17650 Valve Assy, Vacuum Switching
22281 Way, Air Delivery
23285A Valve, Check, NO.1
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
23849E Support, Fuel Hose Clamp
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
