Toyota Alphard/Vellfire/HV
2015-01 → present · chassis AGH3#,AYH30,GGH3# · catalogue 713140 · Japan
Supported model
Data version 2020-01

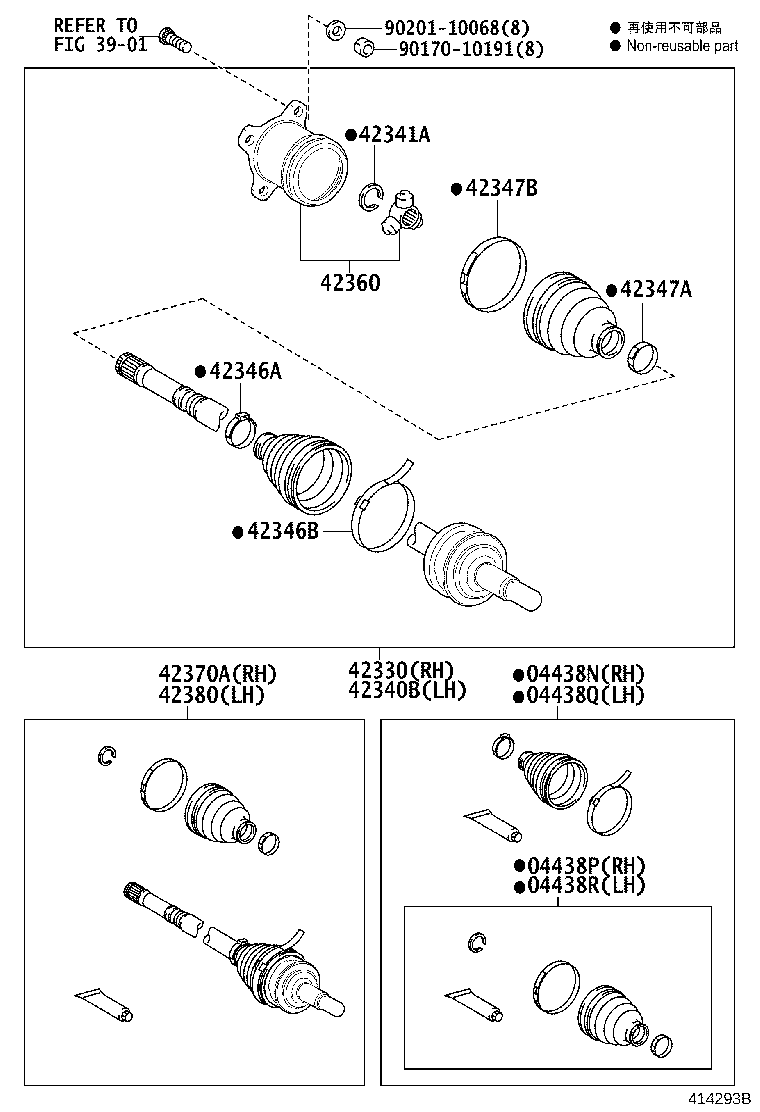

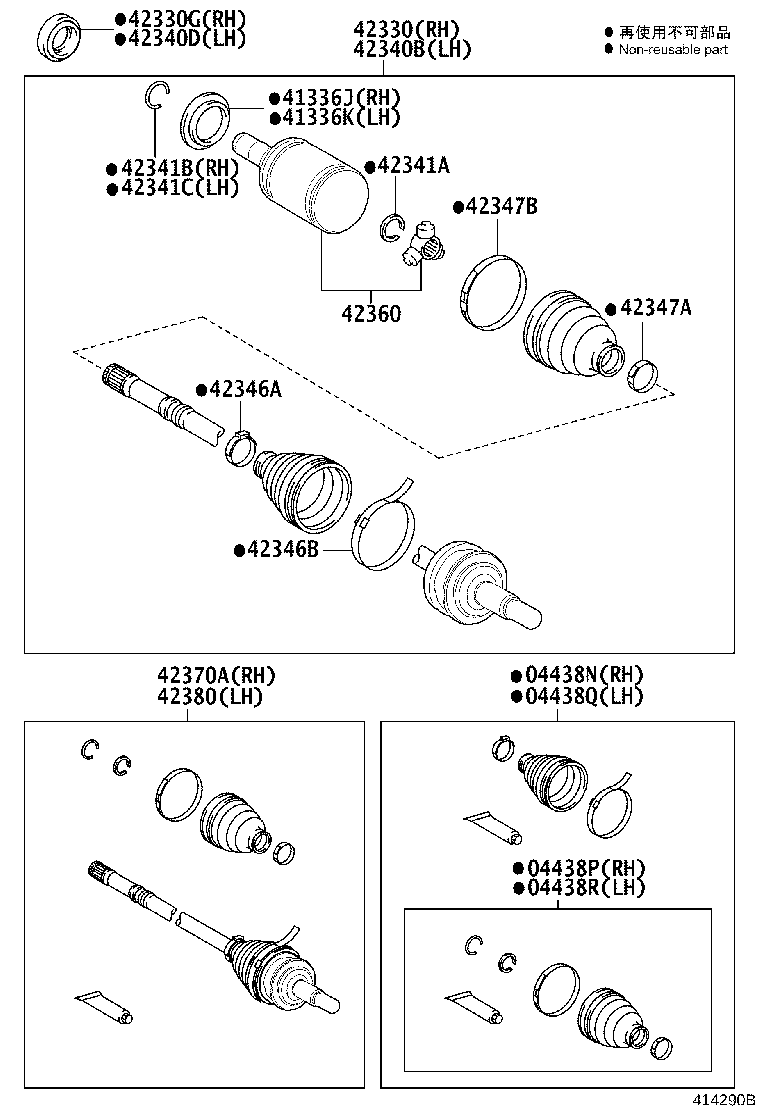

Rear Axle Shaft & Hub
27 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04438N | Boot Kit, Rear Drive Shaft, IN & Outboard Joint, RH |
| 04438P | Boot Kit, Rear Drive Shaft, Inboard Joint, RH |
| 04438Q | Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH |
| 04438R | Boot Kit, Rear Drive Shaft, Inboard Joint, LH |
| 41336J | Cover, Rear Drive Shaft Dust, RH |
| 41336K | Cover, Rear Drive Shaft Dust, LH |
| 42311N | Nut(FOR REAR AXLE SHAFT RH) |
| 42311U | Bolt, Hub(FOR REAR AXLE RH) |
| 42312B | Nut(FOR REAR AXLE SHAFT LH) |
| 42312E | Bolt, Hub(FOR REAR AXLE LH) |
| 42330 | Shaft Assy, Rear Drive, RH |
| 42330G | Oil Seal, Rear Drive Shaft, RH |
| 42340B | Shaft Assy, Rear Drive, LH |
| 42340D | Oil Seal, Rear Drive Shaft, LH |
| 42341A | Ring, Snap (FOR REAR DRIVE SHAFT) |
| 42341B | Ring, Snap (FOR REAR DRIVE SHAFT RH) |
| 42341C | Ring, Snap (FOR REAR DRIVE SHAFT LH) |
| 42346A | Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) |
| 42346B | Clamp, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT) |
| 42347A | Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) |
| 42347B | Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) |
| 42360 | Joint Assy, Rear Drive Shaft Inboard |
| 42370A | Shaft Assy, Rear Drive Outboard Joint, RH |
| 42380 | Shaft Assy, Rear Drive Outboard Joint, LH |
| 42431 | Disc, Rear |
| 42450A | Hub & Bearing Assy, Rear Axle, RH |
| 42450B | Hub & Bearing Assy, Rear Axle, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
