Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH3#,AYH30,GGH3# · catalogue 713140 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

47 part groups · 18 illustrations

Illustrations

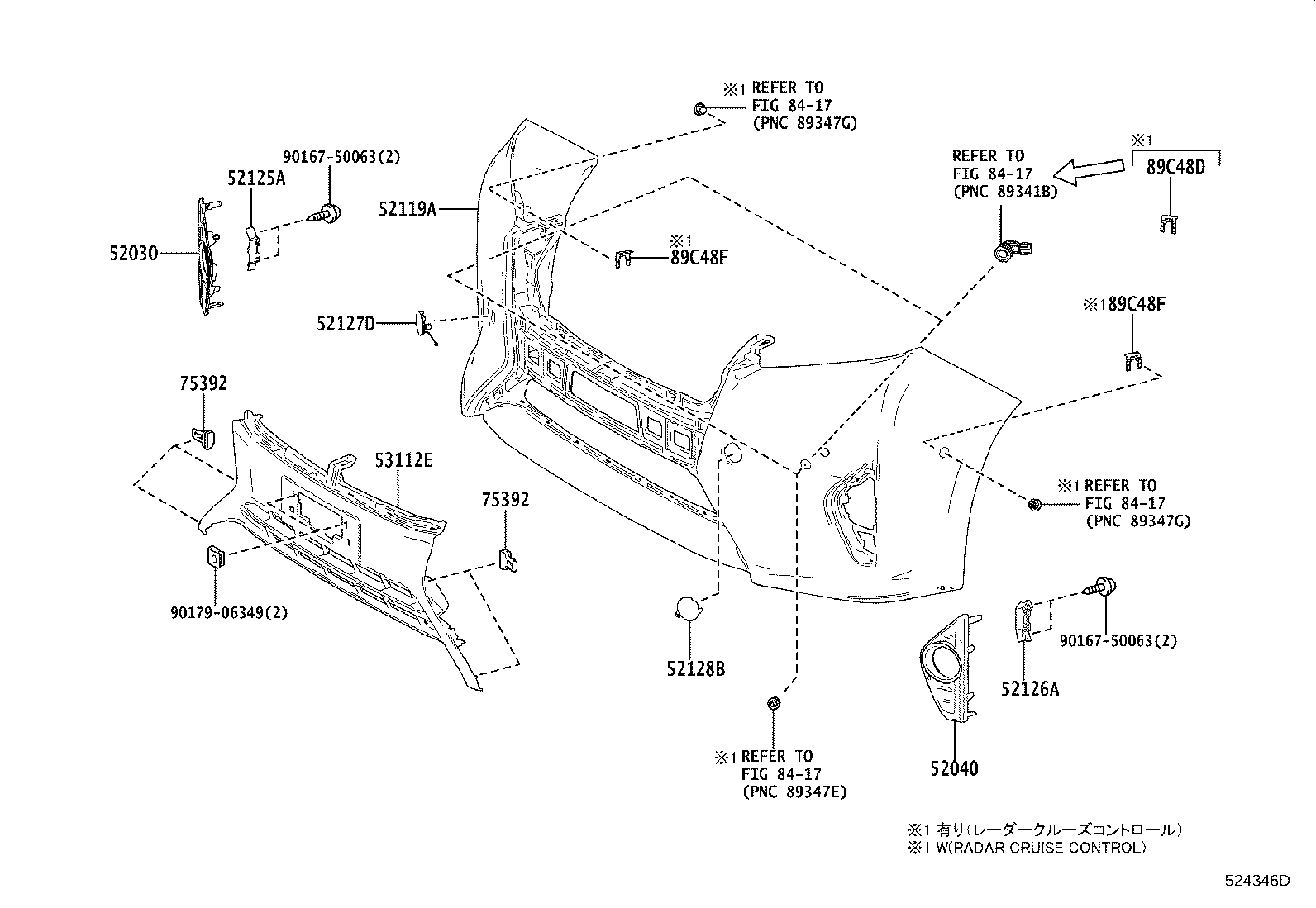

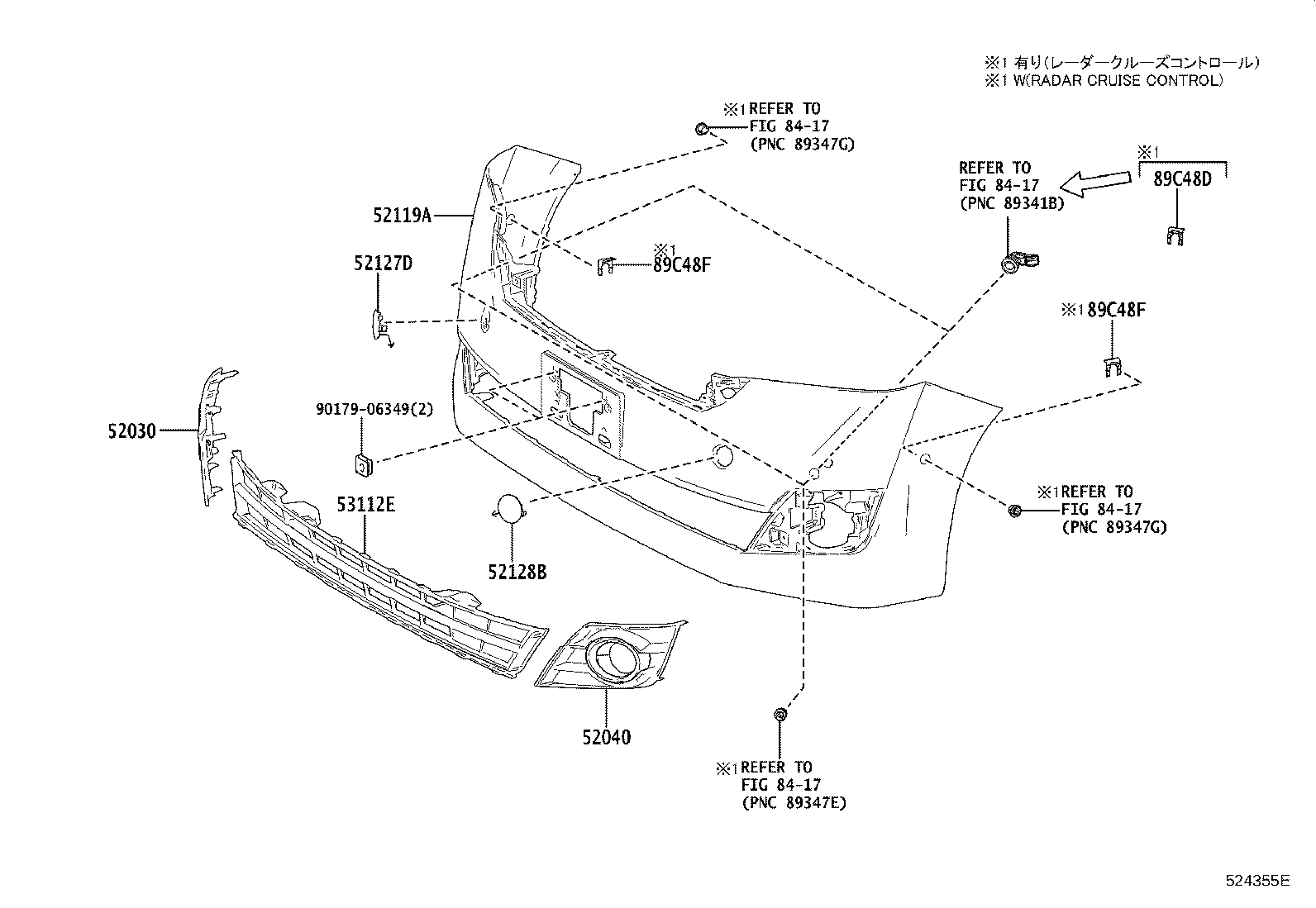

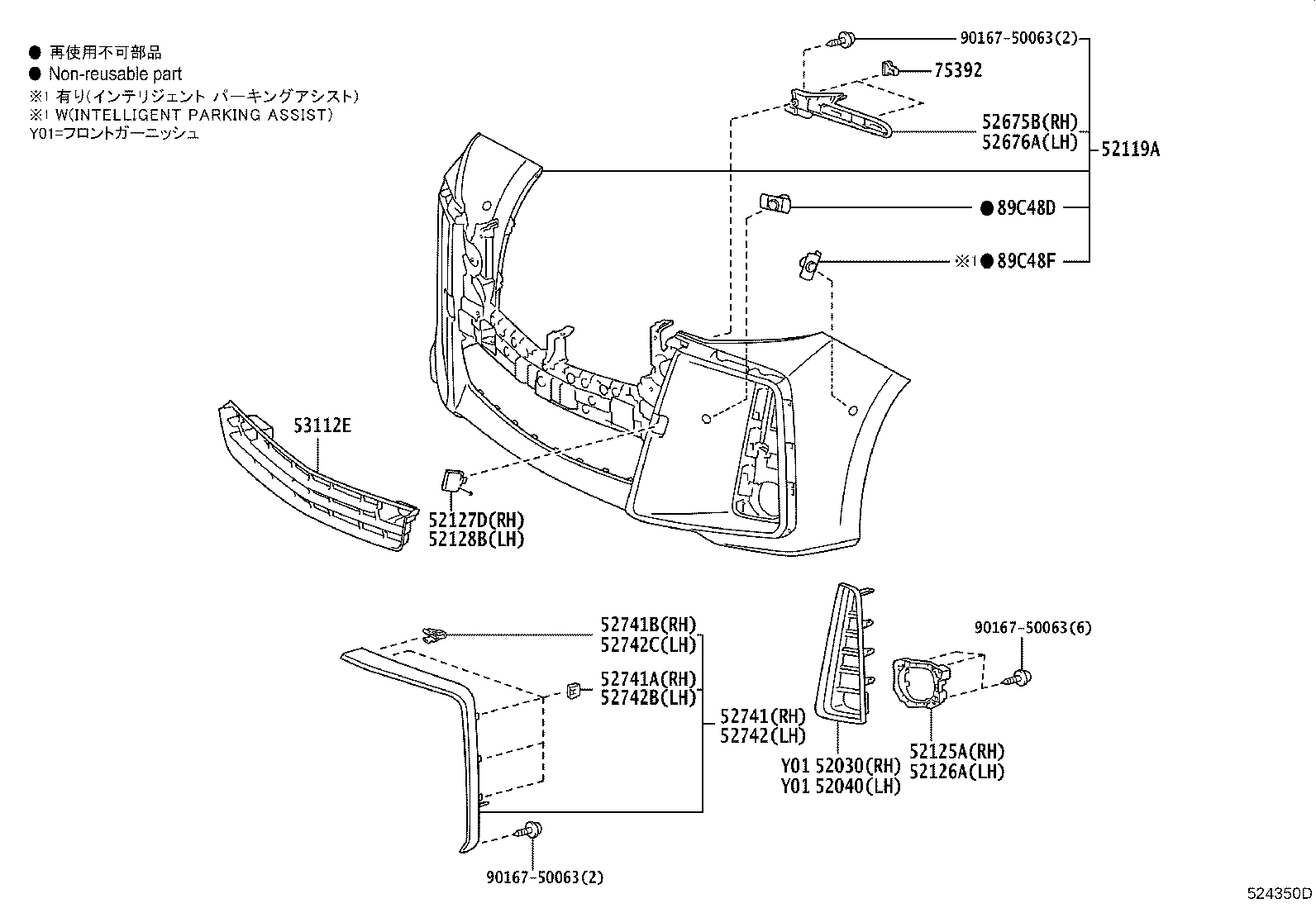

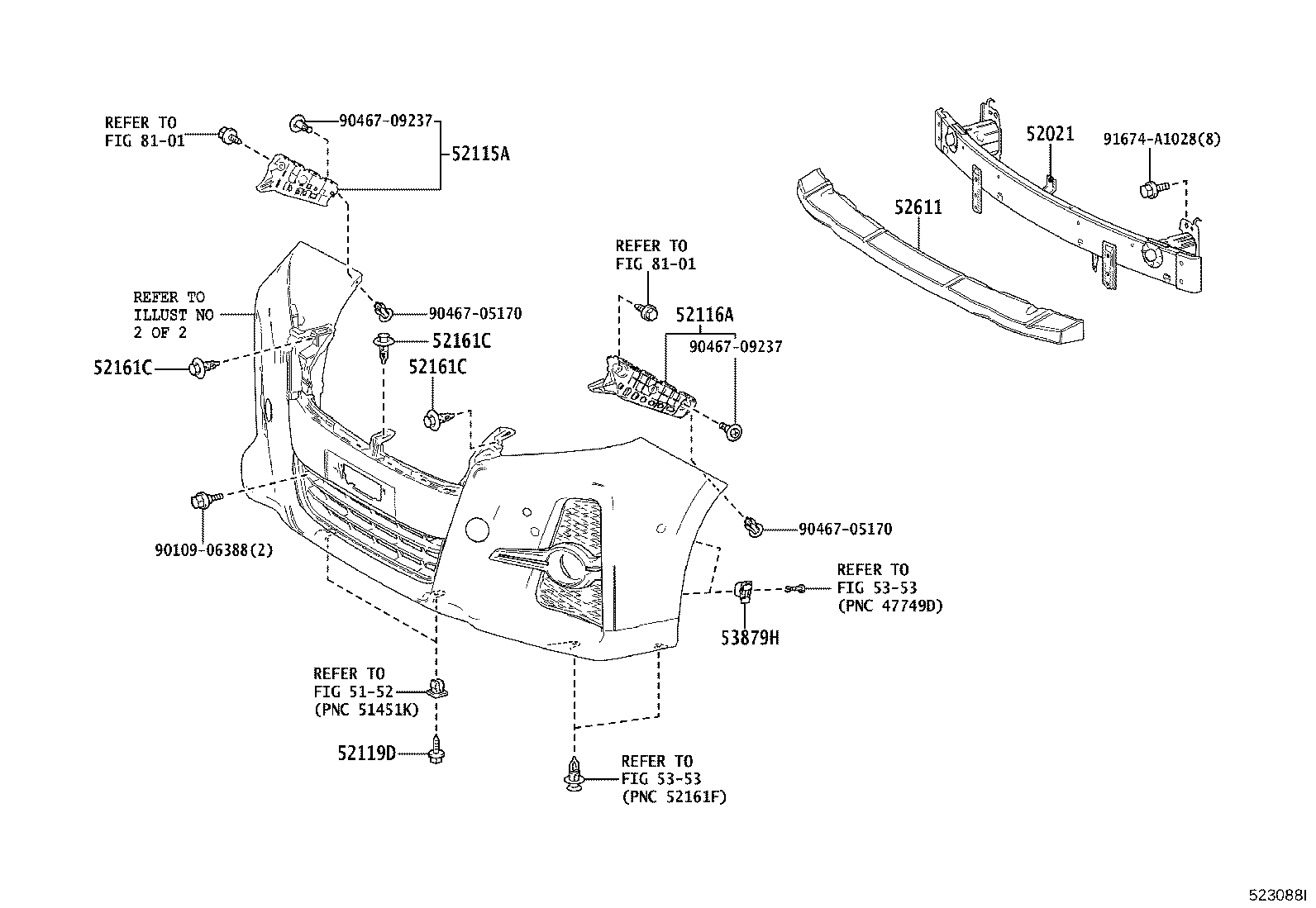

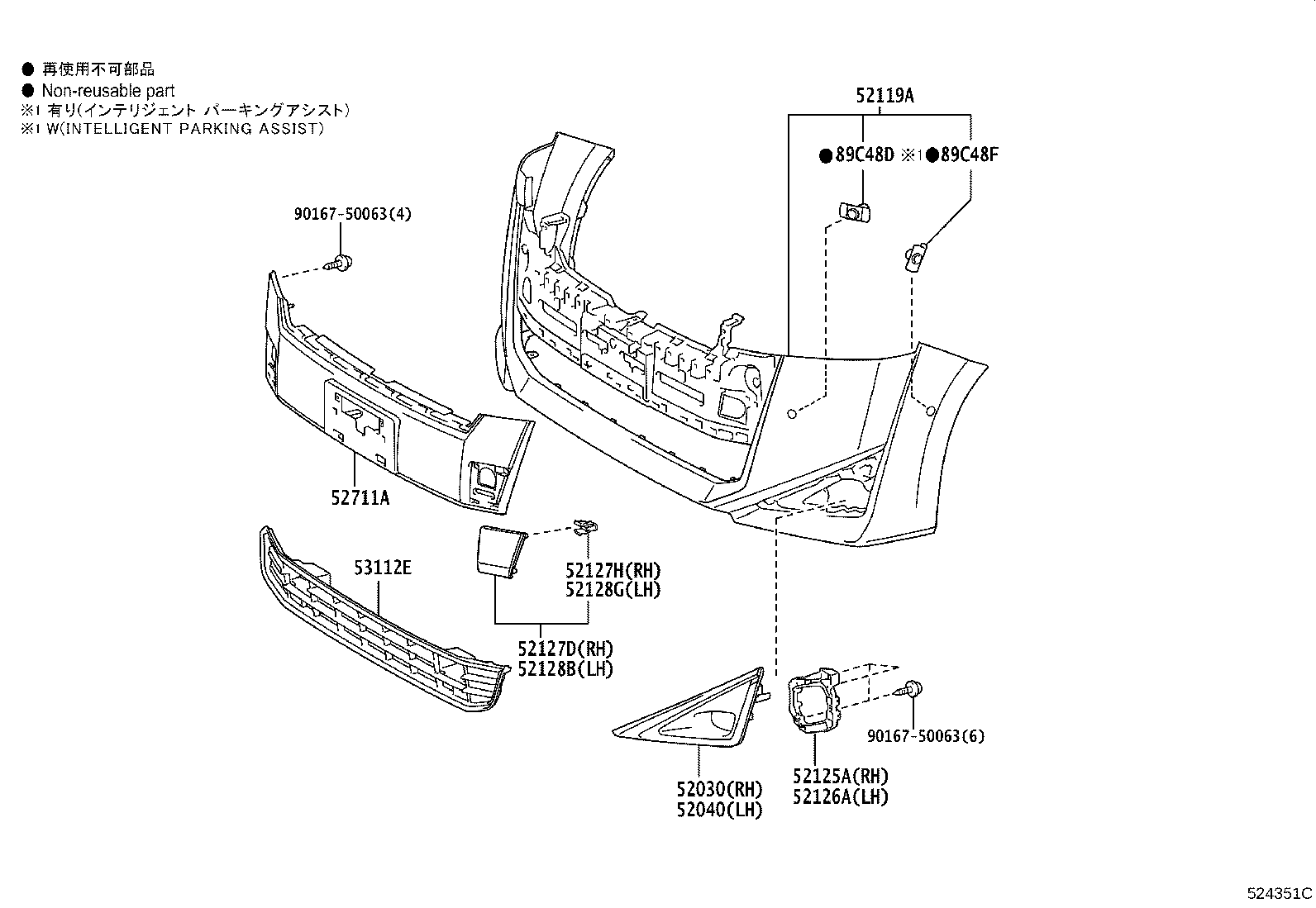

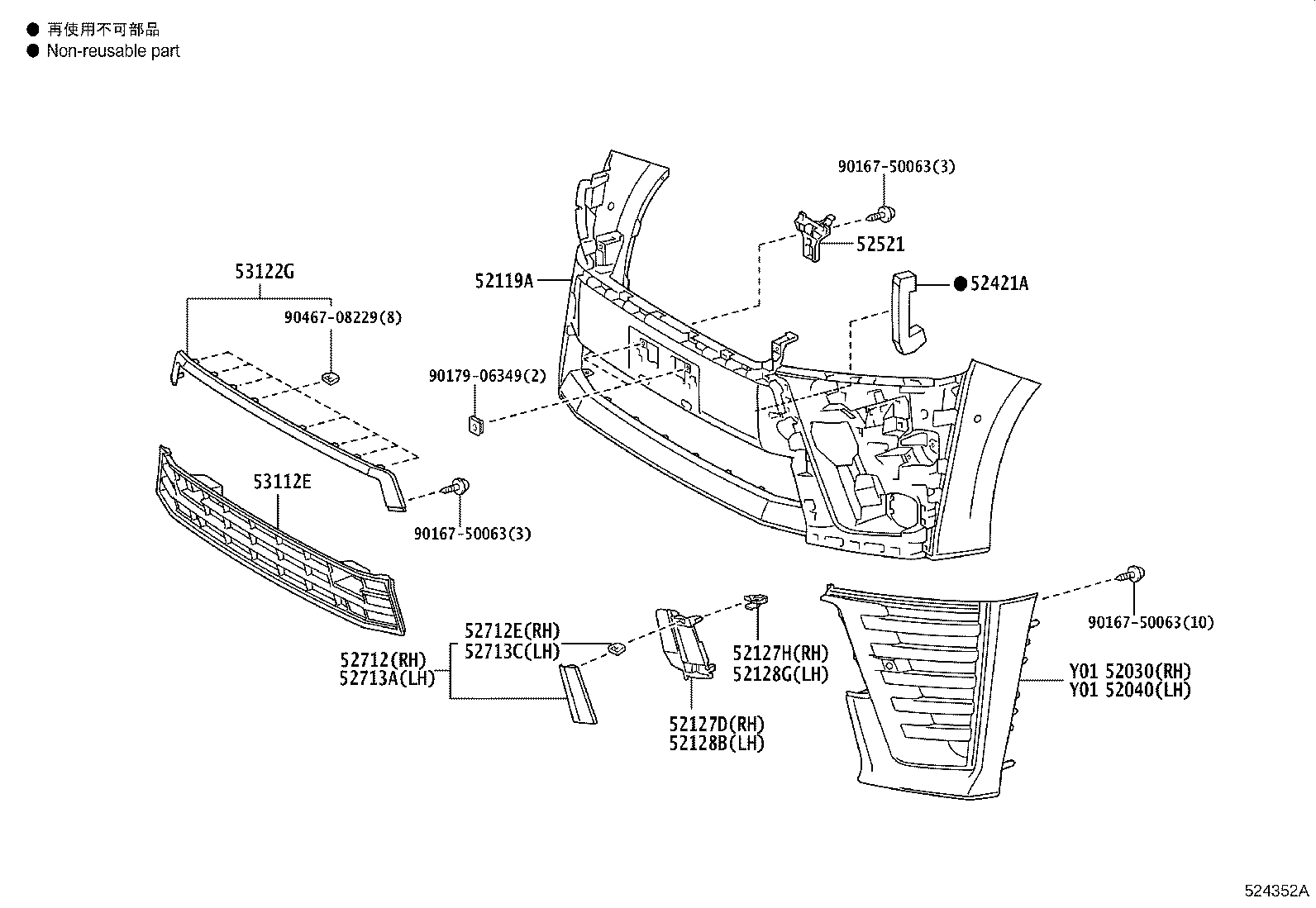

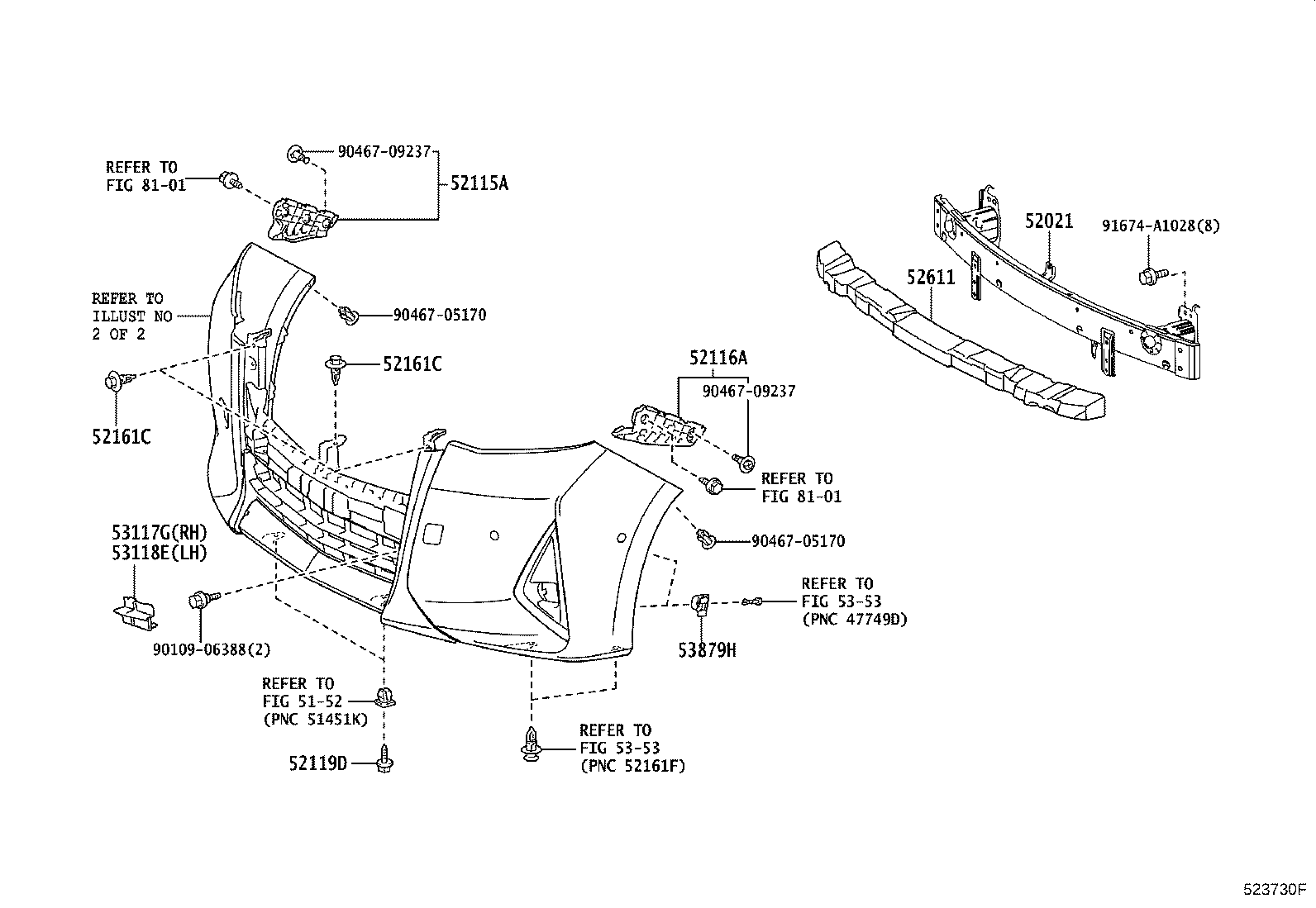

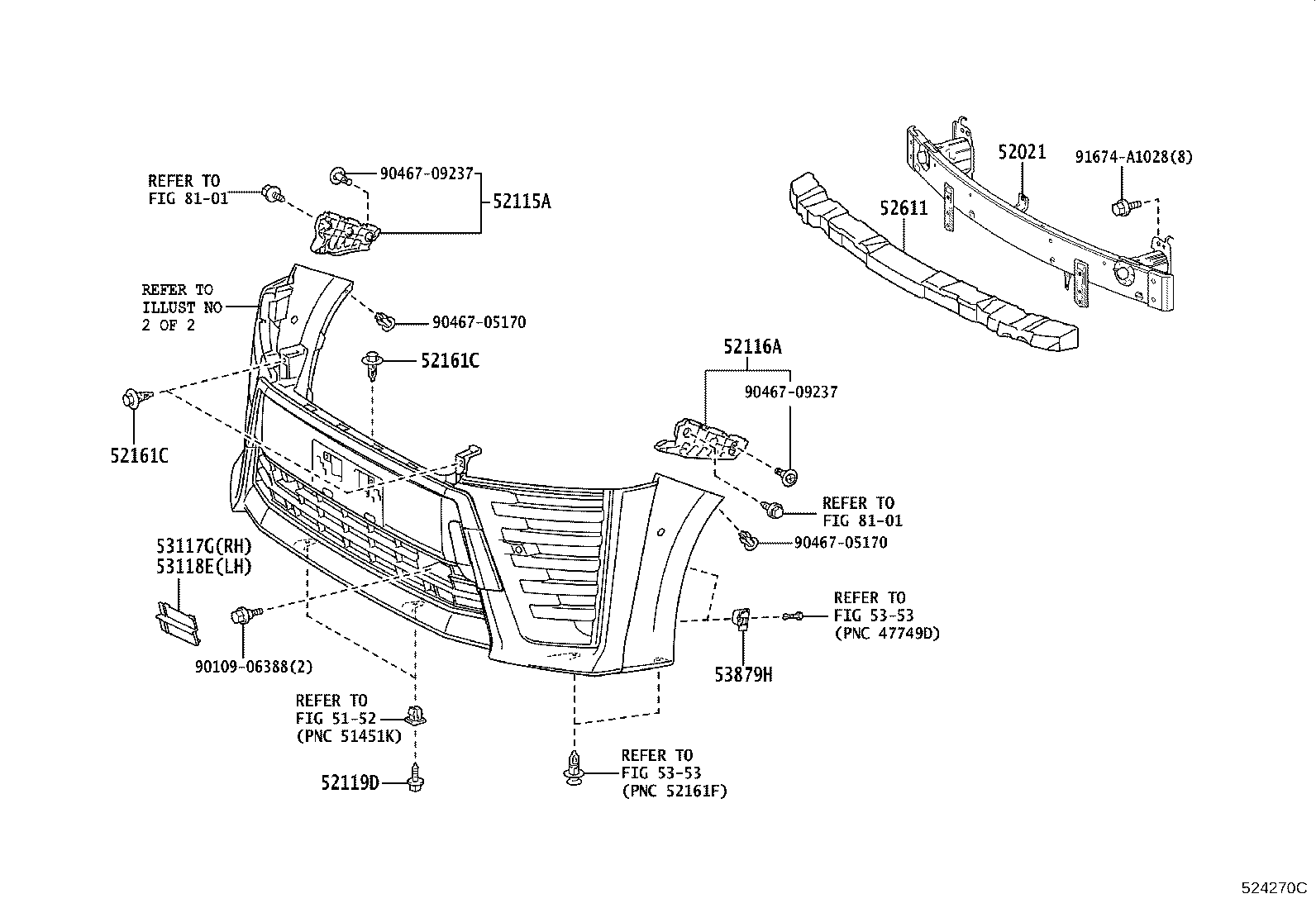

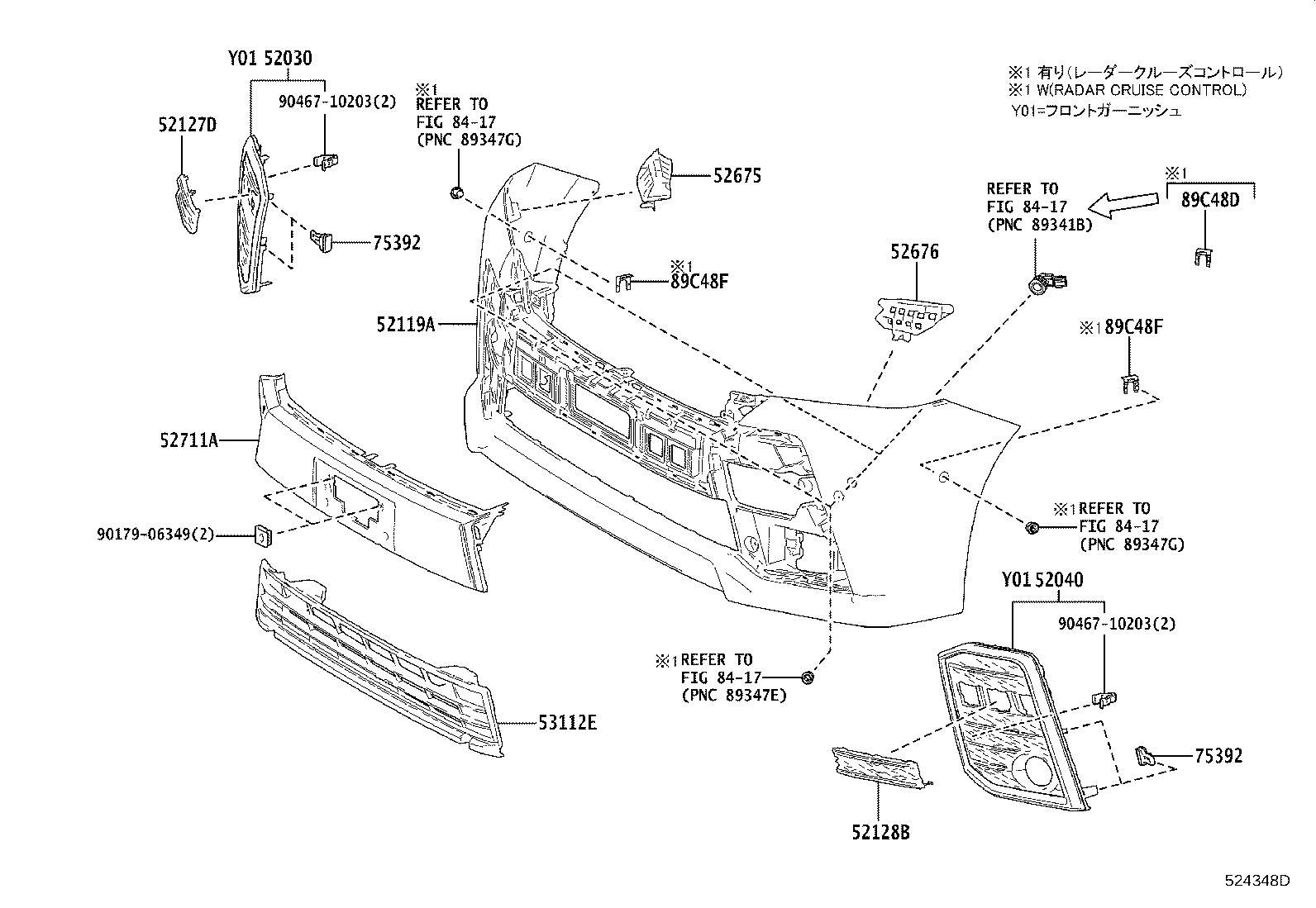

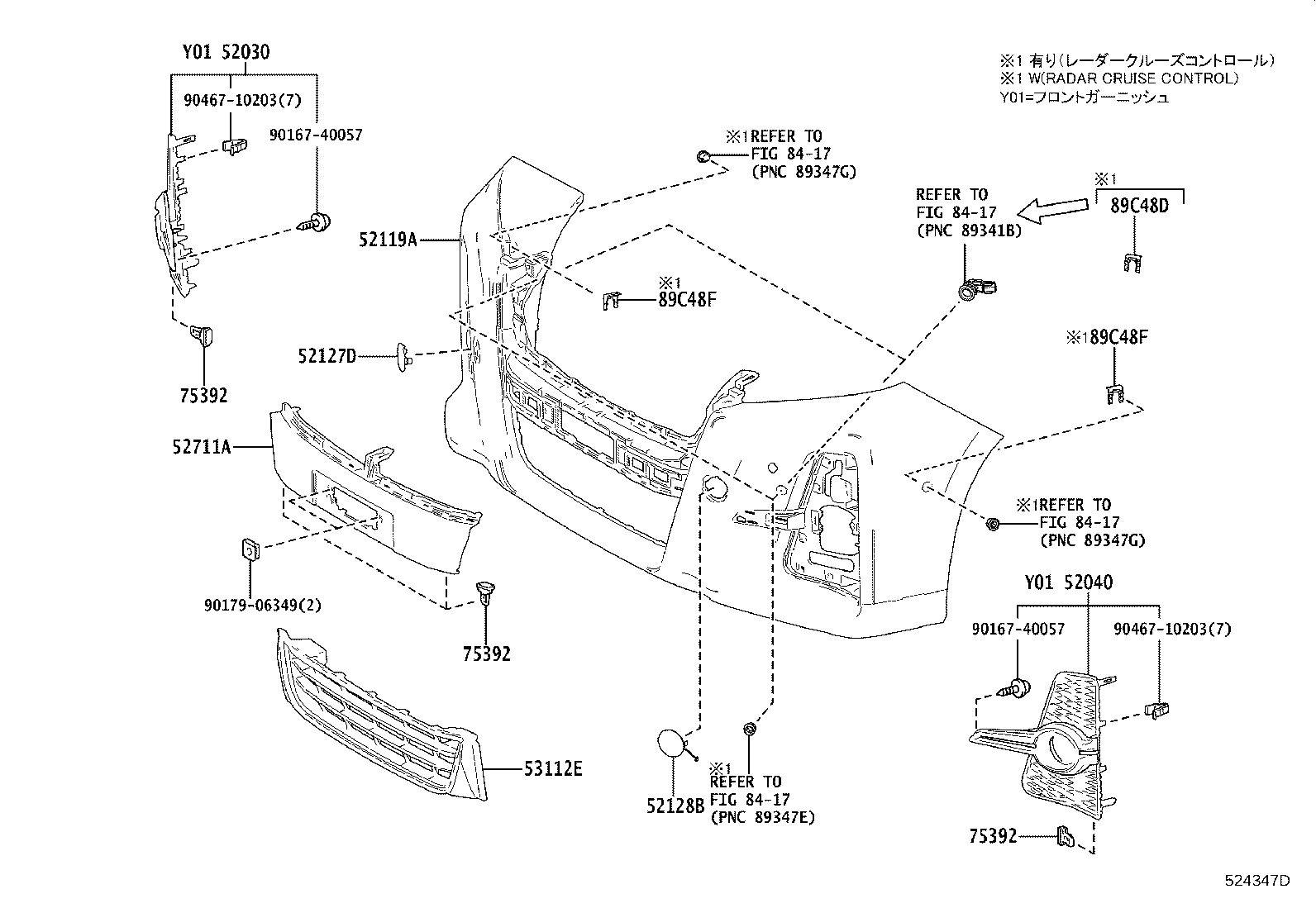

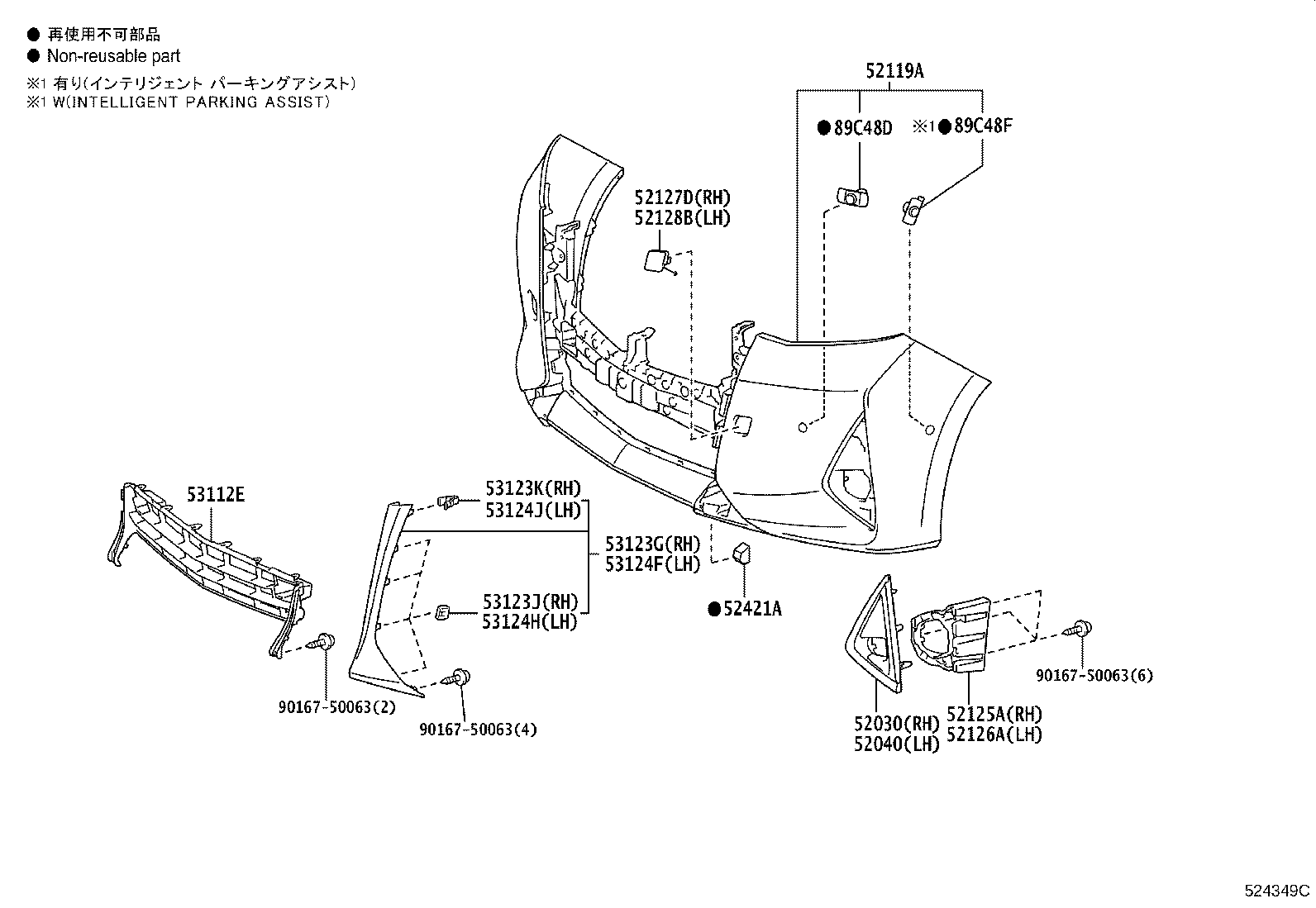

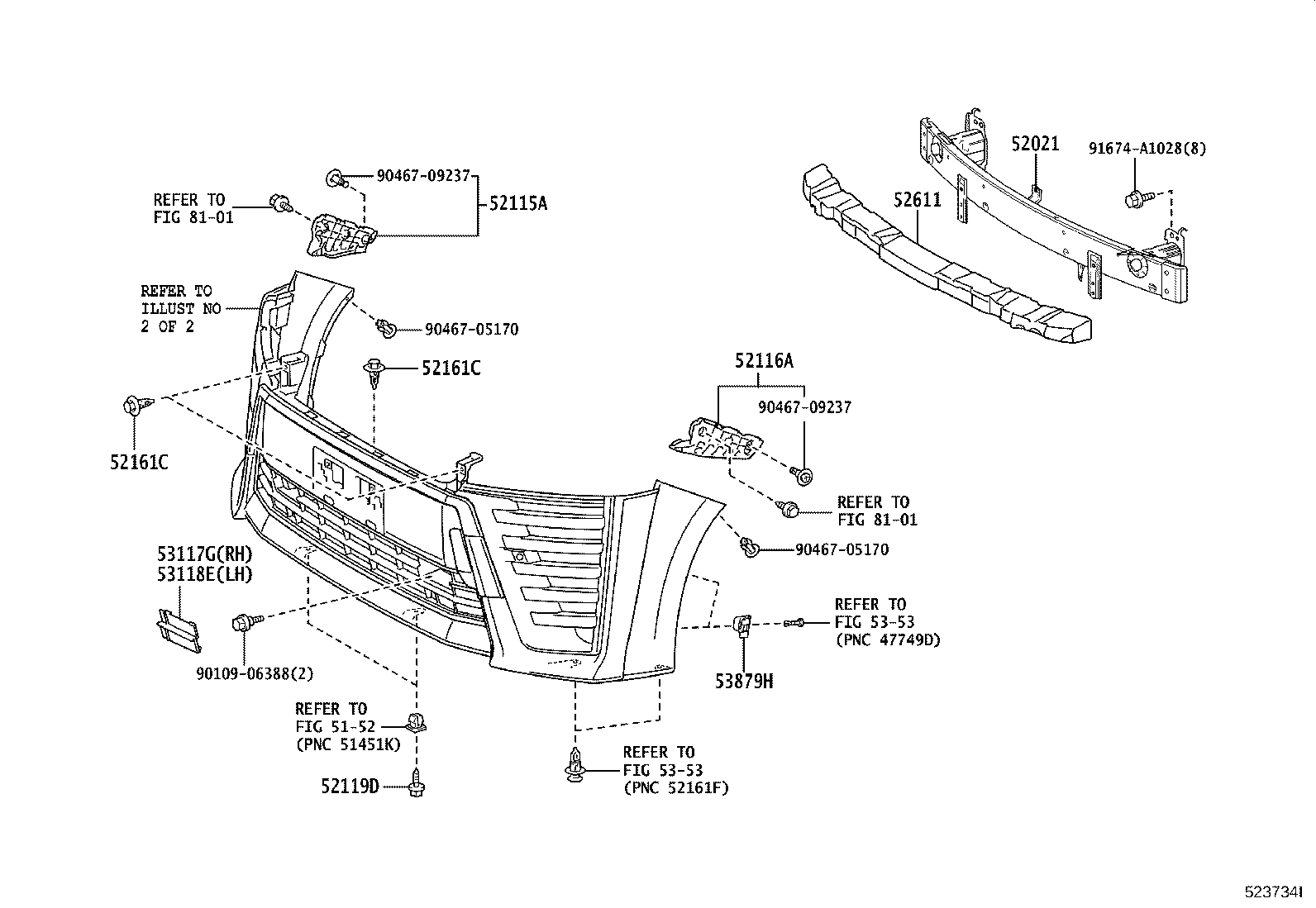

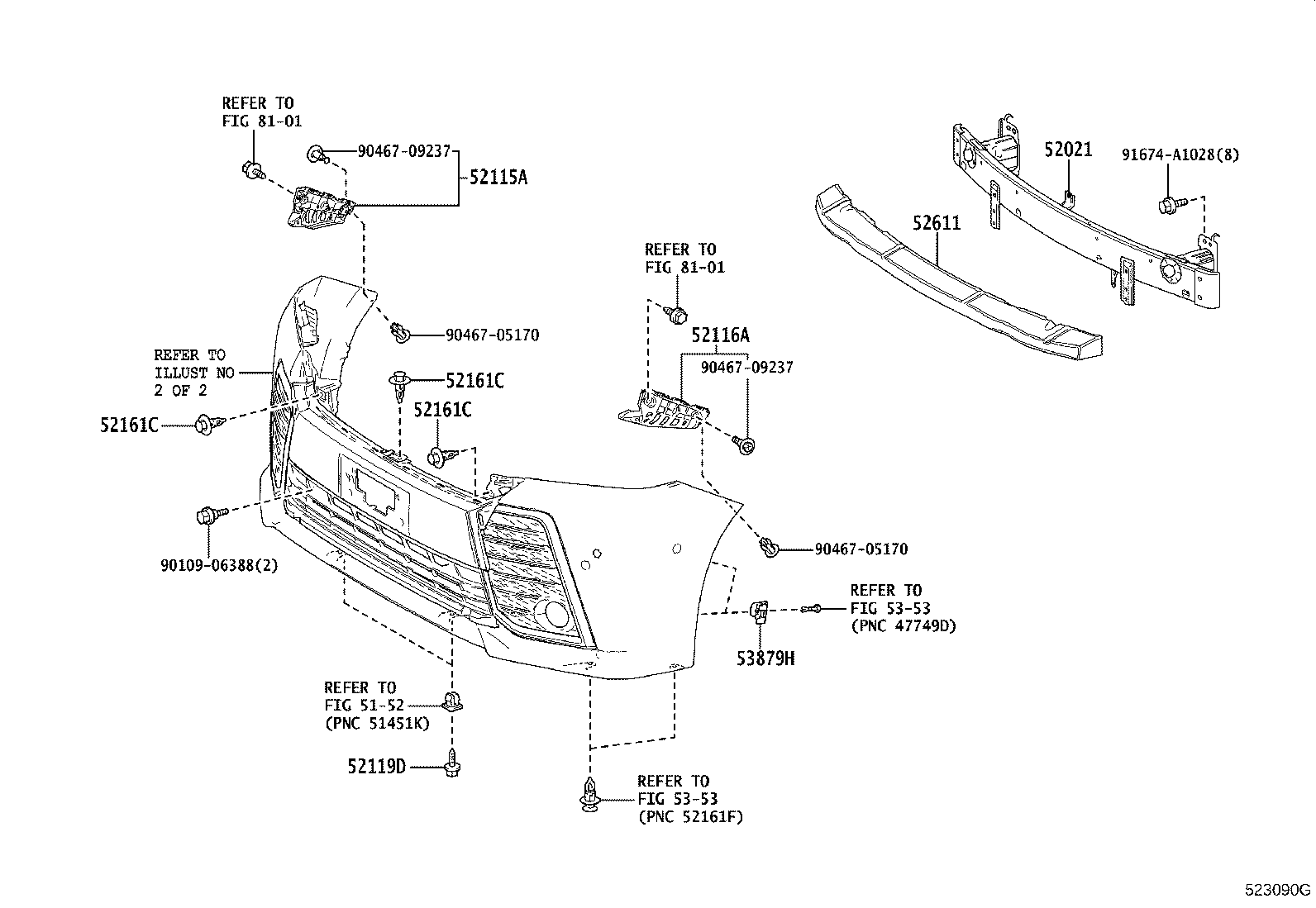

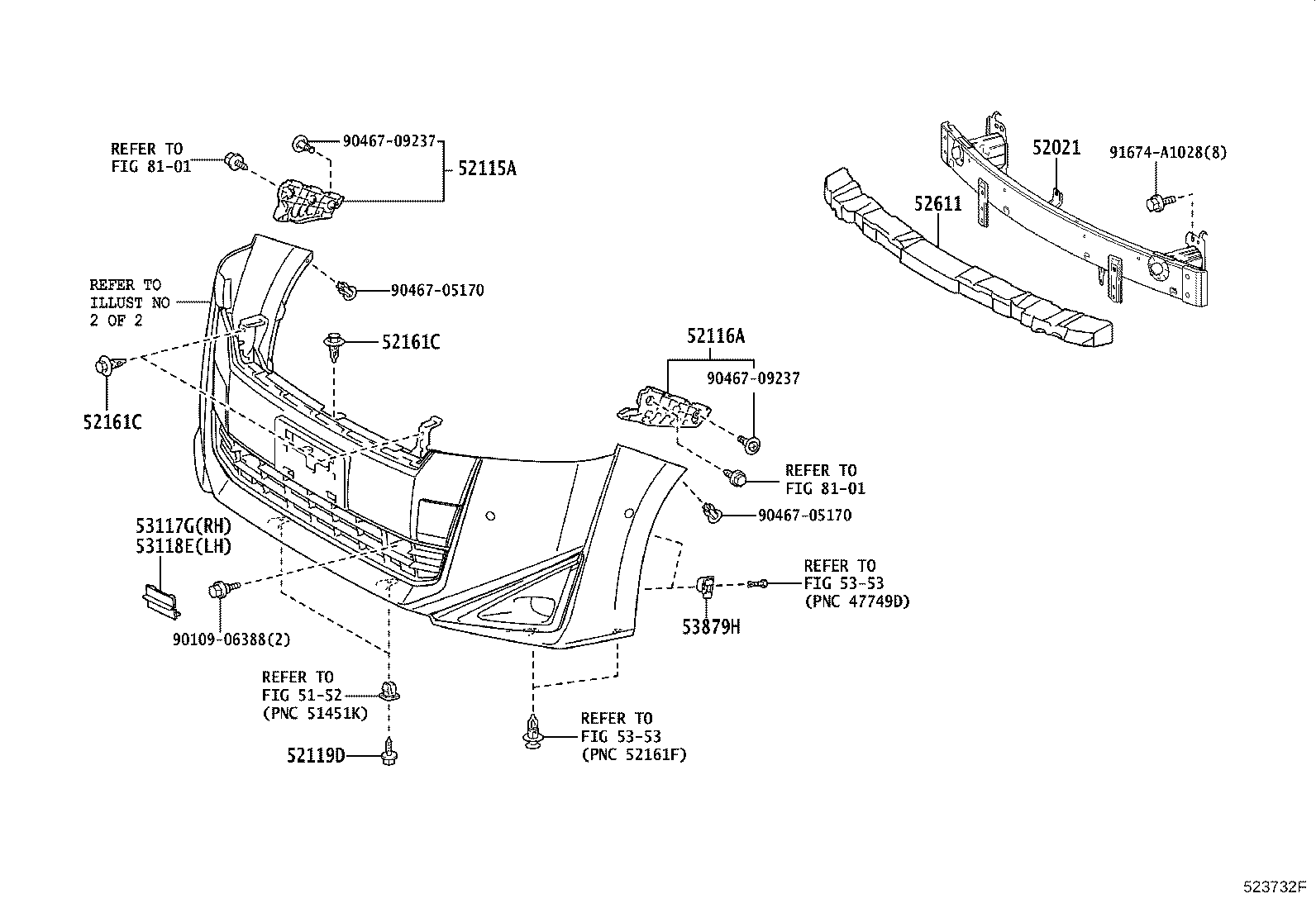

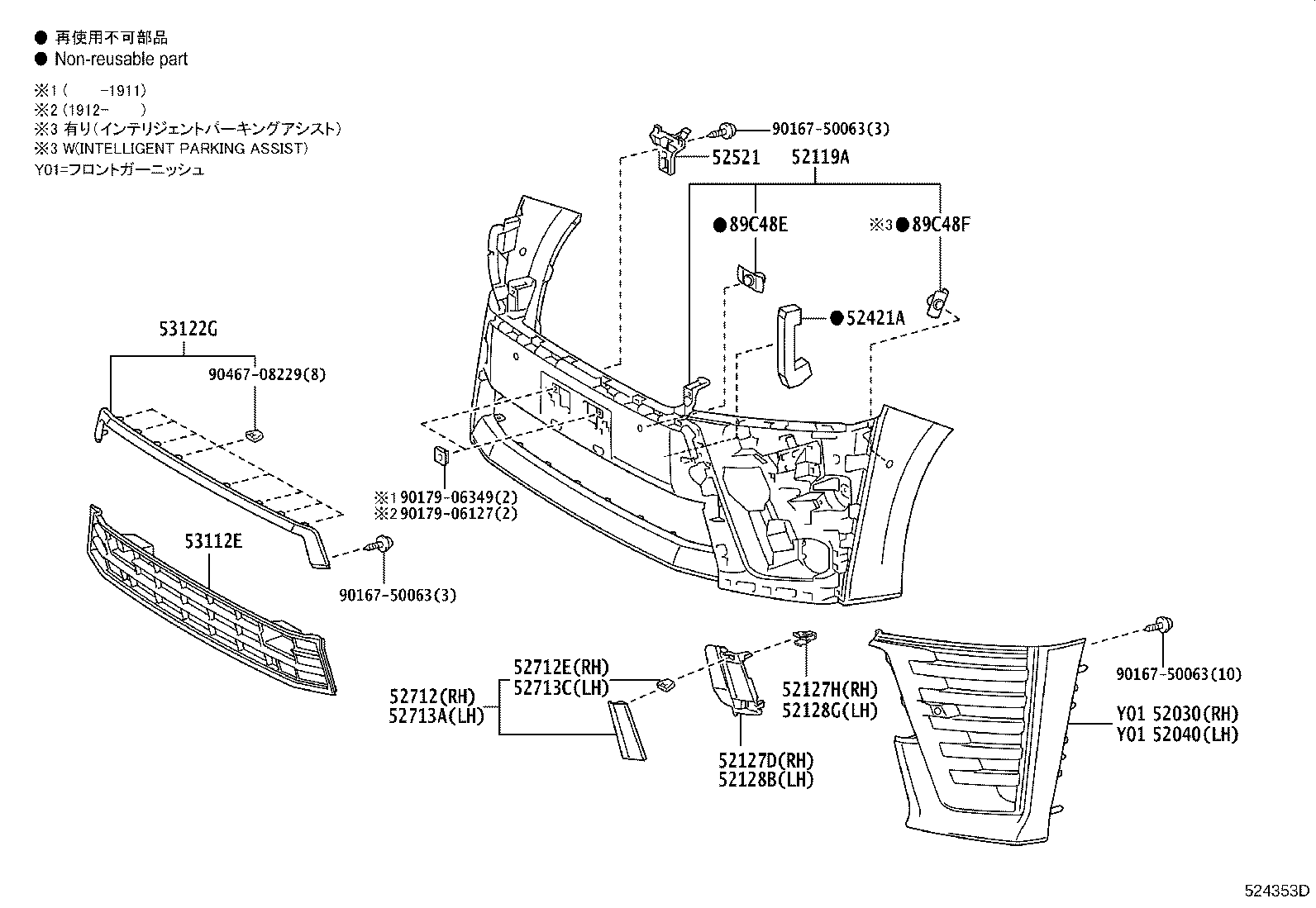

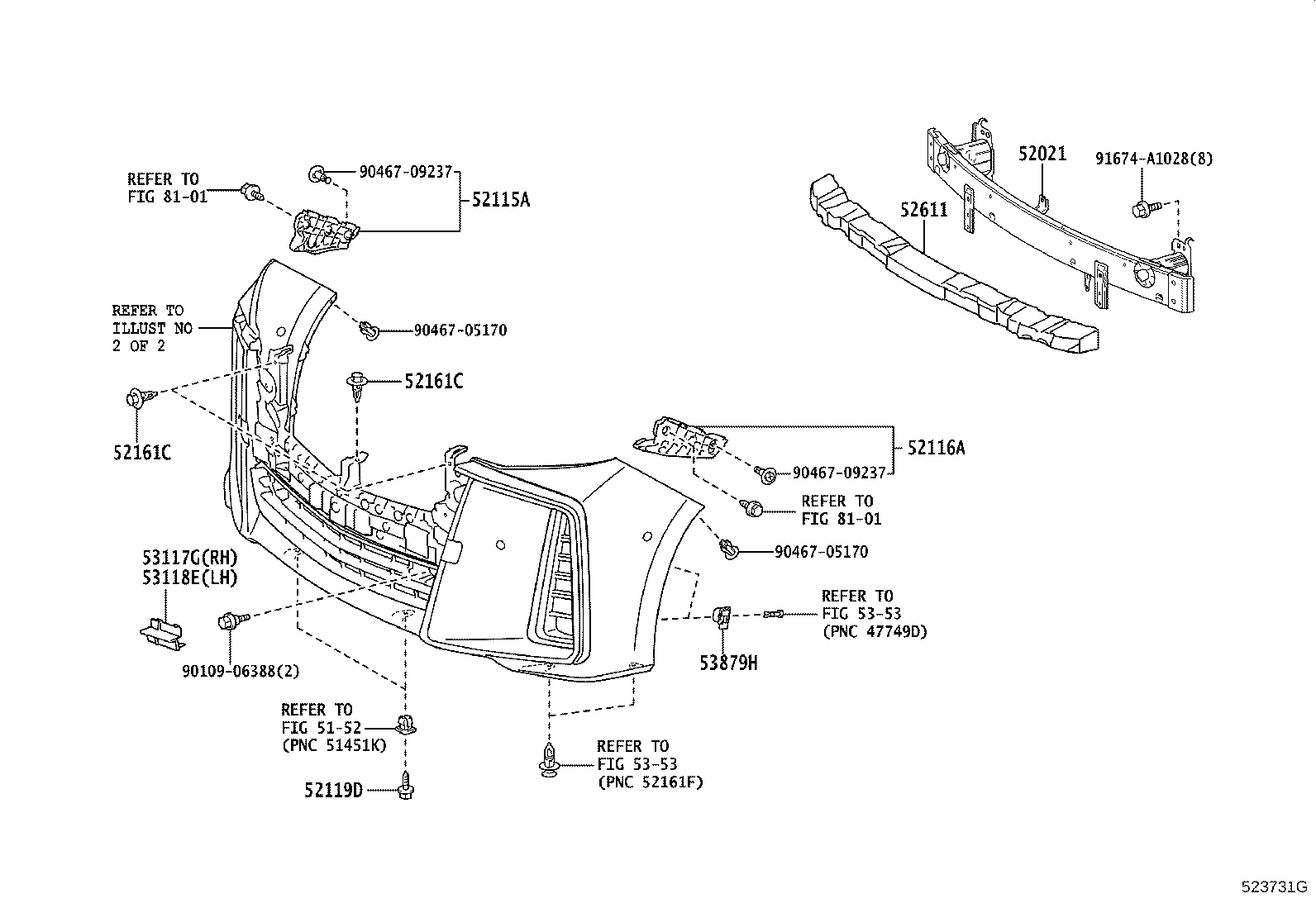

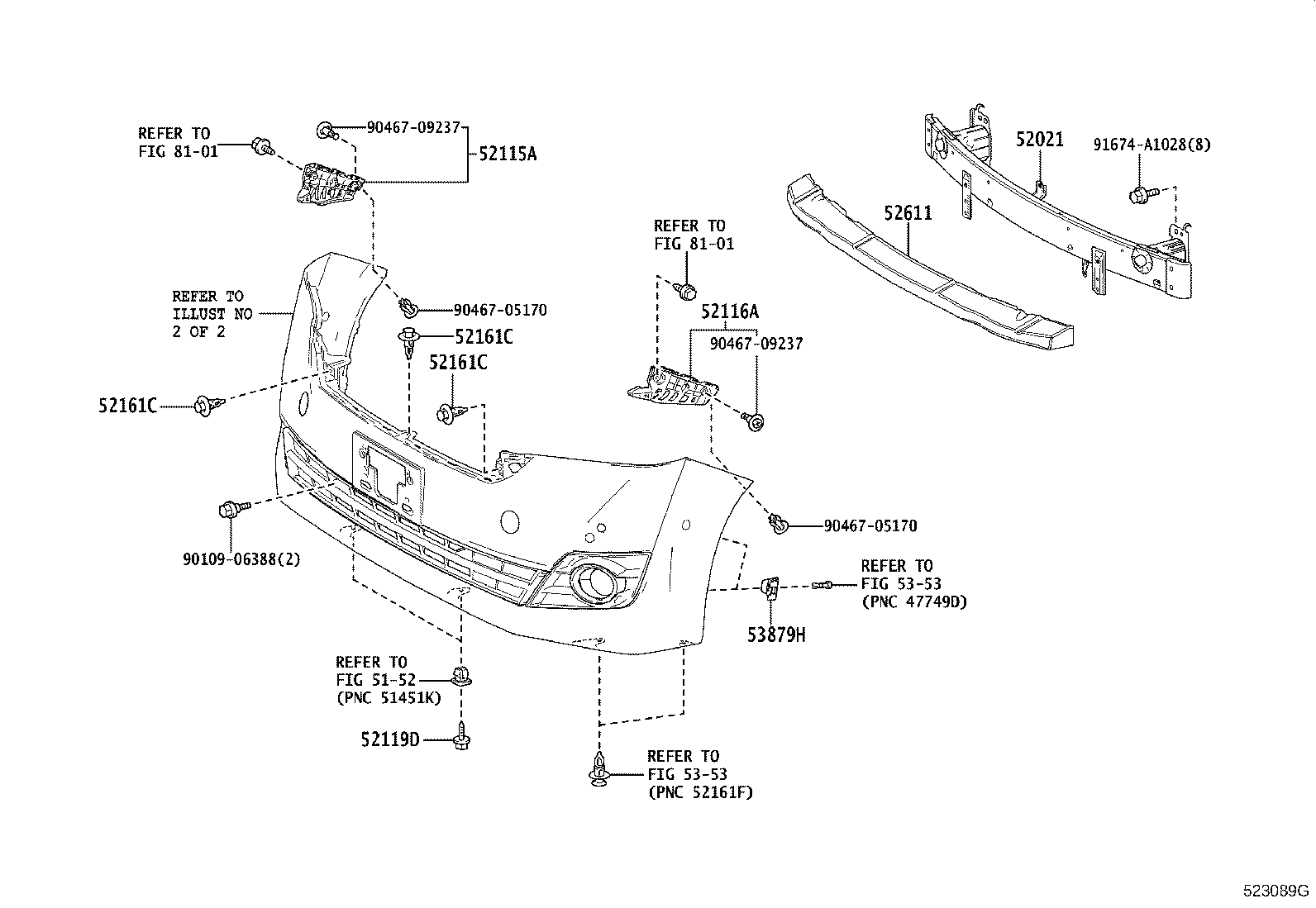

Figure 523103G 523103G 2015-01 → 2018-01 Figure 524346D 524346D 2015-01 → 2018-01 Figure 523088I 523088I 2015-01 → 2018-01 Figure 524347D 524347D 2015-01 → 2018-01 Figure 523089G 523089G 2015-01 → 2018-01 Figure 524355E 524355E 2015-01 → 2018-01 Figure 523090G 523090G 2015-01 → 2018-01 Figure 524348D 524348D 2015-01 → 2018-01 Figure 523730F 523730F 2018-01 → — Figure 524349C 524349C 2018-01 → — Figure 523731G 523731G 2018-01 → — Figure 524350D 524350D 2018-01 → — Figure 523732F 523732F 2018-01 → — Figure 524351C 524351C 2018-01 → — Figure 524270C 524270C 2018-01 → 2018-11 Figure 524352A 524352A 2018-01 → 2018-11 Figure 523734I 523734I 2018-01 → — Figure 524353D 524353D 2018-01 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52030 Cover Assy, Front Bumper Hole, RH
52040 Cover Assy, Front Bumper Hole, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52119D Screw, NO.1
52125A Bracket, Fog Lamp Mounting, RH
52126A Bracket, Fog Lamp Mounting, LH
52127D Cover, Front Bumper Hole, RH
52127H Clip, Front Bumper Hole Cover
52128B Cover, Front Bumper Hole, LH
52128G Clip, Front Bumper Hole Cover
52161C Piece, Front Bumper
52421A Pad, Front Bumper
52521 Retainer, Front Bumper, Upper Center
52611 Absorber, Front Bumper Energy
52675 Support, Front Bumper Lower Side, RH
52675B Support, Front Bumper Side, NO.1 RH
52676 Support, Front Bumper Lower Side, LH
52676A Support, Front Bumper Side, NO.1 LH
52711A Garnish, Front Bumper
52712 Moulding, Front Bumper Side, RH
52712E Clip, Front Bumper Side Moulding
52713A Moulding, Front Bumper Side, LH
52713C Clip, Front Bumper Side Moulding
52741 Garnish, Front Bumper Bar, NO.1
52741A Clip, Front Bumper Bar Garnish
52741B Clip, Front Bumper Bar Garnish
52742 Garnish, Front Bumper Bar, NO.2
52742B Clip, Front Bumper Bar Garnish
52742C Clip, Front Bumper Bar Garnish
53112E Grille, Radiator, Lower NO.1
53117G Bracket, Radiator Grille, Lower RH
53118E Bracket, Radiator Grille, Lower LH
53122G Moulding, Radiator Grille, Lower Center
53123G Moulding, Radiator Grille Side, RH
53123J Clip, Radiator Grille Side Moulding
53123K Clip, Radiator Grille Side Moulding
53124F Moulding, Radiator Grille Side, LH
53124H Clip, Radiator Grille Side Moulding
53124J Clip, Radiator Grille Side Moulding
53879H Retainer, Front Fender Liner
75392 Retainer, Outside Moulding
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48E Retainer, Ultrasonic Sensor, Front Center
89C48F Retainer, Ultrasonic Sensor, Front Side
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
