Toyota Alphard/Vellfire/HV
2015-01 → present · chassis AGH3#,AYH30,GGH3# · catalogue 713140 · Japan
Supported model
Data version 2020-01

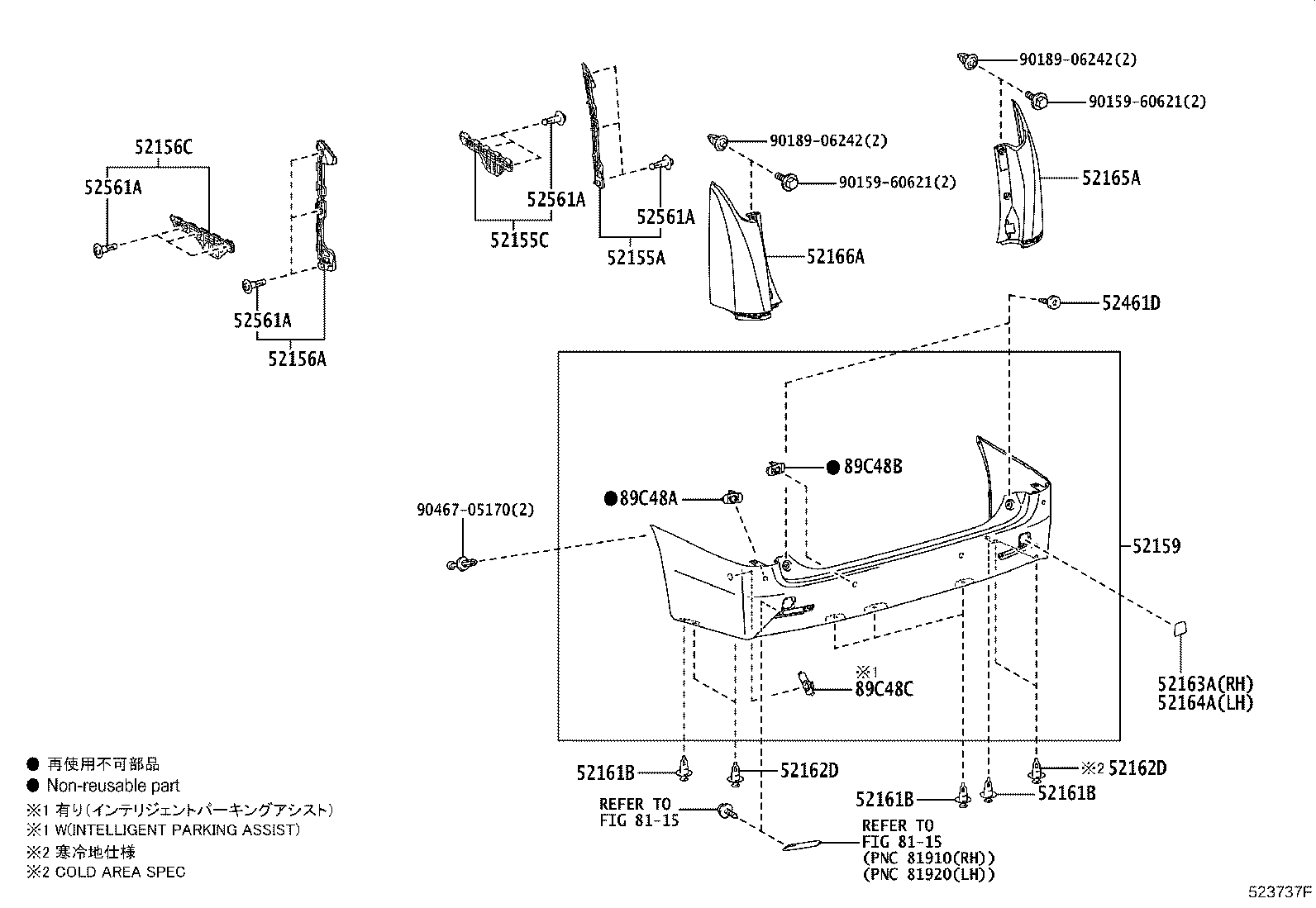

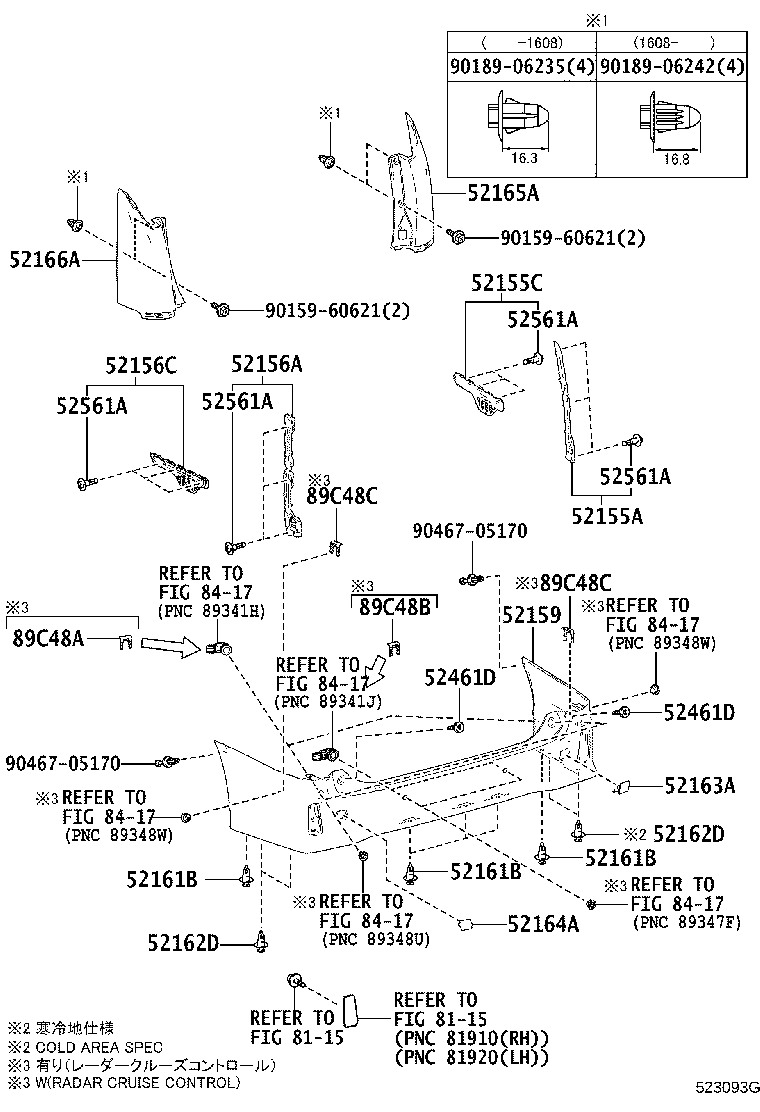

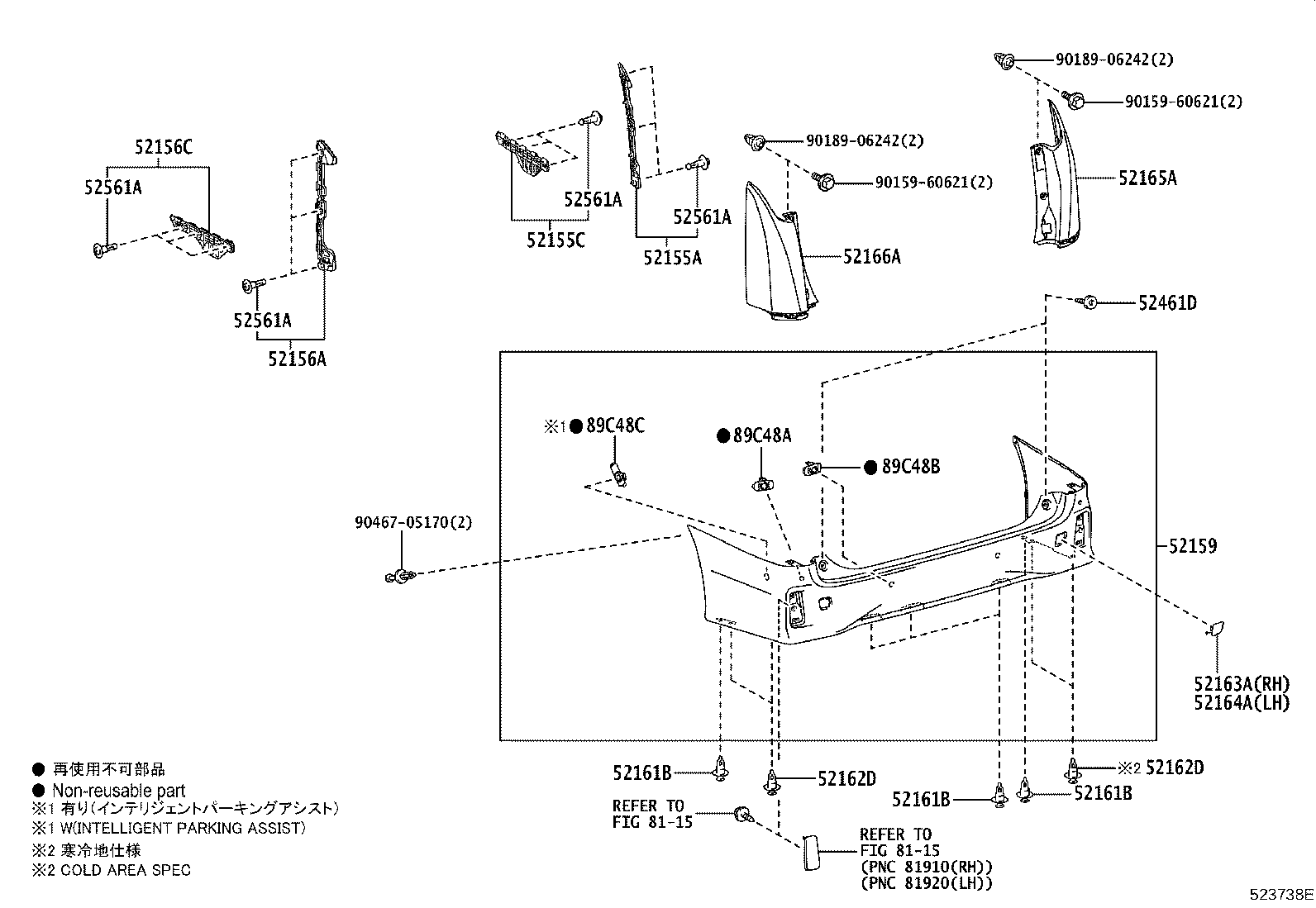

Rear Bumper & Bumper Stay
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52155A | Support, Rear Bumper Side, RH |
| 52155C | Support, Rear Bumper Side, NO.1 RH |
| 52156A | Support, Rear Bumper Side, LH |
| 52156C | Support, Rear Bumper Side, NO.1 LH |
| 52159 | Cover, Rear Bumper |
| 52161B | Piece, Rear Bumper |
| 52162D | Piece, Rear Bumper |
| 52163A | Plate, Rear Bumper, RH |
| 52164A | Plate, Rear Bumper, LH |
| 52165A | Cover, Rear Bumper, Upr RH |
| 52166A | Cover, Rear Bumper, Upr LH |
| 52461D | Cushion, Rear Bumper |
| 52561A | Clip(FOR REAR BUMPER RETAINER) |
| 89C48A | Retainer, Ultrasonic Sensor, Rear Corner |
| 89C48B | Retainer, Ultrasonic Sensor, Rear Center |
| 89C48C | Retainer, Ultrasonic Sensor, Rear Side |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
