Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH3#,AYH30,GGH3# · catalogue 713140 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

30 part groups · 3 illustrations

Illustrations

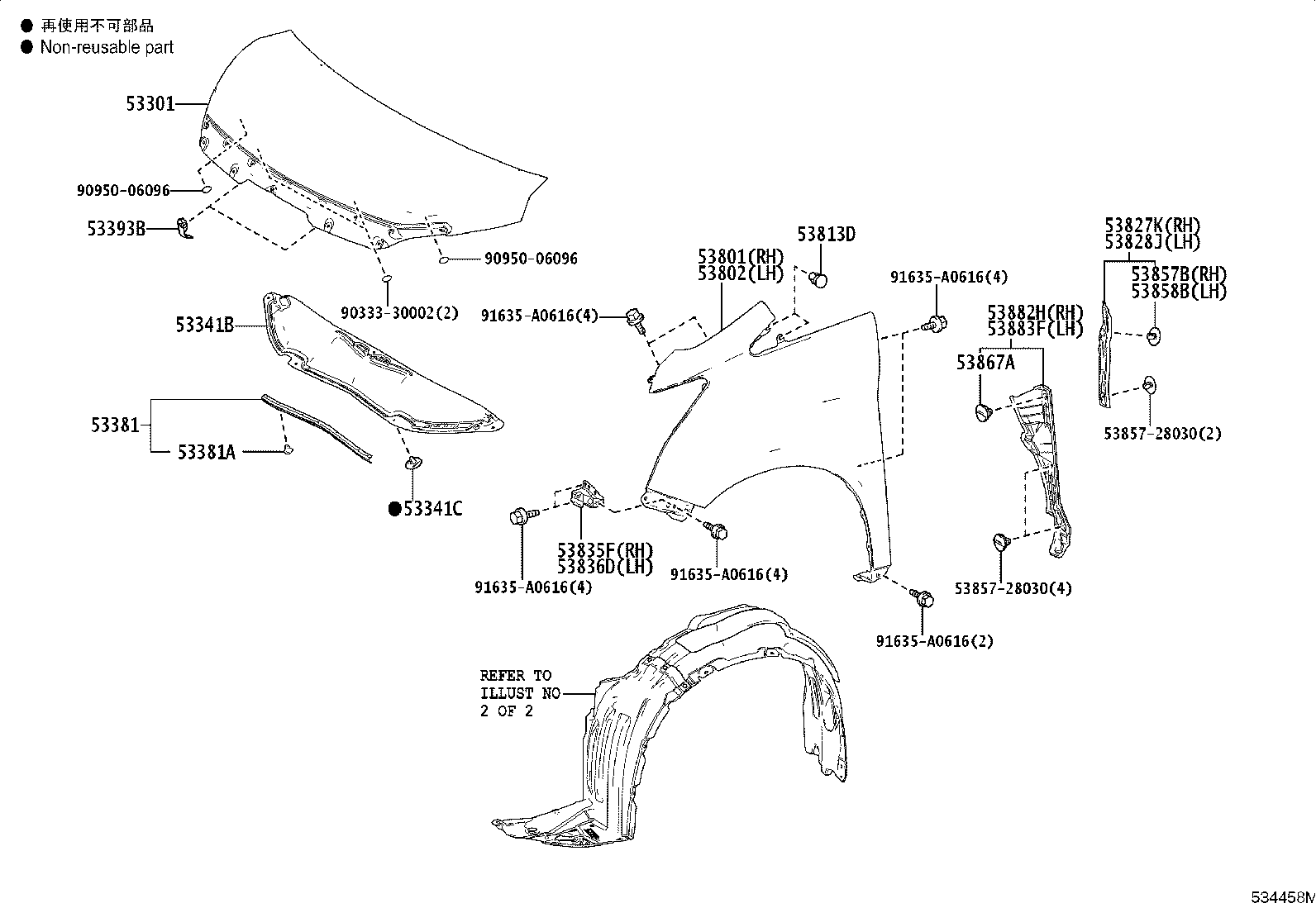

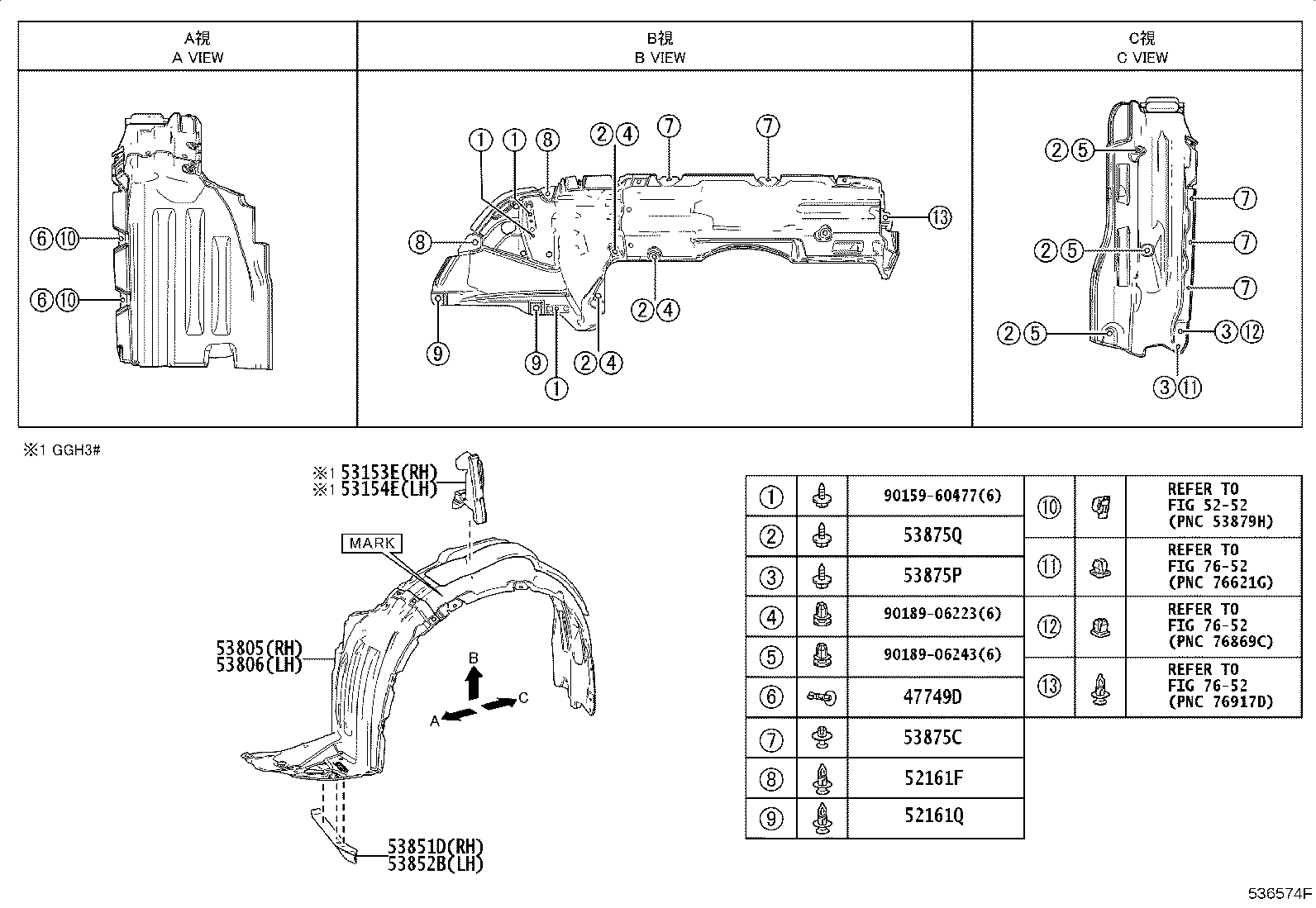

Figure 534459K 534459K 2015-01 → — Figure 534458M 534458M 2015-01 → — Figure 536574F 536574F 2015-01 → —

Part groups

PNCDescription
47749D Clip, Pin Hold
52161F Piece, Front Bumper
52161Q Piece, Front Bumper
53153E Guide, Front Side Air
53154E Guide, Front Side Air, NO.2
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53393B Protector, Hood, Front
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53805 Shield Sub-assy, Front Fender Splash, RH
53806 Shield Sub-assy, Front Fender Splash, LH
53813D Extension, Front Fender
53827K Protector, Front Fender Side Panel, RH
53828J Protector, Front Fender Side Panel, LH
53835F Brace, Front Fender TO Extension, RH
53836D Brace, Front Fender TO Extension, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53857B Retainer, Front Wheel Opening Extension, RH
53858B Retainer, Front Wheel Opening Extension, LH
53867A Retainer, Front Fender
53875C Clip, Front Fender Liner
53875P Screw, NO.1
53875Q Screw, NO.2
53882H Seal, Front Fender Main, RH
53883F Seal, Front Fender Main, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
