Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH3#,AYH30,GGH3# · catalogue 713140 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

18 part groups · 13 illustrations

Illustrations

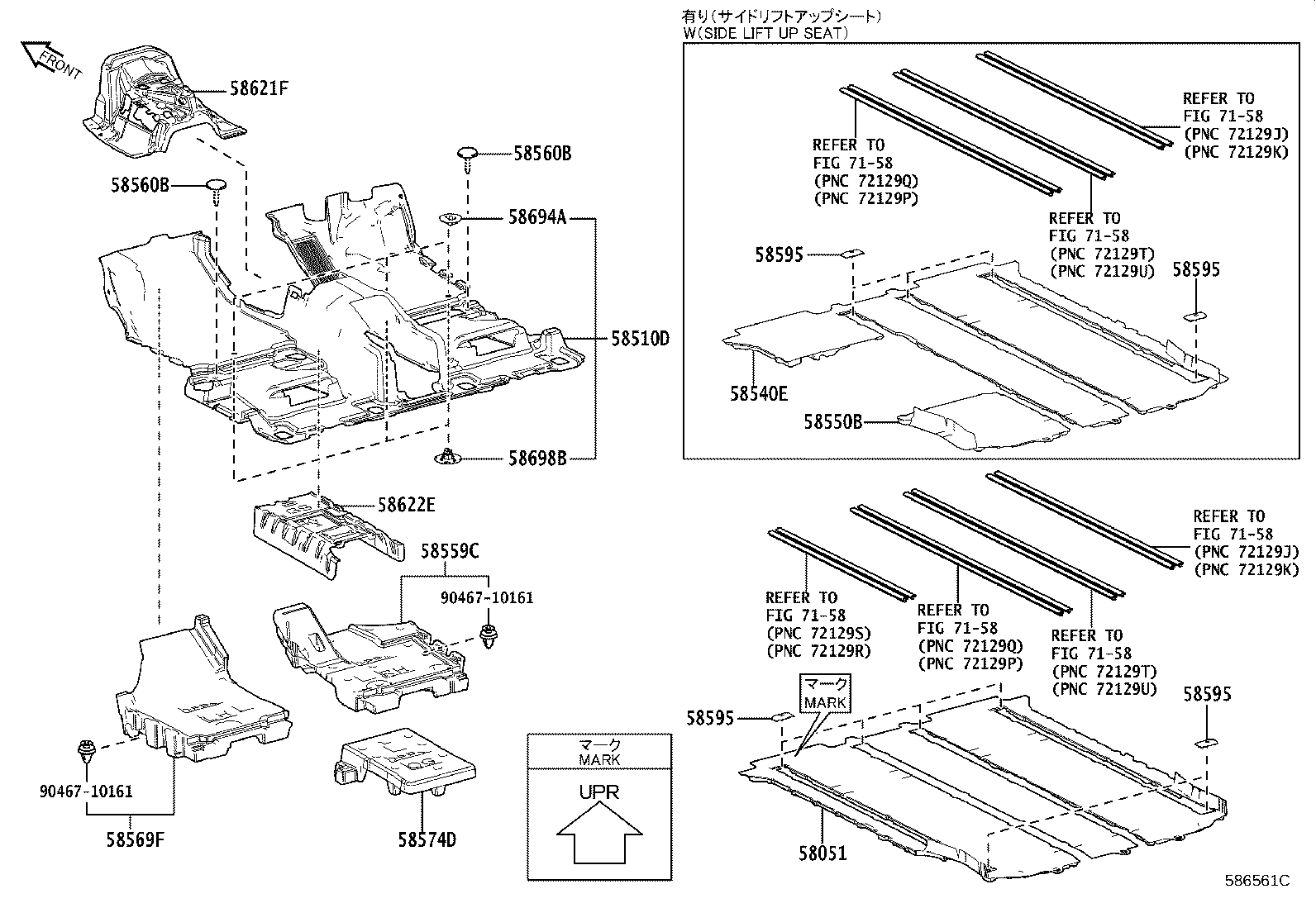

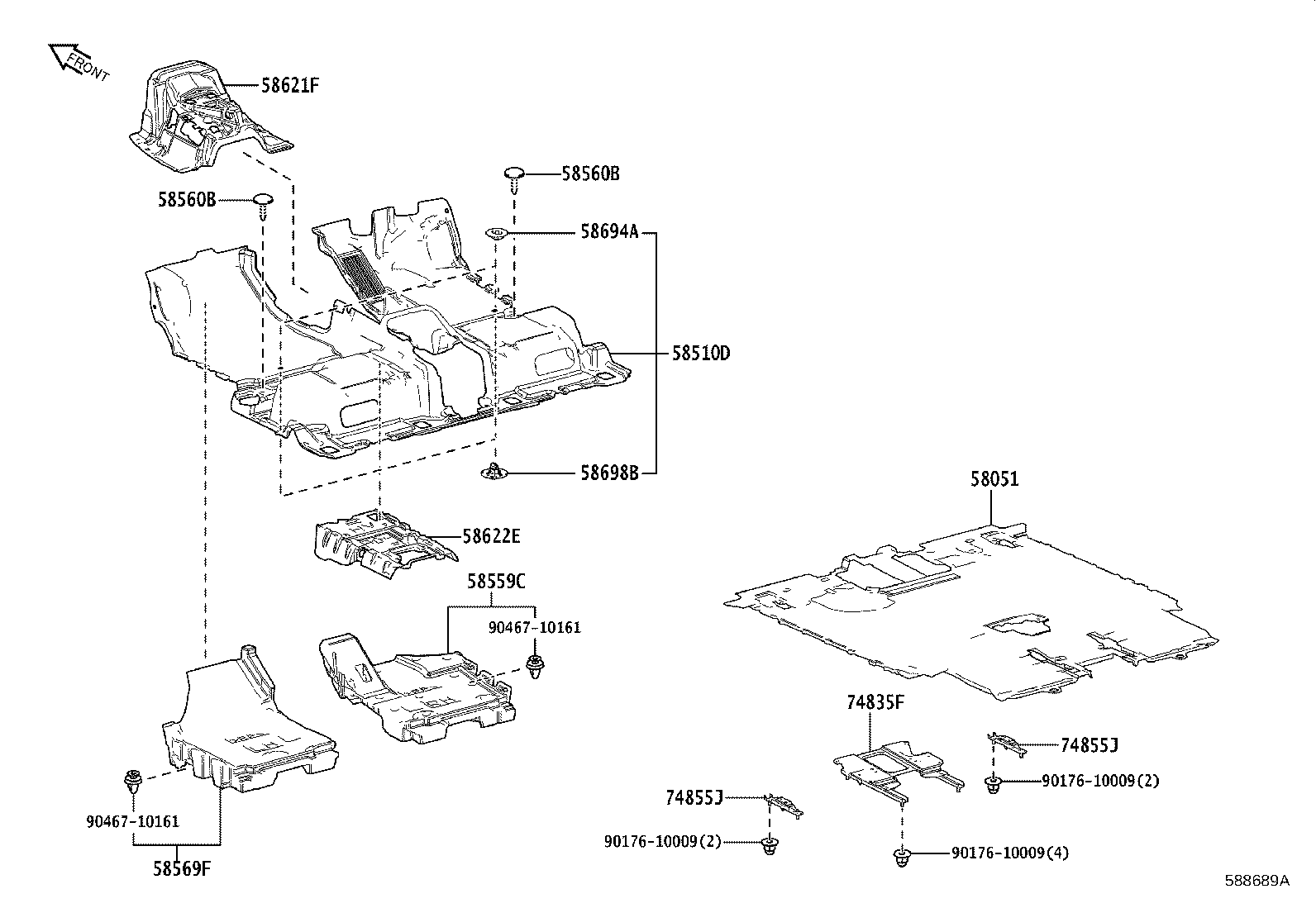

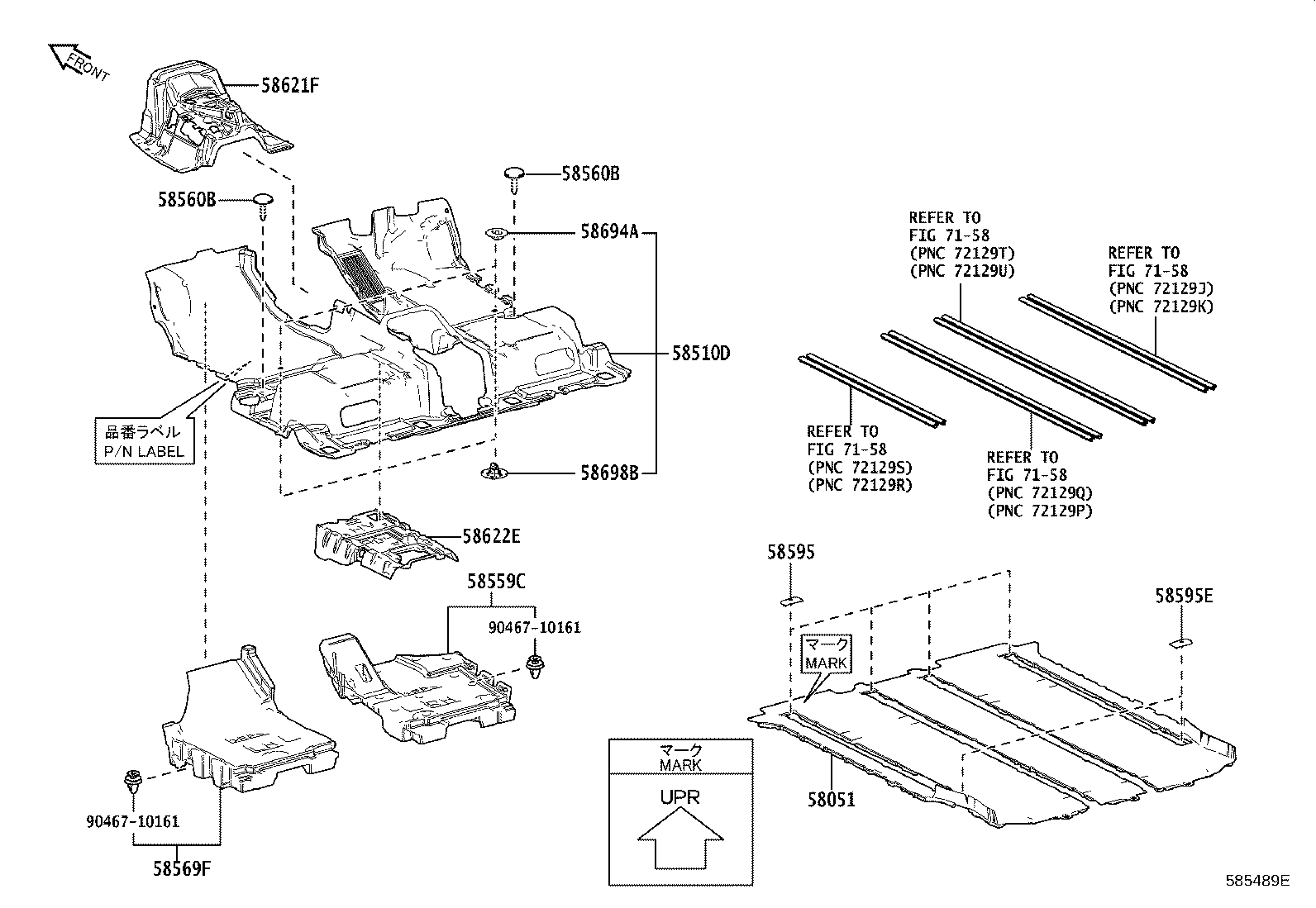

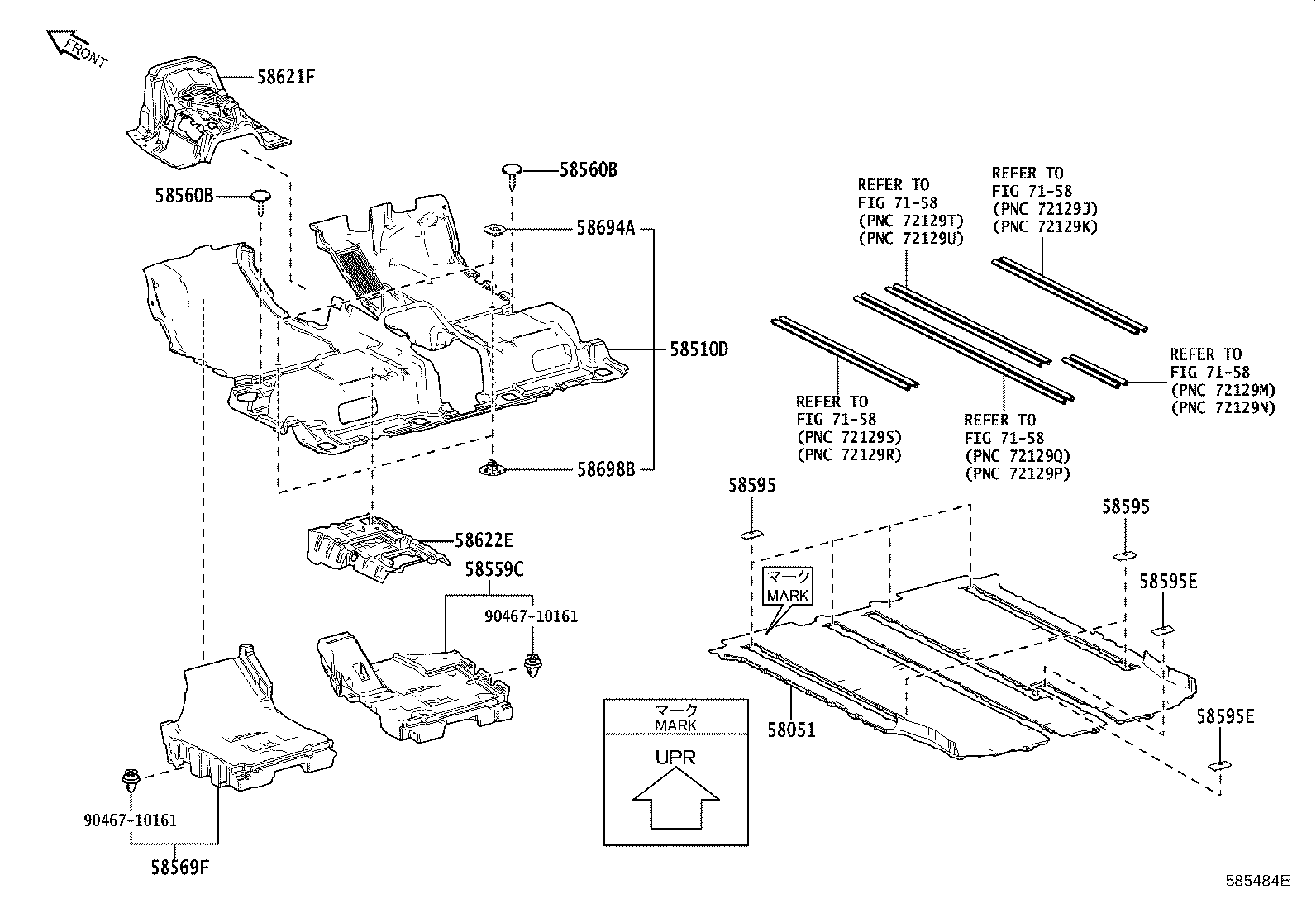

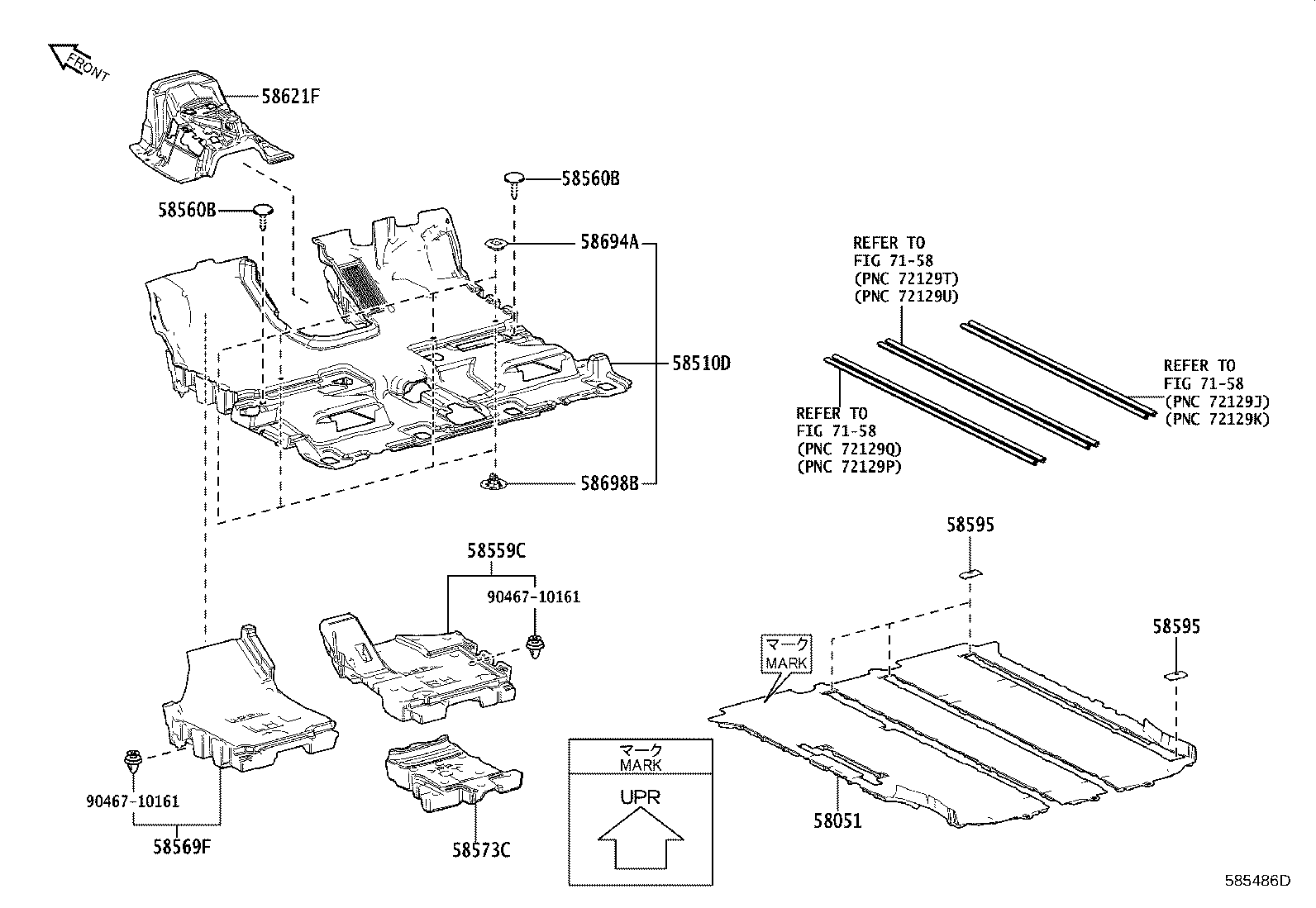

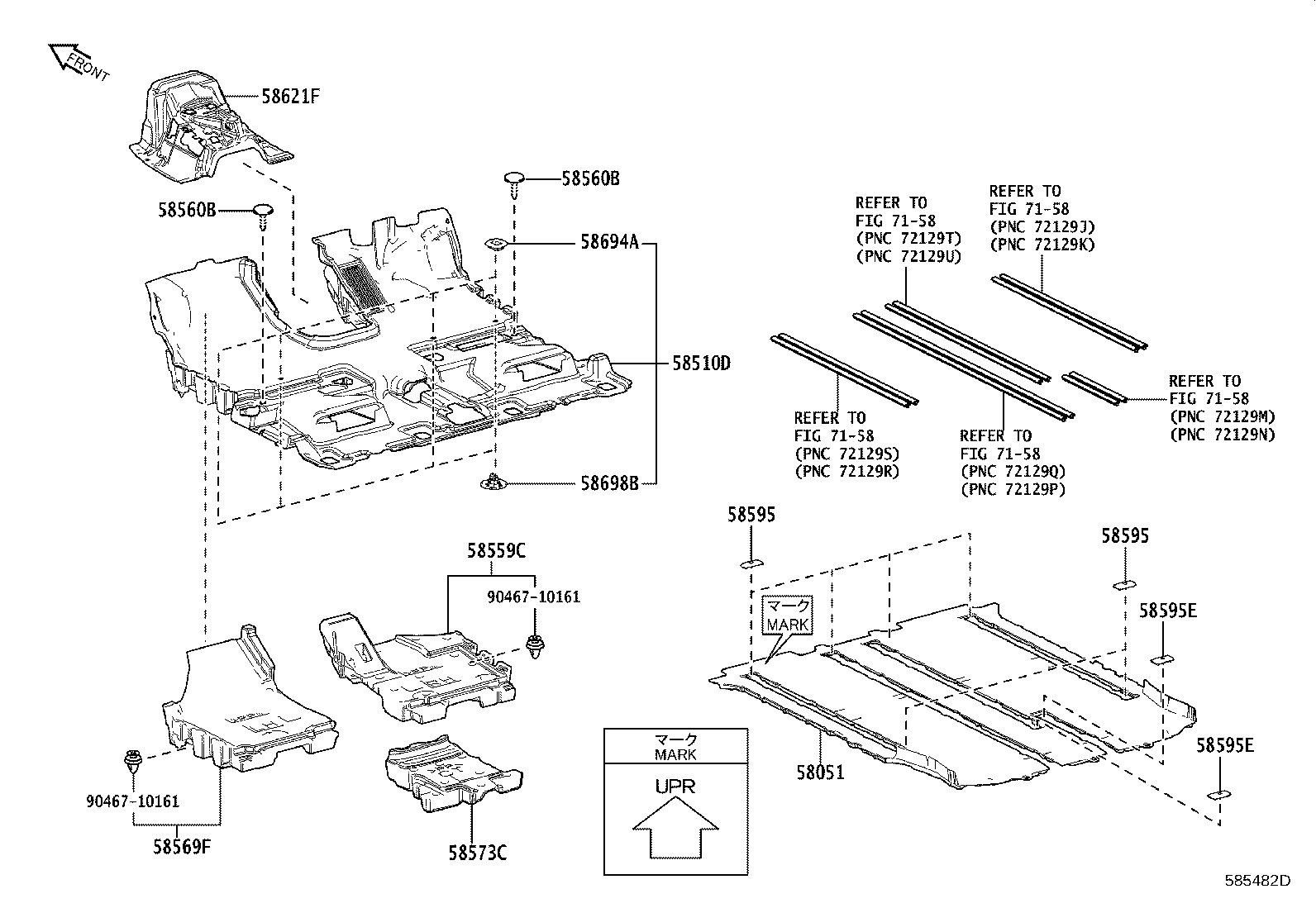

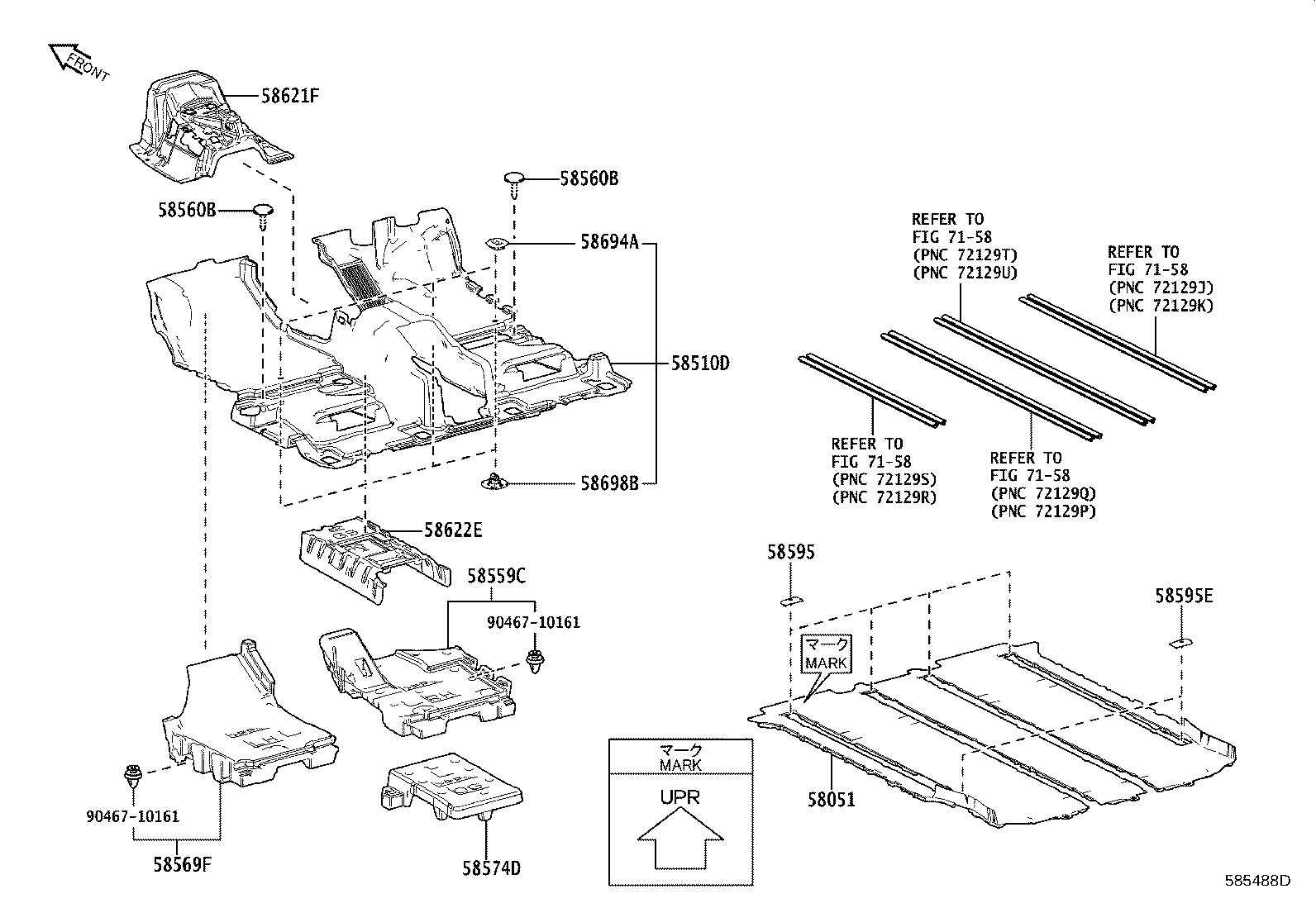

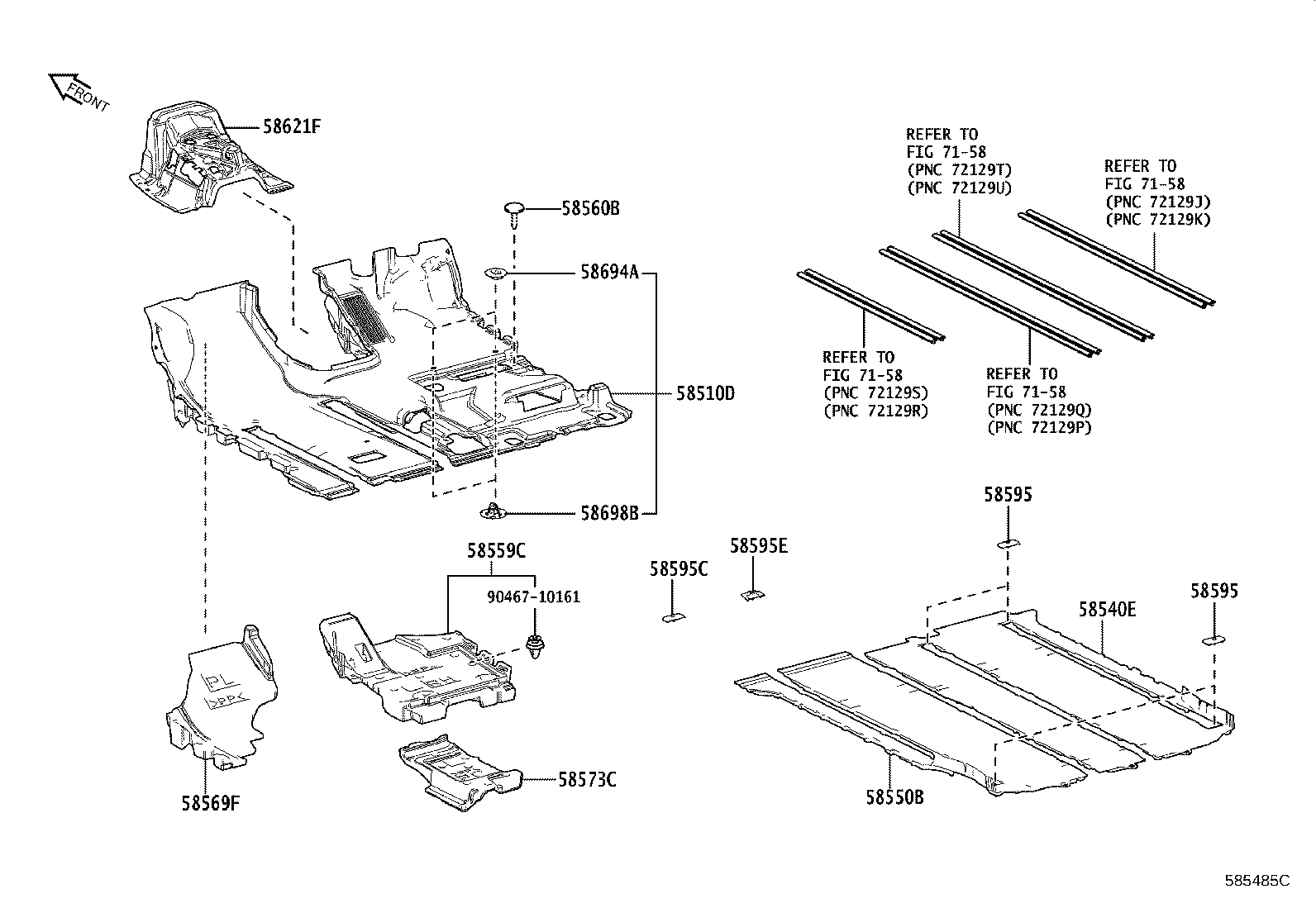

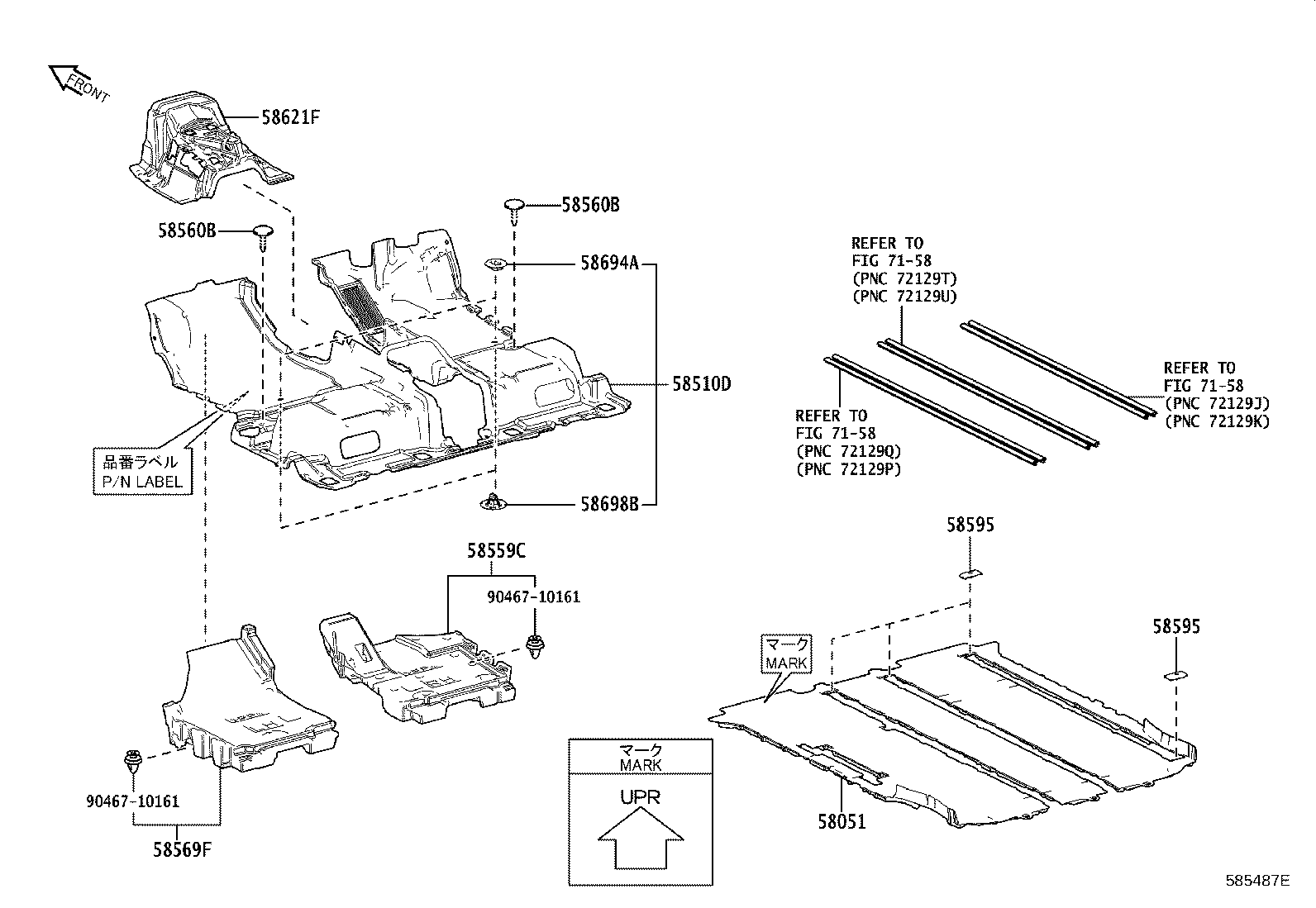

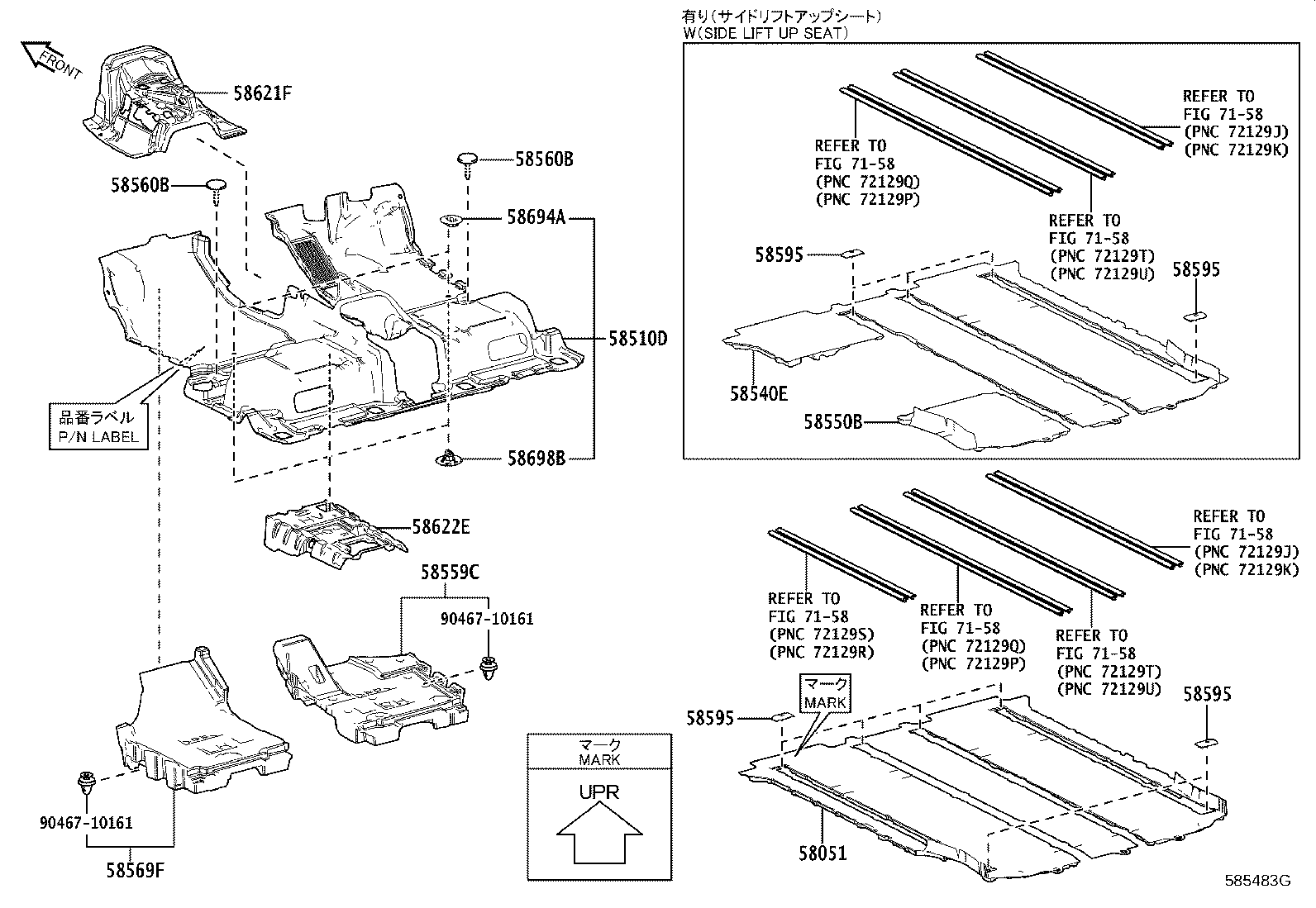

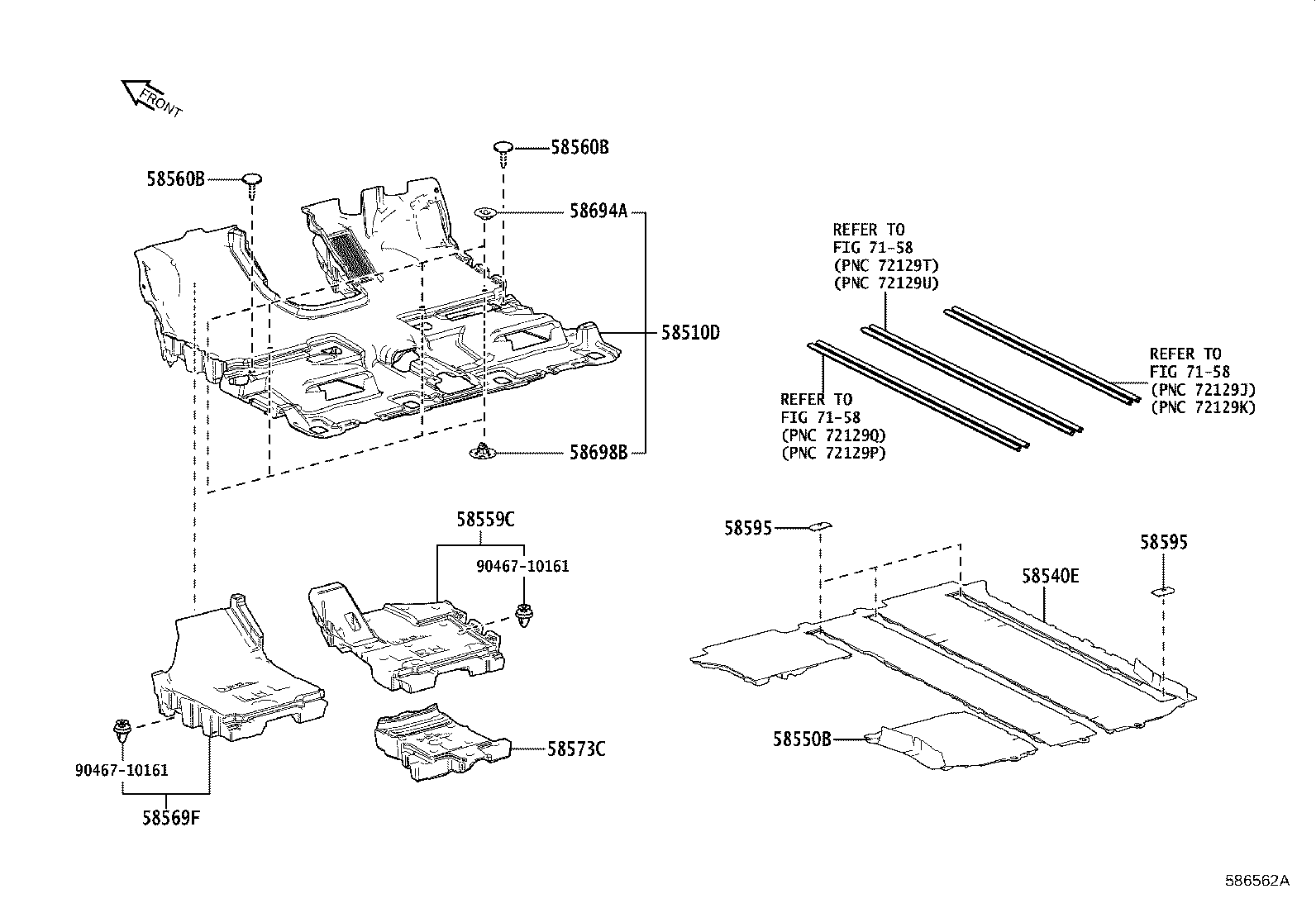

Figure 585481D 585481D 2015-01 → — Figure 585482D 585482D 2015-01 → — Figure 585483G 585483G 2015-01 → — Figure 585484E 585484E 2015-01 → — Figure 586561C 586561C 2018-01 → — Figure 586562A 586562A 2018-01 → — Figure 585485C 585485C 2015-01 → 2018-01 Figure 585485C 585485C 2018-01 → 2020-01 Figure 585486D 585486D 2015-01 → — Figure 585487E 585487E 2015-01 → — Figure 585488D 585488D 2015-01 → — Figure 585489E 585489E 2015-01 → — Figure 588689A 588689A 2023-03 → —

Part groups

PNCDescription
58051 Mat Set, Floor
58510D Carpet Assy, Floor, Front
58540E Mat Assy, Floor, Rear RH
58550B Mat Assy, Floor, Rear LH
58559C Pad, Front Floor Side, RH
58560B Clip(FOR FLOOR CARPET, REAR)
58569F Pad, Front Floor Side, LH
58573C Pad, Front Floor Center
58574D Pad, Front Floor, Center NO.2 RH
58595 Moulding, Floor Carpet, NO.3
58595C Moulding, Floor Carpet, NO.1
58595E Moulding, Floor Carpet, NO.4
58621F Silencer, Center Console, NO.1
58622E Silencer, Center Console, NO.2
58694A Plate, Mat Set, Upper
58698B Plate, Mat Set, Lower
74835F Bracket, Separator, Lower
74855J Bar, Rear Separator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
