Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH3#,AYH30,GGH3# · catalogue 713140 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

53 part groups · 15 illustrations

Illustrations

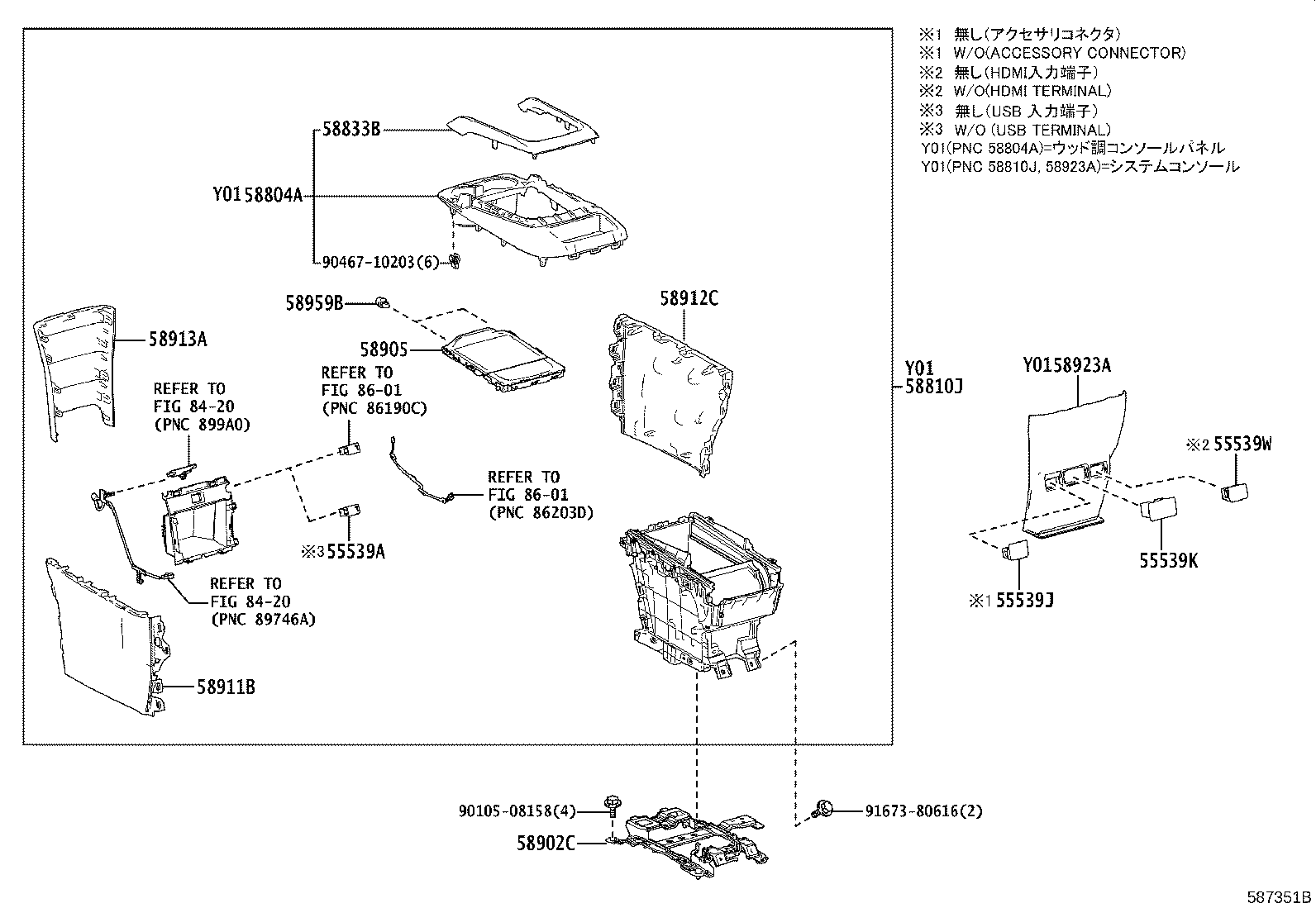

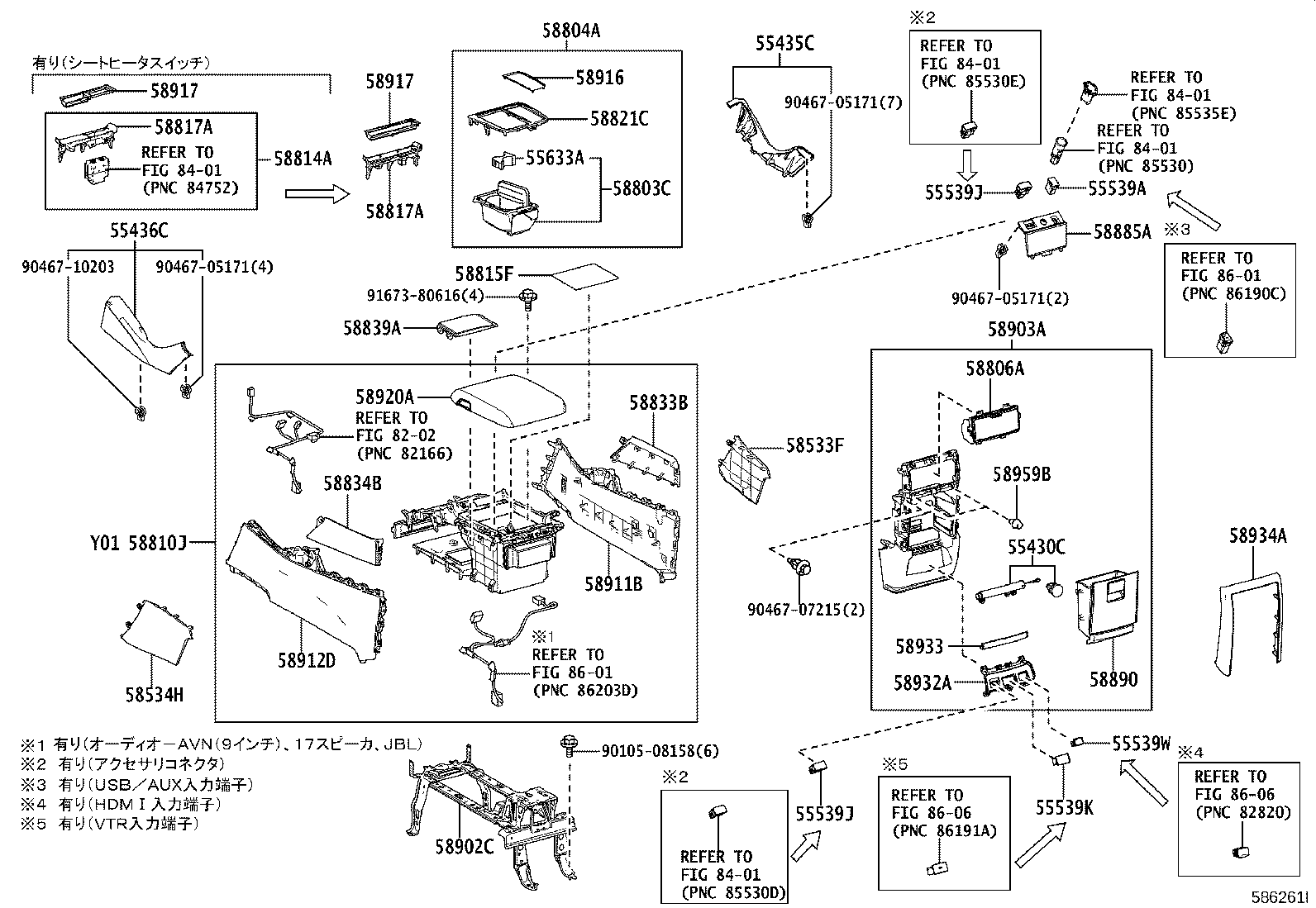

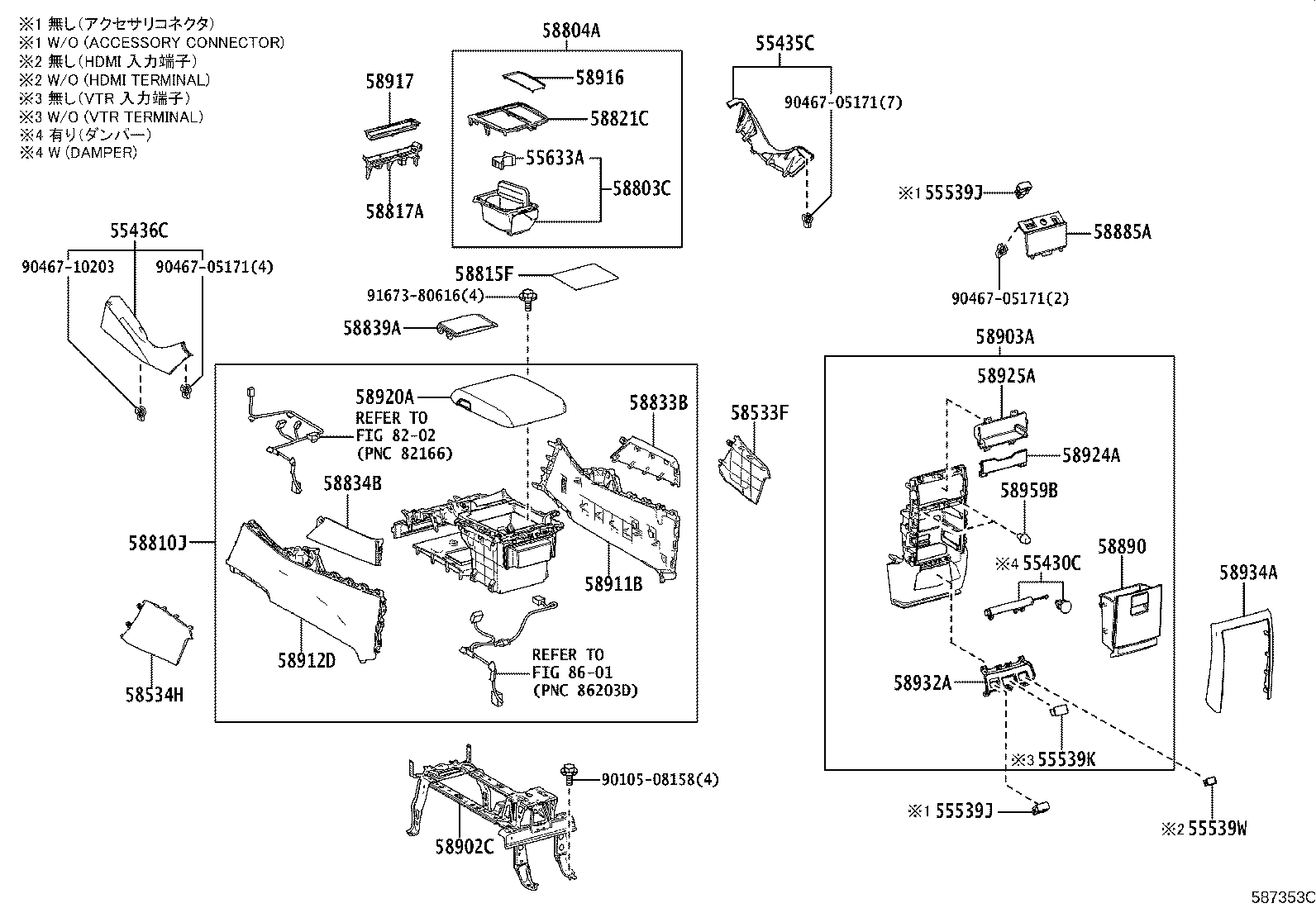

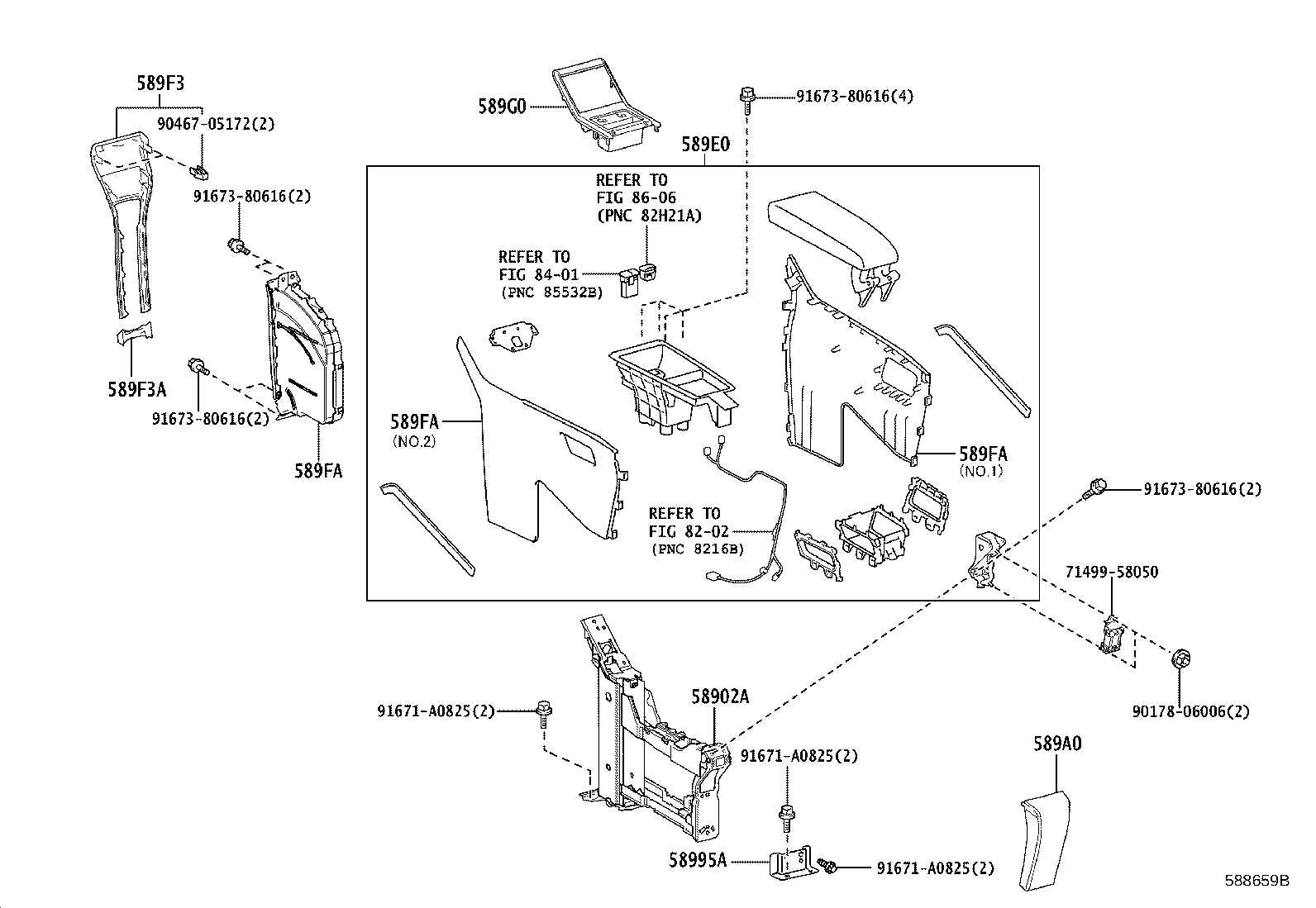

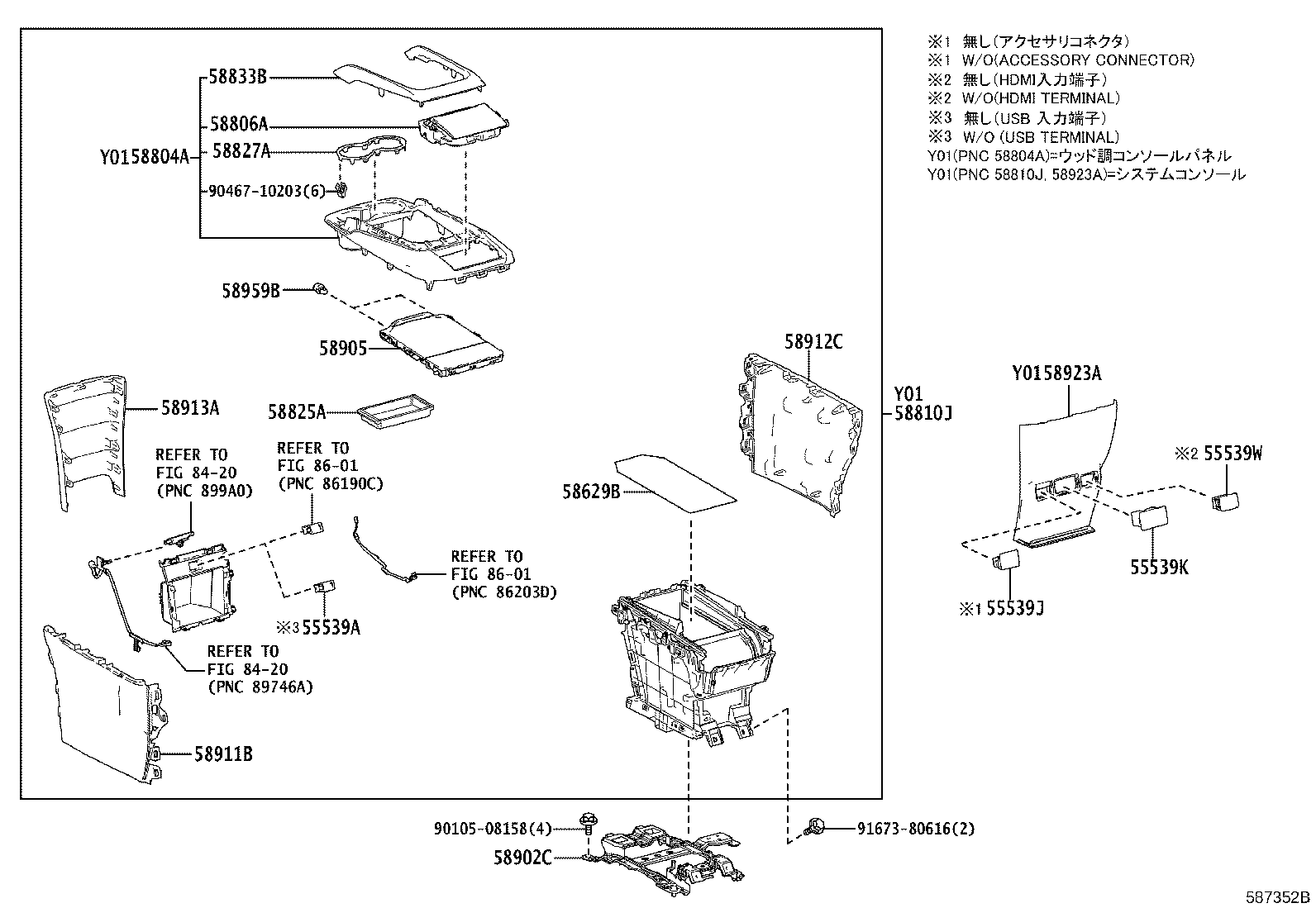

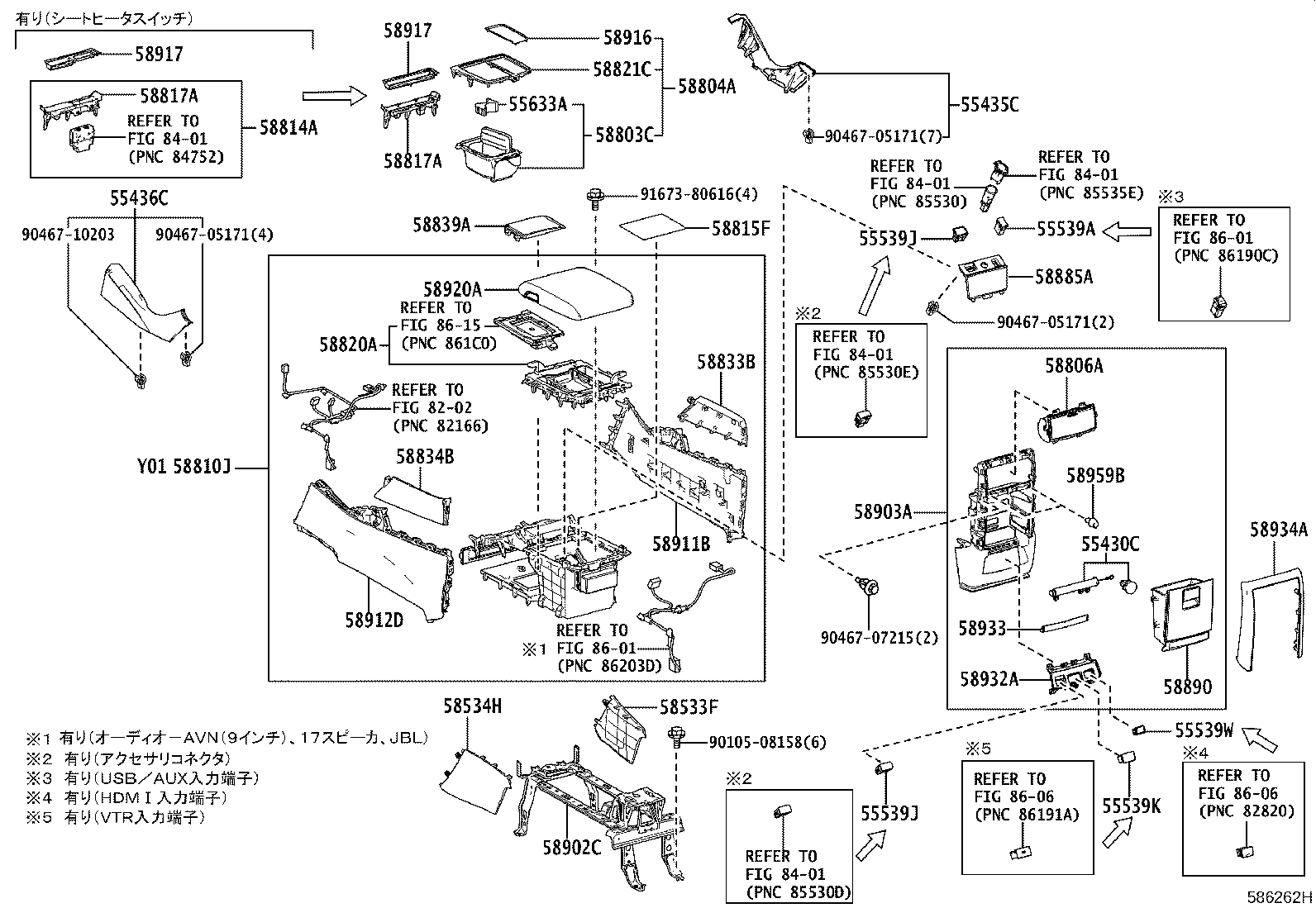

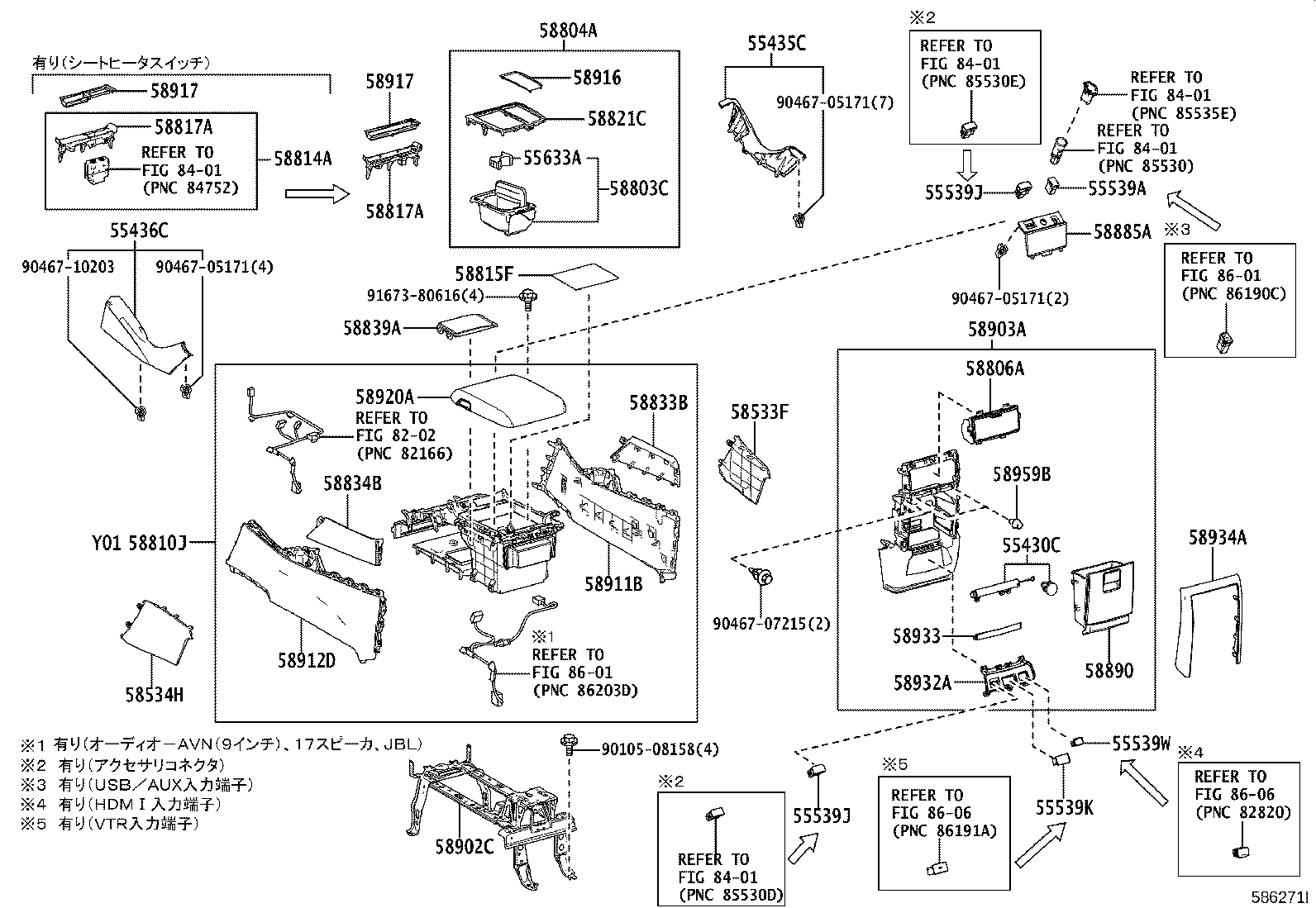

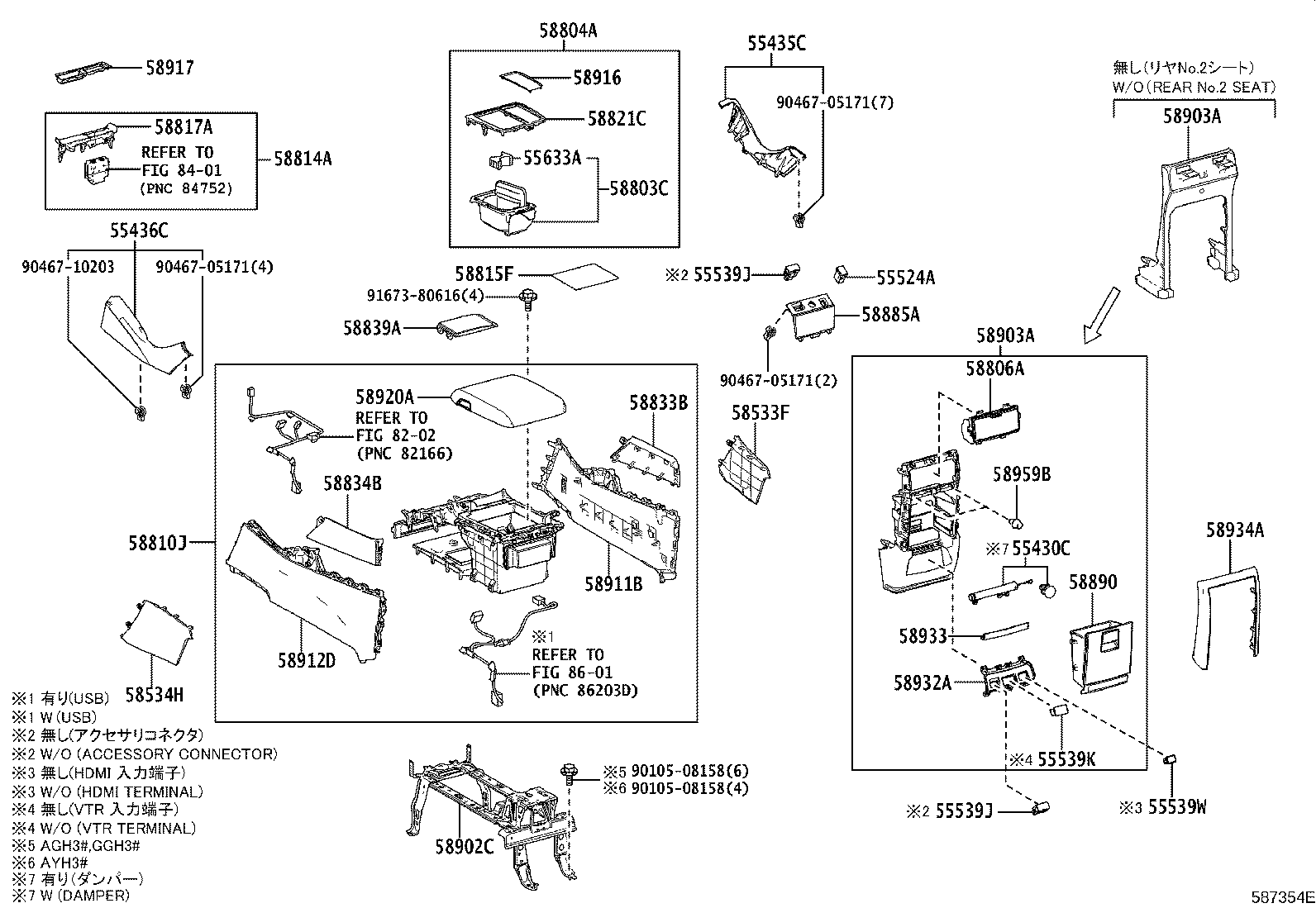

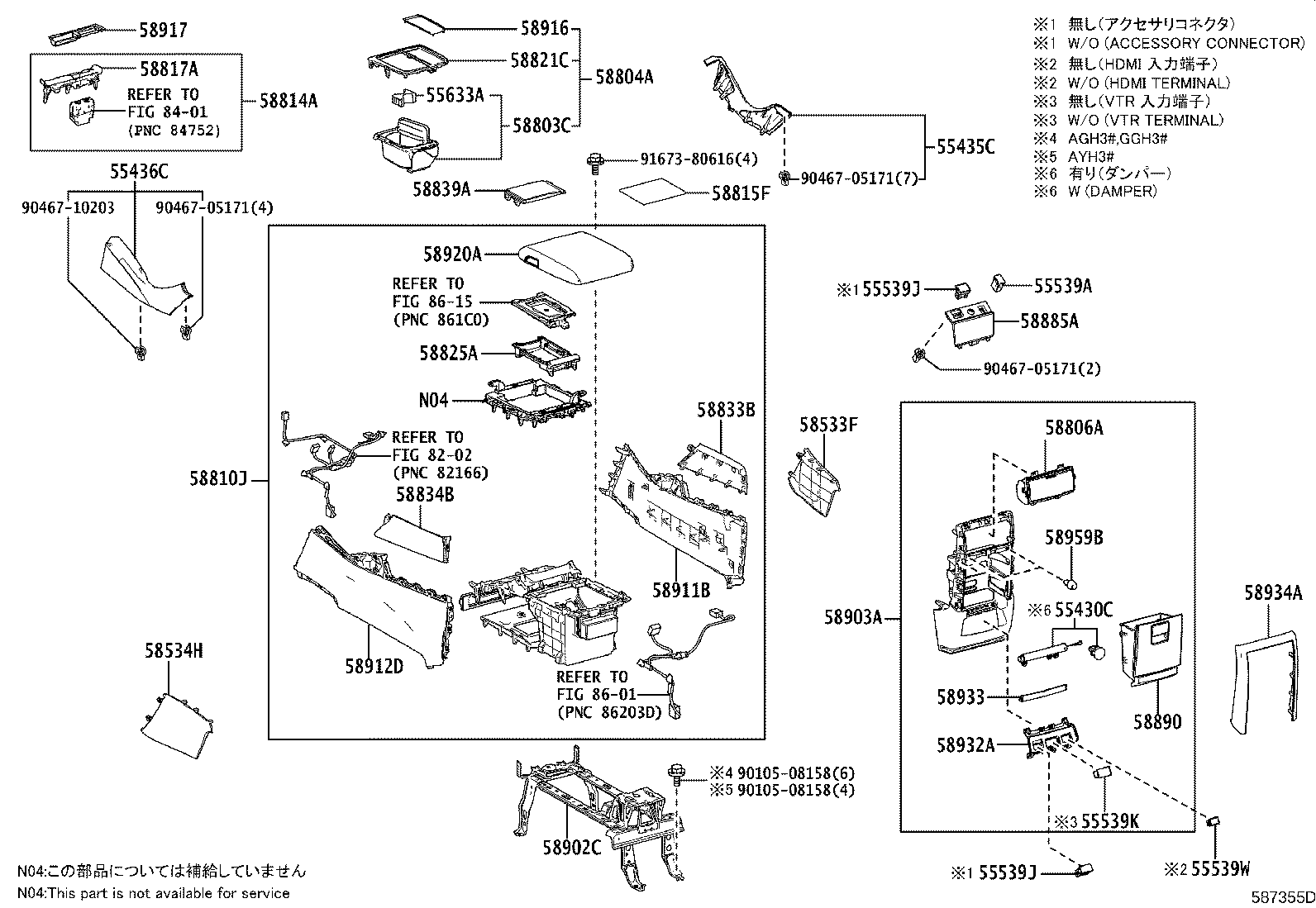

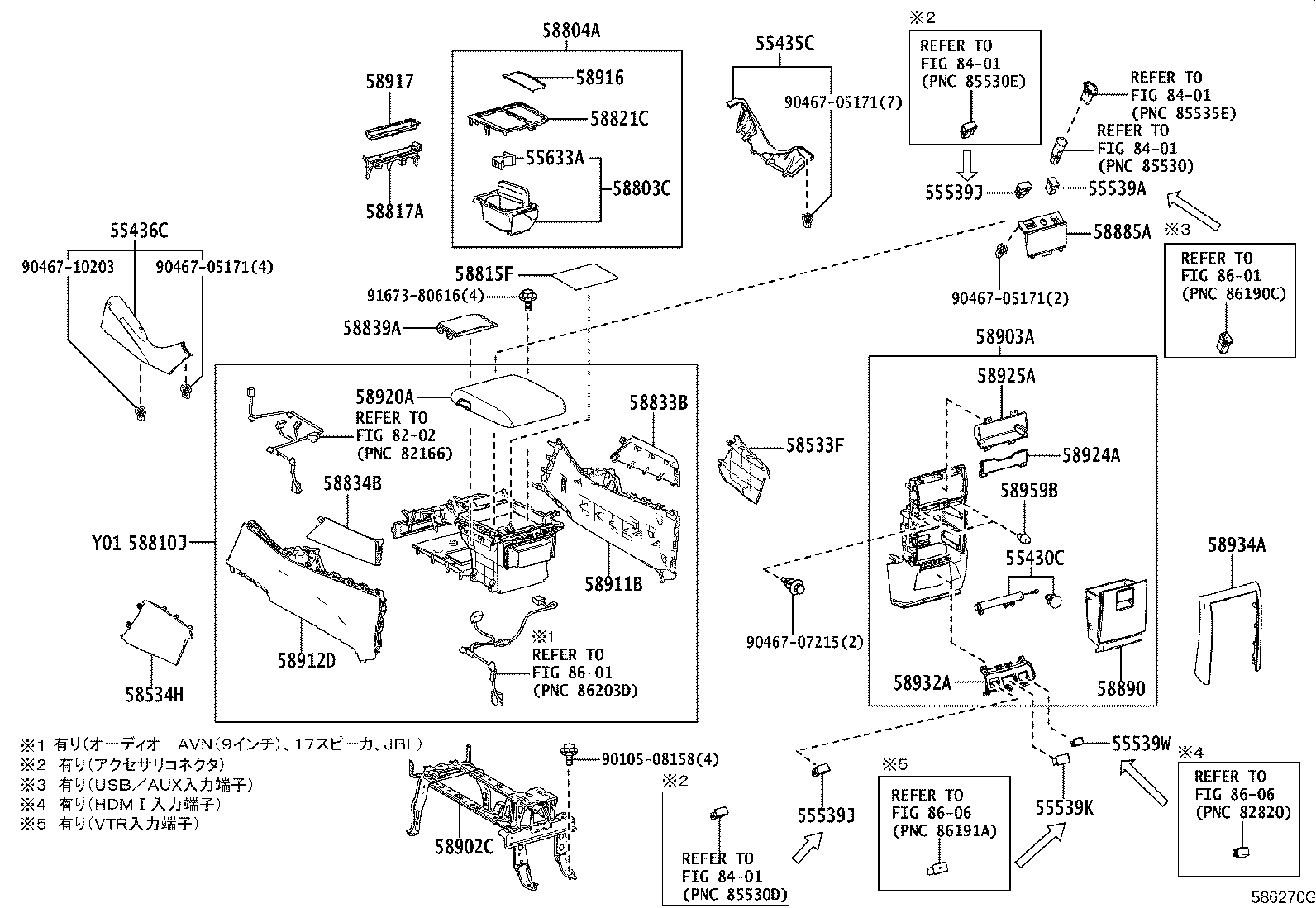

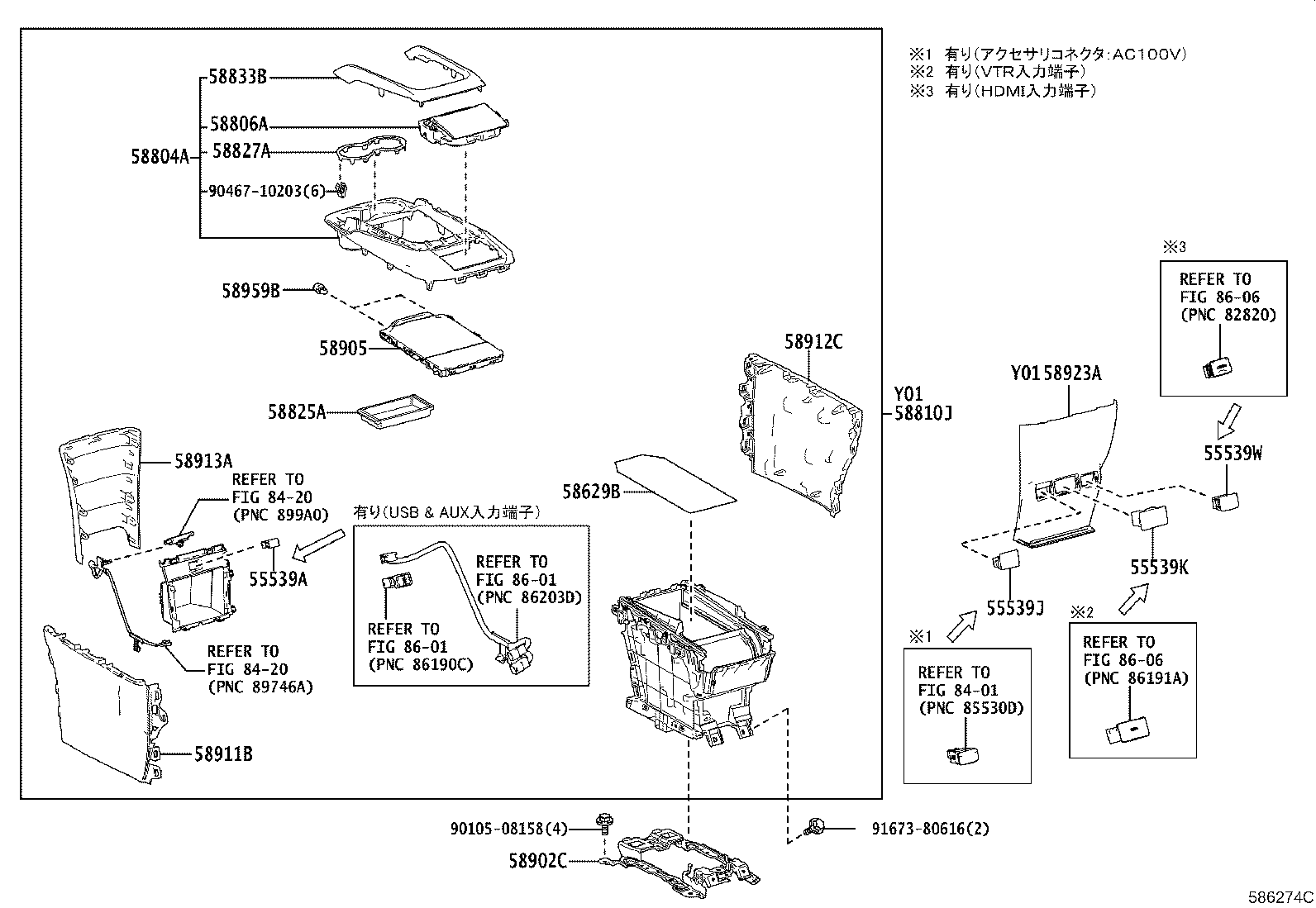

Figure 586273D 586273D 2015-01 → 2020-01 Figure 586274C 586274C 2015-01 → 2020-01 Figure 586261I 586261I 2015-01 → 2018-01 Figure 586261I 586261I 2018-01 → 2020-01 Figure 586262H 586262H 2015-01 → 2018-01 Figure 586262H 586262H 2018-01 → 2020-01 Figure 586270G 586270G 2015-01 → 2020-01 Figure 586271I 586271I 2015-01 → 2020-01 Figure 586272H 586272H 2015-01 → 2020-01 Figure 587351B 587351B 2020-01 → — Figure 587352B 587352B 2020-01 → — Figure 587353C 587353C 2020-01 → — Figure 587354E 587354E 2020-01 → — Figure 587355D 587355D 2020-01 → — Figure 588659C 588659C 2023-03 → —

Part groups

PNCDescription
55430C Damper Assy, Instrument Cluster Finish Panel
55435C Panel, Instrument Panel Finish, End RH
55436C Panel, Instrument Panel Finish, End LH
55524A Cover, Switch Base Hole
55539A Cover, Spare Switch Hole
55539J Cover, Spare Switch Hole
55539K Cover, Spare Switch Hole
55539W Cover, Spare Switch Hole
55633A Support, Instrument Panel Cup Holder, NO.1
58533F Cover, Floor Carpet, Center RH
58534H Cover, Floor Carpet, Center LH
58629B Mat, Center Console
58803C Box Sub-assy, Console Cup Holder
58804A Panel Sub-assy, Console, Upper
58806A Pocket Sub-assy, Console Box
58810J Box Assy, Console
58814A Base, Console Upper Panel Power Seat Switch, NO.1
58815F Carpet, Console Box
58817A Insert, Console Box, Front NO.2
58820A Box Assy, Console Compartment
58821C Panel, Console, Upper
58825A Pocket, Console Box
58827A Garnish, Console Box Pocket
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58839A Cover, Console Box Hole
58885A Panel, Equipment Set
58890 Box Assy, Trash
58902A Bracket Sub-assy, Console Box Mounting, NO.1
58902C Bracket Sub-assy, Console Box Mounting
58903A Panel Sub-assy, Console Rear End
58905 Door Sub-assy, Console Compartment
58911B Panel, Box, NO.1
58912C Panel, Box Side, NO.2
58912D Panel, Box, NO.2
58913A Panel, Box, NO.3
58916 Mat, Box Bottom
58917 Mat, Box Bottom, NO.2
58920A Armrest Assy, Rear Console
58923A Panel, Console Rear End
58924A Panel, Console Rear End, NO.2
58925A Pocket, Console Box, Rear
58932A Garnish, Rear Console Box
58933 Garnish, Console Rear End Panel
58934A Garnish, Console Rear End Panel, NO.2
58959B Cushion, Console Compartment Door
58995A Bracket, Console Box Mounting, NO.1
589A0 Table Assy, Rear Seat Console
589E0 Armrest Assy, Rear Seat Console
589F3 Panel, Rear Seat Console Box, Front NO.1
589F3A Panel, Rear Seat Console Box, Front NO.2
589FA Box, Rear Seat Console
589G0 Panel Assy, Rear Seat Console
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
