Toyota Alphard/Vellfire/HV
2015-01 → present · chassis AGH3#,AYH30,GGH3# · catalogue 713140 · Japan
Supported model
Data version 2020-01

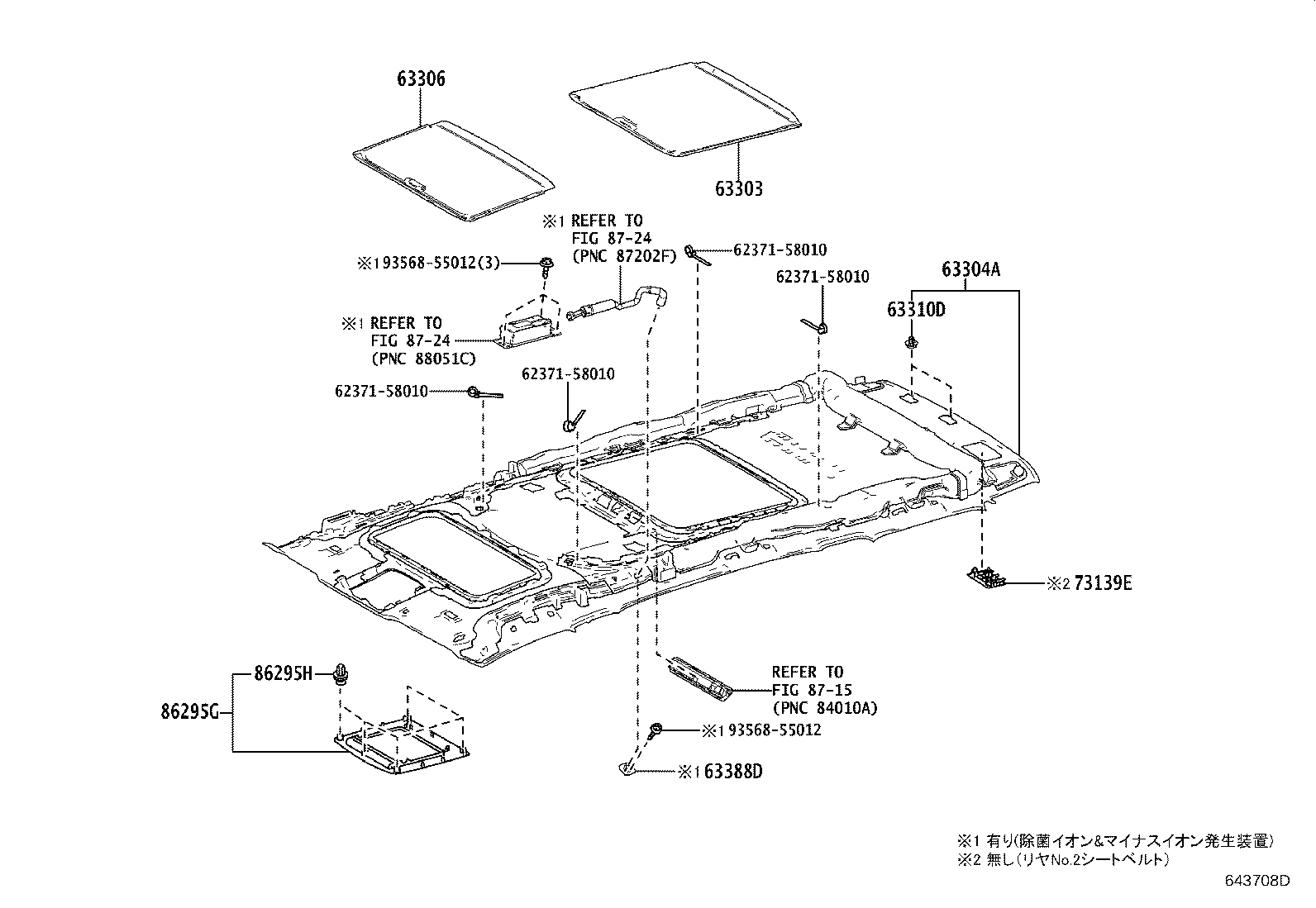

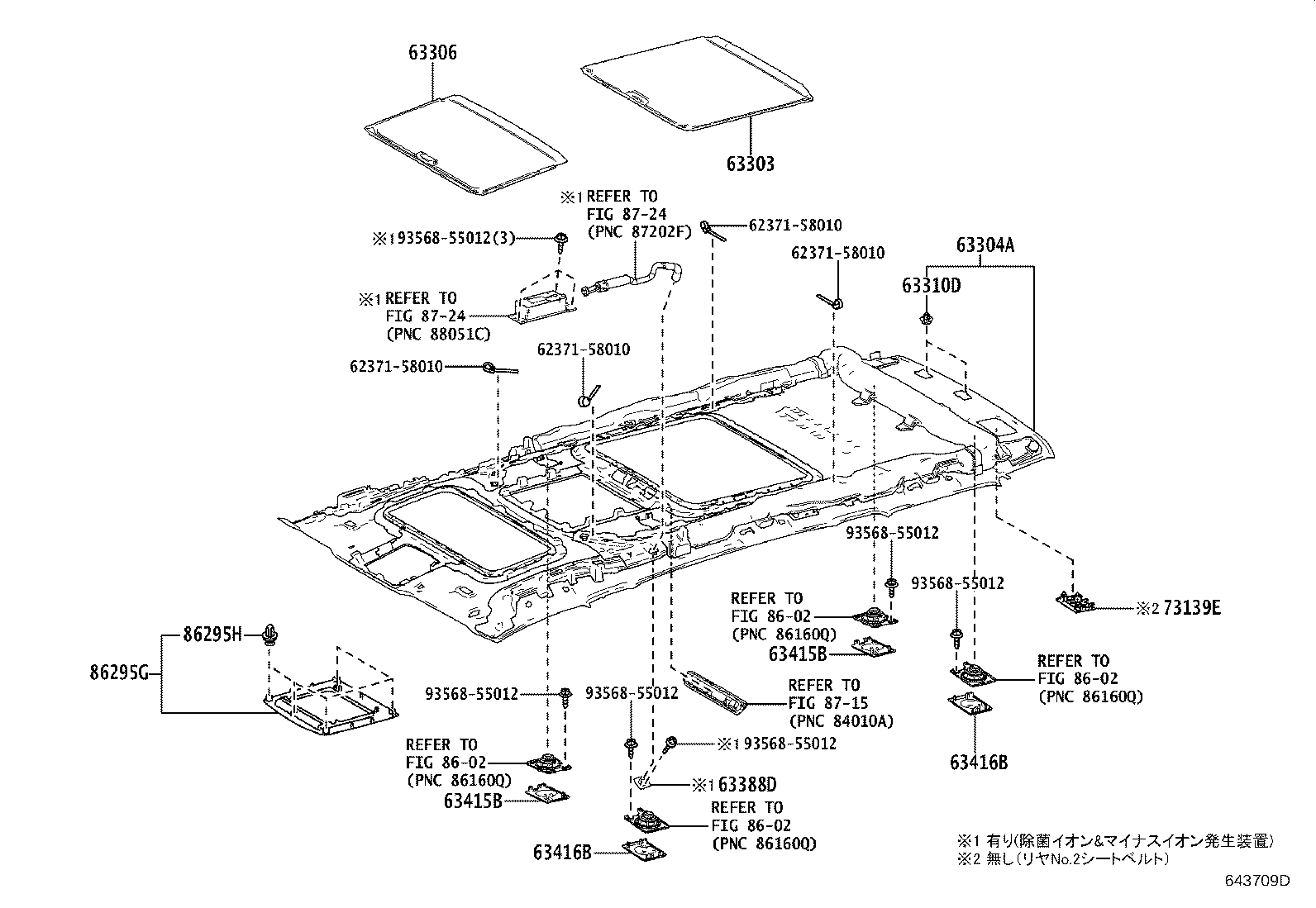

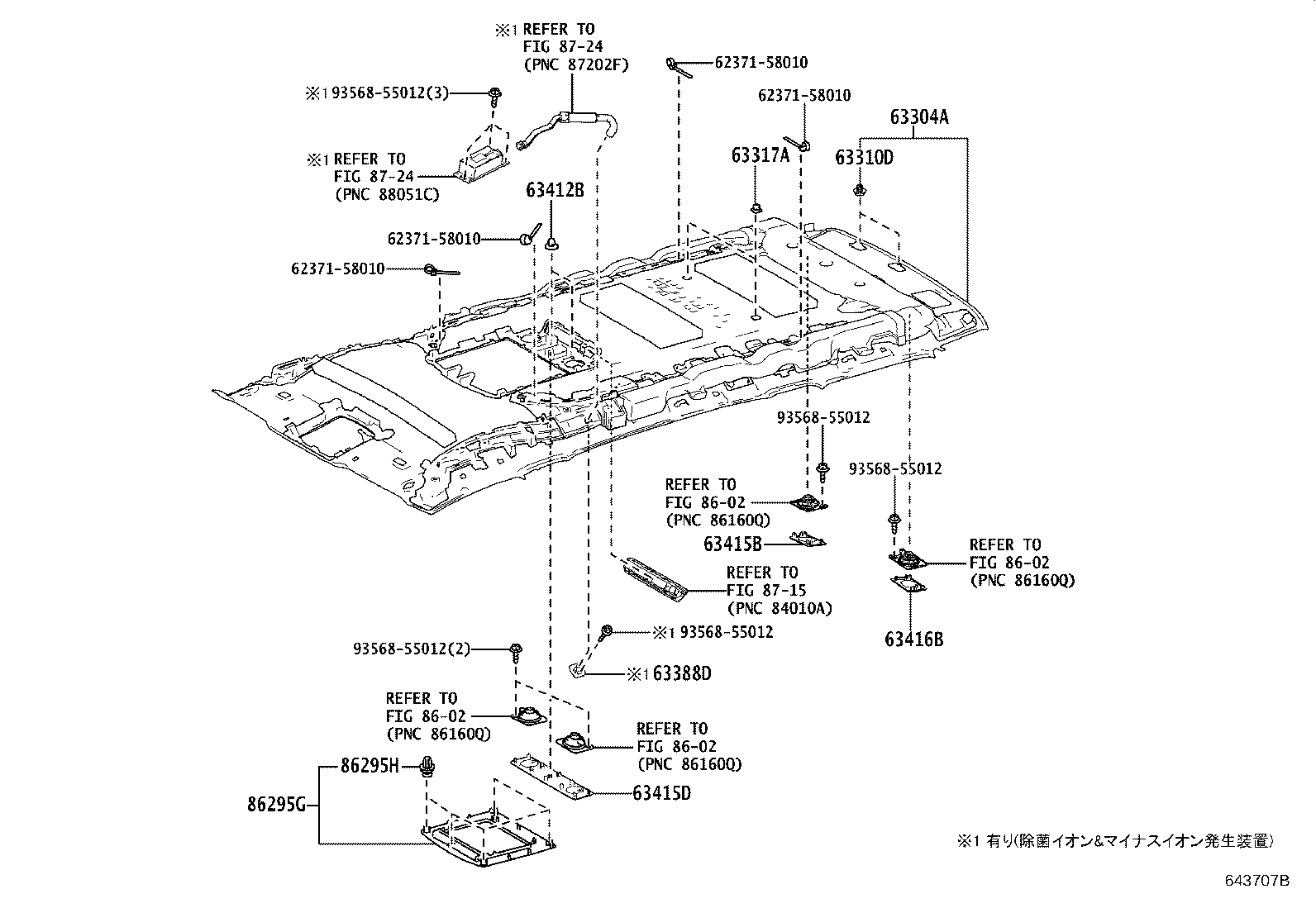

Roof Headlining & Silencer Pad
13 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 63303 | Trim Sub-assy, Sunshade, NO.2 |
| 63304A | Trim Sub-assy, Roof Headlining, Front |
| 63306 | Trim Sub-assy, Sunshade |
| 63310D | Clip, Roof Headlining |
| 63317A | Retainer, Roof Headlining |
| 63388D | Bracket, Roof Headlining Retainer, NO.2 |
| 63412B | Retainer, Roof Console |
| 63415B | Grille, Roof Speaker, RH |
| 63415D | Grille, Roof Speaker, Center |
| 63416B | Grille, Roof Speaker, LH |
| 73139E | Cover, Seat Belt Anchor |
| 86295G | Base, Television |
| 86295H | Clip, Television Base |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
