Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH3#,AYH30,GGH3# · catalogue 713140 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Window Regulator & Hinge

4 part groups · 2 illustrations

Illustrations

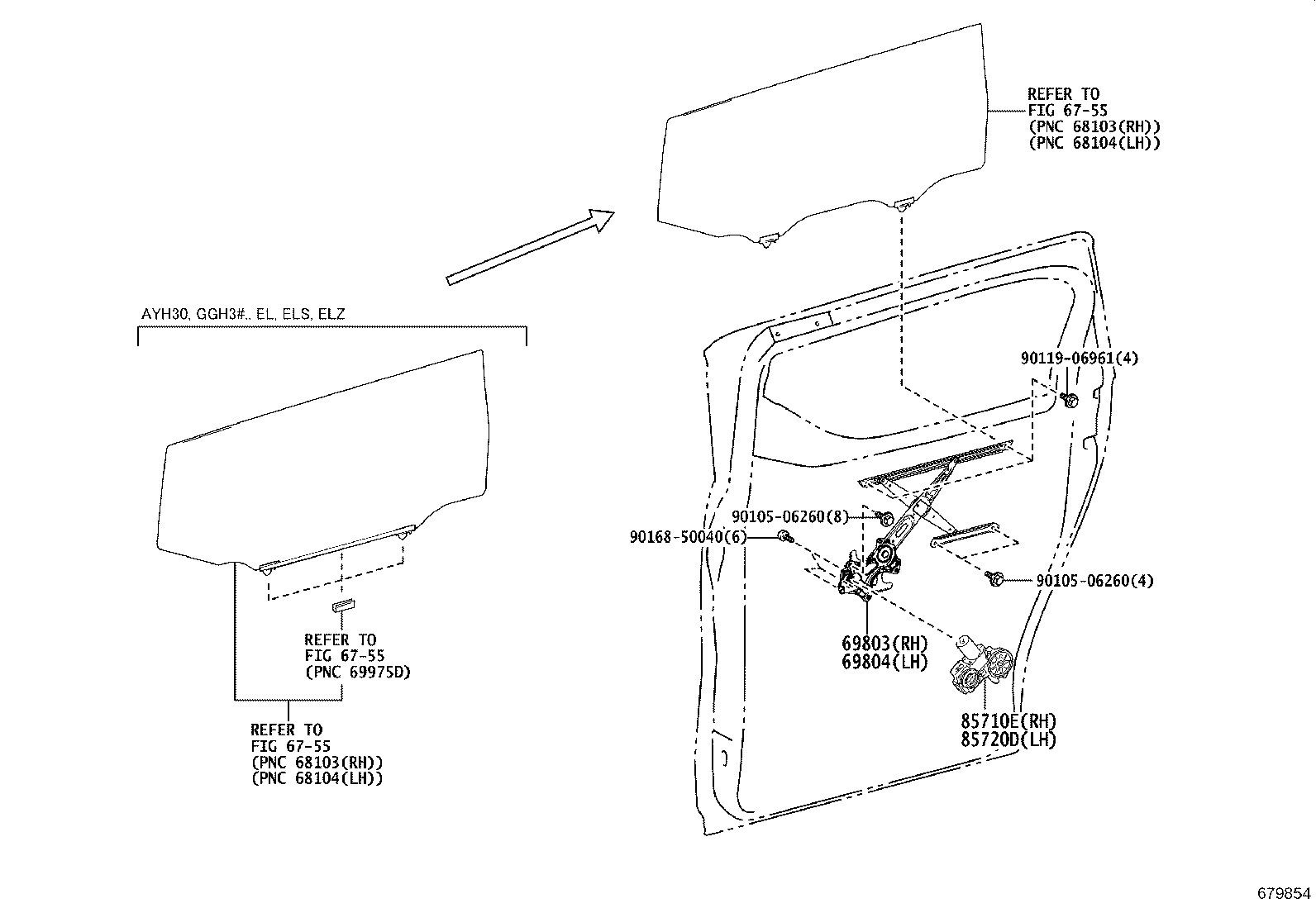

Figure 678559A 678559A 2015-01 → 2018-01 Figure 679854 679854 2018-01 → —

Part groups

PNCDescription
69803 Regulator Sub-assy, Rear Door Window, RH
69804 Regulator Sub-assy, Rear Door Window, LH
85710E Motor Assy, Power Window Regulator, RH
85720D Motor Assy, Power Window Regulator, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
