Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH3#,AYH30,GGH3# · catalogue 713140 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

45 part groups · 8 illustrations

Illustrations

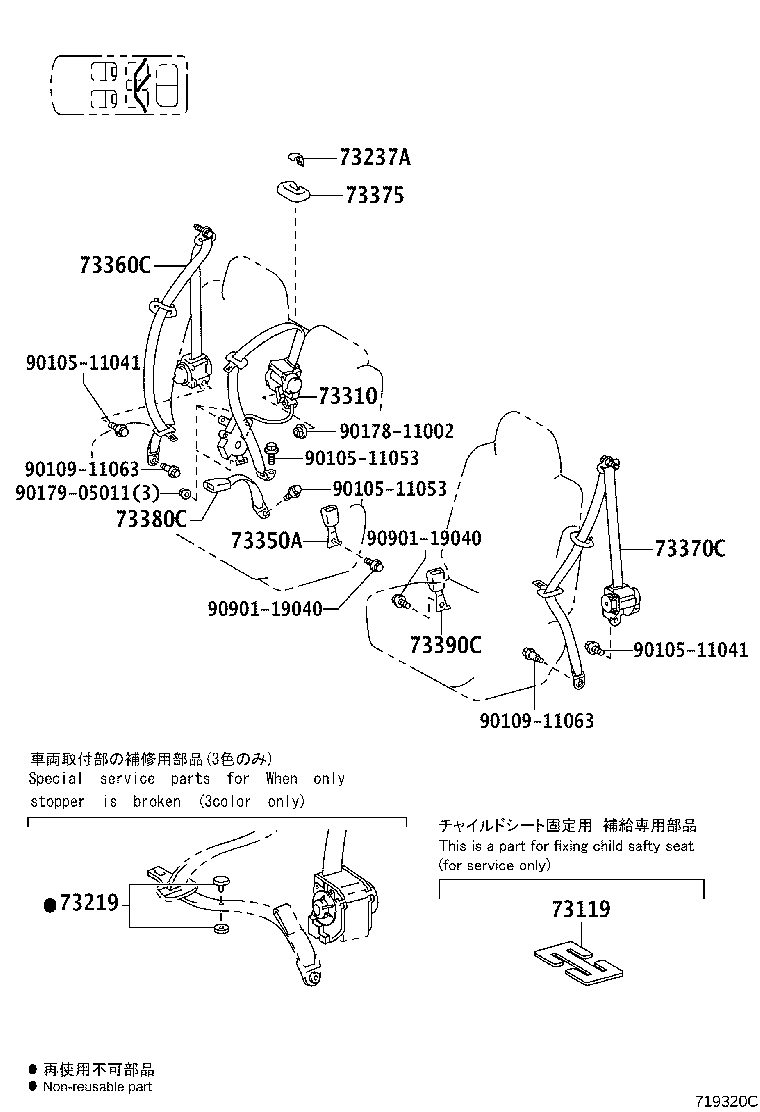

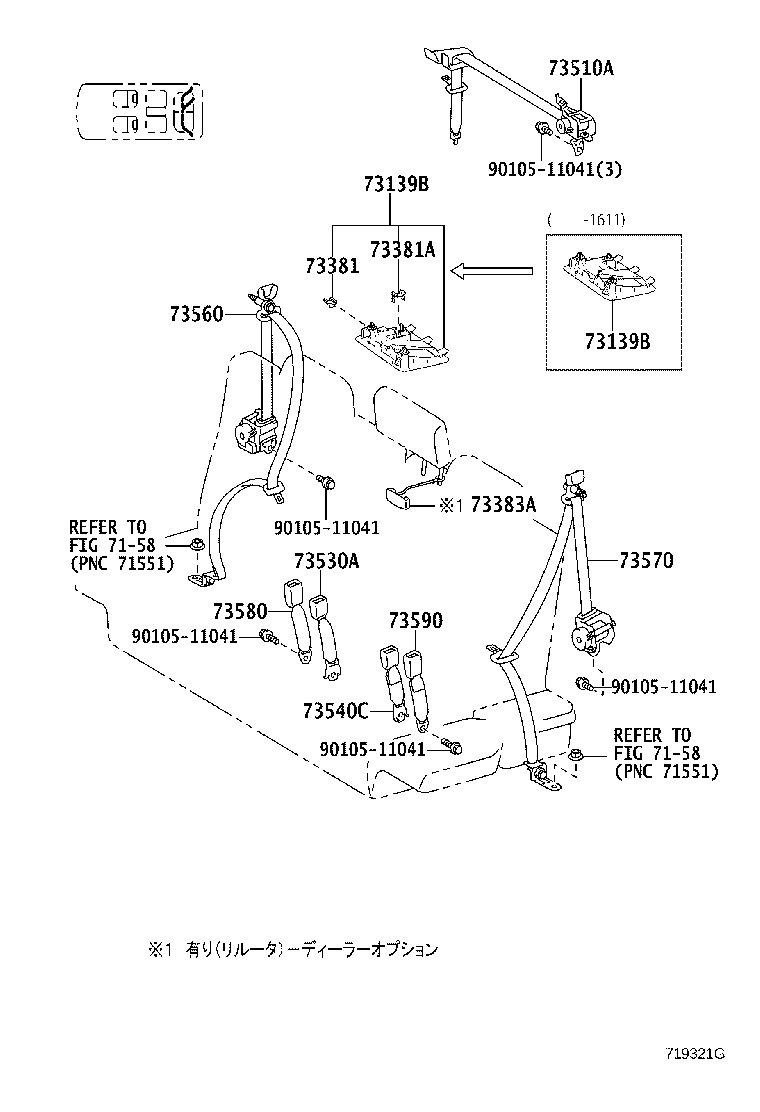

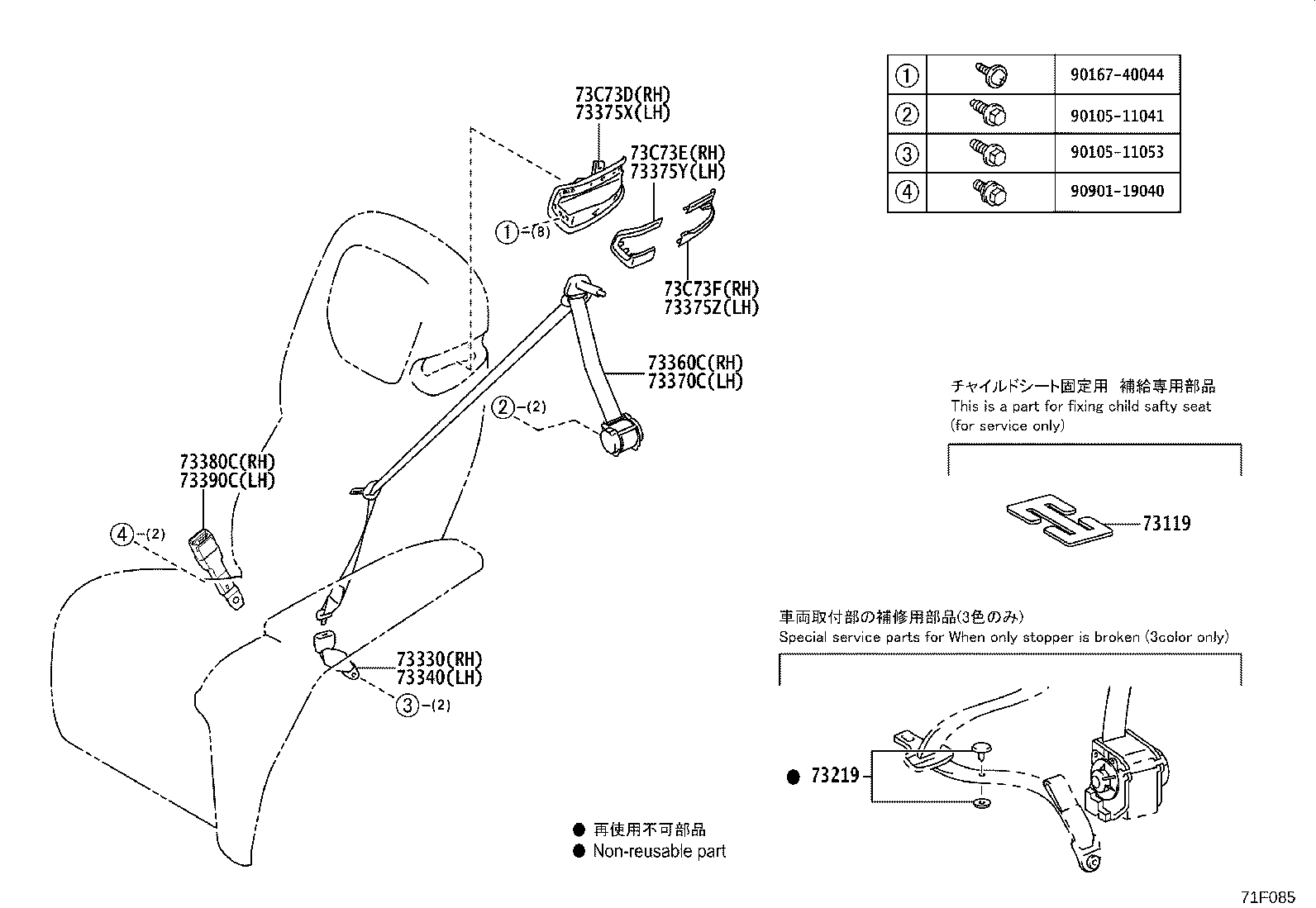

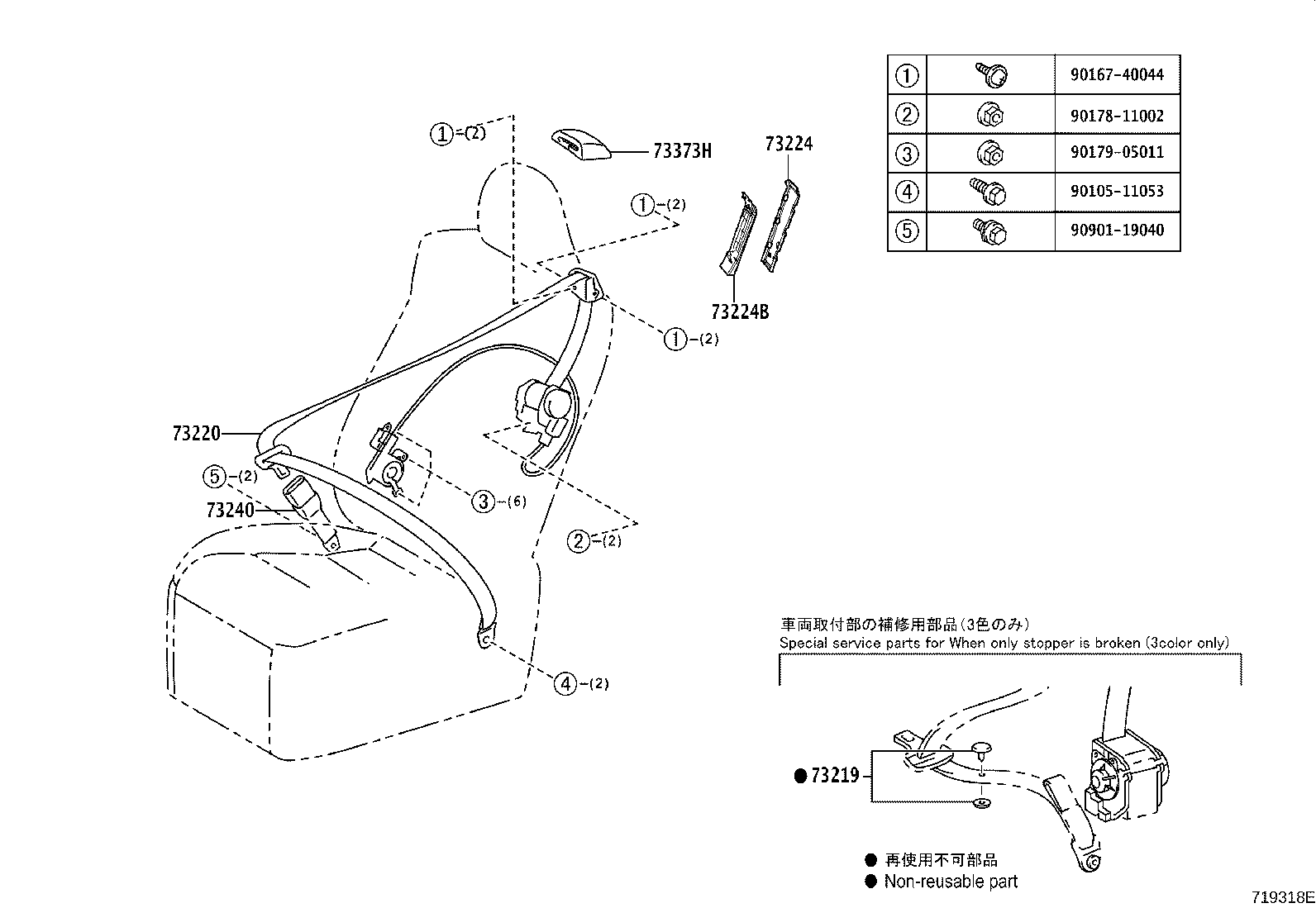

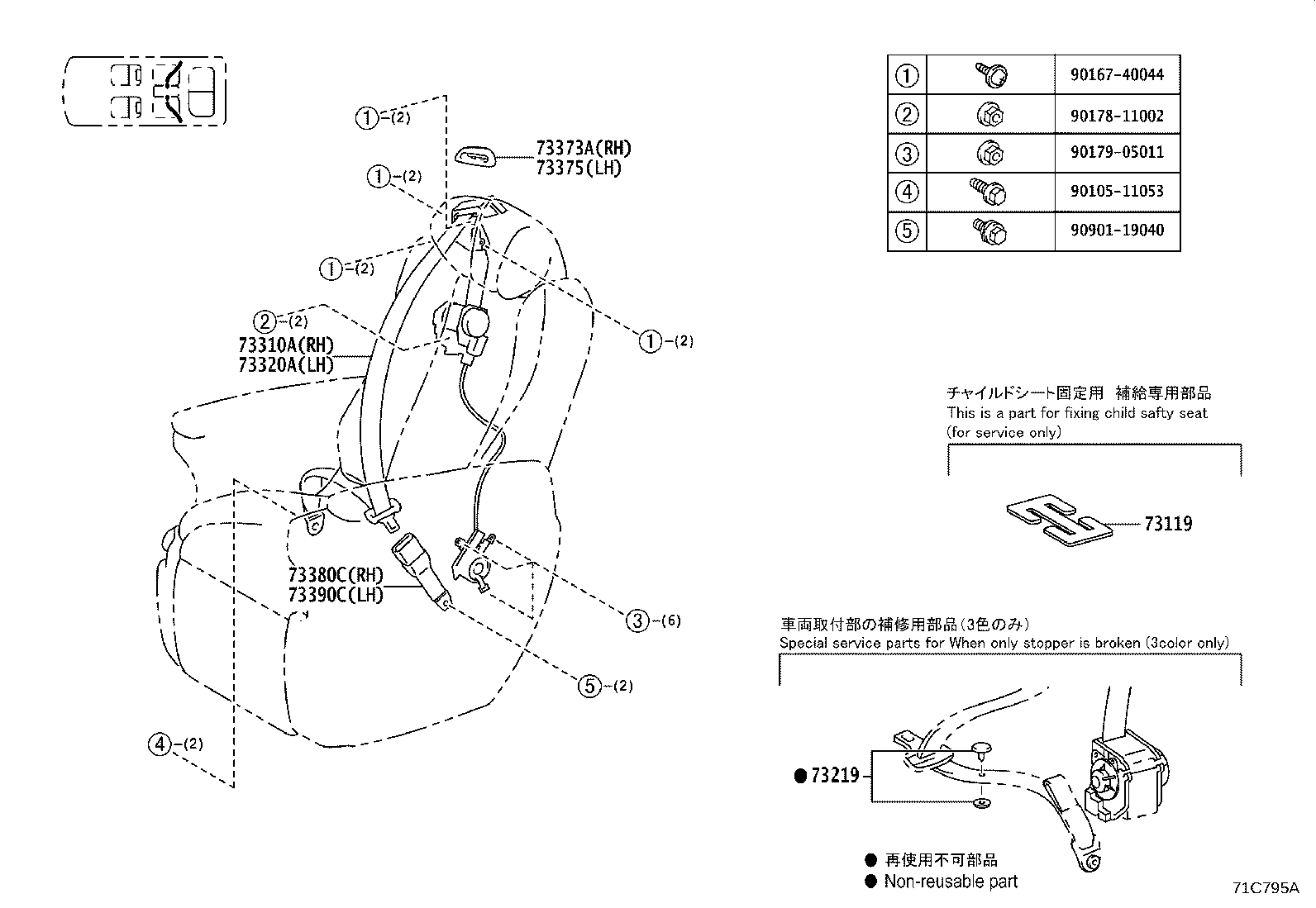

Figure 719317C 719317C 2015-01 → — Figure 719318E 719318E 2015-01 → 2018-01 Figure 719318E 719318E 2018-01 → — Figure 71C795A 71C795A 2015-01 → — Figure 719322B 719322B 2015-01 → — Figure 719320C 719320C 2015-01 → — Figure 71F085 71F085 2023-03 → — Figure 719321G 719321G 2015-01 → —

Part groups

PNCDescription
73023 Plate Sub-assy, Front Shoulder Belt Anchor, RH
73024 Plate Sub-assy, Front Shoulder Belt Anchor, LH
73119 Plate, Seat Belt Webbing Clip
73139B Cover, Seat Belt Anchor
73178G Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73214 Plate, Front Seat Belt Anchor
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73224 Cover, Front Seat Belt Retractor, LH
73224B Cover, Front Seat Belt Retractor, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73237A Cover, Shoulder Belt Anchor
73240 Belt Assy, Front Seat Inner, LH
73310 Belt Assy, Rear Seat 3 Point Type, RH
73310A Belt Assy, NO.1 Seat 3 Point Type, RH
73320A Belt Assy, NO.1 Seat 3 Point Type, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
73350A Belt Assy, Rear NO.1 Seat Lap Type, Center
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73373A Cover, Rear Seat Shoulder Belt, RH
73373H Cover, Front Seat Shoulder Belt
73375 Cover, Rear Seat Shoulder Belt, LH
73375X Cover, Rear Seat Shoulder Belt, LH NO.1
73375Y Cover, Rear Seat Shoulder Belt, LH NO.2
73375Z Cover, Rear Seat Shoulder Belt, LH NO.3
73380C Belt Assy, Rear NO.1 Seat, Inner RH
73381 Holder, Rear Seat Belt
73381A Holder, Rear Seat Belt NO.2
73383A Hook, RR Seat Belt
73390C Belt Assy, Rear NO.1 Seat, Inner LH
73510A Belt Assy, Rear NO.2 Seat, 3 Point Type
73530A Belt Assy, Rear NO.2 Seat Lap Type, RH
73540C Belt Assy, Rear NO.2 Seat Lap Type
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580 Belt Assy, Rear NO.2 Seat, Inner RH
73590 Belt Assy, Rear NO.2 Seat, Inner LH
73C73D Cover, Rear Seat Shoulder Belt, RH NO.1
73C73E Cover, Rear Seat Shoulder Belt, RH NO.2
73C73F Cover, Rear Seat Shoulder Belt, RH NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
