Toyota Alphard/Vellfire/HV
2015-01 → present · chassis AGH3#,AYH30,GGH3# · catalogue 713140 · Japan
Supported model
Data version 2020-01
Interior Lamp
30 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 63654C | Cover, Roof Console Box, Inner |
| 81080H | Lamp Assy, Interior Illumination, NO.1 RH |
| 81080J | Lamp Assy, Interior Illumination, NO.1 |
| 81080L | Lamp Assy, Interior Illumination, NO.1 LH |
| 81080M | Lamp Assy, Interior Illumination, NO.1 |
| 81080P | Lamp Assy, Interior Illumination, NO.1 RH |
| 81080S | Lamp Assy, Interior Illumination, NO.1 LH |
| 81081 | Lamp Sub-assy, Interior Illumination |
| 81081A | Lamp Sub-assy, Interior Illumination, NO.2 |
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81240K | Clip, Room Lamp |
| 81249 | Switch, Room Lamp |
| 81251A | Lens, Spot Lamp |

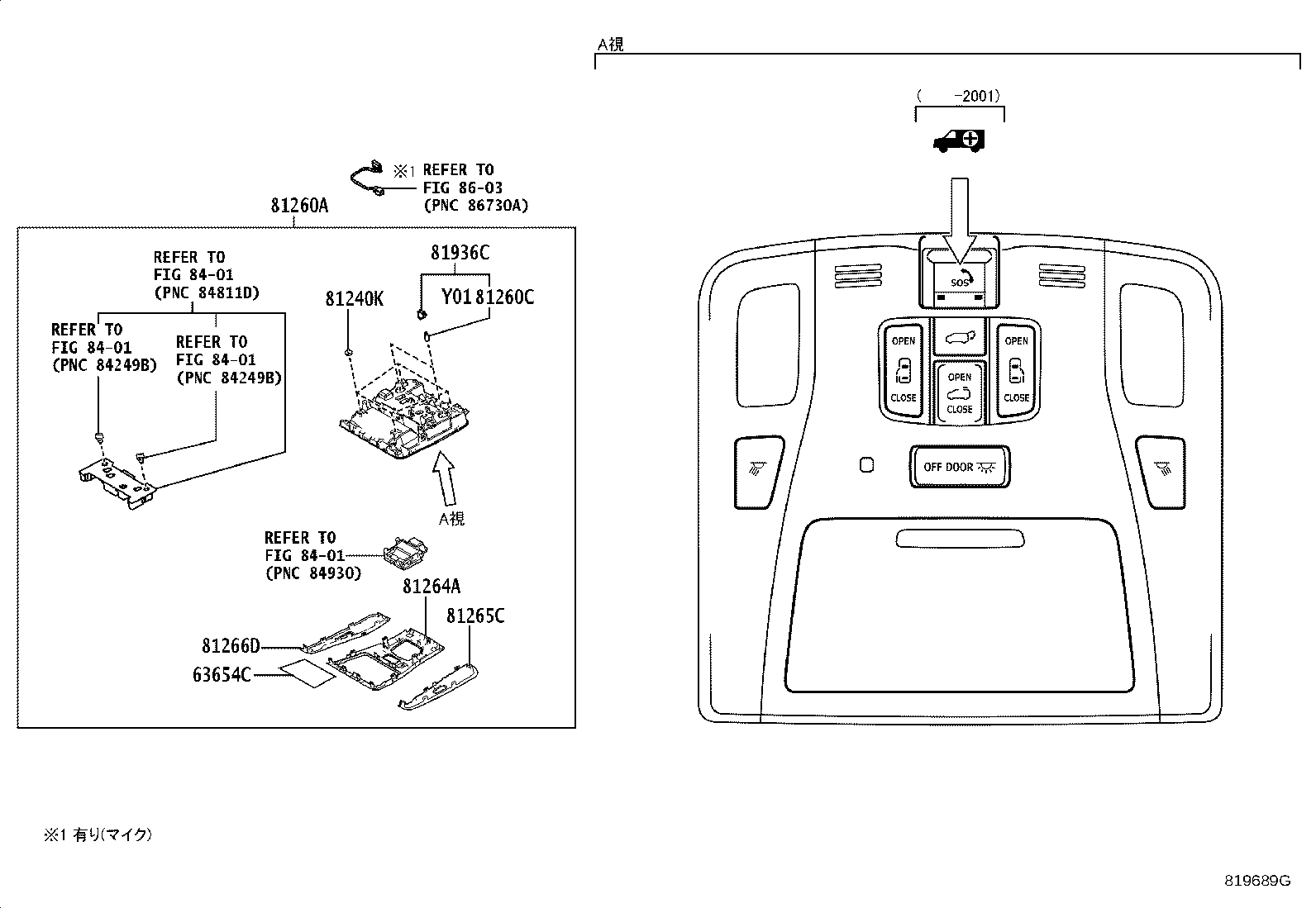

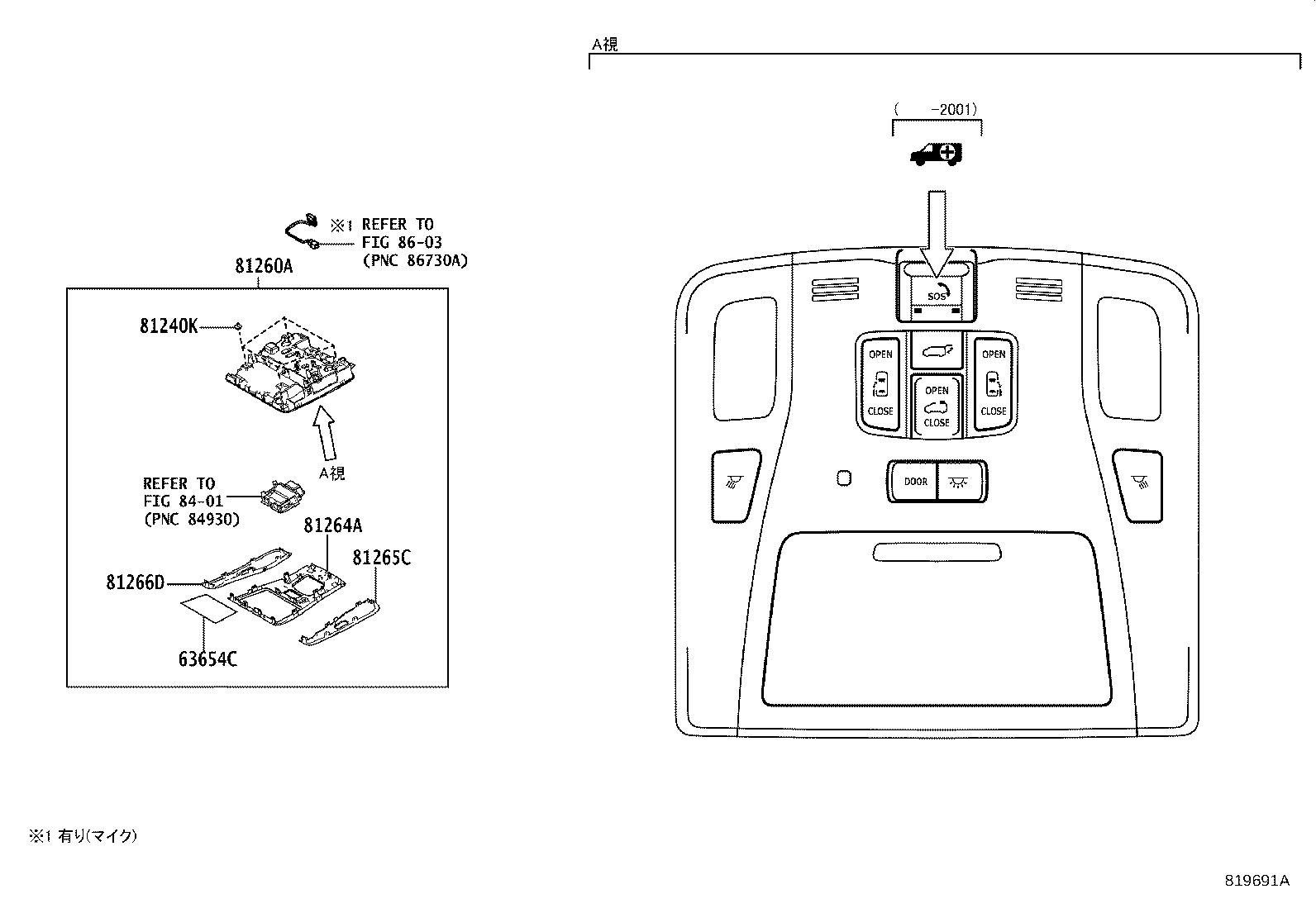

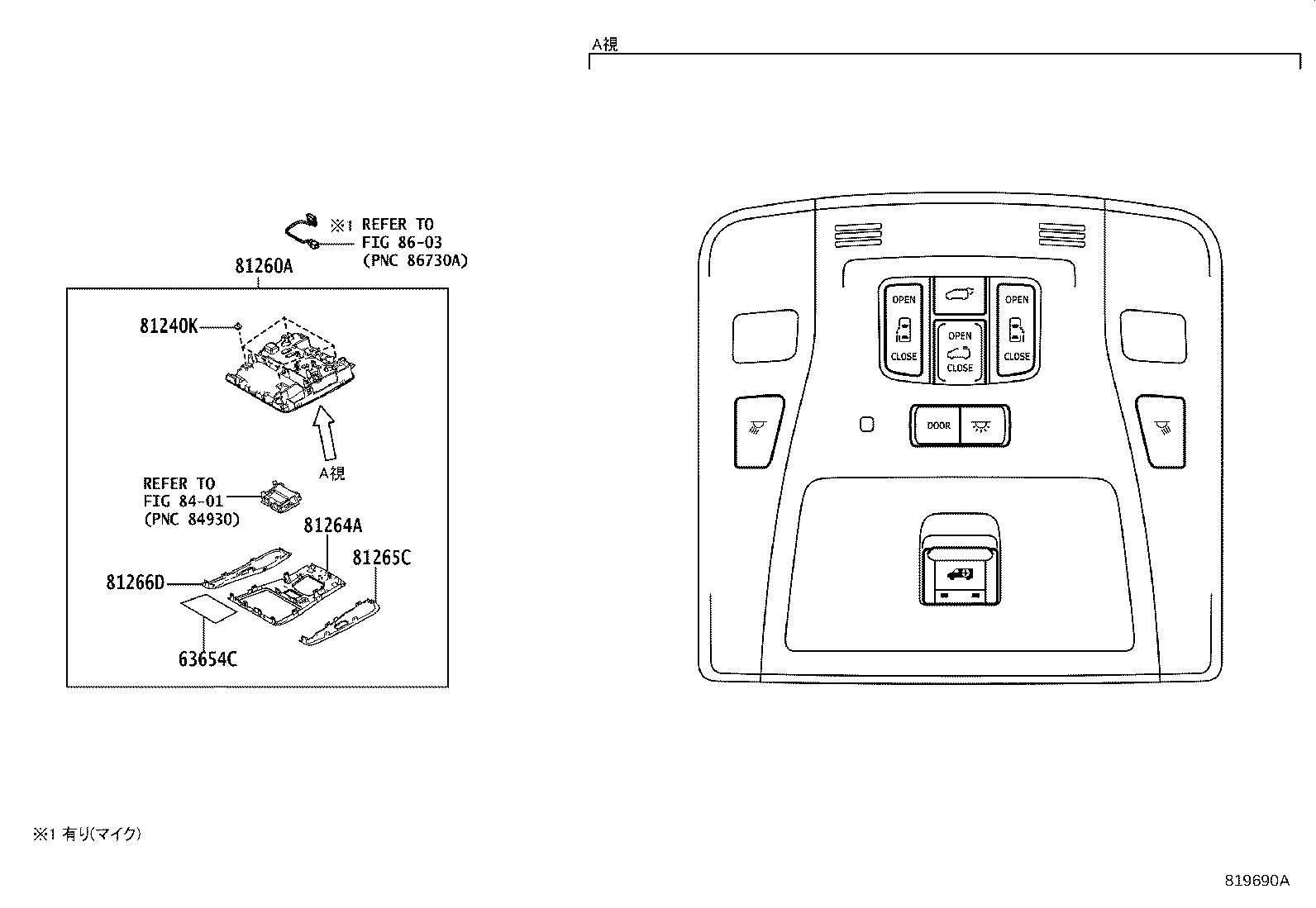

| 81260A | Lamp Assy, Map |
| 81260C | Bulb(FOR MAP LAMP) |
| 81264A | Cover, Map Lamp |
| 81265C | Lens, Map Lamp, NO.1 |
| 81266D | Lens, Map Lamp, NO.2 |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81360K | Lamp Assy, Spot, RH |
| 81360M | Lamp Assy, Spot, NO.2 RH |
| 81360U | Bulb, Spot Lamp |
| 81361D | Lens, Spot Lamp |
| 81390C | Lamp Assy, Spot, LH |
| 81390F | Lamp Assy, Spot, NO.2 LH |
| 81936C | Bulb Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
