Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH3#,AYH30,GGH3# · catalogue 713140 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

180 part groups · 38 illustrations

Illustrations

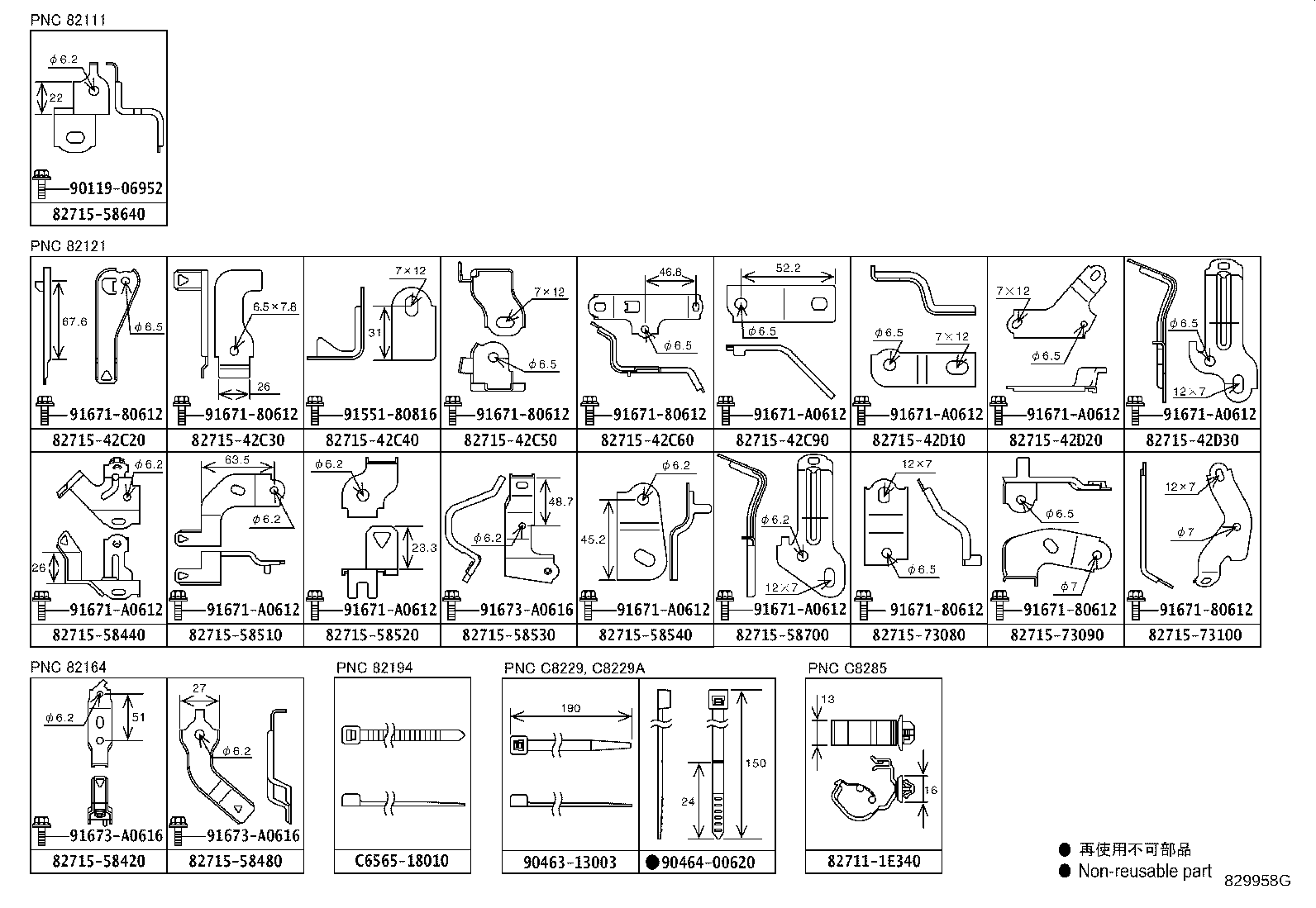

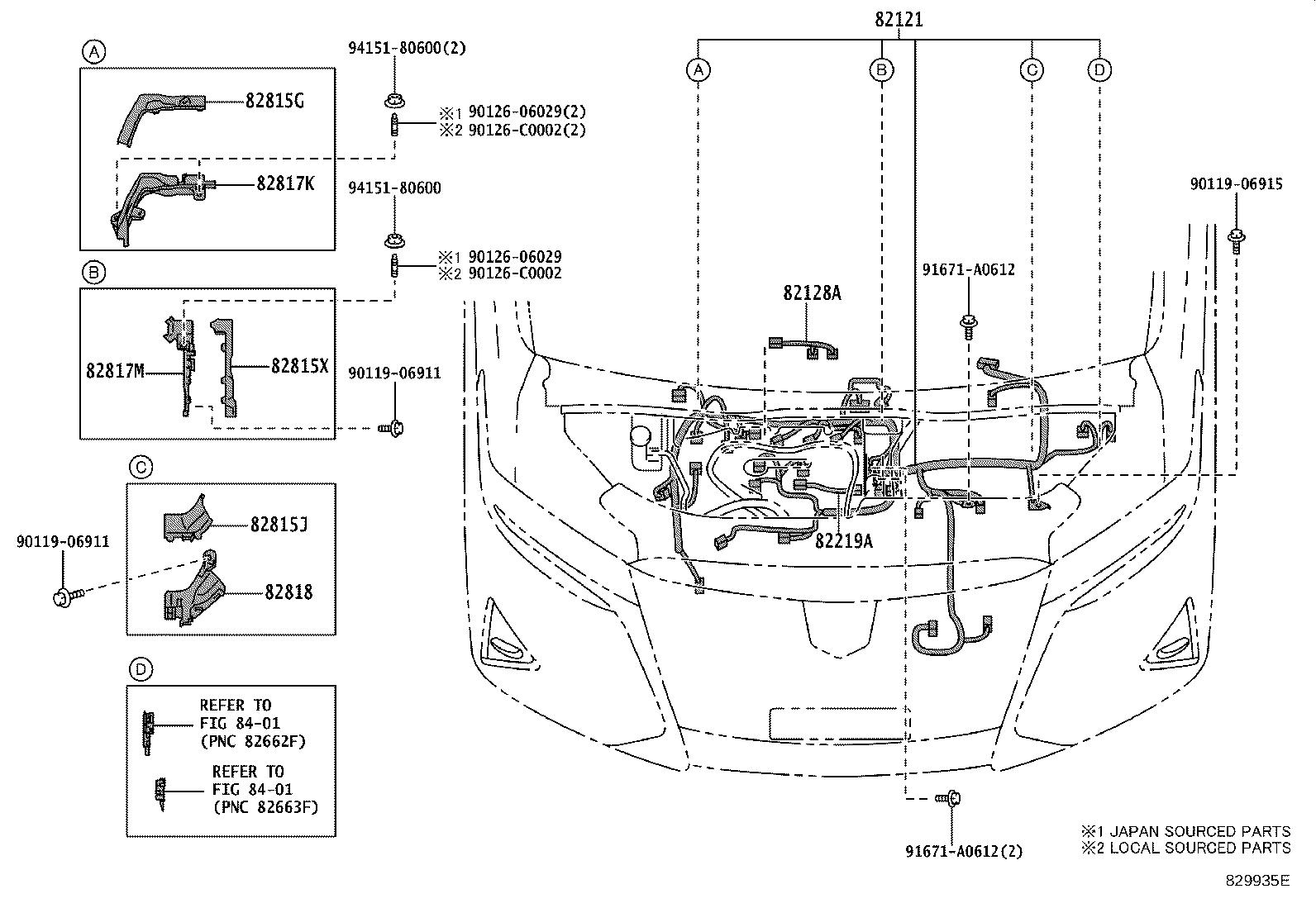

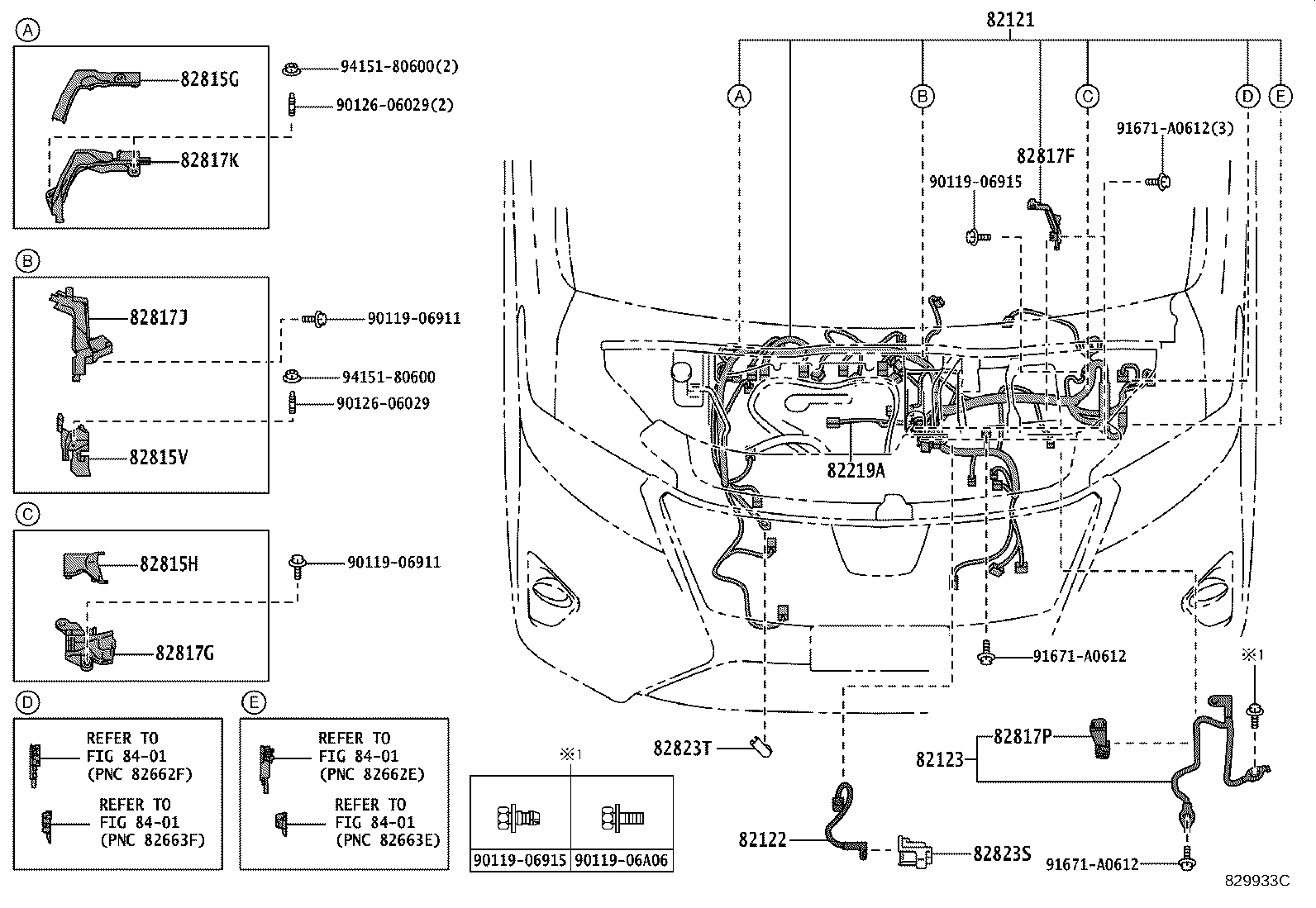

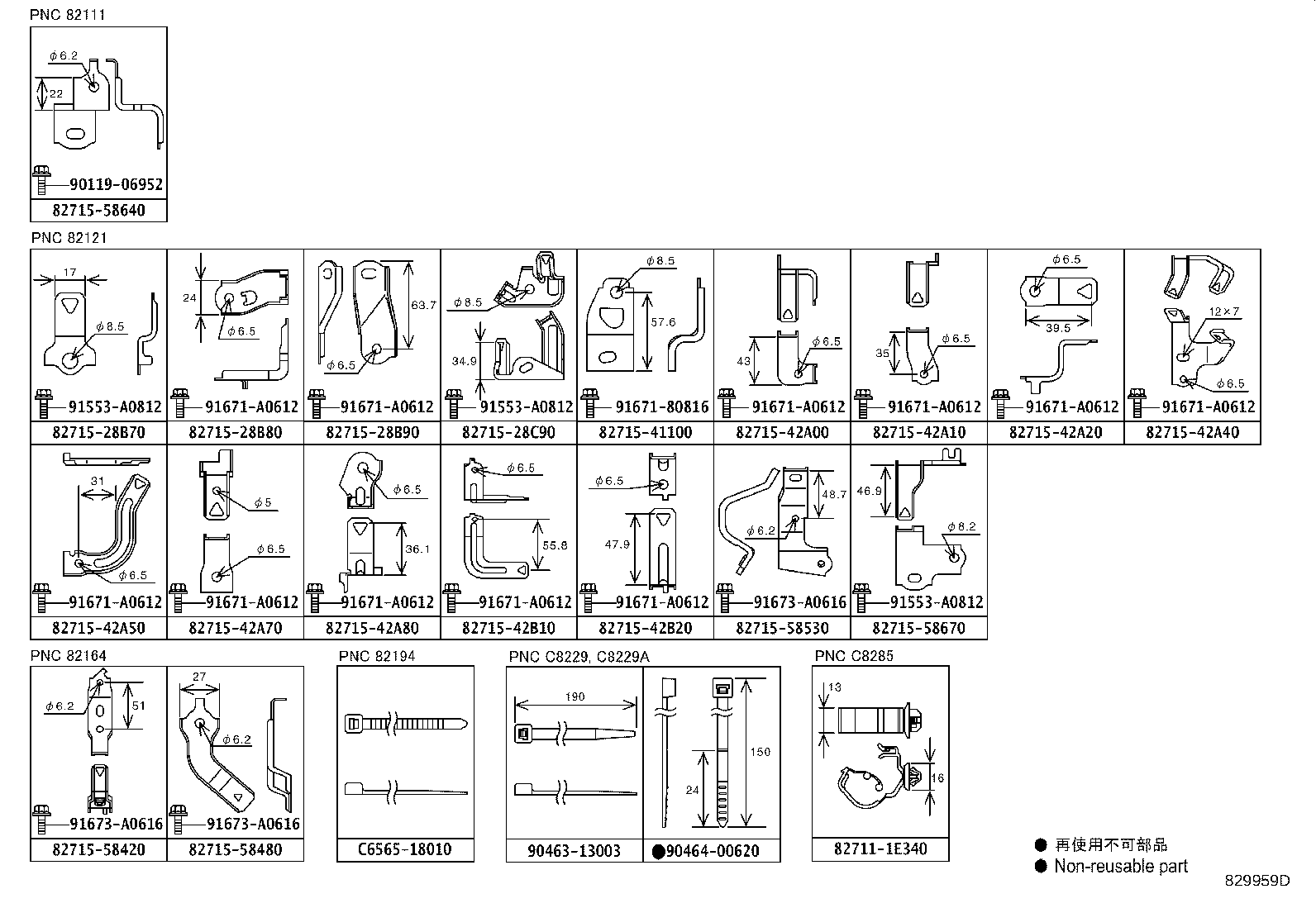

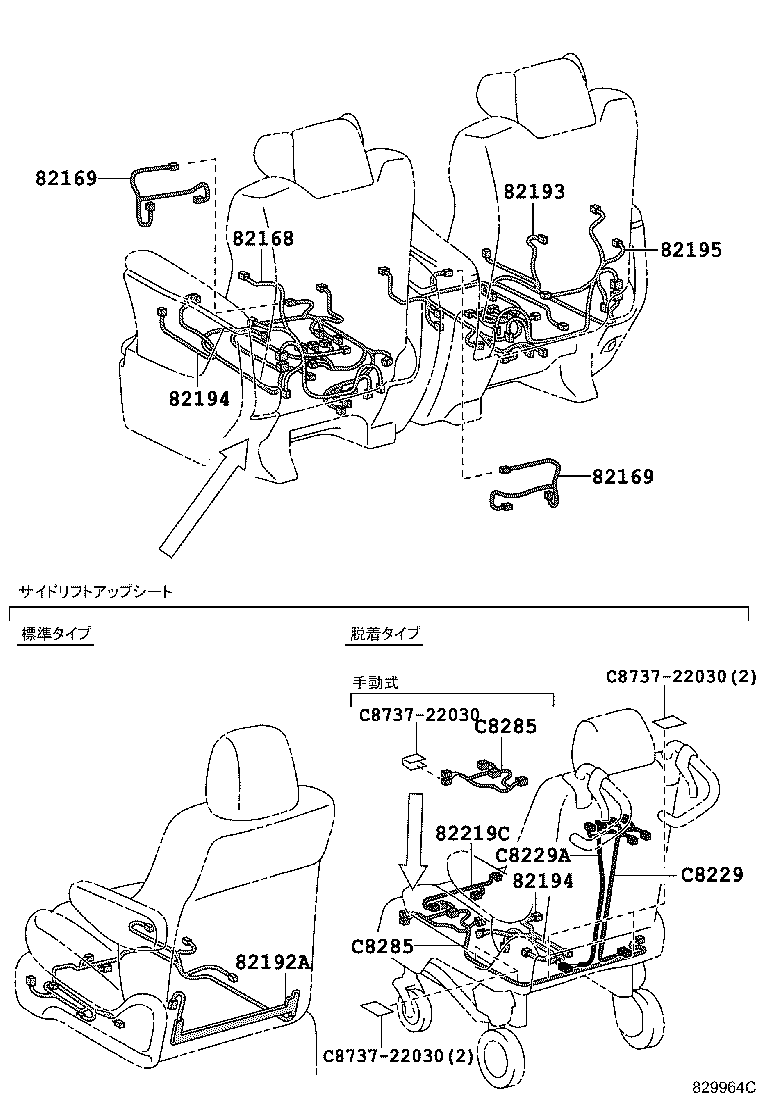

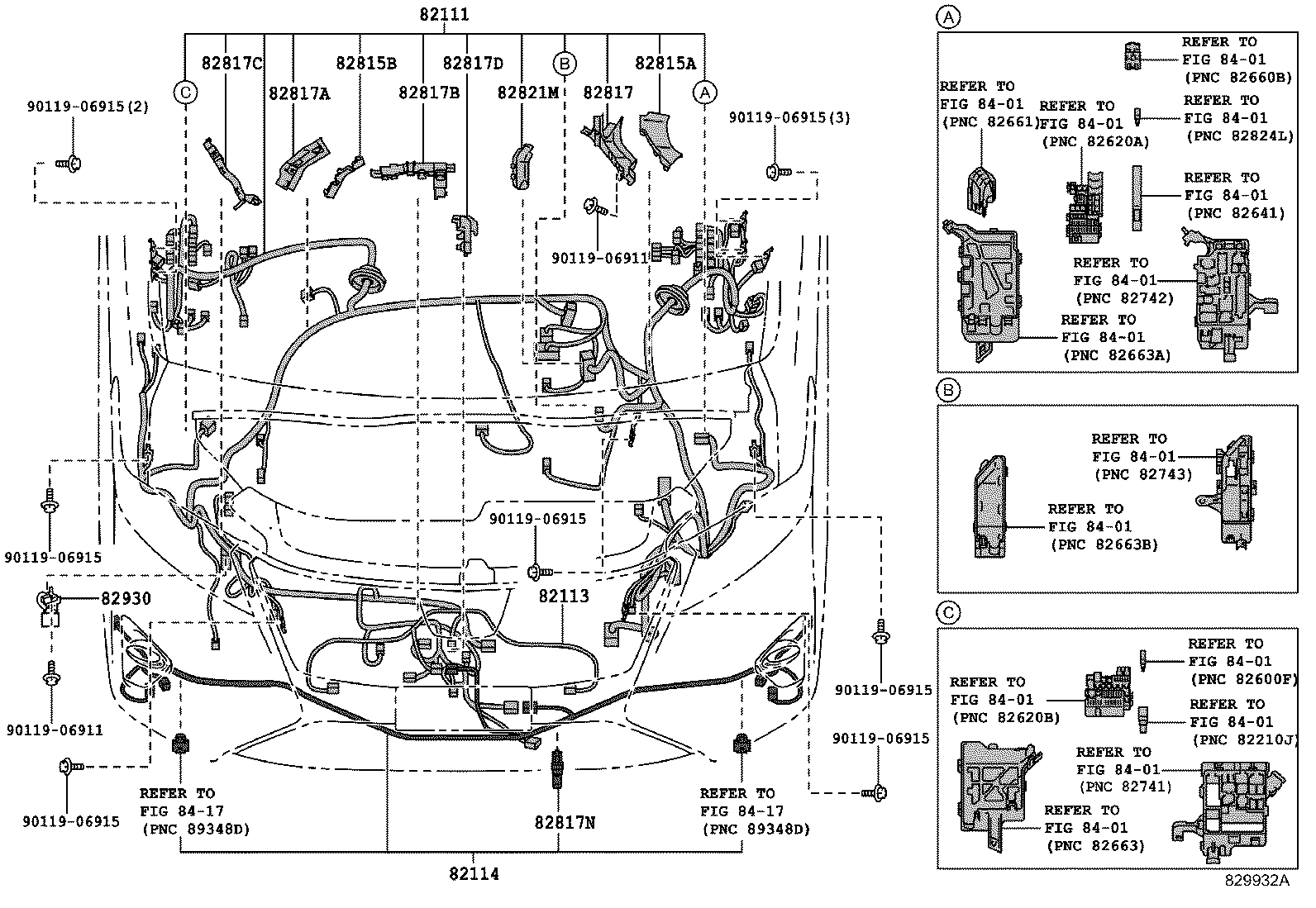

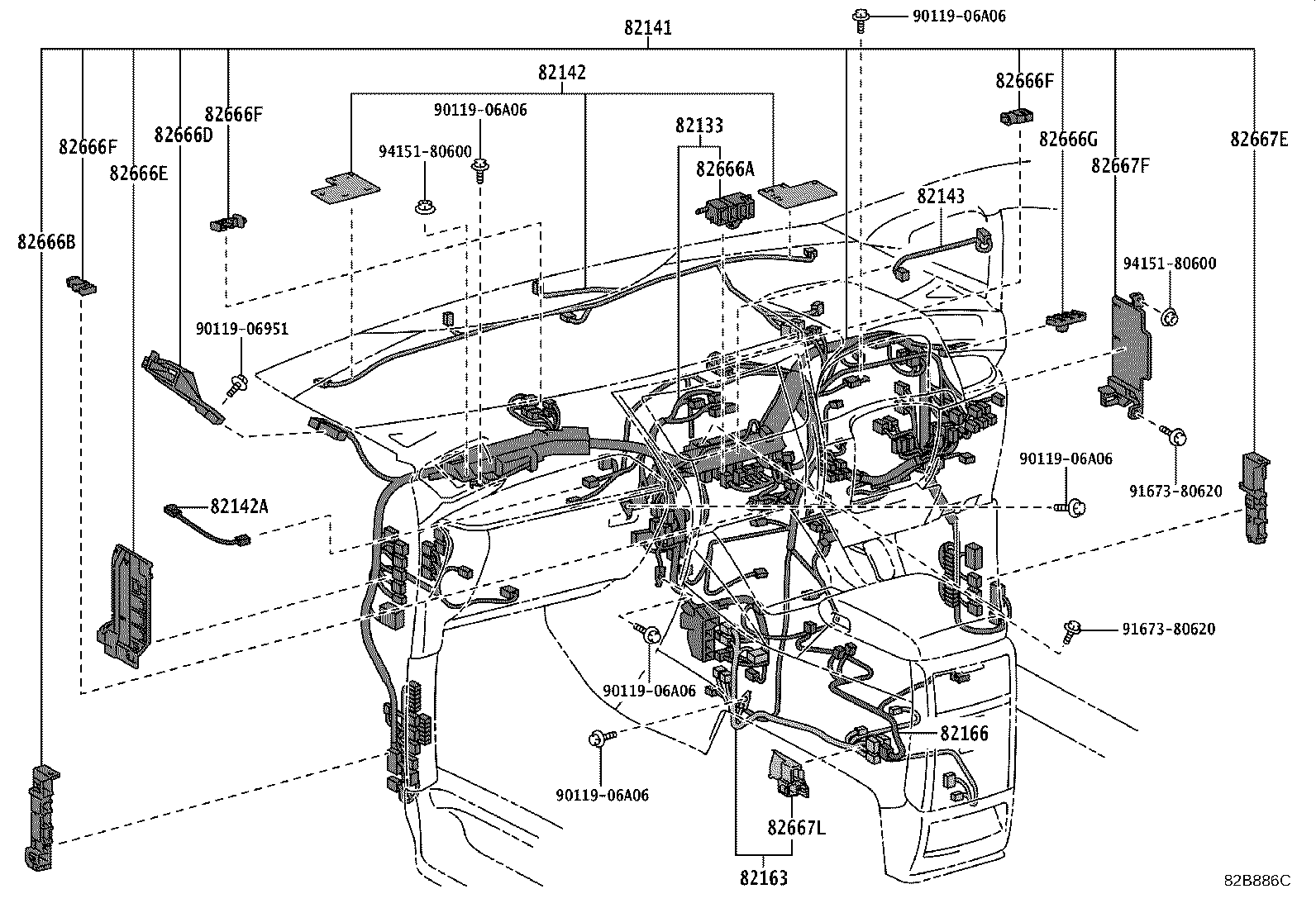

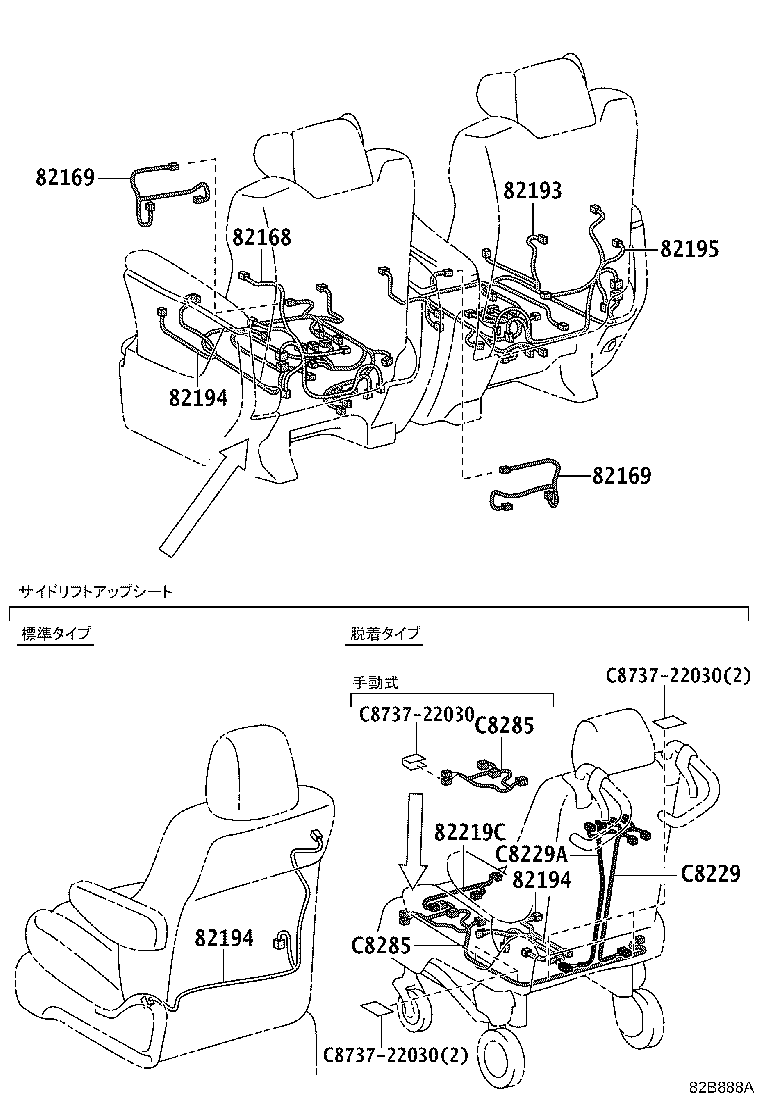

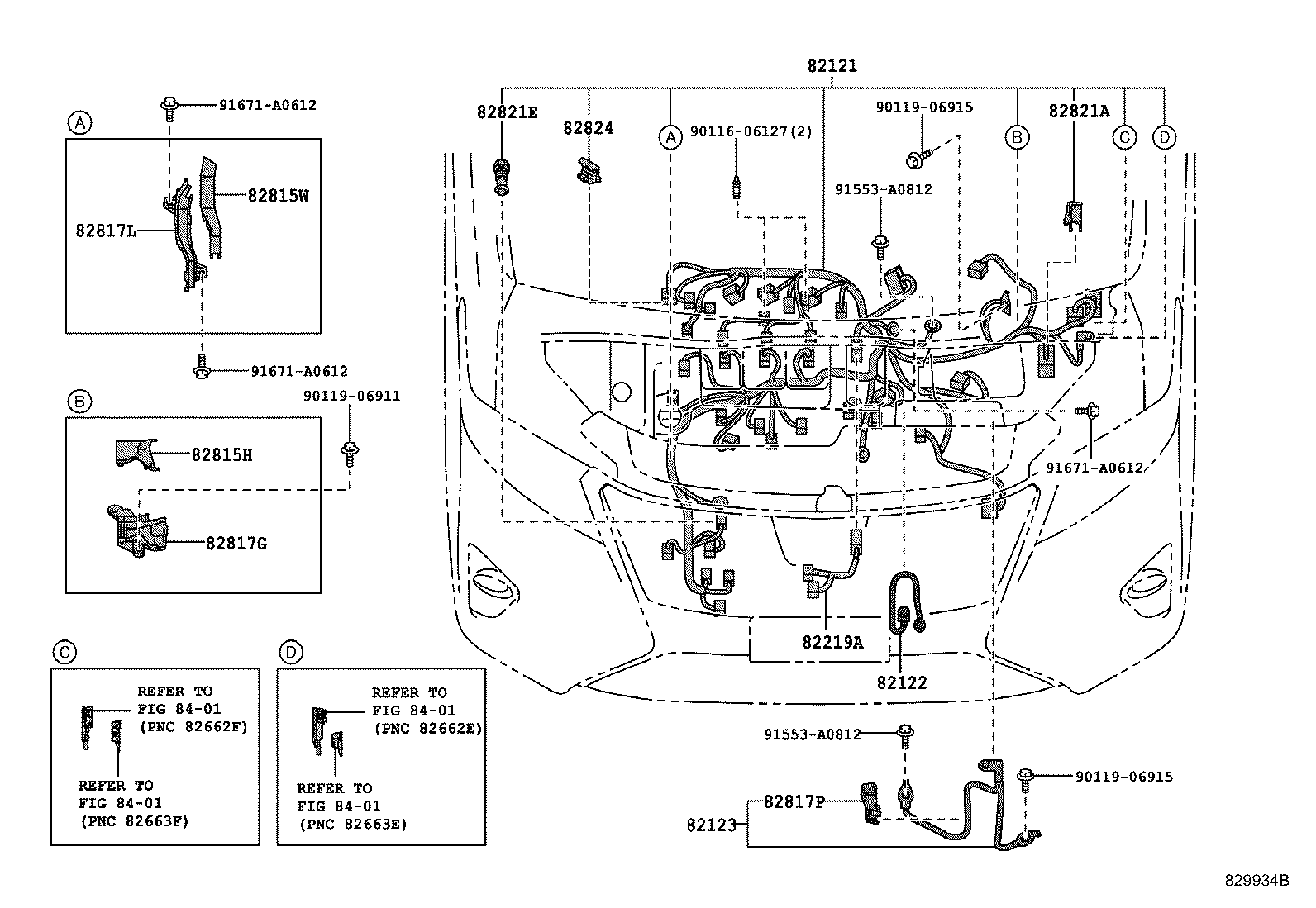

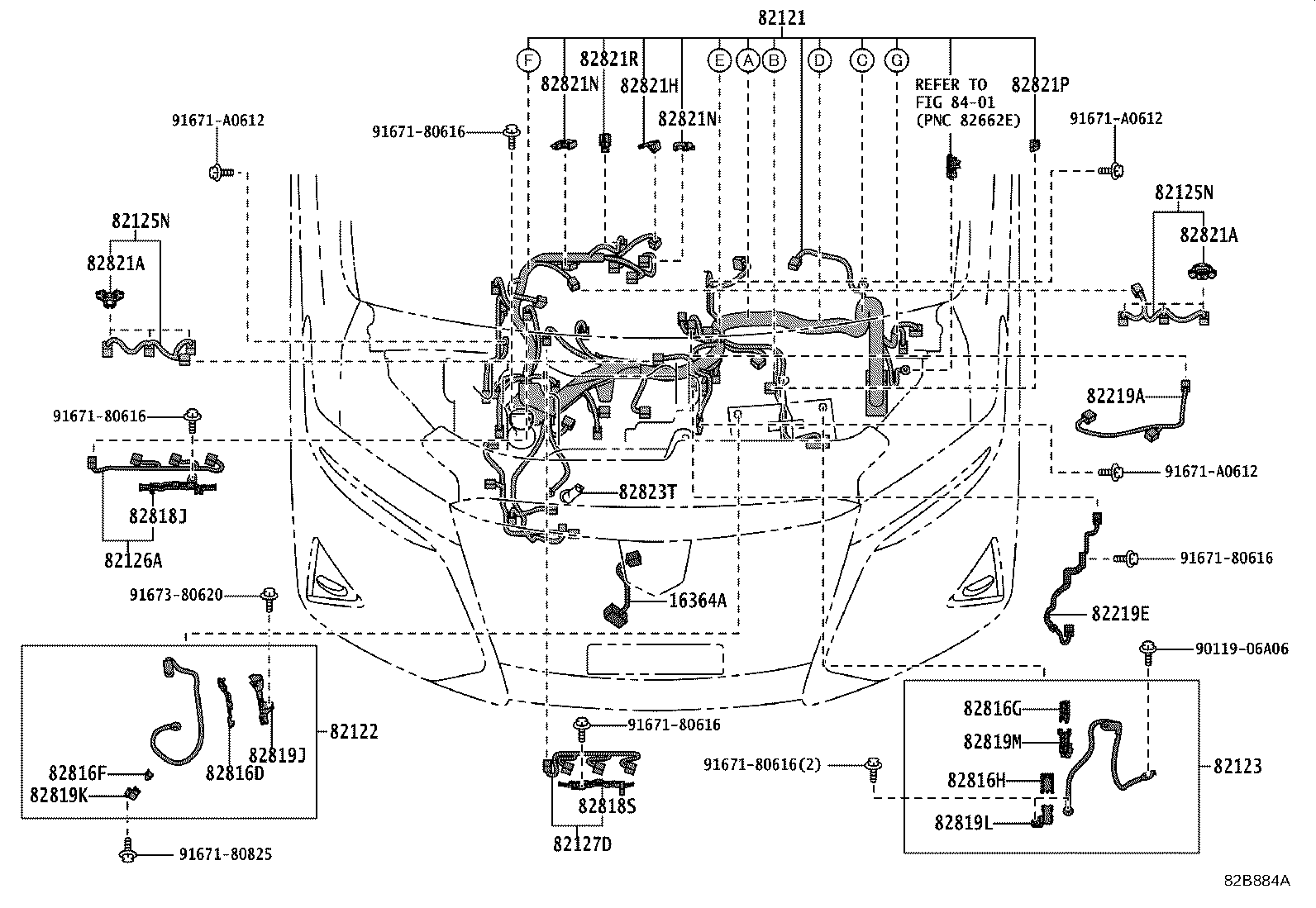

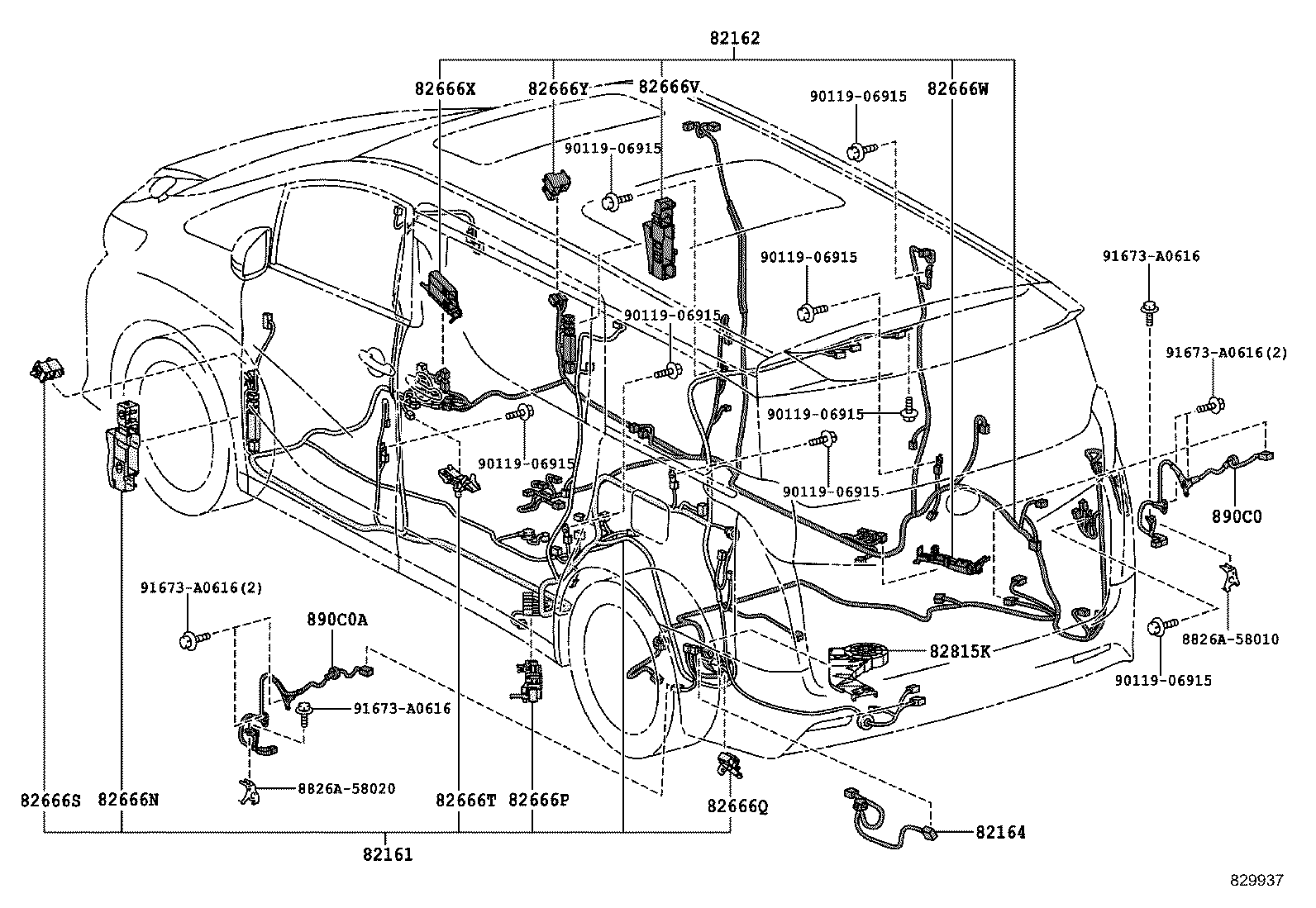

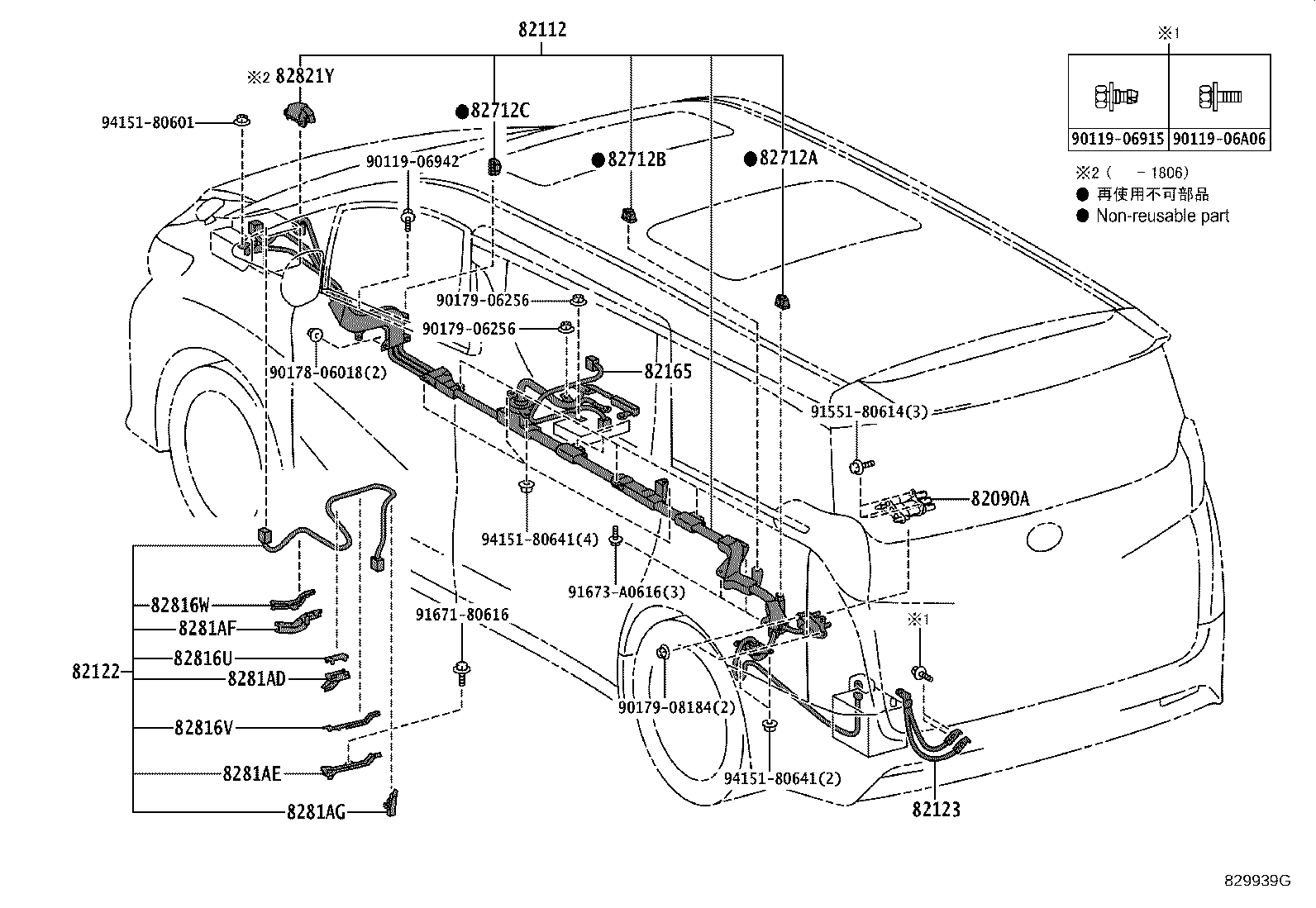

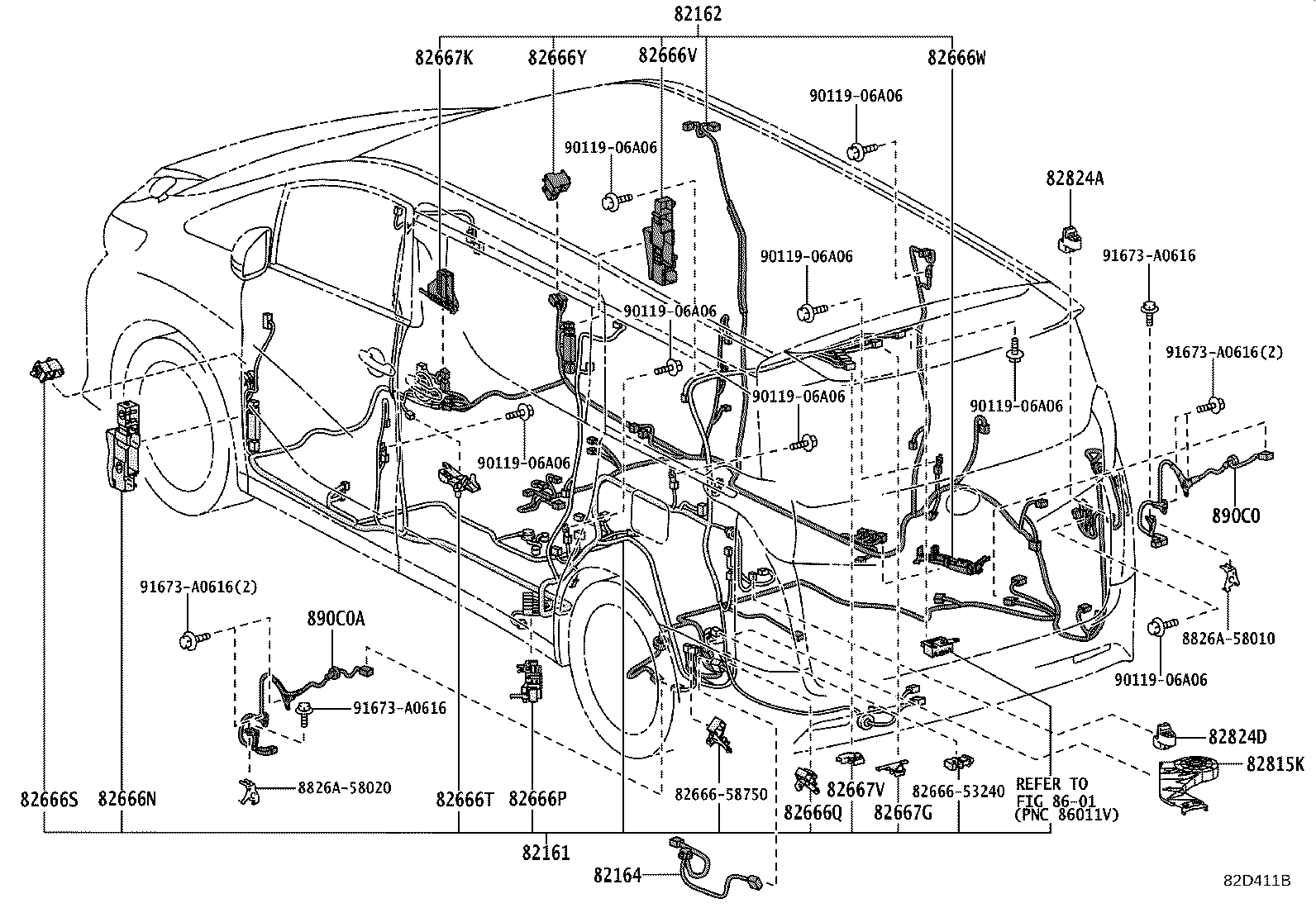

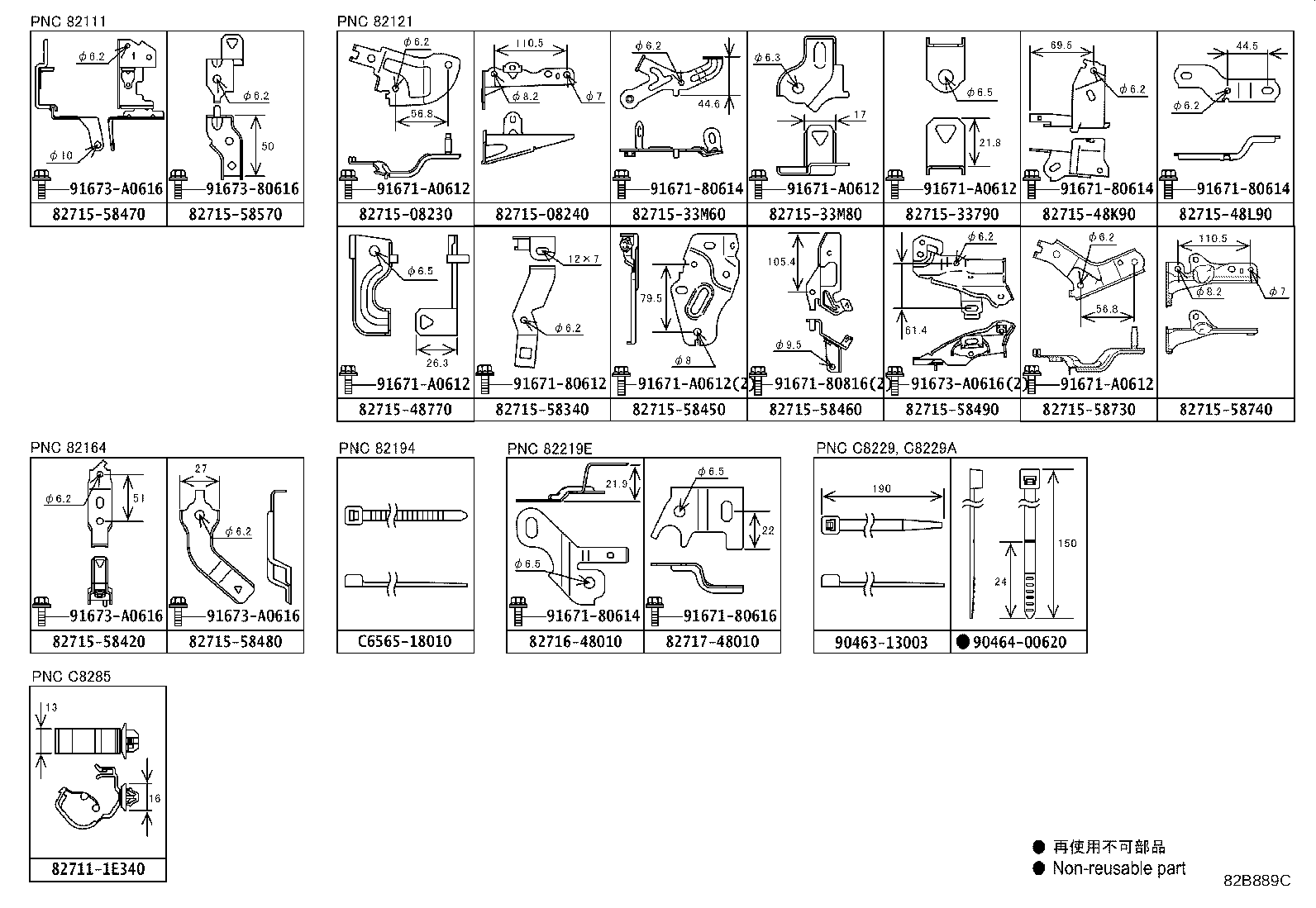

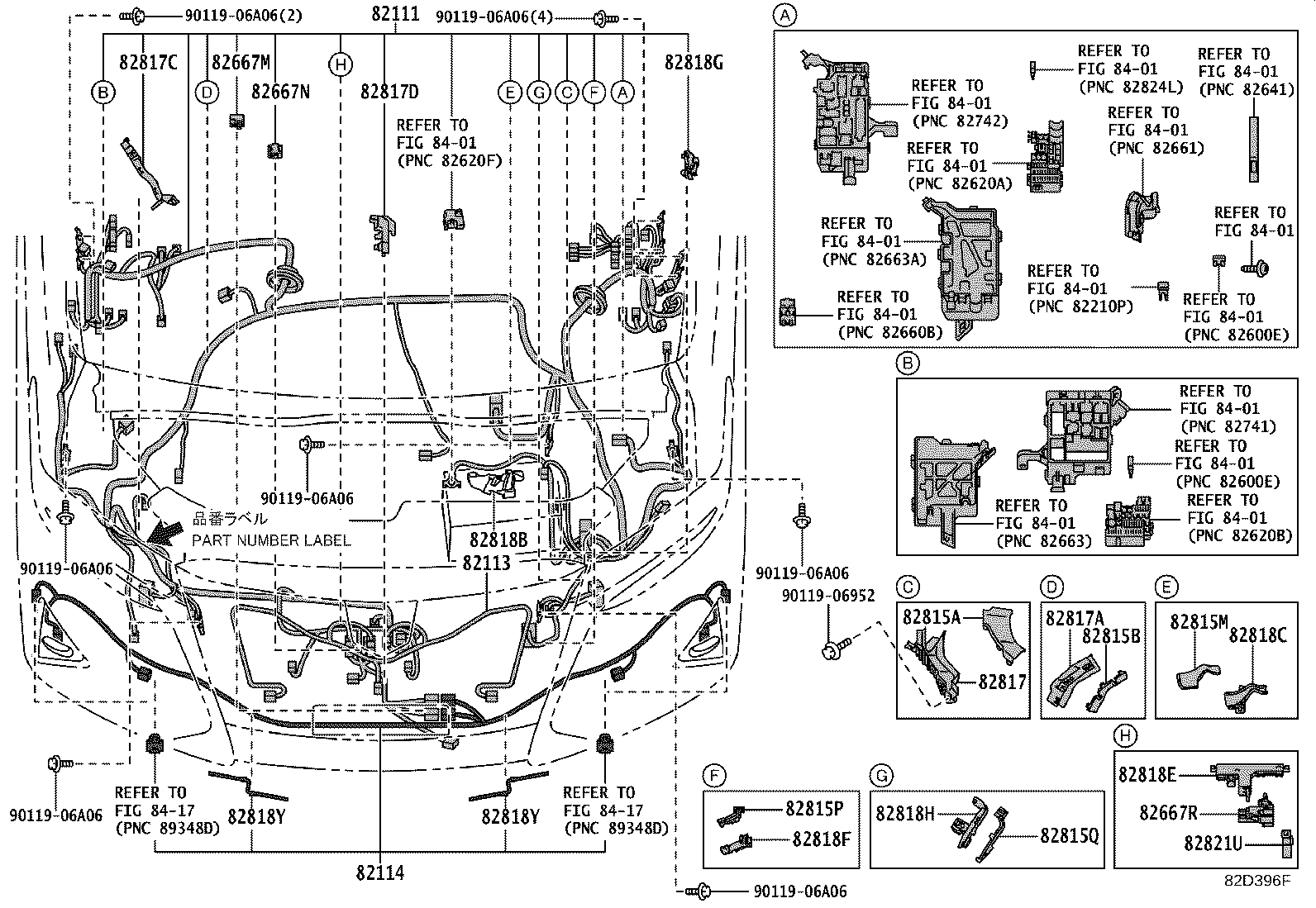

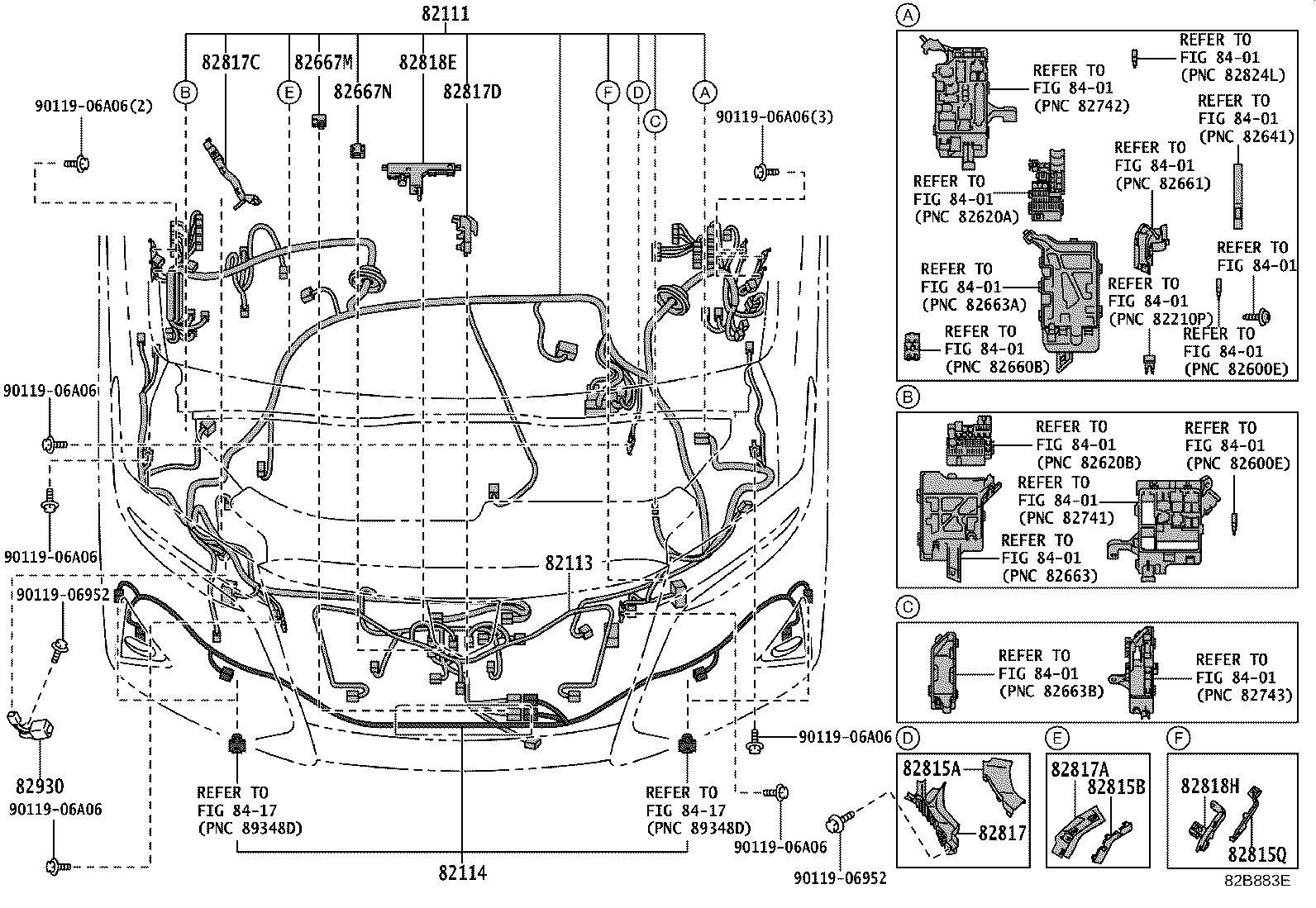

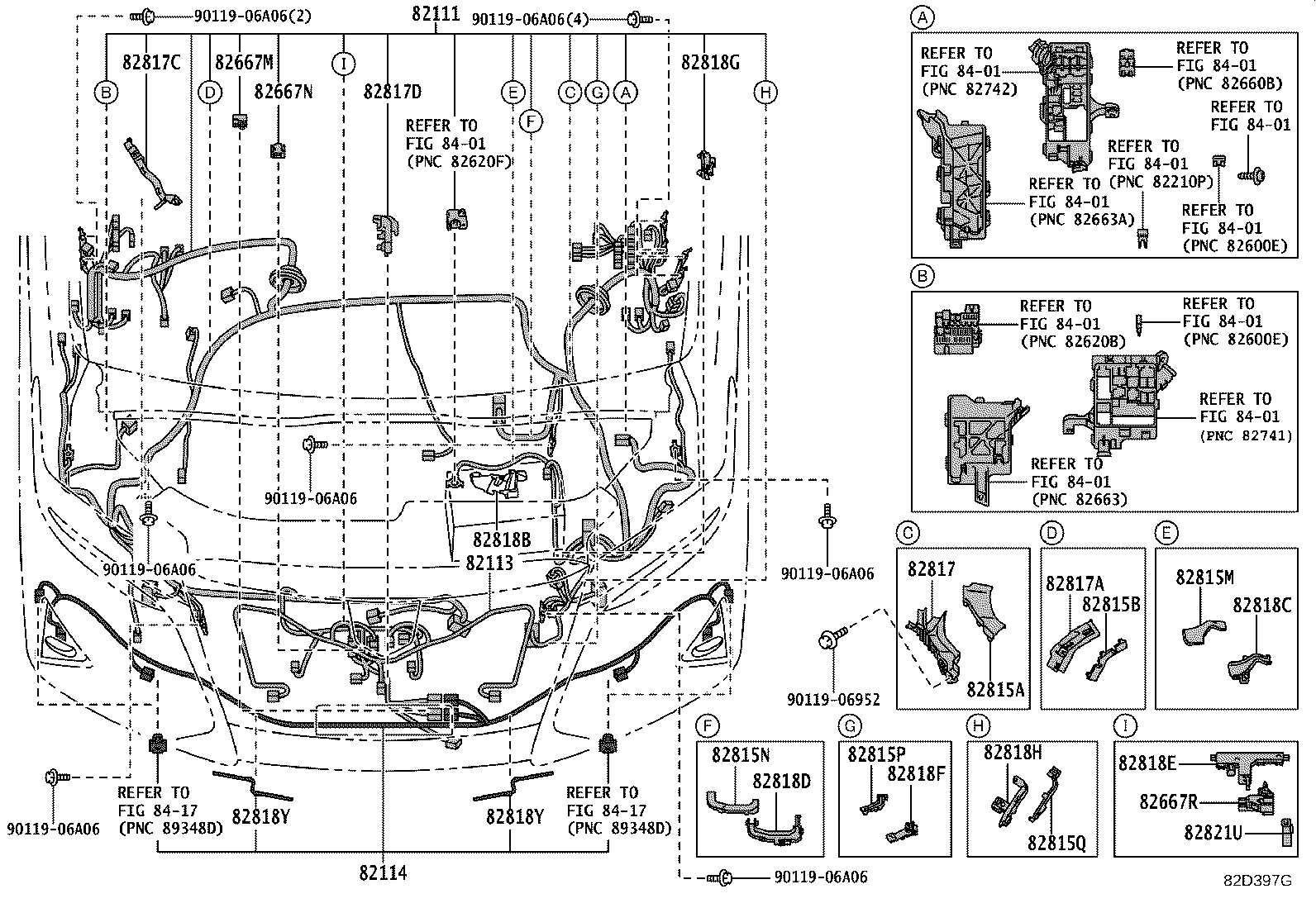

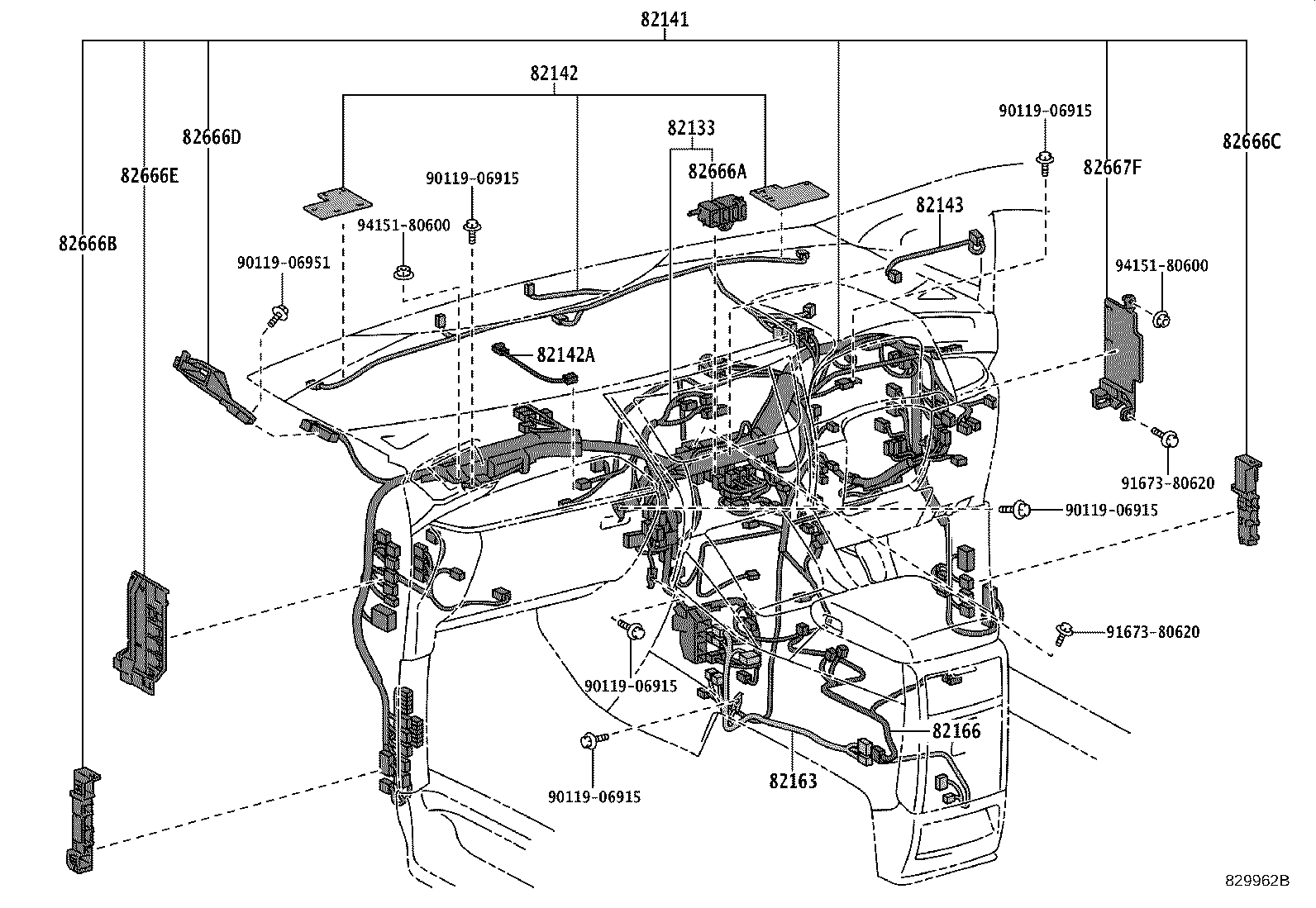

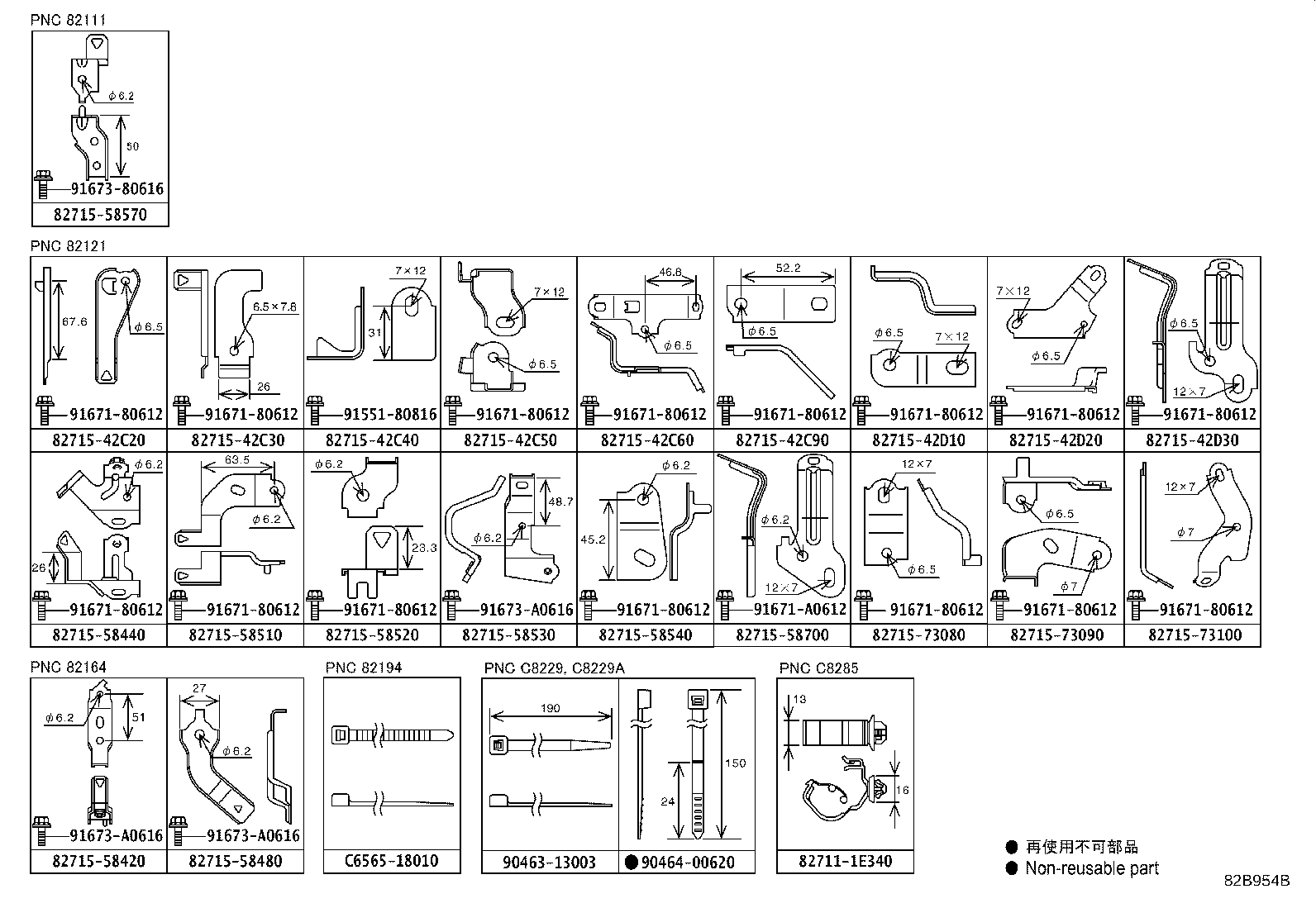

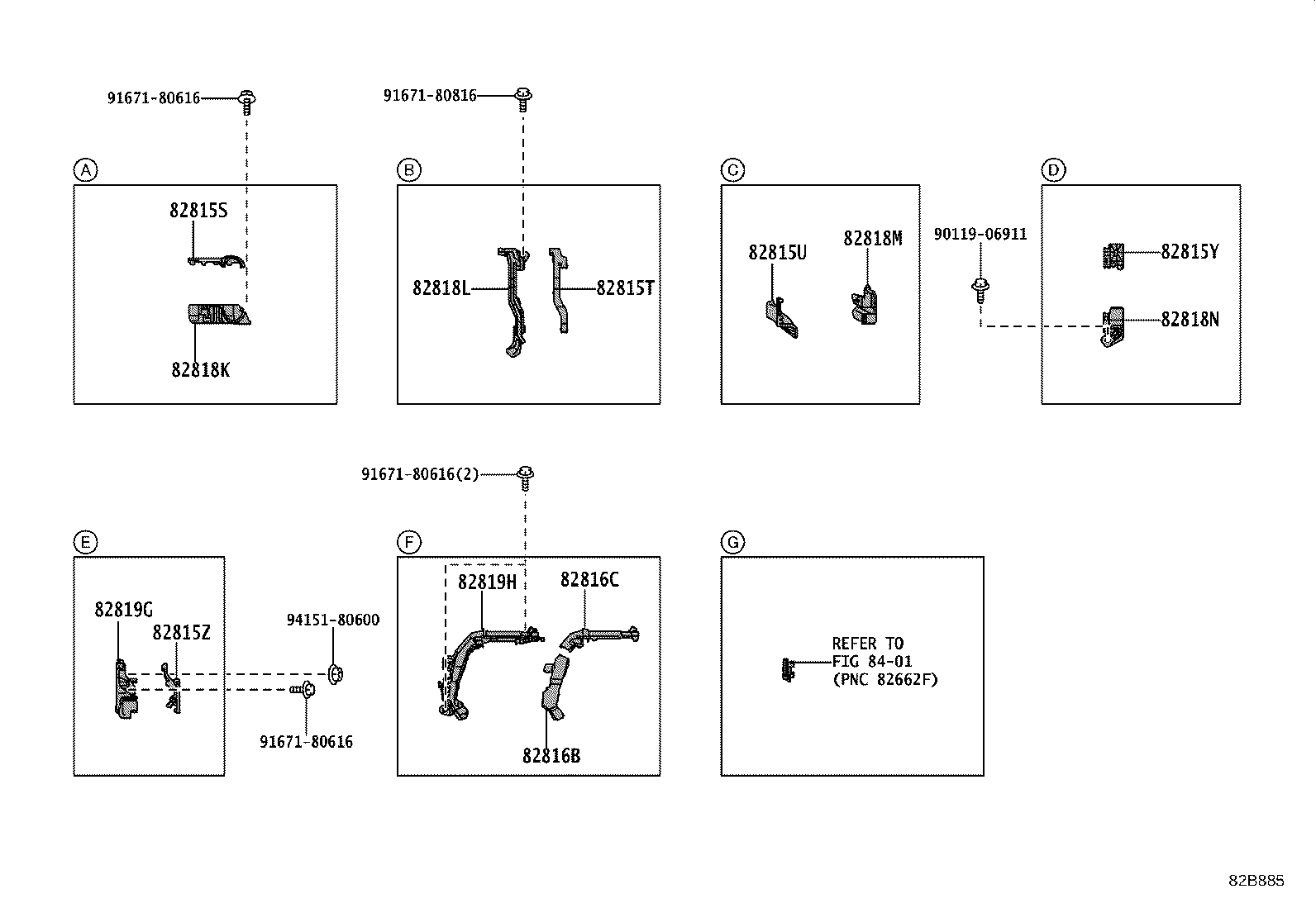

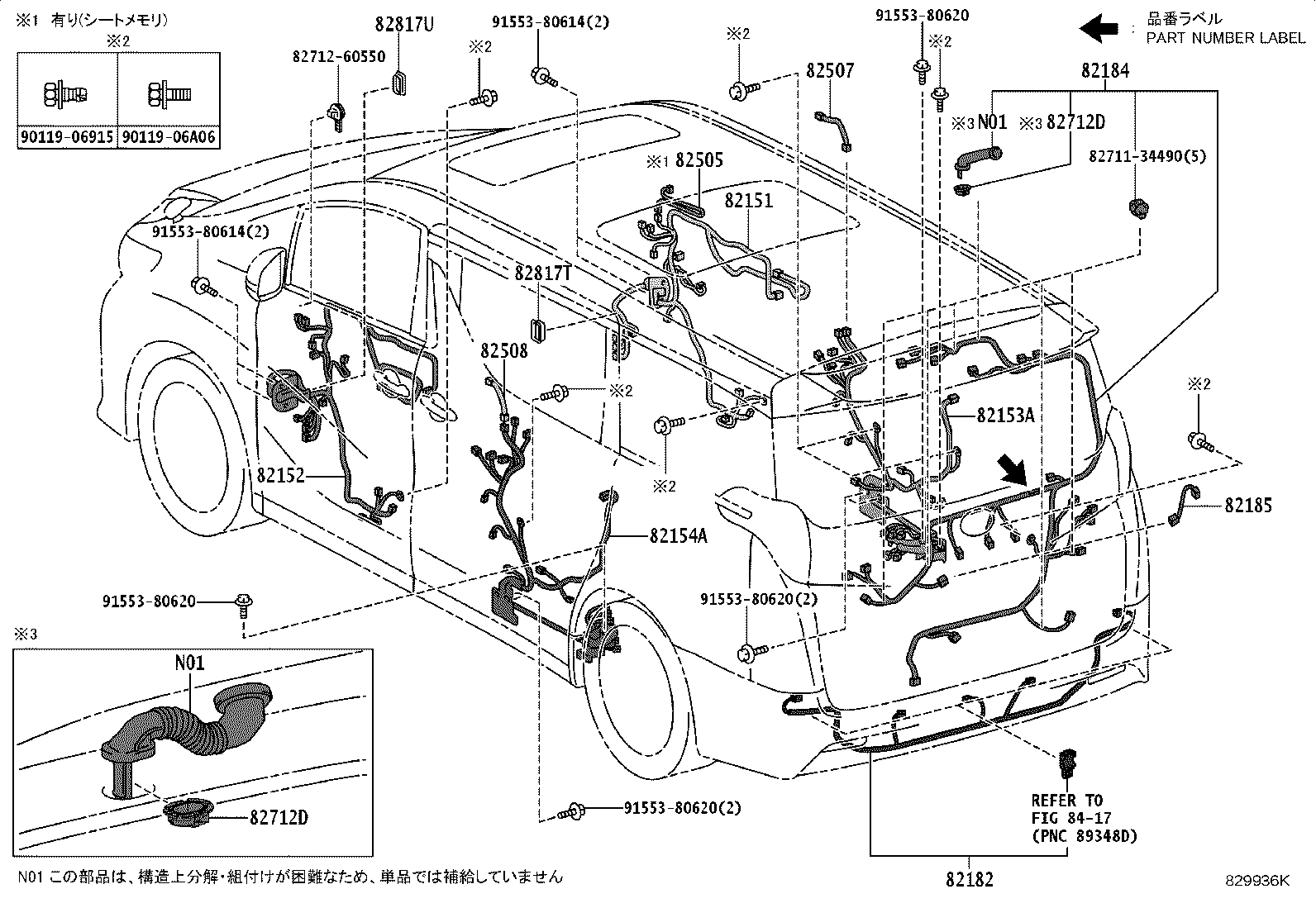

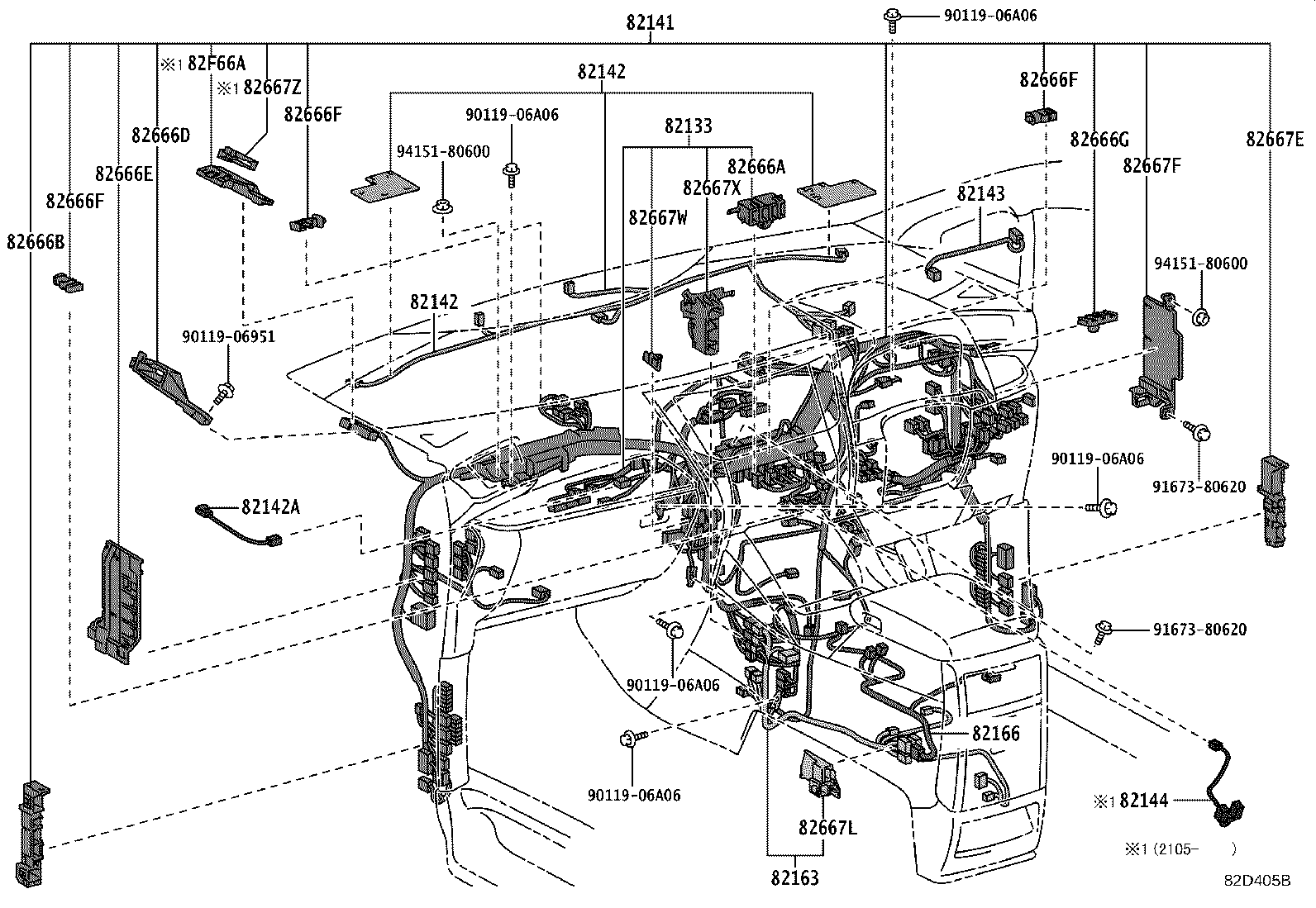

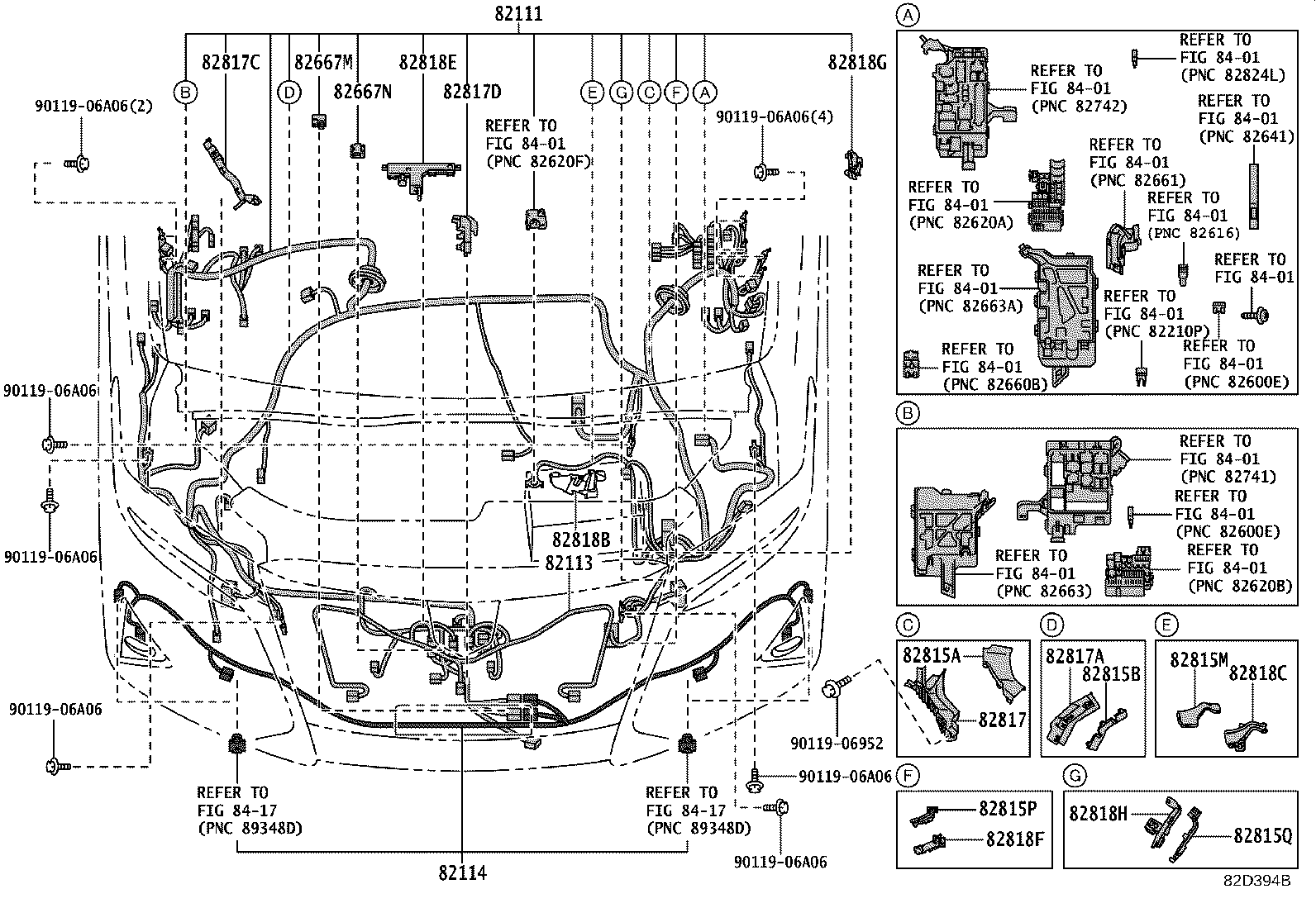

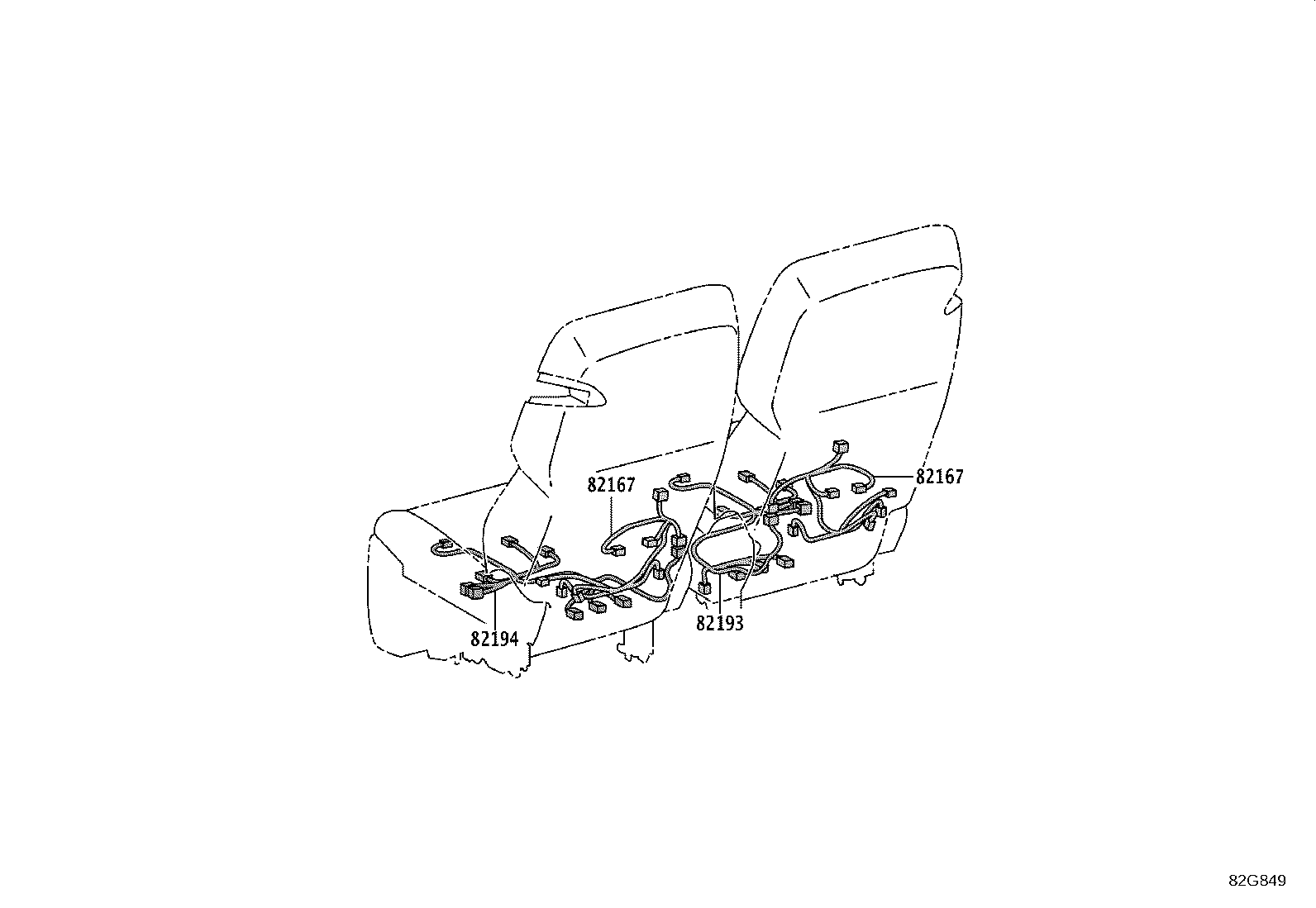

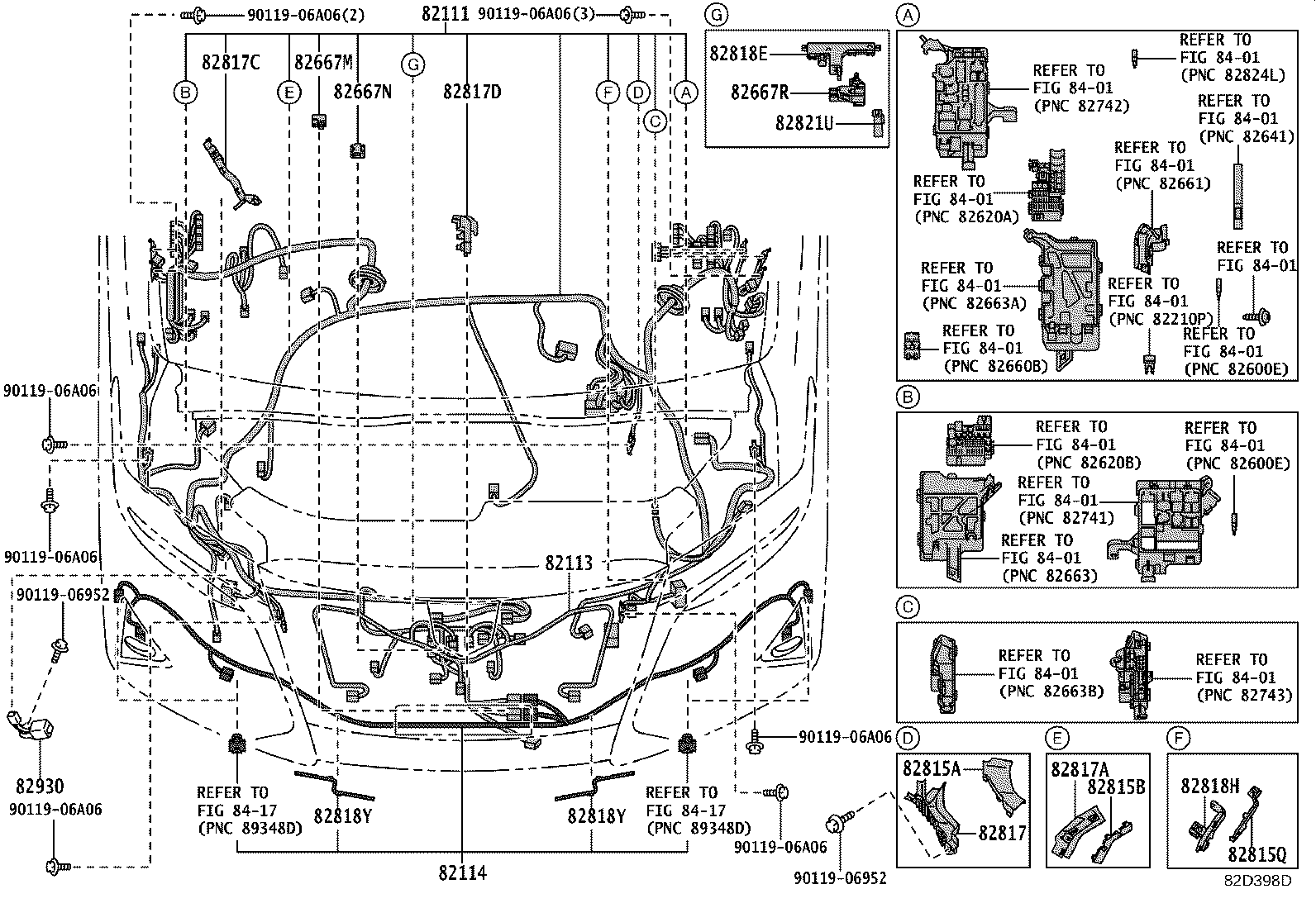

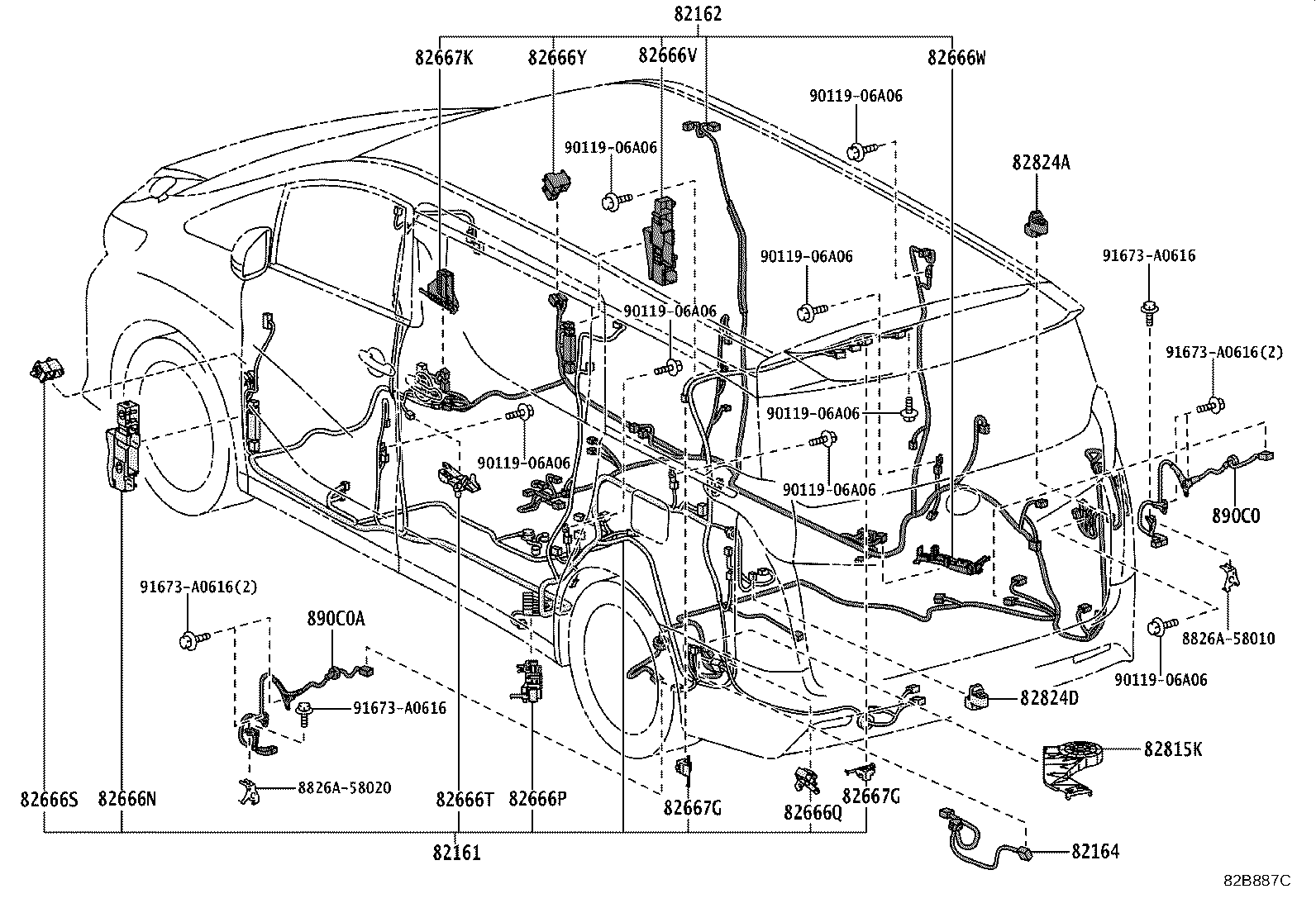

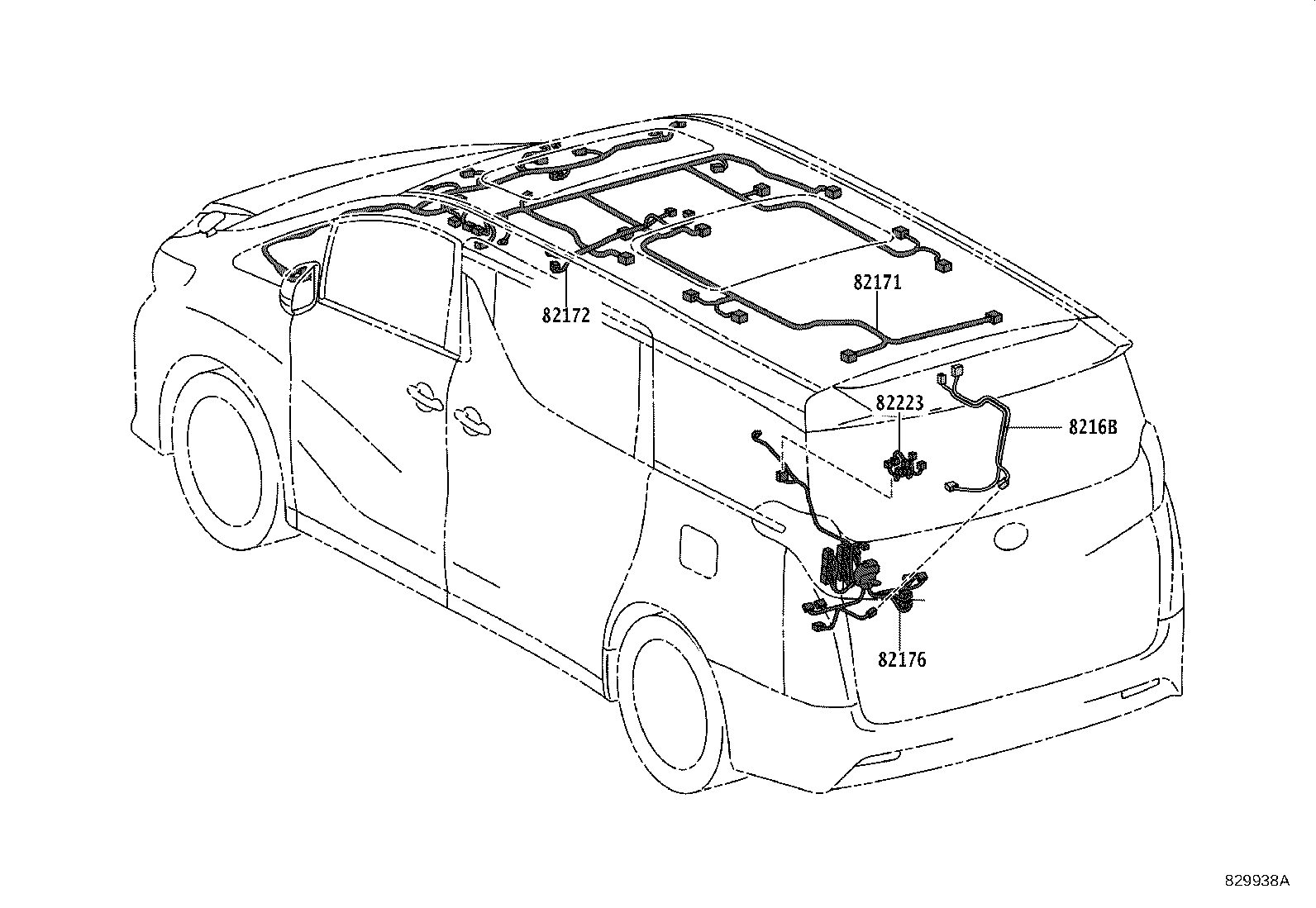

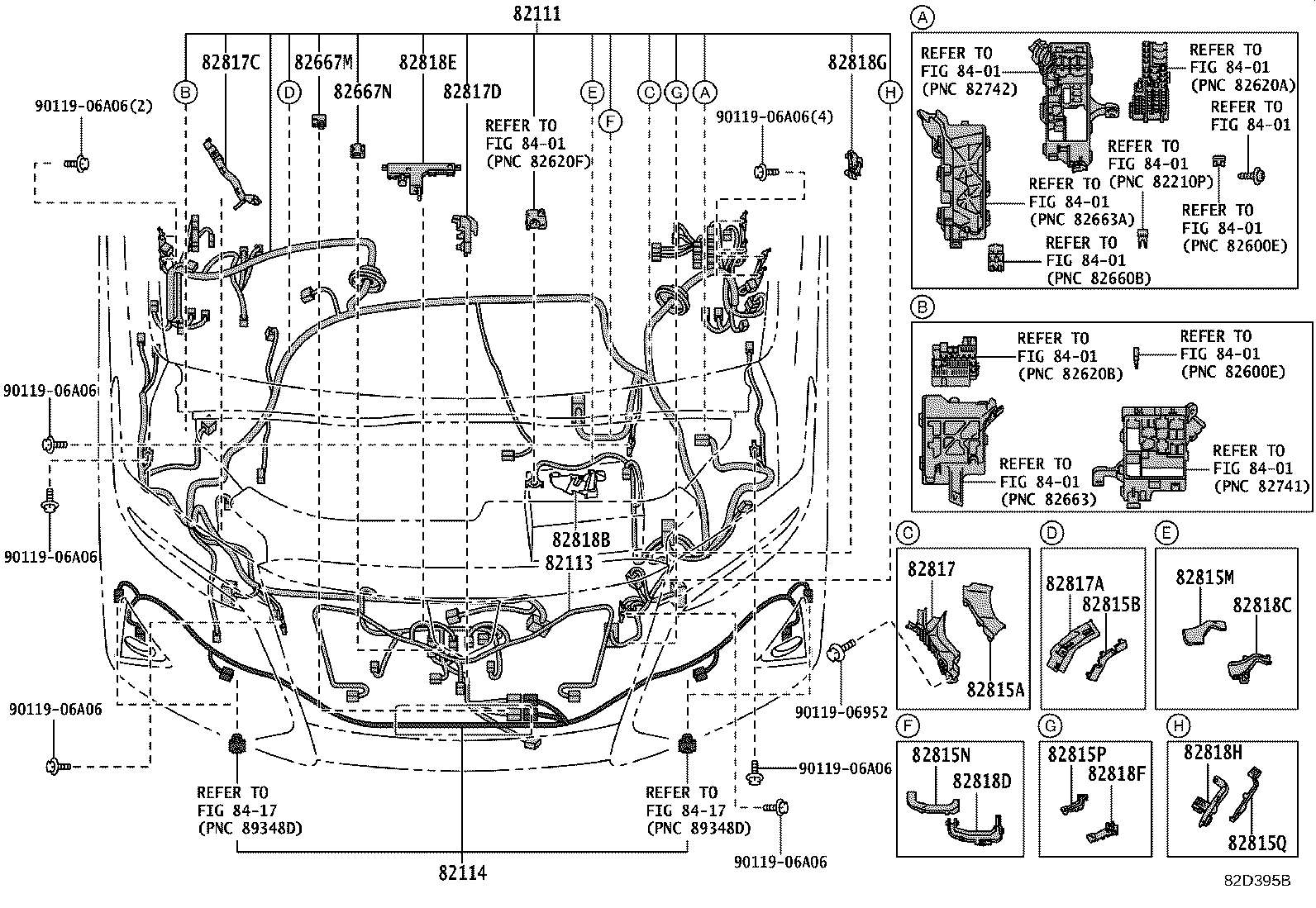

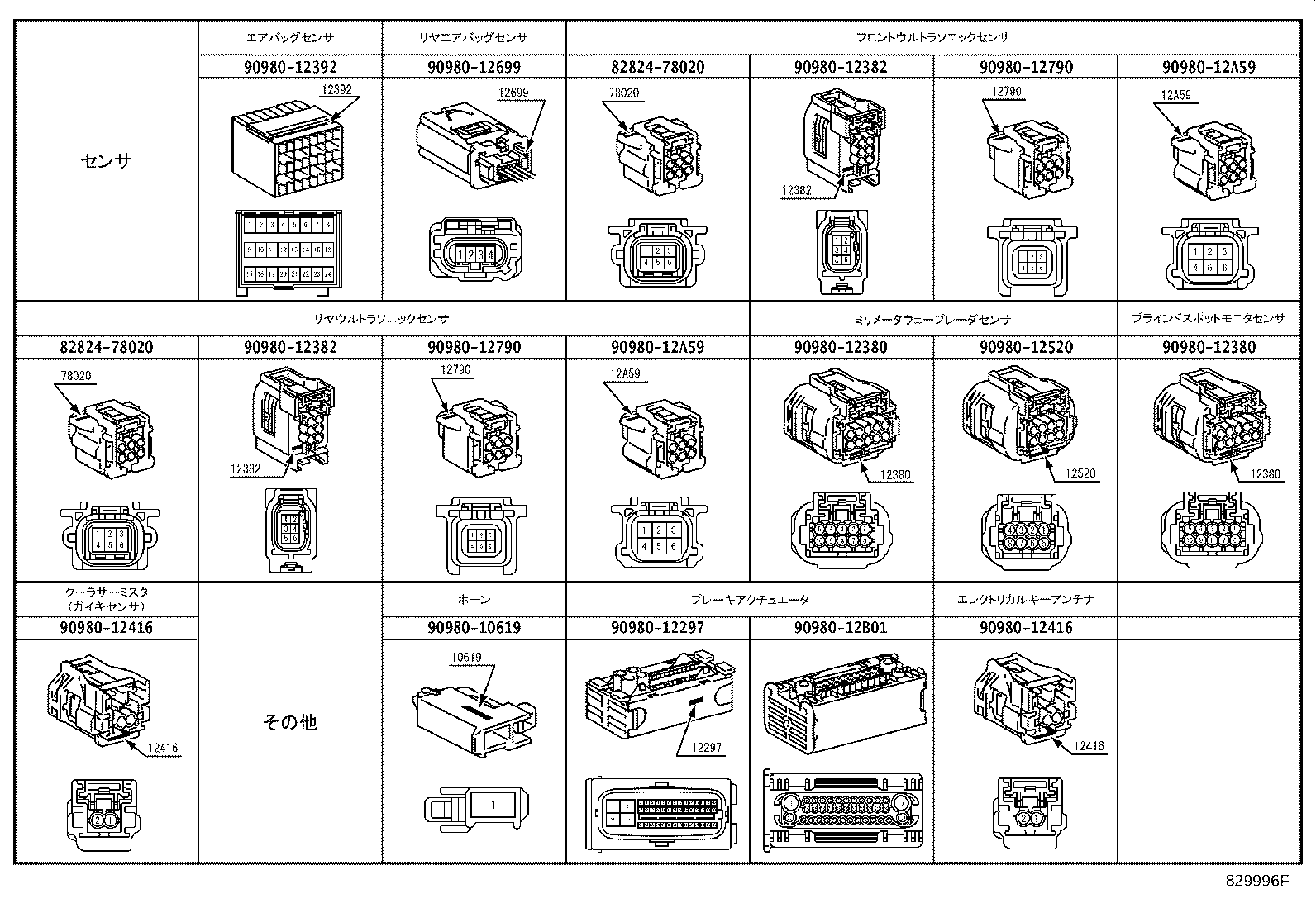

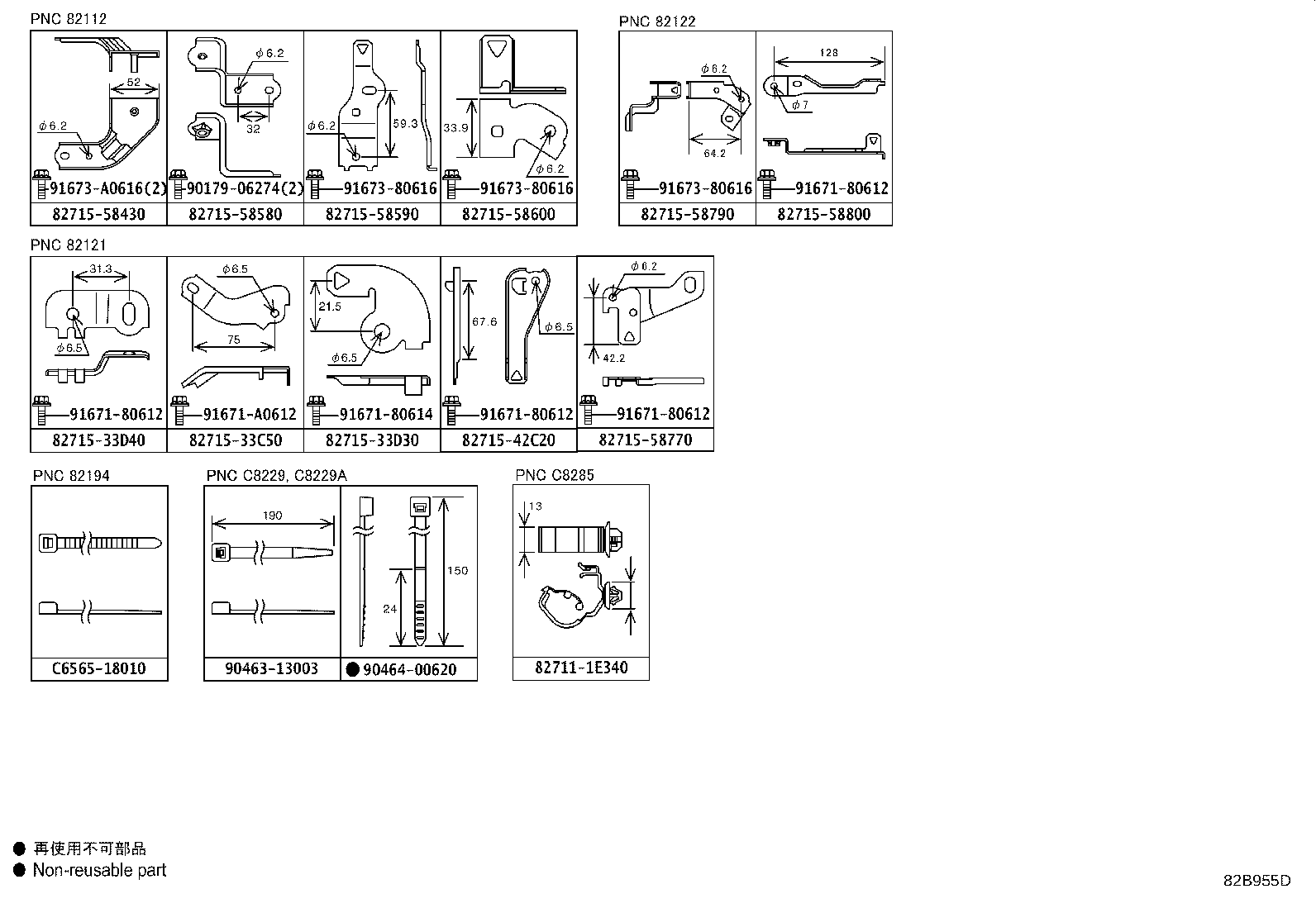

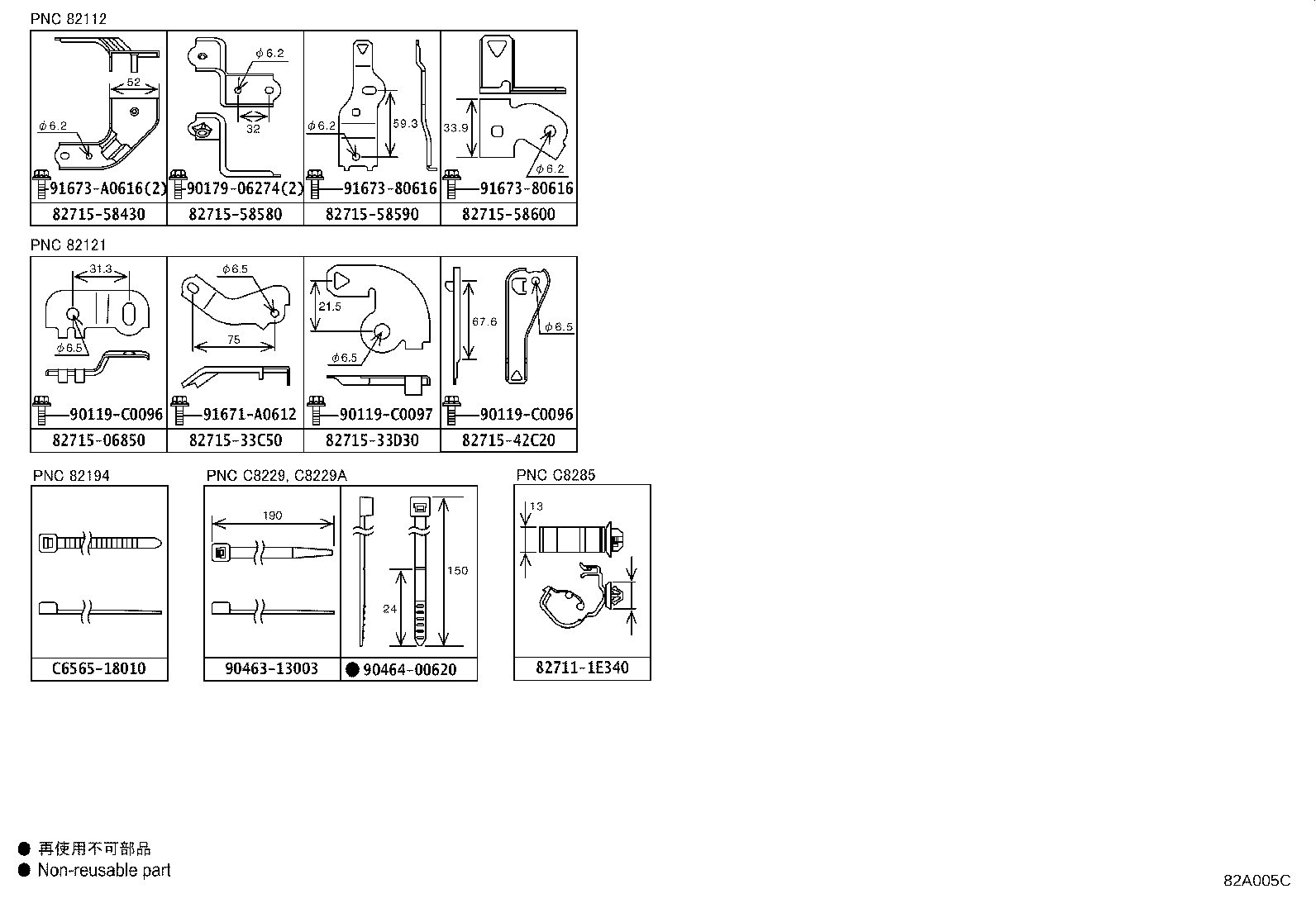

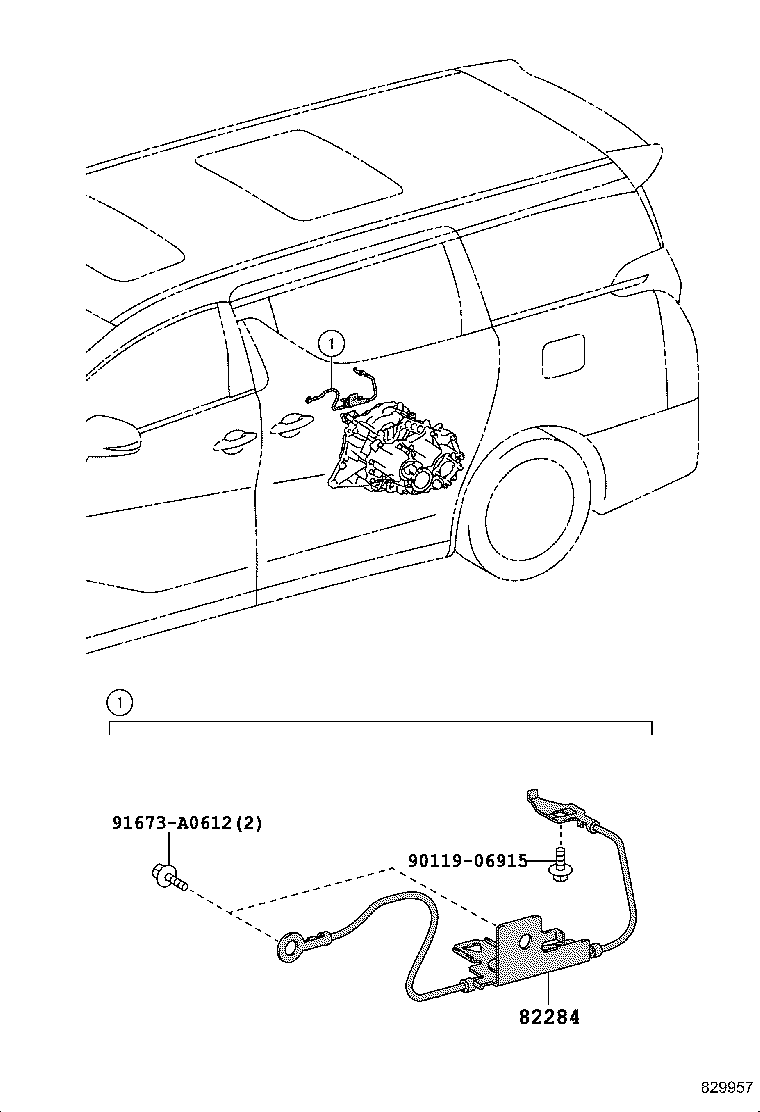

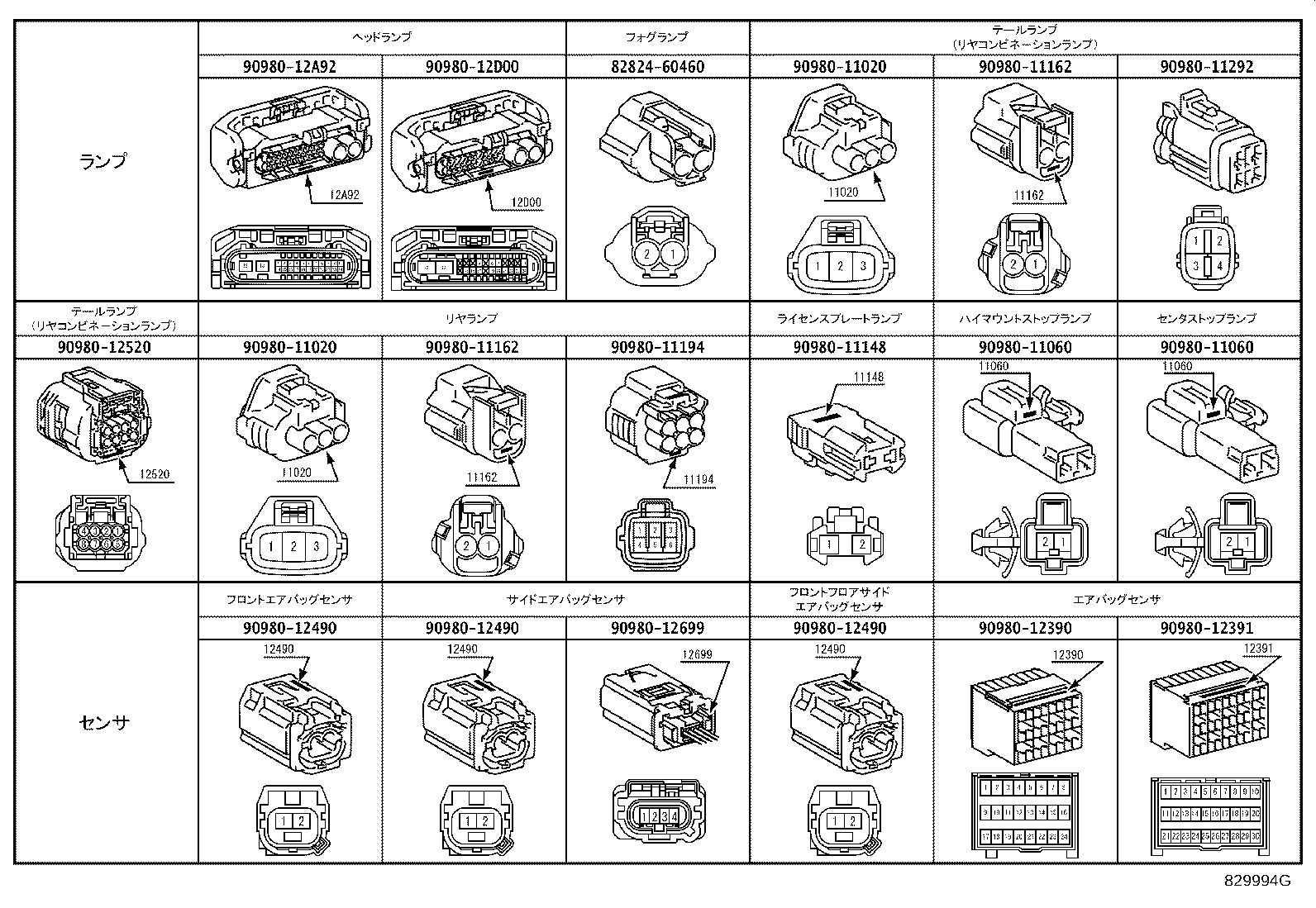

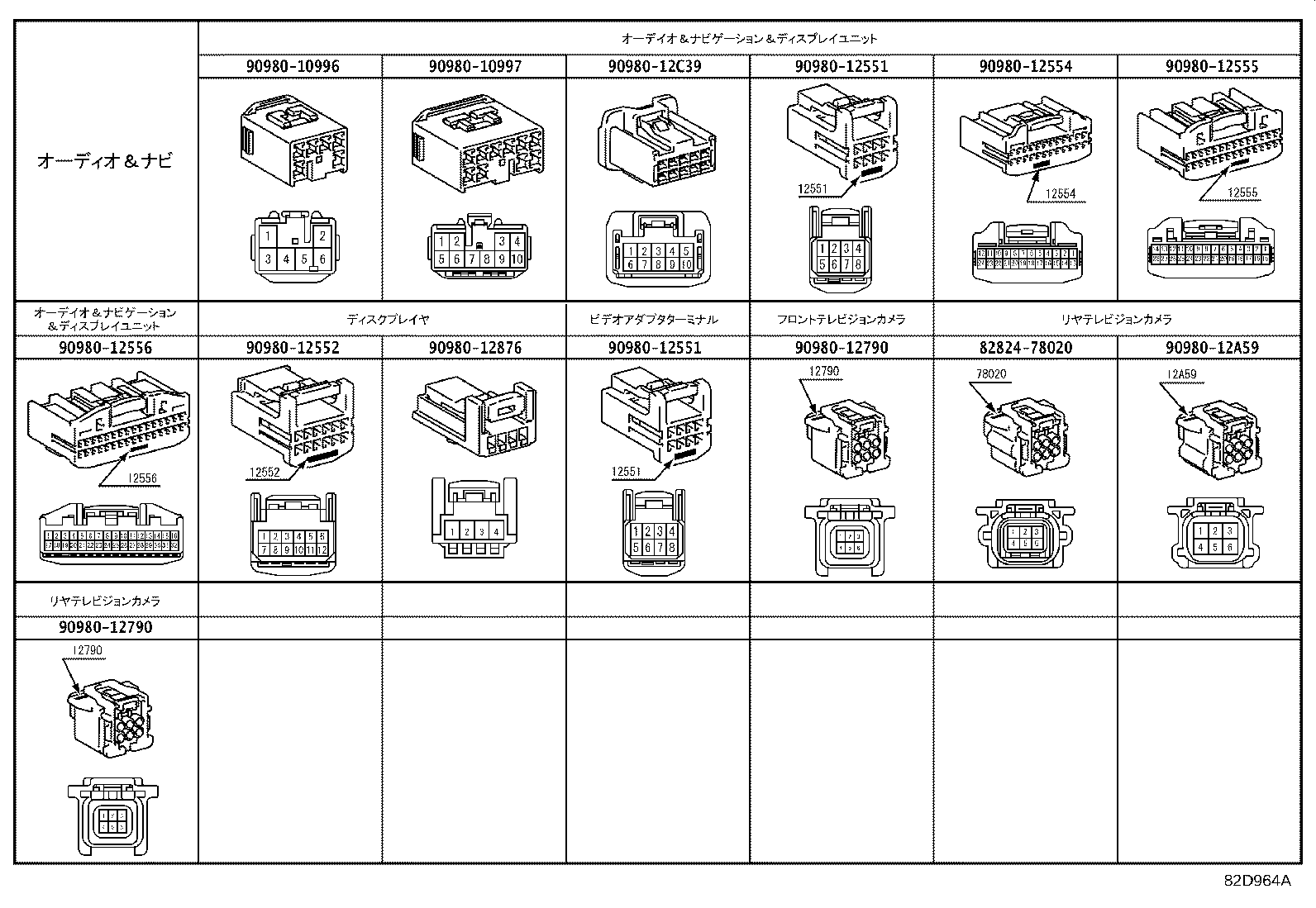

Figure 829931B 829931B 2015-01 → 2018-01 Figure 829932A 829932A 2015-01 → 2018-01 Figure 82D394B 82D394B 2018-01 → 2020-01 Figure 82D396F 82D396F 2020-01 → — Figure 82D395B 82D395B 2018-01 → 2020-01 Figure 82D397G 82D397G 2020-01 → — Figure 82B883E 82B883E 2018-01 → 2020-01 Figure 82D398D 82D398D 2020-01 → — Figure 829933C 829933C 2015-01 → — Figure 829934B 829934B 2015-01 → 2018-01 Figure 82B884A 82B884A 2018-01 → — Figure 82B885 82B885 2018-01 → — Figure 829935G 829935G 2015-01 → — Figure 829962B 829962B 2015-01 → 2018-01 Figure 82B886C 82B886C 2018-01 → 2020-01 Figure 82D405B 82D405B 2020-01 → — Figure 829936K 829936K 2015-01 → 2020-01 Figure 82D408F 82D408F 2020-01 → — Figure 829937 829937 2015-01 → 2018-01 Figure 82B887C 82B887C 2018-01 → 2020-01 Figure 82D411B 82D411B 2020-01 → — Figure 829938A 829938A 2015-01 → — Figure 829939G 829939G 2015-01 → — Figure 829963A 829963A 2015-01 → 2018-01 Figure 82B953 82B953 2018-01 → — Figure 829964C 829964C 2015-01 → 2018-01 Figure 82B888A 82B888A 2018-01 → — Figure 82G849 82G849 2022-09 → — Figure 829958G 829958G 2015-01 → 2018-01 Figure 82B954B 82B954B 2018-01 → — Figure 829959E 829959E 2015-01 → 2018-01 Figure 82B889C 82B889C 2018-01 → — Figure 82A005C 82A005C 2015-01 → 2018-01 Figure 82B955D 82B955D 2018-01 → — Figure 829957 829957 2015-01 → — Figure 829994G 829994G 2015-01 → — Figure 829996F 829996F 2015-01 → — Figure 82D964A 82D964A 2015-01 → —

Part groups

PNCDescription
16364A Wire, Cooling Fan
82090A Wire Assy, Extension
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82127D Wire, Engine, NO.7
82128A Wire, Engine, NO.8
82133 Wire, Cowl, NO.3
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82144 Wire, Instrument Panel, NO.4
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82166 Wire, Console Box
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82169 Wire Frame, NO.3
8216B Wire, Floor NO.8
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82176 Wire, Rear Console Box
82182 Wire, Luggage Room, NO.2
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82191A Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82192A Wire, Rear Seat, LH
82192B Wire, Front Seat, LH NO.2
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
82195 Wire, Rear Seat, RH NO.2
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
82219A Wire, Sensor
82219C Wire, Sensor
82219E Wire, Sensor
82223 Wire, Switch
82284 Wire, Earth
82505 Wiring Sub-assy, Front Door, RH
82507 Wiring Sub-assy, Rear Door, RH
82508 Wiring Sub-assy, Rear Door, LH
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82666V Holder, Connector NO.15
82666W Holder, Connector NO.16
82666X Holder, Connector NO.17
82666Y Holder, Connector NO.18
82666Z Holder, Connector NO.19
82667E Holder, Connector, NO.20
82667F Holder, Connector, NO.21
82667G Holder, Connector, NO.22
82667K Holder, Connector, NO.25
82667L Holder, Connector, NO.26
82667M Holder, Connector, NO.27
82667N Holder, Connector, NO.28
82667R Holder, Connector, NO.29
82667T Holder, Connector, NO.31
82667U Holder, Connector, NO.32
82667V Holder, Connector, NO.33
82667W Holder, Connector, NO.34
82667X Holder, Connector, NO.35
82667Z Holder, Connector, NO.37
82712A Support, Wiring Harness
82712B Support, Wiring Harness
82712C Support, Wiring Harness, NO.1
82712D Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815U Cover, Wiring Harness Protector, NO.17
82815V Cover, Wiring Harness Protector, NO.1
82815W Cover, Wiring Harness Protector, NO.2
82815X Cover, Wiring Harness Protector, NO.3
82815Y Cover, Wiring Harness Protector, NO.4
82815Z Cover, Wiring Harness Protector, NO.18
82816B Cover, Wiring Harness Protector, NO.1
82816C Cover, Wiring Harness Protector, NO.2
82816D Cover, Wiring Harness Protector, NO.3
82816F Cover, Wiring Harness Protector, NO.4
82816G Cover, Wiring Harness Protector, NO.5
82816H Cover, Wiring Harness Protector, NO.6
82816U Cover, Wiring Harness Protector, NO.17
82816V Cover, Wiring Harness Protector, NO.18
82816W Cover, Wiring Harness Protector, NO.19
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818J Protector, Wiring Harness, NO.10
82818K Protector, Wiring Harness, NO.11
82818L Protector, Wiring Harness, NO.12
82818M Protector, Wiring Harness, NO.13
82818N Protector, Wiring Harness, NO.14
82818S Protector, Wiring Harness, NO.15
82818Y Protector, Wiring Harness, NO.21
82819G Protector, Wiring Harness, NO.23
82819H Protector, Wiring Harness, NO.24
82819J Protector, Wiring Harness, NO.25
82819K Protector, Wiring Harness, NO.26
82819L Protector, Wiring Harness, NO.27
82819M Protector, Wiring Harness, NO.28
8281AD Protector, Wiring Harness, NO.5
8281AE Protector, Wiring Harness, NO.6
8281AF Protector, Wiring Harness, NO.7
8281AG Protector, Wiring Harness, NO.8
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82821N Cover, Connector
82821P Cover, Connector
82821R Cover, Connector
82821U Cover, Connector
82821Y Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
82824D Connector, Wiring Harness
82930 Condenser Assy, Wiring Harness, NO.1
82F66A Holder, Connector, NO.38
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
C8229 Wire, Connector Swich, NO.1
C8229A Wire, Connector Swich, NO.2
C8285 Wire, Reel Wire TO Limit Switch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
