Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH3#,AYH30,GGH3# · catalogue 713140 · Japan

Supported model Data version 2020-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

191 part groups · 30 illustrations

Illustrations

84F762B 2015-01 → —

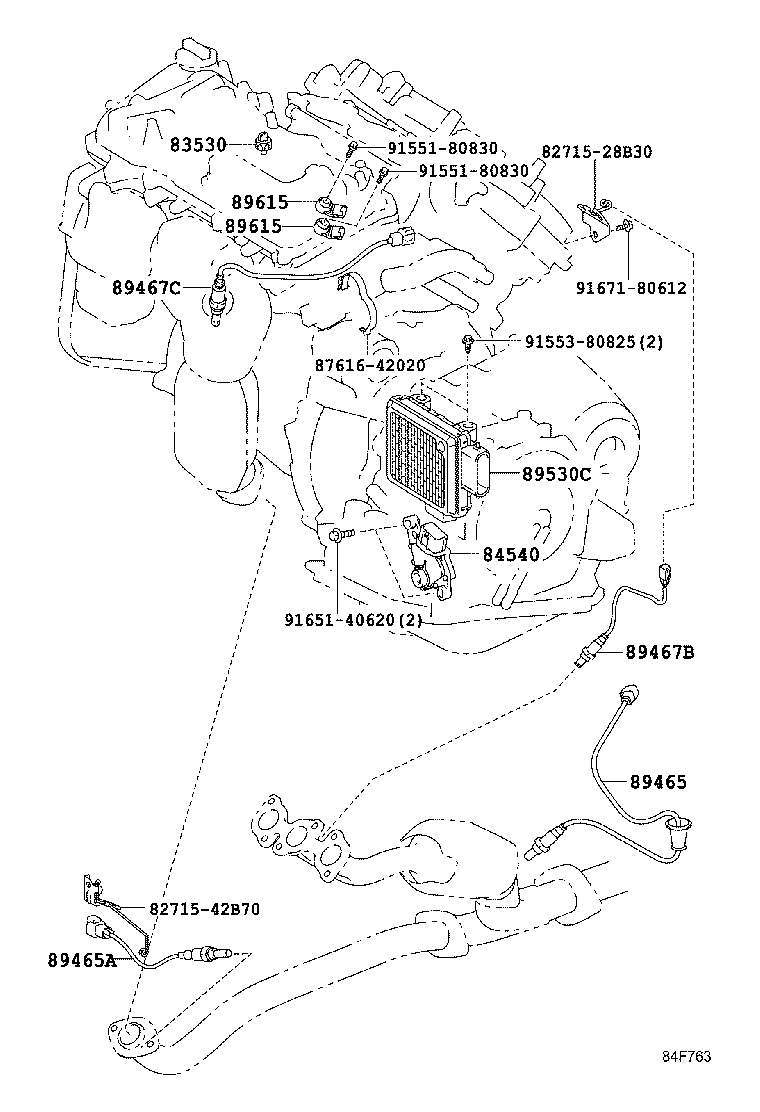

84F763 2015-01 → 2018-01

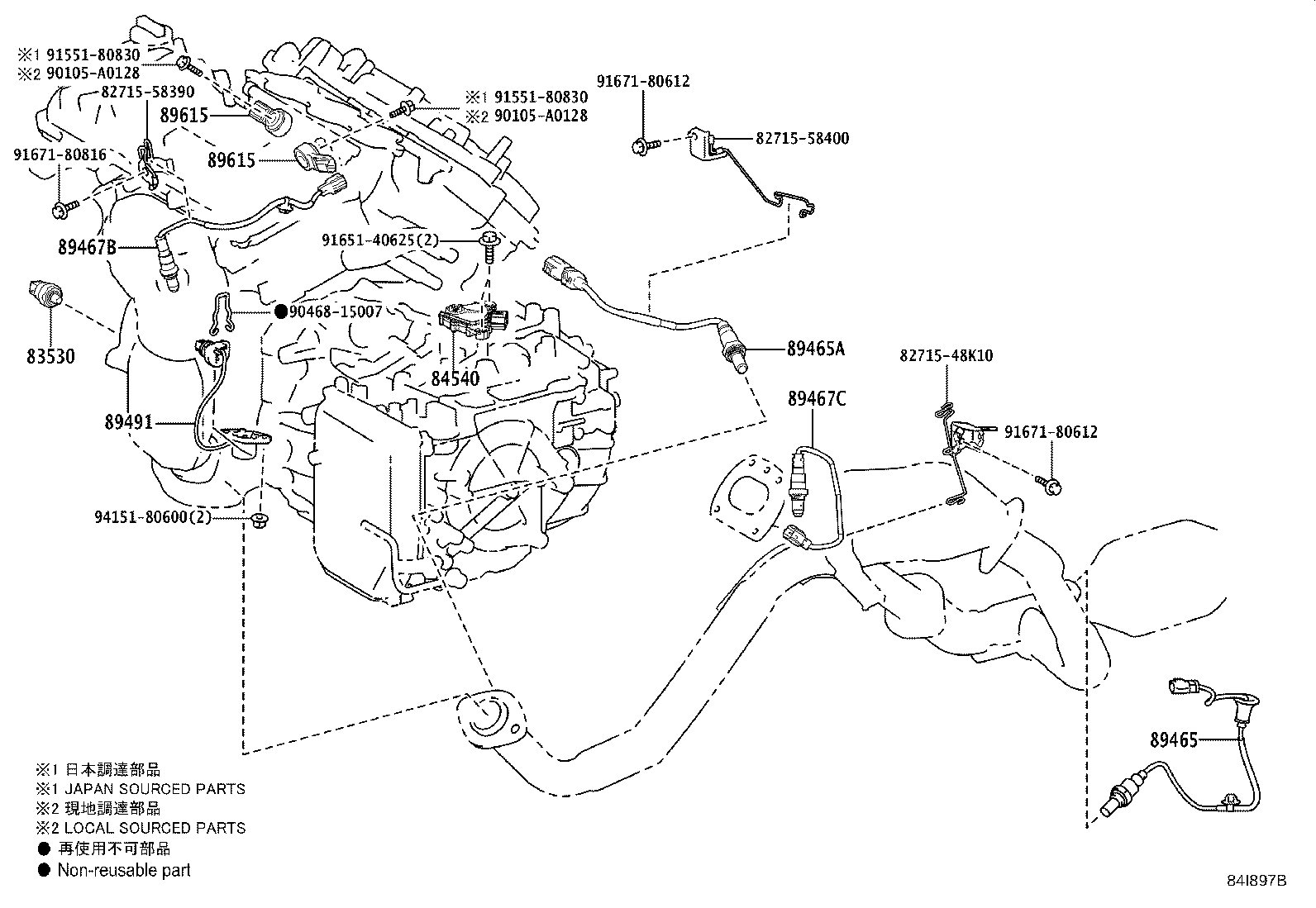

84I897B 2018-01 → —

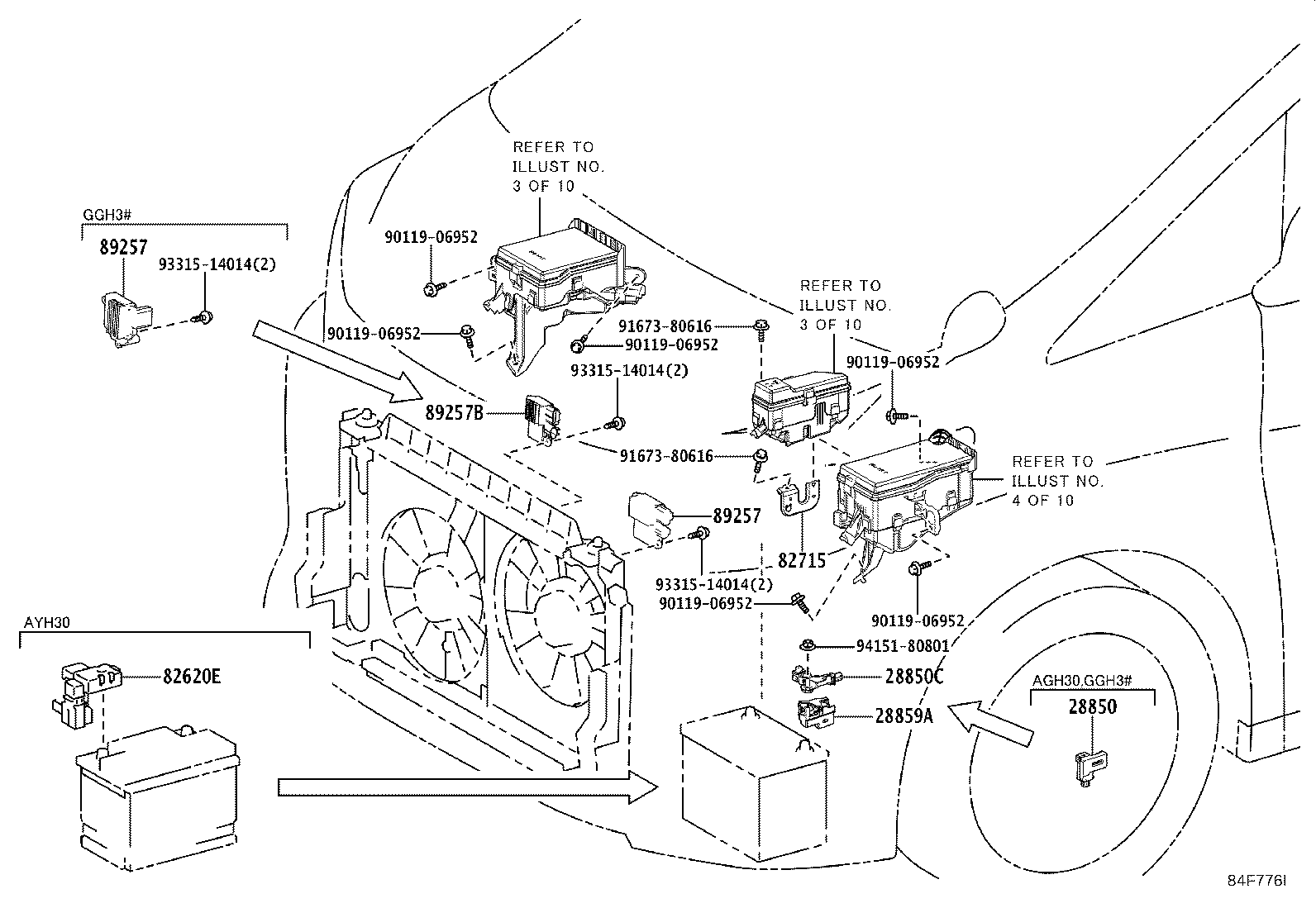

84F776I 2015-01 → 2018-01

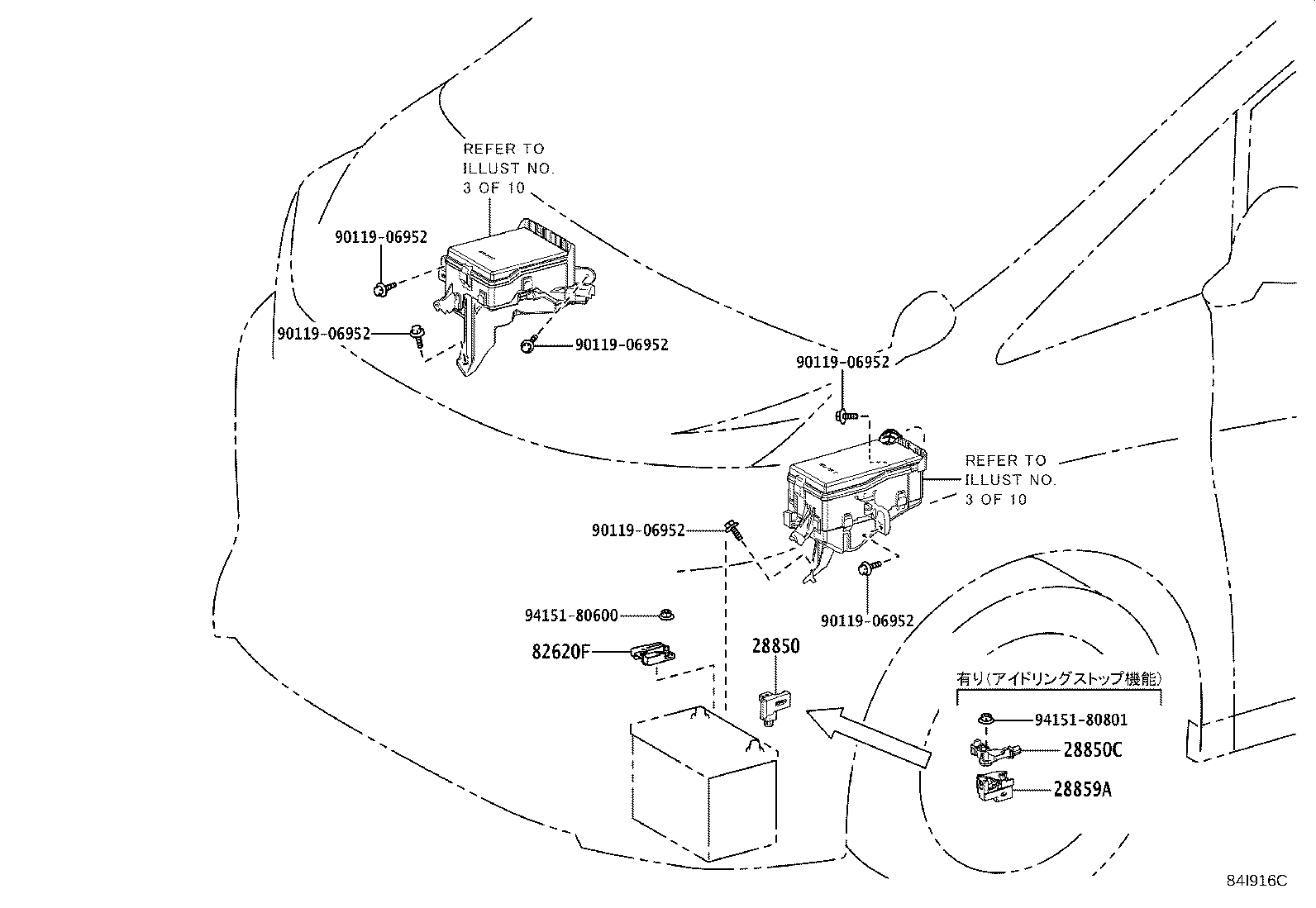

84I916C 2018-01 → —

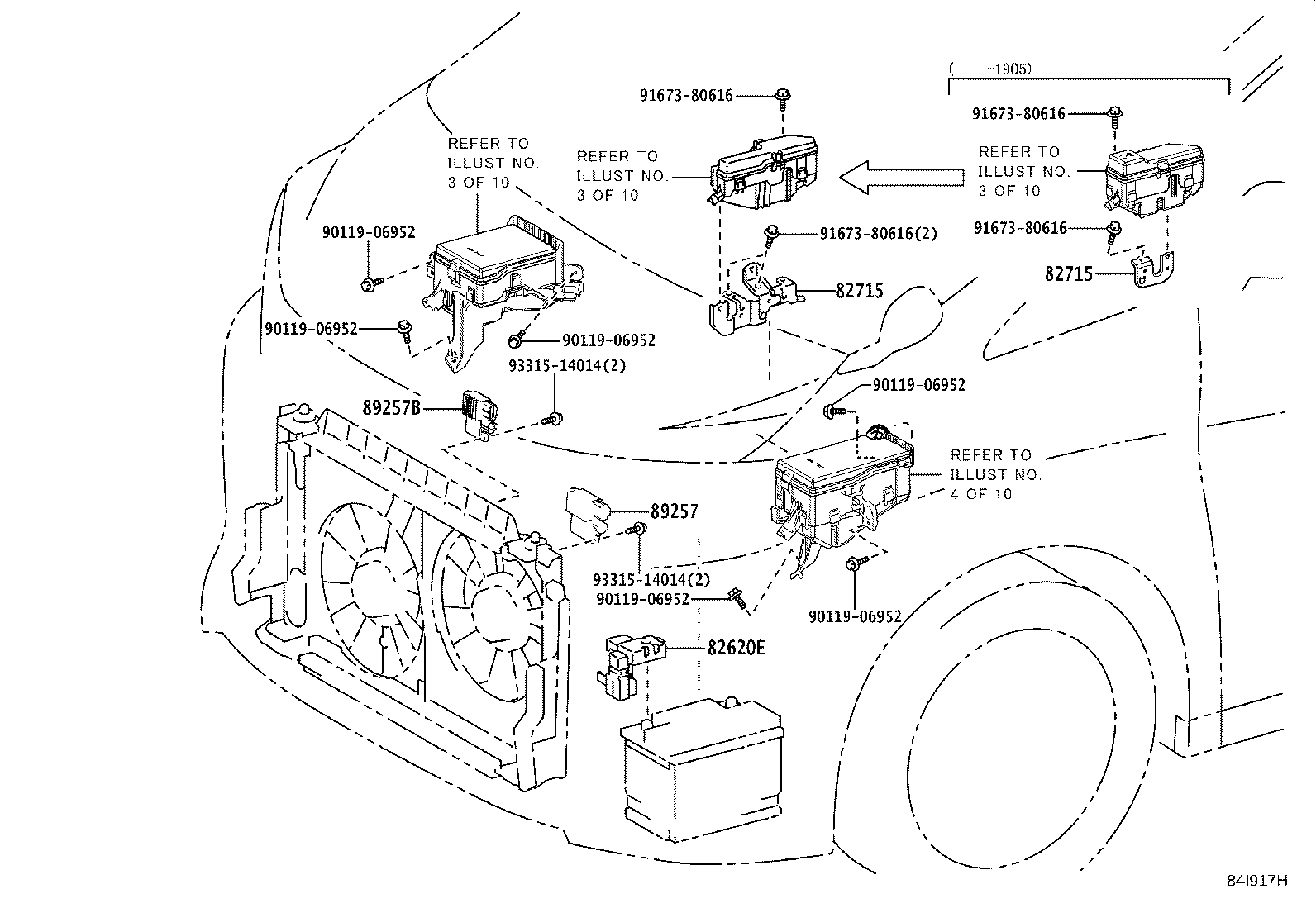

84I917H 2018-01 → —

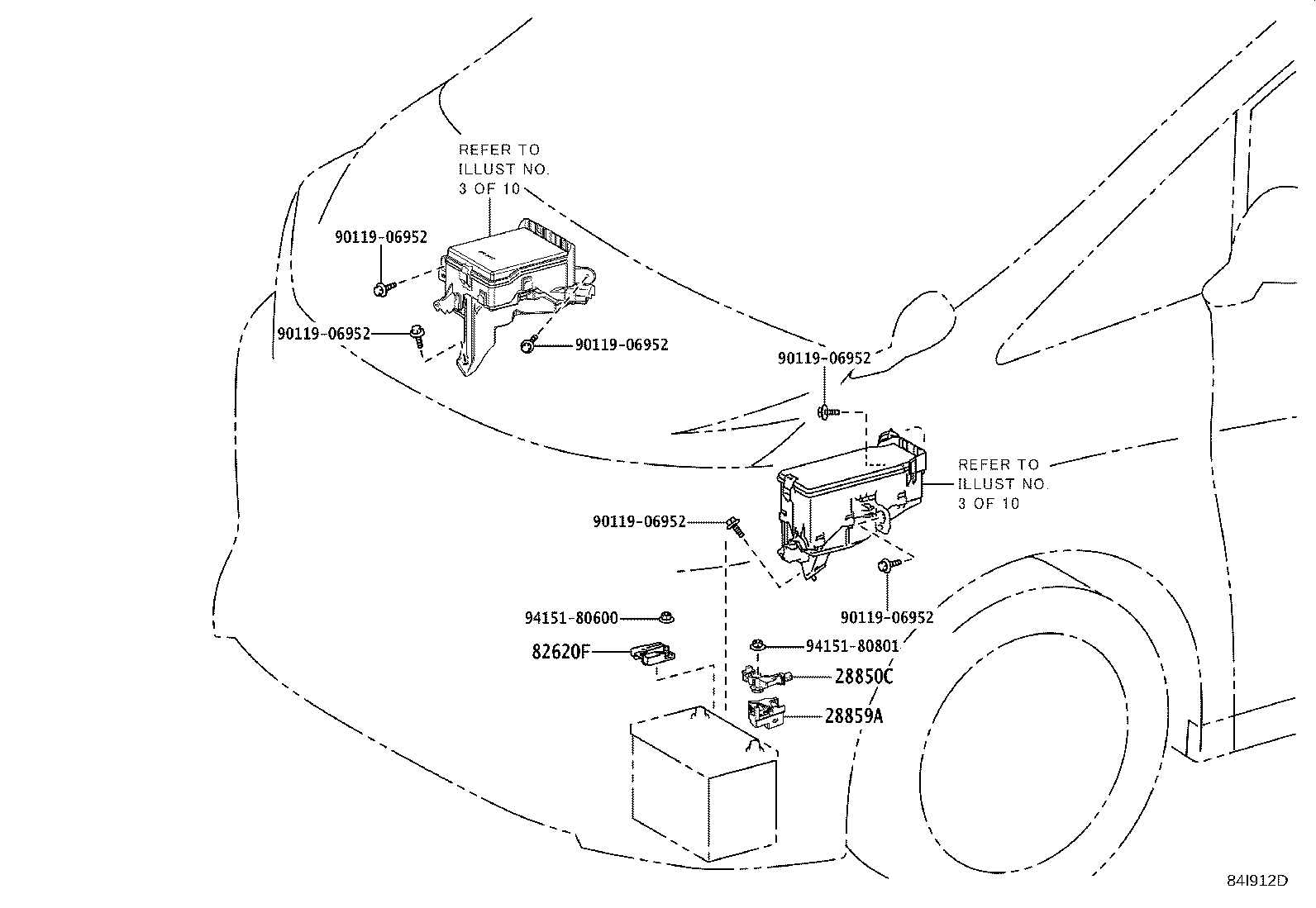

84I912D 2018-01 → —

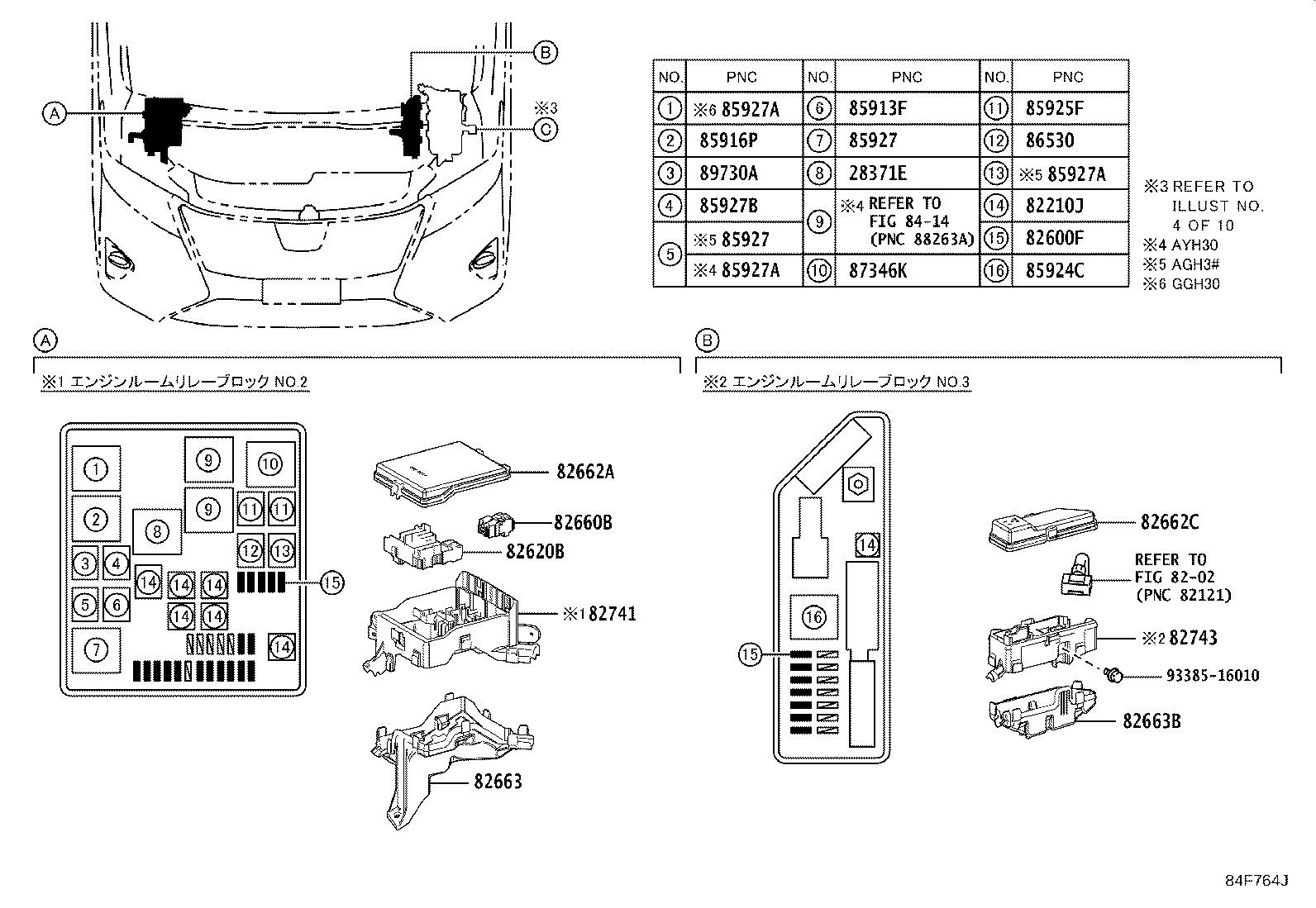

84F764J 2015-01 → 2018-01

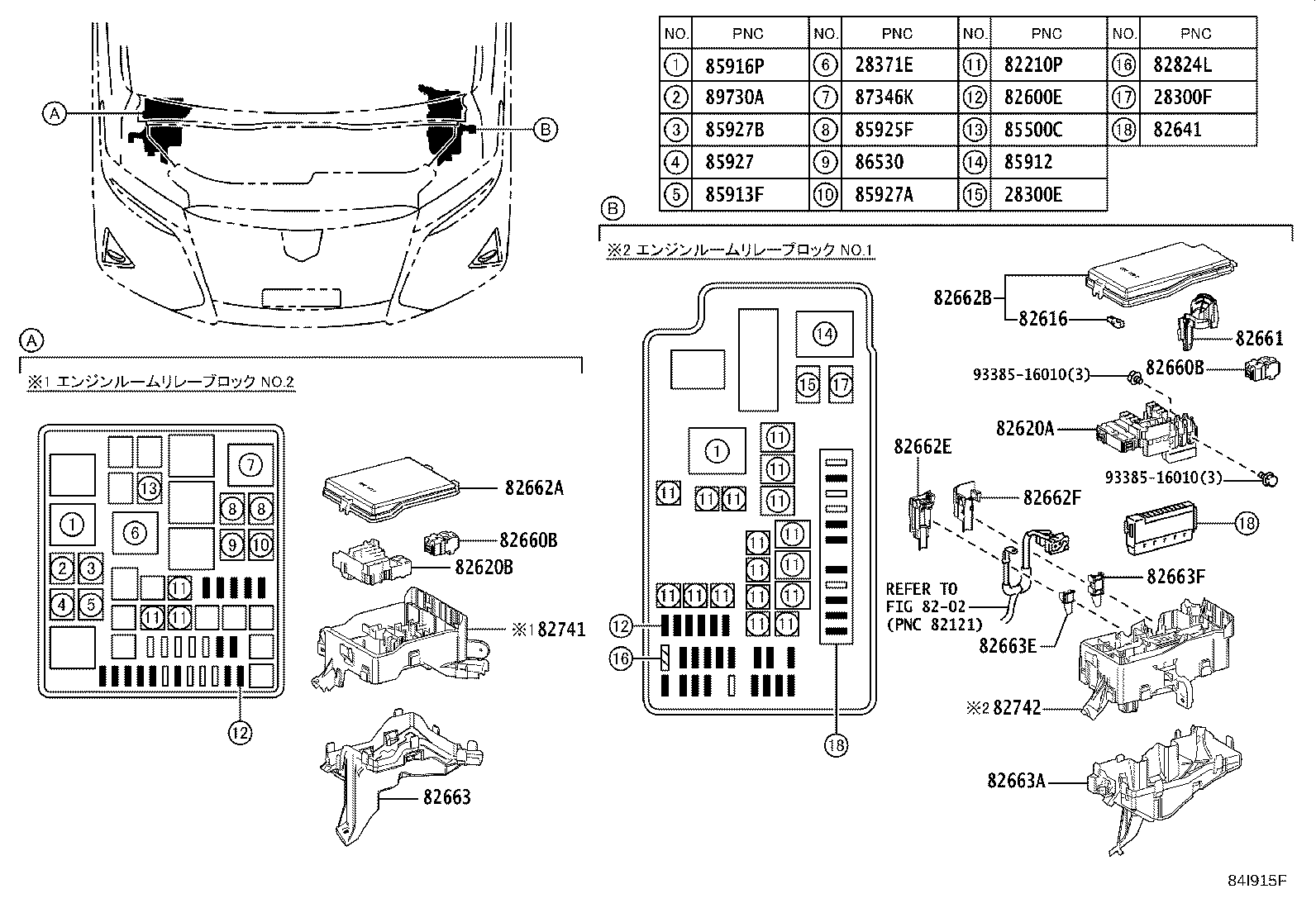

84I915F 2018-01 → —

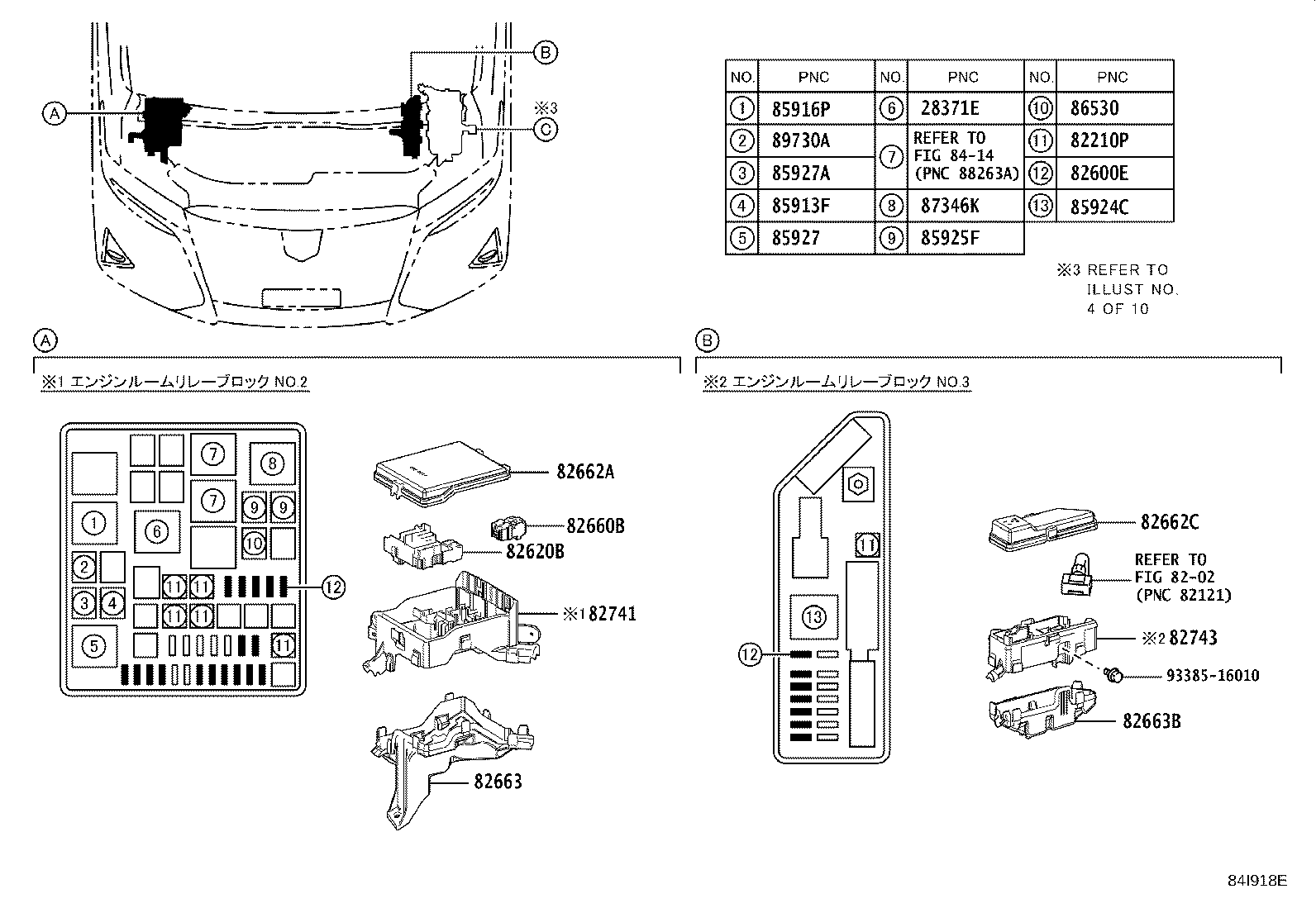

84I918E 2018-01 → 2019-05

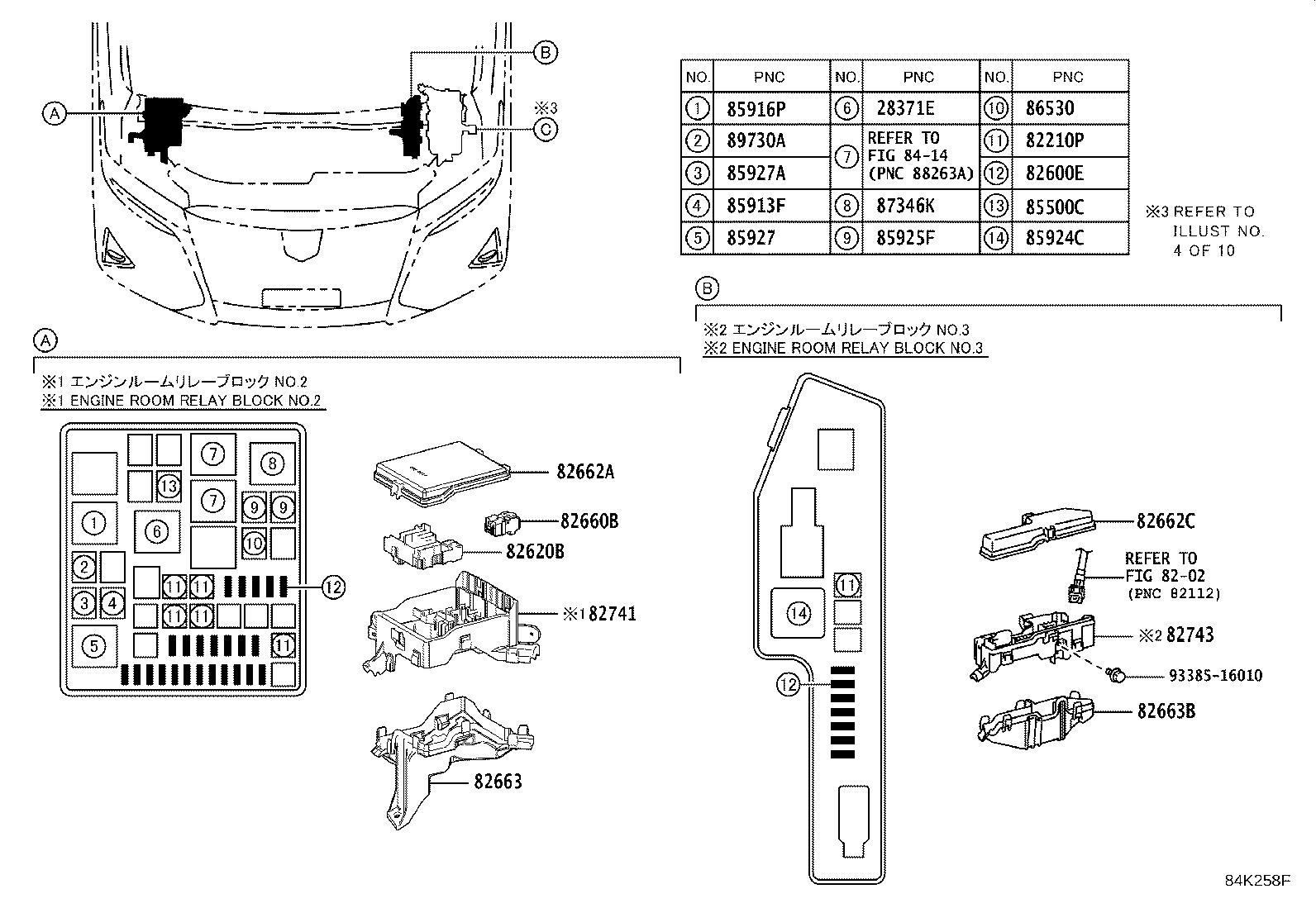

84K258F 2019-05 → —

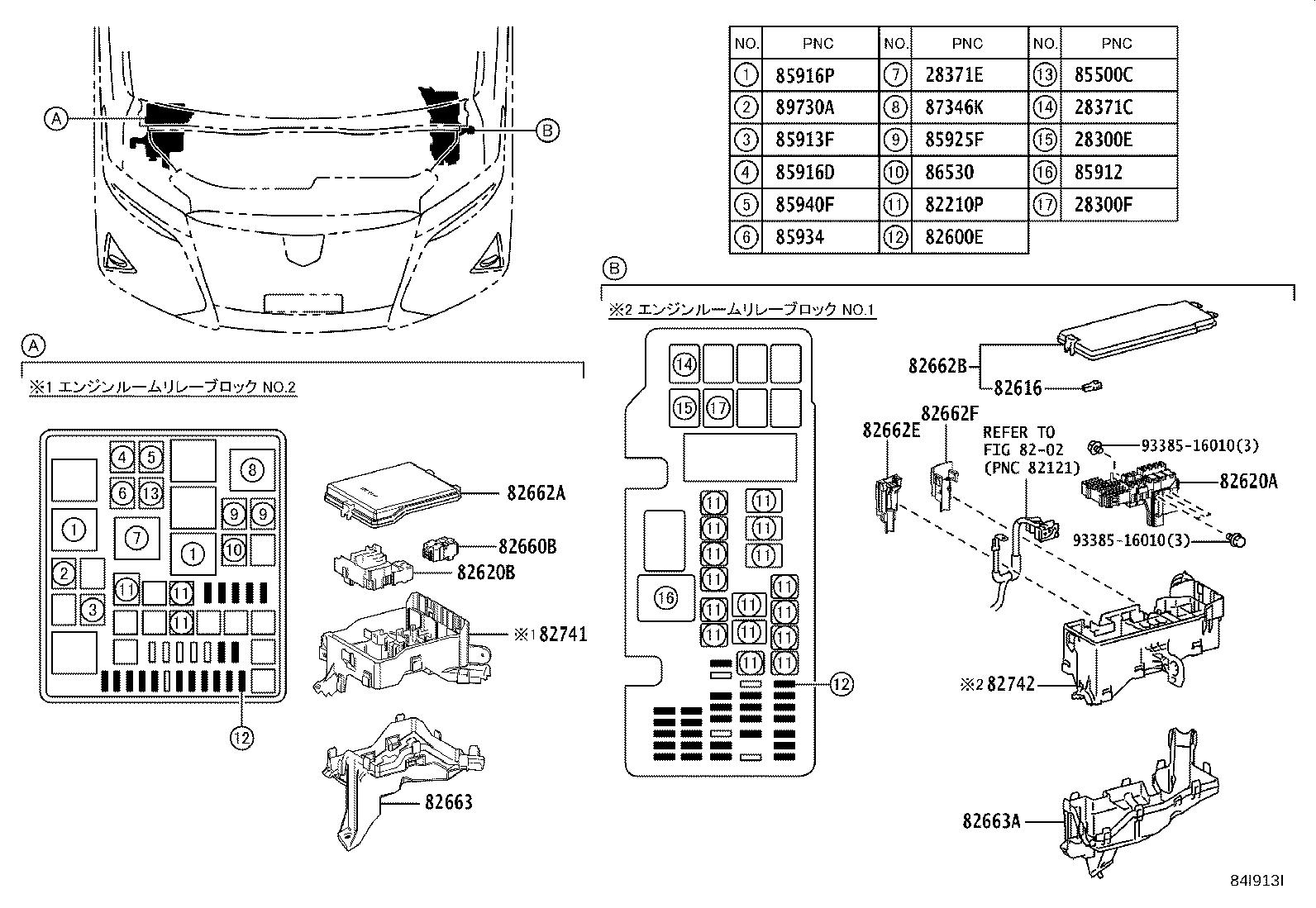

84I913I 2018-01 → —

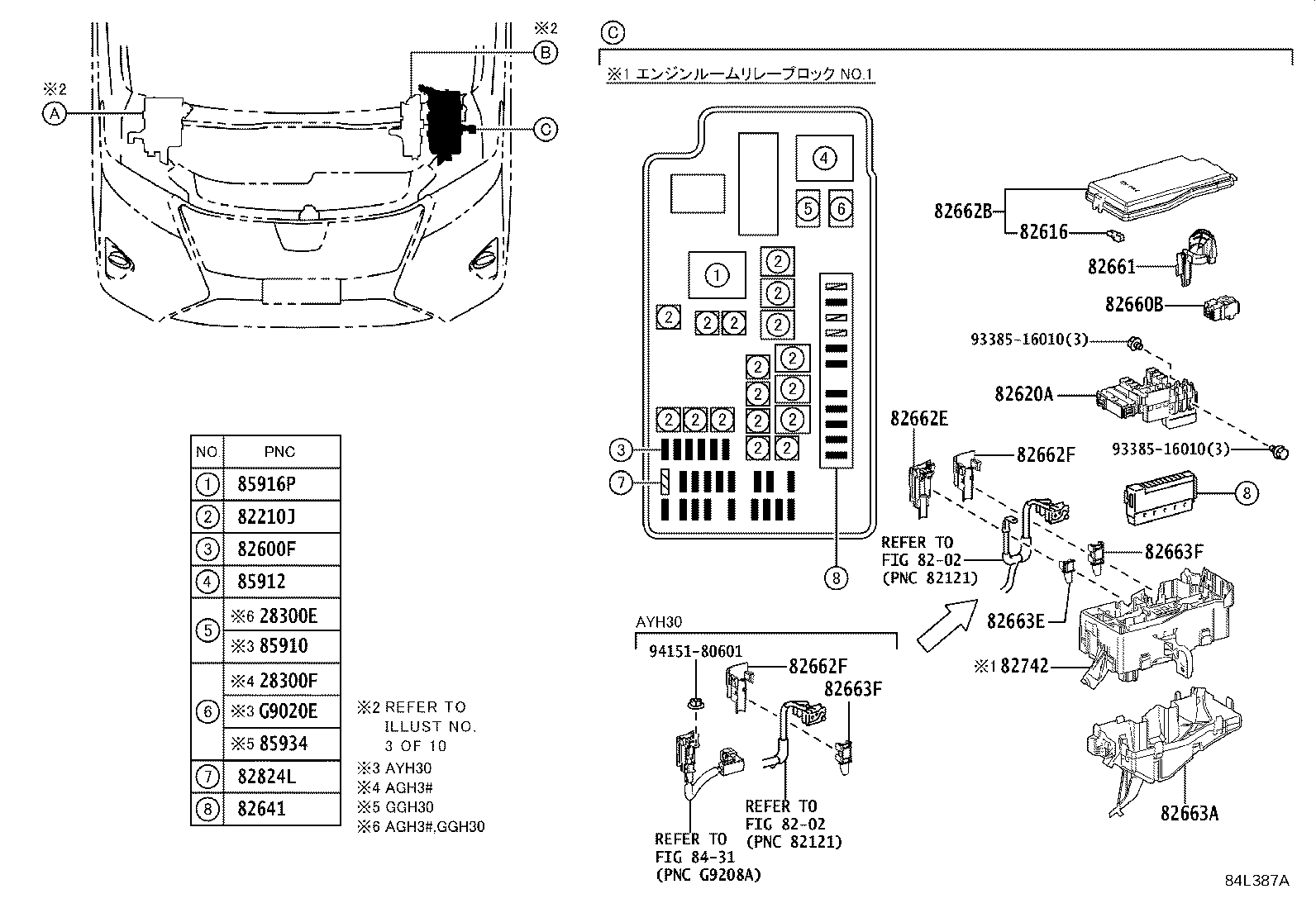

84L387A 2015-01 → 2018-01

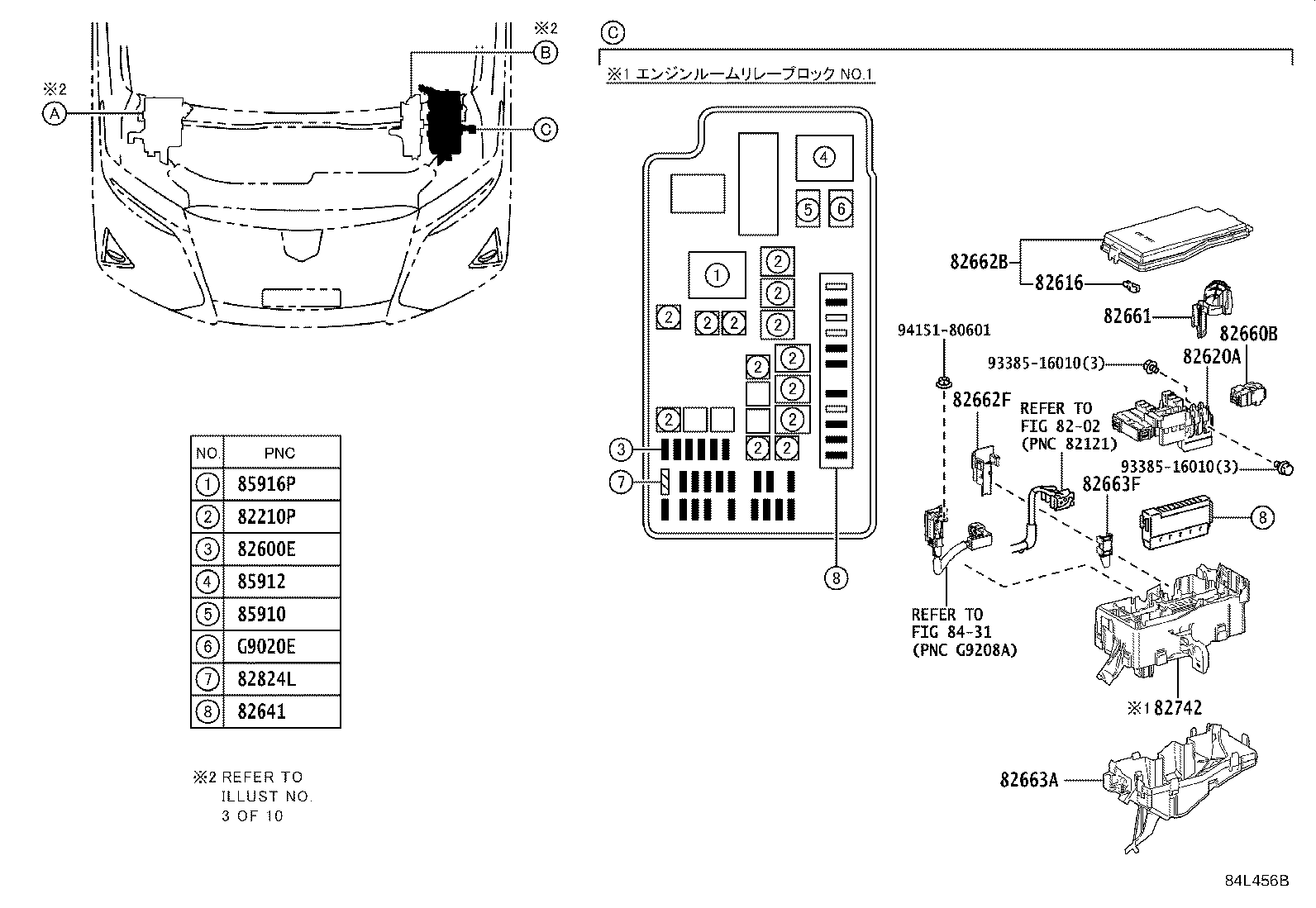

84L456B 2018-01 → 2019-05

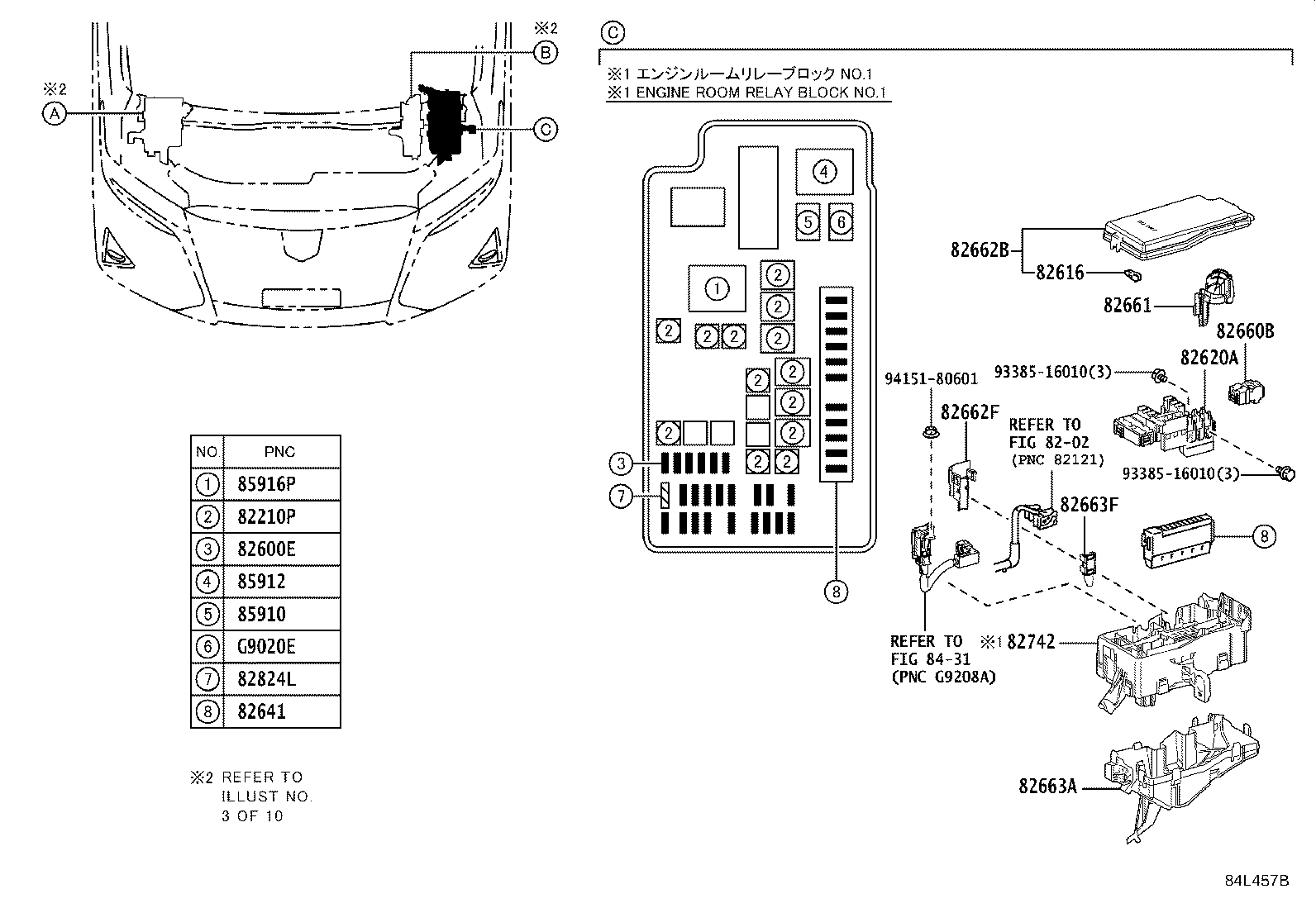

84L457B 2019-05 → —

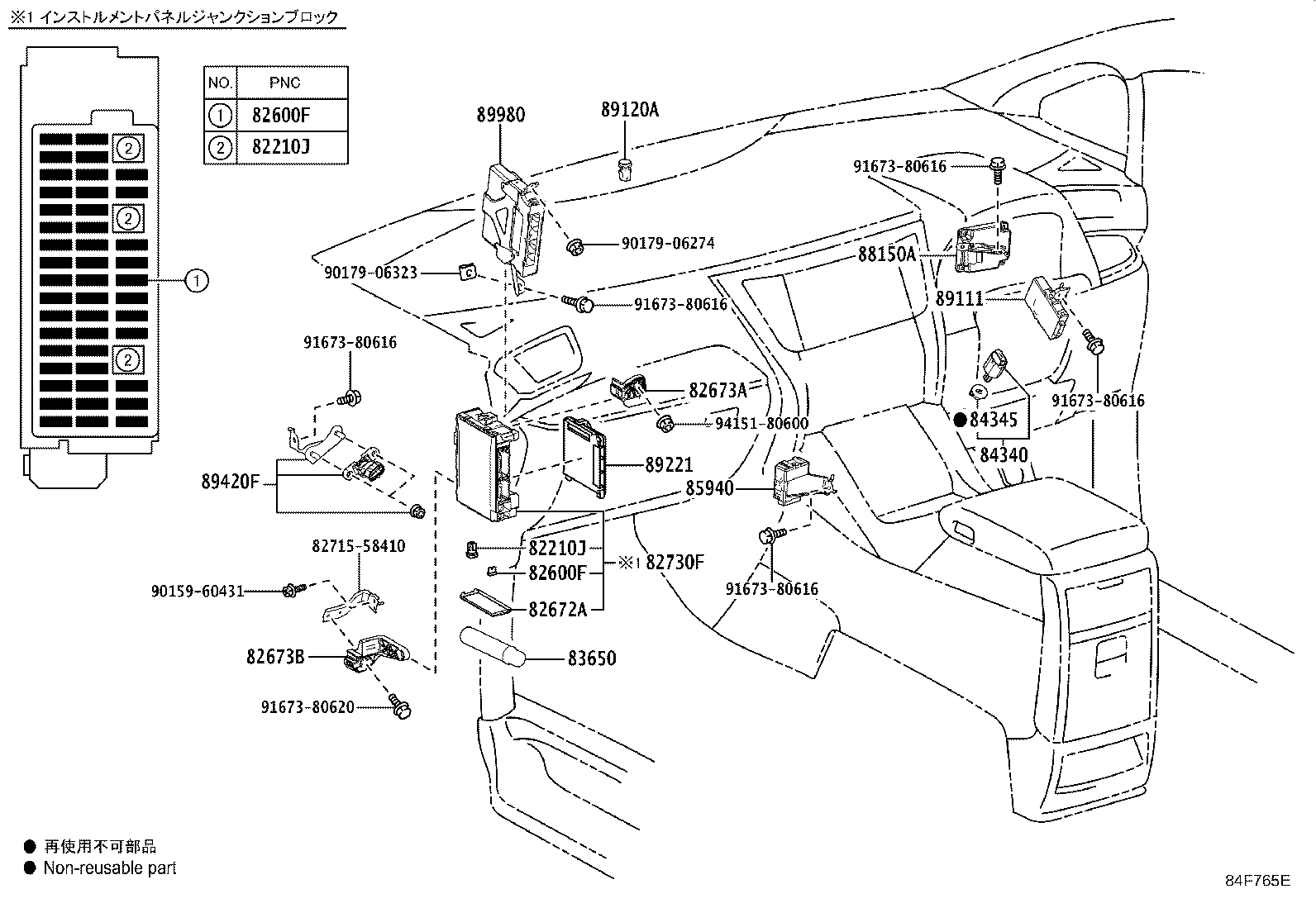

84F765E 2015-01 → 2018-01

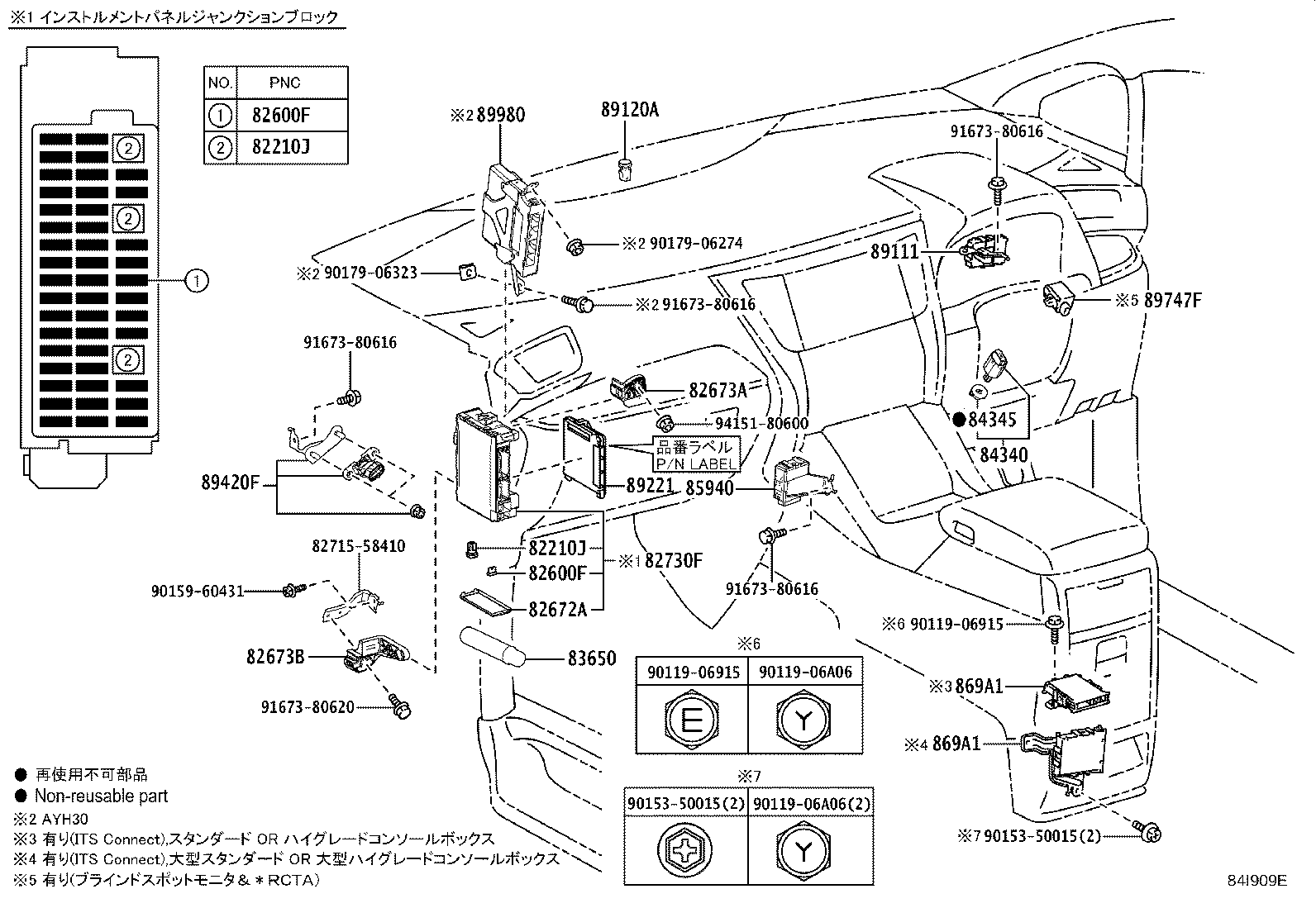

84I909E 2018-01 → —

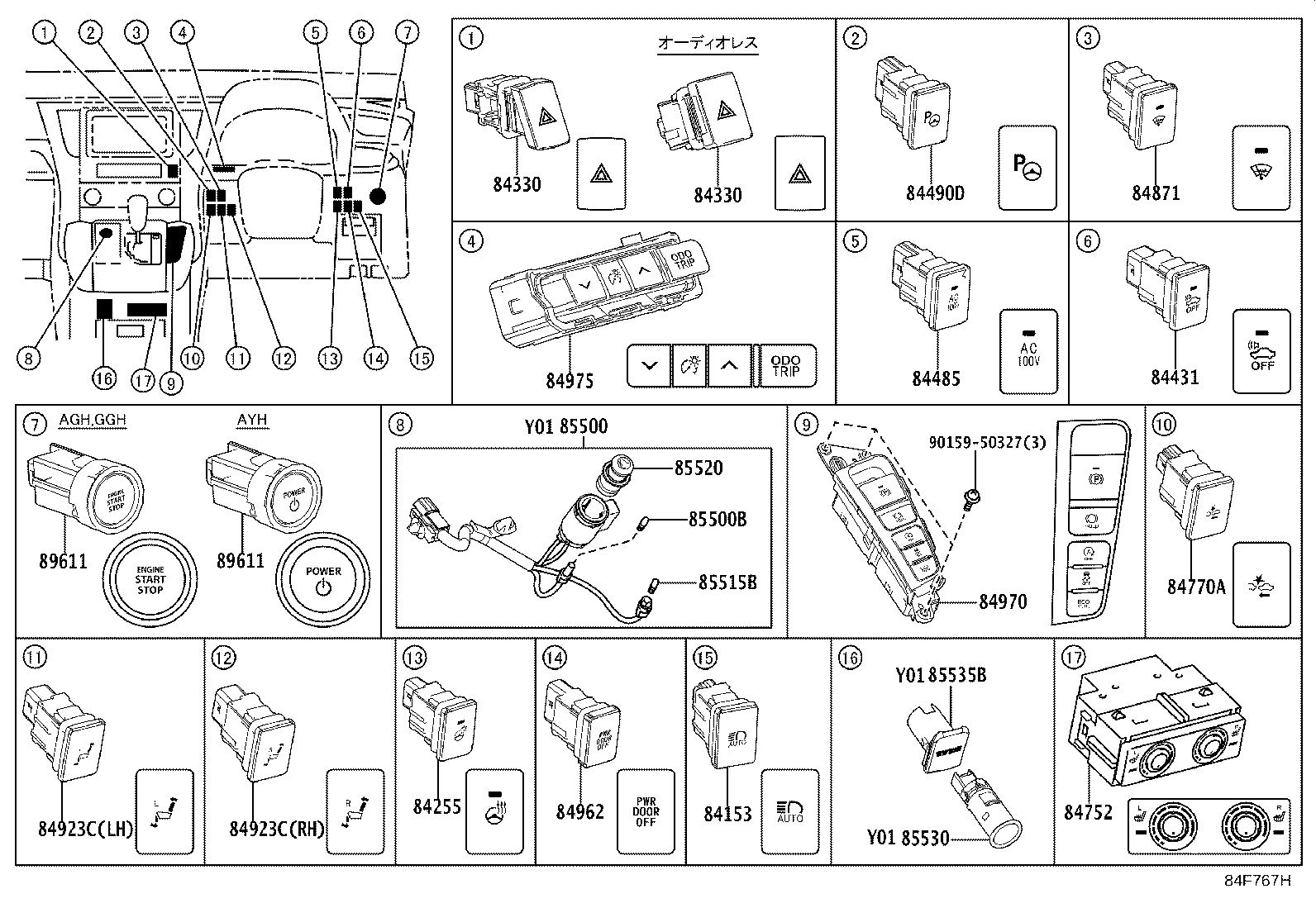

84F767H 2015-01 → 2018-01

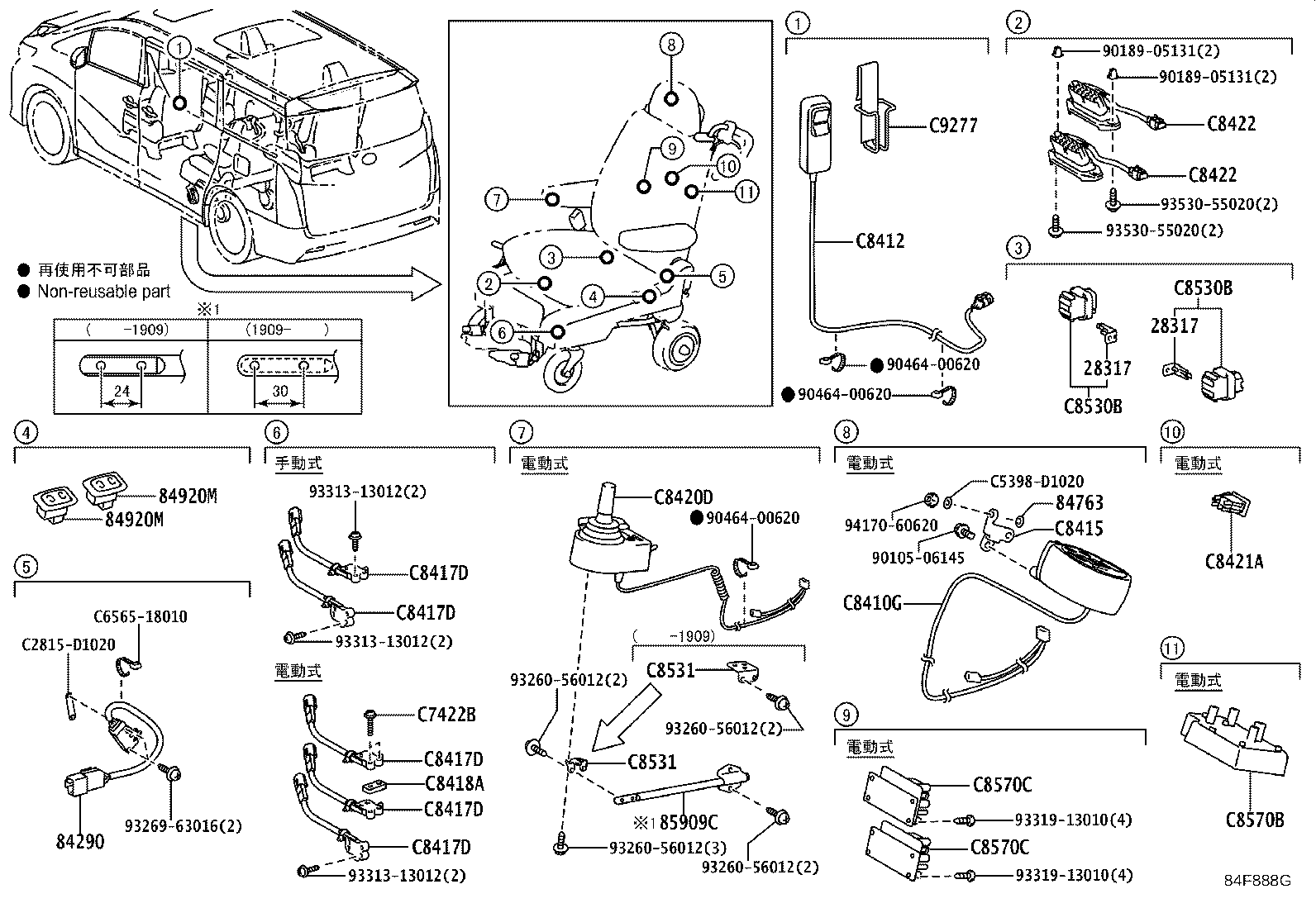

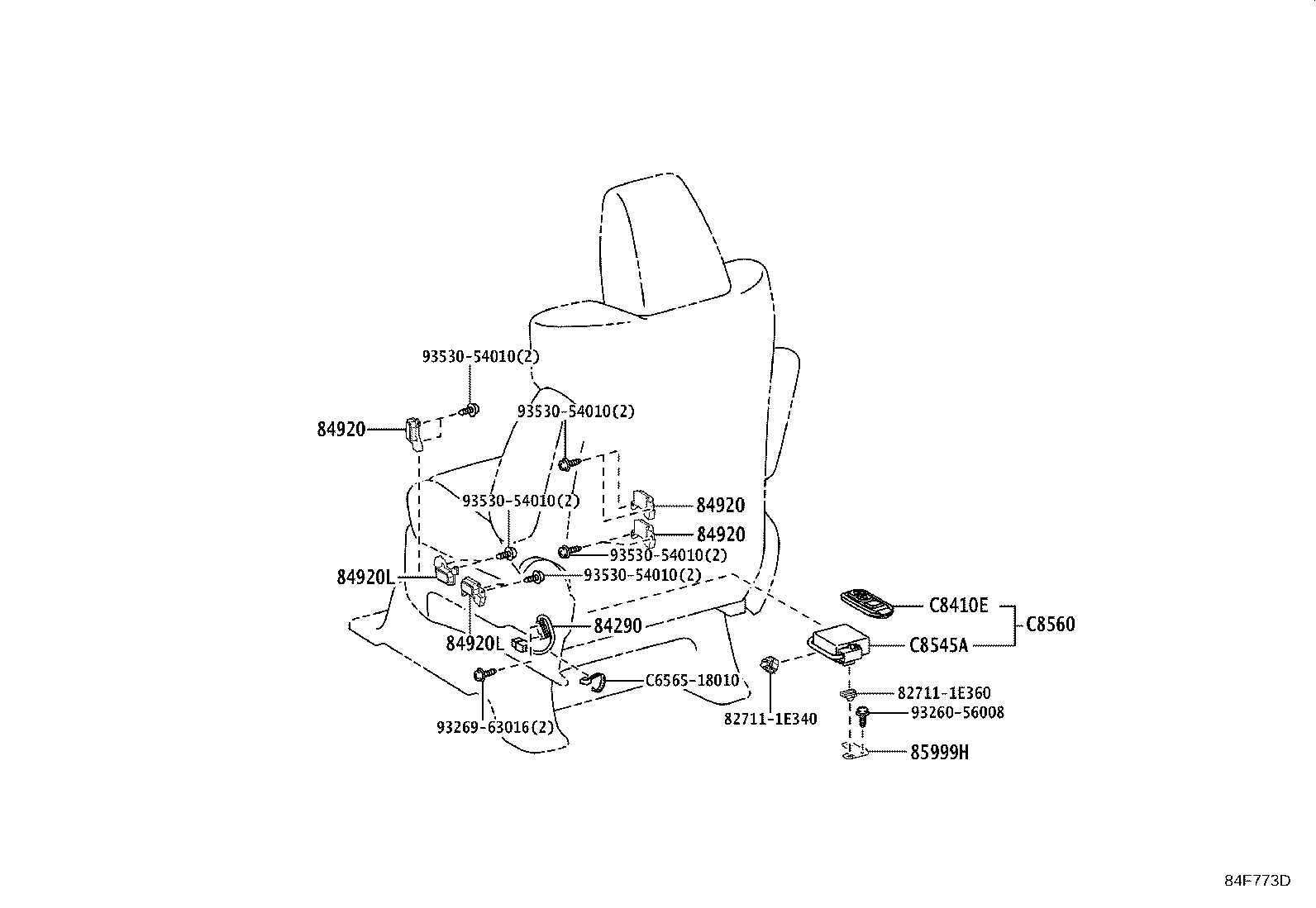

84F773D 2015-01 → 2018-01

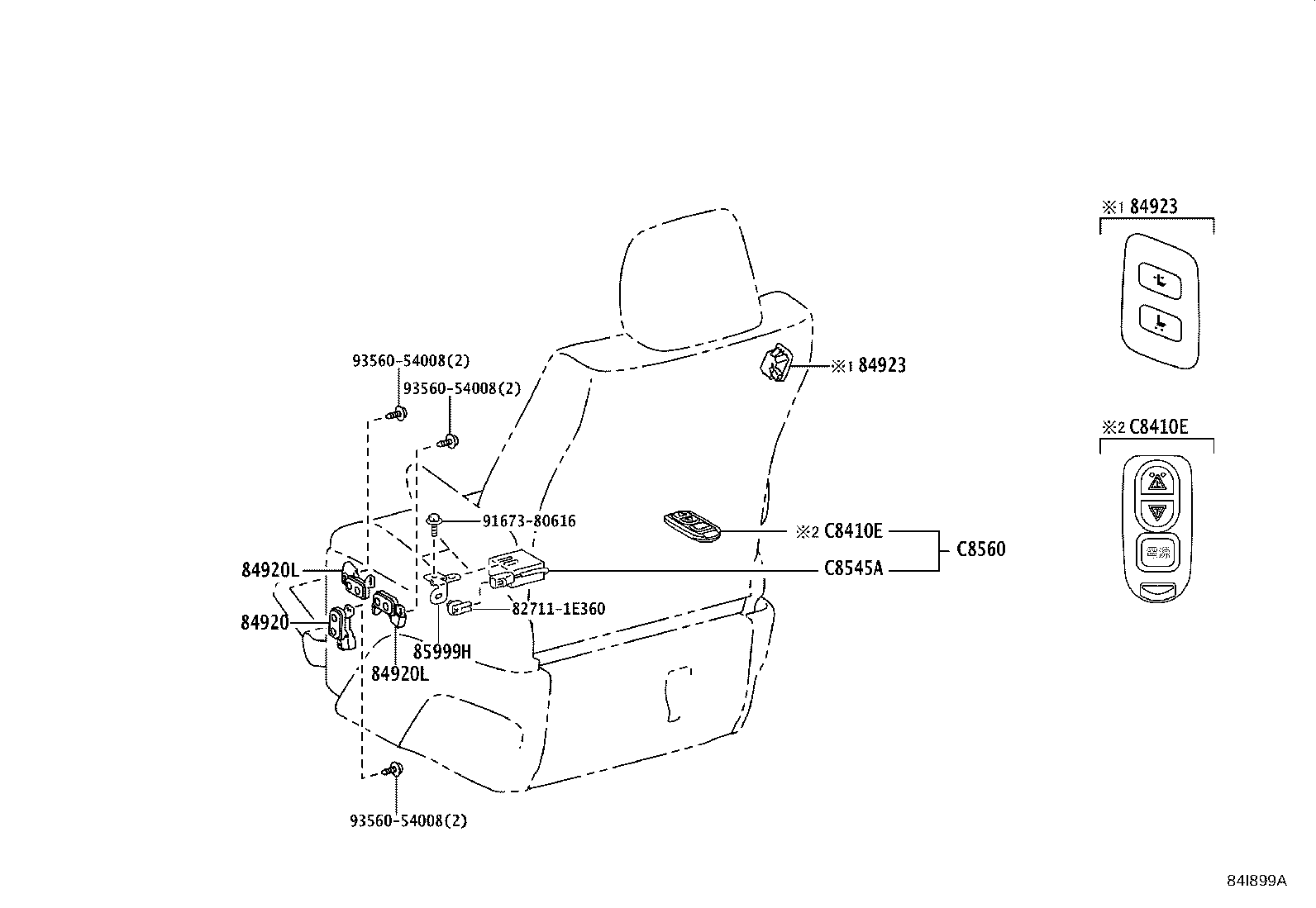

84I899A 2018-01 → —

84F888G 2015-04 → —

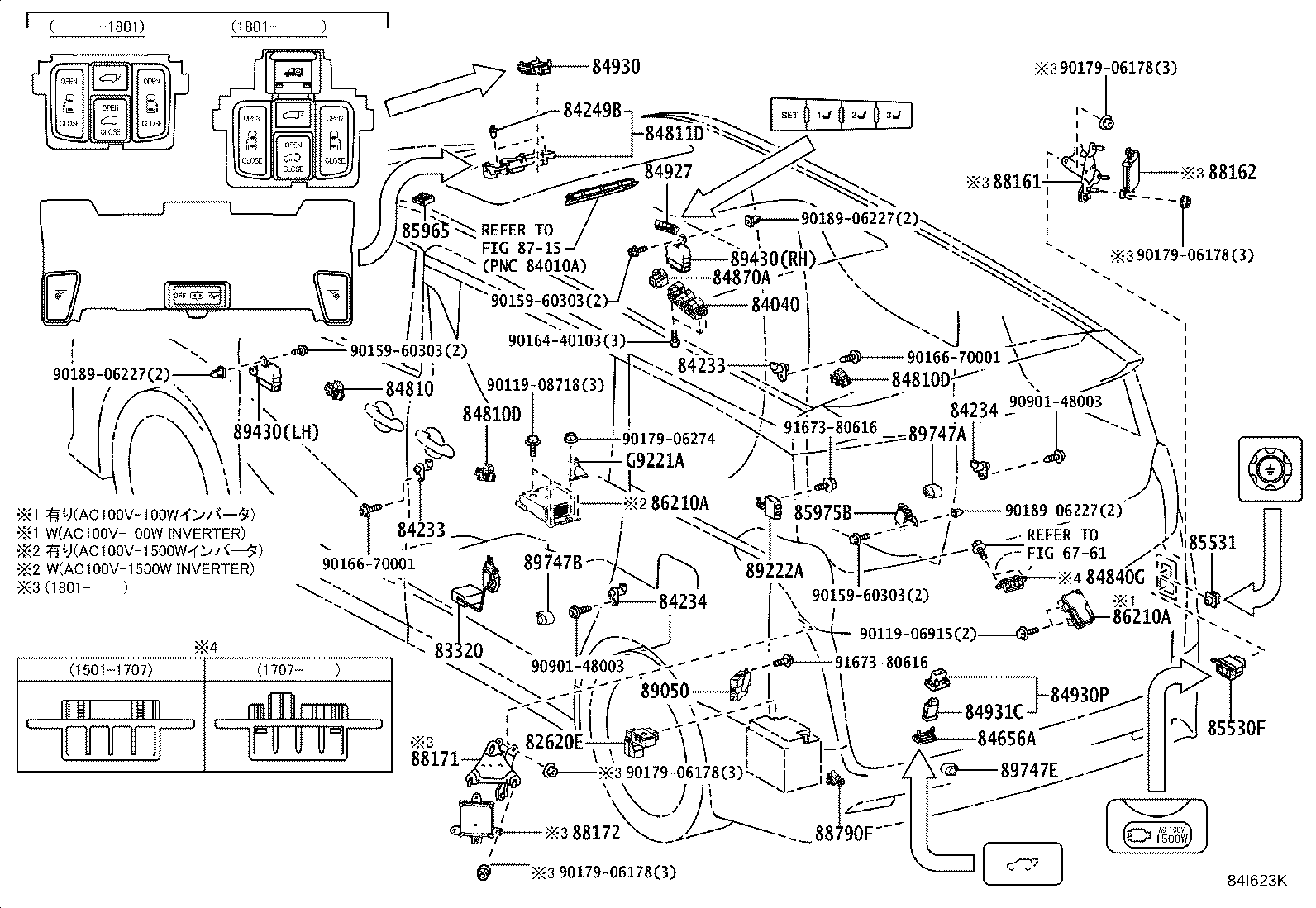

84I623K 2015-01 → 2020-01

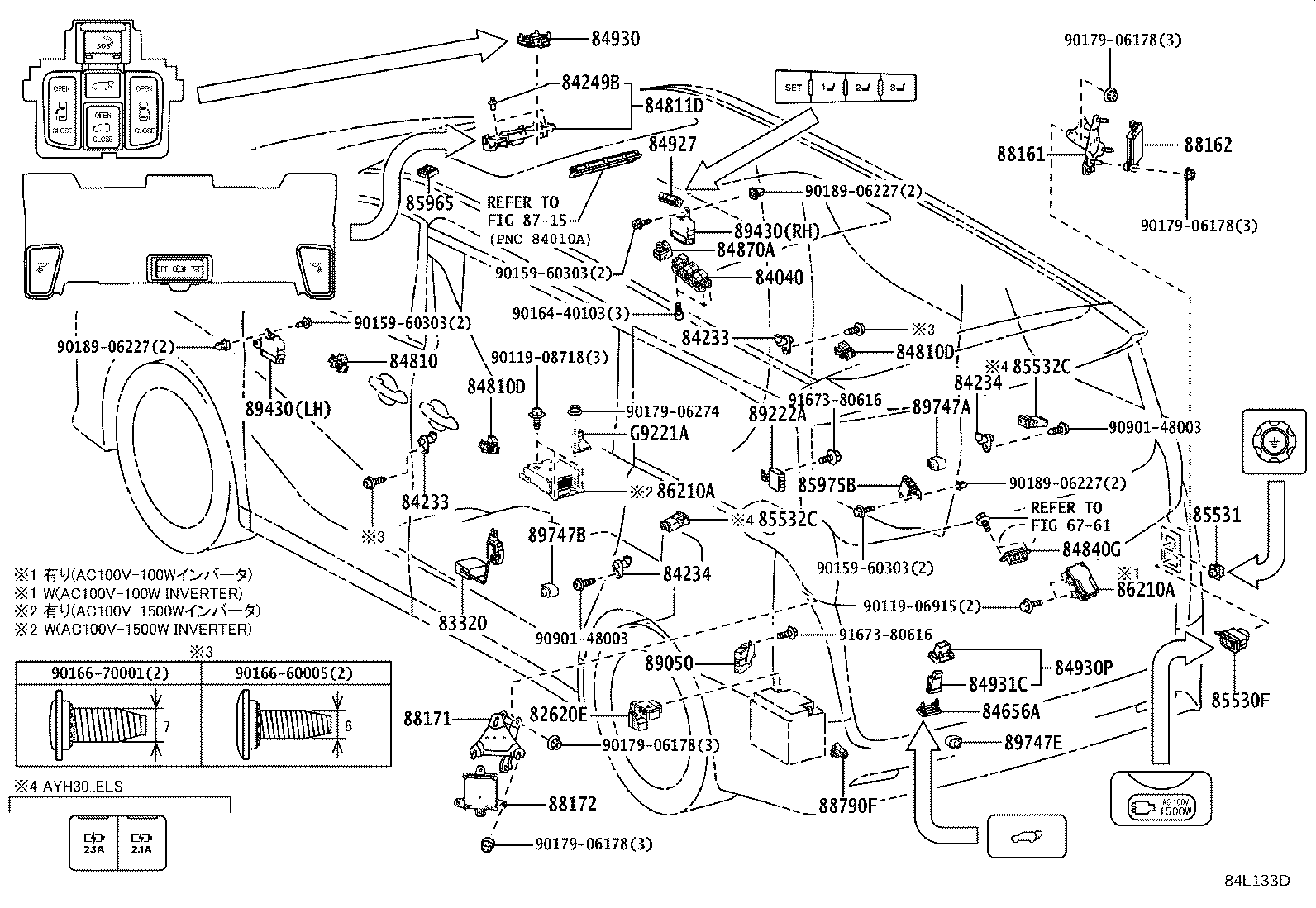

84L133D 2020-01 → —

Part groups

PNC	Description
28300E	Relay Assy, Starter, NO.1
28300F	Relay Assy, Starter, NO.2
28317	Bracket, Starter Relay
28371C	Relay, Ignition, NO.2
28371E	Relay, Ignition, NO.4
28850	Sensor Assy, Battery Current
28850C	Sensor Assy, Battery State
28859A	Holder, Battery Current Sensor
82210J	Fusible Link
82210P	Engine Room Fusible Link
82600E	Engine Room Fuse
82600F	Fuse, Fuse Block
82616	Puller, Fuse
82620A	Block Assy, Fusible Link
82620B	Block Assy, Fusible Link
82620E	Block Assy, Fusible Link
82620F	Block Assy, Fusible Link
82641	Relay, Integration NO.1
82660B	Block Assy, Relay
82661	Cover, Relay Block, NO.1
82662A	Cover, Relay Block, Upper, NO.1
82662B	Cover, Relay Block, Upper, NO.2
82662C	Cover, Relay Block, Upper, NO.3
82662E	Cover, Relay Block, Upper, NO.7
82662F	Cover, Relay Block, Upper, NO.8
82663	Cover, Relay Block, Lower
82663A	Cover, Relay Block, Lower, NO.2
82663B	Cover, Relay Block, Lower, NO.3
82663E	Cover, Relay Block, Lower, NO.7
82663F	Cover, Relay Block, Lower, NO.8
82672A	Cover, Junction Block
82673A	Bracket, Junction Block, NO.1
82673B	Bracket, Junction Block, NO.2
82715	Bracket,Wiring Harness Clamp
82730F	Block Assy, Junction, LH
82741	Block, Engine Room Relay
82742	Block, Engine Room Relay, NO.2
82743	Block, Engine Room Relay, NO.3
82824L	Pin, Short
83320	Gage Assy, Fuel Sender
83530	Switch Assy, Oil Pressure (FOR ENGINE)
83650	Fusee
84040	Master Switch Assy,Multiplex Network

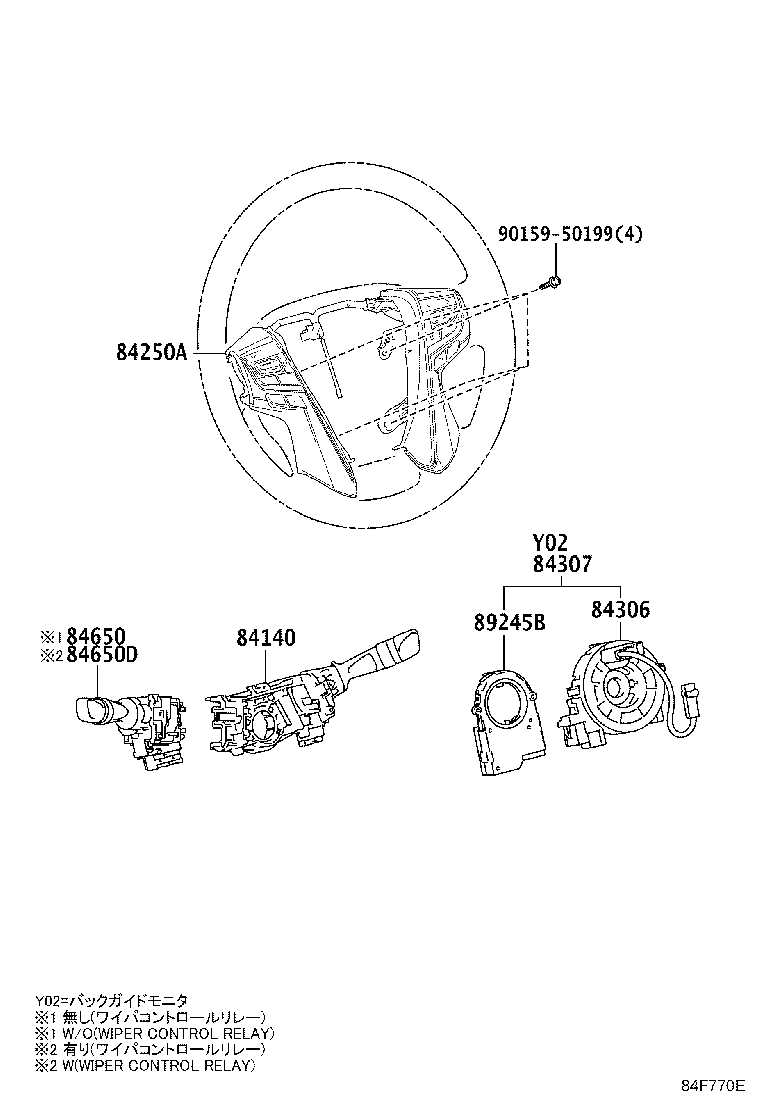

84140	Switch Assy, Headlamp Dimmer

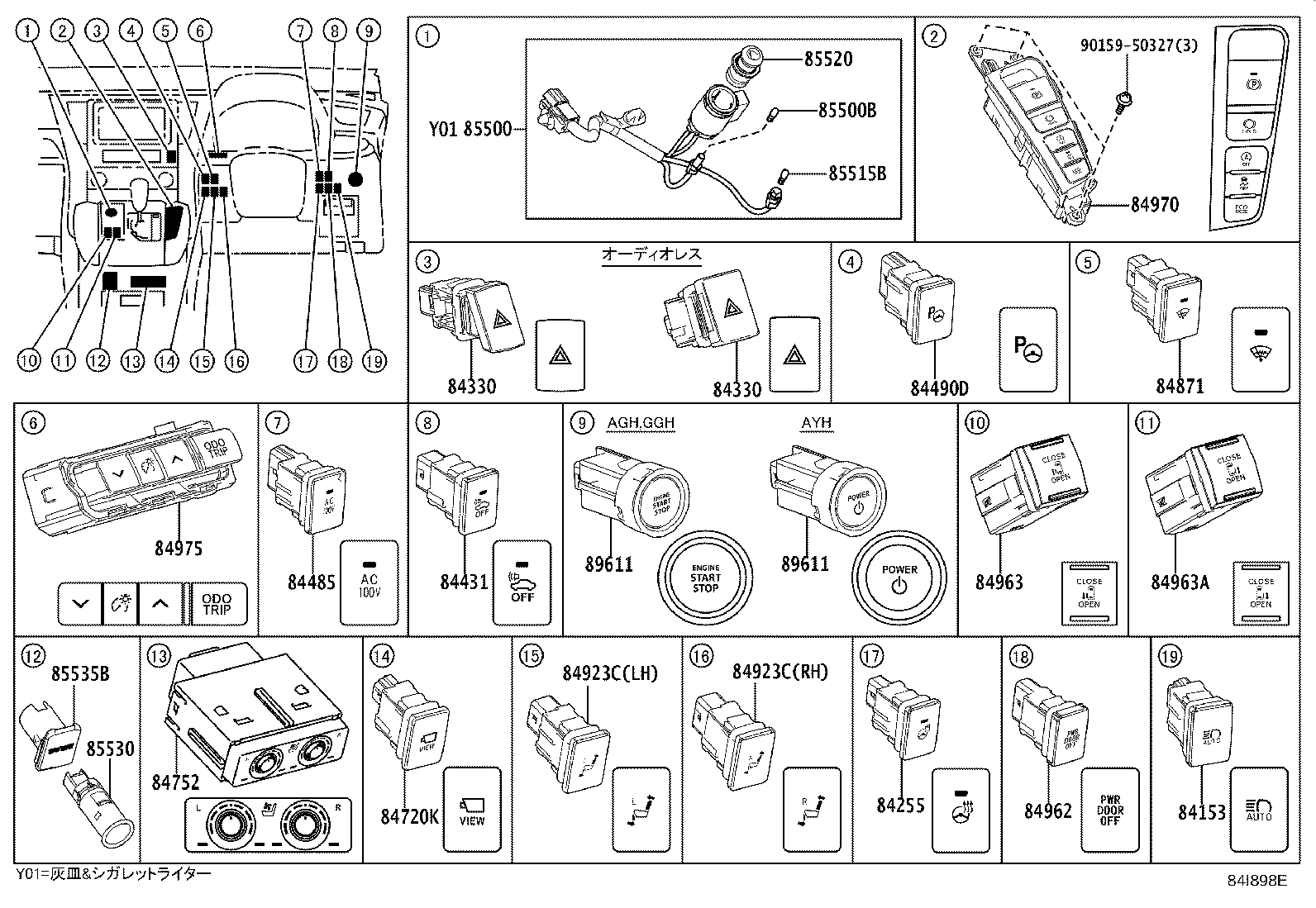

84153	Switch, Auto High Beam
84172	Switch, Room Lamp
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84249B	Bulb (FOR MAP LAMP SWITCH)
84250A	Switch Assy, Steering Pad
84255	Switch, Steering Heater
84290	Switch Assy, Limit
84306	Cable Sub-assy, Spiral
84307	Cable Sub-assy, Spiral W/Sensor
84330	Switch Assy, Hazard Warning Signal
84340	Switch Assy, Stop Lamp
84345	Adjuster, Stop Lamp Switch Mounting
84431	Switch, Vehicle Approaching Speaker
84485	Switch, Power Outlet(AC100V ACCESSORY SOCKET)
84490D	Switch Assy, Ipa Main
84540	Switch Assy, Neutral Start
84650	Switch Assy, Windshield Wiper
84650D	Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84656A	Bezel, Switch
84720K	Switch Assy, Pattern Select
84752	Switch, Refreshing Seat
84763	Plate, Switch
84770A	Switch Assy, Pre-collision System Cancel
84810	Switch Assy, Power Window Regulator
84810D	Switch Assy, Power Window Regulator, Rear
84811D	Knob, Switch
84840G	Switch Assy, Back Door Opener
84870A	Switch Assy, Outer Mirror
84871	Switch Assy, Outer Mirror Heater

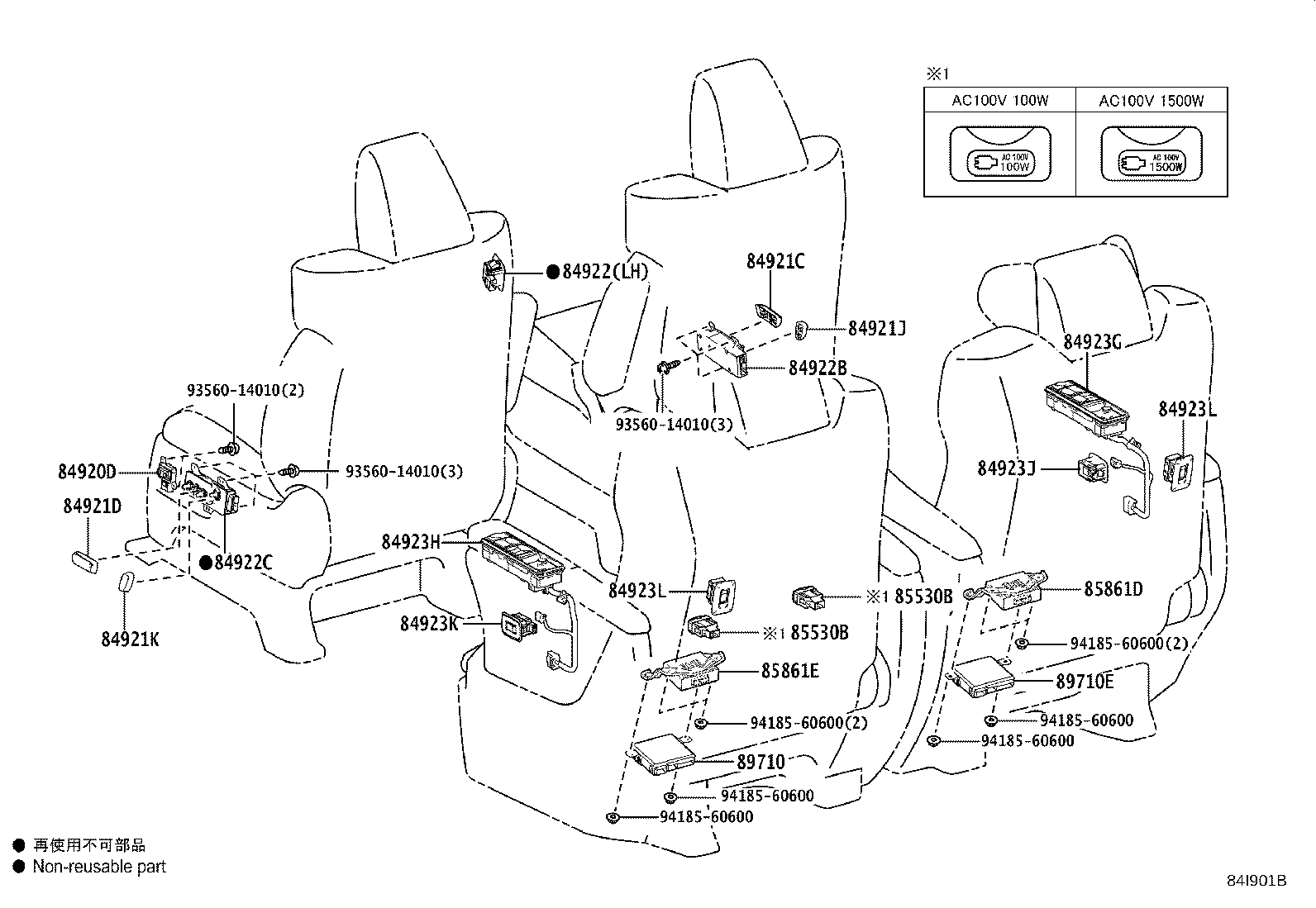

84920	Switch Assy, Power Seat

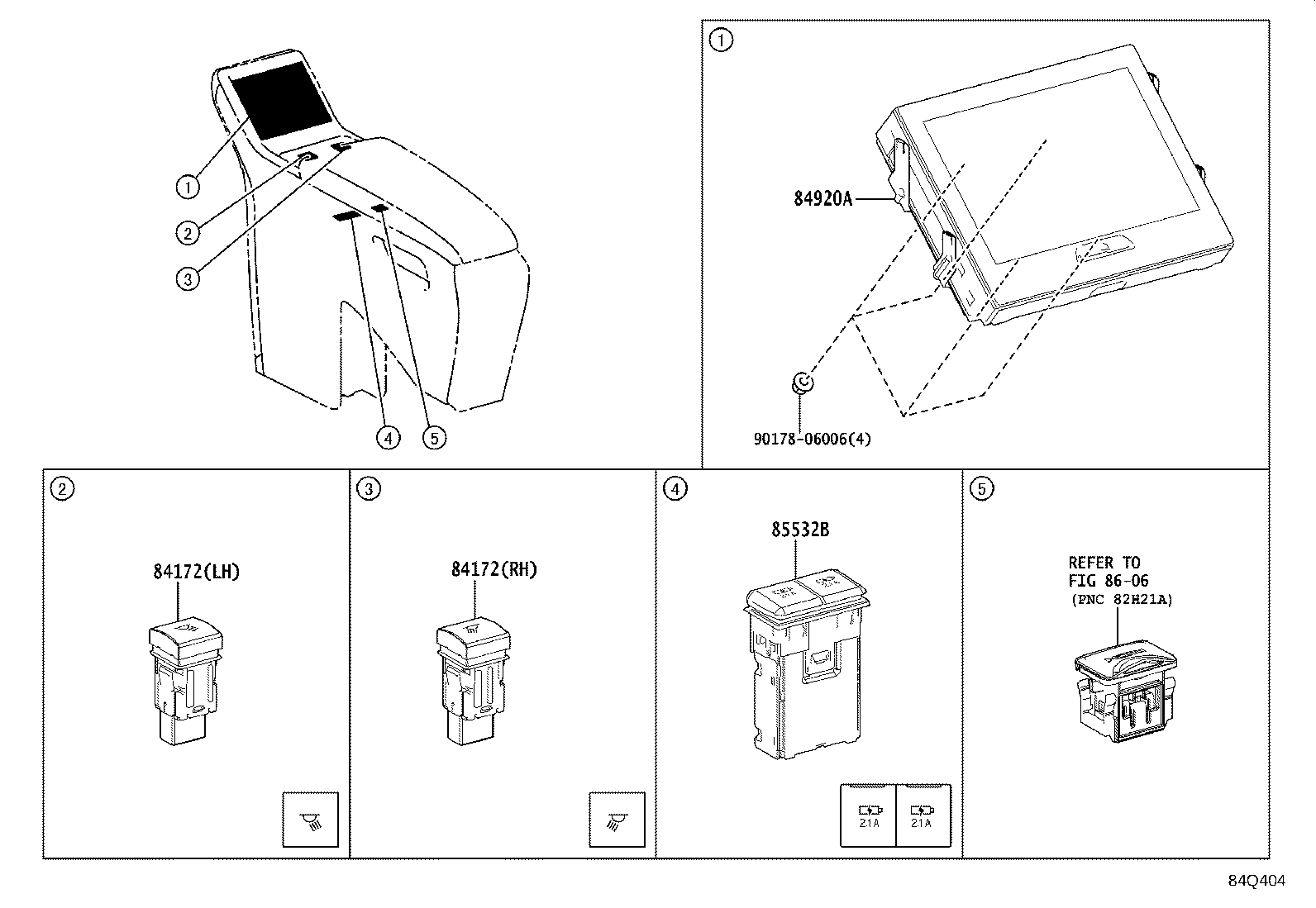

84920A	Switch Assy, Multi-operation Panel

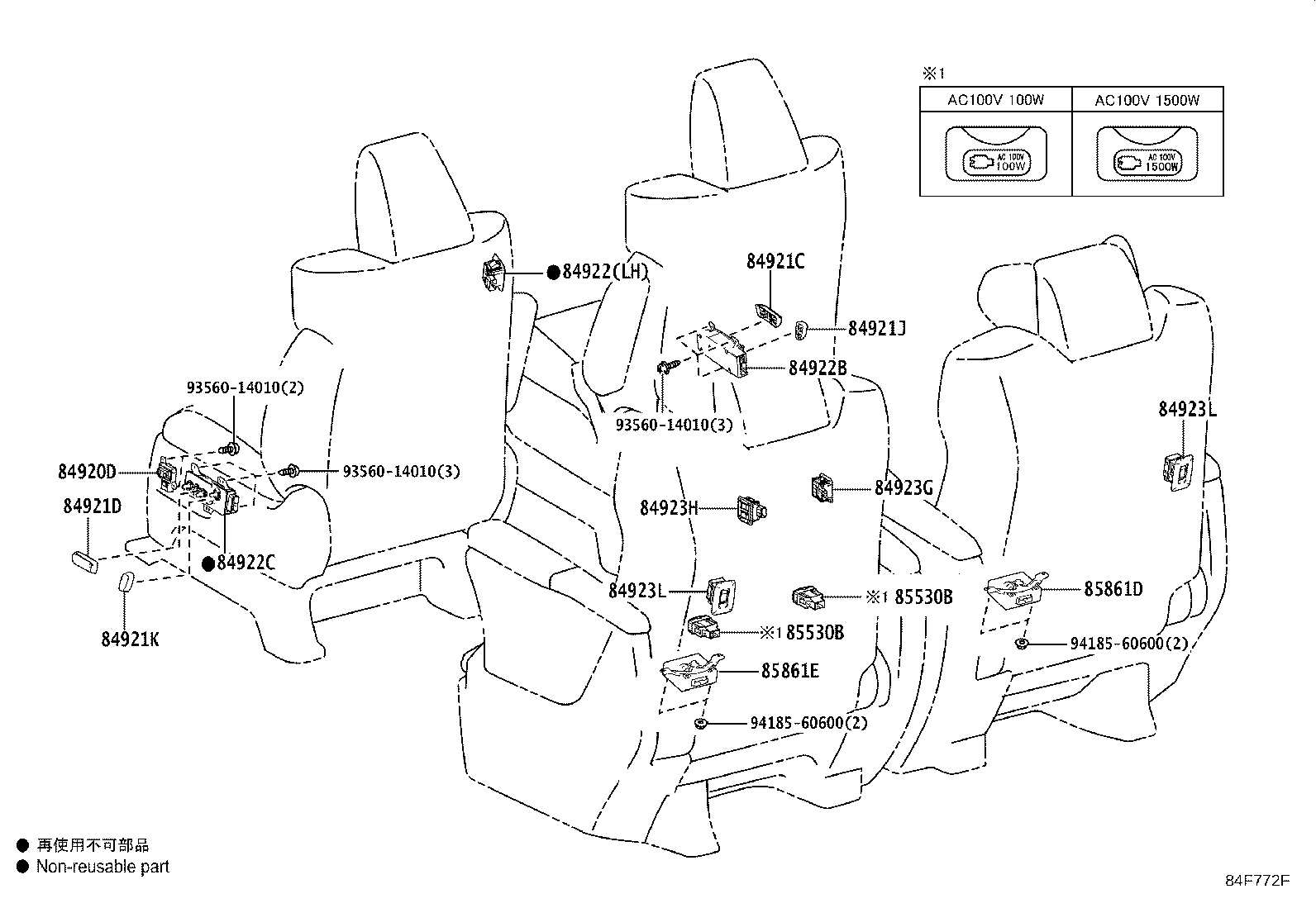

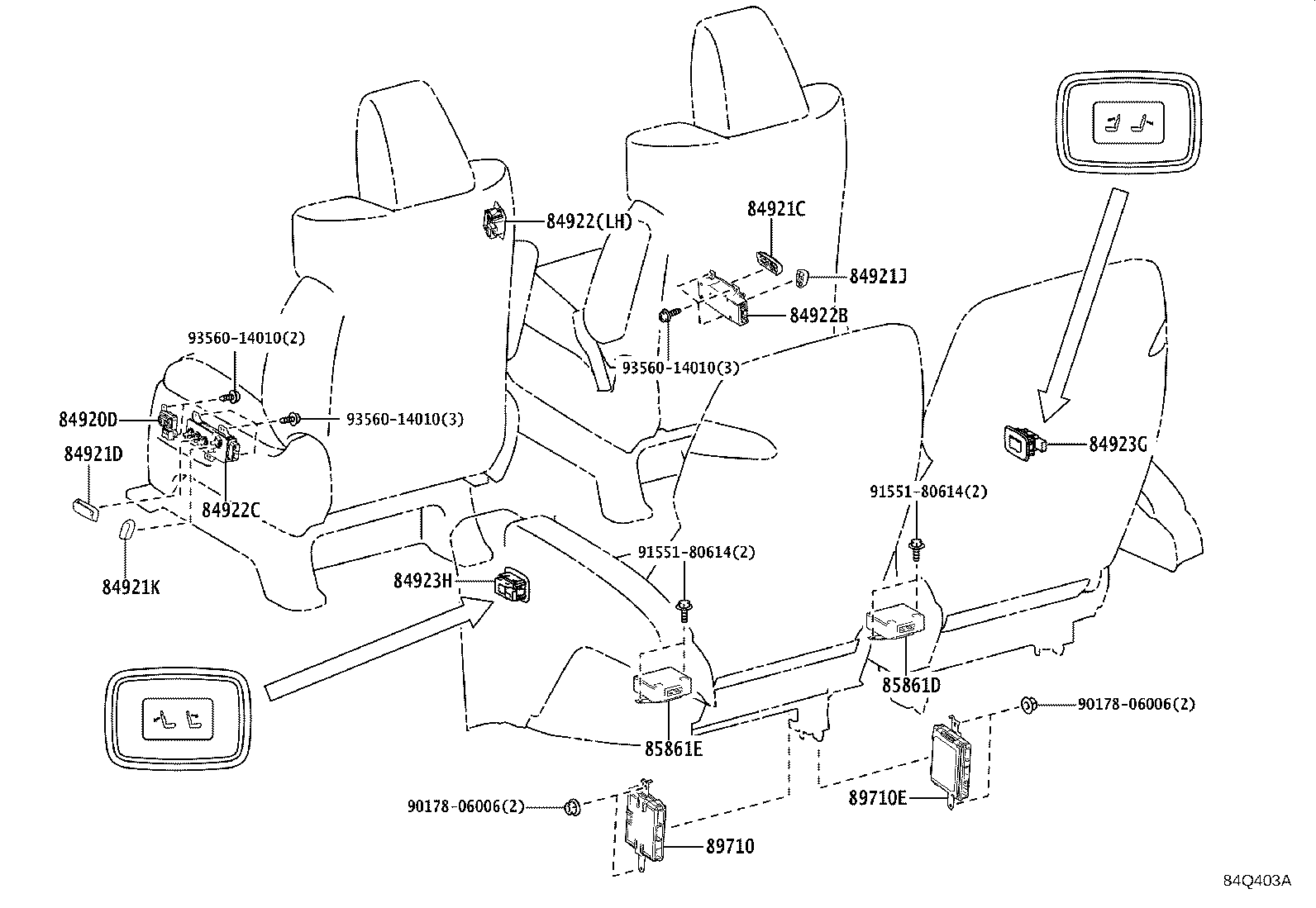

84920D	Switch Assy, Power Seat Front, LH
84920L	Switch Assy, Power Seat, NO.2
84920M	Switch, Power Seat
84921C	Knob, Power Seat Switch, RH
84921D	Knob, Power Seat Switch, LH
84921J	Knob, Power Seat Switch, RH
84921K	Knob, Power Seat Switch, LH
84922	Switch, Front Power Seat
84922B	Switch, Front Power Seat, RH
84922C	Switch, Front Power Seat, LH
84923	Switch, Rear Power Seat
84923C	Switch, Rear Power Seat Return
84923G	Switch, Rear Power Seat, NO.1, RH
84923H	Switch, Rear Power Seat, NO.1, LH
84923J	Switch, Rear Power Seat, NO.2, RH
84923K	Switch, Rear Power Seat, NO.2, LH
84923L	Switch, Rear Power Seat, NO.3
84927	Switch, Seat Memory
84930	Switch Assy, Door Control
84930P	Switch Assy, Door Control
84931C	Switch, Back Door Control
84962	Switch, Power Slide Door Main
84963	Switch, Power Slide Door Control, NO.1
84963A	Switch, Power Slide Door Control, NO.2
84970	Switch Assy, Combination
84975	Switch, Trip
85500	Lighter Assy, Cigarette
85500B	Bulb, Cigarette Lighter
85500C	Relay, Cigarette Lighter
85515B	Bulb, Cigarette Lighter Bezel Stay
85520	Knob And Element Assy, Cigarette Lighter

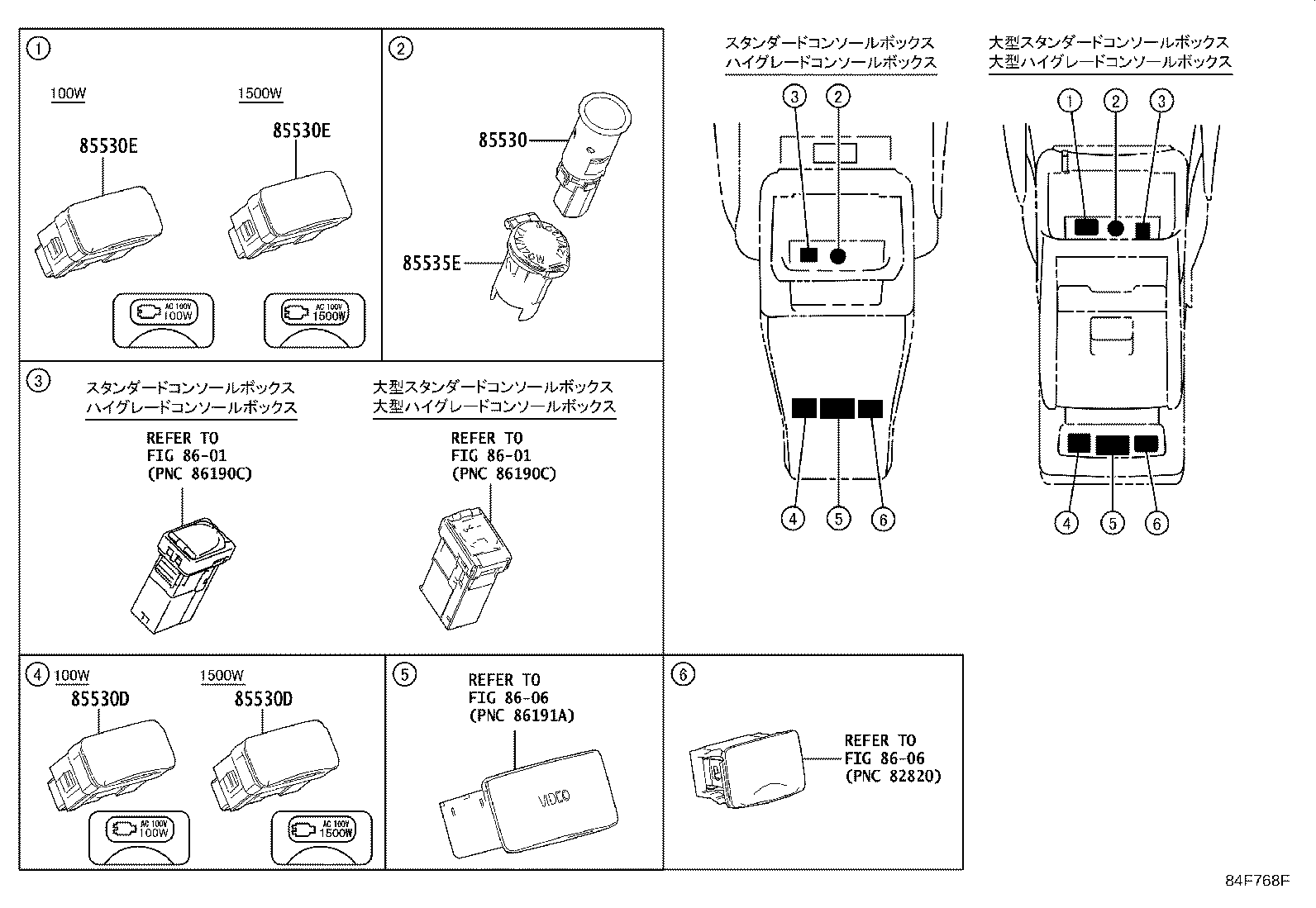

85530	Socket Assy, Power Outlet, NO.1
85530B	Socket Assy, Power Outlet, Rear NO.1
85530D	Socket Assy, Power Outlet, NO.2
85530E	Socket Assy, Power Outlet, NO.3
85530F	Socket Assy, Power Outlet, Rear NO.2
85531	Socket, Power Outlet
85532B	Socket, Usb Charger
85532C	Socket, Usb Charger, NO.2
85535B	Cover, Power Outlet Socket, NO.1
85535E	Cover, Power Outlet Socket, NO.2
85861D	Computer, Seat Climate Control, Rear RH
85861E	Computer, Seat Climate Control, Rear LH
85909C	Bracket Sub-assy, Relay, NO.1
85910	Relay Assy, Circuit Opening
85912	Relay, Defogger
85913F	Relay, Steering Heater
85916D	Relay, Fog Lamp
85916P	Relay, Headlamp
85924C	Relay, Igct
85925F	Relay, Ptc Heater NO.2
85927	Relay, Cooling Fan
85927A	Relay, Cooling Fan, NO.2
85927B	Relay, Cooling Fan, NO.3
85934	Relay, Magnet-clutch
85940	Relay Assy, Windshield Wiper
85940F	Relay Assy, Windshield Deicer
85965	Relay, Room Lamp Control
85975B	Relay, Slide Door Closer, RH
85999H	Bracket, Relay
86210A	Inverter Assy, Voltage
86530	Relay Assy, Horn
869A1	Computer, Intelligent Transport Systems Communication
87346K	Relay, Ptc Heater
88150A	Computer Assy, Driving Support
88161	Bracket, Blind Spot Monitor, RH
88162	Sensor, Blind Spot Monitor, RH
88171	Bracket, Blind Spot Monitor, LH
88172	Sensor, Blind Spot Monitor, LH
88790F	Thermistor Assy
89050	Computer Assy, Parking Brake
89111	Computer, Network Gateway
89120A	Sensor, Automatic Light Control
89221	Computer, Multiplex Network Body
89222A	Computer, Multiplex Network Door
89245B	Sensor, Steering
89257	Computer, Cooling Fan
89257B	Computer, Cooling Fan, NO.2
89420F	Sensor Assy, Vacuum
89430	Computer Assy, Outer Mirror Control
89465	Sensor, Oxygen
89465A	Sensor, Oxygen NO.2
89467B	Sensor, Air Fuel Ratio
89467C	Sensor, Air Fuel Ratio, NO.2
89491	Sensor, Engine Oil Level
89530C	Computer Assy, Transmission Control
89611	Switch, Push Start
89615	Sensor, Knock Control
89710	Computer Assy, Position Control
89710E	Computer Assy, Position Control, NO.2
89730A	Relay(FOR SECURITY WARNING)
89747A	Buzzer, Power Slide Door Warning, RH
89747B	Buzzer, Power Slide Door Warning, LH
89747E	Buzzer, Power Back Door Warning
89747F	Buzzer, Blind Spot Monitor
89980	Computer Assy, Hybrid Vehicle Control
C7422B	Pin, Welcab Seat Arm Guide
C8410E	Switch Assy, Power Lift Control, NO.1
C8410G	Switch Assy, Control, NO.1
C8412	Switch, Power Lift Control
C8415	Bracket, Control Switch
C8417D	Switch, Limit
C8418A	Plate, Limit Switch
C8420D	Switch Assy, Control, NO.2
C8421A	Switch, Change
C8422	Junction, Power Lift Seat Control Male
C8530B	Relay Assy, Power Lift Motor
C8531	Bracket, Control Relay
C8545A	Relay, Power Lift Control
C8560	Relay Assy, Lifter
C8570B	Relay Assy, Drive Control, NO.1
C8570C	Relay Assy, Drive Control, NO.2
C9277	Bracket, Lift Control Switch
G9020E	Relay, Hybrid Water Pump
G9221A	Cover, Inverter, Upper

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
