Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH3#,AYH30,GGH3# · catalogue 713140 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

11 part groups · 4 illustrations

Illustrations

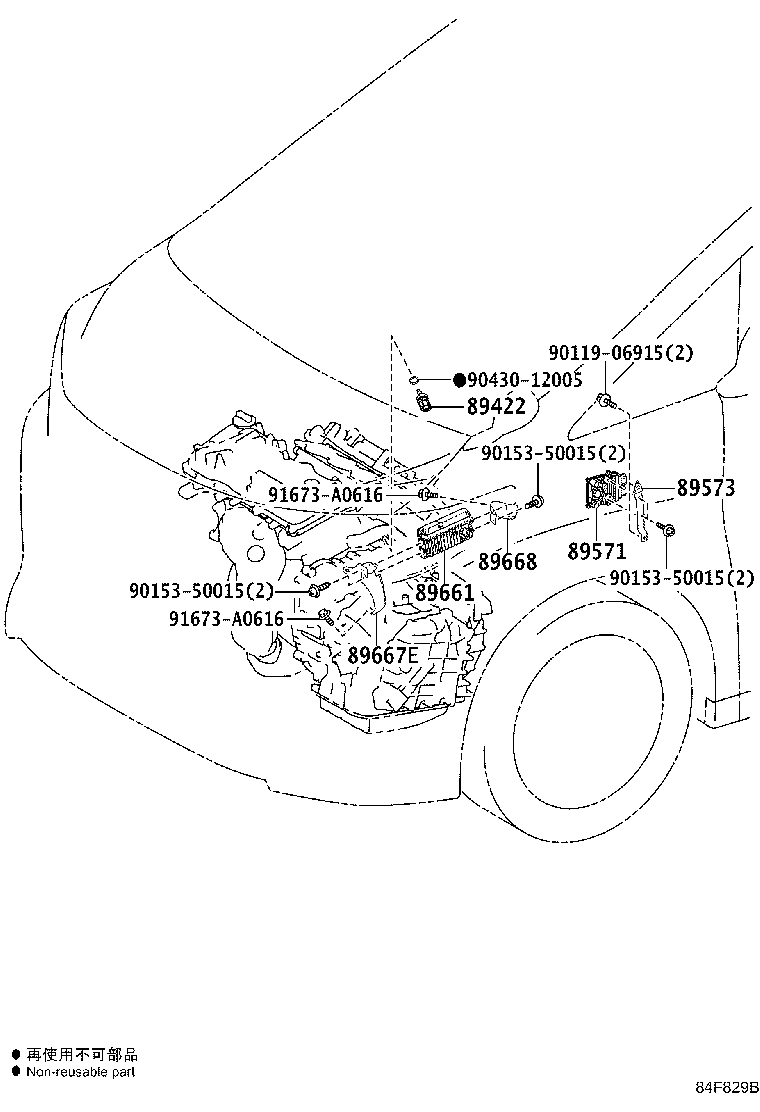

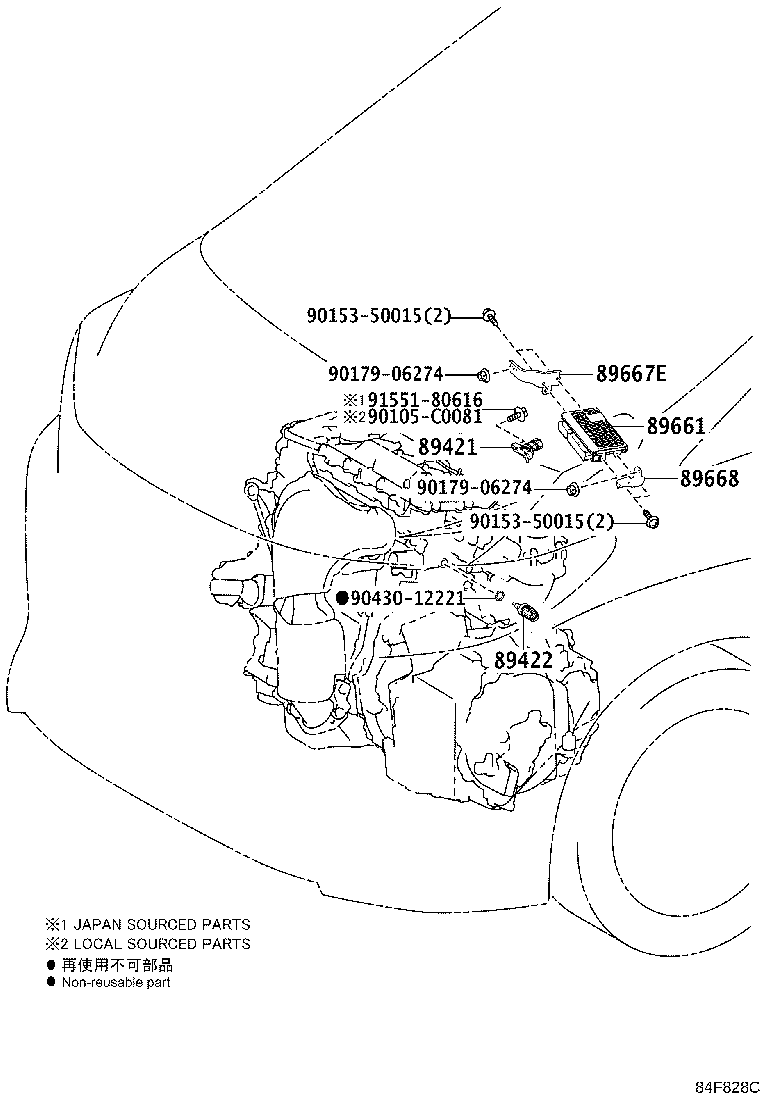

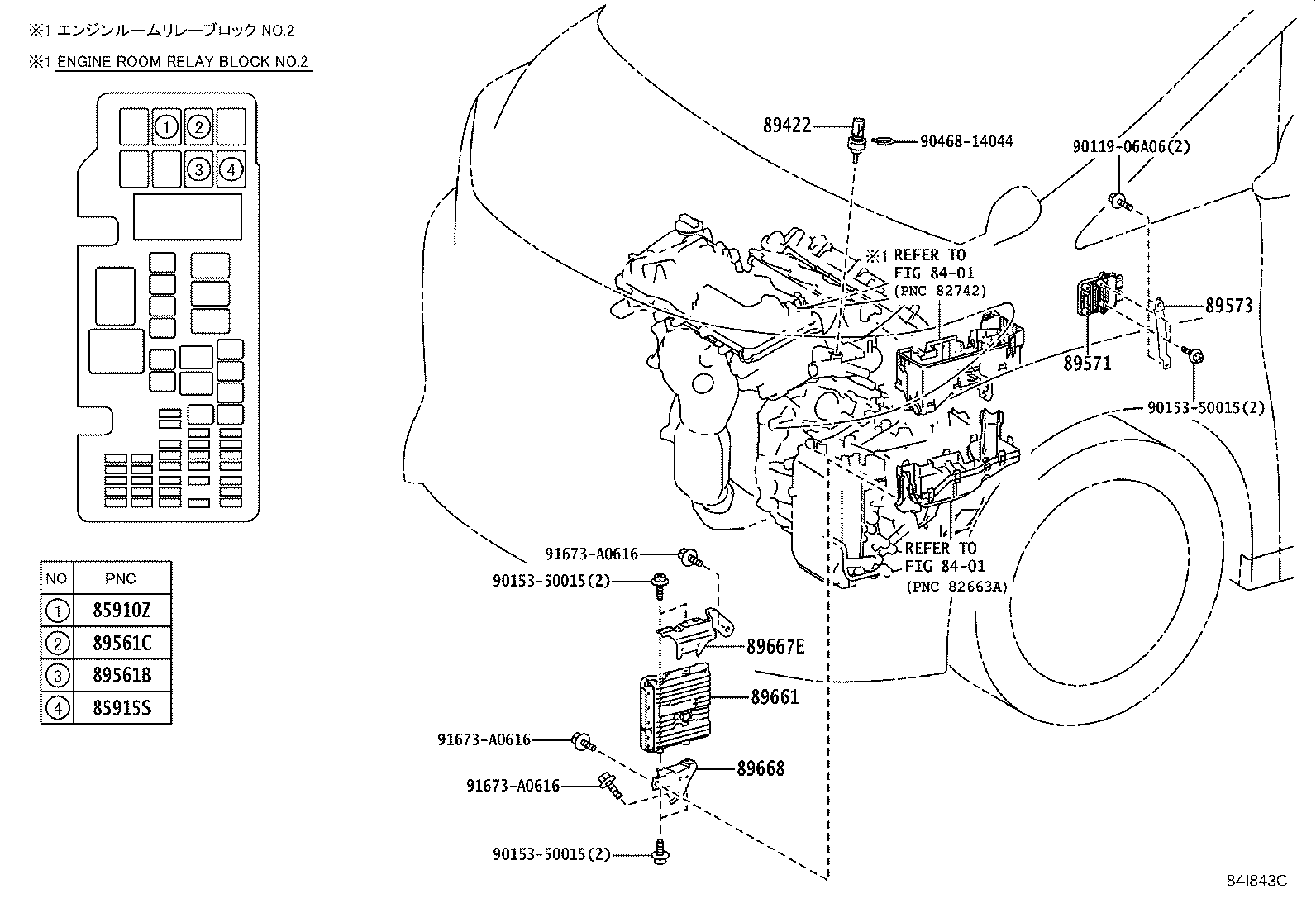

Figure 84F830A 84F830A 2015-01 → — Figure 84F829B 84F829B 2015-01 → 2018-01 Figure 84F828C 84F828C 2015-01 → — Figure 84I843C 84I843C 2018-01 → —

Part groups

PNCDescription
85910Z Relay, Injection (FOR EFI)
85915S Relay, Heater (FOR AIR FUEL RATIO SENSOR)
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89561B Relay, Electronic Fuel Injection Main, NO.1
89561C Relay, Electronic Fuel Injection Main, NO.2
89571 Computer, Fuel Pump Control
89573 Bracket, Fuel Pump Control Computer
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
