Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH3#,AYH30,GGH3# · catalogue 713140 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

22 part groups · 7 illustrations

Illustrations

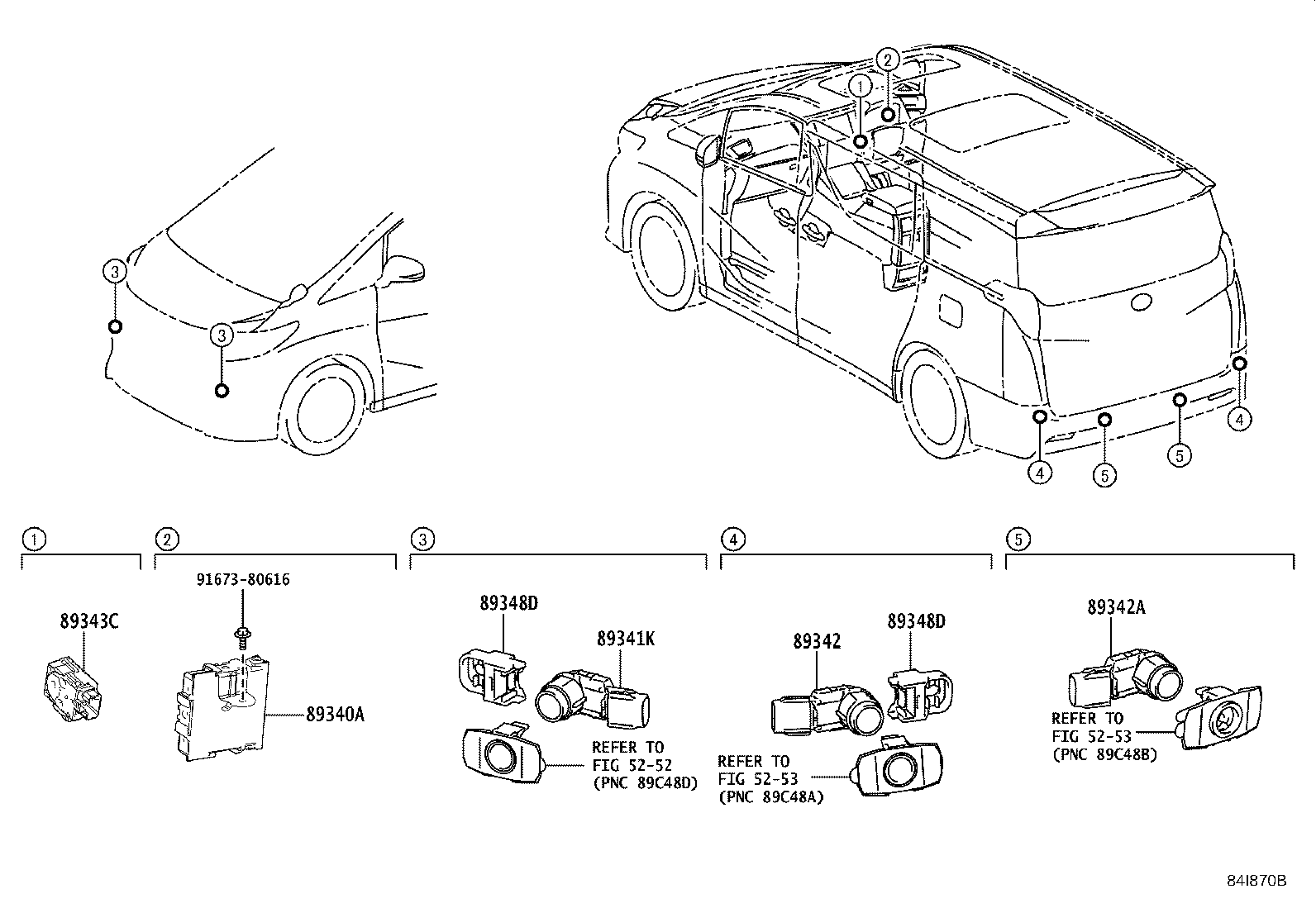

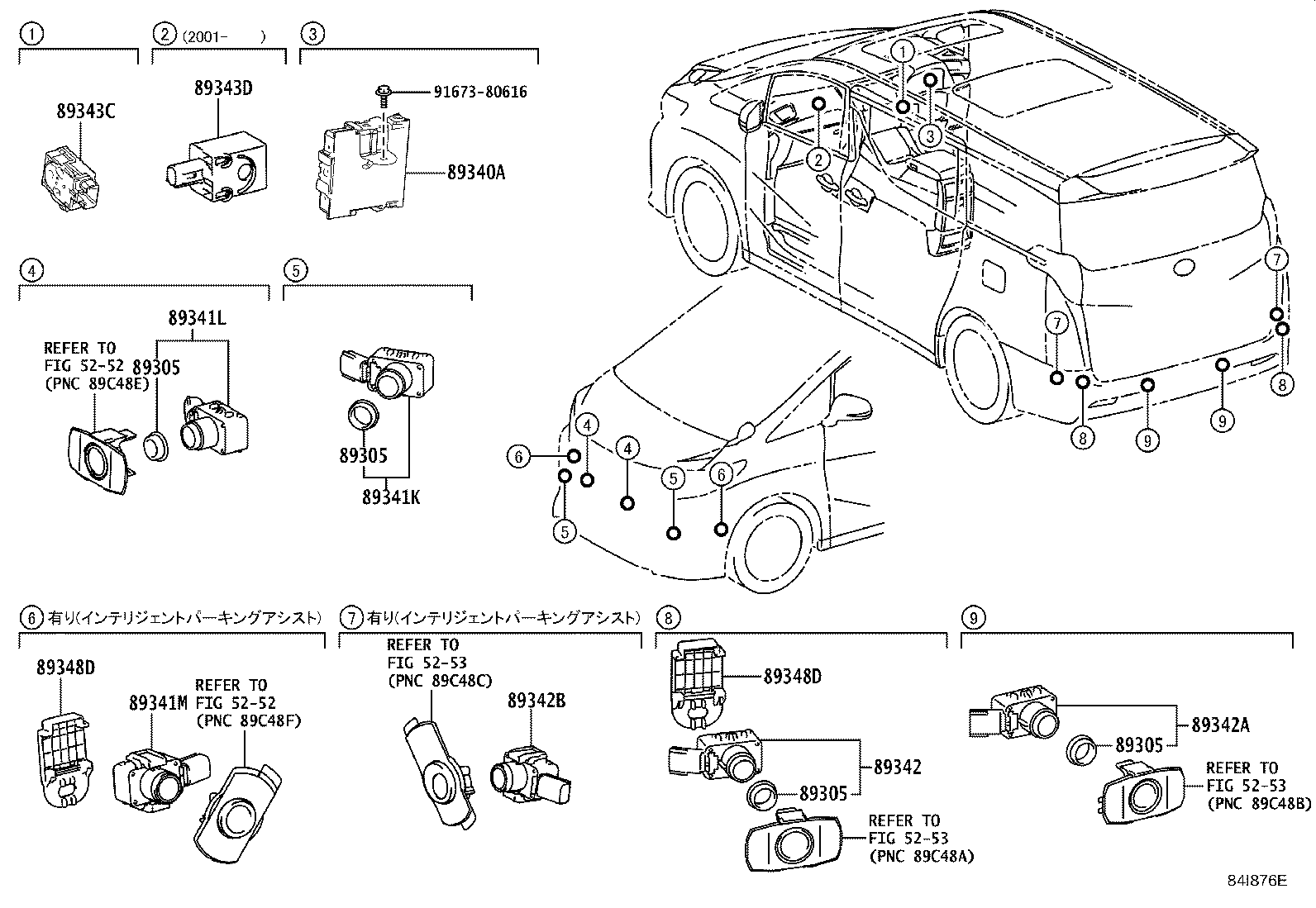

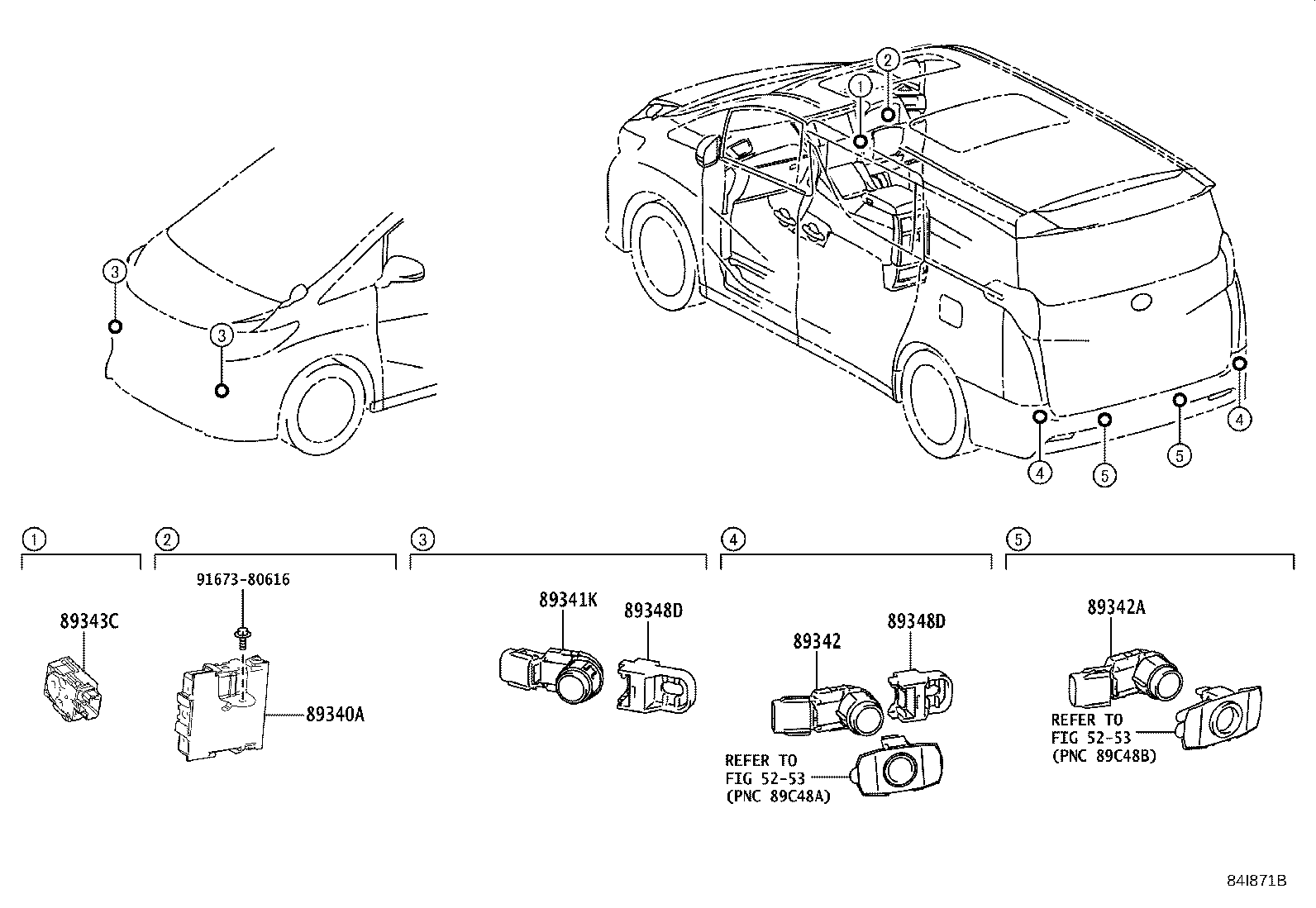

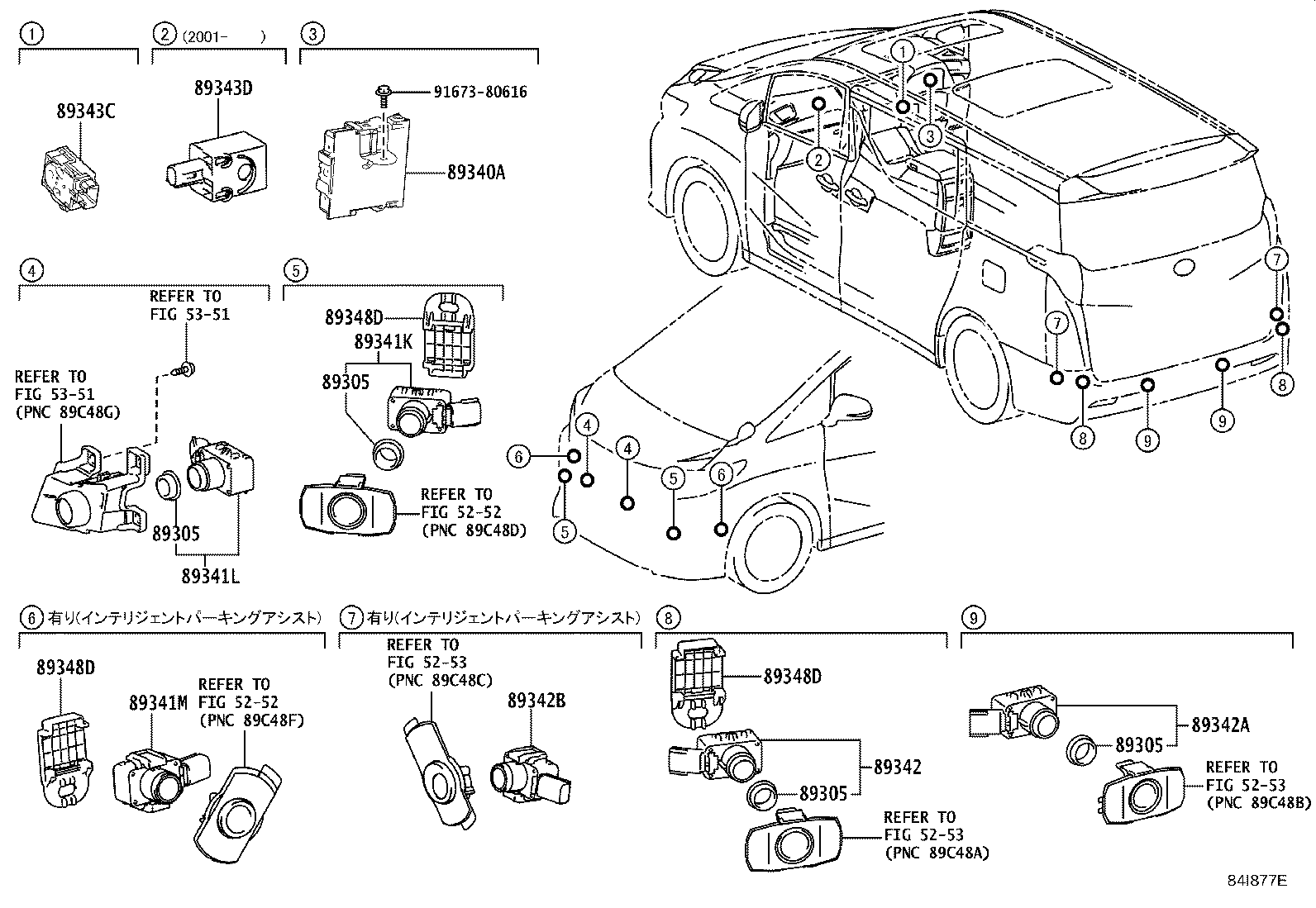

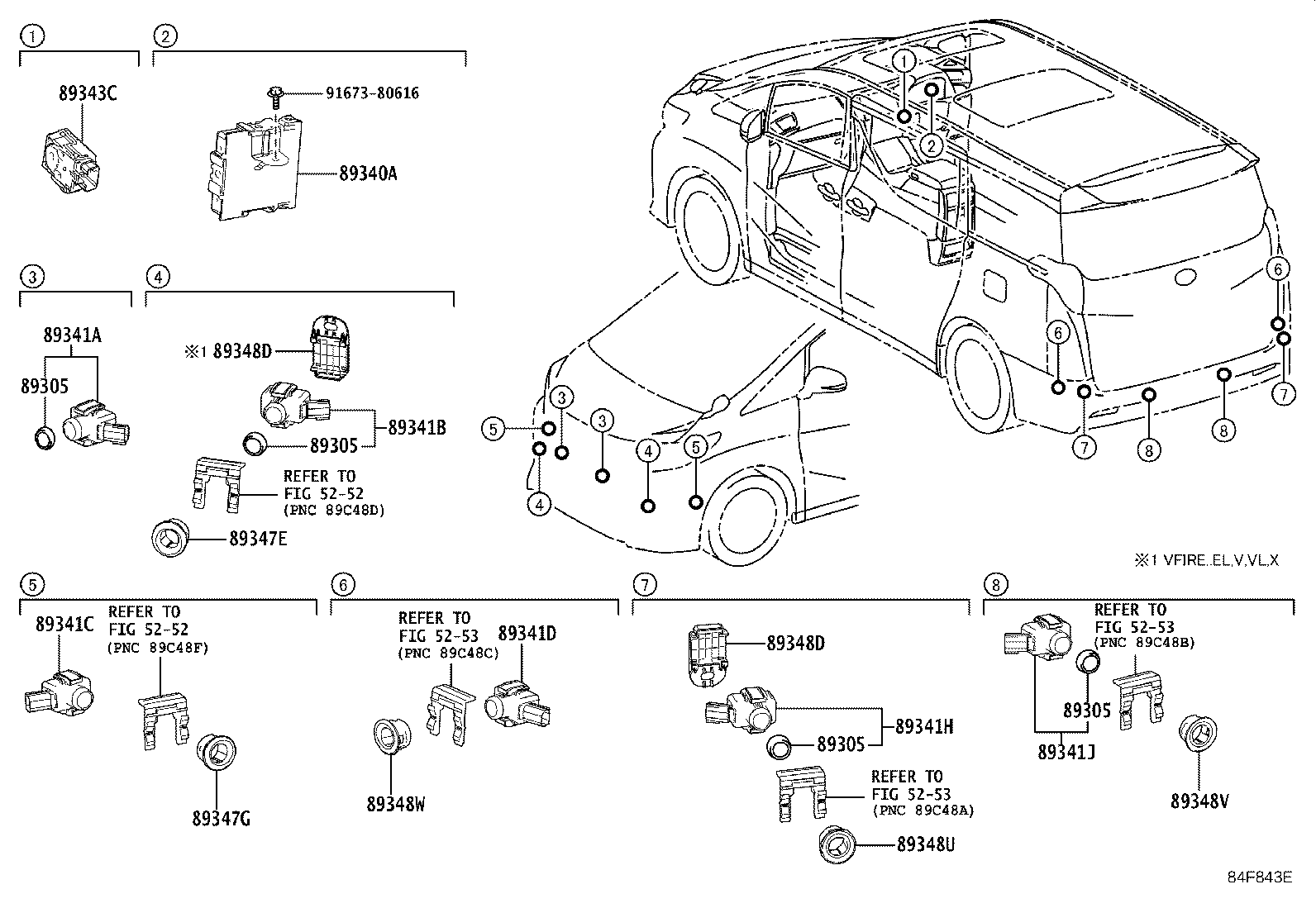

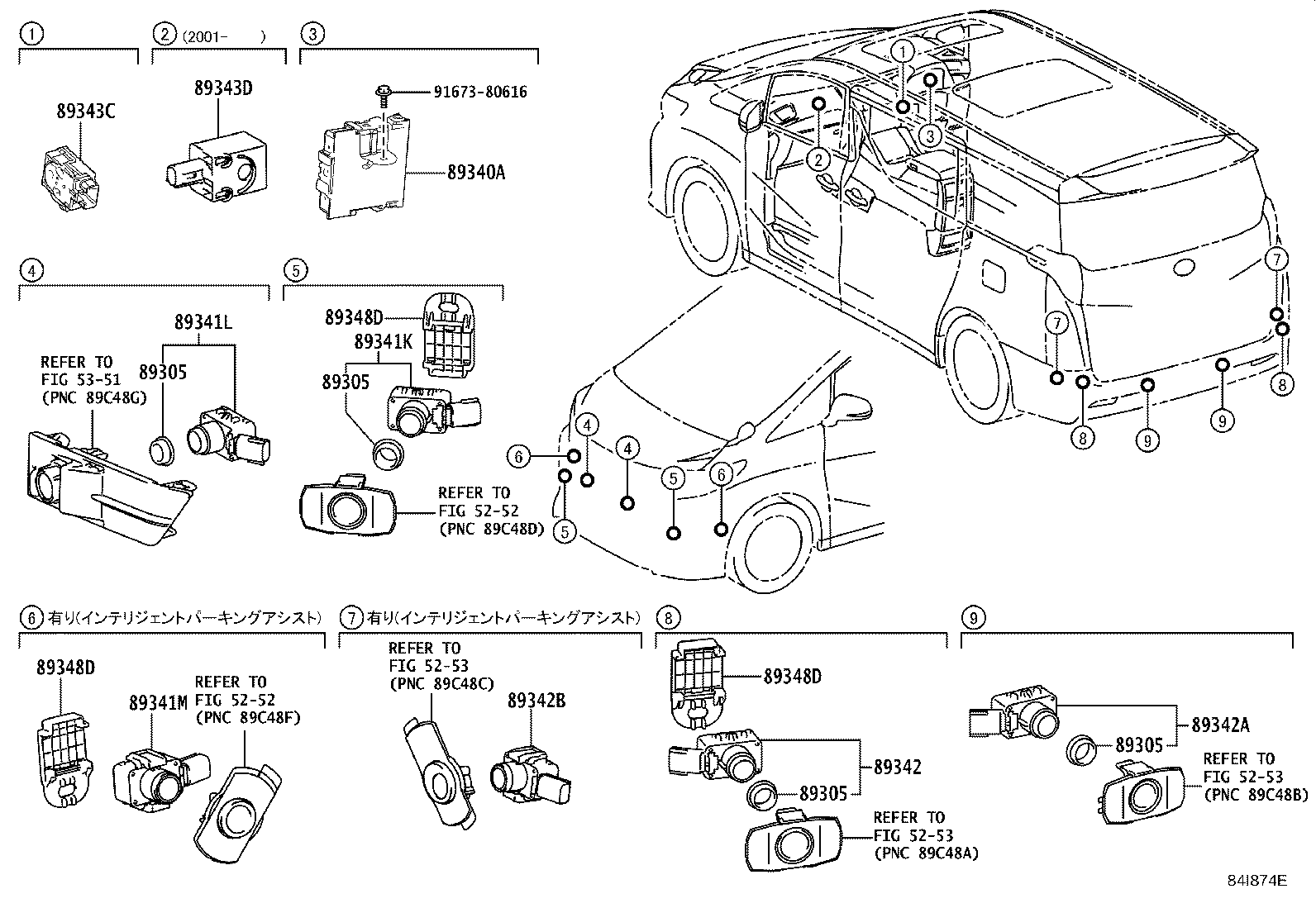

Figure 84F882B 84F882B 2015-01 → 2018-01 Figure 84F843E 84F843E 2015-01 → 2018-01 Figure 84I870B 84I870B 2018-01 → 2020-01 Figure 84I871B 84I871B 2018-01 → 2020-01 Figure 84I877E 84I877E 2018-01 → — Figure 84I874E 84I874E 2018-01 → — Figure 84I876E 84I876E 2018-01 → —

Part groups

PNCDescription
89305 Cushion Set, Ultrasonic Sensor
89340A Computer Assy, Clearance Warning
89341A Sensor, Ultrasonic, NO.1
89341B Sensor, Ultrasonic, NO.2
89341C Sensor, Ultrasonic, NO.3
89341D Sensor, Ultrasonic, NO.4
89341H Sensor, Ultrasonic, NO.5
89341J Sensor, Ultrasonic, NO.6
89341K Sensor, Ultrasonic, Front Corner
89341L Sensor, Ultrasonic, Front Center
89341M Sensor, Ultrasonic, Front Side
89342 Sensor, Ultrasonic, Rear Corner
89342A Sensor, Ultrasonic, Rear Center
89342B Sensor, Ultrasonic, Rear Side
89343C Buzzer, Clearance Warning, NO.1
89343D Buzzer, Clearance Warning, NO.2
89347E Bezel, Ultrasonic Sensor, Front Corner
89347G Bezel, Ultrasonic Sensor, Front Side
89348D Clip, Ultrasonic Sensor
89348U Bezel, Ultrasonic Sensor, Rear Corner
89348V Bezel, Ultrasonic Sensor, Rear Center
89348W Bezel, Ultrasonic Sensor, Rear Side
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
