Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH3#,AYH30,GGH3# · catalogue 713140 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

17 part groups · 2 illustrations

Illustrations

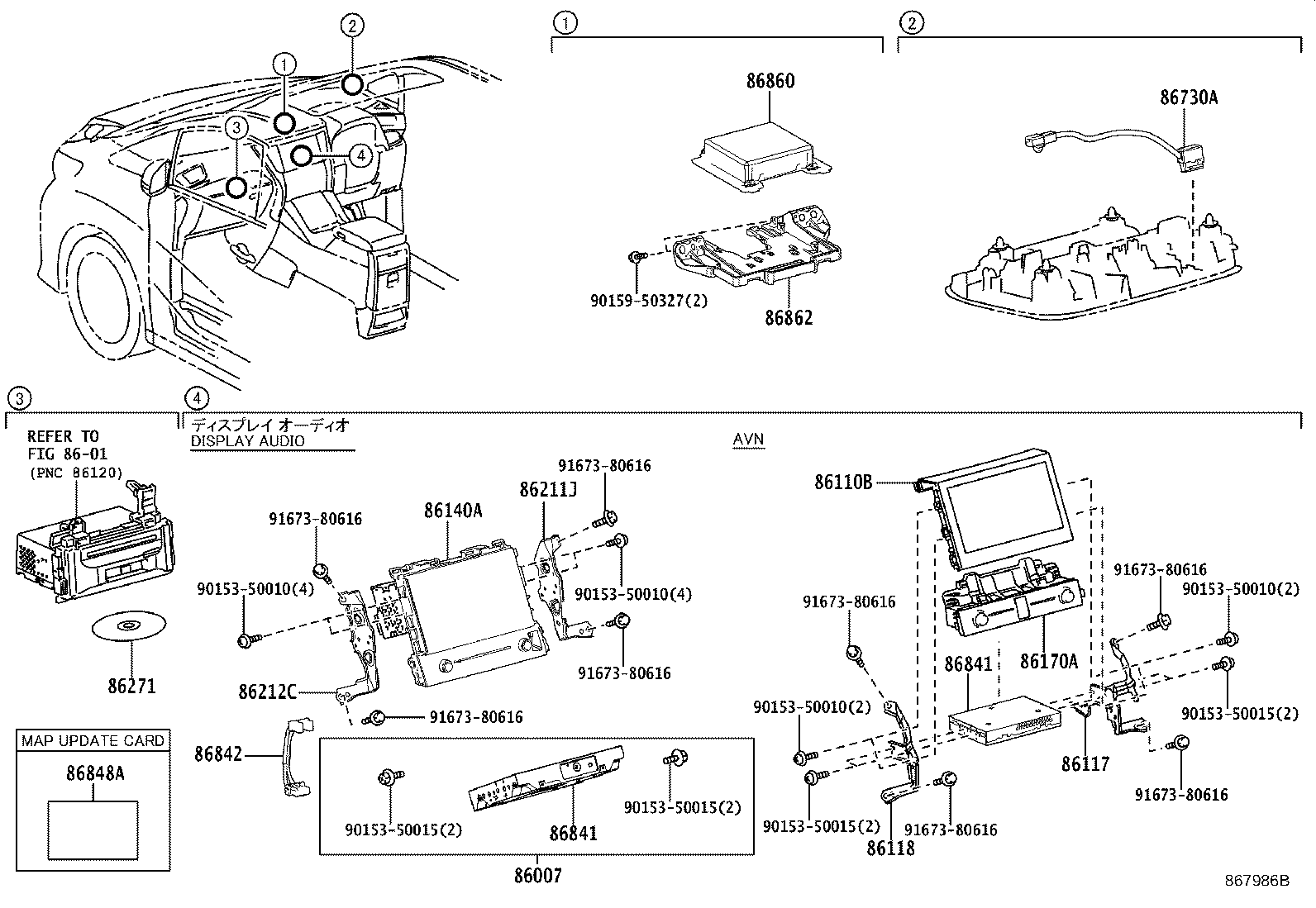

Figure 866036 866036 2015-01 → 2020-01 Figure 867986B 867986B 2020-01 → —

Part groups

PNCDescription
86007 Computer Set, Navigation
86110B Multi-display Assy
86117 Bracket, Multi-display Controller, A
86118 Bracket, Multi-display Controler, B
86120L Receiver Assy, Navigation
86140A Receiver Assy, Radio & Display
86170A Switch & Volume Assy
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86271 Disc, Disc Player
86273B Adapter, Disc Player
86730A Microphone Assy, Telephone
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86848A Card, Serial Number Map Update
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
