Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH3#,AYH30,GGH3# · catalogue 713140 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

13 part groups · 3 illustrations

Illustrations

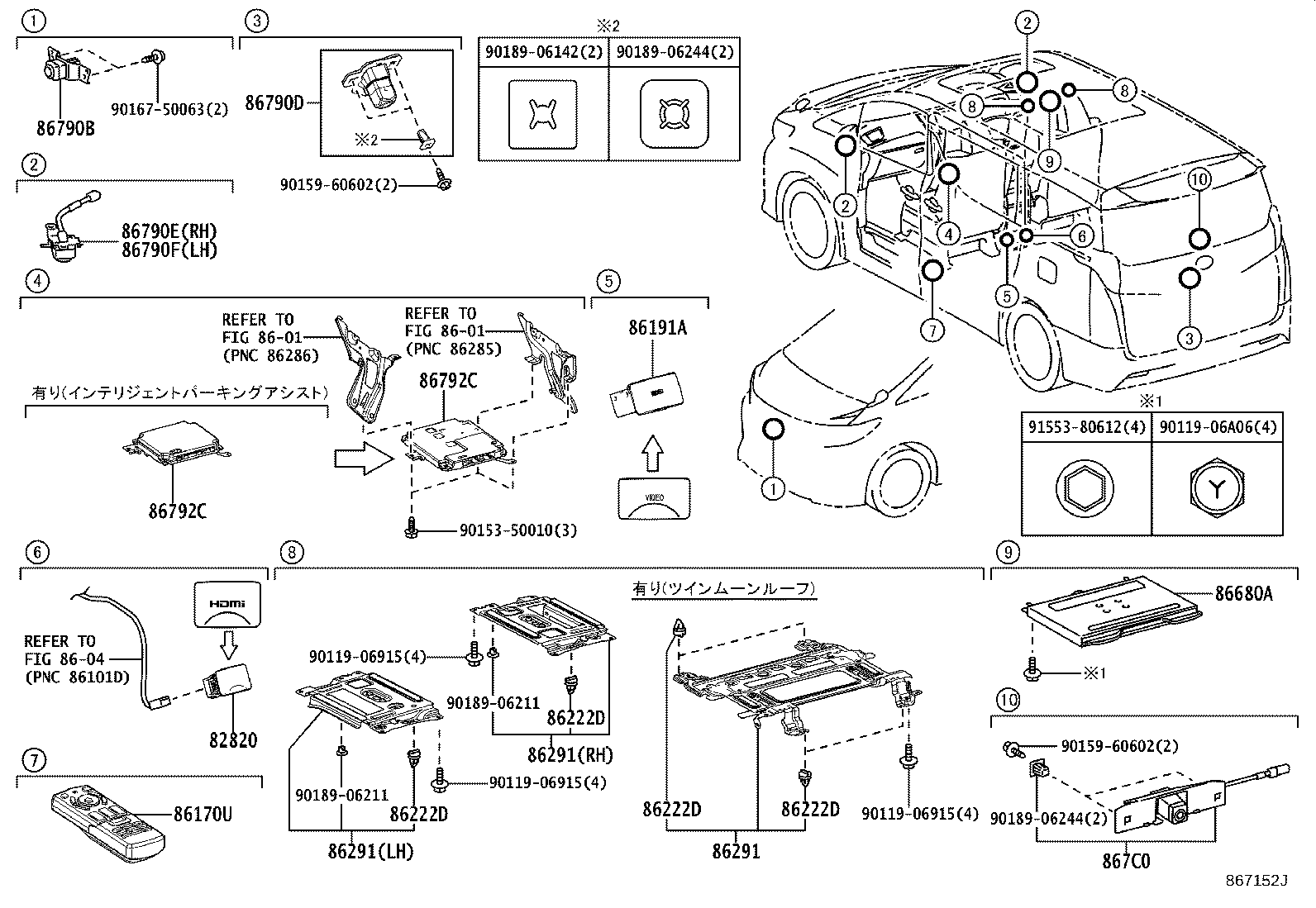

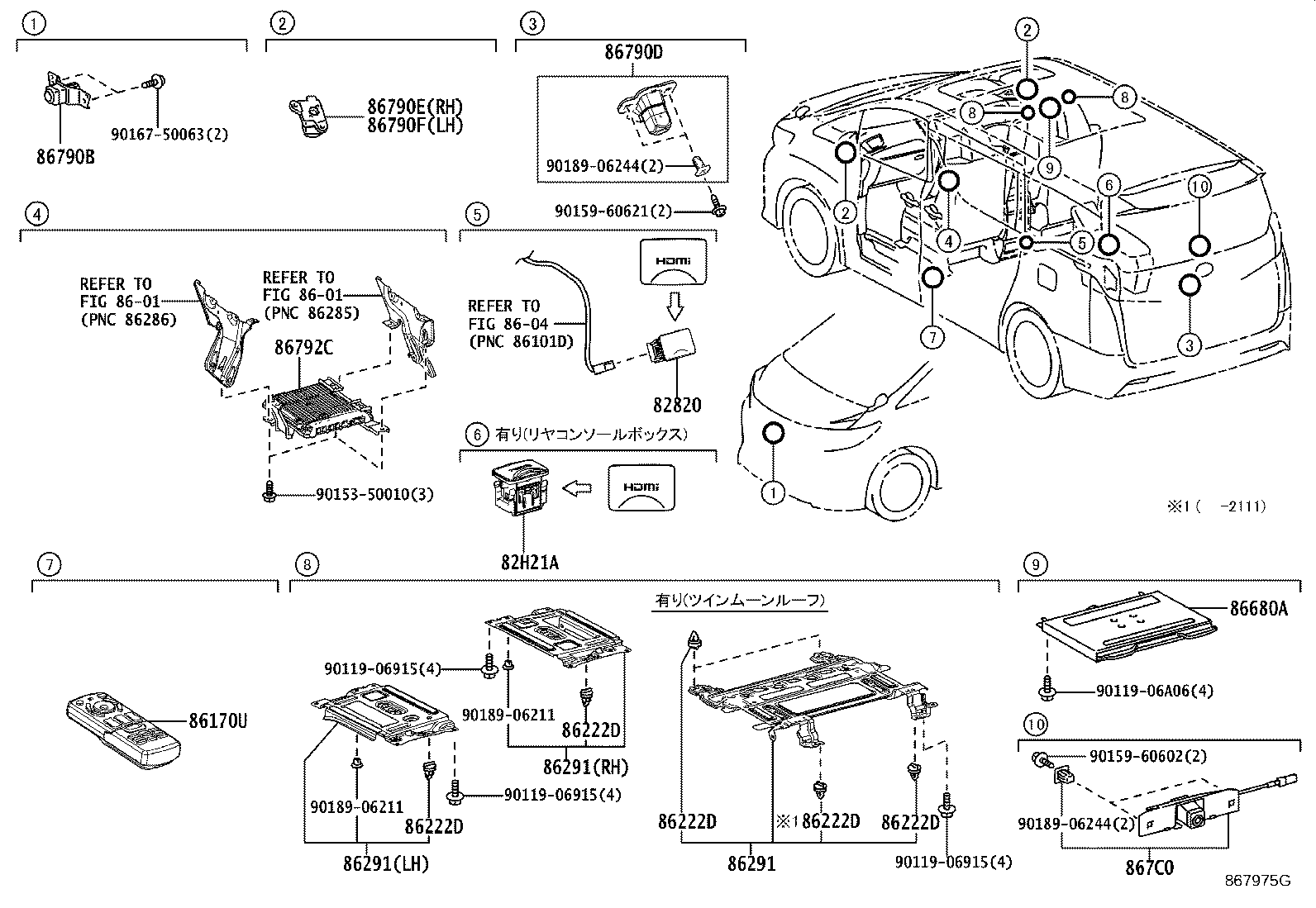

Figure 866030I 866030I 2015-01 → 2018-01 Figure 867152J 867152J 2018-01 → 2020-01 Figure 867975G 867975G 2020-01 → —

Part groups

PNCDescription
82820 Cover, Connector
82H21A Cover, Connector
86170U Switch & Volume Assy, Rear
86191A Terminal, Video(VIDEO ADAPTER)
86222D Clip, Television Bracket
86291 Bracket, Television
86680A Display Assy, Television
86790B Camera Assy, Television, FR
86790D Camera Assy, Television, RR
86790E Camera Assy, Television, Side RH
86790F Camera Assy, Television, Side LH
86792C Computer, Parking Assist
867C0 Camera Assy, Inner Mirror
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
