Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH3#,AYH30,GGH3# · catalogue 713140 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

12 part groups · 5 illustrations

Illustrations

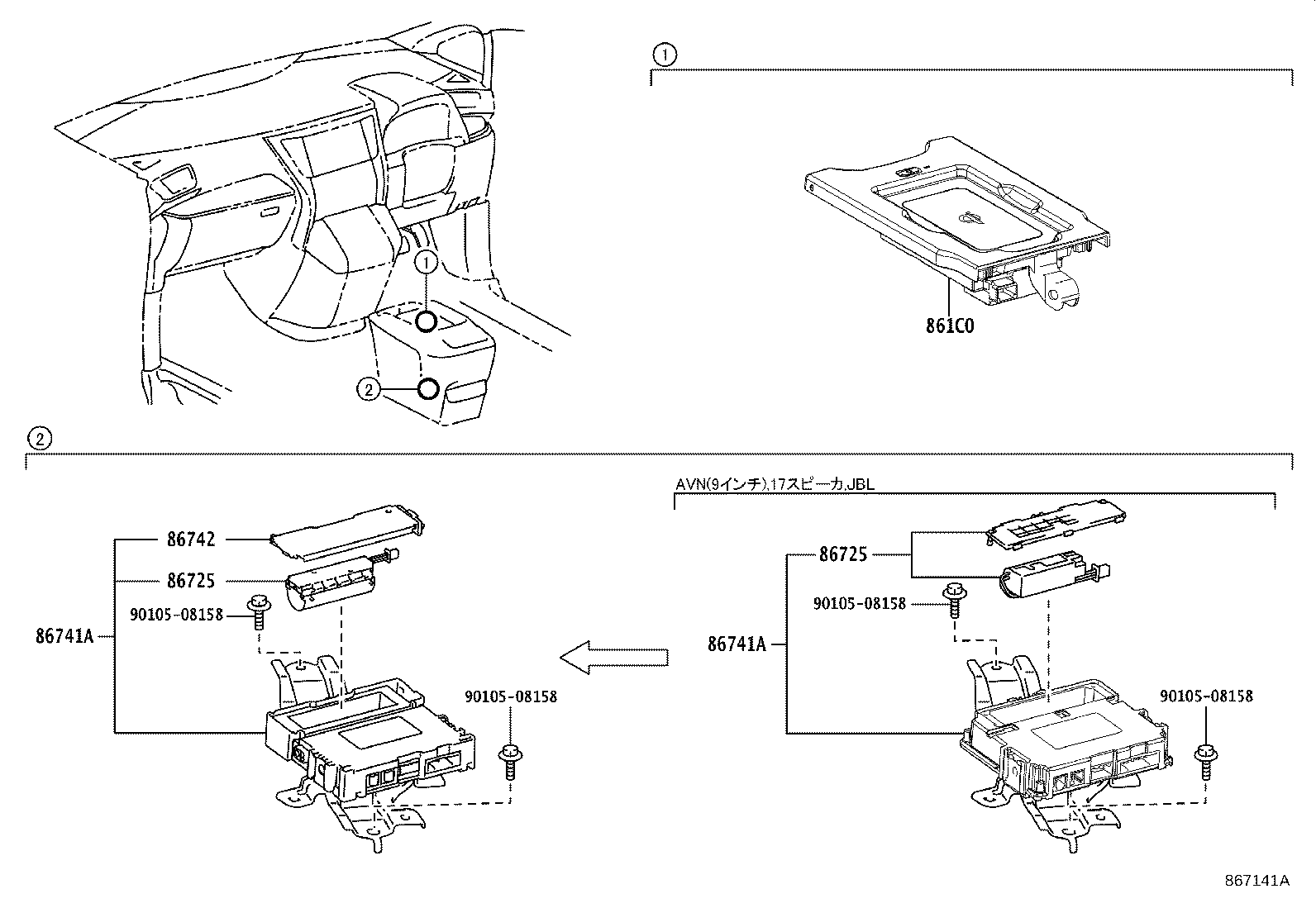

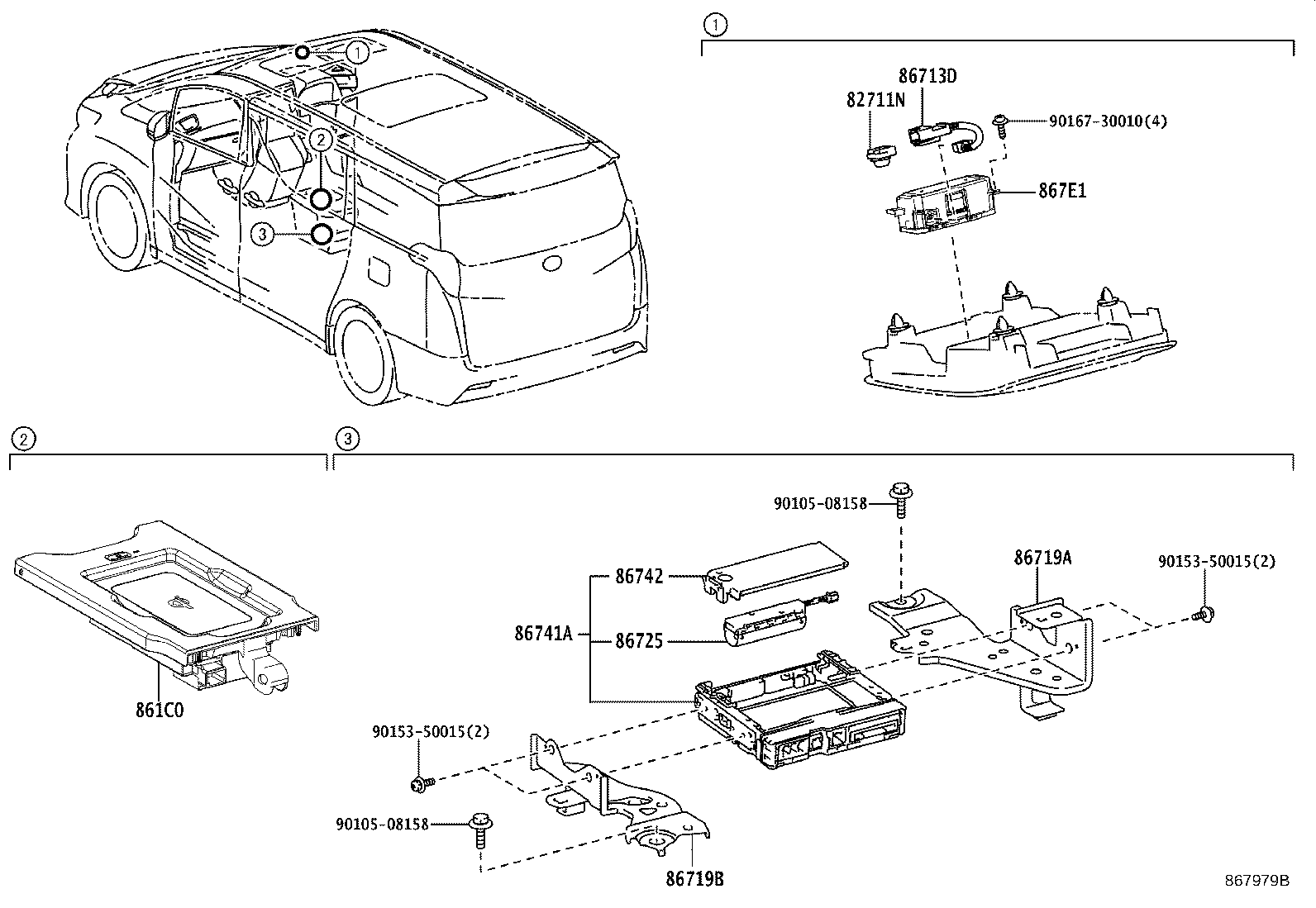

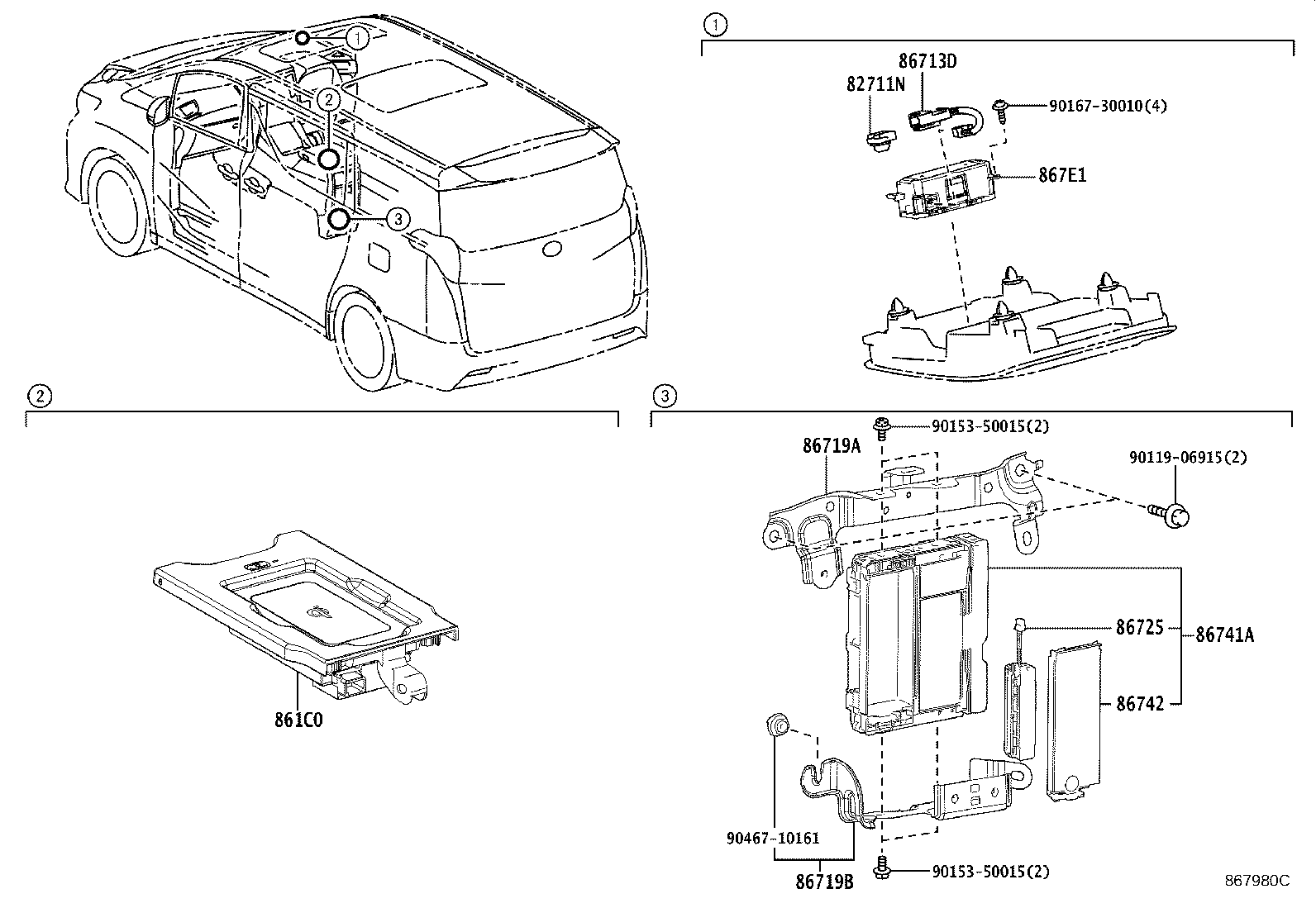

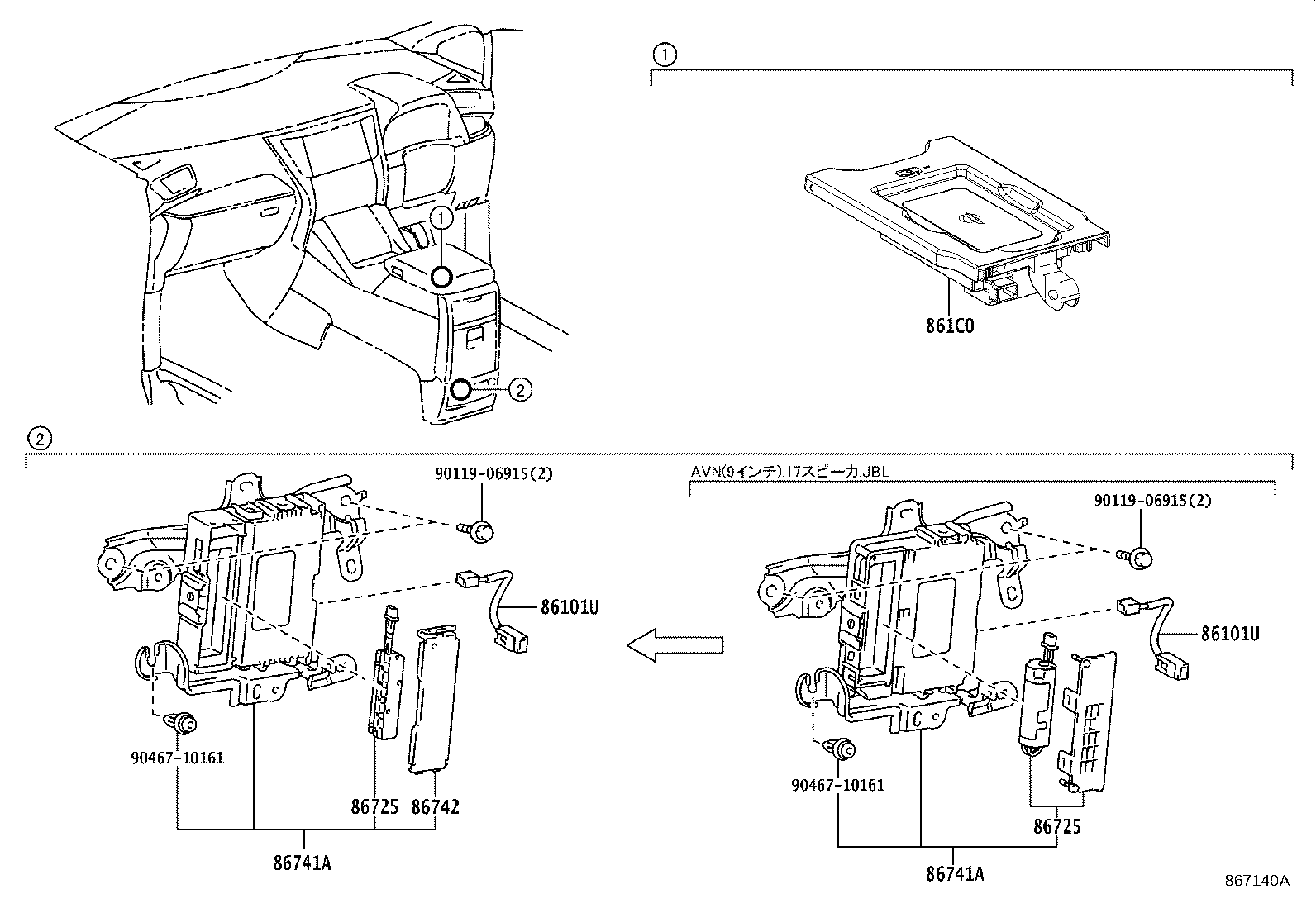

Figure 866028 866028 2015-01 → 2018-01 Figure 867141A 867141A 2018-01 → 2020-01 Figure 867140A 867140A 2018-01 → 2020-01 Figure 867979B 867979B 2020-01 → — Figure 867980C 867980C 2020-01 → —

Part groups

PNCDescription
82711N Clamp, Wiring Harness
86101U Cord Sub-assy, Antenna
861C0 Cradle Assy, Mobile Wireless Charger
86713D Wire, Mayday
86719A Bracket, Telephone NO.1
86719B Bracket, Telephone NO.2
86719C Bracket, Telephone NO.3
86725 Battery, Mobilephone
86741A Transceiver, Telematics
86742 Cover, Transceiver
86777 Battery, Mayday
867E1 Box, Communication Telematics
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
