Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH3#,AYH30,GGH3# · catalogue 713140 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Pre-collision System

5 part groups · 2 illustrations

Illustrations

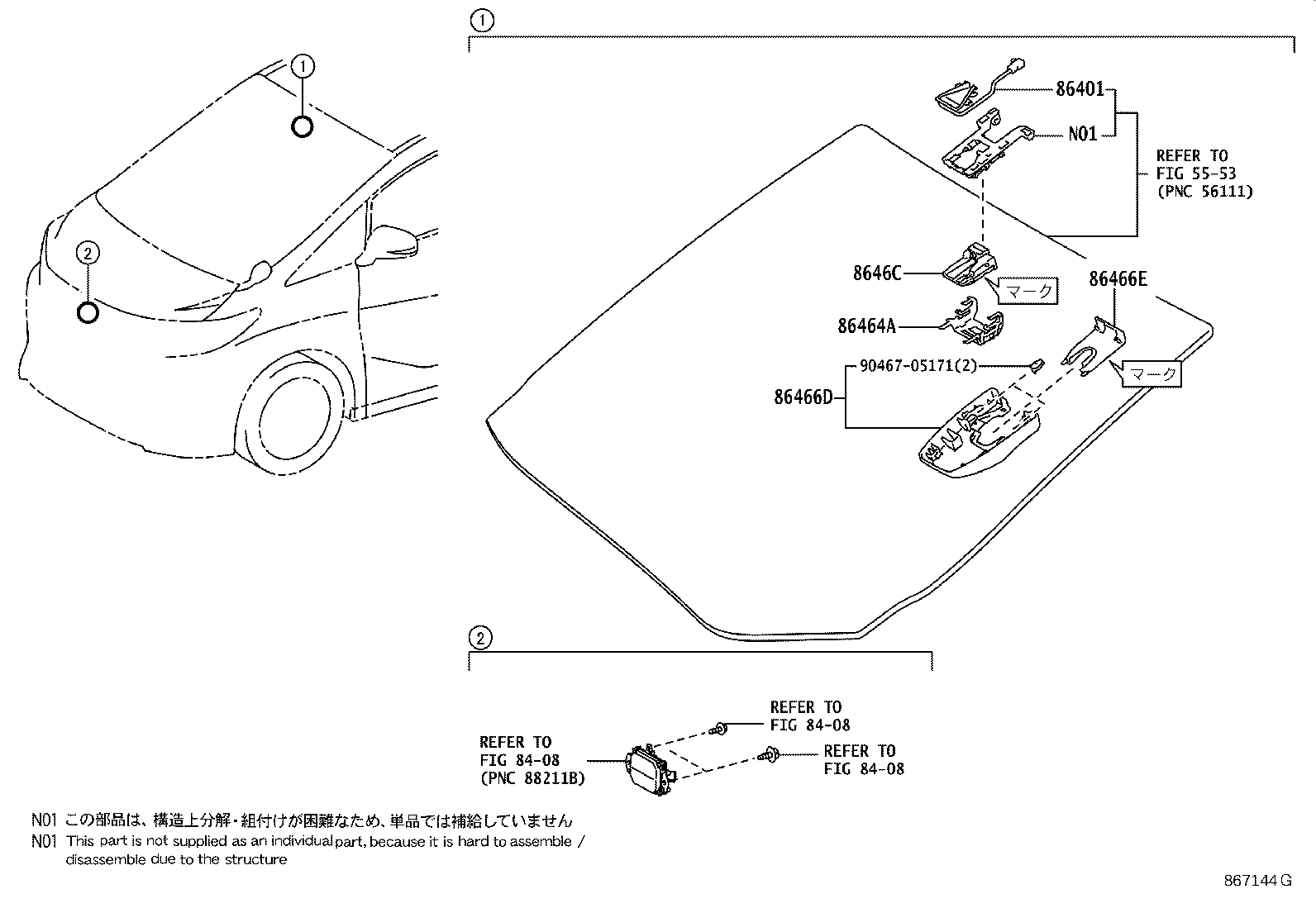

Figure 867217A 867217A 2015-01 → 2018-01 Figure 867144G 867144G 2018-01 → —

Part groups

PNCDescription
86401 Hood Sub-assy, Forward Recognition W/Heater
86464A Latch, Forward Recognition
86466D Cover, Forward Recognition, NO.1
86466E Cover, Forward Recognition, NO.2
8646C Camera, Forward Recognition
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
