Toyota Alphard/Vellfire/HV

2015-01 → present · chassis AGH3#,AYH30,GGH3# · catalogue 713140 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

26 part groups · 10 illustrations

Illustrations

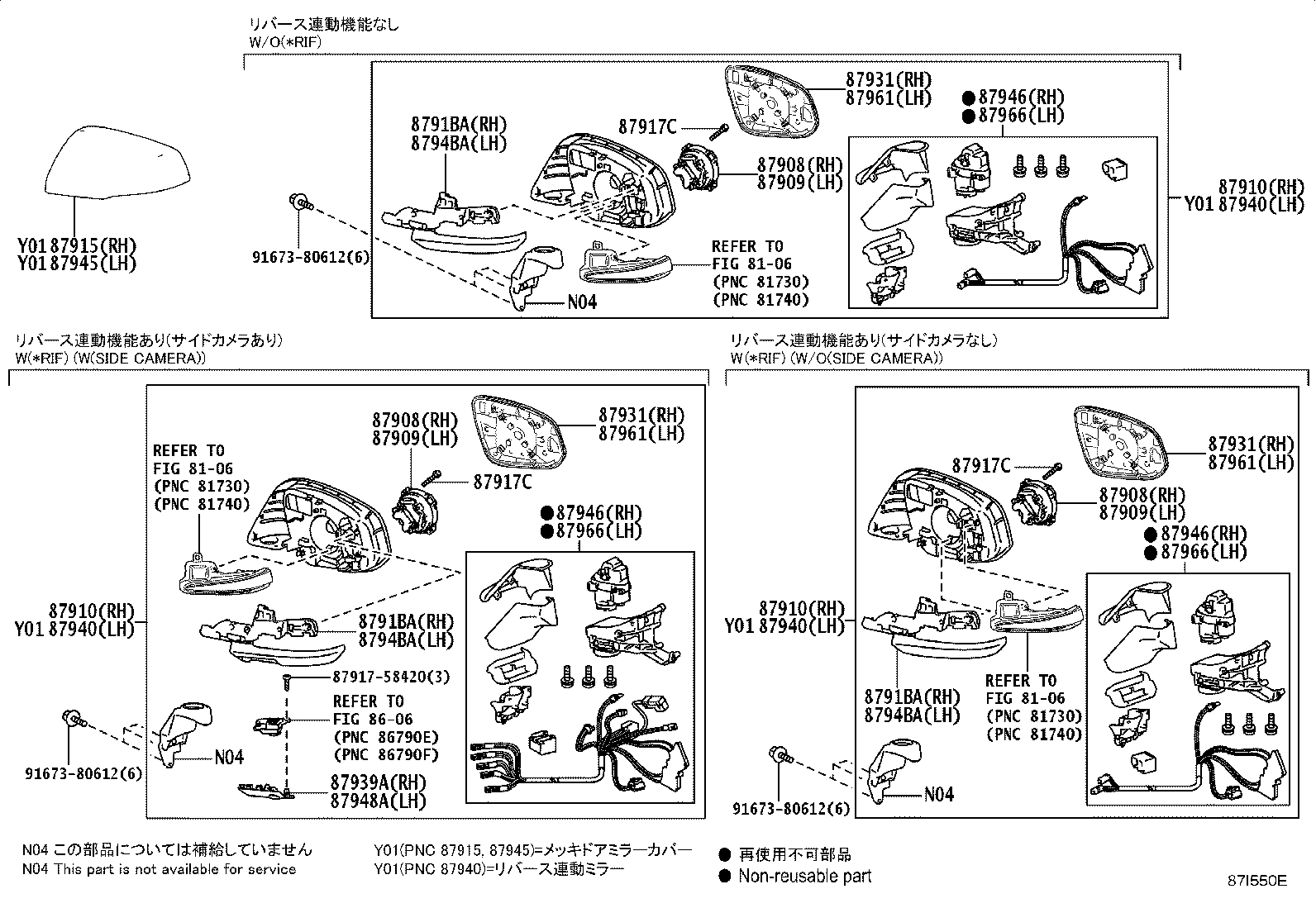

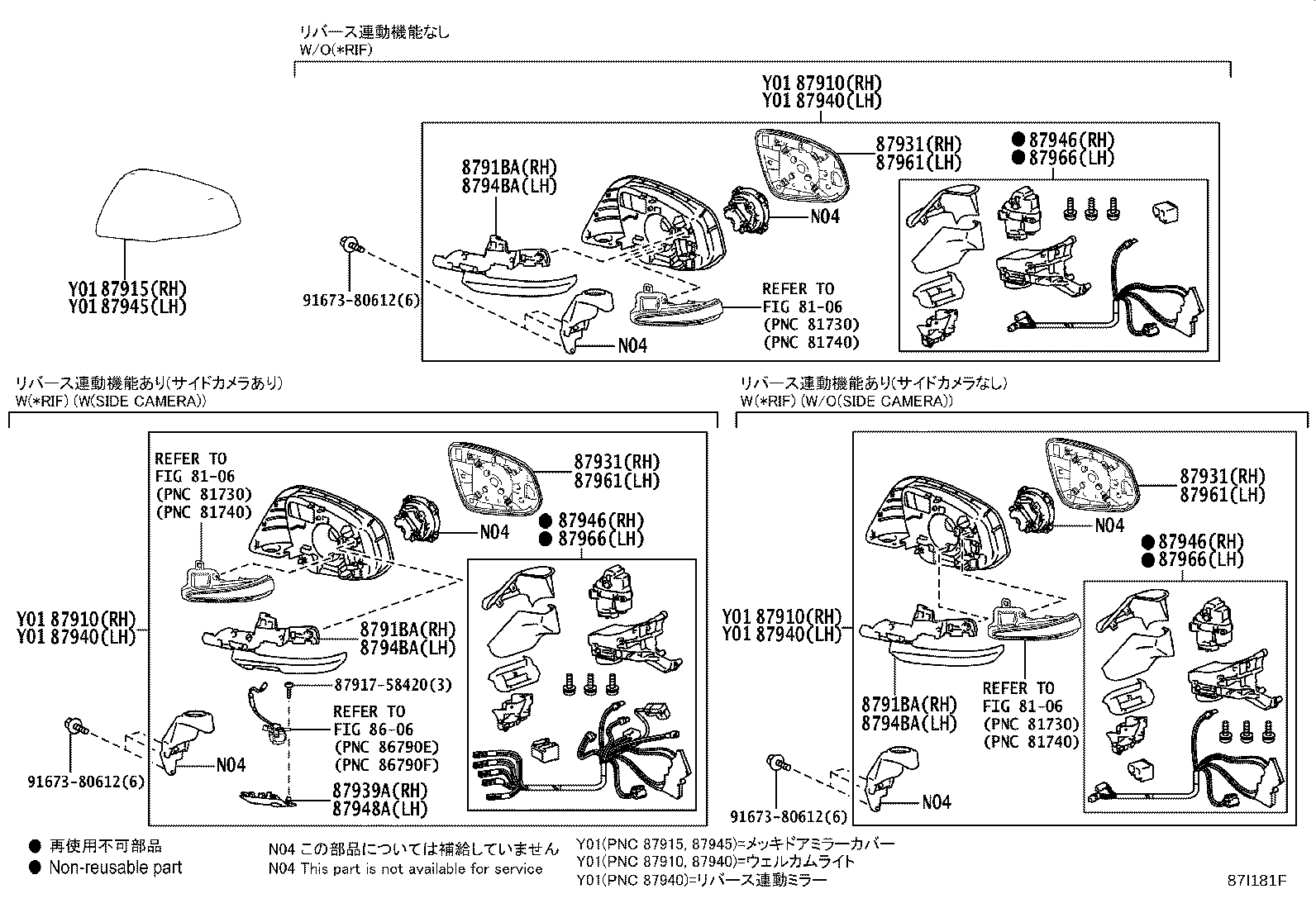

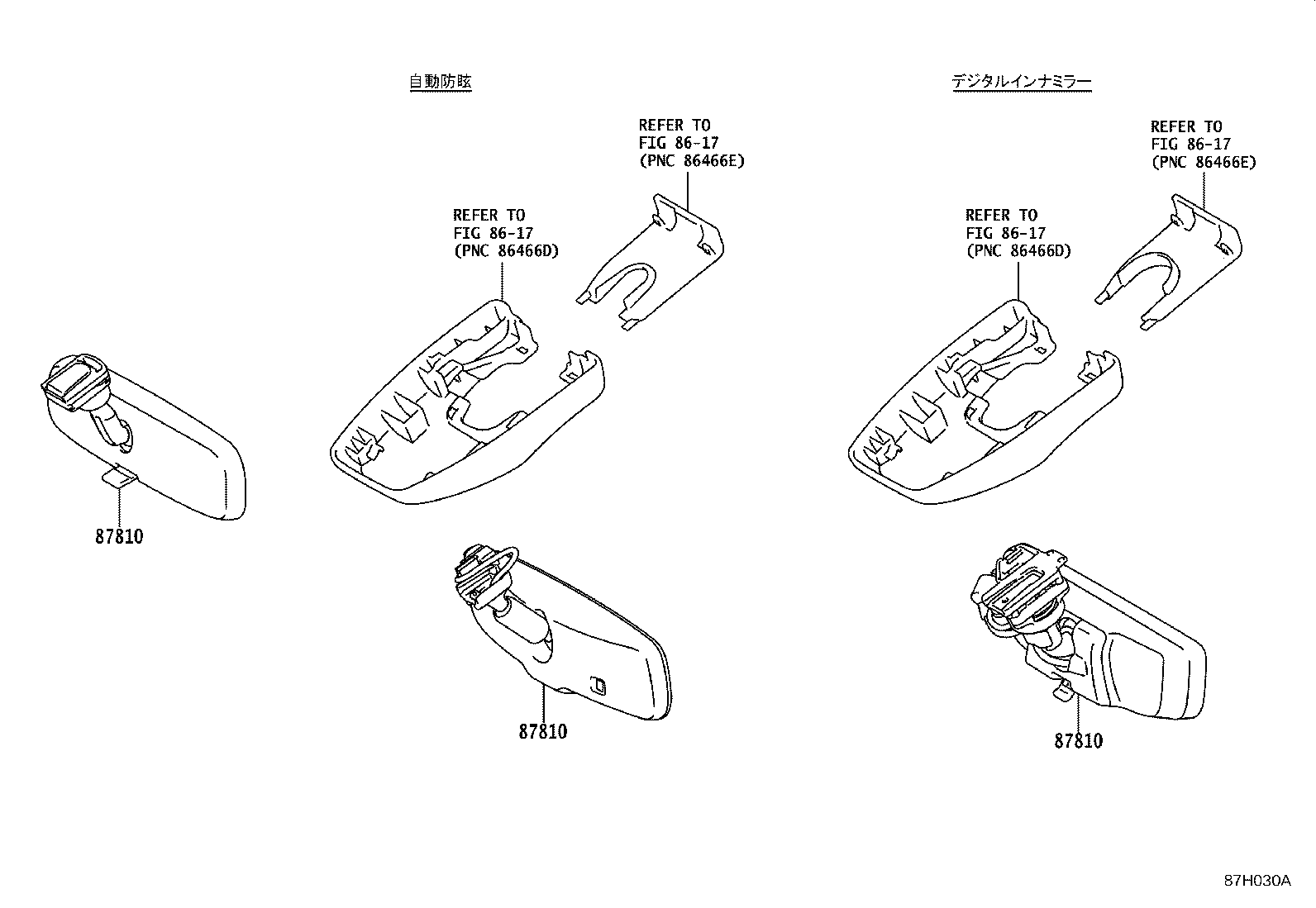

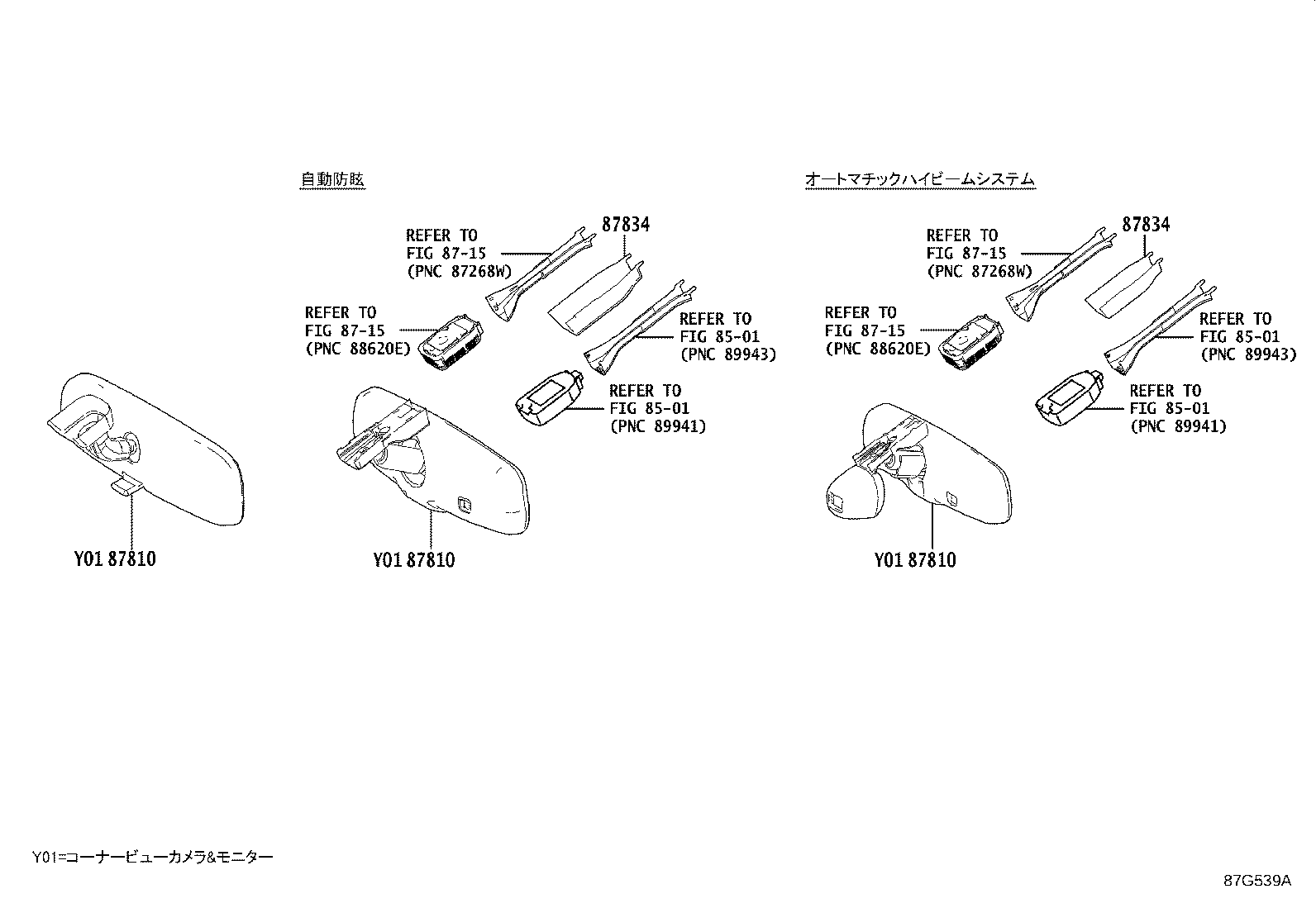

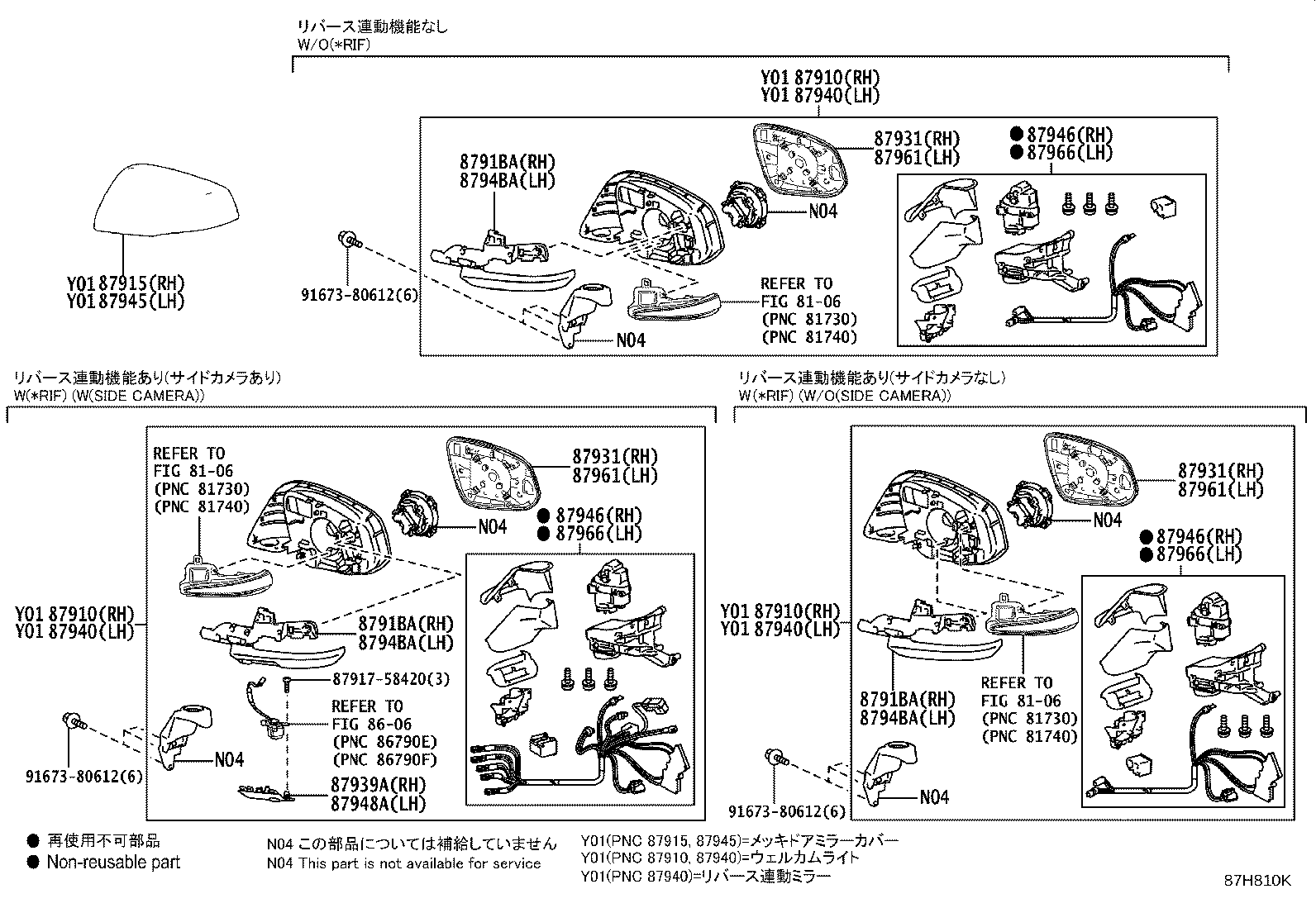

Figure 87E785Q 87E785Q 2015-01 → 2018-01 Figure 87H810K 87H810K 2018-01 → 2019-09 Figure 87I181F 87I181F 2019-10 → 2020-01 Figure 87I550E 87I550E 2020-01 → — Figure 87G539A 87G539A 2015-01 → 2018-01 Figure 87H030A 87H030A 2018-01 → 2020-01 Figure 87I549 87I549 2020-01 → — Figure 87F528B 87F528B 2015-01 → 2020-01 Figure 87F528B 87F528B 2020-01 → — Figure 87L466 87L466 2023-03 → —

Part groups

PNCDescription
87088 Arm Sub-assy, Outer Under Rear View Mirror
87091A Mirror Set, Outer Rear View, NO.2
87810 Mirror Assy, Inner Rear View
87820 Mirror Assy, Vanity
87834 Cover, Inner Rear View Mirror Stay Holder
87907 Mirror Sub-assy, Outer Under View
87908 Actuator Assy, Outer Mirror, RH
87909 Actuator Assy, Outer Mirror, LH
87910 Mirror Assy, Outer Rear View, RH
87915 Cover, Outer Mirror, RH
87917C Screw, Outer Mirror
87917D Clip, Outer Mirror
8791BA Cover, Outer Mirror, RH NO.3
87930 Device Assy, Front Fender Side View, LH
87931 Outer Mirror, RH
87939A Cover, Outer Mirror Hole, RH
87940 Mirror Assy, Outer Rear View, LH
87944 Cover, Front Fender Side View Device, LH
87945 Cover, Outer Mirror, LH
87946 Retractor, Outer Mirror, RH
87948A Cover, Outer Mirror Hole, LH
8794BA Cover, Outer Mirror, LH NO.3
87950 Mirror Assy, Outer Under Rear View
87961 Mirror Outer, LH
87966 Retractor, Outer Mirror, LH
87973 Cover, Outer Under RR View Mirror
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
